ViewSonic IFP7550-R 75" 2160p 4K Interactive Display 20-Point Touch VGA Display-Port HDMI - Certified Refurbished
Description
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard™ IFP7550 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With vBoard™ Embedded software, this 75” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. For more robust annotation options, ViewBoard® Interactive Annotation Software for Windows PC is available via a free download. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This display delivers optional slot-in PC capability for more computing-intensive interactive applications. The IFP7550 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.Ultra HD Resolution
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
20-point Multi-touch Interactive Screen
With a 20-point touch-enabled panel, this display encourages multiple users to simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
Add-on Qwizdom Software
Qwizdom's award-winning Oktopus™ collaboration software allows users to annotate and work over or alongside any application, existing content, or over a web browser. Qwizdom Ximbus™ is a whiteboarding and collaboration solution for Google and features Google Drive™ and Contacts integration. For more powerful teaching and enriched learning, these Qwizdom solutions can be purchased as separate add-ons to the ViewBoard®.
Out-of-Box Collaboration
Integrated with ViewSonic vBoard™ embedded software and ViewBoard® Cast™, as well as Zoom® software, this display delivers out-of-the-box annotation and content sharing capabilities. This display can also be upgraded with Intel® Unite, which can wirelessly and securely display media from any range of devices such as tablets, laptops, and mobile phones.
ViewBoard™ Interactive Annotation Software
For more robust annotation options beyond the embedded vBoard™ software, ViewSonic® ViewBoard® Interactive Annotation Software can be installed via a free download.
Air Class
Multiple choice and text questions can be displayed on the ViewBoard and shared with remote users, who can then answer the questions via mobile devices such as smartphones, tablets, and laptops. The ViewBoard can record the answers and provide statistical results for each device.
Camera Mounting Bracket
For the best presentation experience in meeting rooms, classrooms, lecture halls, or small huddle spaces, use the included camera bracket to easily mount a conference camera, such as a conference camera from our collaborator, Logitech, onto the ViewBoard. This enables video conferencing and recording directly from the display – ideal for communicating with remote users.
Built-in ARM Quad-core CPU with 16GB Storage
Equipped with a powerful quad-core processor and Android OS, this display provides smooth, lightning-fast computing and responsive touch capabilities. 16GB of onboard memory provides ample storage for files and multimedia content.
Dual Integrated Speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound for an immersive multimedia experience. An additional speaker can be added via the SPDIF audio-out port for expanding sound to different locations in the room or venue, via cable.
Optional Dual Band Wireless Module
An optional ViewSonic wireless module delivers fast wireless internet connection via dual frequency 2.4GHz and 5.0GHz bandwidth, along with 802.11 abgn, and Bluetooth 4.0.
Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Versatile Connectivity
HDMI, USB, and VGA connections provide the versatility to connect to a wide variety of computing and multimedia devices.
Specifications
| Display: | |
| Display Size (in.): | 75 |
| Viewable Area (in.): | 00:00 |
| Light Source: | LED |
| Resolution: | 3840 x 2160 |
| Aspect Ratio: | 16:09 |
| Static Contrast Ratio: | 1,200:1 |
| Brightness: | 350 cd/m2 |
| Response Time (Typical GTG): | 8ms |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Panel Surface: | Anti-glare 7H tempered glass |
| Embedded Player: | |
| Android Version: | 5.1 |
| GPU: | ARM Mali450 MP4 |
| CPU: | ARM Cortex A53 Quad Core Processor 1.5GHz |
| Memory: | 2GB |
| Storage: | 16GB |
| Interface: | OSD / Remote Control / Annotation overlay |
| Ethernet LAN: | 10/100 Mbps |
| Audio: | |
| Internal Speakers: | 16W (x2) |

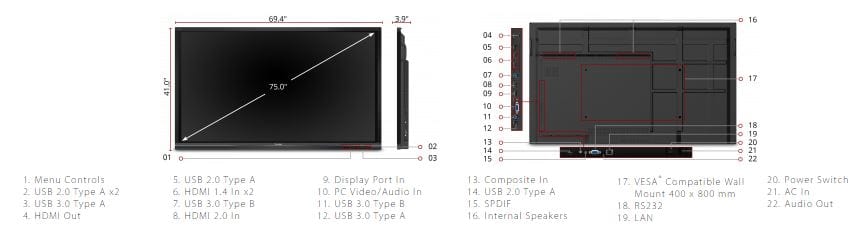

| Connector: | HDMI 1.4(2), HDMI 2.0(1), HDMI Out(1), VGA(1), Display Port(1), Composite RCA(1), 3.5mm Audio In(1), 3.5mm Audio Out(1), SPDIF Audio Out(1), USB 3.0(2), USB 2.0(4), Slot-in PC Slot(1), USB B Touch Port(2), Ethernet LAN (RJ45)(1), WIFI Module Slot(1), Expansion Slot(1) |
| Power: | |
| Voltage: | 100-240 VAC, 50-60Hz |
| Consumption With Slot-In PC (typical): | 387W |
| Consumption Without Slot-In PC (typical): | 292W |
| Stand-by: | <0.5W |
| Controls: | |
| On Screen Display: | Input, Volume, Backlight, Audio, Screen, Display, Adjust |
| Remote Control: | Volume, Channel, Source, Mute, Back, Input, Menu |
| Operating Conditions: | |
| Temperature: | 32-104º F (0 - 40º C) |
| Humidity (non-condensing): | 10-90% |
| Touch: | |
| Touch Technology: | Infrared |
| Touch Points: | 20-Point Touch |
| Weight (metric): | |
| Net (kg): | 58.5 |
| Gross (kg): | 76 |
| Weight (imperial): | |
| Net (lbs): | 128.97 |
| Gross (lbs): | 167.55 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 1919 x 1225 x 280 |
| Physical (mm): | 1763 x 1042 x 99 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 75.3 x 48.2 x 11.0 |
| Physical (in.): | 69.4 x 41.0 x 3.9 |
| Mount: | |
| VESA Compatible: | 800 x 400 mm |
| Additional Hardware: | |
| Camera Mounting Bracket: | 1 |
| General: | |
| Warranty: | Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes. |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Package Contents: | IFP7550 display, stylus pen x 3, power cable, remote control with batteries, ViewSonic Wizard CD (User Guide), Quick Start Guide, USB cable, audio cable, camera bracket, VGA cable, power cords |
| Regulations: | cTUVus, FCC, Mexico Energy, CE, CB, RoHS, ErP, WEEE |
| UPC: | 766907901610 |
| Accessories: | , CD-EW-70-01, CD-EW-70-02, Intel Unite, LB-STND-003, LB-STND-005-3, LB-WIFI-001, LB-WIFI-001-S, NMP250-WL, NMP250-WU, NMP620-P10, NMP620-P10X, NMP660, NMP709-P10_1, NMP709-P10_3, NMP709-P10_5, STND-047, SW-020, SW-050, SW-051, SW-071, SW-071-2, SW-072, SW-072-2, SW-073, SW-073-2, SW-074, SW-074-2, SW-075-2, SW-110, SW-111, SW-115, SW-UP-117, VB-STND-001, VB-STND-002, VB-STND-003, VB-STND-004, VB-VIS-001, VC10, VCB10, VPC01-AN, VPC10-WP, VPC10-WP-2, VPC10-WP-4, VPC10-WP-S, VPC14-WP, VPC14-WP-2, VPC14-WP-4, VPC14-WP-5, WMK-047, WMK-047-2, WMK-054, myViewBoard for Windows |
