Description
The CP850AVRLCD Intelligent LCD UPS from CyberPower has a capacity of 850VA/510W, nine (9) NEMA 5-15R receptacles, including five (5) fail-safe outlets for critical loads. This UPS system is ENERGY STAR qualified and its main objective is to provide battery backup in the event of brownouts or blackouts. The multifunction LCD panel displays real-time UPS vitals for ease of control. It offers connectivity via one (1) HID USB and one (1) serial port, as well as protection for phone/network (RJ-11/RJ-45) and cable/coax (RG-6). It has one (1) maintenance-free, user-replaceable 12V/8.5Ah battery and includes EMI/RFI filters to increase the immunity of the load to disturbances and surges.
Features
- 850VA / 510W Simulated Sine Wave UPS

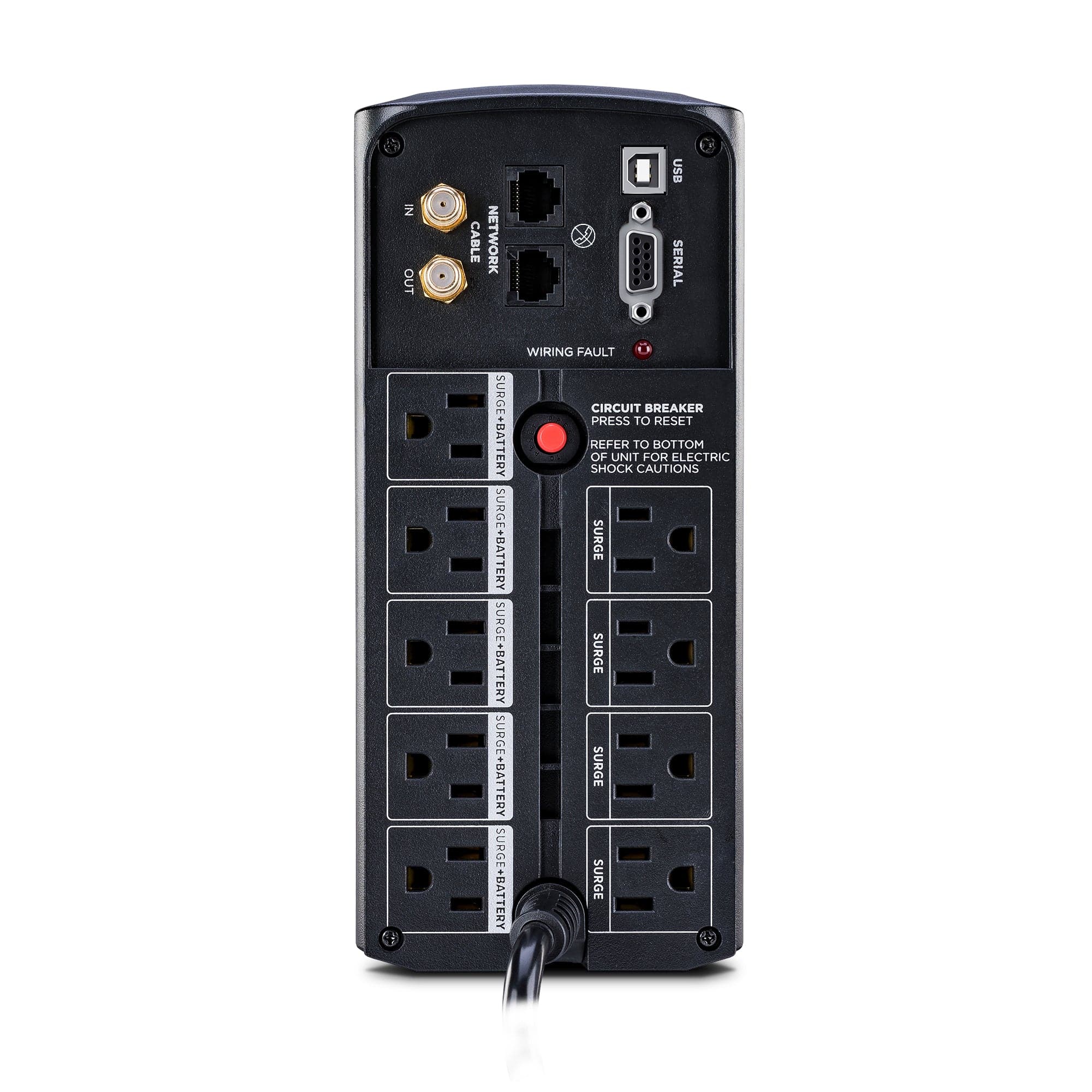

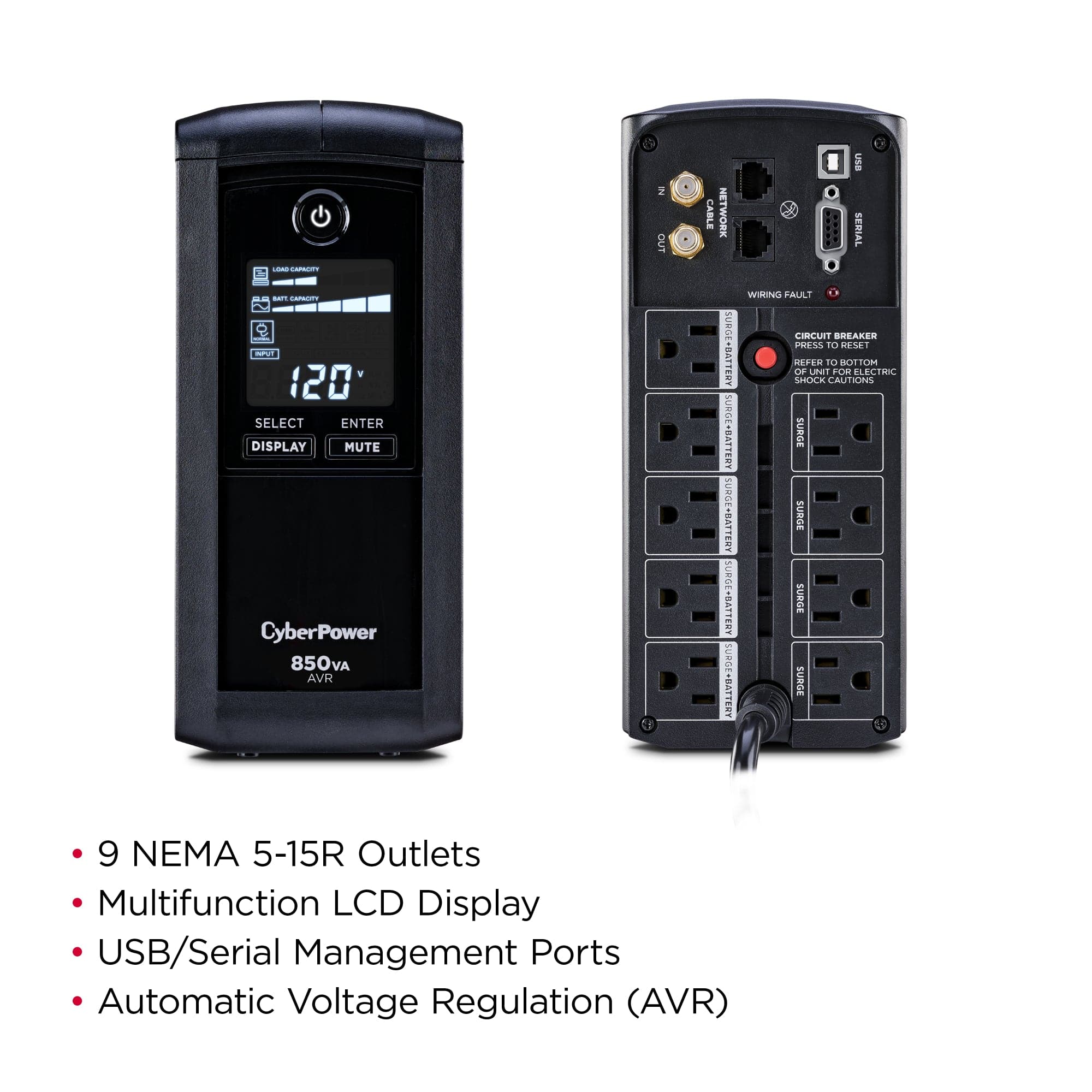

- 9 Outlets / USB and Serial Ports
- AVR & GreenPower UPS
- EMI/RFI Filters
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Automatic Voltage Regulation (AVR)
AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.

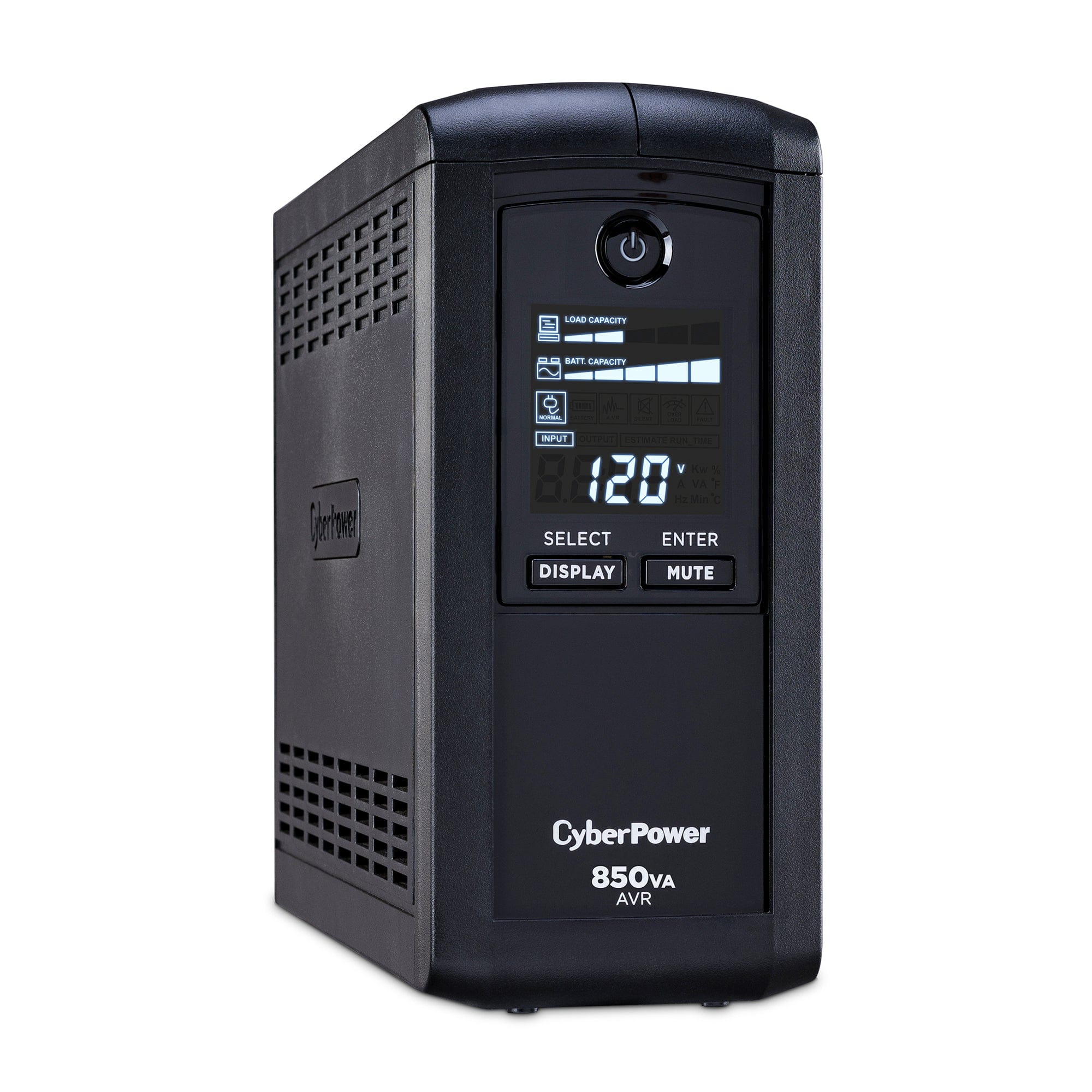

Multifunction LCD
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Data Line Protection
Prevents power surges that travel through coaxial and Ethernet lines from causing damage to electronics.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Simulated Sine Wave Output
Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
GreenPower UPS Bypass Design
A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
Specifications
|
General
|
|
| Total Outlets | 9 |
| Protected Outlets | 5 (Battery and Surge) |
| 4 (Surge Only) | |
| Plug Type | NEMA 5-15P Right-Angle |
| Communications | Serial via DE-9/DB-9 |
| USB via Type-B | |
| Topology | Line Interactive |
| Transfer Time | 4 ms |
|
Power
|
|
| Surge Energy Rating | 1080 Joules |
| Maximum Wattage | 510 W |
| Input Voltage Adjustable Range | 90 to 140 VAC |
| Input Frequency | 60 Hz ± 3 Hz |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 60 Hz ± 1% |
| Load Capacity | 850 VA |
| Waveform | Simulated Sine Wave |
|
Battery
|
|
| Cells | 1 |
| Battery Capacity | 102 VAh |
| Chemistry | Lead-Acid |
| Full-Load Runtime | 1 Minute |
| Half-Load Runtime | 7 Minutes |
| Recharge Time | 8 Hours |
| User Replaceable | Yes |
| Replacement Battery | RB1280A |
|
Environmental
|
|
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Operating Humidity | 0 to 95% |
| Certifications | RoHS |
| *as per Manufacturer | |
|
Physical
|
|
| Cable Length | 6' / 1.8 m |
| Rackmount Size | None |

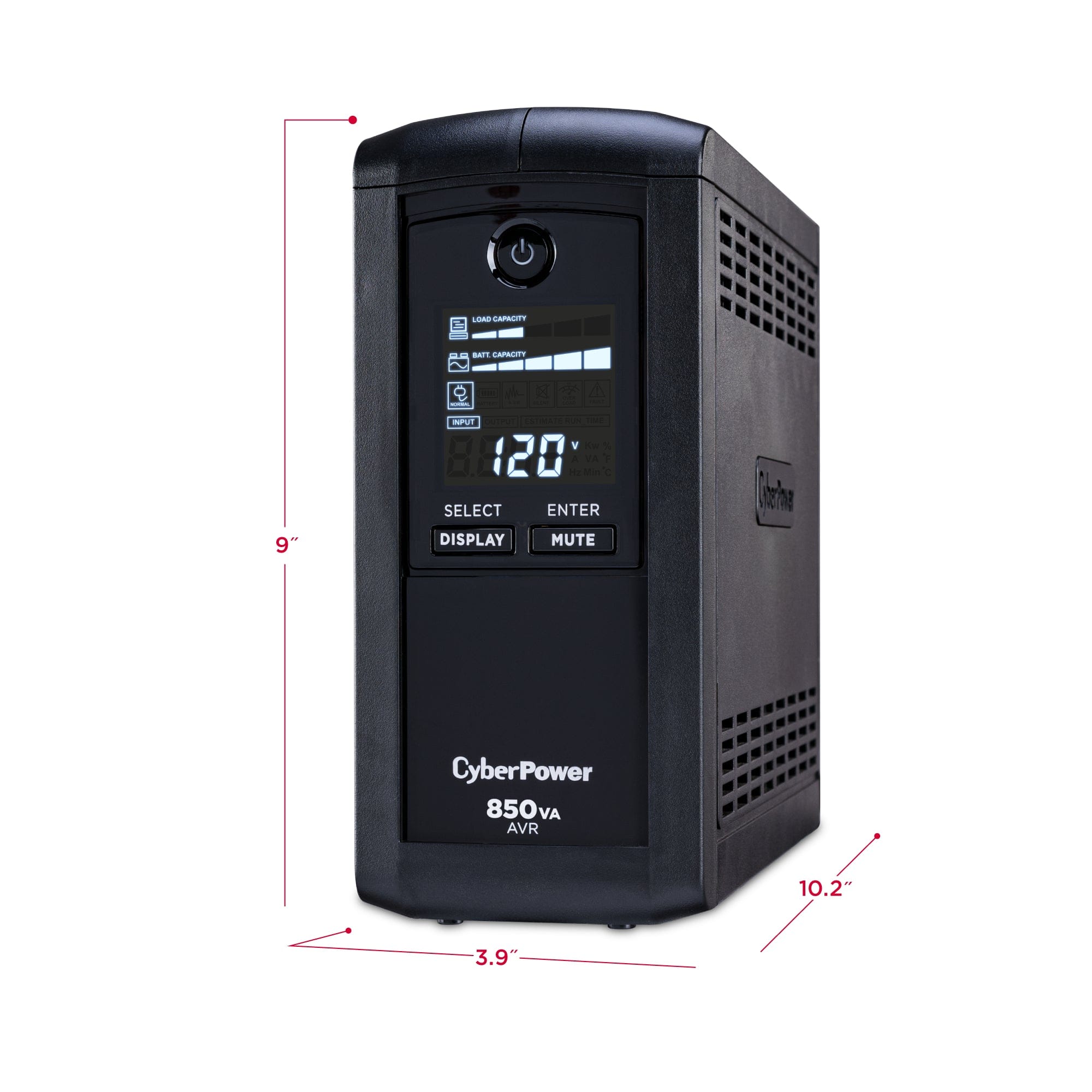

| Dimensions (W x H x D) | 4.3 x 8.8 x 10.5" / 109.2 x 223.5 x 266.7 mm |
| Weight | 16 lb / 7.3 kg |
|
Packaging Info
|
|
| Package Weight | 16.5 lb |
| Box Dimensions (LxWxH) | 15 x 11.8 x 7.3" |
