Description

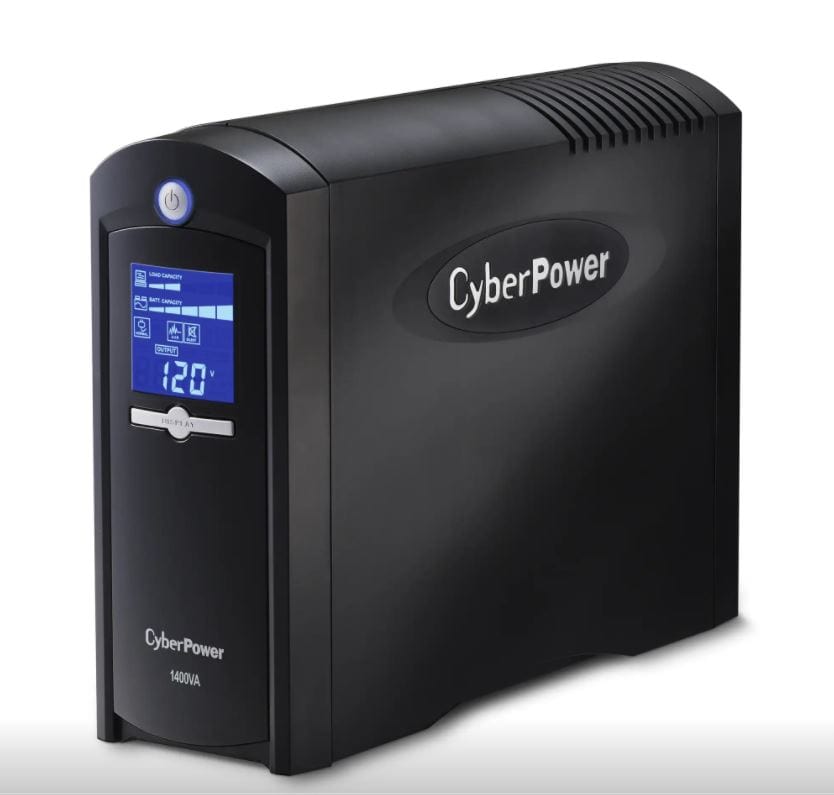

A mini-tower UPS with line interactive topology, the CyberPower CST1400G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CST1400G uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Features
- 1400VA / 840 Watts; delivers constant power supply to keep all your critical server, network, and telecommunications equipment running
- 8 Outlets; allows your system to protect multiple devices simultaneously
- Audible alarms and LEDs; allows you to know if the battery is low or if there is an overload condition
- AVR; helps to adjust both low and high voltages to safe levels
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS™ Bypass
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

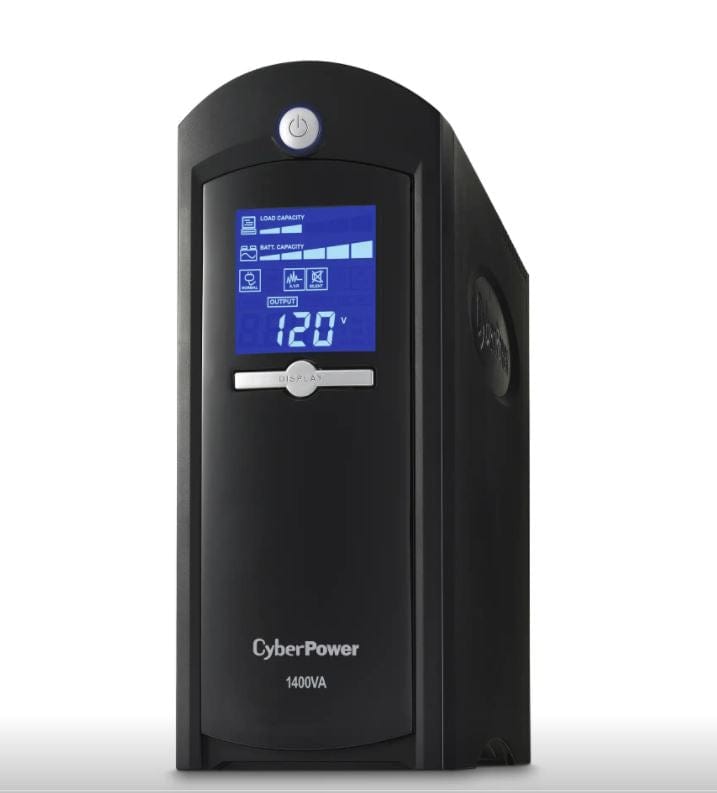

Multifunction LCD Panel
Displays immediate, detailed information on the battery backup and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel® Personal Edition Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.
ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Specifications
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass |
| ENERGY STAR® Qualified | Yes |
| Input | |
| Voltage | 90Vac – 140Vac |
| Frequency | 60Hz ± 3Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle |
| Cord Length | 6′ |
| Output | |
| VA | 1,400 |
| Watts | 840 |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Frequency | 60Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |

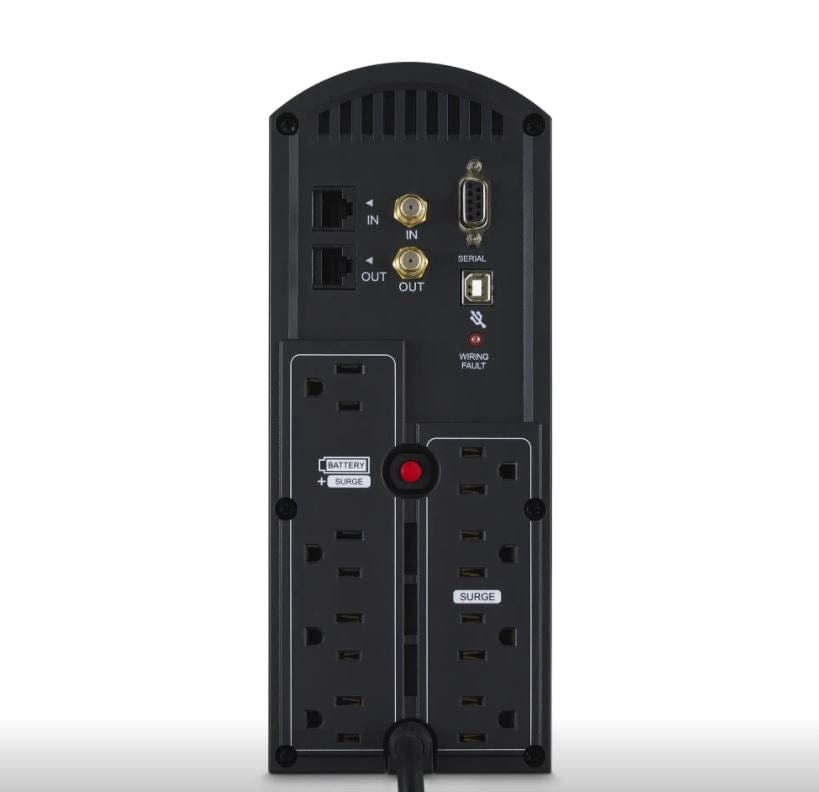

| Outlet Type | NEMA 5-15R |
| Outlets – Total | 8 |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Surge-Only Protected | 4 |
| Outlets – Widely Spaced | 1 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer Time | 4ms |
| Battery | |
| Runtime at Half Load (min) | 11 |
| Runtime at Full Load (min) | 3 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/8AH |
| Battery Quantity | 2 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,500 Joules |
| Maximum Surge Current | 105,000 Amps |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| Multifunction LCD Panel | Toggle Status Display includes: |
| Current/Load Level | |
| Runtime | |
| Battery Level | |
| AVR In Use | |
| Battery In Use | |
| Input Voltage | |
| Output Voltage | |
| Output Frequency | |
| Overload | |
| Wiring Fault | |
| Silent Mode | |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | On Battery, Low Battery, Overload |
| Software | PowerPanel® Personal Edition |
| Physical | |
| Form Factor | Mini-Tower |
| Dimensions – W×H×D (in) | 4 × 9.75 × 13.25 inches |
| Weight (lbs) | 25.0 lbs |
| Environmental | |
| Operating Temperature | 32 °F to 95 °F / 0 °C to 35 °C |
| Operating Humidity | 0% – 95% non-condensing |
| Certifications | |
| Safety | UL1778, cUL 107.1, FCC DOC Class B |
| Environmental | RoHS Compliant |
