Description
Protect and safely power-down up to 375W of equipment with the 650VA 8-Outlet UPS System from CyberPower. The UPS sports eight NEMA 5-15R outlets as well as a right-angled NEMA 5-15P plug, which provides a better fit in tight spaces than a straight plug design. The eight outlets deliver a surge rating of 890 joules, and four of these outlets are powered by an internal battery that grants connected-equipment a full-load runtime of up to 2 minutes in the event of a power failure. Other notable features include onboard LED indicators and audible alarms to alert you when a situation does occur. In addition, the UPS comes with EMI/RFI filtration and phone protection.
Features
- Output: 375 Watts / 650 VA
- Input: 140V
- 4 x Battery Powered Outlets
- 8 x NEMA 5-15R Outlets
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails; thereby, preventing loss of data and minimizing component stress caused by a hard shutdown
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
Data Line Protection

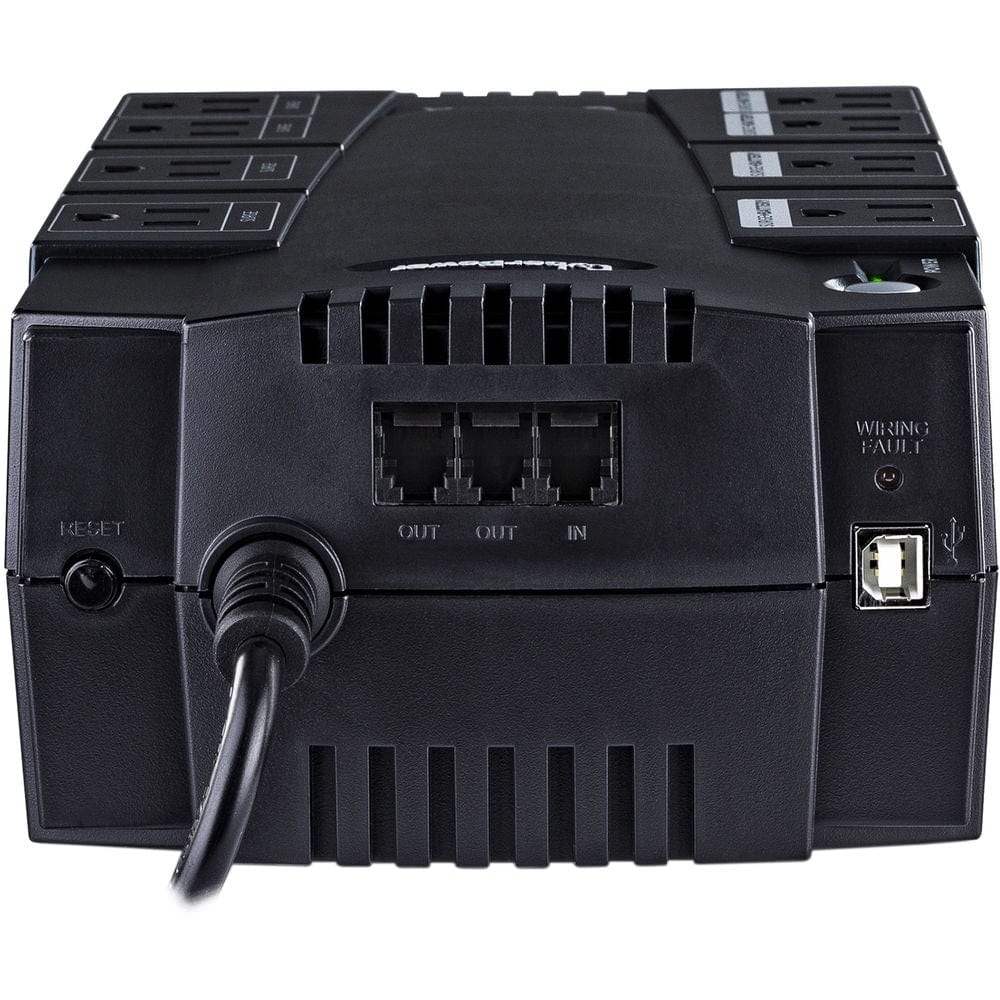

RJ-11 ports (1 in / 2 out) provide surge protection for telecommunications devices, such as phones and DSL modems
Standby Topology
Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output
GreenPower UPS High-Efficiency Design
Reduces power consumption, utilizing a compact charger and power inverter to create an efficient backup power system for home and office use
Quiet Design
Minimizes noise during operation for a quieter work environment
PowerPanel Personal Edition Software
Provides a free, downloadable software program that features a user-friendly dashboard interface for controlling and monitoring the UPS
Specifications
|
General
|
|
| Total Outlets | 8 x NEMA 5-15R |
| Protected Outlets | 4 (Battery and Surge) |
| 4 (Surge Only) | |
| Plug Type | NEMA 5-15P Offset Right-Angle |
| Data Line Protection | RJ11 |
| Communications | USB via Type-B |
| Topology | Standby |
|
Power
|
|
| Surge Energy Rating | 890 Joules |
| Maximum Wattage | 375 W |
| Input Voltage Range | 96 to 140 VAC |
| Load Capacity | 650 VA |
| Circuit Breaker Rating | 15 A |
| Waveform | Simulated Sine Wave |
|
Battery
|
|
| Cells | 1 |
| Battery Capacity | 55 VAh |
| Chemistry | Lead-Acid |
| Full-Load Runtime | 2 Minutes |
| Half-Load Runtime | 8 Minutes |
| Charging Time | 8 Hours |
|
Environmental
|
|
| Certifications | RoHS, as per Manufacturer |
|
Physical
|
|
| Cable Length | 5' / 1.5 m |
| Rackmount Size | None |
| Dimensions (W x H x D) | 9.8 x 6 x 3" / 24.9 x 15.2 x 7.6 cm |
| Weight | 6 lb / 2.7 kg |
|
Packaging Info
|
|
| Package Weight | 7.12 lb |
| Box Dimensions (LxWxH) | 14.9 x 8.45 x 5.25" |
