Description

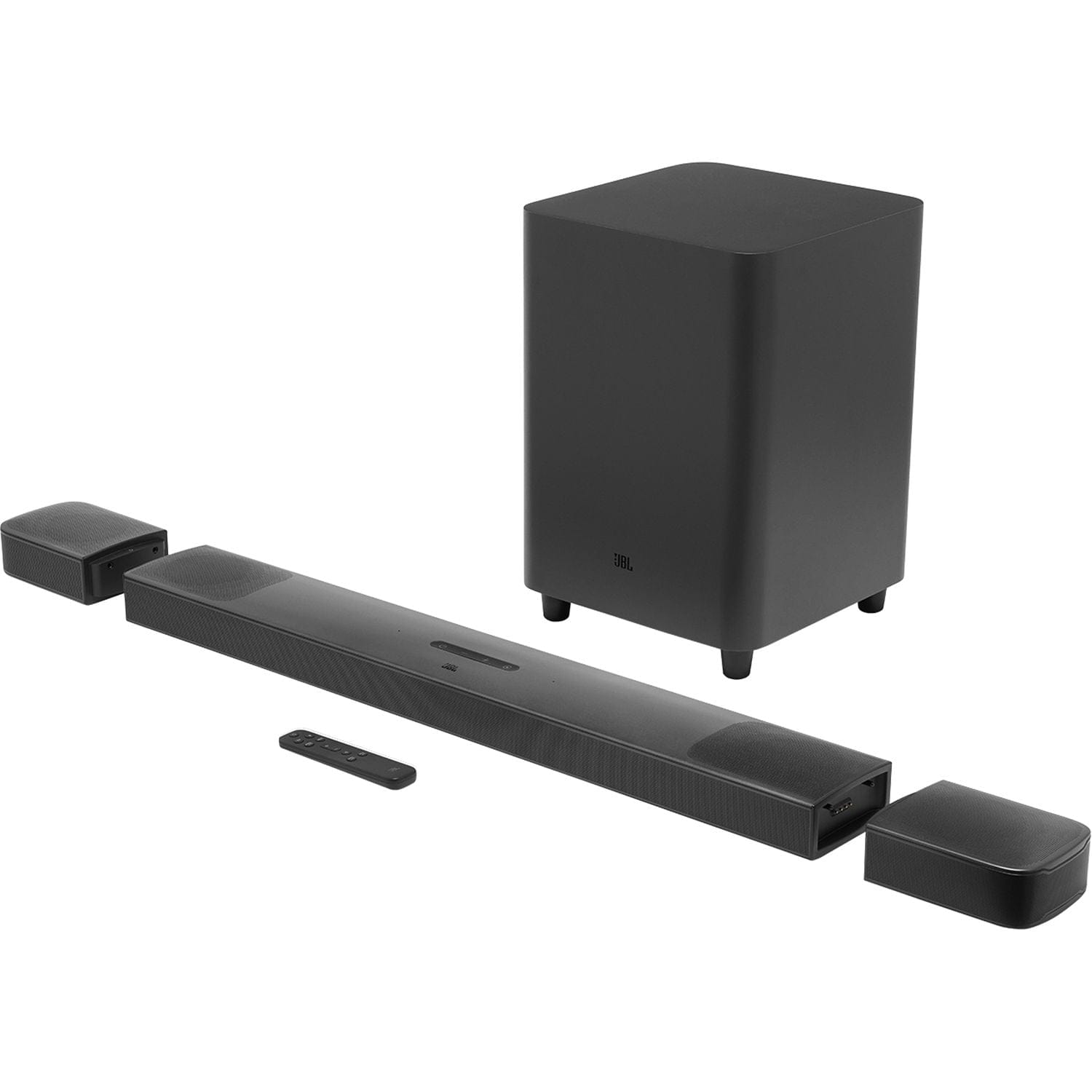

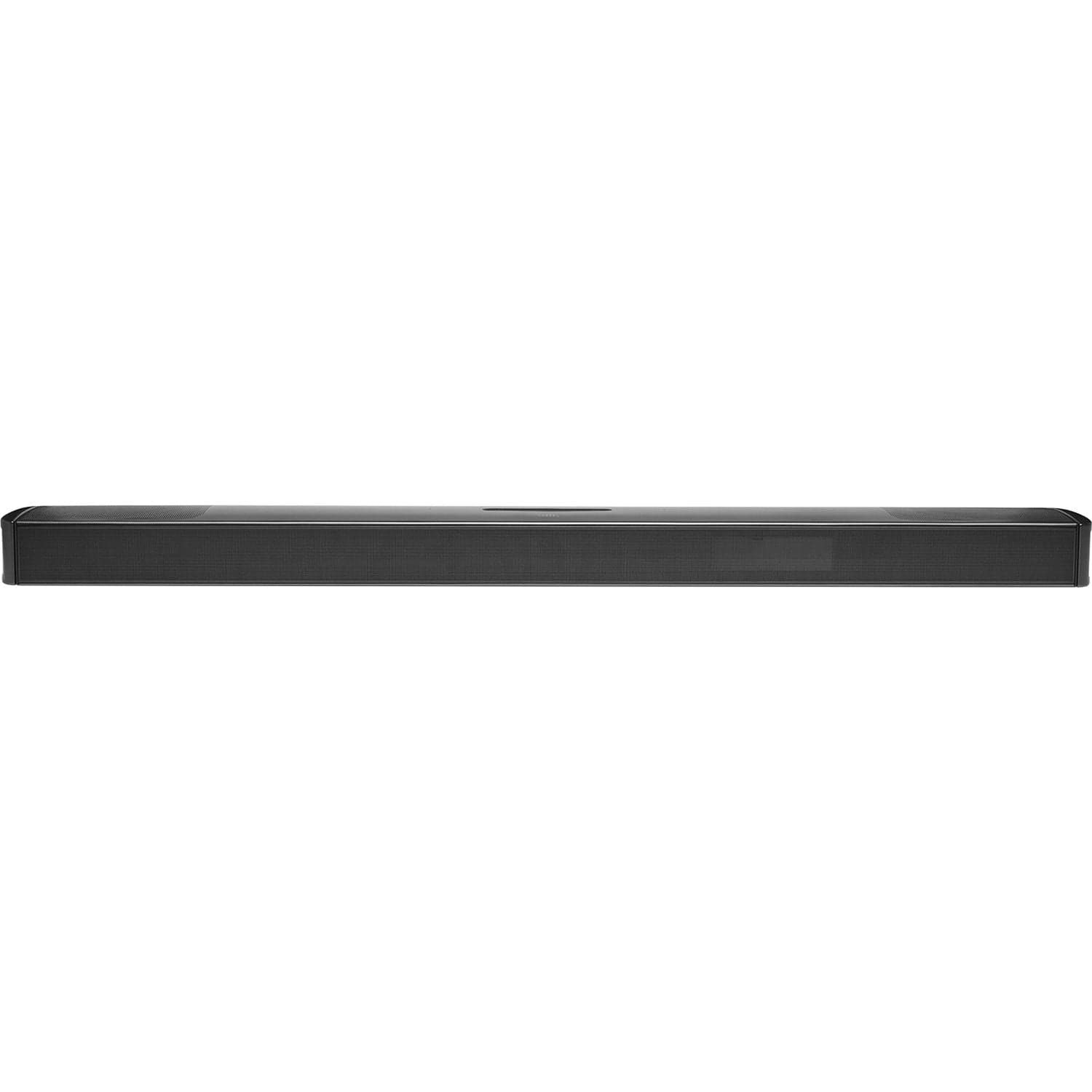

Achieve enhanced sound compared to your display's speakers wirelessly with the JBL Bar 9.1 820W 5.1.4-Channel Soundbar System. It delivers up to 820W of total power and includes a 10" wireless subwoofer to deliver more powerful sound than your display can produce. The two wireless satellite speakers have built-in rechargeable batteries that provide up to 10 hours of use between charges; just dock them onto the sides of the soundbar to recharge them. Bluetooth, AirPlay 2, and Chromecast built-in connectivity allows for wireless audio streaming from compatible devices such as smartphones and tablets. The soundbar and satellite speakers are equipped with up-firing speakers to provide 3D audio from Dolby Atmos and DTS:X sources. The Bar 9.1 is equipped for wired connectivity as well, with HDMI, optical, and USB inputs, plus an HDMI output that is eARC-compatible for display-based audio, such as built-in apps. The HDMI ports support 4K video pass-through thanks to HDCP 2.3 compliance. In addition to tabletop placement, the soundbar and satellite speakers can be wall-mounted with the included hardware.
Features
- 5.1.4-Channel Configuration
- Up to 820W of Total Power
- Bluetooth, AirPlay 2, and Chromecast
- Rechargeable Wireless Surround Speakers
Designed to Provide an Enhanced 3D Sound Experience
Dolby Atmos and DTS:X decoding is built-in, and the four up-firing speakers bounce sound off your ceiling and back to you to provide a 3D sound experience.

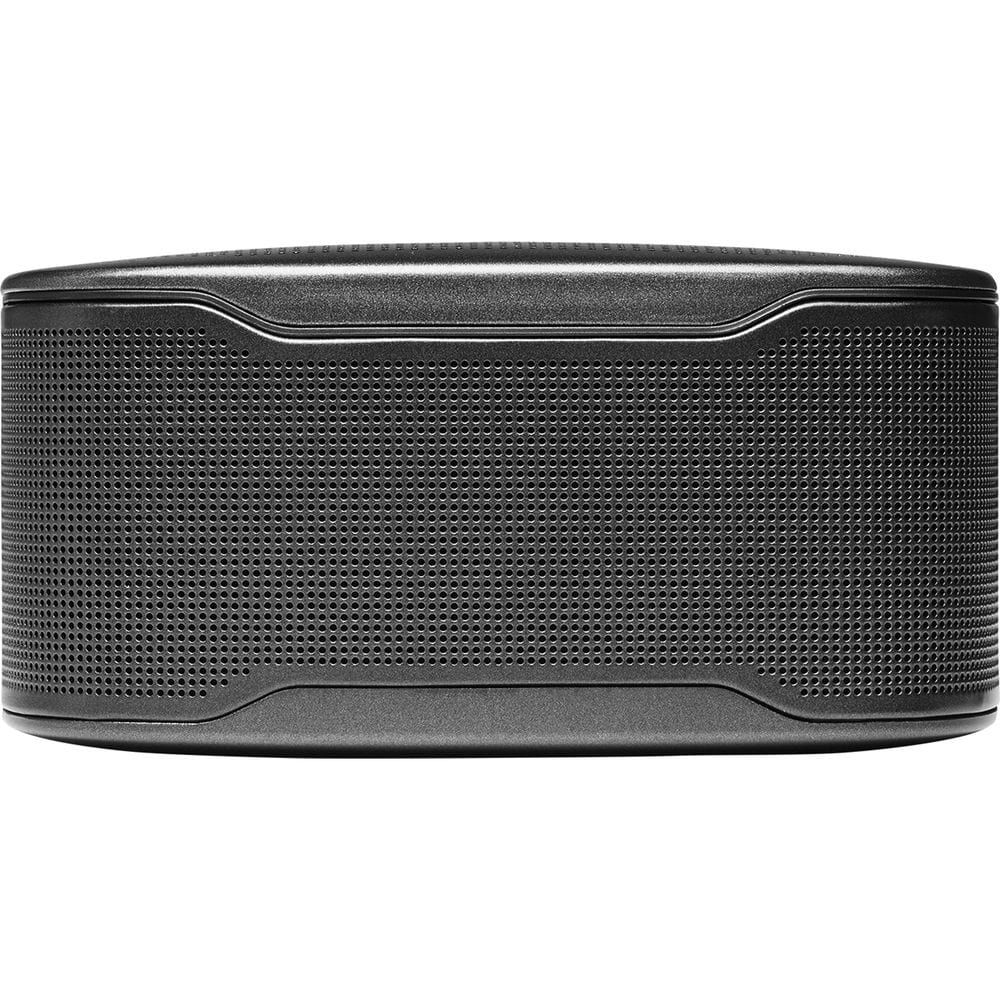

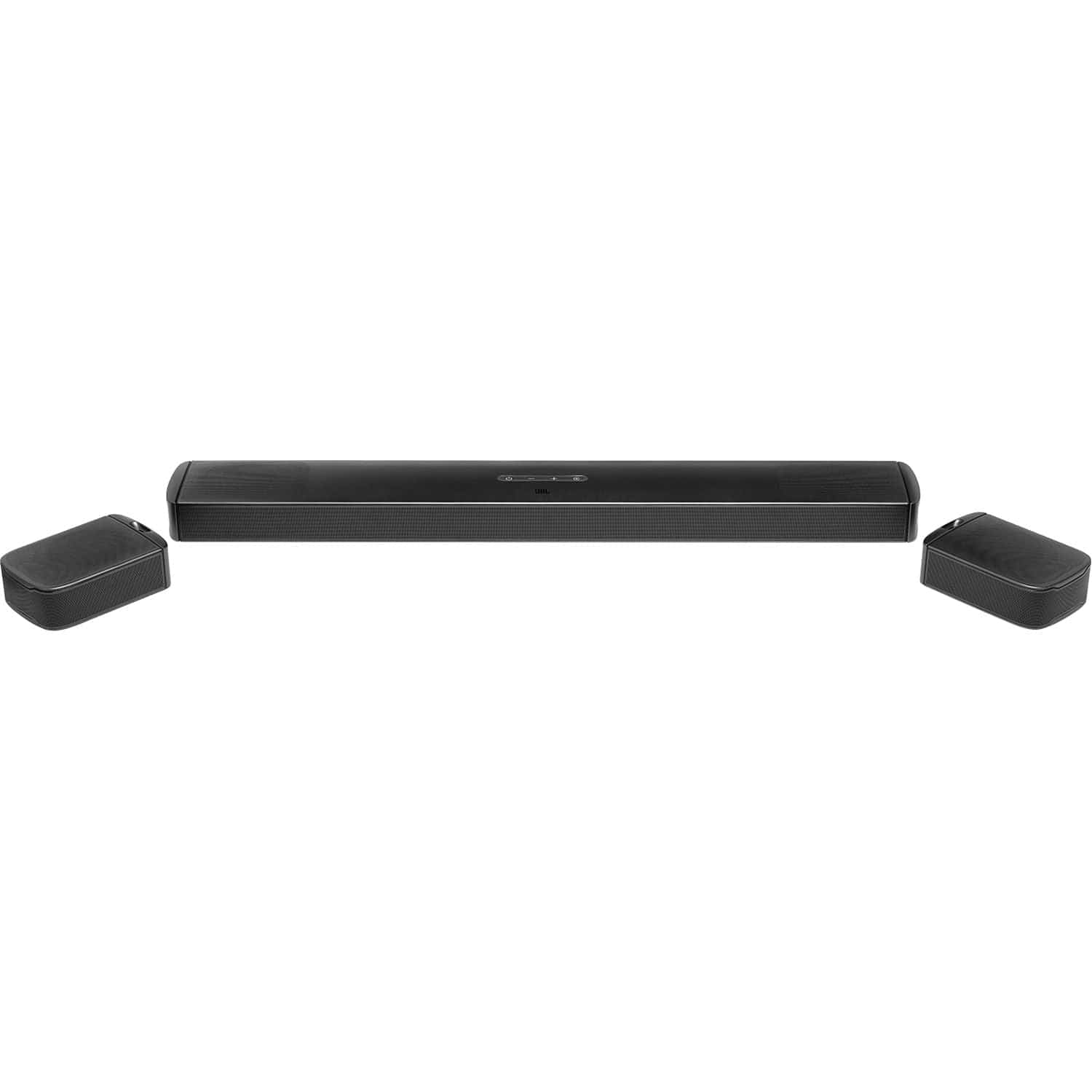

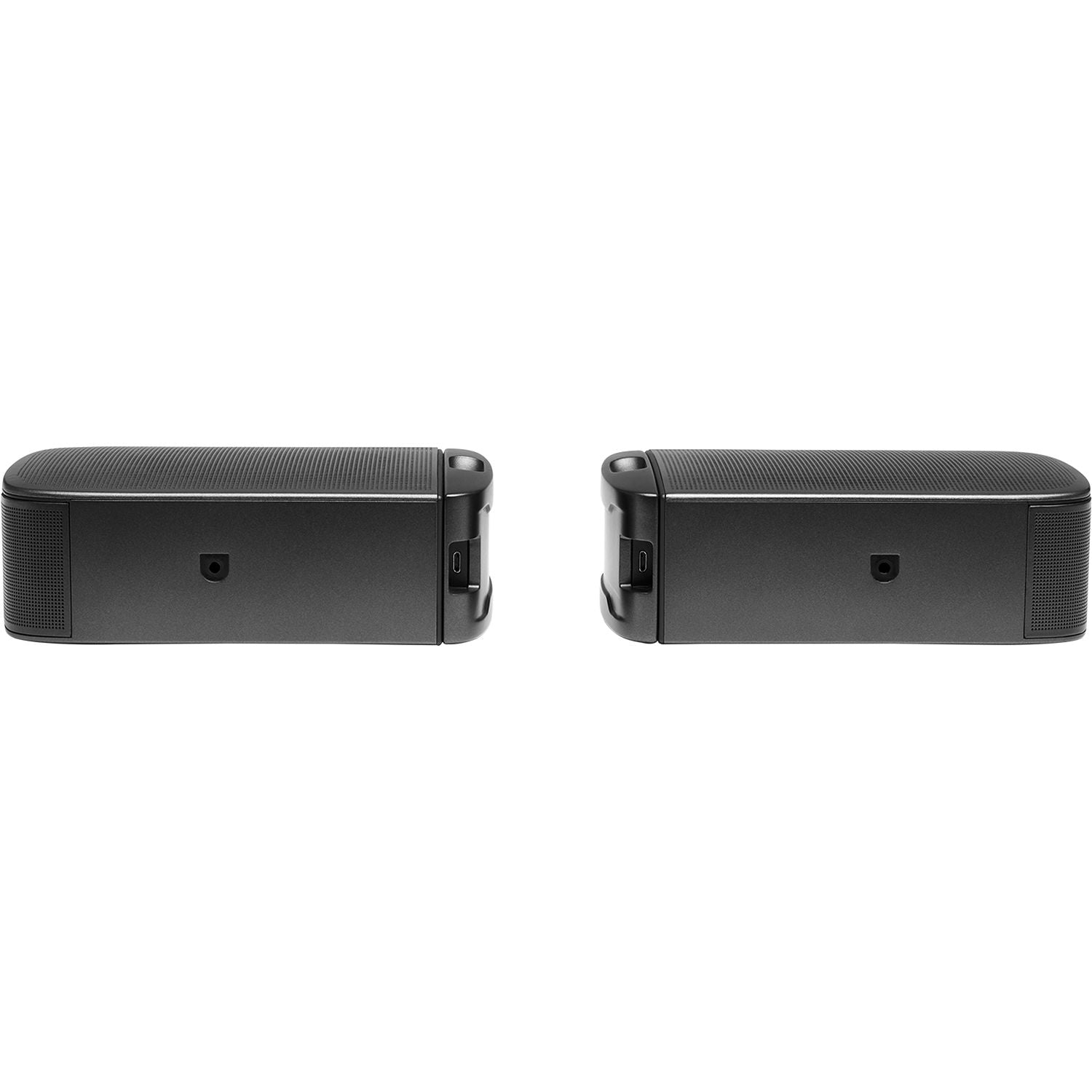

Detachable, Battery-Powered Wireless Surround Speakers

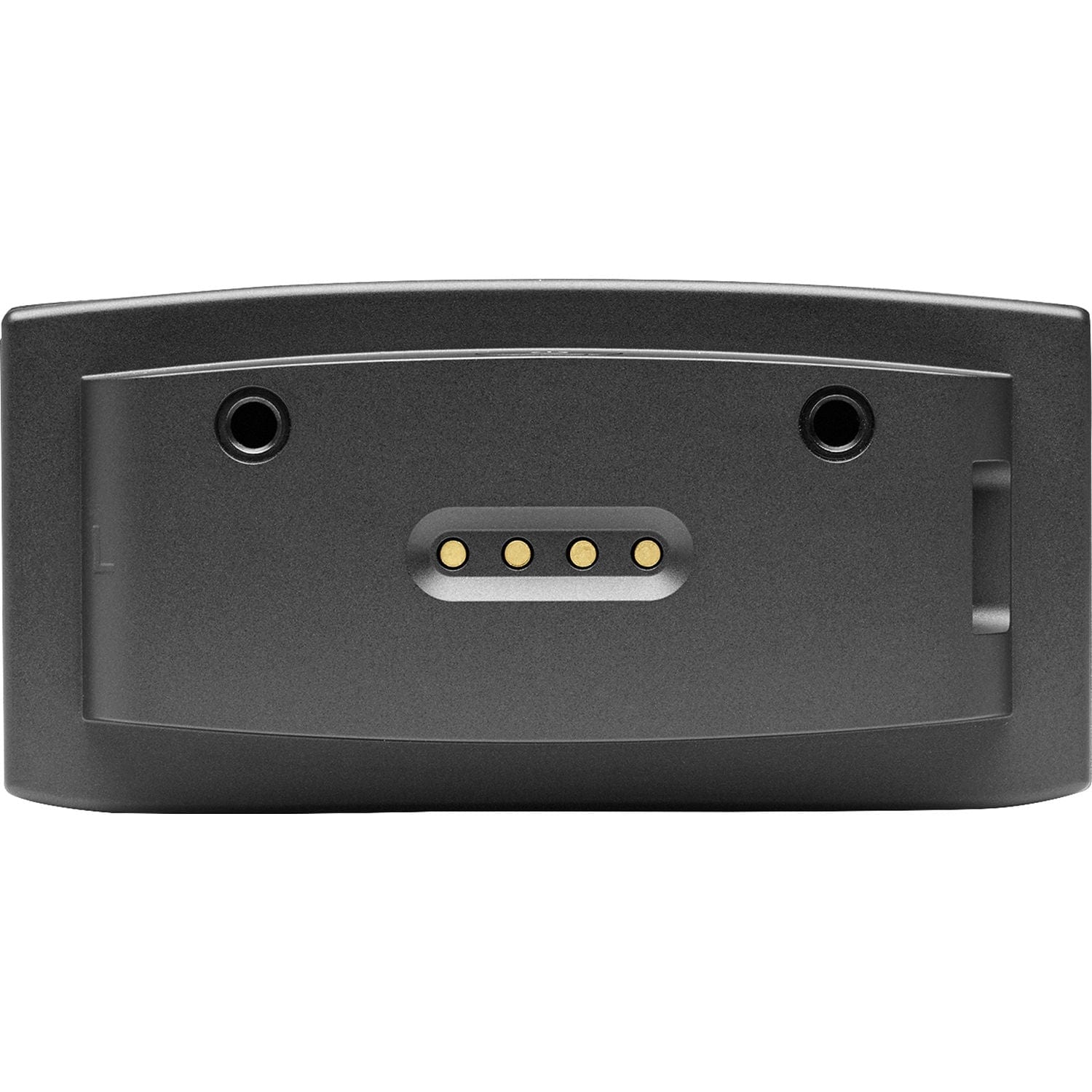

Enjoy true wireless surround sound with up to 10 hours of playing time from the detachable surround speakers. After 10 hours of playback, simply dock them to the soundbar to recharge.

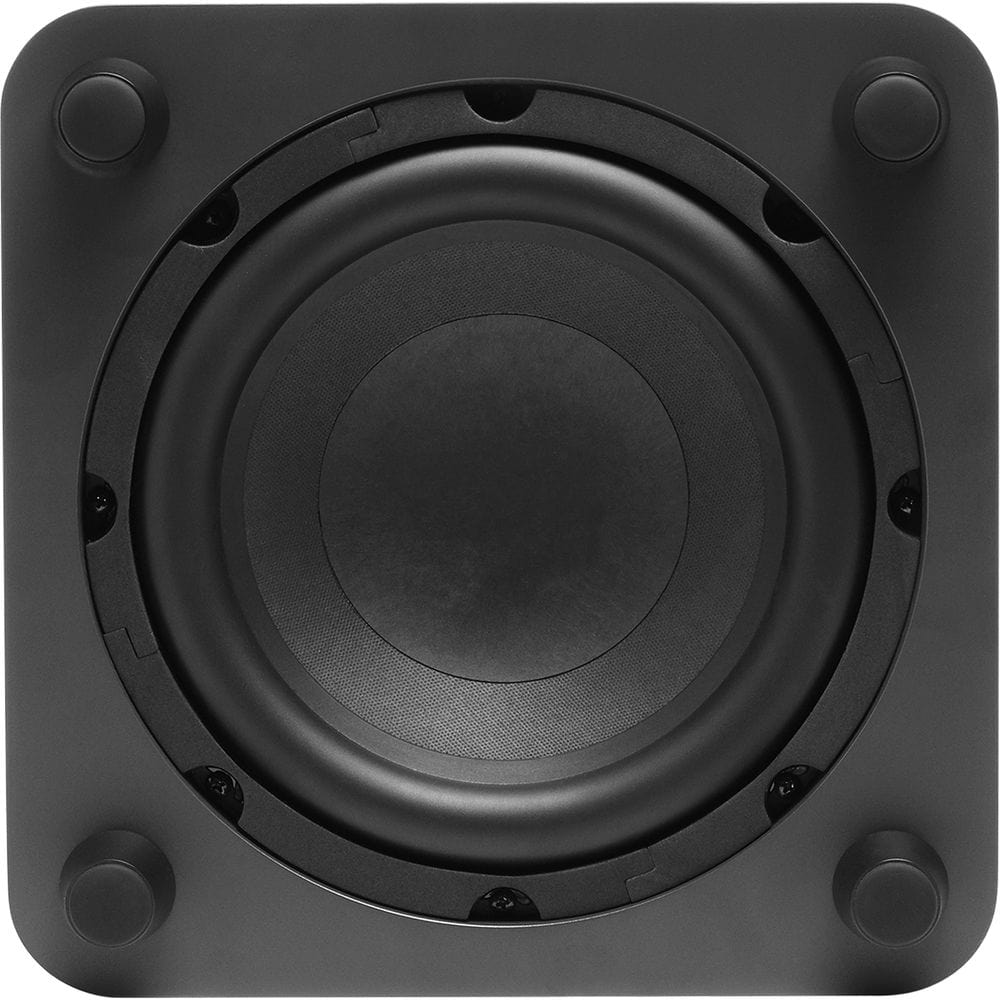

Enhanced Bass from the 10" Wireless Subwoofer
Enjoy enhanced bass along with flexible placement without wires.
4K UHD & Dolby Vision Pass-Through
Connect your 4K-compatible devices with the HDMI input and output with eARC.
AirPlay 2 and Chromecast built-in
Integrated Wi-Fi and compatibility with Chromecast and AirPlay 2 let you stream all your favorite online music with a simple tap.
Wireless Music Streaming with Bluetooth
Stream all your music wirelessly from any compatible mobile device.
Specifications
|
Soundbar |
|
| Channel Configuration | 5.1.4-Channel |
| Low-Frequency Drivers | 2 x 1.81 x 3.54" / 46 x 90 mm Elliptical Cone |
| Midrange Drivers | 2 x 1.81 x 2.36" / 46 x 60 mm Elliptical Cone |
| High-Frequency Drivers | 3 x 0.79" / 20 mm Tweeter |
| Full-Range Drivers | 2 x 2.75" / 69.85 mm Up-Firing Elliptical Cone |
| Amplifier Output | 400 W |
| Frequency Response | 34 Hz to 20 kHz (System) |
|
Satellite Speakers |
|
| Speaker Positioning | Rear |
| High-Frequency Drivers | 1 x 0.79" / 20 mm Front-Firing Tweeter per Speaker |
| Full-Range Drivers | 1 x 2.75" / 69.85 mm Up-Firing per Speaker |
| Power Rating | 60 W per Speaker |
| Satellite Connectivity | Wireless |
| Placement & Mounting Options | Tabletop/Bookshelf |
| Wall-Mount (with Included Hardware) | |
|
Subwoofer |
|
| Enclosure Type | Bass-Reflex |
| Drivers | 1 x 10" / 25.4 cm (Down-Firing) |
| Amplifier Output | 300 W |
| Subwoofer Connectivity | Wireless - Audio |
|

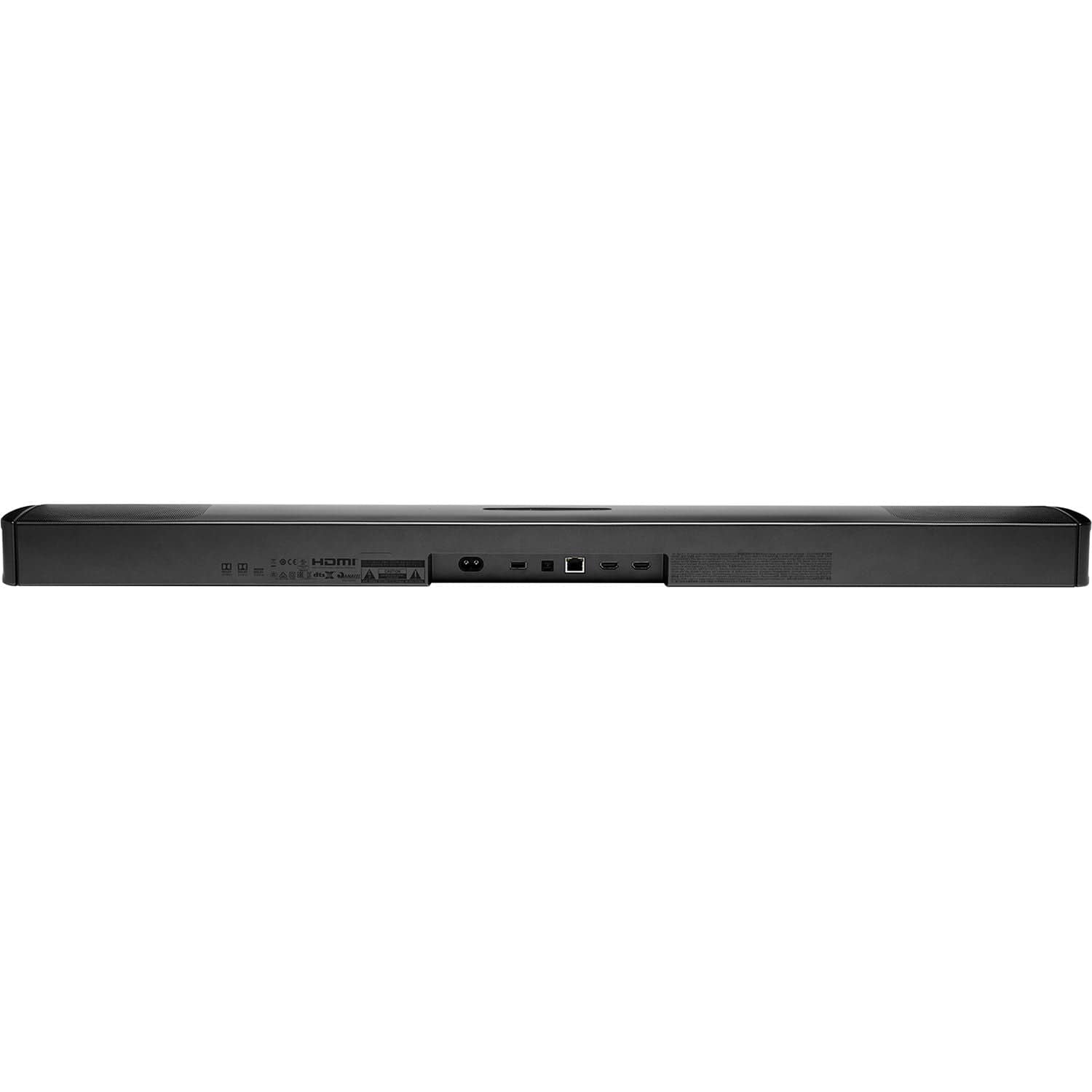

Connectivity |
|
| Inputs | 1 x HDMI - Audio/Video |
| 1 x Optical TOSLINK - Audio | |
| Outputs | 1 x HDMI - eARC/Audio/Video |
| USB Ports | 1 x USB (Version Unspecified) (Audio) |
| Wireless Audio Protocols | AirPlay 2, Bluetooth, Chromecast, Wi-Fi |
| Bluetooth | 4.2 |
| NFC | No |
| Bluetooth Profiles | A2DP 1.2 |
| AVRCP 1.5 | |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
|
Compatibility |
|
| Audio Decoding | DTS:X, Dolby Atmos |
| HDMI Compliance | eARC |
| HDCP Compliance | HDCP 2.3 |
| Supported File Formats | MP3 |
|
Power |
|
| Power Consumption | < 0.5 W (Soundbar, Standby) |
| < 6 W (Soundbar, Network Standby) | |
| < 2 W (Subwoofer, Network Standby) | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
|
Environmental |
|
| Operating Temperature | 32 to 113°F / 0 to 45°C |
|
Physical |
|
| Wall Mountable | Yes, with Included Hardware |
| Dimensions | 34.8 x 2.4 x 4.7" / 884 x 62 x 120 mm (Soundbar) |
| 6.8 x 2.4 x 4.7" / 173 x 60 x 120 mm (Satellites) | |
| 12 x 17.3 x 12" / 305 x 440 x 305 mm (Subwoofer) | |
| Weight | 8 lb / 3.6 kg (Soundbar) |
| 1.6 lb / 0.7 kg (Each Satellite) | |
| 24.5 lb / 11.1 kg (Subwoofer) | |
|
Packaging Info |
|
| Package Weight | 42.34 lb |
| Box Dimensions (LxWxH) | 40 x 19 x 15" |
