Description
The ViewSonic PA504W is a high-brightness lamp projector tailored for both education and business settings. It features a 1.21-1.57 throw ratio, allowing seamless projector upgrades in typical installation conditions. With 4000 ANSI Lumens, it ensures bright, vivid images even in well-lit environments, guaranteeing clarity for every presentation or lesson. Its Texas Instruments' 0.65” DMD Chip elevates the viewing experience with a high native contrast ratio, unveiling fine details for exceptional sharpness on the screen. Effortlessly switch between content sources via the dual HDMI ports. Additionally, you can combine it with the ViewSonic WPD-700 Wireless Screen Casting Kit, powered by the projector's USB-A output, for expanded versatility. Comprehensive LAN control takes this convenience further, providing streamlined device management. Based on DLP technology, it maintains consistent color performance and great readability over time and features a filter-free design for minimal maintenance requirements.
Features
- VERSATILE PROJECTOR: High brighness 4000 Lumens WXGA projector with advanced visual features
- EASY SETUP: 1.3x optical zoom, 40 degree vertical keystone
- REDUCED INPUT LATENCY: A low 16ms input latency provides faster frame-by-frame action for smooth images without delay
- LONG LAMP LIFE: SuperEco Mode allows the lamp to shine bright for up to 15,000 hours

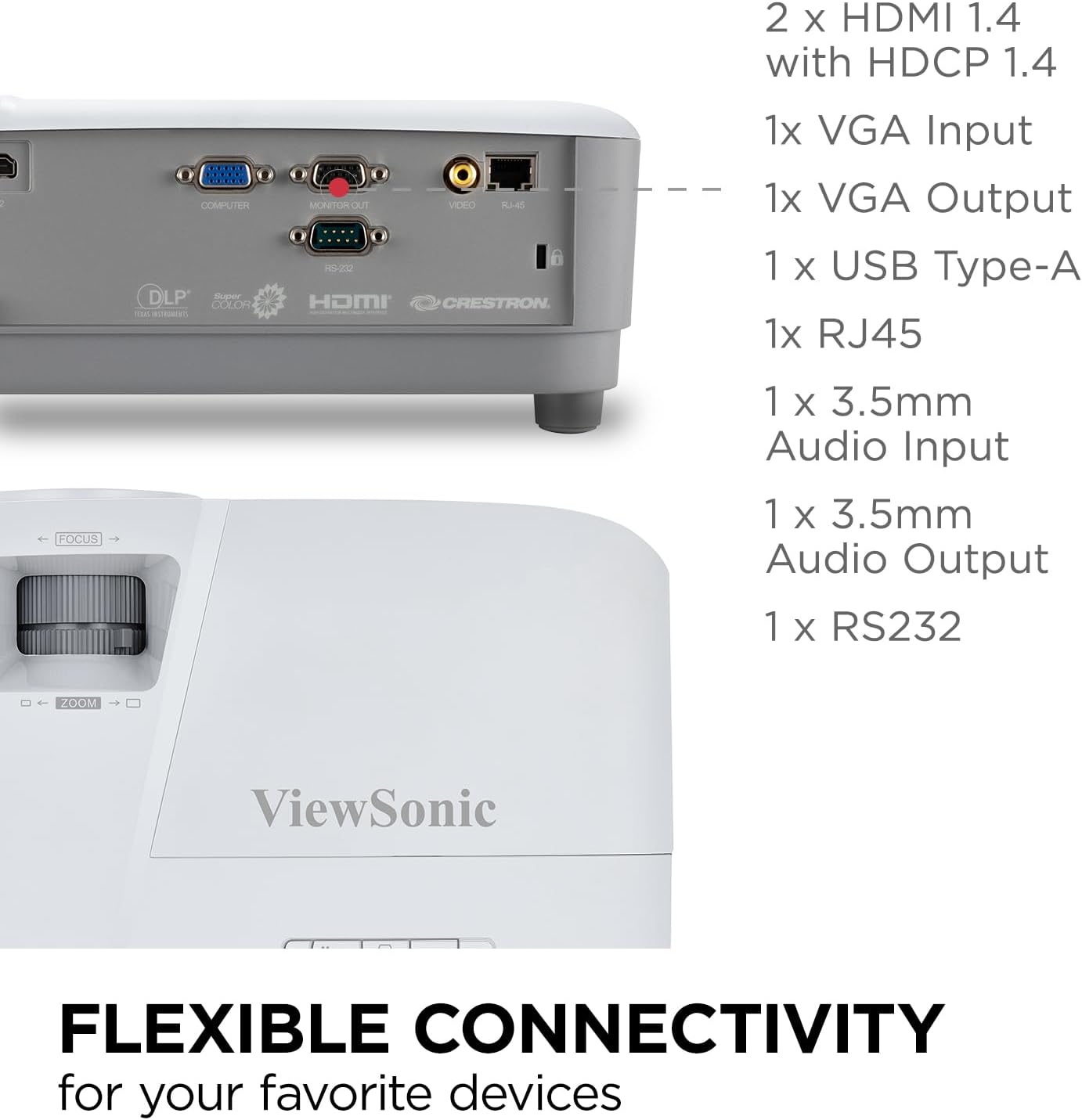

- FLEXIBLE CONNECTIVITY: Supports most media players, PCs, Macs, and mobile devices with inputs such as HDMI, VGA, and USB inputs
Specifications
| Projection System | 0.65" WXGA |
| Native Resolution | 1280x800 |
| Brightness | 4000 (ANSI Lumens) |
| Contrast Ratio with SuperEco Mode | 22000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source Type | 200W UHP Lamp |
| Light Source Life (hours) with Normal Mode | 6000 |
| Light Source Life (hours) with SuperEco Mode | 15000 |
| Lens | F=2.59-2.87, f=16.88-21.88mm |
| Projection Offset | 120%+/-5% |
| Throw Ratio | 1.21-1.57 |
| Optical Zoom | 1.3x |
| Digital Zoom | 0.8x-2.0x |
| Image Size | 30"-300" |

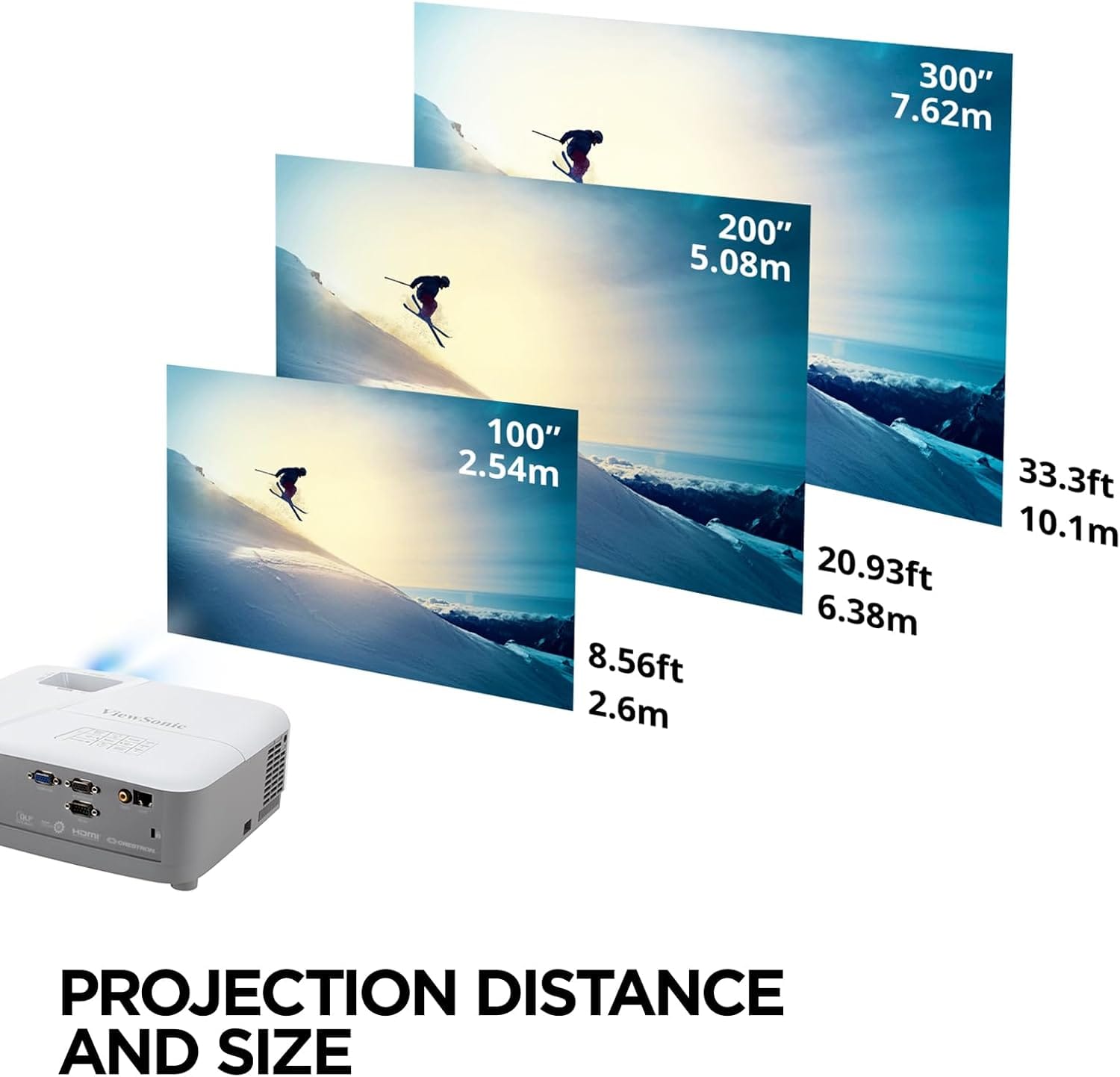

| Throw Distance | 0.78m-10.14m (100"@2.61m) |
| Keystone | V:+/-40° |
| Audible Noise (Normal) | 31dB |
| Audible Noise (Eco) | 27dB |
| Input Lag | 16ms |
| Resolution Support | VGA(640 x 480) to FullHD(1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Horizontal Frequency | 15K-102KHz |
| Vertical Scan Rate | 23-120Hz |
| Input | |
| Computer in (share with component) | 1 |
| Composite | 1 |
| HDMI | 2 (HDMI 1.4/ HDCP 1.4) |
| Audio-in (3.5mm) | 1 |
| Output | |
| Monitor out | 1 |
| Audio-out (3.5mm) | 1 |
| Speaker | 10W |
| USB Type A (Power) | 1 (5V/1.5A) |
