Description

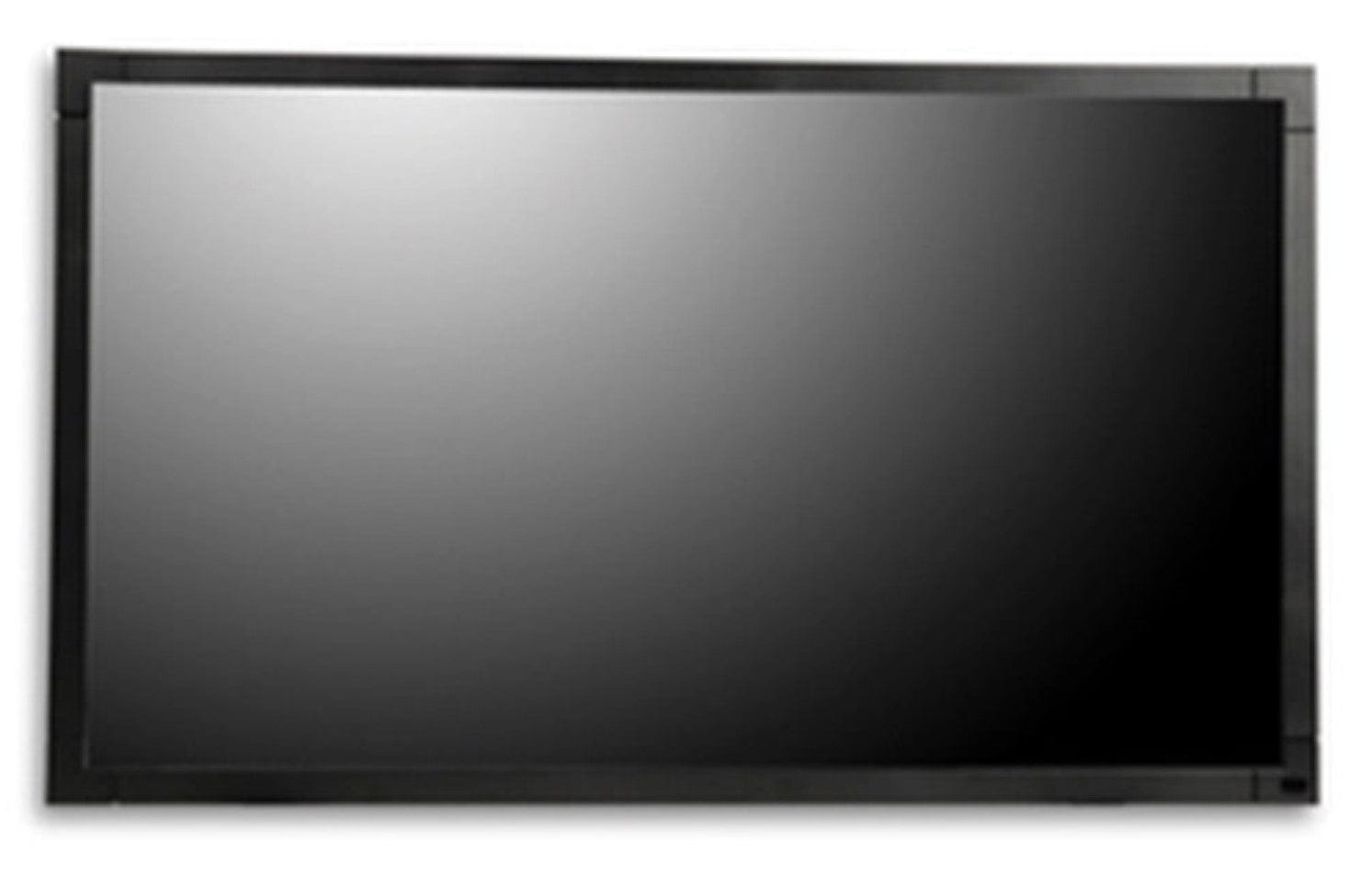

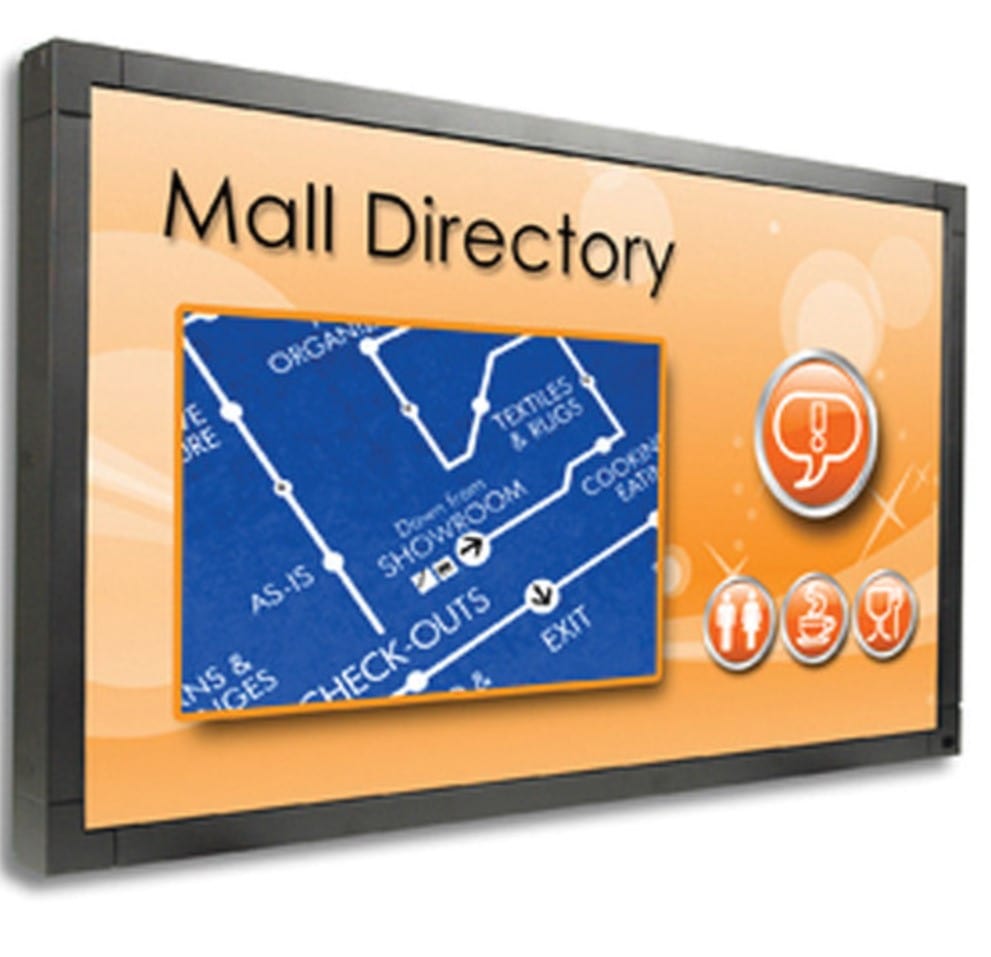

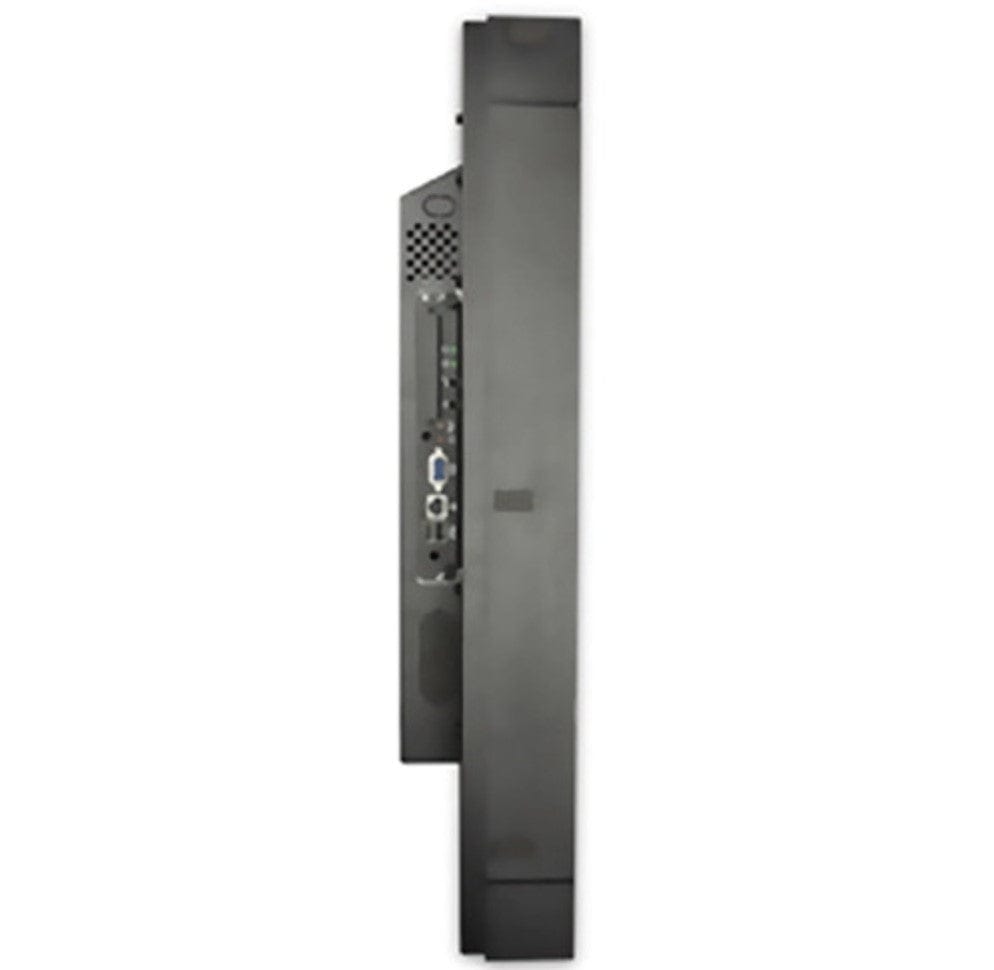

The CDP4635 46" Full HD Commercial Display features a built-in expansion slot that allows for seamless integration of accessories, third-party components and Open Pluggable Specification (OPS) products. It has a color TFT active matrix and offers a resolution of 1920 x 1080, brightness of 450 cd/m2, and high contrast ratio of 4000:1. With a 1080p resolution, 8ms response time, and viewing angle of 178 (H/V), the monitor provides high-quality pictures at almost any height. Capable of displaying videos, Internet pages, PowerPoint and Flash files, the monitor is ideal for use in educational, retail, public and commercial signage applications. The CDP4635 display is ideal for use in applications that require extended use, including retail and restaurant markets, or locations that include indoor venues, training facilities and corporate boardrooms. It has a 0.6" (16.3mm) slim bezel and can be used in a 5 x 5 video wall display. Using the scheduler with real-time clock feature, you can program the on / off timings of the CDP4635. The CDP4635 is equipped with built-in speakers and can be installed on a stand or on a wall via a VESA wall mount. Equipped with VGA and DVI inputs / outputs, the monitor can be daisy-chained to multiple displays, and each display can be controlled individually via RS-232.
Features
- Intel OPS Media Player Compatibility
- 0.6" (16.3mm) Slim Bezel
- 1920 x 1080 Resolution
- Video Wall Up to 5 x 5
1080p, 9ms panel for vibrant video and crisp images Intel OPS media player compatible Display wall capability up to 5 x 5 RS-232 daisy-chain capable VGA and DVI inputs / outputs for flexible connectivity and control Remote and panel control lock out 7 day on / off scheduling Remote control rj-45 port with real time clock and on-off scheduler Applications include quick service restaurant menus, transportation, arrival and departure, DOOH advertising, campus signage, hotels and sports bars
Specifications
| Type | 46" colour TFT active matrix, wide LCD |
| Contrast Ratio: | 4000:1 (typ) |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Brightness: | 400 cd/m2 (typ) |
| Display Area: | 40" horizontal x 22.5" vertical; 46" diagonal |
| Optimum Resolution: | 1920x1080, 530mm dot pitch |
| Response Time: | 8ms |
| Light Source: | 50,000 hrs. (typ) |
| Aspect Ratio: | 16:09 |
| Panel Surface: | Anti-glare, hard coating (3H) |
| DIMENSIONS | |
| Physical With Stand: | 43" x 26.8" x 13" |
| Physical Without Stand: | 43" x 25.4" x4.7" |
| INPUT | |
| Video Input: | HDMI, DVI, component, VGA, S-Video, composite |
| Video Output: | VGA, component, DVI |
| Control Input/Output: | RS-232/RJ45 |
| INPUT SIGNAL | |
| TV/Video comp.: | 480i, 480p, 720p, 1080i, 1080p |
| CONNECTOR | |
| Digital: | HDMI, DVI |
| Power: | 3-pin plug |
| Analog: | 9-pin mini D-sub (VGA) |
| POWER | |
| Voltage: | AC 100–240V (universal), 50–60Hz |
| Consumption: | 220W (typ) |
| CONTROLS | |
| Picture: | Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness |
| Front Panel: | Power, Exit, +, –, Menu/Enter |
| OSD: | Languages, OSD H. position, OSD V. position, OSD timer |
| Special: | Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset |
| Audio: | Volume, mute, audio source |
| Diagnostic: | Thermal, back light, ambient, 5V detect, 12 detect |
| Input: | VGA, DVI, HDMI, YPbPr |
| VGA Setting: | Auto adjustment, clock, phase, sharpness, H. position, V. position |
| WEIGHT | |
| Net With Stand: | 58.1 lb. (26.5 kg) |
| Net Without Stand: | 57.3 lb. (22.6 kg) |
| Gross With Stand: | 68.3 lb. (31 kg) |
| OPERATING CONDITIONS | |
| Humidity: | 20–80% (non-condensing) |
| Temperature (landscape): | 41–104ºF (5–40ºC) |
| Temperature (portrait): | 41–95ºF (5–35ºC) |
| AUDIO OUT | |
| Speakers: | 2 x 10w |
