Description

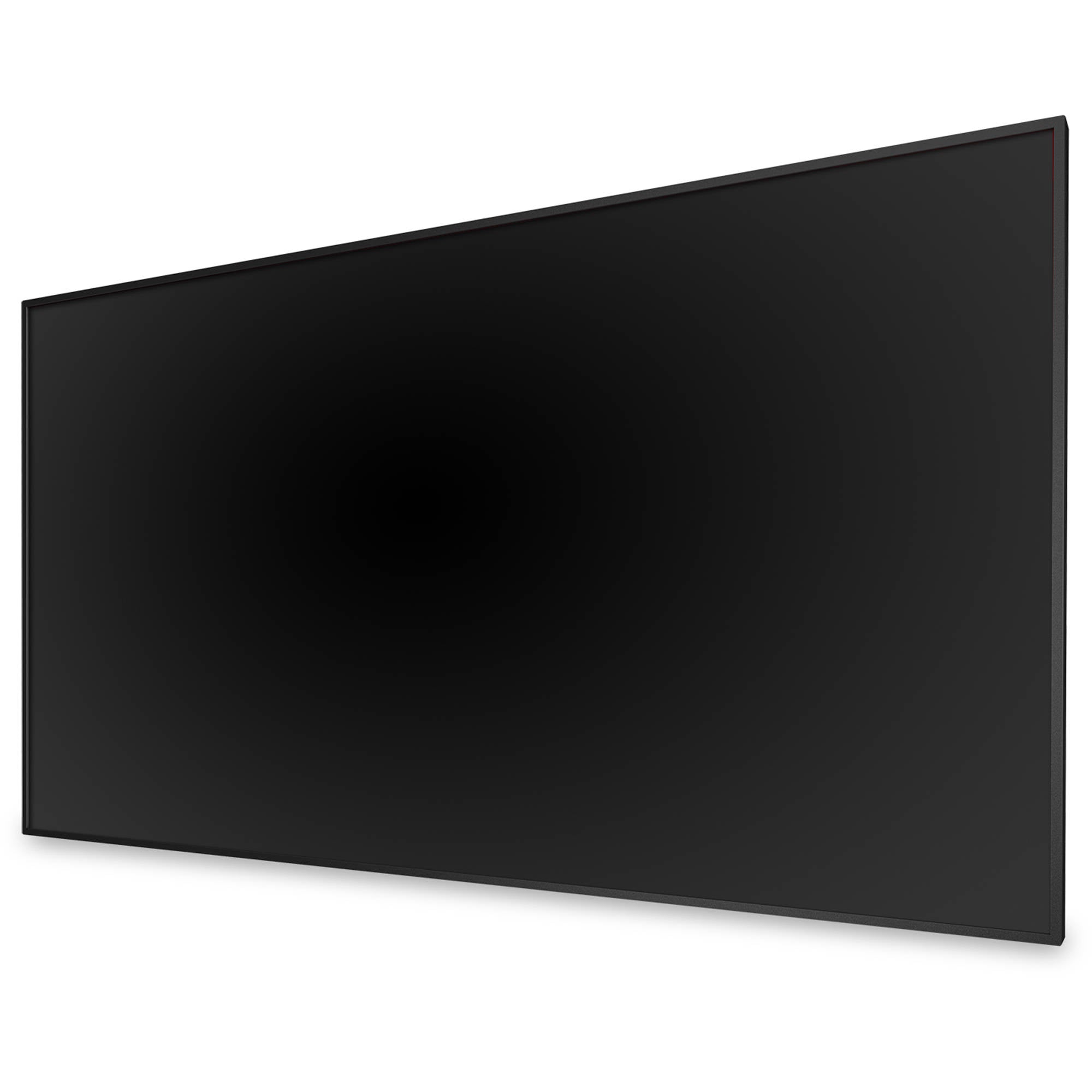

The CDP9800 98" Ultra HD Commercial Display from ViewSonic is a professional-grade commercial IPS display with 3840x2160 Ultra HD resolution and 500 nits brightness for detailed images suitable for conference rooms, retail applications, and control rooms. With integrated DisplayPort, and flexible portrait and landscape mounting options, up to four of these displays can be daisy-chained for a stunning 2x2 video wall configuration. In addition to dual 10W speakers and versatile connectivity options, including HDMI, DVI, VGA, YPbPr, and CVBS, the display comes with simple and convenient USB multimedia playback functionality. The display is integrated with an industry-standard OPS slot and offers seamless connectivity with external PCs and media players. The free bundled vController software offers easy maintenance and an intuitive interface for remote management via a PC server or laptop.
Features
- 98" Commercial IPS Display With Ultra HD
- 3840x2160 Resolution
- 4K Video Support In 2x2 Daisy-Chain
- Reliable 24/7 Continuous Operation
- Integrated USB Multimedia Player
- Portrait Or Landscape Mountable
- Dual 10W Speakers
Specifications
|
Key Specs
|
|
| Display Size |
98"
|
| Native Resolution |
3840 x 2160
|

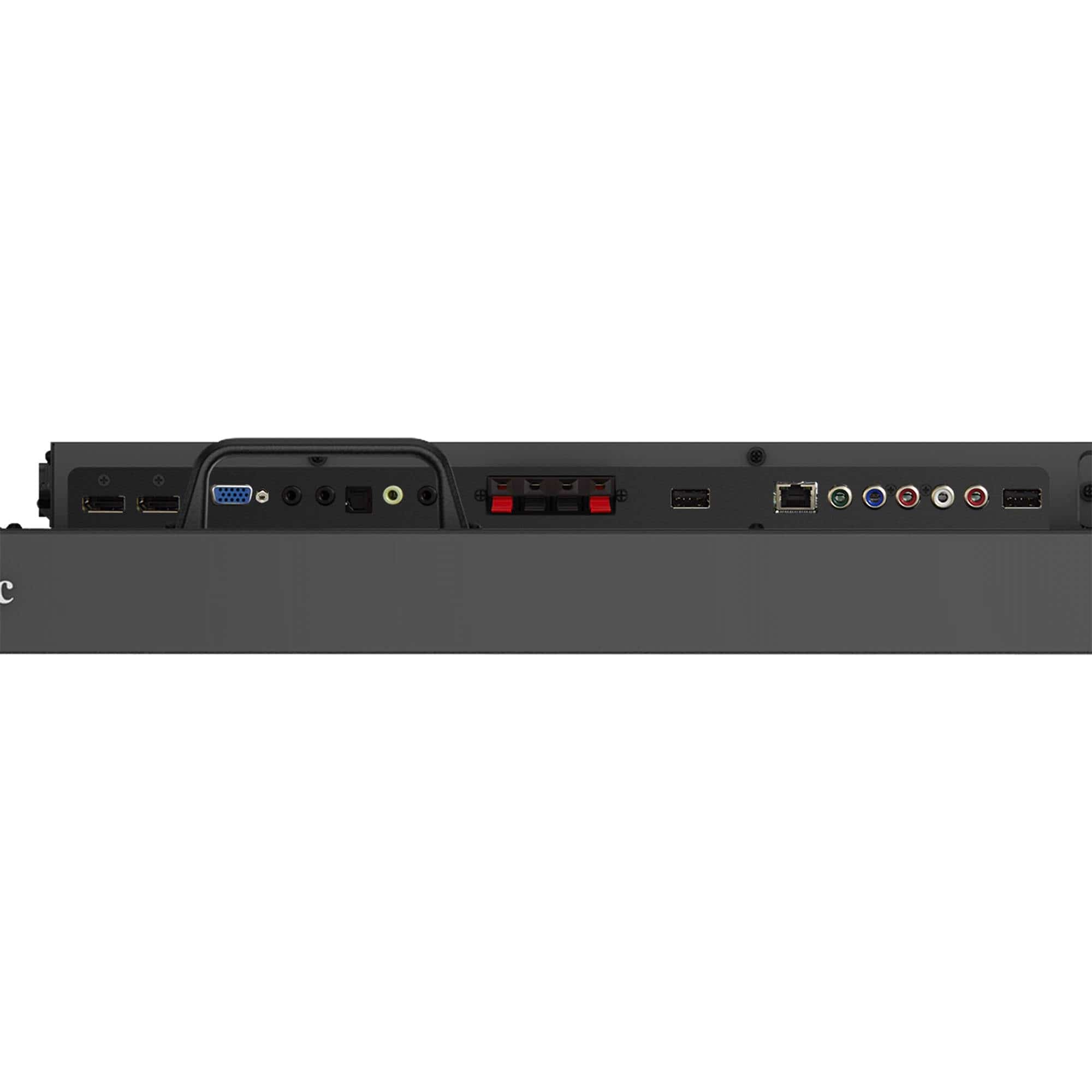

| Inputs |
1x DisplayPort
|
| 3x HDMI | |
| 1x DVI-D | |
| 1x DE-15/DB-15 (VGA) | |
| 1x RCA (Component) | |
| 1x BNC (CVBS) | |
| 1x 1/8" / 3.5 mm | |
|
Show More
|
|
| Outputs |
1x DisplayPort
|
| 1x 1/8" / 3.5 mm (Analog Audio) | |
| USB I/O |
1x USB-A (Unspecified Version)
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Built-In Speakers |
Yes, 2x 10 W
|
|
Display
|
|
| Display Size |
98"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Native Resolution |
3840 x 2160
|
| Contrast Ratio |
1300:1
|
| Response Time |
8 ms
|
| Color Support |
1.07 Billion Colors (8-Bit+FRC)
|
| Viewing Angle (H x V) |
178 x 178°
|
|
Video
|
|
| TV Tuner |
No
|
|
Connectivity
|
|
| Inputs |
1x DisplayPort
|
| 3x HDMI | |
| 1x DVI-D | |
| 1x DE-15/DB-15 (VGA) | |
| 1x RCA (Component) | |
| 1x BNC (CVBS) | |
| 1x 1/8" / 3.5 mm | |
| Outputs |
1x DisplayPort
|
| 1x 1/8" / 3.5 mm (Analog Audio) | |
| USB I/O |
1x USB-A (Unspecified Version)
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
|
Speaker
|
|
| Built-In Speakers |
Yes, 2x 10 W
|
|
Electrical
|
|
| Power Consumption |
Maximum: 700.0 W
|
| Typical: 500.0 W | |
|
General
|
|

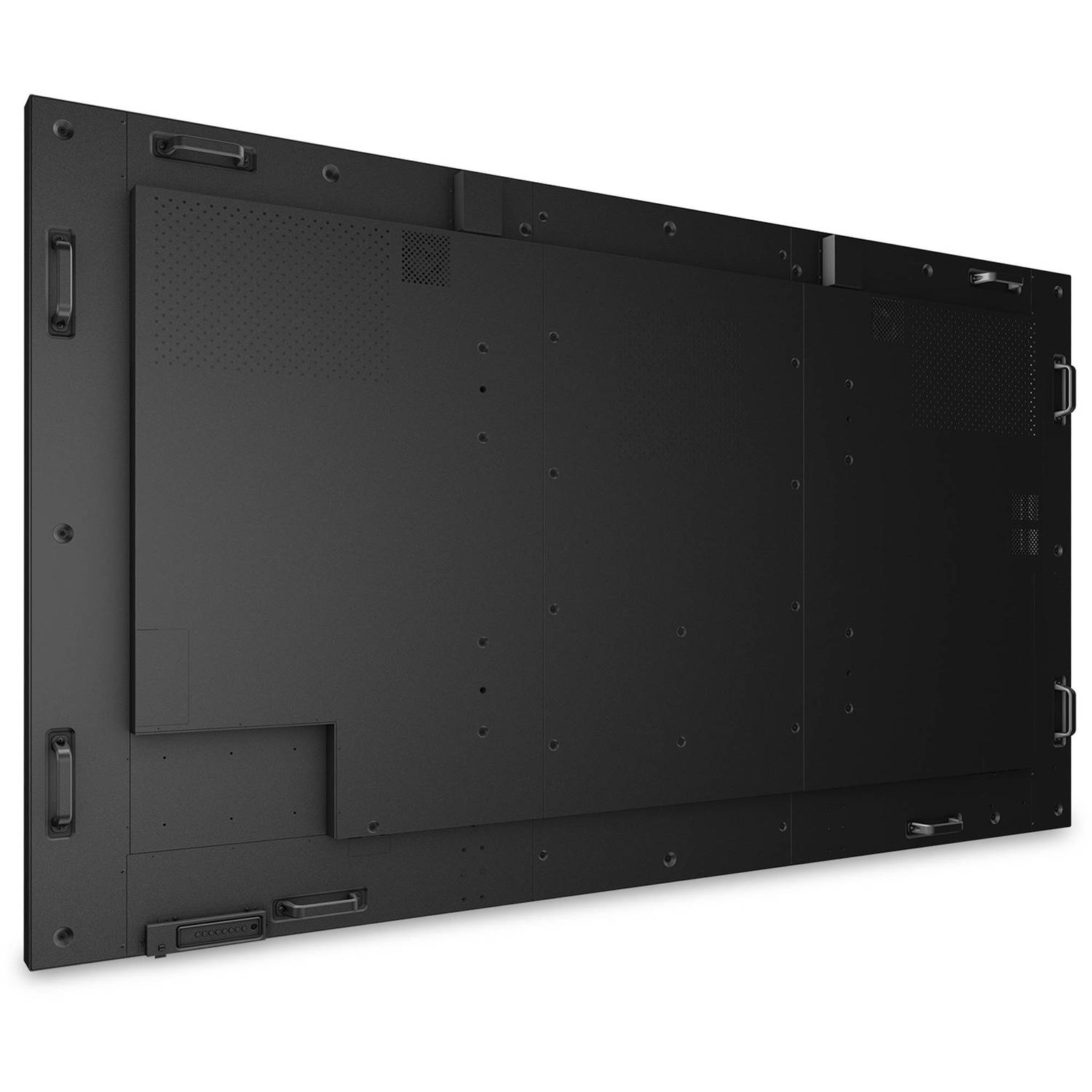

| Mounting-Hole Pattern |
800 x 500 mm
|
| Dimensions |
86.3 x 49.1 x 3.5" / 219.3 x 124.8 x 9 cm (without Stand)
|
| Weight |
201.5 lb / 91.4 kg (without Stand)
|
|
Packaging Info
|
|
| Package Weight |
296 lb
|
| Box Dimensions (LxWxH) |
97 x 62 x 17"
|
