Description

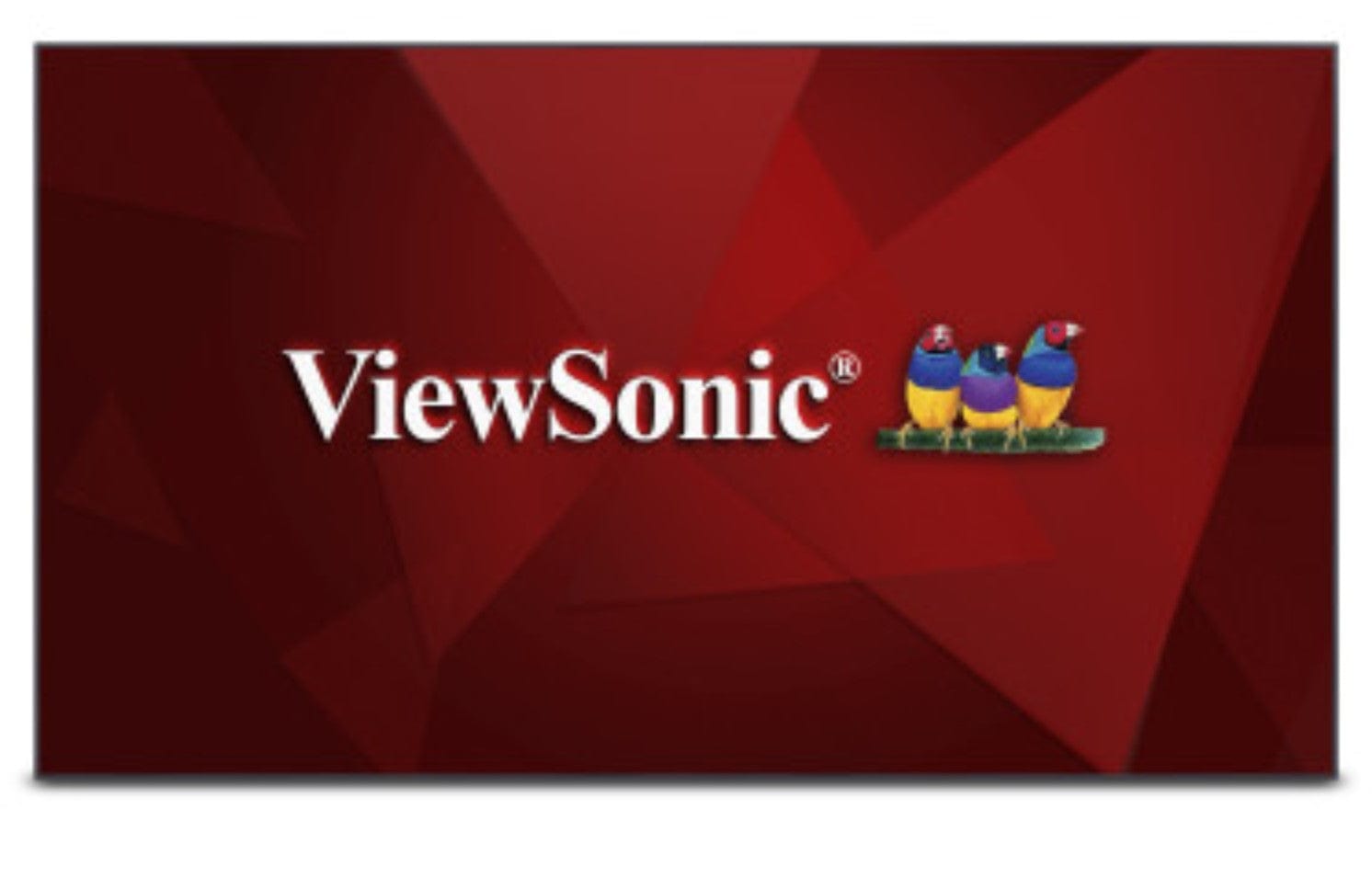

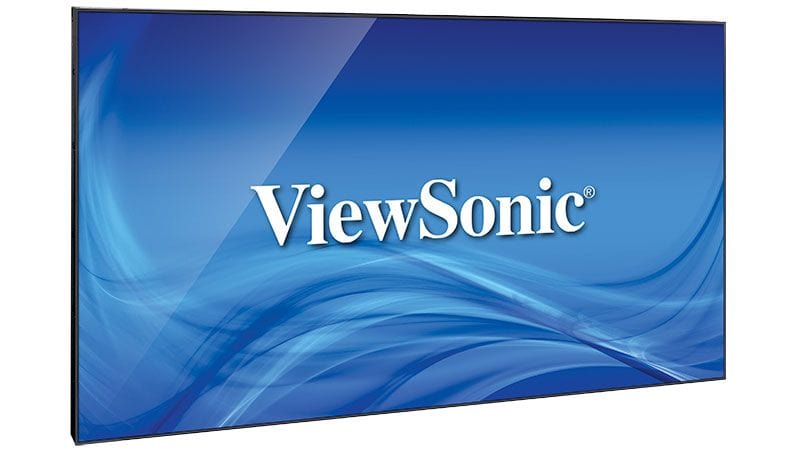

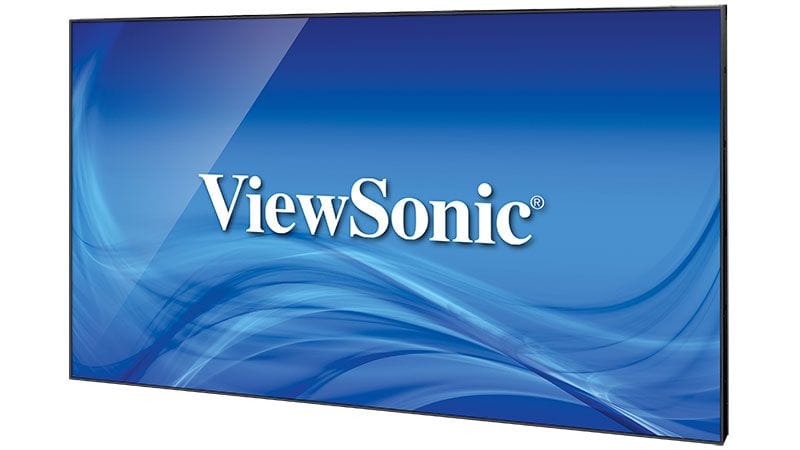

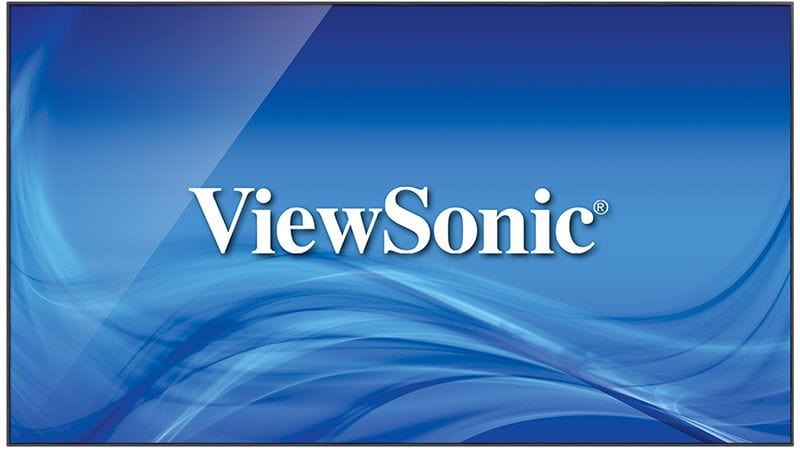

The ViewSonic CDX4650-L 46" Full HD LED Commercial Display is a good solution for fully integrated commercial video wall signage. Versatile input ports (such as HDMI, VGA, and DVI) combined with the Intel OPS (Open Pluggable Specification) provide for flexible and convenient media player connectivity. With a brightness of 700 nits and a 4000:1 contrast ratio, this LED panel display delivers stunning brightness and contrast at a 6.5 ms response time to ensure crisp pictures and smooth playback. An ultra-narrow bezel, a 10 x 10 tiling feature, and an input loop-through capability make the CDX4650-L Display suitable for large video wall applications even if using only a single media player.
Features
- 46" Full HD LED Commercial Display
- 1920 x 1080 resolution
- Ultra-Narrow Bezel Optimized for Video Walls
- OPS Slot Compatibility
Full HD LED Display The CDX4650-L Display features full HD 1920 x 1080 resolution that ensures efficient pixel-by-pixel image performance. A 4000:1 contrast ratio ensures accurate image reproduction with rich, vibrant visual effects. Brightness With a brightness of 700 nits, the CDX4650-L Display delivers clarity and detail for 24/7 commercial display applications such as video walls, menus, and transportation boards. Ultra-Narrow Bezel Optimized for Video Walls With a 0.2" (5.3mm) edge-to-edge bezel, the CDX4650-L Display can create near-seamless images when used in large video wall configurations (up to 10 x 10). OPS Slot Compatibility Equipped with the Intel OPS, the CDX4650-L Display provides for cable-free integration and easy installation in any environment. In addition, this display can be easily connected to an external media player to bring a multi-media experience to you.
Specifications
|
LCD Panel
|
|
| Type | 46" color TFT Active Matrix with WLED backlight |
| Display Area (H × V) | 40.1" x 22.5" (1,018.5 x 571.5 mm) |
| Display Area | Diagonal: 46.0" (1,168.4 mm) |
| Optimum Resolution | 1920 x 1080 |
| Resolutions Supported | 640 x 480 at 60 to 75 Hz |
| 800 x 600 at 60 to 75 Hz | |
| 1024 x 768 at 60 to 75 Hz | |
| 1280 x 768 at 60 Hz | |
| 1366 x 768 at 60 Hz | |
| 1280 x 1024 at 60 Hz | |
| 1600 x 1200 at 60 Hz | |
| 1920 x 1080 at 60 Hz (recommended) | |
| Formats | NTSC, 4.43 NTSC, PAL 60, PAL, and SECAM |
| Brightness | 700 cd/m2 (typical) |
| Contrast Ratio | 4000:1 (typical) |
| Viewing Angles | Horizontal: 178º |
| Vertical: 178º | |
| Response Time | 6.5 ms (typical) |
| Backlight | White-light LED |
| Backlight Life | 50,000 hours (typical) |
| Panel Surface | Anti-glare, hard-coating (3H) |
|
Video Input
|
|
| Analog | Component, VGA, S-Video, CVBS (BNC) |
| Digital | HDMI, DVI-D |
| Frequency | Fh: 30 to 75 Hz, Fv: 13.5 to 148.5 MHz |
|
Input Signal
|
|
| Resolution | TV/Video: 480i, 480p, 720p, 1080i, and 1080p |
|
Connectors
|
|
| RGB | Input: 15-pin mini D-sub (VGA) |
| Output: 15-pin mini D-sub (VGA) | |
| Digital Input | HDMI, DVI-D (with HDCP) |
| Component Input | YPbPr |
| Composite | Input: CVBS |
| Video Output | CVBS |
| S-Video Input | 4-pin mini-DIN |
| Audio In | 2 x 3.5 mm mini jack, RCA R/L |
| Audio Out | 2 x RCA R/L, speaker out R/L |
| Control | RS-232 In/Out |
| LAN | RJ-45 (control) |
| Power | Internal power board, 3-pin plug (CEE22) |
| Media Player | Intel OPS compatible |
|
Audio Output
|
|
| Speakers | 2 x Internal 10 W |
|
Power
|
|
| Voltage | 100 to 240 VAC (universal), 50 to 60 Hz |
| Consumption | 220 W (typical) |
|
Controls
|
|
| Panel | Power, Mute, Input, Vol - / +, Up, Down, Menu |
| On-Screen Display | Picture, Screen, Sound, PIP, Configuration 1, Configuration 2, Configuration 3, Advanced Option |
|
General
|
|
| Operating Temperature | 32 to 122ºF (0 to 50ºC) |
| Operating Humidity | 10 to 90% (non-condensing) |
| Operating Altitude | 0 to 6,561' (0 to 2,000 m) |
| Bezel Size | Left: 0.13” (3.5 mm) |
| Right: 0.07” (1.80 mm) | |
| Top: 0.13” (3.5 mm) | |
| Bottom: 0.07” (1.80 mm) | |

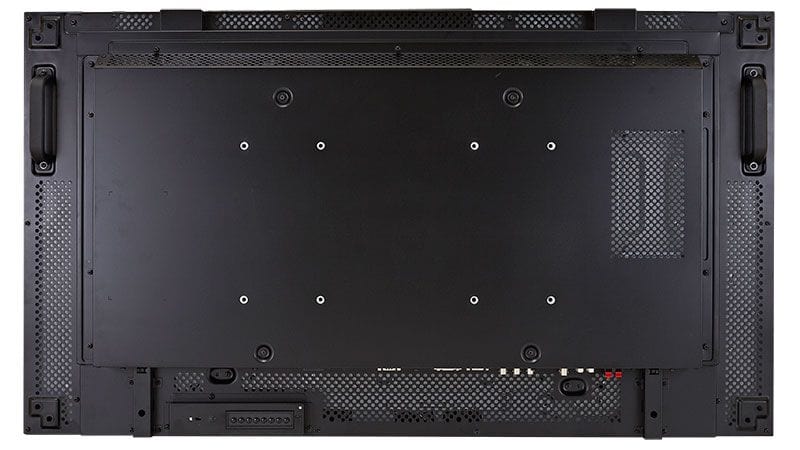

| VESA Mount | 200 x 200, 200 x 400 mm |
| Regulations | FCC, ICES003, UL, cUL, CE, CB, BSMI, and ENERGY STAR |
| Weight | 53.6 lb (24.3 kg) |
|
Packaging Info
|
|
| Package Weight | 70 lb |
| Dimensions | 40.3 x 22.8 x 5.0” (1,023.7 x 578.3 x 126.1 mm) |
