Description

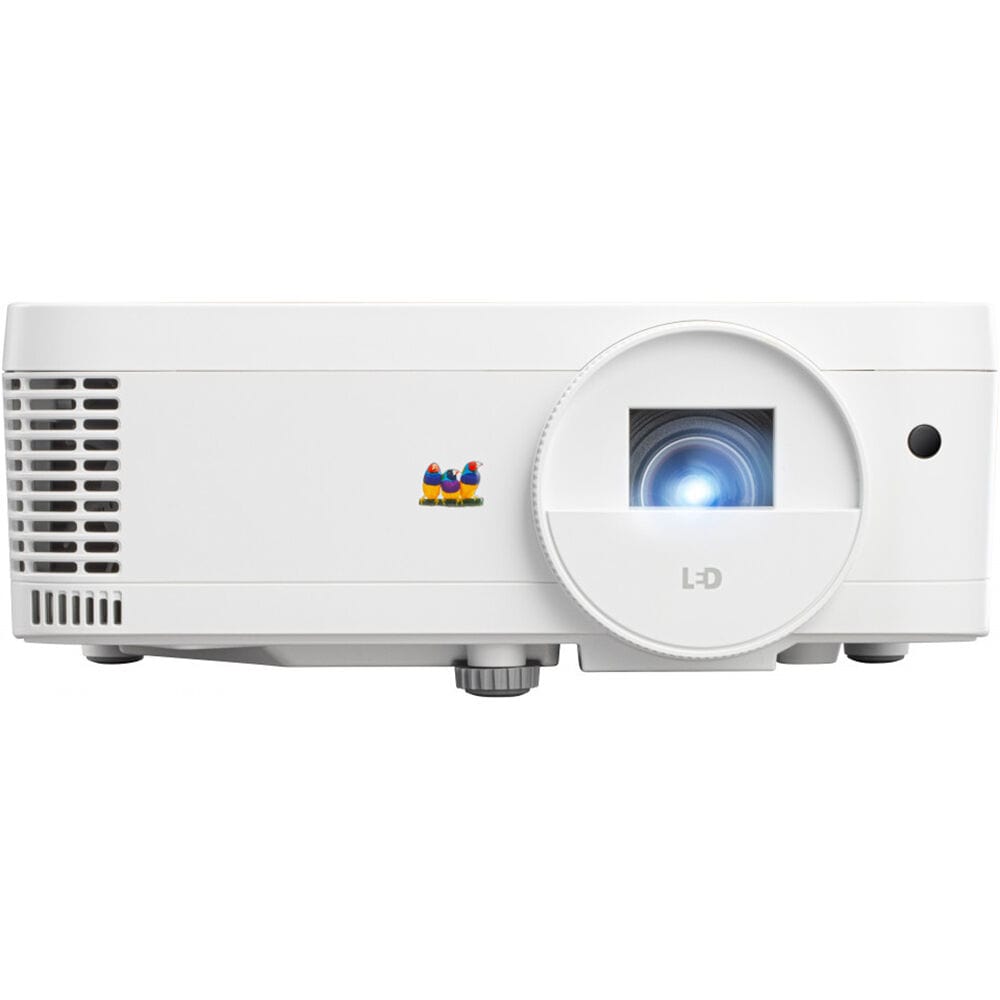

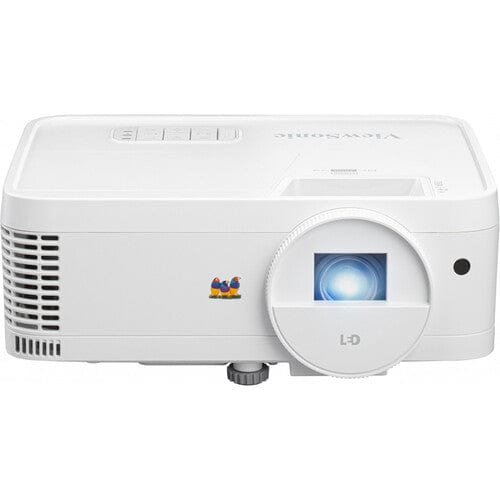

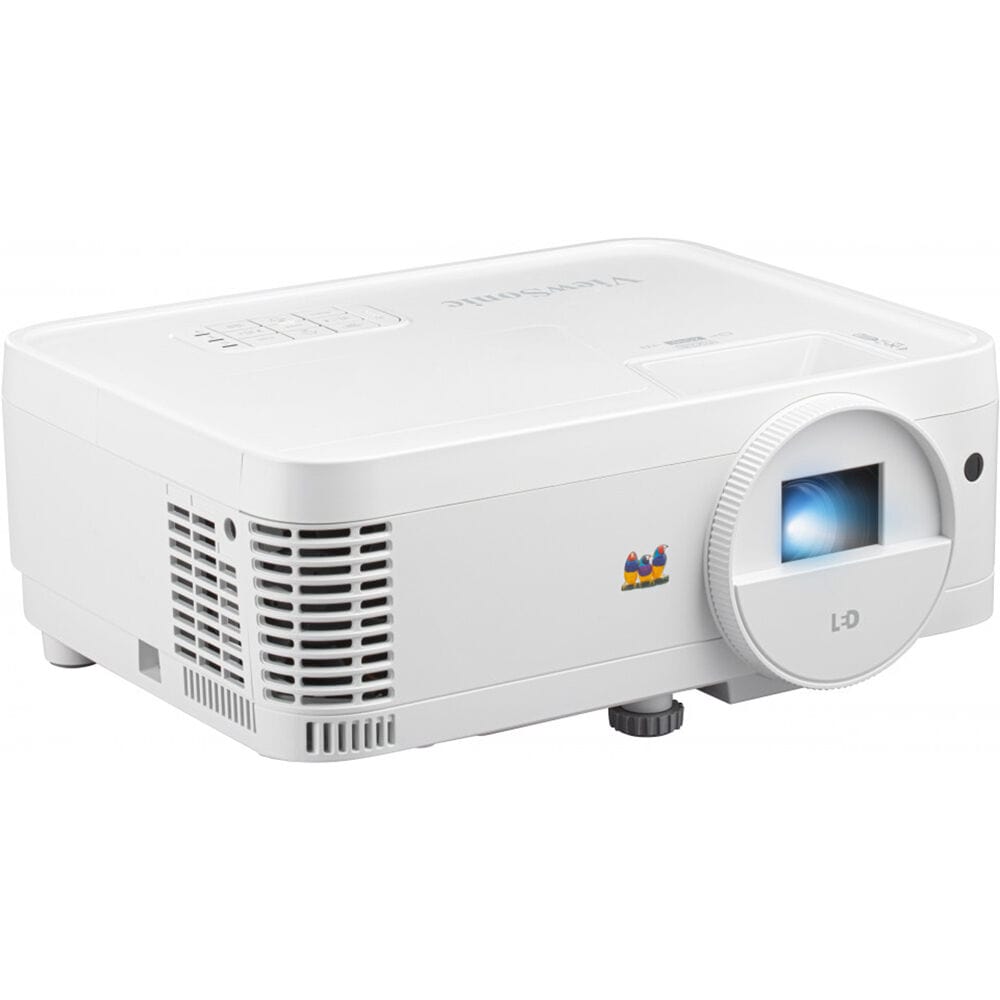

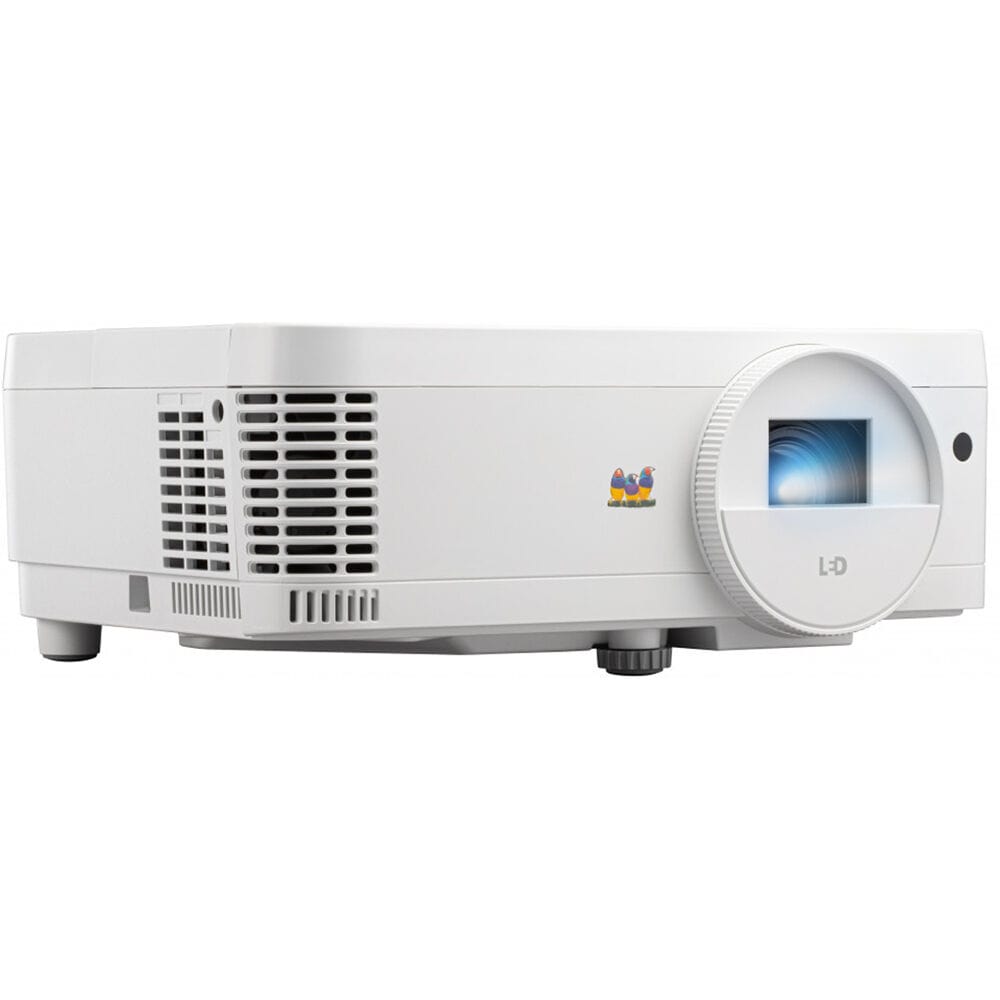

The LS500WH is ViewSonic’s first lamp-free, 2,000 ANSI Lumens high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, it frees users from frequent lamp replacement and toxic mercury for a safer and greener environment, offering phenomenal lifespan of 30,000 hours, less power consumption, and true-to-life colors with 125% Rec.709. Give light to your presentations effortlessly with efficient instant power on/off and 360° tilt angle projection for flexible setup in small-to- medium sized meeting rooms/classrooms.
Features
- Auto power on/off
- IP5X-rated sealed optical engine against dust and moisture
- Project a 100" image from only 11' away
- Software updatable via an optional USB stick

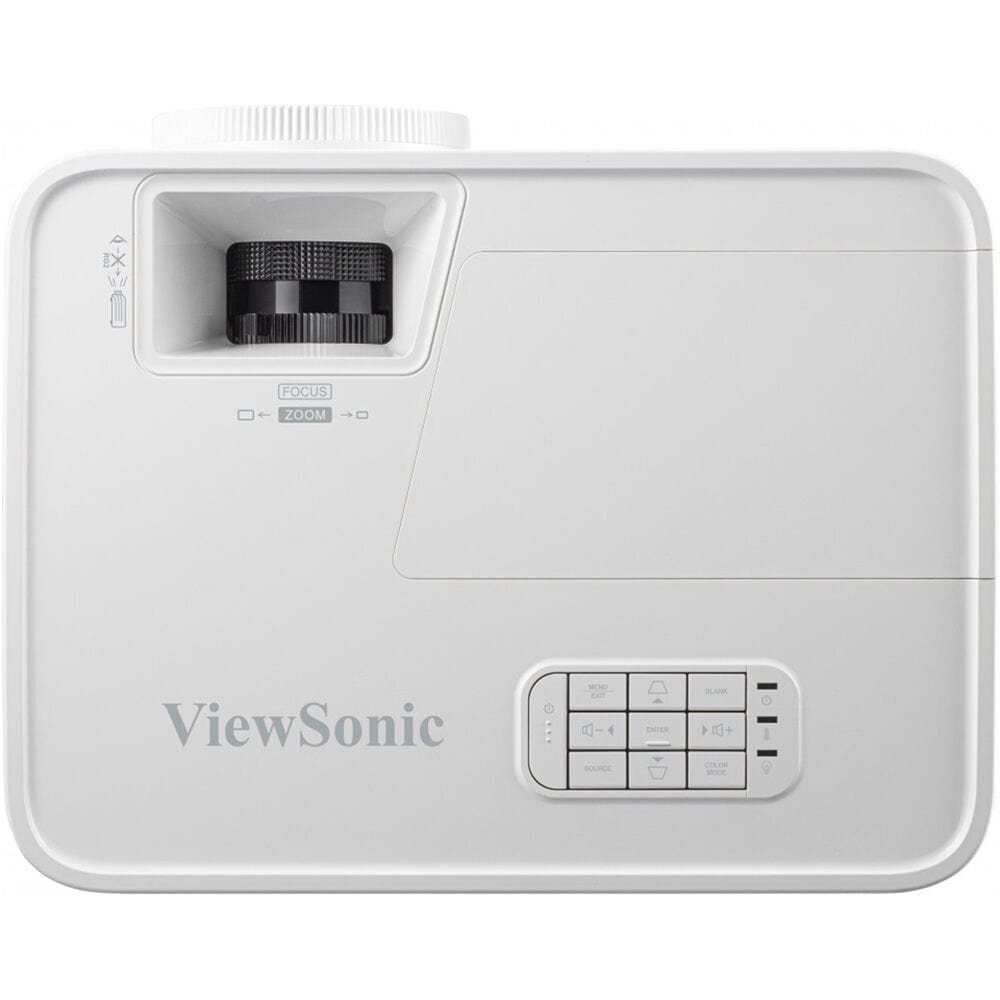

- Built-in controls with an on-screen display
- One HDMI and one RCA input
- Up to 30,000-hour LED lifespan
Versatile Projector

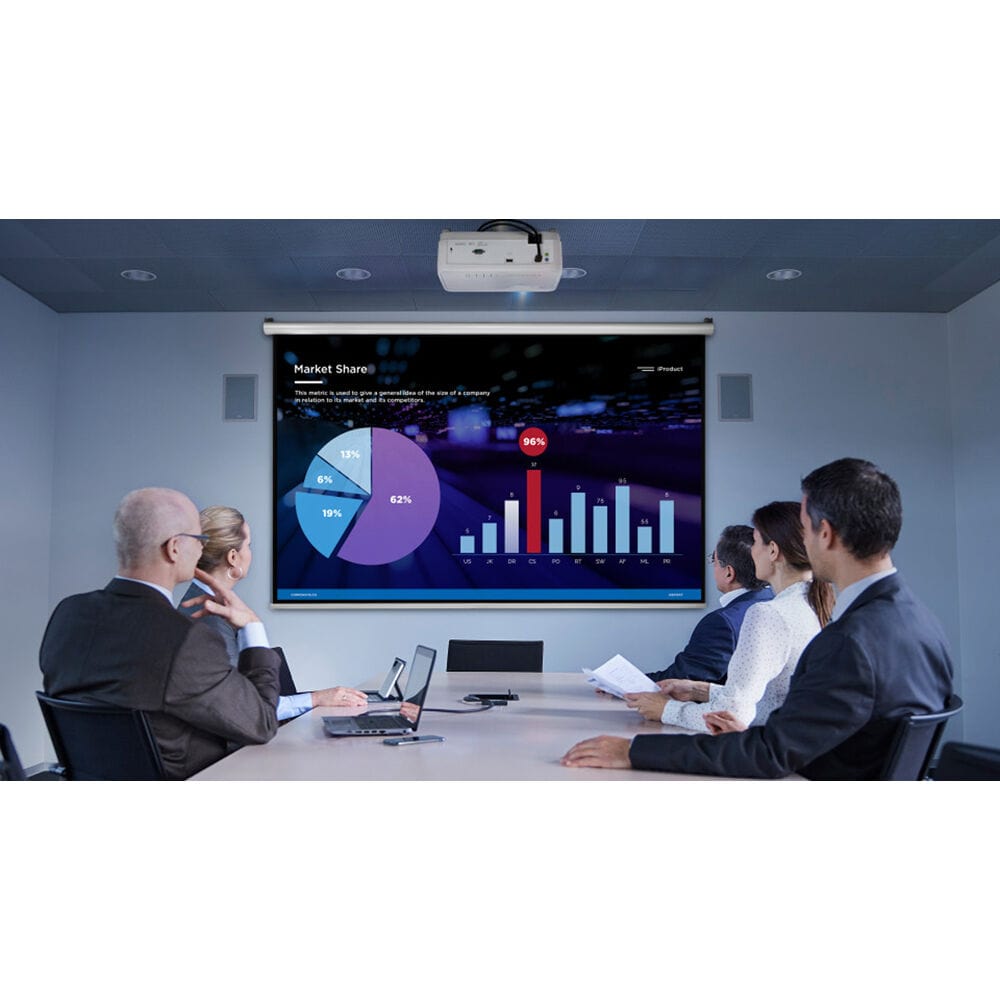

Advanced visual features include WXGA resolution, 1.1x optical zoom, and 360-degree tilt angle that’s ideal for business and education environments
Extended Lifespan
Latest LED technology provides an extended lifespan of up to 30,000 hours. This projector consumes nearly 50% less energy than competing lamp-based projectors
Stunningly Bright In Any Environment
A powerful output of 3,000 lumens lets this ultra-bright projector illuminate both bright and dark environments
360-Degree Orientation
A robust mechanical construction allows the projector to be installed in nearly any position such as portrait mode
Auto Power On/Off
Automatically turns on when an active video input is detected and turns off when no signal is detected after a preset amount of time
Specifications
|
Image Display
|
|
| Display System | DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 480 |
| Maximum: Full HD 1080p - 1920 x 1080 | |
| Maximum Brightness | 2000 Lumens (ANSI) |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 3,000,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 102 kHz |
| Vertical: 23 to 120 Hz | |
|

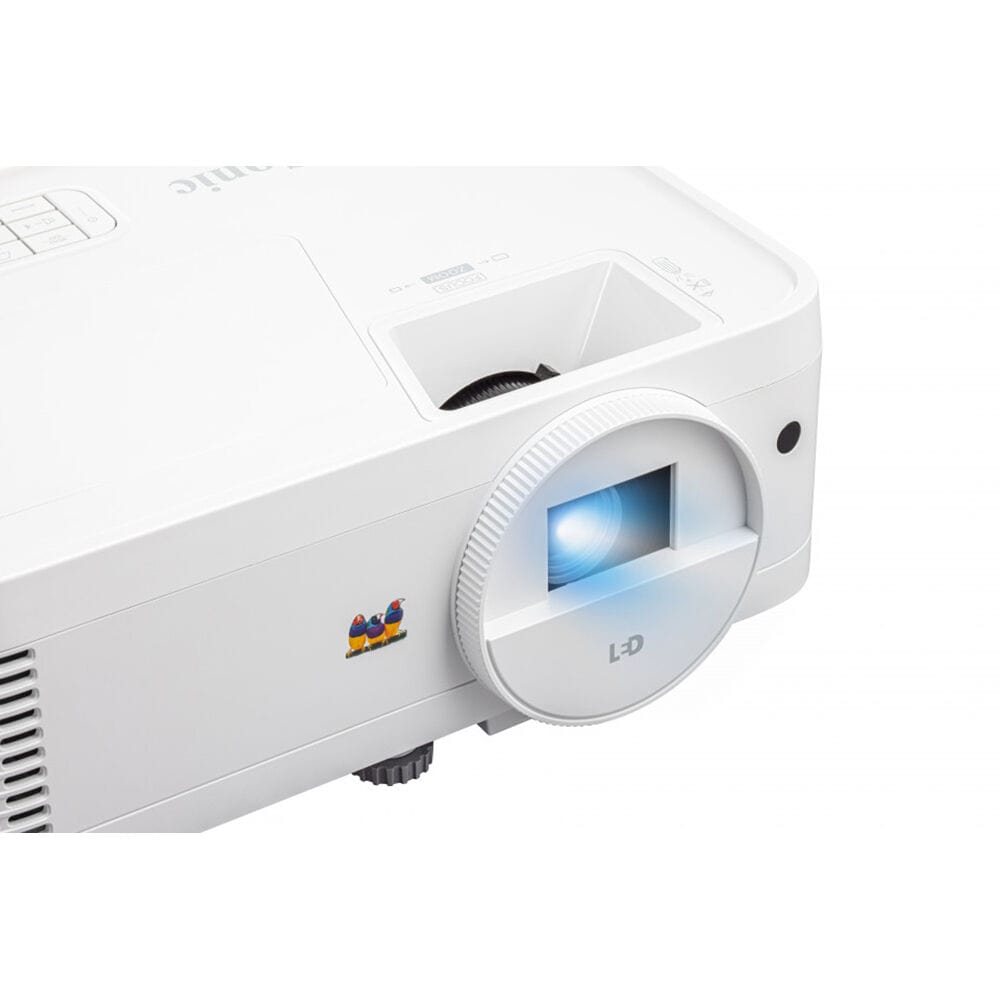

Lens
|
|
| Optical Zoom | 1.1x |
| Throw Distance | 3.3 - 36.02' / 1 - 10.98 m |
| Throw Ratio | 1.55 to 1.7:1 (100" Screen Size @ 10.96' / 3.34 m) |
| Projection Size | 30 - 300" / .8 - 7.6 m |
|
Features
|
|
| Keystone Correction | Manual-Vertical: ± 40° |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 2W |
| Projection Tilt Option | Yes |

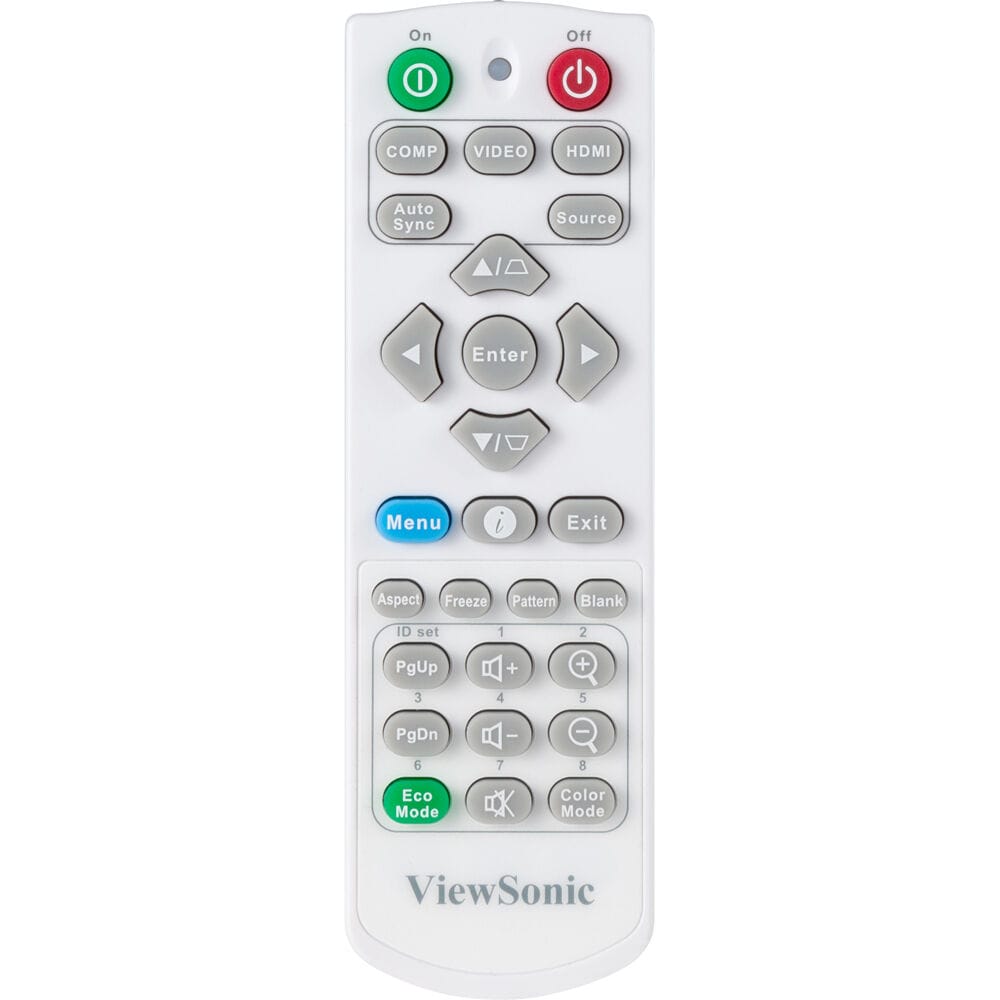

| Remote | Yes |
|

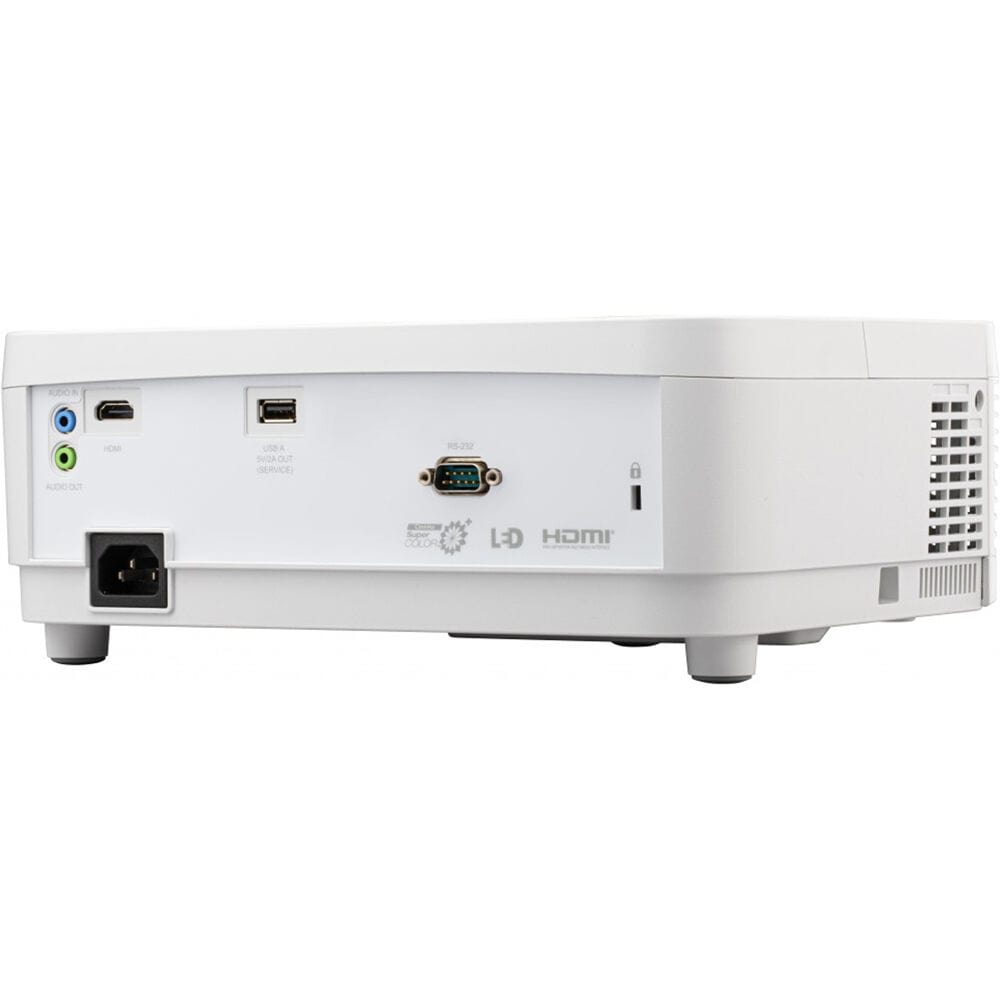

Input/Output Connectors
|
|
| Inputs/Outputs | 1 x HDMI (HDMI 1.4) Audio, Video Input |
| 1 x RCA Audio Input | |
| 1 x USB-A (USB 2.0) Data Input | |
| 1 x 1/8" / 3.5 mm Mini Audio Input | |
| 1 x 1/8" / 3.5 mm Mini Audio Output | |
| 1 x DE-9/DB-9 (RS-232) Control Input | |
| HDCP Support | Version 1.4 |
|
Hardware
|
|
| App Compatible | No |
| *As of November, 2022: Check with manufacturer for the most up-to-date compatibility | |
|
General
|
|
| Light Source | LED |
| Expected Lamp Life | Medium Brightness: 30,000 Hours |
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 156 W |
| Standby Mode (Lamp Off): 0.5 W | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions (W x H x D) | 11.5 x 4.5 x 8.7" / 29.2 x 11.4 x 22.1 cm |
| Weight | 5.5 lb / 2.5 kg |
|
Packaging Info
|
|
| Package Weight | 7.415 lb |
| Box Dimensions (LxWxH) | 14.2 x 12 x 7.3" |
