Description
Featuring 1280x800 WXGA resolution and 5,200 lumens of brightness, the ViewSonic® LS810 Laser Projector is the ideal solution for modern business and education environments. Designed with a laser phosphor light source lasting up to 20,000 hours, this projector delivers long-term, virtually maintenance-free usage for any boardroom or classroom. With its 0.23 ultra-short throw ratio, HV keystoning and 4 corner adjustments, the LS810 makes installation a hassle-free experience. What’s more, the ultra-short throw ratio allows you to place the projector just inches away from a wall or screen to give you a huge image for less cost than a comparably sized display. The LS810 also features a hidden PortAll® compartment which accommodates additional accessories such as a wireless streaming device, or PC stick. Powered by SuperColor™ technology for true-to-life images, and SonicExpert® technology for incredibly clear sound, the LS810 delivers an immersive audiovisual performance.
Features
- Brightness of 5200 Lumens
- WXGA (1280 x 800) Native Resolution
- Ultra-Short 0.23:1 Throw Ratio
- Dual 8-Watt Speakers
- Mini-USB, VGA, S-Video, & 2x HDMI Inputs
- VGA Cable, HDMI Cable, & Remote Included
- VGA Output for Loop-Through
Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.
5200 lumens
Packed with 5,200 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, classrooms, and public spaces.
Large Images in Small Spaces
A short throw lens enables large images to be projected from short distances in small rooms.
Ultra-high Contrast Ratio
A 100,000:1 ultra-high contrast ratio enhances even the finest shades of gray – a key characteristic for delivering excellent clarity and detail for razor-sharp images.
PortAll: Discreet Wireless Streaming
This projector includes ViewSonic’s exclusive PortAll feature—a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless dongle, or lets you connect to other devices via an HDMI cable. What’s more, an integrated Micro USB cable lets you quickly and easily power Micro USB-enabled devices.
Specifications
|
Image Display
|
|
| Display System |
DLP
|
| Native Chip Resolution |
1280 x 800 (WXGA)
|
| Supported Resolutions |
Maximum: Full HD 1080p - 1920 x 1080
|
| Maximum Brightness |
5200 Lumens
|
| Aspect Ratio |
Native: 16:10
|
| Supported: 16:9 | |
| Dynamic Contrast Ratio |
100,000:1
|
| Color Depth |
10-Bit (1.07 Billion Colors)
|
| Scan |
Horizontal: 15 to 100 kHz
|
| Vertical: 24 to 120 Hz | |
|
Lens
|
|
| Throw Distance |
1.21 - 2.6' / 0.369 - 0.792 m
|
| Throw Ratio |
0.23:1
|
| Projection Size |
70 to 150" / 177.80 to 381.00 cm
|
|
Features
|
|
| Keystone Correction |
Vertical: ± 30°
|
| Horizontal: ± 30° | |
| Ceiling Mountable |
Yes
|
| Rear Screen Projection |
Yes
|
| Built-In Speaker |
Yes (Stereo)
|
| Speaker Power |
16W
|
|

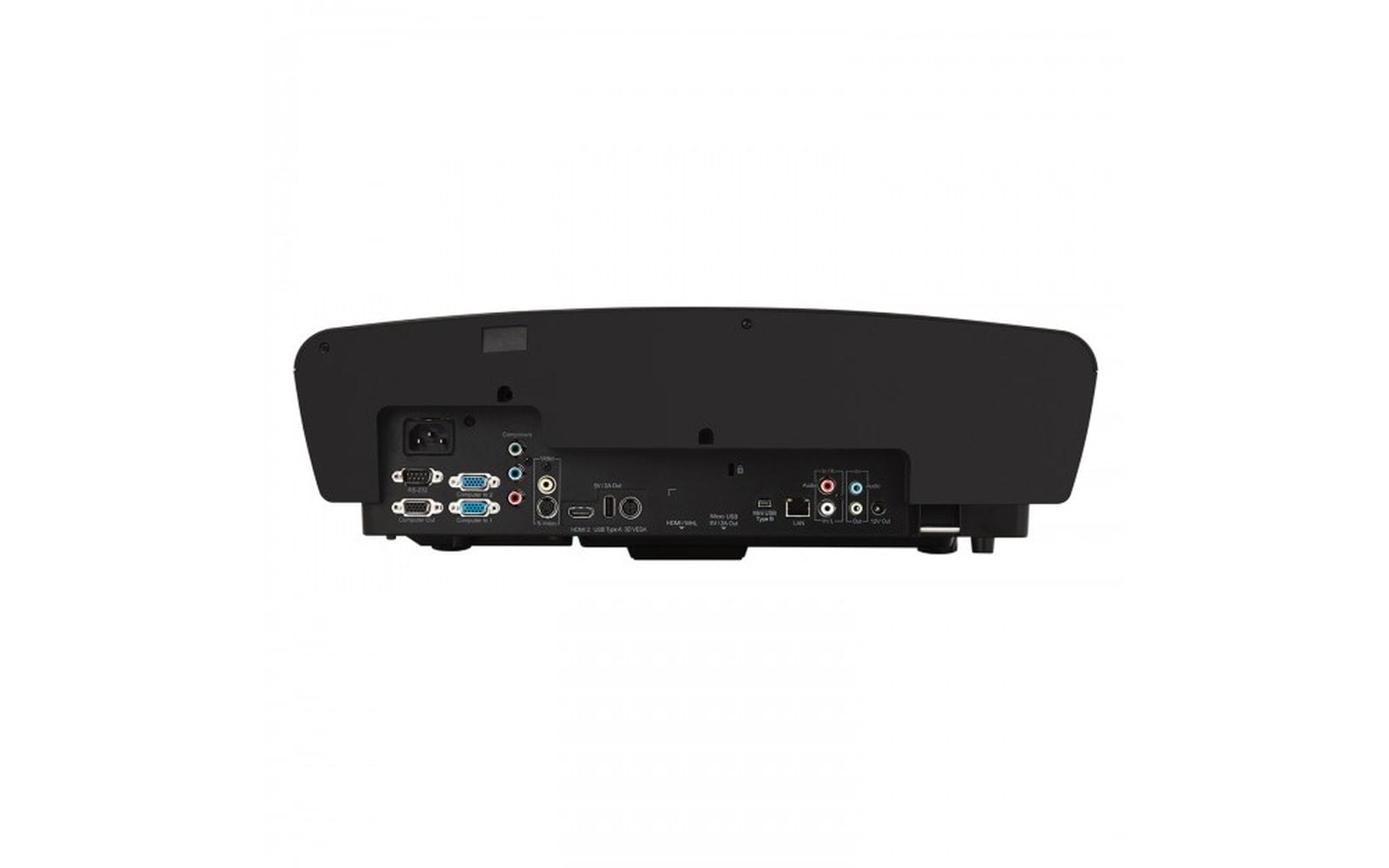

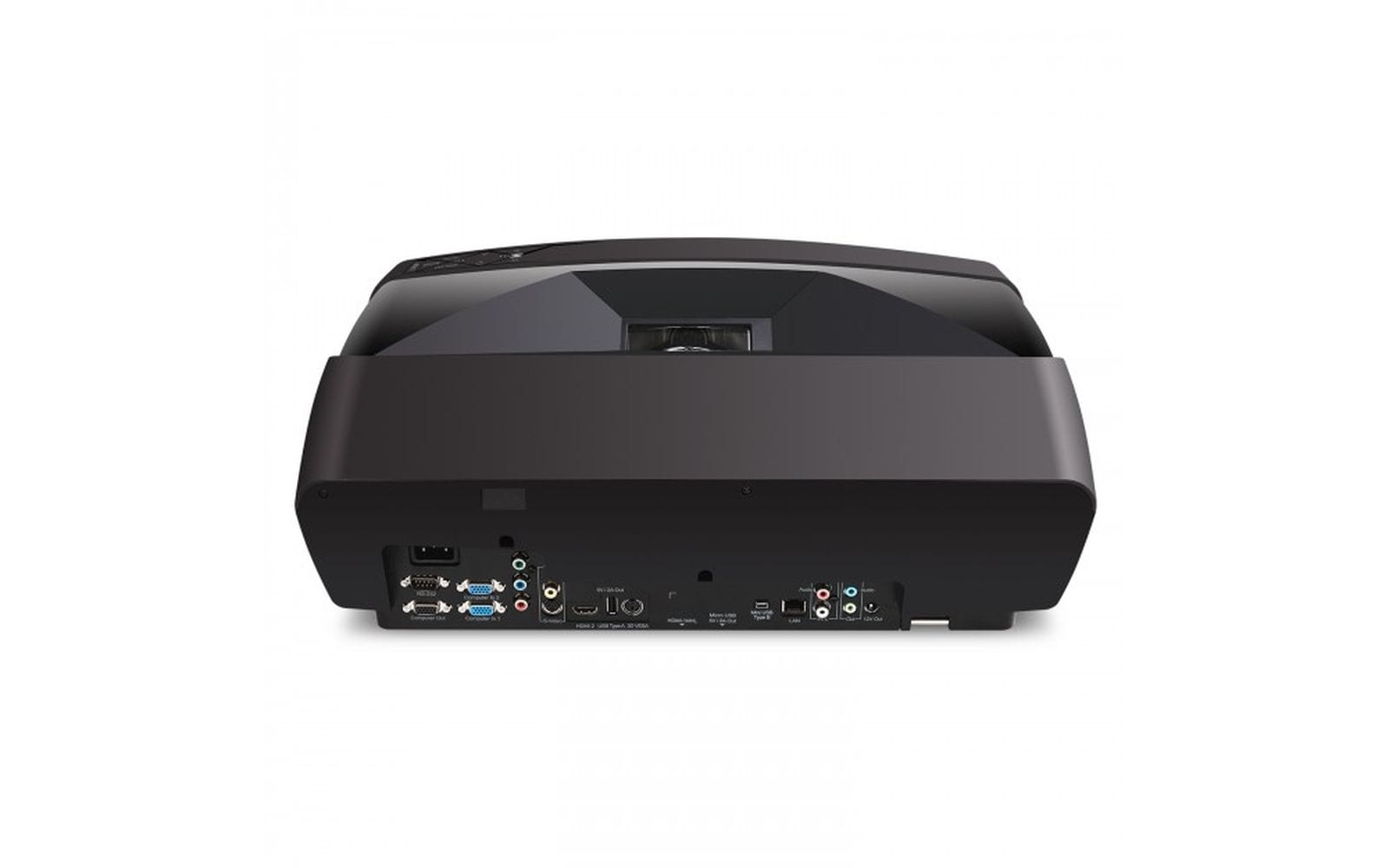

Input/Output Connectors
|
|
| Inputs/Outputs |
1 x HDMI Audio, Video Input
|
| 1 x HDMI with MHL Support Audio, Video Input | |
| 1 x USB-B 2.0 Power Output | |
| 1 x Mini-USB 2.0 Audio, Video Input | |
| 2 x DE-15/DB-15 (VGA) Video Input | |
| 1 x DE-15/DB-15 (VGA) Video Output | |
| 1 x Mini-USB 2.0 Audio, Video Input | |
| 1 x 4-Pin DIN (S-Video) Video Input | |
| 1 x RCA (Composite) Video Input | |
| 1 x 2RCA Audio Input | |
| 1 x 1/8" / 3.5 mm Mini Audio Input | |
| 1 x 1/8" / 3.5 mm Mini Audio Output | |
| 1 x 1/8" / 3.5 mm Mini Control Output | |
|
General
|
|
| Light Source |
Laser Phosphor
|
| Lamp Power |
390 W
|
| Expected Lamp Life |
Medium Brightness: 15,000 Hours
|
| Low Brightness: 20,000 Hours | |
| Security |
Password Protection
|
| Supported Languages |
Arabic
|
| Czech | |
| Dutch | |
| English | |
| Finnish | |
| French | |
| German | |
| Hindi | |
| Indonesian | |
| Italian | |
| Japanese | |
| Korean | |
| Polish | |
| Portuguese | |
| Russian | |
| Spanish | |
| Swedish | |
| Thai | |
| Traditional Chinese | |
| Turkish | |
| AC Input Power |
120 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: 450 W
|
| Standby Mode (Lamp Off): < 0.5 W | |
| Dimensions (W x H x D) |
20.0 x 6.5 x 15.4" / 50.8 x 16.5 x 39.1 cm
|
| Weight |
22.05 lb / 10.00 kg
|
|
Packaging Info
|
|
| Package Weight |
36.5 lb
|
| Box Dimensions (LxWxH) |
23.5 x 22.5 x 14"
|
