Description

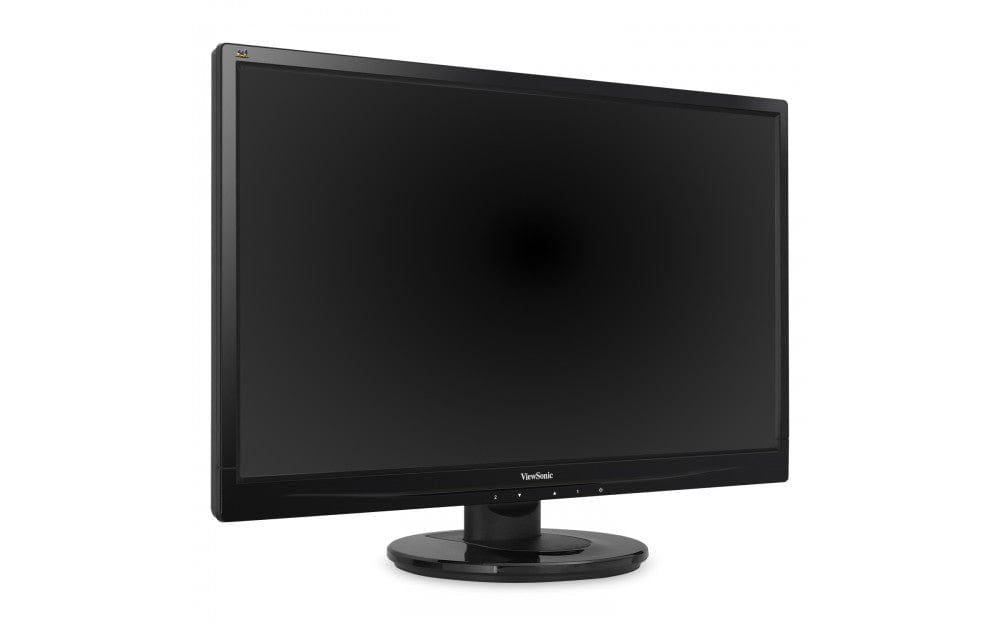

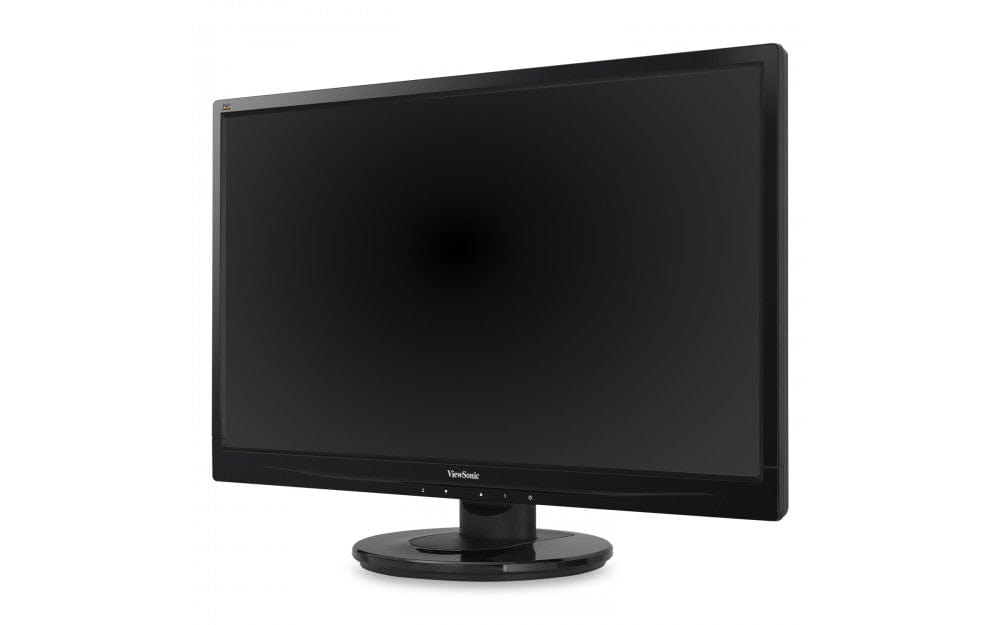

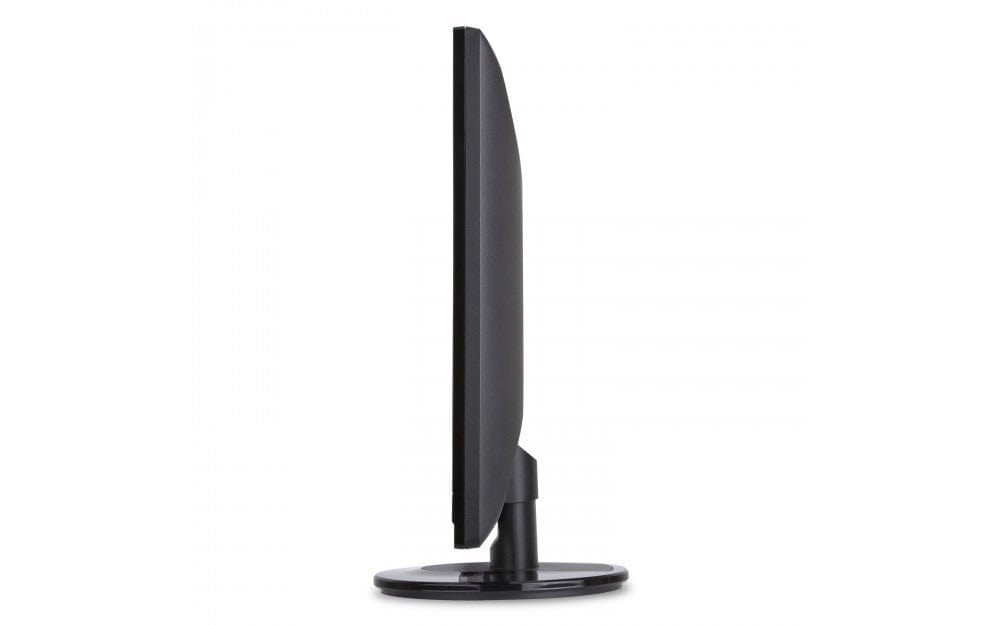

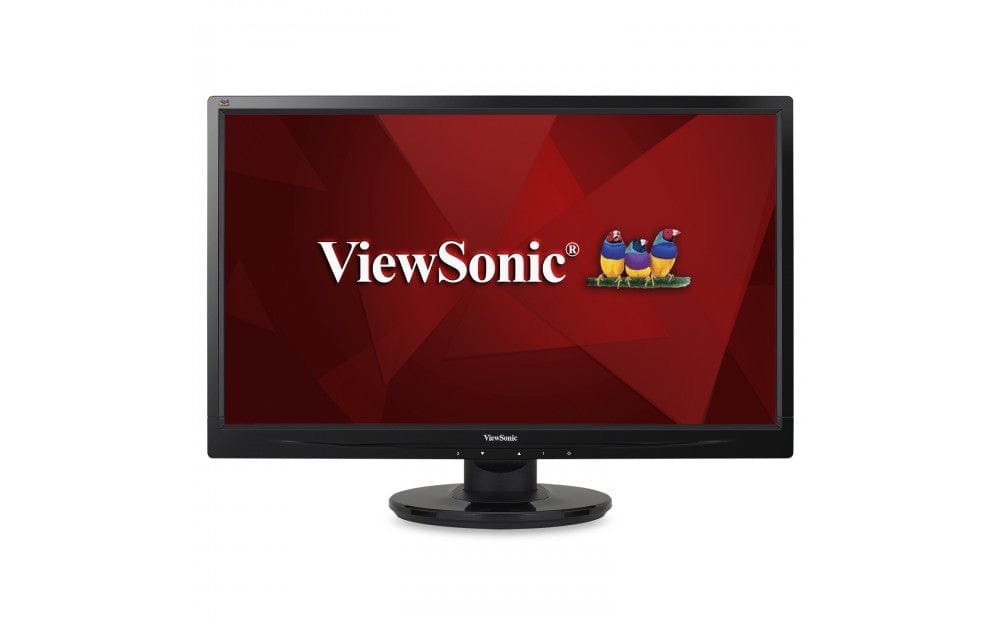

The ViewSonic VA2246m-LED is a 22” (21.5” viewable) widescreen monitor with a LED backlight and a glossy, thin-bezel design ideal for use in the home or at the office. With Full HD 1920x1080 resolution and a 10M:1 MEGA Dynamic Contrast Ratio, the VA2246m-LED delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. As a complete multimedia package, the display also includes a pair of integrated speakers. VGA and DVI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional mount flexibility. With a LED backlight and energy-saving Eco-mode, the VA2246m-LED is an environmentally friendly display choice. In addition, a 3-year limited warranty, along with one of the industry’s best pixel performance policies make the VA2246m-LED a great value choice for corporate and educational use as well.
Features
- 22" (21.5" viewable) widescreen LED backlit monitor; great value for small office, home office applications, corporations, government and education
- 1920x1080 resolution with 16:9 aspect ratio for perfect image reproduction
- Connectivity options include DVI (with HDCP) and VGA inputs
- Multimedia enriched with integrated stereo speakers
Full HD 1080p Resolution
- 1080p Full HD
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
MEGA Dynamic Contrast Ratio
- Maximized Color & contras
A superior MEGA dynamic contrast ratio better defines the relationship between the darkest and brightest colors, ensuring that this monitor delivers an incredibly immersive experience with accurate, rich, and vibrant images.

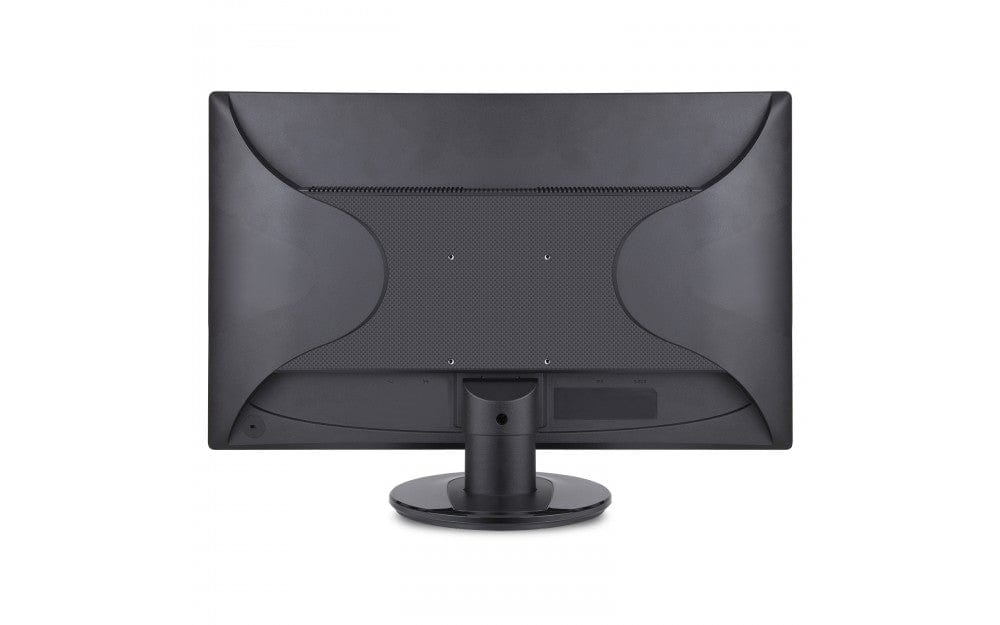

VESA-Compatible Mount Design
Mount the monitor as you see fit using its convenient 100 x 100mm VESA-compatible mount design.
Specifications
| Display: | |
| Display Size (in.): | 22 |
| Viewable Area (in.): | 21.5 |
| Panel Type: | TN |
| Resolution: | 1920 x 1080 |
| Static Contrast Ratio: | 1,000:1 |
| Dynamic Contrast Ratio: | 50,000,000:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m2 |
| Response Time (Typical GTG): | 5ms |
| Viewing Angles: | 170º horizontal, 160º vertical |
| Backlight Life (Hours): | 00:00 |
| Panel Surface: | 3H Anti-glare, hard-coating |
| Compatibility: | |
| PC Resolution (max): | 1920 x 1080 |
| Mac® Resolution (max): | 1920 x 1080 |

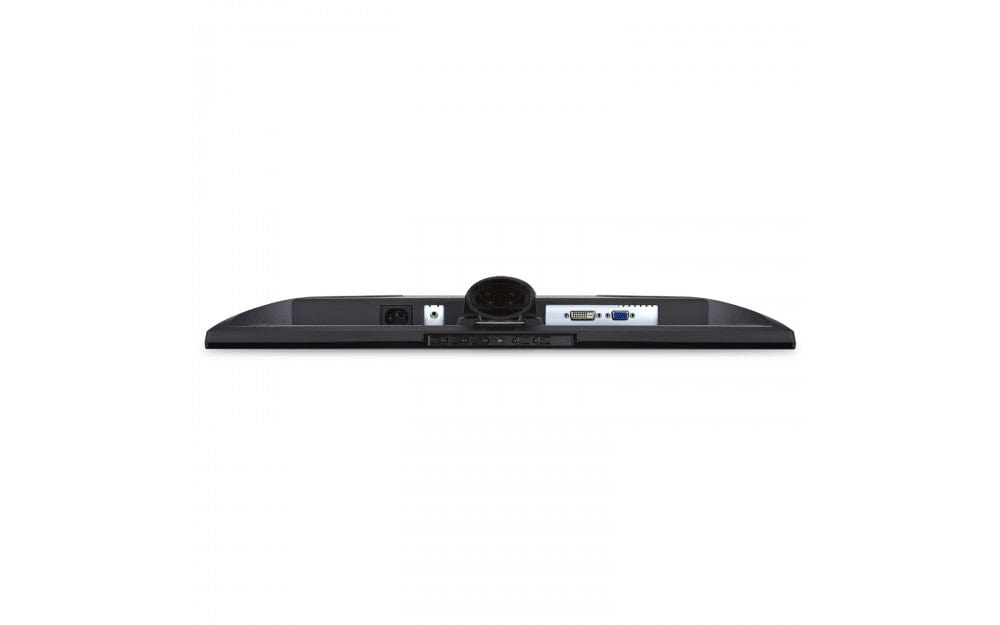

| Connector: | 3.5mm Audio In(1), VGA(1), DVI-I(1) |
| Audio: | |
| Internal Speakers: | 2.5W (x2) |
| Power: | |
| Eco Mode (Conserve): | 12W |
| Eco Mode (optimized): | 16W |
| Consumption (typical): | 22W |
| Consumption (max): | 34W |
| Voltage: | AC 100-240V (universal), 50-60Hz |
| Additional Hardware: | |
| Kensington Lock Slot: | 1 |
| Controls: | |
| Physical Controls: | 1, 2, Down, Up, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, AudioAdjust, Color Adjust, Information, Manual Image Adjust,Setup Menu, Memory Recall (See user guide for completeOSD functionality) |
| Operating Conditions: | |
| Temperature: | 32-104º F (0 - 40º C) |
| Humidity (non-condensing): | 20-90% |
| Mount: | |
| VESA Compatible: | 100 x 100 mm |
| Video Signal: | |
| Frequency Horizontal: | 24~82kHz |
| Frequency Vertical: | 50~75Hz |
| Video Input: | |
| Analog Sync: | Separate Sync |
| Ergonomics: | |
| Tilt (Forward/Back): | 5° / 23° |
| Weight (imperial): | |
| Net (lbs): | 7.7 |
| Net Without Stand (lbs): | 6.9 |
| Gross (lbs): | 10.3 |
| Weight (metric): | |
| Net (kg): | 4 |
| Net Without Stand (kg): | 3.1 |
| Gross (kg): | 4.7 |

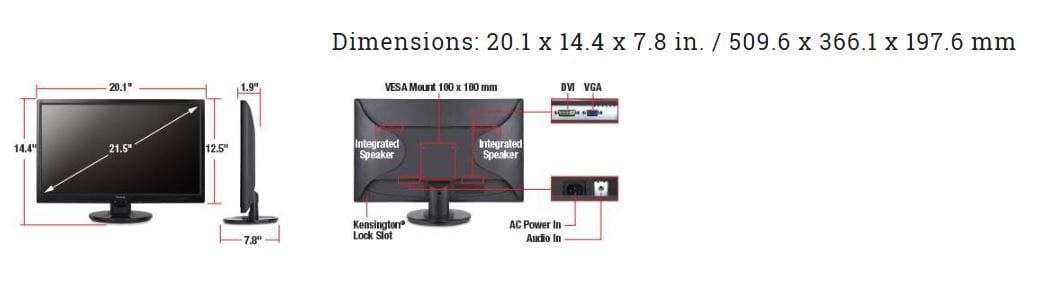

| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 22.2 x 15.4 x 4.5 |
| Physical (in.): | 20.1 x 14.4 x 7.8 |
| Physical Without Stand (in.): | 20.1 x 12.5 x 1.9 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 565 x 391 x 114 |
| Physical (mm): | 509.6 x 366.1 x 197.6 |
| Physical Without Stand (mm): | 509.6 x 316.6 x 48.3 |
| General: | |
| Regulations: | cULus, FCC-B, ICES003, Energy Star 7.0, UL-MX-CoC, Mexico Energy, EPEAT Silver, CE, WEEE, REACH, EAC, UkrSEPRO, TCO7.0 |
| Package Contents: | VA2246m-LED display, power cable, video cable, audio cable, Quick Start Guide, ViewSonic WizardCD (available in some countries only), Base instruction guide |
| Power Management: | ENERGY STAR® standards |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | 90 days limited warranty on parts and labor. |
| UPC: | 766907722529 |
| Accessories: | CB-00008187, LCD-CABLE-001, LCD-EEEW-22-01, LCD-EEEW-22-02, LCD-EW-22-01, LCD-EW-22-02, LCD-EW-22-03, LCD-WMK-001, VSPF2150 |
