Description

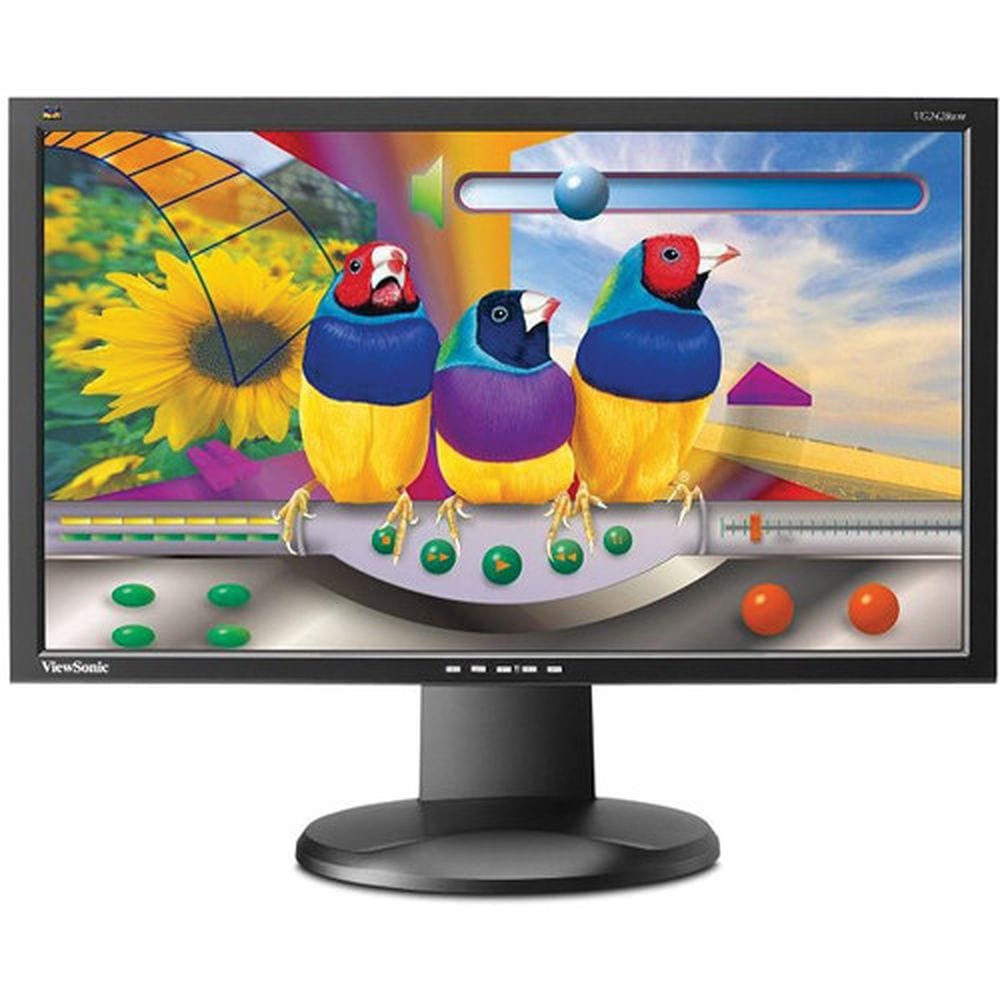

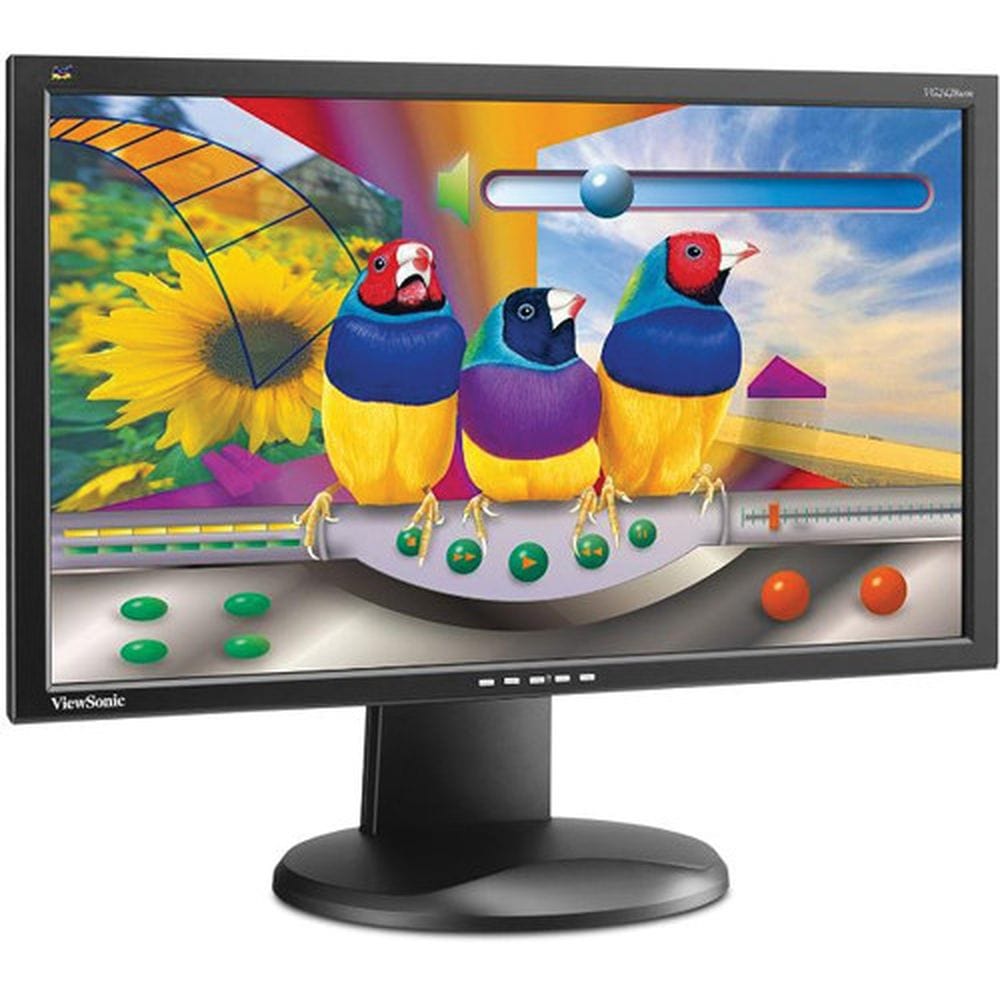

The VG2428wm 23.6" Widescreen LCD Computer Display from ViewSonic is a desktop computer monitor with an integrated USB 2.0 hub and built-in stereo speakers. The display features a 16:9 aspect ratio and a native resolution of 1920 x 1080, equal to that of 1080p HD video. It can connect to your computer via DVI-D or VGA. The display features an ergonomic stand that supports tilt, swivel, height, and pivot adjustments. It features a 1000:1 contrast ratio, 300cd/m² brightness, 5ms response time, and 170°/160° viewing angles.
Features
- 23.6" Widescreen LCD Computer Display
- 1920 x 1080 Native Resolution
- 1000:1 (100,000:1 Dynamic) Contrast
- 300cd/m² Brightness
- 5ms Response Time
- Stereo Speakers
- VGA + DVI-D, 4-Port USB 2.0 Hub
ECO-Mode
Environmentally-friendly ECO-mode reduces power consumption and extends backlight life
Multi-Functional Base Design

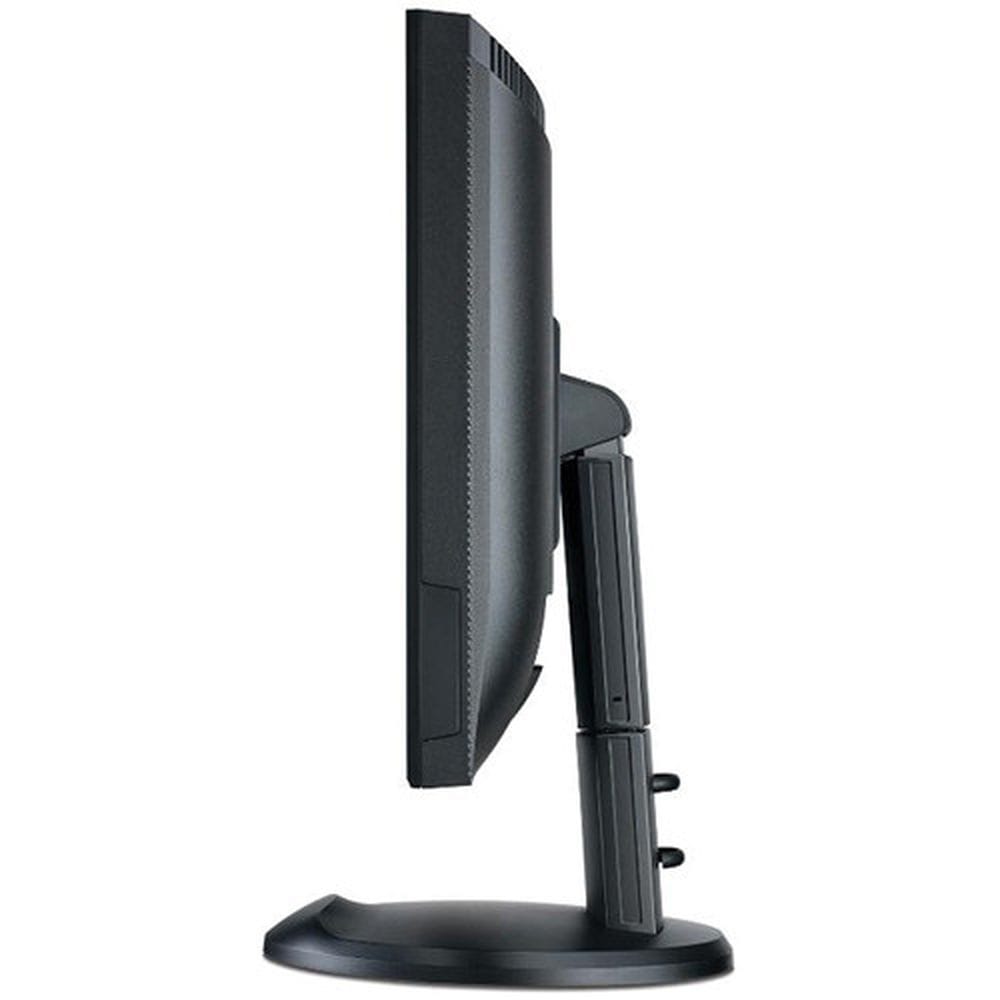

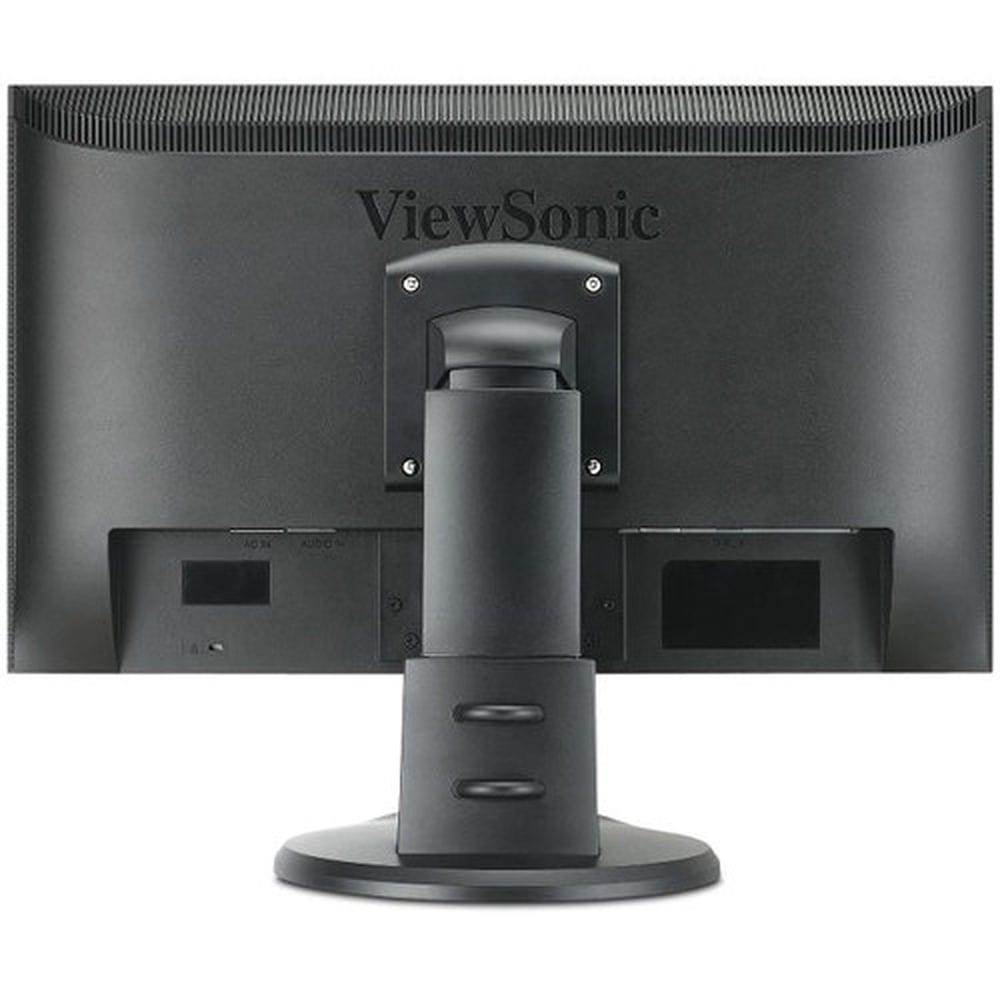

VESA compliant wall-mount interface and detachable base for ergonomic flexibility with 90° pivot, 5.3" height, tilt and 360° swivel adjustments
Multimedia Enhanced
Save desk and workspace and enjoy rich, stereo sound with built-in stereo speakers
OptiSync Digital/Analog Inputs Expand Your Connectivity
Multi-mode input technology supports both digital (DVI) and analog (VGA) signals for ultimate compatibility and configuration flexibility
Stylish Slim-Bezel Design
An ultra-thin bezel lets you see more without taking up valuable desktop real estate
USB Hub
4-port USB hub provides convenient connectivity to external devices
Widescreen Aspect Ratio with 1920 x 1080 Resolution
The widescreen aspect ratio allows you to view full HD content in its native format with no stretching or distortion
Specifications
| Panel/Display | |
| Type |
Active Matrix TFT LCD
|
| Viewable Size |
23.6"
|
| Brightness |
300cd/m²
|
| Contrast Ratio |
1000:1 (100,000:1 dynamic)
|
| Viewing Angle |
170° horizontal, 160° vertical
|
| Pixel Dot Pitch |
0.2715mm
|
| Response Time |
5ms
|
| Panel Life |
Not Specified by Manufacturer
|
| Colors Supported |
16.7 million
|
| Signal | |
| Internal Interface |
Analog/Digital
|
| Frequency |
Horizontal: 22-82kHz
|
| Vertical: 50-75Hz | |
| Sync Type |
H/V Separated
|
| Resolution |
1920 x 1080
|
| Input/Output Connectors | |
| Analog |
1x VGA
|
| Digital |
1x DVI-D
|
| Audio Input |
1x 1/8" (3.5mm)
|
| Headphone Jack |
None
|
| Hub Ports |
4x USB 2.0
|
| Speakers |
2x2W Stereo
|
| Mount |
Desktop, VESA (100 x 100mm)
|
| Controls | |
| Buttons |
Power, Mute, [1], Up, Down, [2]
|
| On-Screen Display |
Auto Image Adjust, Contrast/Brightness, Audio Adjust (Volume, Mute), Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect Ratio), Eco mode, Setup Menu: (Language Select, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Sleep, Memory Recall)
|
| Auto Configuration |
Yes
|
| Touch Screen |
None
|
| Tilt/Swivel Range |
Tilt: -5-20°
|
| Swivel: 360° | |
| Height: 5.3" (13.5cm) | |
| Pivot: 90° | |
| Security |
None
|
| Compliant Standards |
CB, TCO '05, WEEE, RoHS, UL/cUL, FCC-B, IRAM, NOM, ENERGY STAR, EPEAT, NEMKO/ERGO,CE, Ukraine, GOST-R+Hygienic, SASO, BSMI, PSB, C-TICK, MIC, VCCI, CCC
|
| System Requirements |
Computer with VGA or DVI-D output
|
| Power Requirements |
AC: 100-240VAC
|
| Consumption: 45W (Typical), < 1W (Sleep) | |
| Environmental Requirements |
Operating
|
| Temperature: 32-104°F (0-40°C) | |
| Humidity: 10-90%, non-condensing | |
| Dimensions |
With Stand: 22.2 x 17.4 x 9.8" (56.4 x 44.2 x 25cm)
|
| Without Stand: 22.2 x 13.2 x 2.6" (56.4 x 33.5 x 6.7cm) | |
| Weight |
With Stand: 15.4 lb (7kg)
|
| Without Stand: 13.3 lb (5kg) | |
|
Packaging Info
|
|
| Box Dimensions (LxWxH) |
25 x 12 x 21"
|
