Description
A compact UPS with line interactive topology, the CyberPower AVRG900U provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG900U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Features

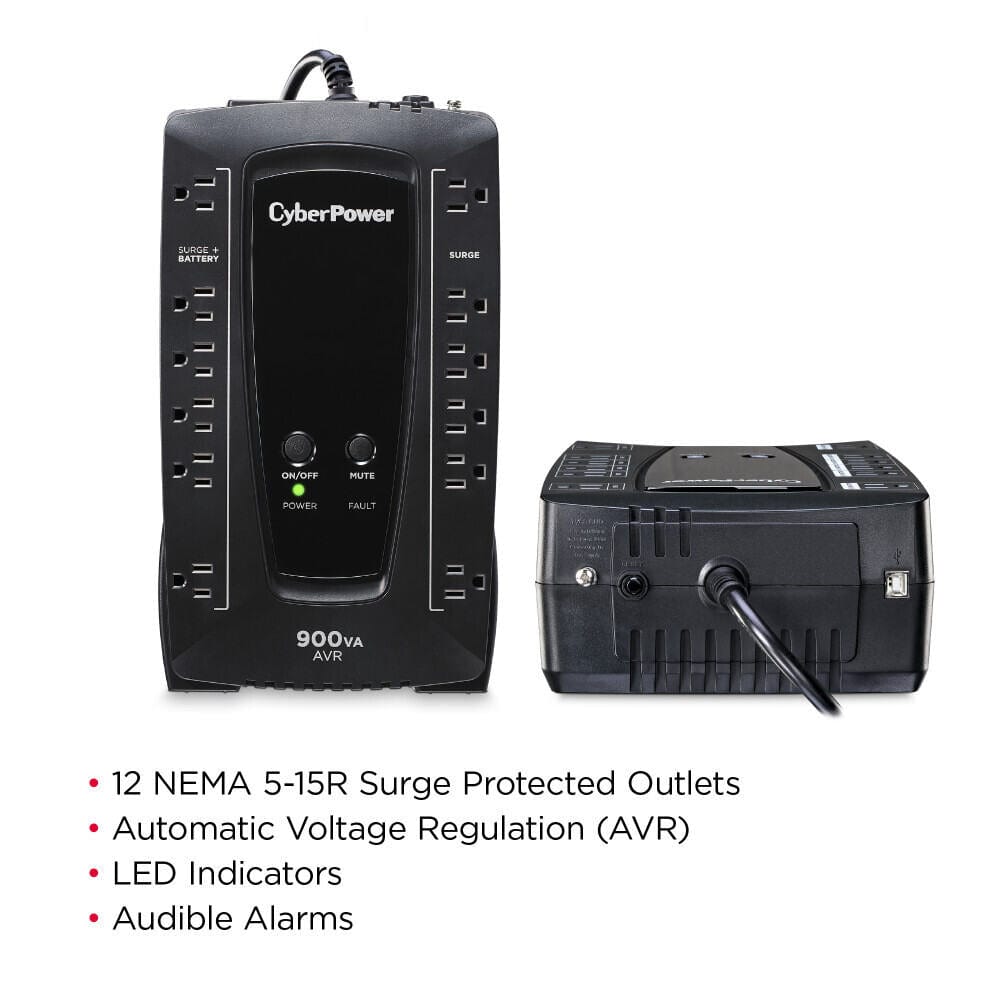

- 900VA/480W AVR Battery Backup Uninterruptible Power Supply (UPS) System uses simulated sine wave output to safeguard desktop computers, workstations, networking devices, and home entertainment equipment
- 12 NEMA 5-15R OUTLETS: Six battery backup & surge protected outlets; Six surge protected outlets; INPUT: NEMA 5-15P right angle, 45 degree offset plug with five foot power cord
- DATA LINE PROTECTION: Prevents power surges that travel through telephone lines from causing damage to electronics
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor power fluctuations without switching to battery power, thereby extending the life of the battery
Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Data Line ProtectionPrevents power surges that travel through telephone lines from causing damage to electronics.
Line Interactive TopologyExists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Simulated Sine Wave OutputUses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS™ Bypass DesignIs a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Ultra Quiet DesignMinimizes noise during operation for a quieter work environment.
PowerPanel® Personal Edition SoftwareProvides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
Specifications
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 1 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 10 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 5 ft (1.5 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation | Single Boost Single Buck |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 12 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Surge-Only Protected | 6 |
| Outlets – Total | 12 |
| Output Power Factor | 0.5 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 900 VA |
| Watts | 480 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Phone Protection RJ11 | 1-In / 2-Out |
| Surge Suppression (Joules) | 1030 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LED Indicators | Power On Wiring Fault |
| Management Cable | USB Cable |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Material of Construction | Plastic |
| Dimensions | |

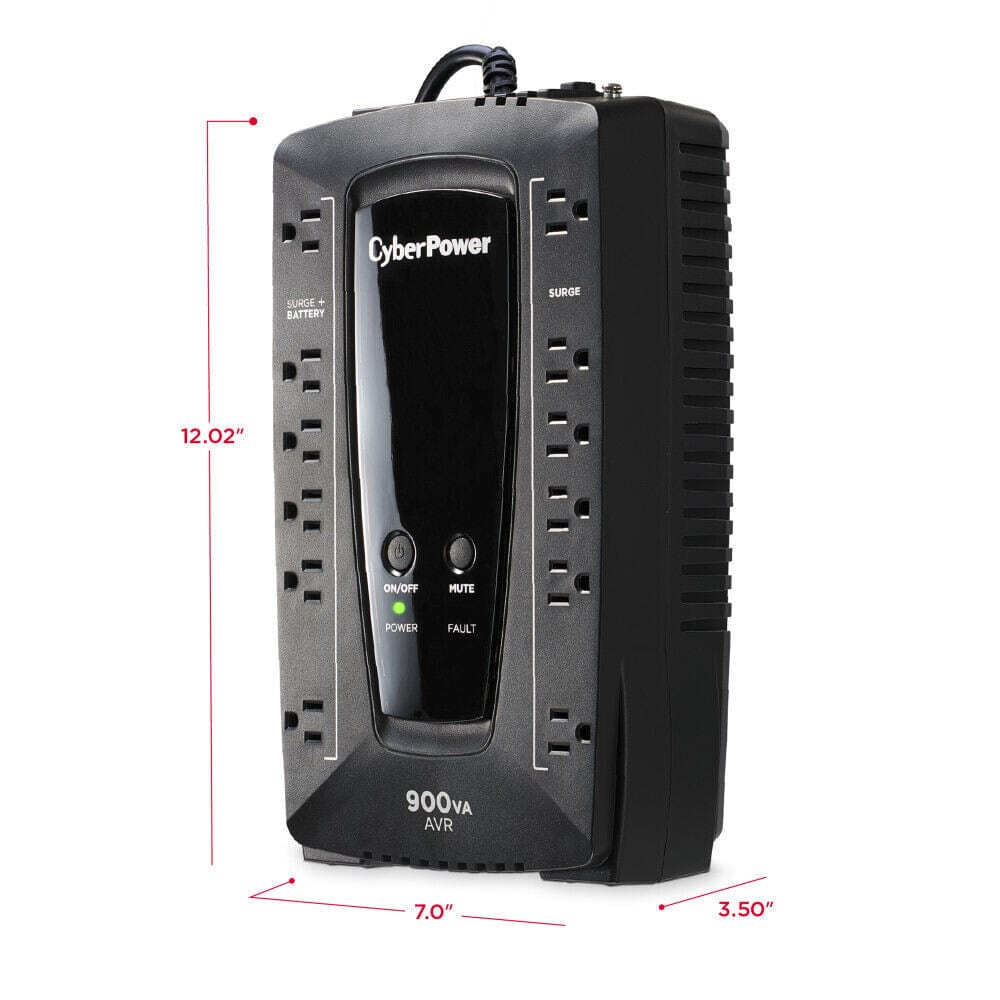

| Physical Dimensions – (WxHxD) (in) | 12.2 x 7 x 3.5 (in) |
| Physical Weight (lb) | 14.04 |
| Environmental | |
| Operating Elevation | 0 – 6562 ft (0 – 2000 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
