Description

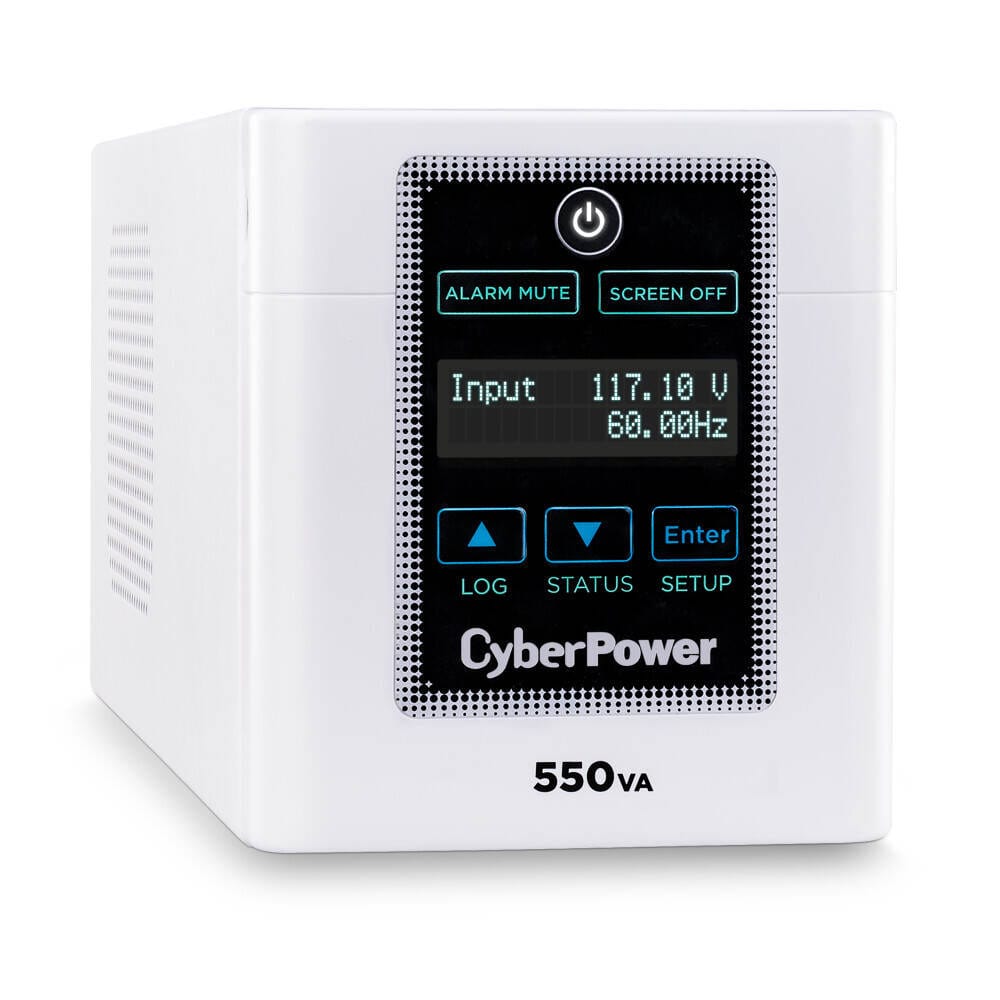

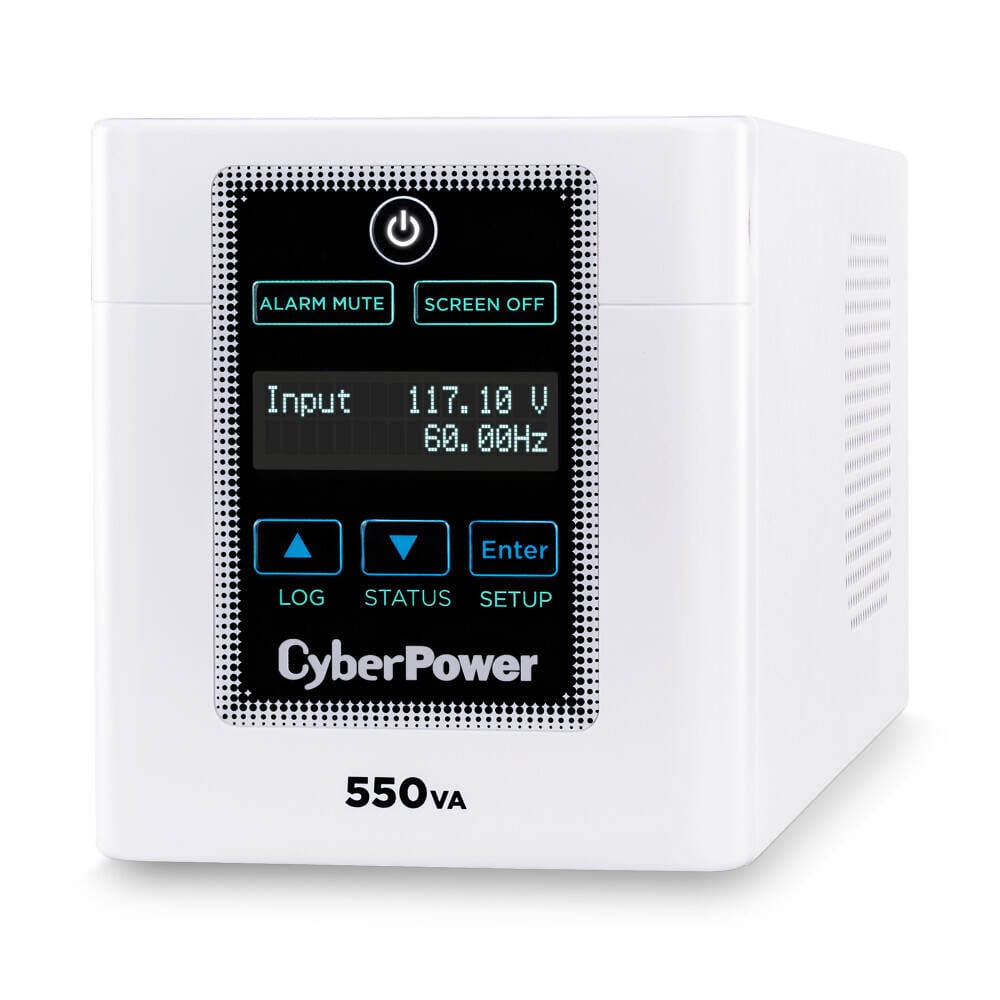

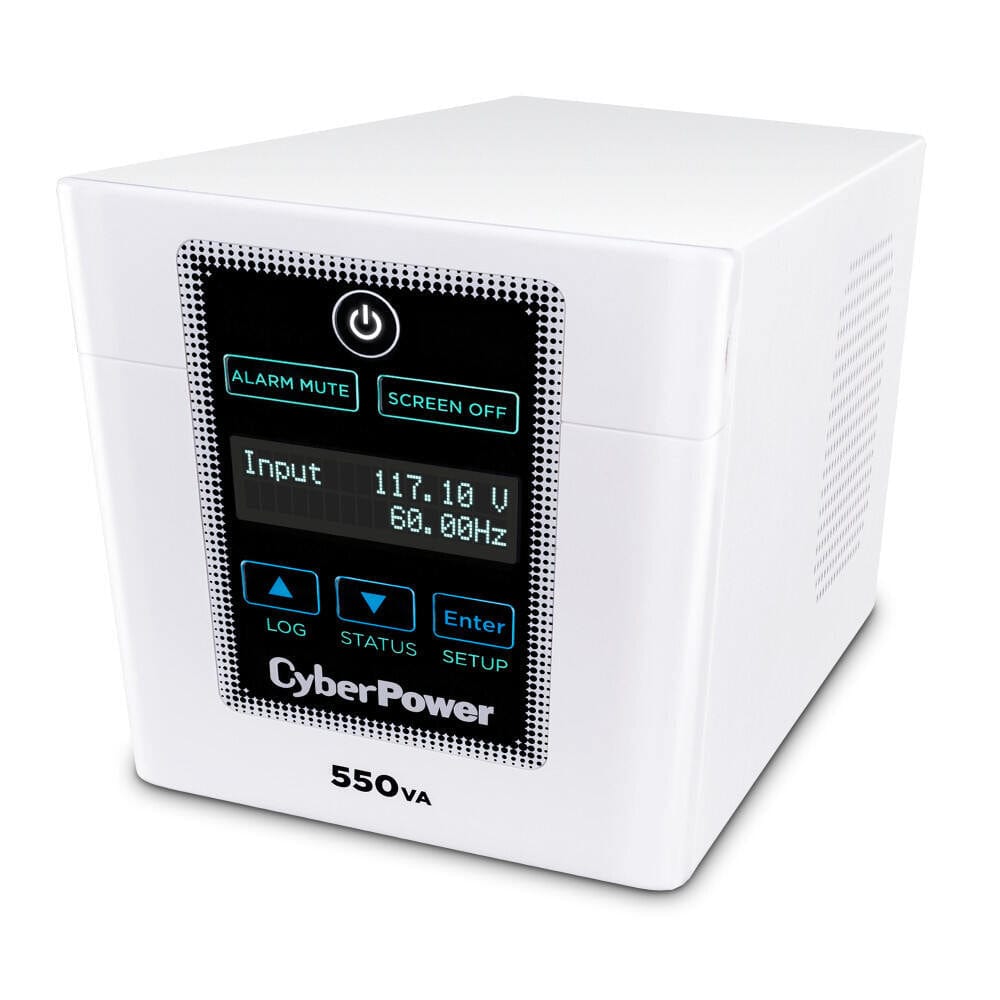

The CyberPower M550L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M550L has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M550L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.
Features
- 550VA/440W Medical-Grade Battery Backup Uninterruptible Power Supply (UPS) System; uses simulated sine wave output to safeguard sensitive medical equipment

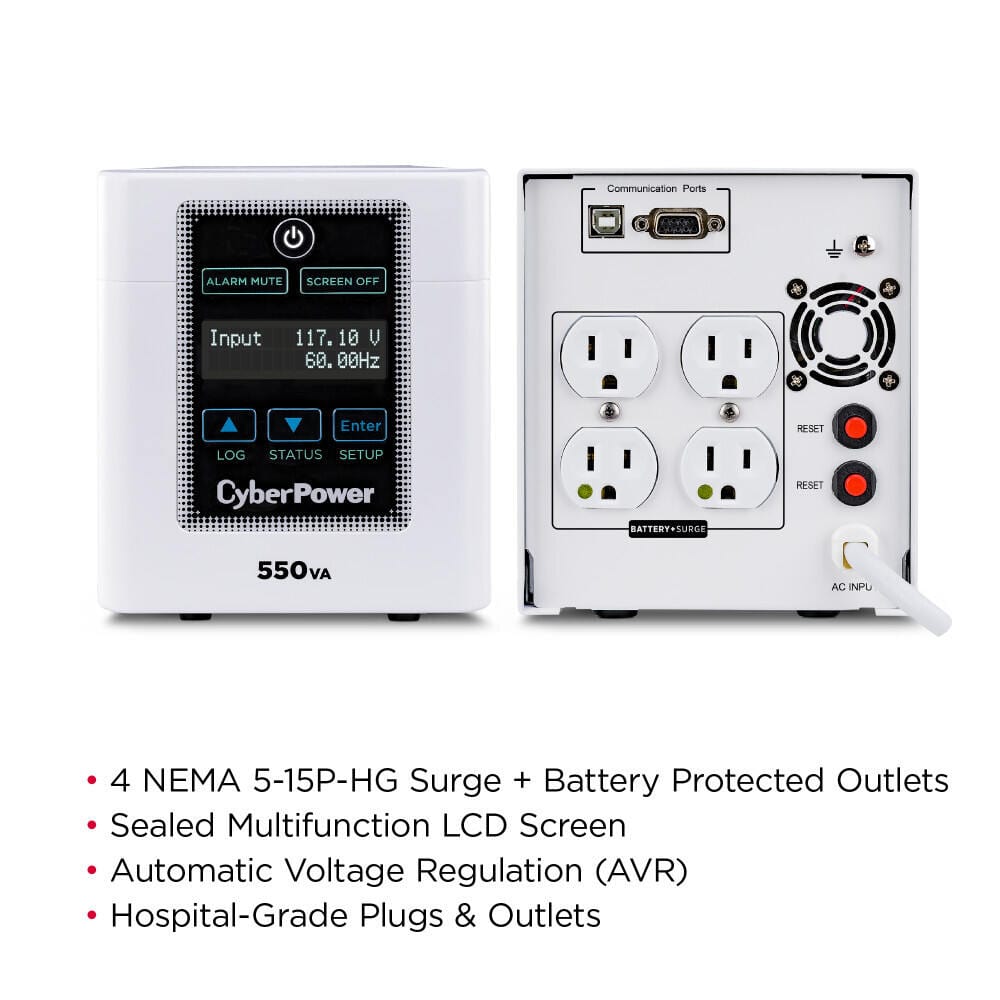

- 4 HOSPITAL-GRADE BATTERY BACKUP & SURGE PROTECTED OUTLETS: Designed for healthcare facilities, the M550L meets all UL 60601-1 requirements necessary for in patient care environments

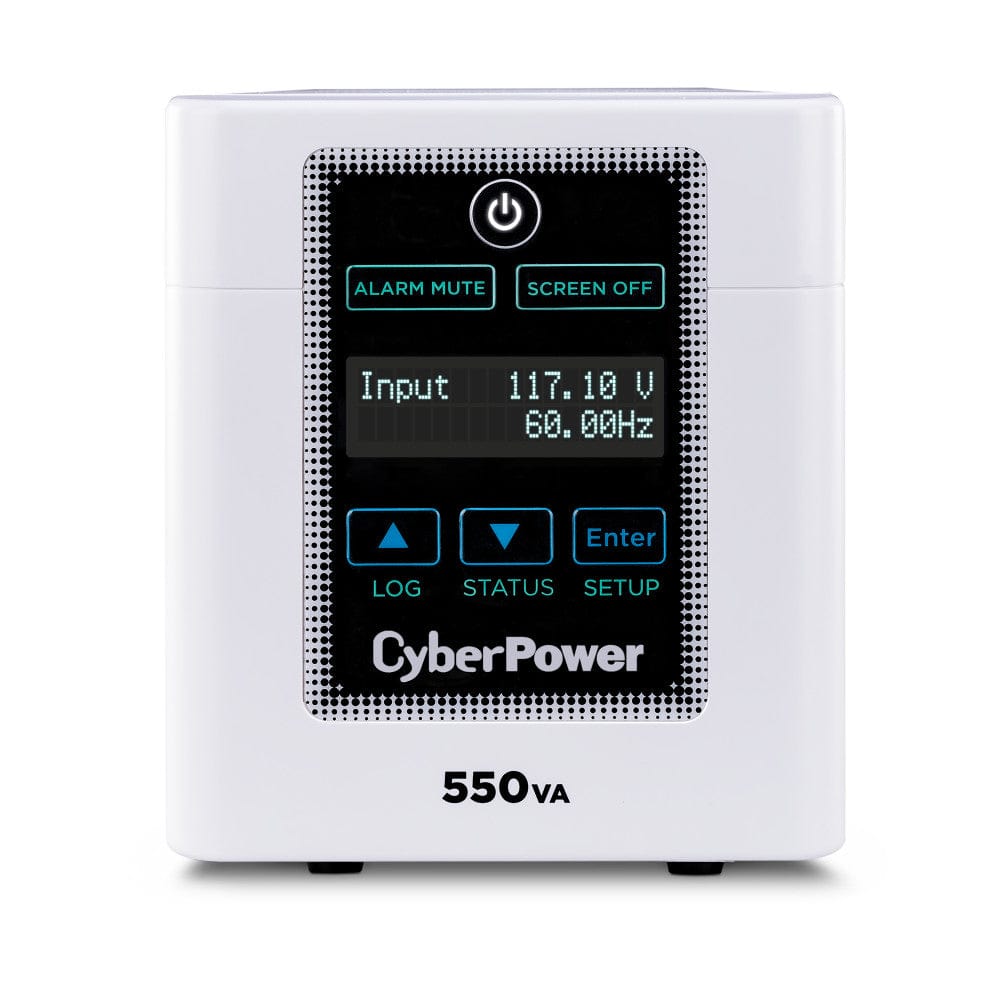

- MULTIFUNCTION LCD PANEL: Sealed, spray-resistant screen displays immediate, detailed information on battery and power conditions, including: estimated runtime, battery capacity, load capacity, etc.
- HOSPITAL-GRADE ISOLATION TRANSFORMER: Minimizes current leakage and eliminates line noise
Data Line ProtectionPrevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Line Interactive TopologyExists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Simulated Sine Wave OutputUses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS™ Bypass DesignIs a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Rotatable Multifunction LCD PanelDisplays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.
PowerPanel® Business Edition SoftwareProvides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
Specifications
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1270X2E |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 8 min |
| Runtime at Half Load | 25 min |
| Typical Recharge Time | 8 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 88 – 150 VAC |
| Circuit Breaker | 6 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |

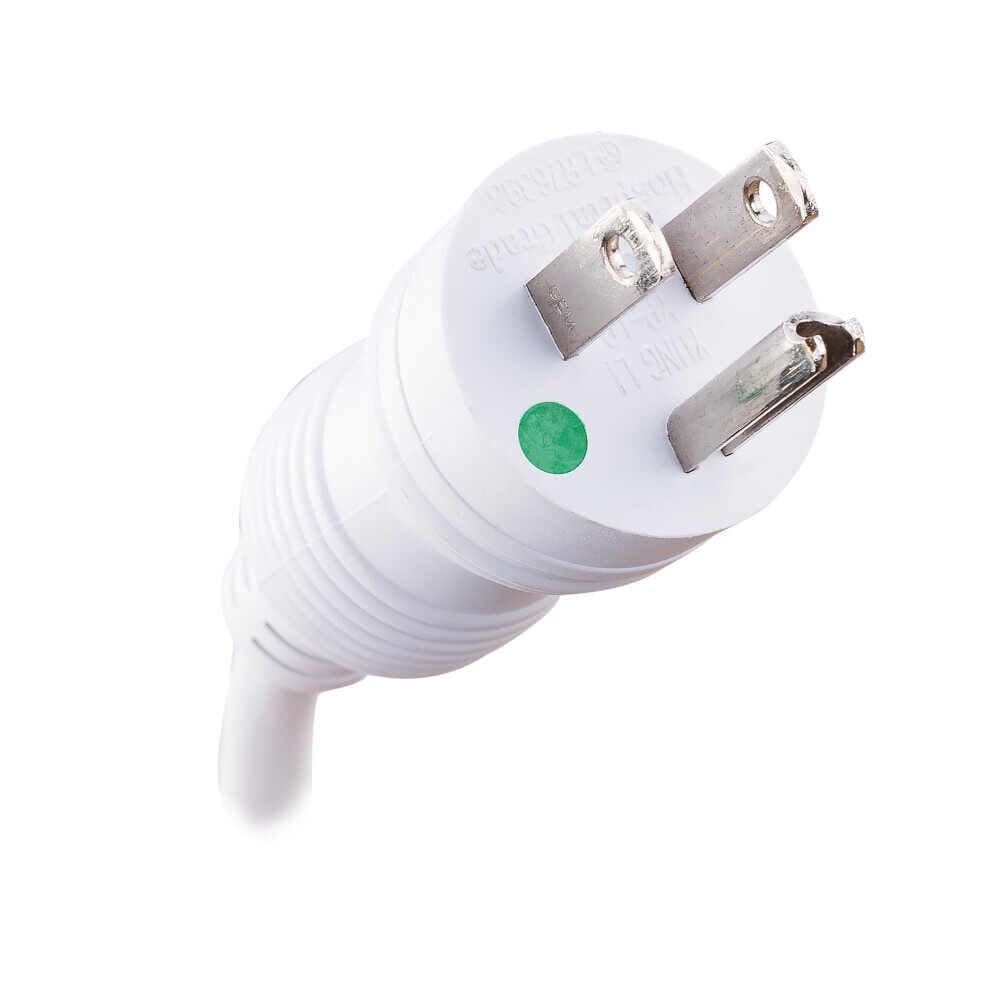

| Input Plug Type | NEMA 5-15P-HG |
| Input Voltage Range | 90 VAC – 146 VAC |
| Nominal Input Voltage | 120 VAC |
| Output | |
| Automatic Voltage Regulation | Single Boost Single Buck |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |

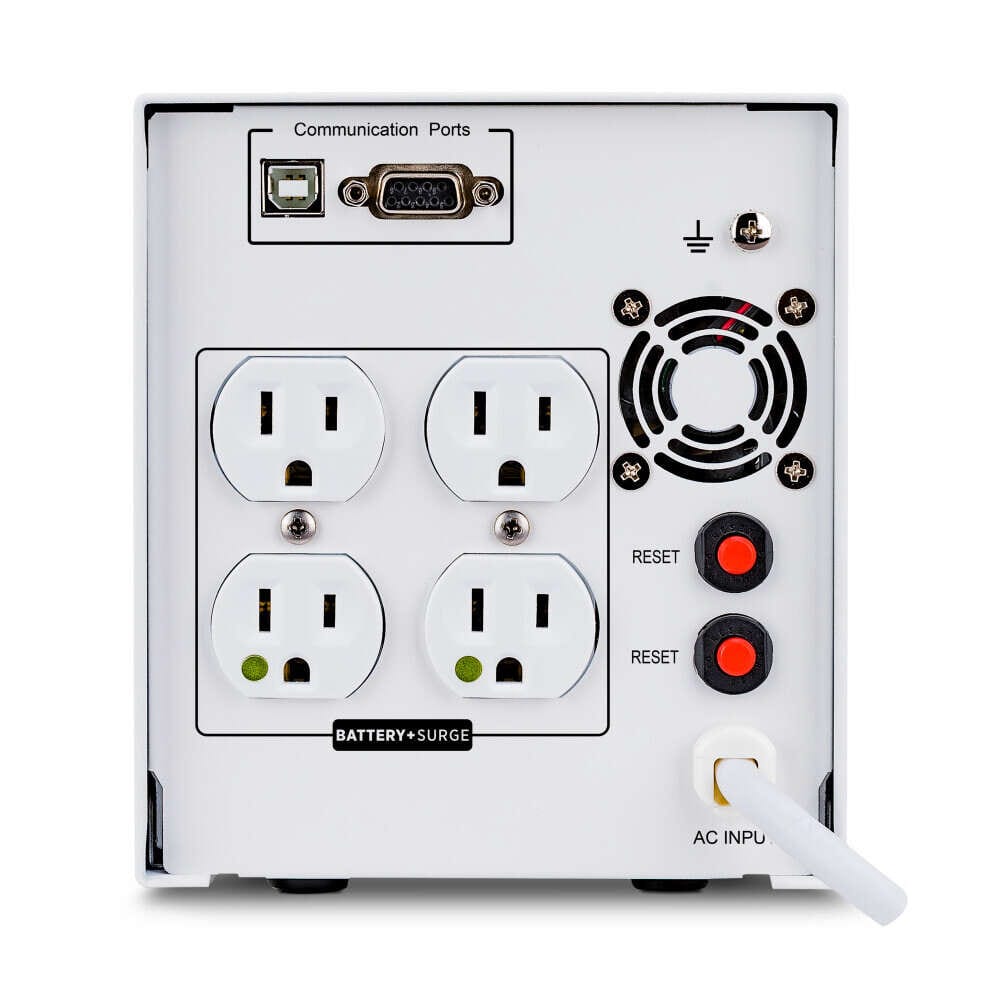

| Outlet Type | 4 – 5-15R-HG |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Total | 4 |
| Output Power Factor | 0.8 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | < 10 ms |
| USB Charge Port | No |
| VA | 550 VA |
| Watts | 440 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 1445 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On |
| Management Cable | USB Cable |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | White |
| Form Factor | Mini-Tower |
| Material of Construction | Plastic |
| Dimensions | |

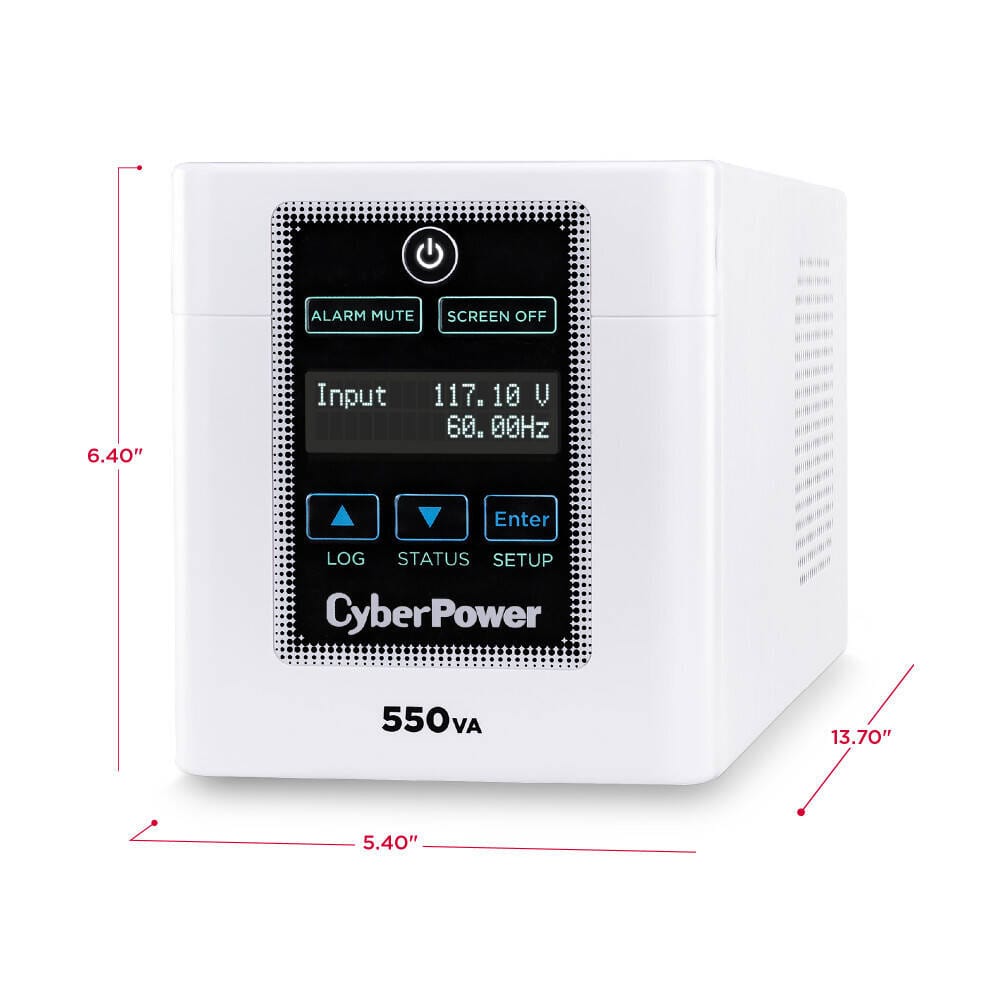

| Physical Dimensions – (WxHxD) (in) | 5.4 x 6.4 x 13.7 (in) |
| Physical Weight (lb) | 30.1 |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
