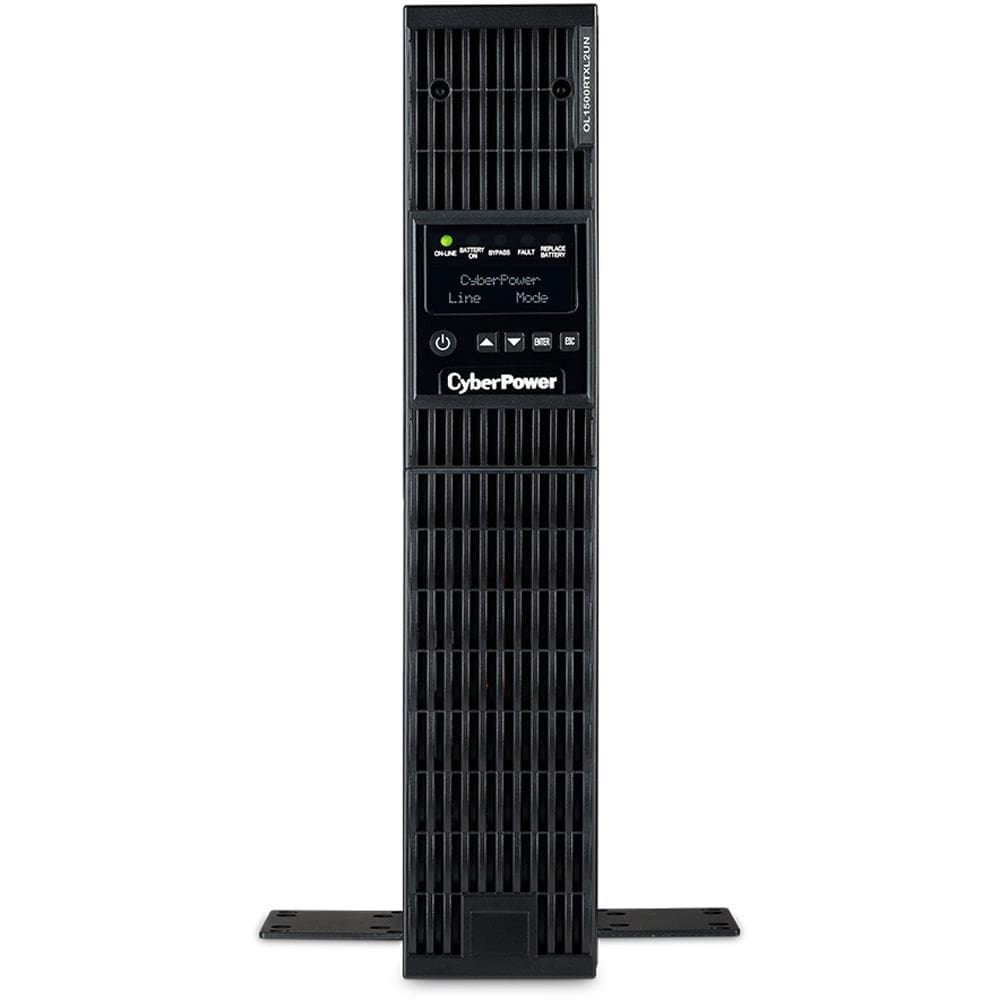

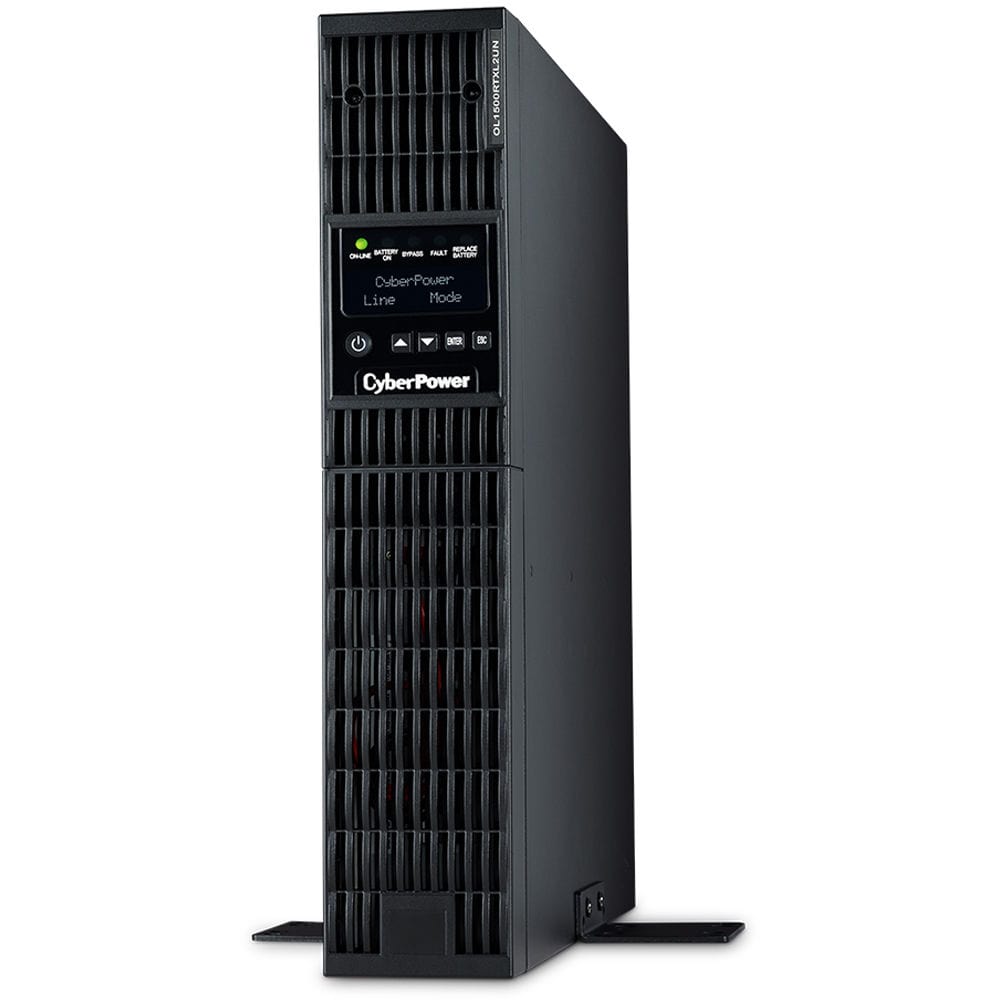

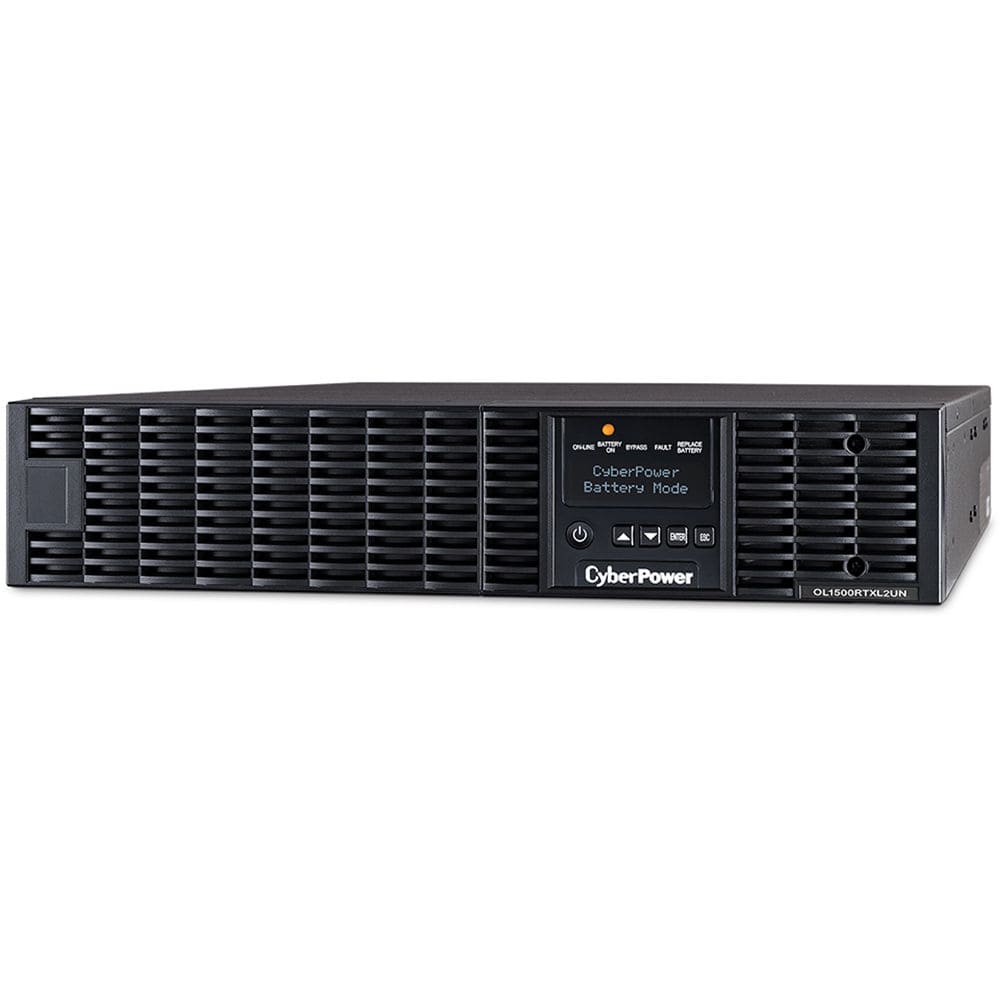

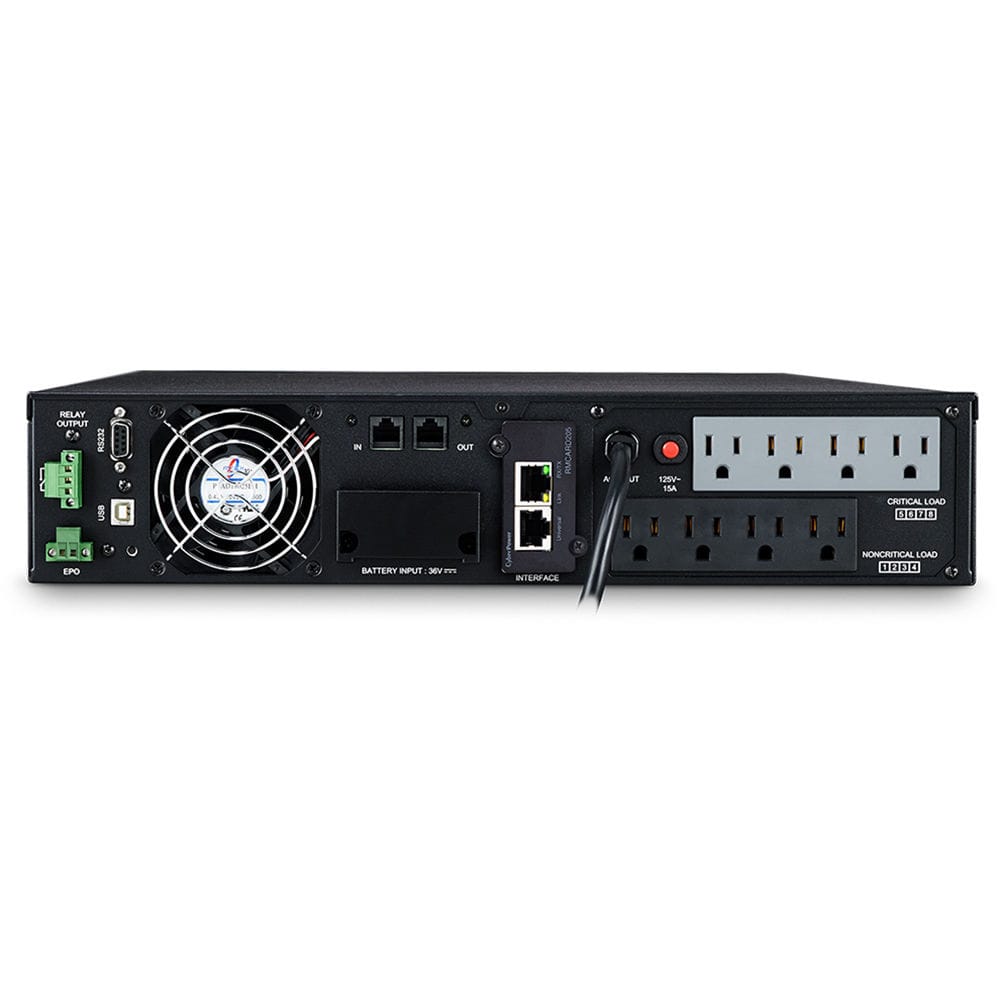

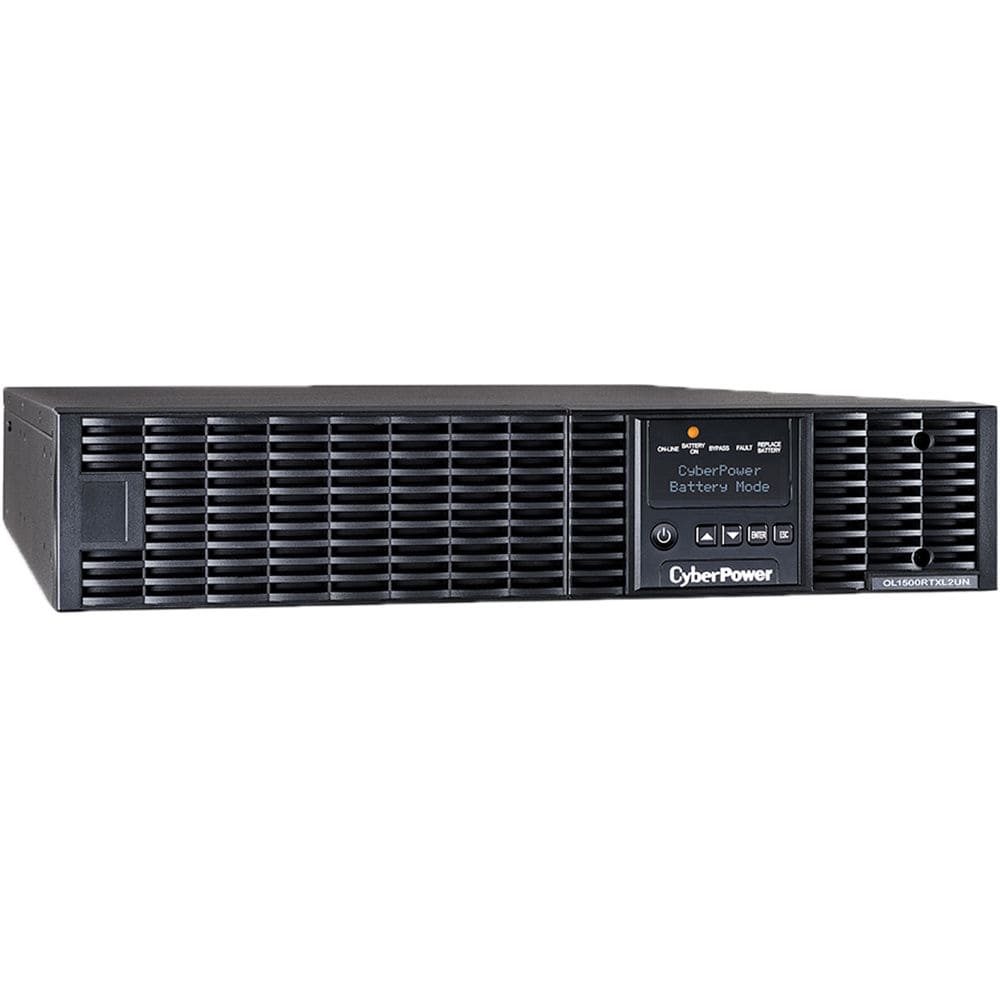

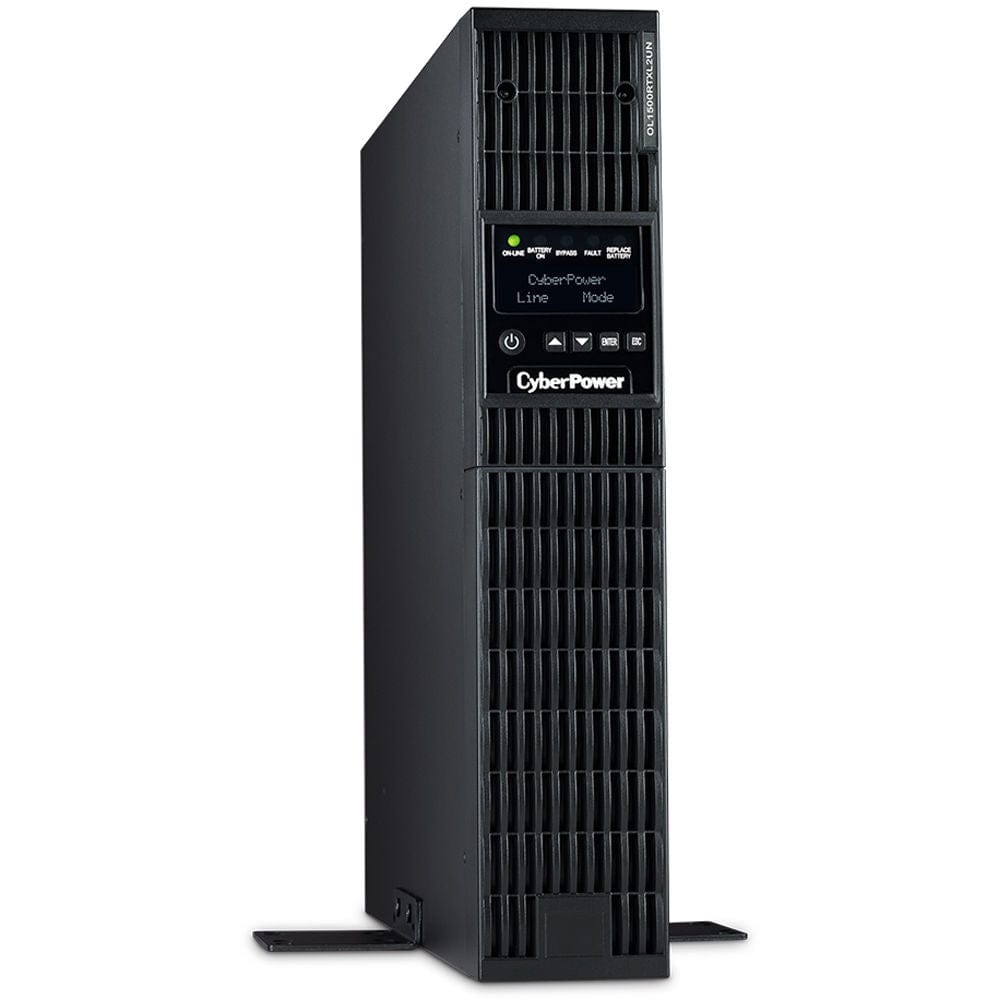

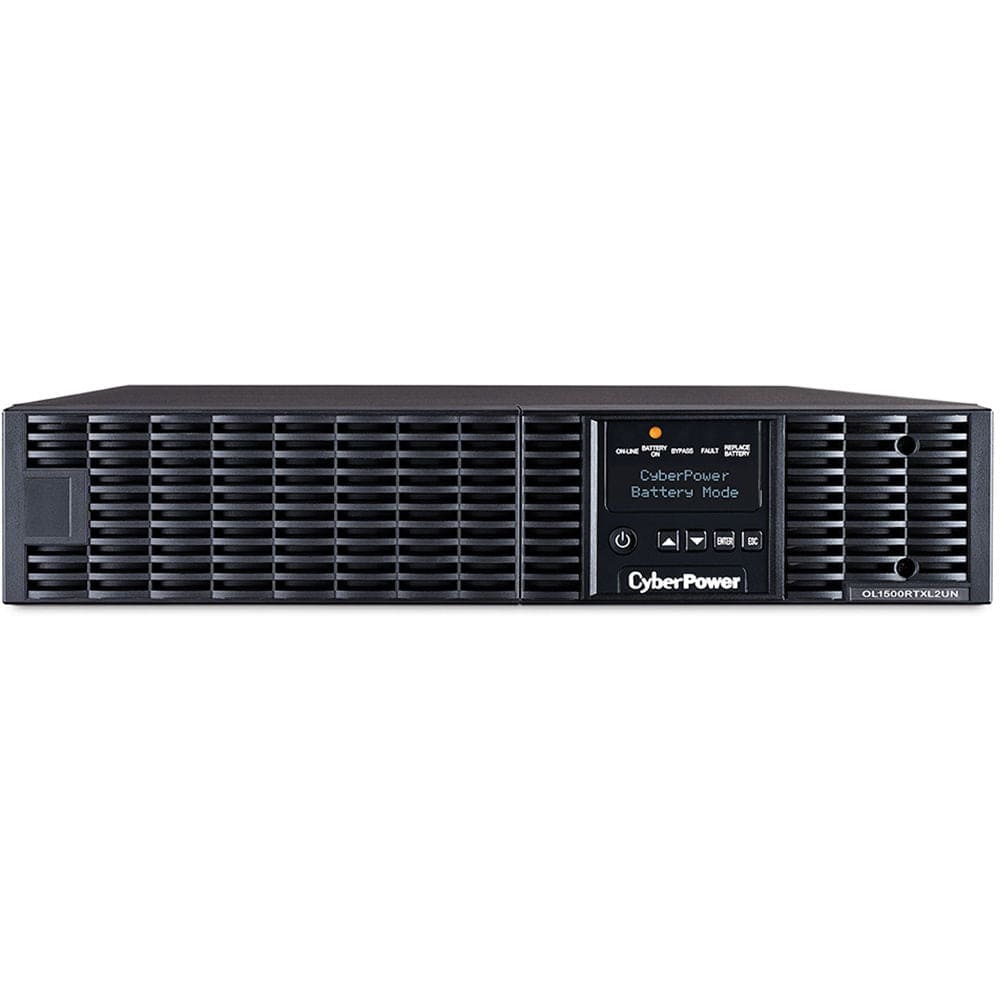

CyberPower 1500VA/1350W 8 Outlets 2U Rack/Tower Smart App Online UPS System - New Battery Certified Refurbished

CyberPower OL1500RTXL2U-R 1500VA/1350W 8 Outlets 2U Rack/Tower Smart App Online UPS System - New Battery Certified Refurbished

Description

Prevent business interruptions and safeguard mission-critical enterprise network equipment. The CyberPower OL1500RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode. The OL1500RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

Features

• 8 x NEMA 5-15R Total Outlets
• Input: 60-150 VAC @ 40-70 Hz
• 8 x Battery/Surge Protected Outlets
• USB, Serial, Network, Relay, EPO Monitoring & Management
• Network and storage devices

Double-Conversion Topology

Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. With the conversion to DC power, the UPS has a zero millisecond transfer time to battery power when utility power is lost. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output

Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

PowerPanel® Business Edition Software

Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

RMCARD205 Option

The optional RMCARD205 allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS).

LCD Control Panel

Displays UPS status data and configures operating settings from up to 10 ft. away (DB26 cable not included). The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed.

Extended Battery Module (EBM)

Extends runtime by adding up to 10 EBMs.

Fast Charge Technology

Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within 4 hours regardless of the number of EBMs.

Smart Battery Management (SBM)

Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

GreenPower UPS™ ECO Mode

Improves UPS efficiency up to 95%; saves on electrical and cooling costs.

Hot-Swappable Batteries

Keep equipment running by eliminating downtime during UPS battery replacement.

Upgradeable UPS firmware

The UPS firmware that manages the unit’s features and functions is field upgradeable. UPS firmware upgrades require the optional RMCARD205 to be installed in the UPS and are done via the web management interface.

Critical & Non-Critical Loads

Maximize the output of the UPS by setting non-critical loads to shut off allowing additional runtime for critical load outlets.

Emergency Power Off (EPO);

Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.

Generator Compatible

Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

Converter Mode

Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.

USB & Serial Connectivity

Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.

EMI/RFI Filters

Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.

Data Line Surge Protection

Prevents power surges that travel through telephone and Ethernet lines from causing damage to your equipment

Audible Alarms

Identify when the model is running on battery power, overloaded, or has a low battery.

Resettable Circuit Breaker

Interrupts an electric current in a circuit when the current becomes too high.

LED Status Lights

Indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.

Rack/Tower Versatility

Allows for horizontal rack or vertical tower installation.

Specifications

General
Total Outlets	8 x NEMA 5-15R
Protected Outlets	8 x NEMA 5-15R (Battery and Surge)
Plug Type	NEMA 5-15P
Data Line Protection	RJ11, RJ45
Communications	USB via Type-B
	Serial via DE-9/DB-9
Emergency Power Off (EPO) Support	Yes
Topology	Double Conversion
Transfer Time	0 ms
Power
Surge Energy Rating	1780 Joules
Maximum Wattage	1350 W at 120 VAC
Input Voltage Range	60 to 150 VAC
Input Frequency	50/60 Hz ± 10 Hz (Auto Sensing)
Output Voltage Range	100 to 125 VAC
Output Frequency	50/60 Hz ± 0.25 Hz (Auto Sensing, Configurable)
Load Capacity	1500 VA
Thermal Dissipation	478 BTU/Hour
Maximum Efficiency	95%
Crest Factor	3:01
Power Factor Correction	0.9
Waveform	Sine Wave
Battery
Battery Capacity	81 VAh
Chemistry	Lead-Acid
Full-Load Runtime	3.4 Minutes
Half-Load Runtime	11 Minutes
Recharge Time	4 Hours
User Replaceable	Yes
Replacement Battery	RB1290X3L
Hot-Swap Support	Yes
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 95%
Storage Temperature	-4 to 113°F / -20 to 45°C
Storage Humidity	0 to 95%
Operating Altitude	0 to 10,000' / 0.00 to 3048 m
Storage Altitude	0 to 50,000' / 0.00 to 15,240 m
Noise Level	38 to 55 dBA
Certifications	CSA, FCC, RoHS, UL
	*as per Manufacturer
Physical
Cable Length	10' / 3.05 m
Material of Construction	Steel
Rackmount Size	2 RU
Dimensions (W x H x D)	17.5 x 3.5 x 16.9" / 44.45 x 8.89 x 42.93 cm
Weight	39.6 lb / 17.96 kg
Packaging Info
Package Weight	53.55 lb
Box Dimensions (LxWxH)	22.35 x 21.5 x 9"
