Description

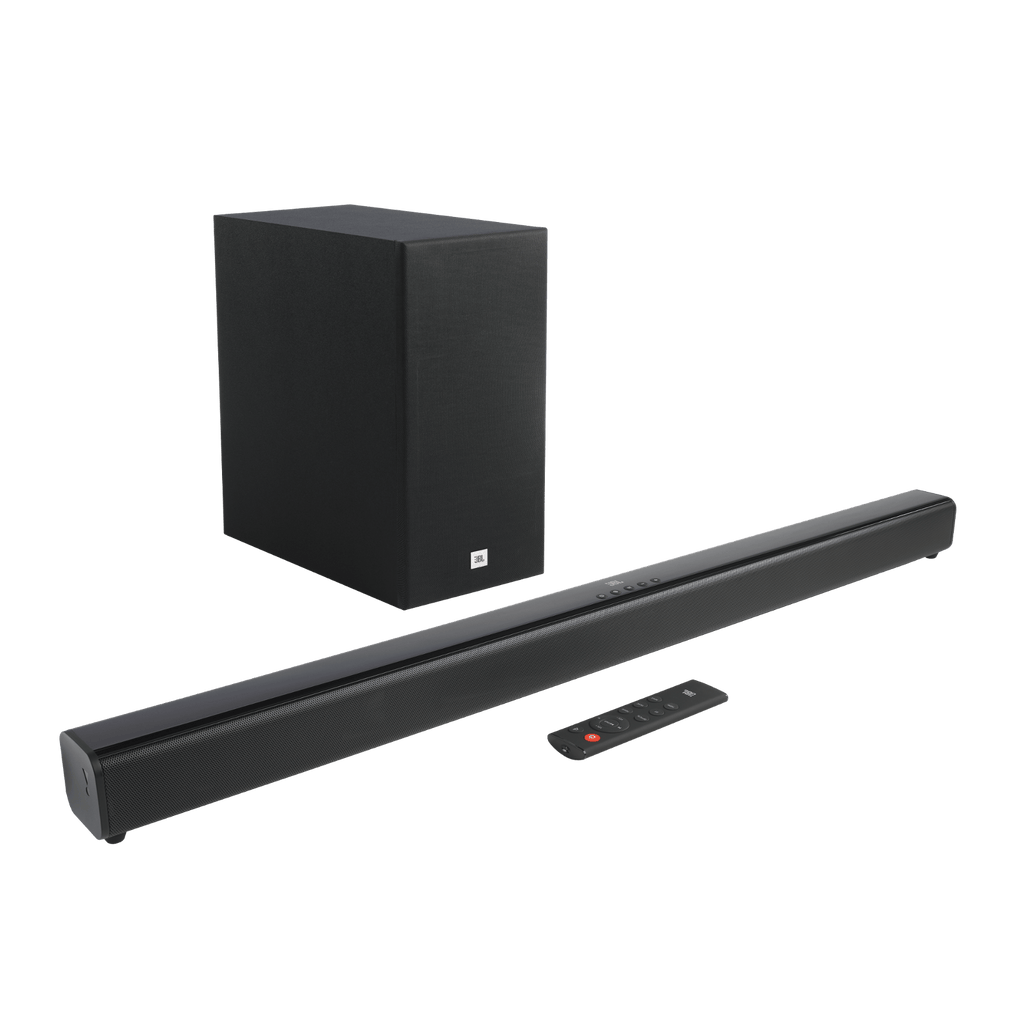

The JBL Cinema SB160 features 220W system power, Dolby Digital, Optical and HDMI ARC, four powerful full range drivers and comes with a wireless subwoofer. Enjoy impressive, balanced sound with extra deep bass for movies and music entertainment. Plus, it’s Bluetooth-enabled so you can play your favorite music wirelessly from any smartphone, tablet or laptop and features a one cable HDMI ARC connection that ensures a hassle-free user experience.
Features
- 220W power output: Incredible, powerful sound for an immersive cinematic experience.
- Wireless subwoofer for extra deep bass: Enjoy deep and thrilling bass and clutter-free experience.
- Dolby Digital embedded: Dolby Digital embedded for ultimate movie experience.
- Wireless music streaming via Bluetooth: Stream and enjoy all your music wirelessly from any mobile device.
- One cable connection with HDMI ARC: The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.
Specifications
| General Specifications | |
| Power supply | 100 - 240VAC, ~ 50/60Hz |
| Total speaker power output (Max. @THD 1%) | 220W |
| Soundbar power output (Max. @THD 1%) | 2 x 52W |
| Subwoofer power output (Max. @THD 1%) | 116W |
| Soundbar transducer | 2 x (48 x 90)mm racetrack driver + 2 x 0.5" tweeter |
| Subwoofer transducer | 5.25", wireless sub |
| Operating temperature | 0°C - 45°C |
| Audio Specifications | |
| Max SPL | 82dB |
| Frequency response | 40Hz - 20kHz |
| Audio inputs | 1 Optical, Bluetooth (USB is for Service only.) |
| Dimensions | |
| Soundbar dimensions (W x H x D) | 900 x 67 x 63(mm) / 35.4" x 2.6" x 2.5" |
| Subwoofer dimensions (W x H x D) | 170 x 345 x 313(mm) / 6.7" x 13.6" x 12.3" |
| Soundbar weight | 1.65kg |
| Subwoofer weight | 5kg |
| Control and Connection Specifications | |
| Bluetooth version | 4.2 |
| Bluetooth profile | A2DP V1.3/AVRCP V1.5 |
| Bluetooth frequency range | 2402MHz - 2480MHz |
| Bluetooth max. transmitting power | <0dbm (EIRP) |
| Modulation type | GFSK, π/4 DQPSK |
| 2.4G Wireless frequency range | 2400 - 2483MHz |
| 2.4G Max. transmitting power | 3dBm |
| USB port | Type A |
| USB rating | 5VDC/ 0.5A |
| Supporting file format | mp3, wav |
| MP3 Codec | MPEG 1 Layer 2/3 |
| MP3 sampling rate | 16kHz - 48kHz |
| MP3 bitrate | 80kbps - 320kbps |
| WAV sample rate | 16kHz - 48kHz |
| WAV bitrate | Up to 3000kbps |
| Notification | |
| Note | WARNING!! This product contains a button/coin cell battery and is hazardous. Keep batteries away from children. Batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body. Medical attention should be sought immediately if it is suspected the battery has been swallowed or placed inside any part of the body. |
| Video Specifications | |
| HDMI Video output (With Audio return channel) | 1 |
| HDMI HDCP version | 1.4 |
