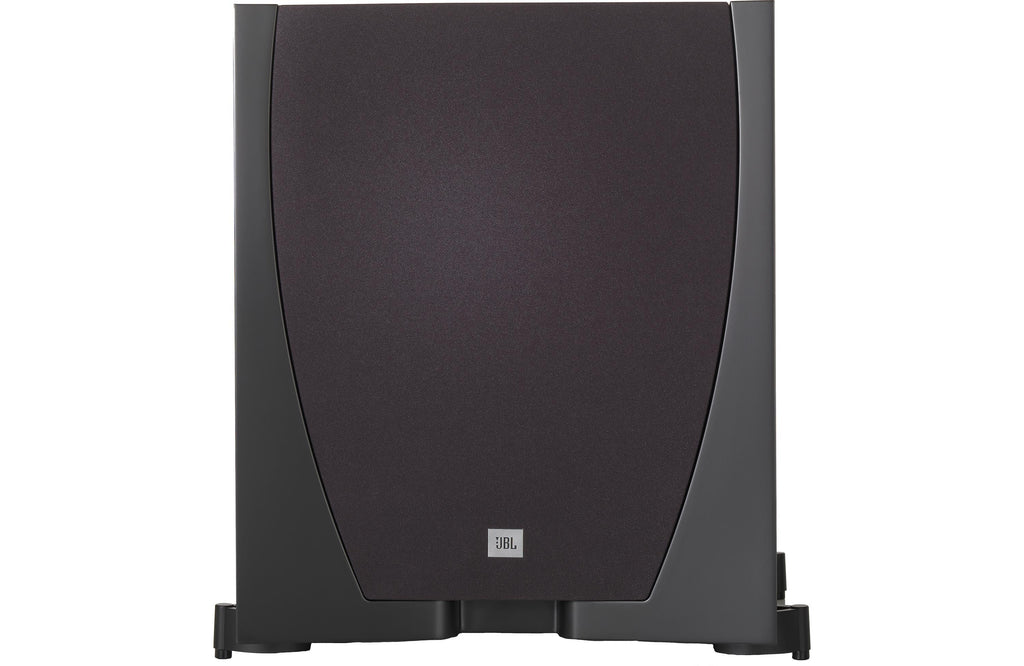

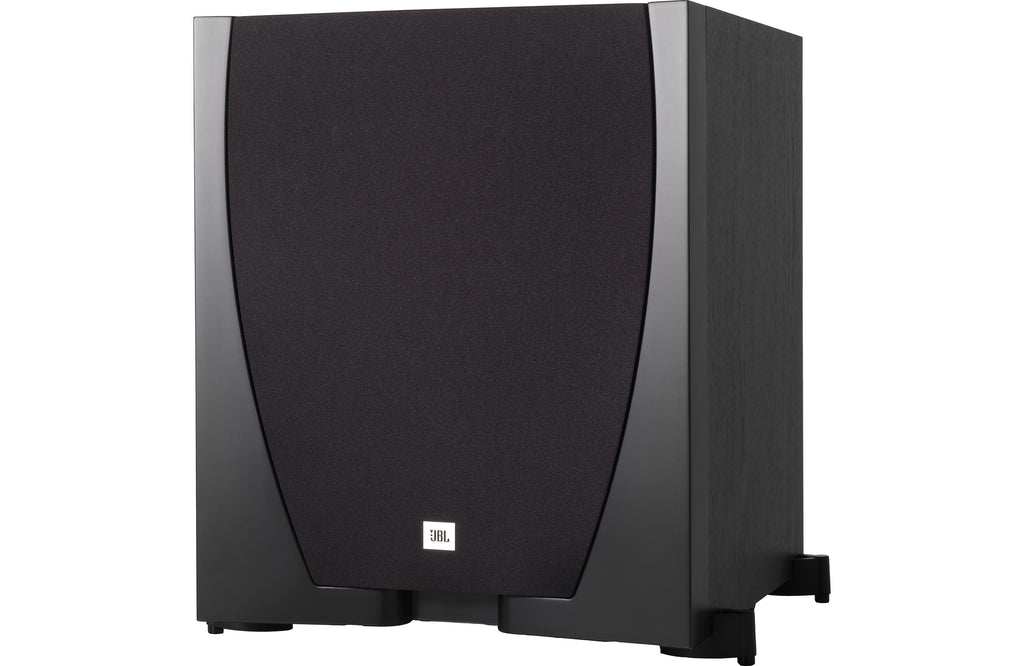

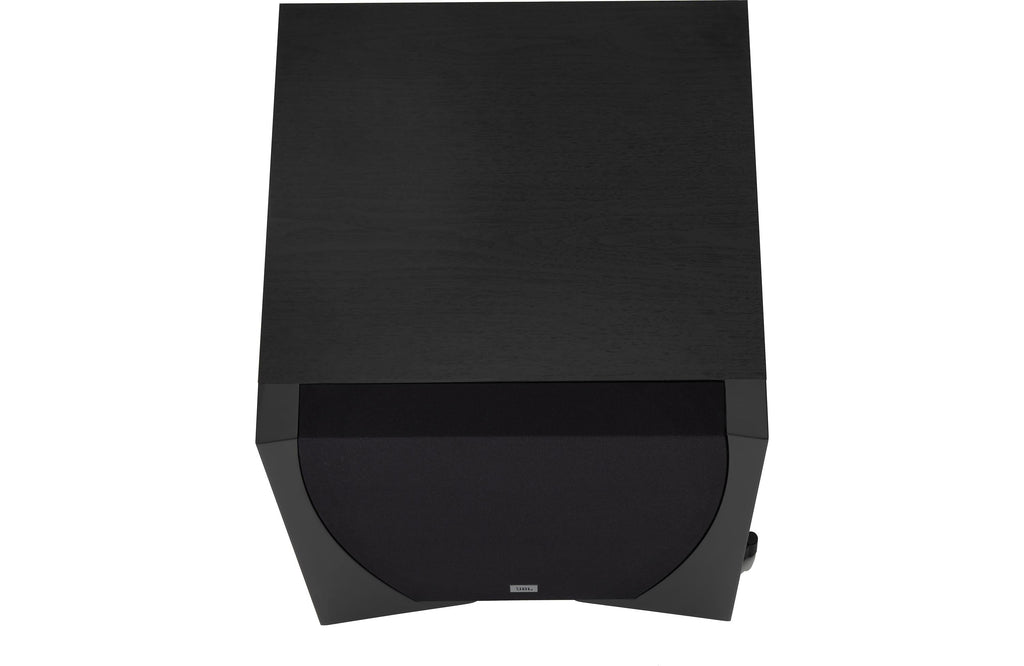

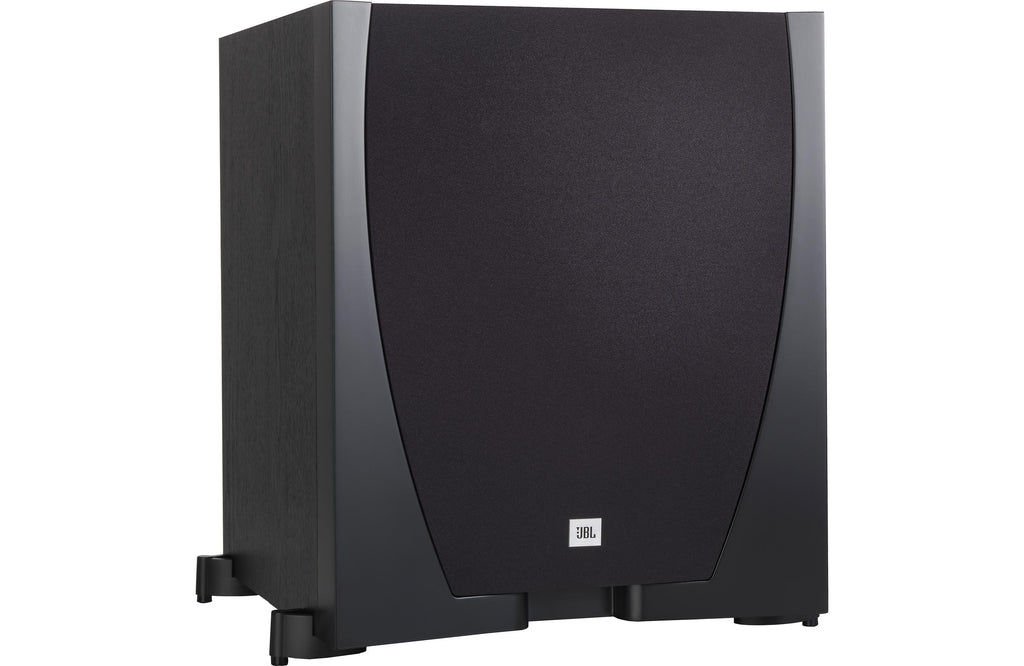

JBL Studio 550P 500W Powered 10 Inch Subwoofer - Refurbished

JBL JBLSUB550PBK-Z Studio 550P 500W Powered 10 Inch Subwoofer - Refurbished

Description

The most advanced JBL residential loudspeaker systems, including Everest DD66000, K2 and Project Array, share one key design characteristic with the massive JBL Professional systems you hear in premier movie houses and concert venues. All employ constant-directivity compression drivers in a horn to deliver the high-impact dynamics and dimensional realism that large audiences and critical listeners demand. Now JBL Studio 5 Series speakers, designed by renowned JBL chief engineer Greg Timbers, continue this performance-proven tradition. The JBL Studio 530 bookshelf loudspeaker combines a 1-Inch (25mm) HF compression driver and Bi-Radial horn with 5-1/4-Inch (130mm) cast-frame Symmetrical Field Geometry (SFG) woofer to deliver extraordinarily lifelike performance. Ideal for both music and movie systems, the Studio 530 system is powerful, accurate and styled to make a dramatic design statement in any listening environment.

Features

• 300 watts RMS; 500 watts peak
• 10" (250mm) PolyPlas™ cone, cast frame Forward-firing transducer provides maximum bass impact

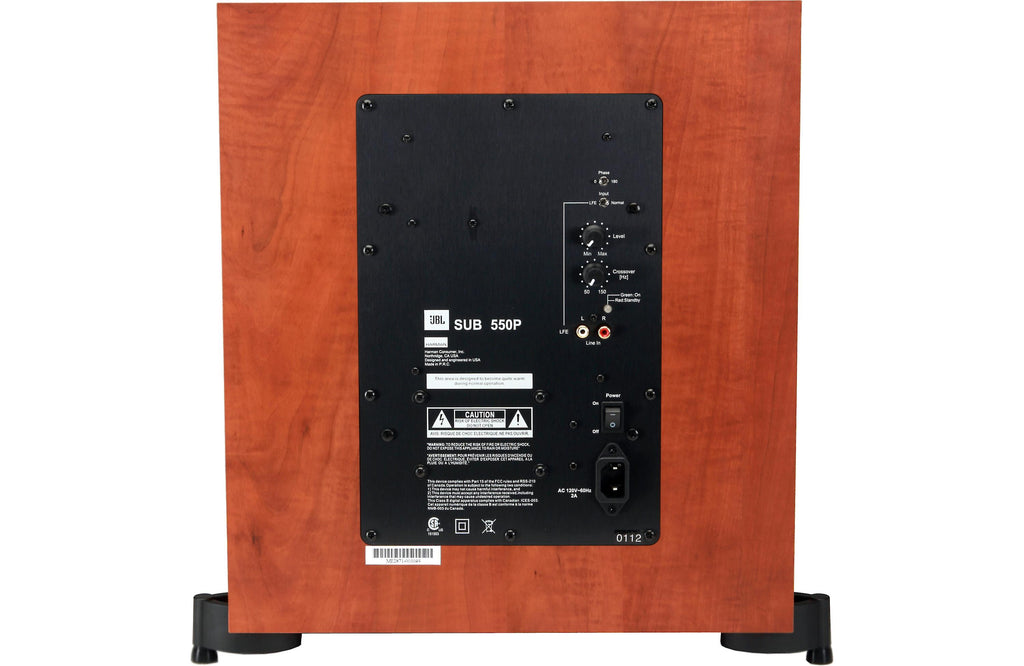

• LFE and line-level inputs allow proper operation with a variety of receivers and processors
• Adjustable crossover frequency optimizes subwoofer performance
• Phase control increases installation flexibility
• Metal floor spikes improve bass impact and reduce unwanted “boominess” in the sound
• Auto turn-on and turn-off for more convenient use and to conserve energy

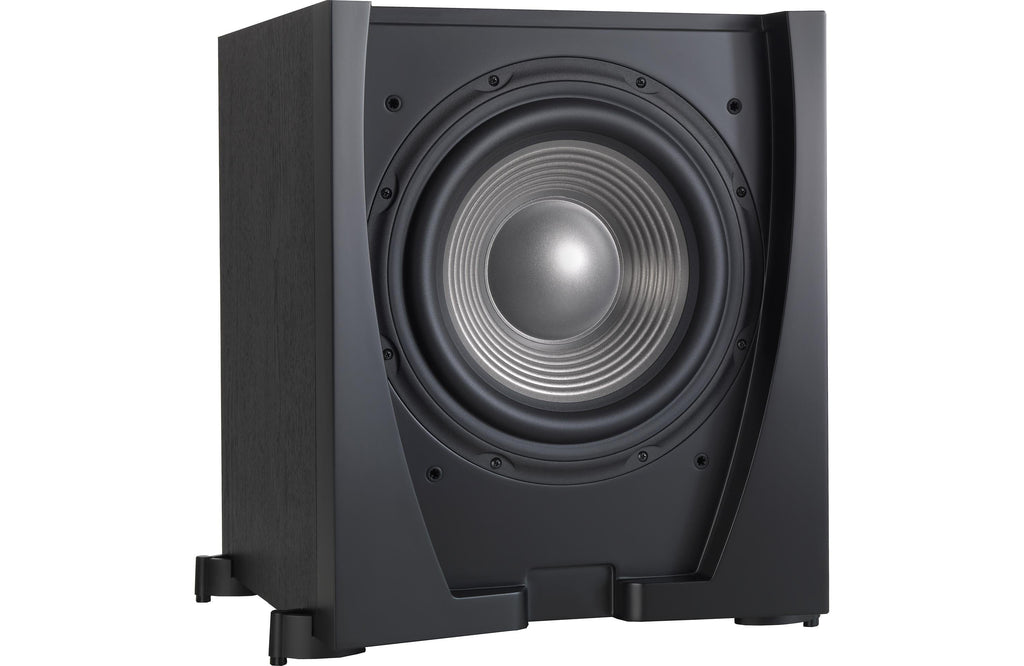

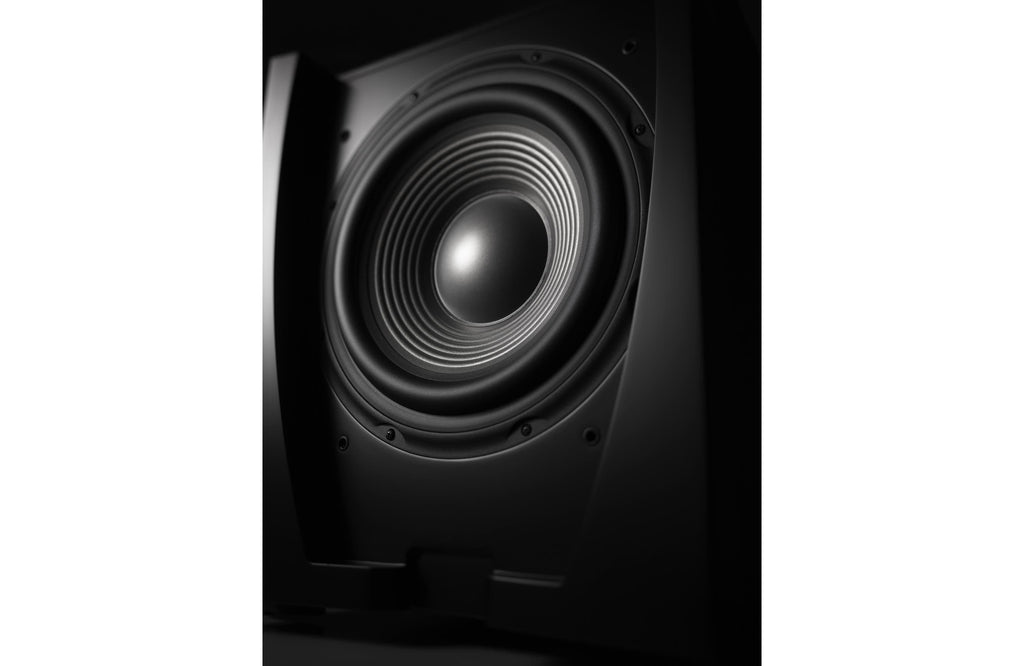

250mm (10") Low-Frequency Transducer

Delivers deep bass impact and excitement to make you feel like part of the action. Cast-aluminum frame maintains precise alignment for consistent performance in all conditions and at all volume levels while dissipating heat for increased power and handling. PolyPlas cone material increases cone stiffness and damping for tighter, more extended bass without breakup or distortion

Built-In 300W RMS Amplifier

High-power amplification for louder volume with less distortion, achieving more realistic bass while generating less heat than lower-powered amplifiers when operating at higher outputs

Complements JBL Studio 5 Series Speakers

The distinctive, one-of-a-kind design provides full-size subwoofer performance without an overwhelming presence.

Specifications

Low-frequency transducer	10" (250mm) PolyPlas™ cone, cast frame
Amplifier power	300 watts RMS; 500 watts peak
Frequency response	27Hz – 150kHz (–3dB)
Crossover frequency	50Hz – 150Hz (variable), 24dB/octave
Enclosure Type	Sealed
Power requirement	120V, 60Hz (US), 220V – 230V, 50Hz/60Hz (EU)
Power consumption	<6W (120V), <0.55W (230V) standby; 360W / 3.8A (120V), 395W / 2.1A (230V) maximum
Dimensions (H x W x D)	17-1/2" x 14-29/32" x 14-31/32" (444mm x 379mm x 380mm)
Weight	50 lb (23kg)
