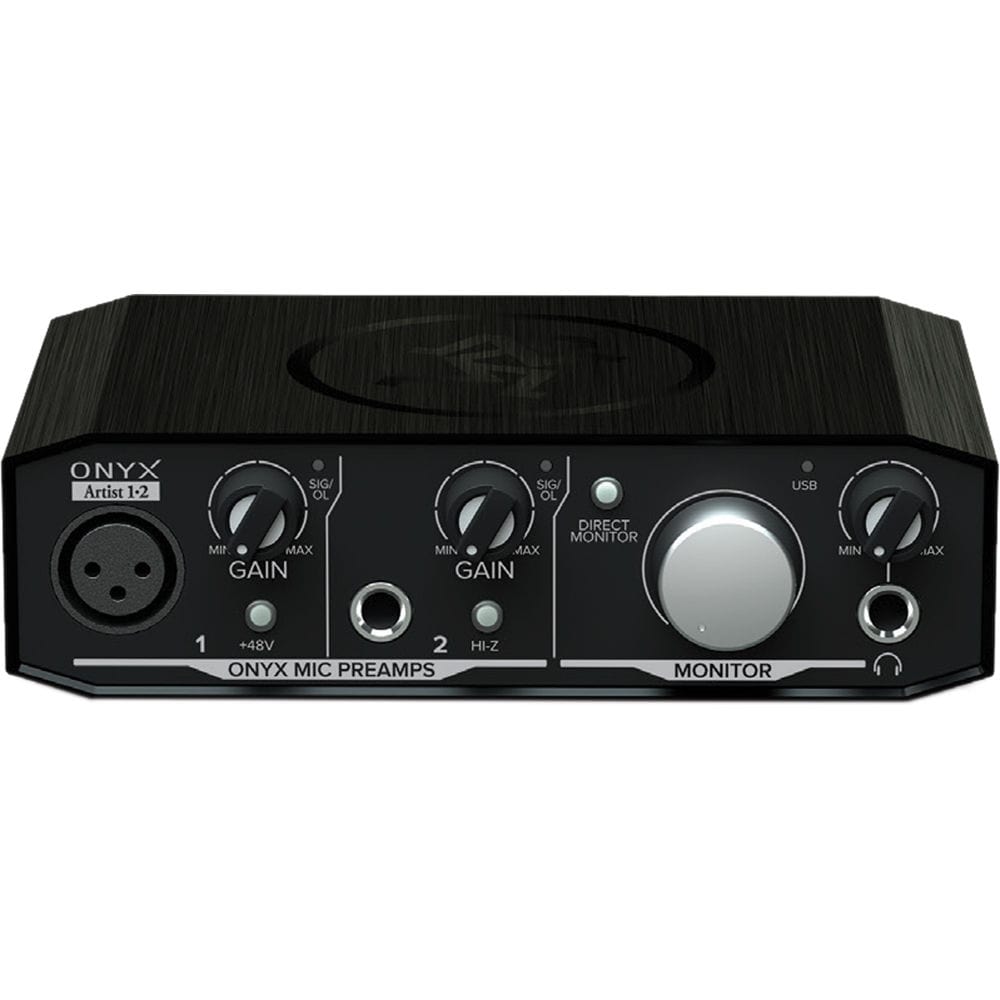

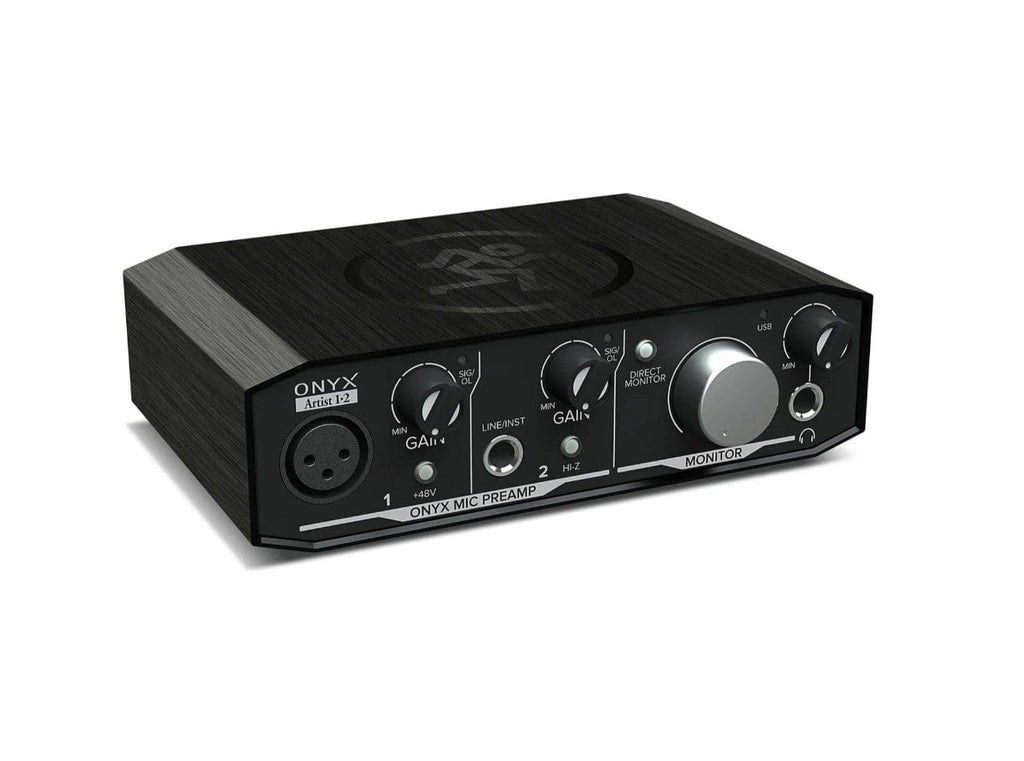

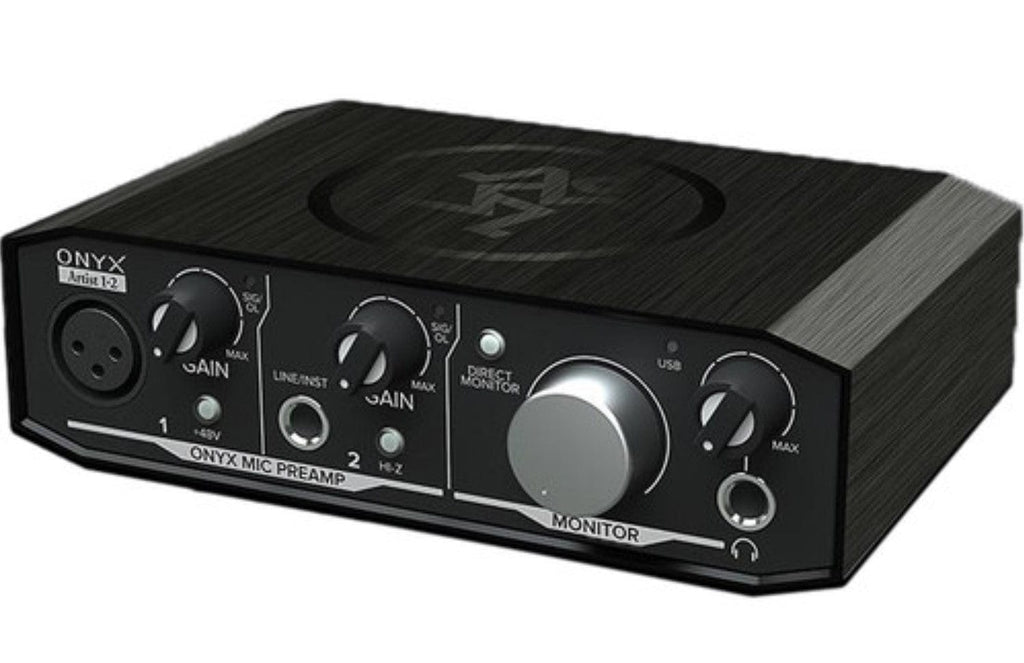

Mackie 2048740-00-RB Onyx Artist 1.2 2x2 USB Audio Interface - Certified Refurbished
Description
The Mackie Onyx Artist 1.2 is an interface designed to let you record audio to your computer, and to monitor that audio as well. With its Onyx microphone preamp, single XLR input, and 1/4" input switchable between line-level signal and Hi-Z instrument impedance, the unit is suitable for singer-songwriters, podcasters, content creators, and others who want a mobile setup for recording their own projects. In your own project studio, you'll be able to connect to your monitors by means of the 1/4" jacks located on the rear of the unit. The interface is relatively lightweight at 1.1 lb and provides a 1/4" headphone output, so you can take it with you wherever you go. Mackie's rugged steel chassis hardware design aids in this endeavor, giving you a robust, roadworthy chassis for the circuitry inside. Should you monitor through headphones, a direct monitor switch is provided, which mitigates any latency as you record your audio. The unit is designed to connect to your Mac or Windows computer over USB, and is bus-powered by the host computer.Features
- High-Speed USB 2.0 Computer Interface
- 1/4" TRS Input with Hi-Z Switch
- Onyx Mic Preamp with XLR Input
- Up to 24-Bit / 192 kHz Resolution
- +48V phantom power for use with condenser mics
- 2x2 interface with recording up to 24-bit / 192 kHz resolution
- Zero-latency direct analog monitoring of inputs
Analog Circuitry
The Onyx Artist 1·2 delivers high headroom and low noise by means of its analog circuitry, including its Onyx mic preamp.
Direct Monitoring
A true analog monitoring path allows you to hear audio directly from the preamps as you record, so you can eliminate the latency of hearing the audio through your DAW.
Bus-Powered
The interface features connectivity over USB 2.0 for fast data transfers and minimal latency. It's also bus-powered through this port, meaning no external power is required. The unit is compatible with Core Audio and ASIO drivers.
All-Metal Enclosure Design
The Onyx Series Artist gives you an all-metal enclosure and heavy-duty potentiometers, as well as a robust internal construction.
Key Features at a Glance
- Onyx mic preamp
- +48V phantom power for use with condenser mics
- 1/4" TRS input with Hi-Z switch for connecting a guitar, bass, or keyboard
- 2x2 interface with recording up to 24-bit / 192 kHz resolution
- Zero-latency direct analog monitoring of inputs

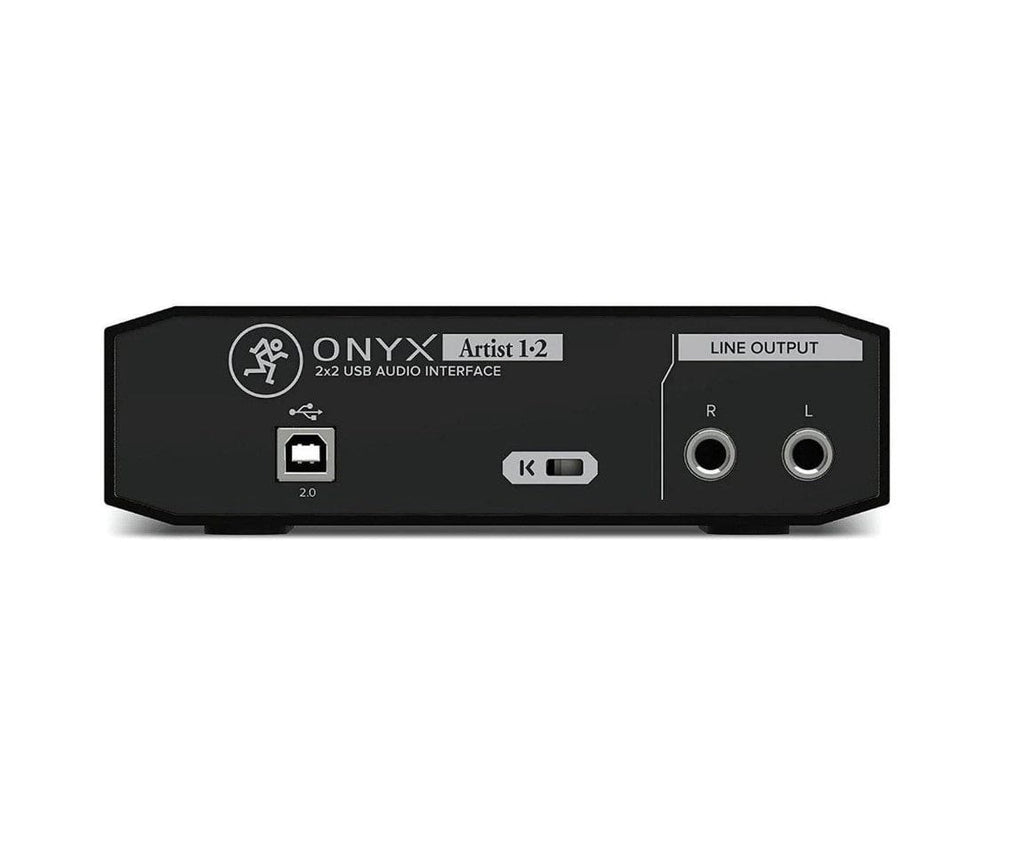

- Dedicated 1/4" TRS outputs for connecting studio monitors
- Bus-powered for easy mobile recording
- USB 2.0 connectivity
- All-metal enclosure design to survive day-to-day abuse
- 1/4" headphone output
- Compatible with all major DAWs on Mac or Windows
Specifications
|
Mackie Onyx Artist Specs
|
|
|
Form Factor
|
Desktop |
| Display | None |
| Channels of I/O | Analog: |
| 2 Input / 2 Output at 192 kHz | |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 1 Preamp |
|
Connectivity
|
|
| Analog Audio I/O | 1 x XLR 3-Pin Balanced Mic Input |
| 1 x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input | |
| 1 x 1/4" TRS Unbalanced Headphone Output | |
| 2 x 1/4" TRS Balanced Monitor Output | |
| Phantom Power | 48 V |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-B |
| Host Connection Protocol | USB 2.0 |
| MIDI I/O | None |
|
Performance
|
|
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB (Min Gain) |
| Maximum Input Level | Mic Inputs: |
| +11 dBu (Min Gain) | |
| Line/Hi-Z Inputs: | |
| +24 dBu (Min Gain) | |
| Maximum Output Level | Monitor Outputs: |
| +10 dBu | |
| Headphone Outputs: | |
| +10 dBu | |
| THD | Mic Inputs: |
| < 0.001% | |
| Line/Hi-Z Inputs: | |
| < 0.005% | |
| Monitor Outputs: | |
| < 0.001% | |
| Headphone Outputs: | |
| < 0.002% | |
| EIN | Mic/Line/Hi-Z Inputs: |
| < -100 dB | |
| Monitor Outputs: | |
| < -85 dBu | |
| Headphone Outputs: | |
| < -75 dBu | |
|
Digital Audio
|
|
| Sample Rates | Up to 192 kHz |
| Bit Depths | Up to 24-Bit |
| Sync Sources | Internal |
|
Audio Storage & Playback
|
|
| Memory Card Slot | None |
|
Compatibility
|
|
| OS Compatibility | macOS |
| Windows | |
| *As of November, 2021: Check with manufacturer for the most up-to-date compatibility | |
| Required Hardware | Available USB 2.0 Port |
|
Power
|
|
| Power Requirements | USB Bus Power |
|
Physical
|
|
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 6.42 x 4.49 x 2.01" / 16.31 x 11.4 x 5.11 cm |
| Weight | 1.1 lb / 0.5 kg |
|
Packaging Info
|
|
| Package Weight | 1.86 lb |
| Box Dimensions (LxWxH) | 10.7 x 6.45 x 3.15"
|
