Description
Delivering resolutions up to 8K at 60 Hz and 4K at 120 Hz, this Manhattan HDMI Splitter ensures flawless clarity and smooth playback for high-resolution displays, digital signage systems, and professional AV installations. It also supports 1440p at 144 Hz (WQHD) and 1080p at 240 Hz for fluid motion and precise image detail across a wide range of content and applications. This splitter also incorporates Smart EDID Control with Integrated Scaler. The integrated EDID switch ensures that each connected display receives the optimal signal. In Auto Mode, the splitter automatically selects the best common resolution for both displays to guarantee compatibility. Copy Mode duplicates the resolution and audio format from Output 1, allowing the source to match those settings precisely. In Downscaler Mode, the splitter delivers full resolution to Output 1 while automatically downscaling the signal to a compatible resolution for other outputs. This intelligent EDID management allows simultaneous use of displays with different capabilities without any loss of image quality.
Features
- Distributes a single HDMI® audio/video source signal to multiple HDMI ®displays
- Supports 8K at 60Hz, 4K at 120 Hz, 1440p at 144 Hz (WQHD), and 1080p at 240 Hz resolutions; up to 48 Gbps total bandwidth with 10 Gbps per channel at 1,200 MHz; 4:4:4 chroma subsampling for true color accuracy and maximum sharpness; enhanced features include Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM)
- Compatible with every HDMI® device - TVs, projectors, monitors, notebooks, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS4™/PS5™), Xbox® (One/Series S/Series X), Blu-ray™ players, and more; up to 3 splitters may be daisy-chained

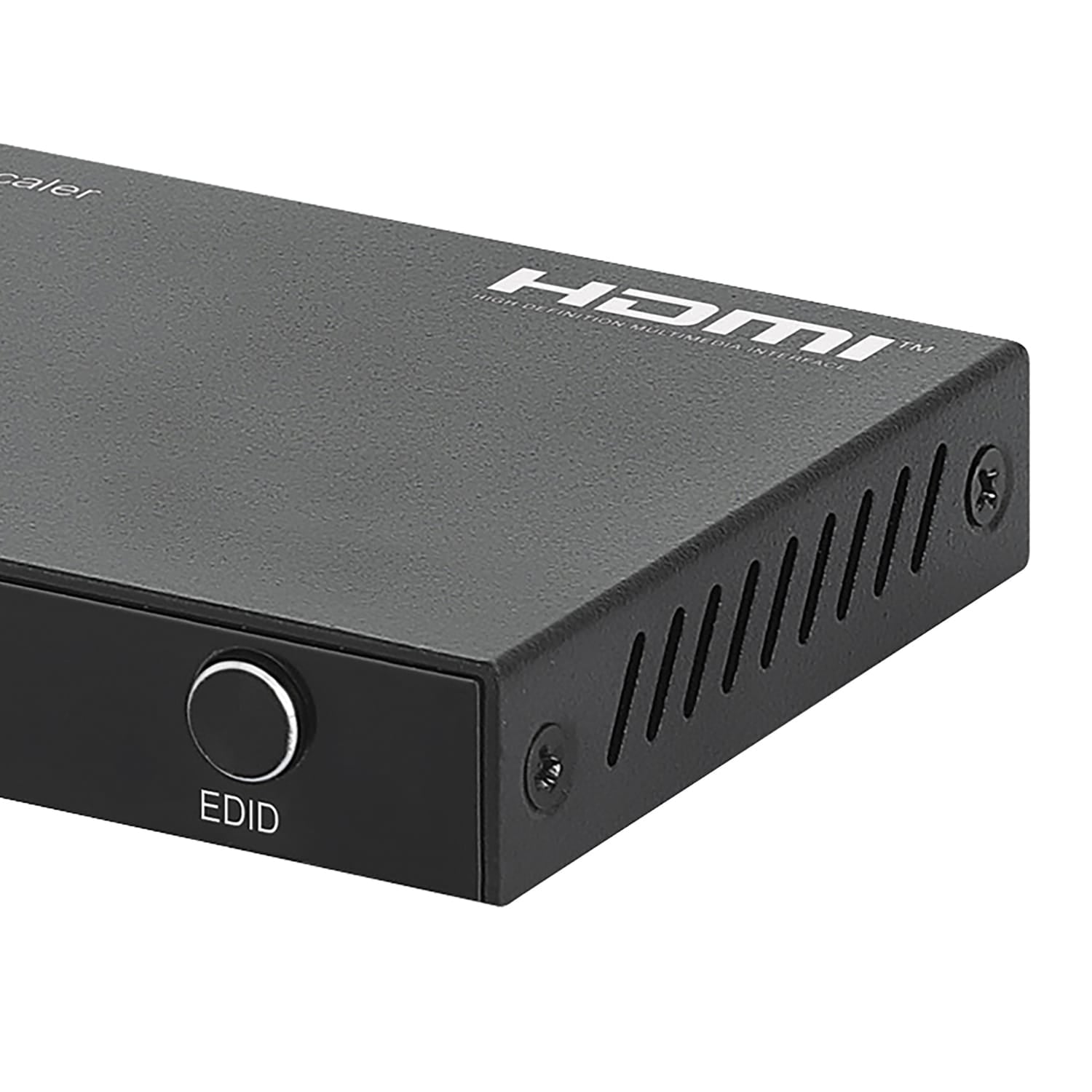

- EDID switch for image optimization, ensuring settings like native resolution and refresh rate are configured properly on older and newer displays; 3 modes: Auto selects the best common resolution for both displays; Copy uses Output 1's resolution to the other output; Downscaler delivers full resolution on Output 1 and a downscaled signal to the others
- Dynamic HDR for superior contrast and brilliant colors; supports Dolby Vision® and Dolby Atmos®, 36-bit Deep Color (12 bits per channel), 3D Video, and compressed DTS HD® Master Audio, uncompressed LPCM 8-channel (7.1 surround sound) audio and Dolby® TrueHD as well as 32-channel audio
- Plug-and-play installation; no configuration required; gold-plated contacts for corrosion-free connections; fully HDCP 2.3 compliant, backward compatible
- Rugged metal housing for maximum durability and rubber feet for nonslip desktop use
- 3-ft. USB-A to USB-C® power cable and 5-volt/2-amp power adapter included
- 3-year warranty
