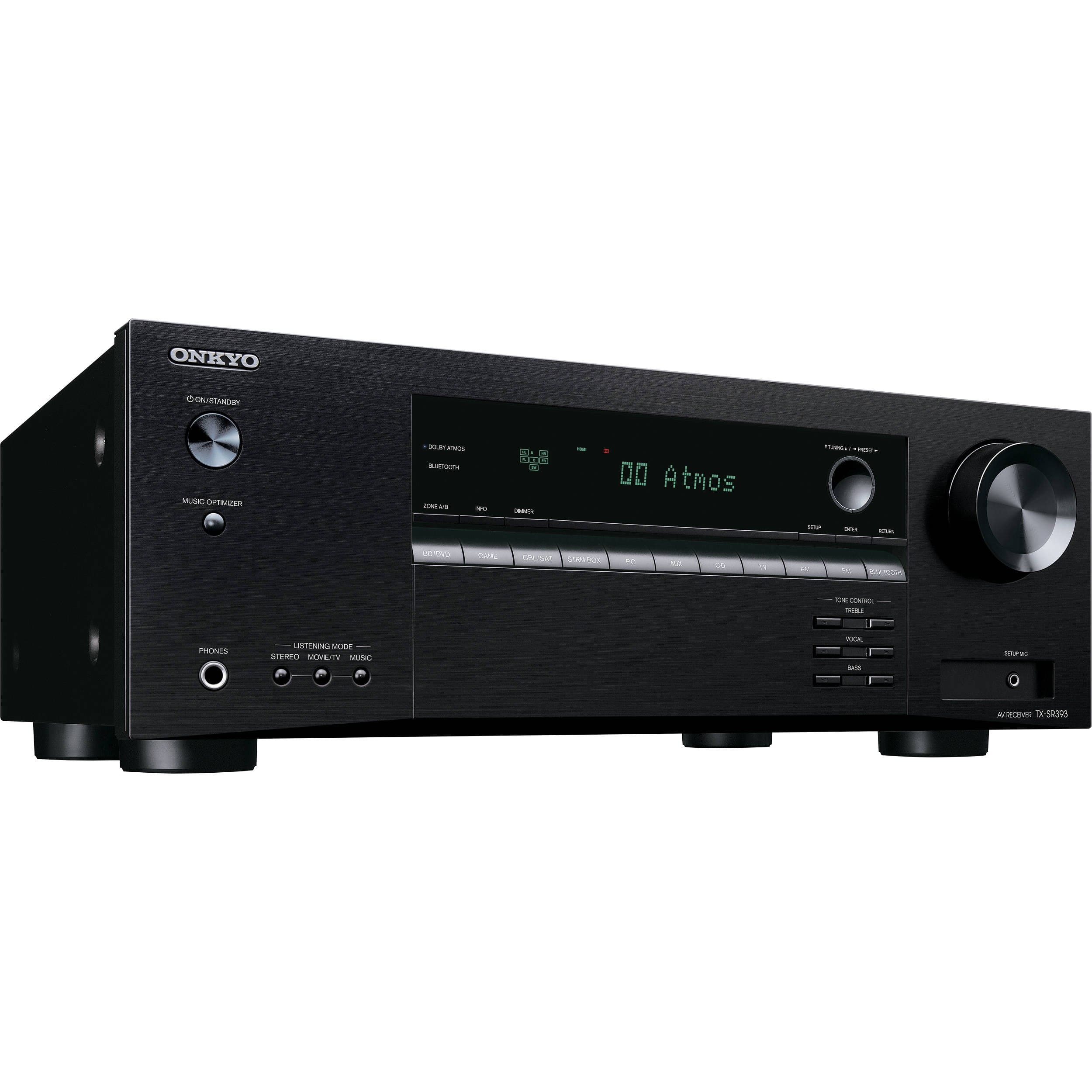

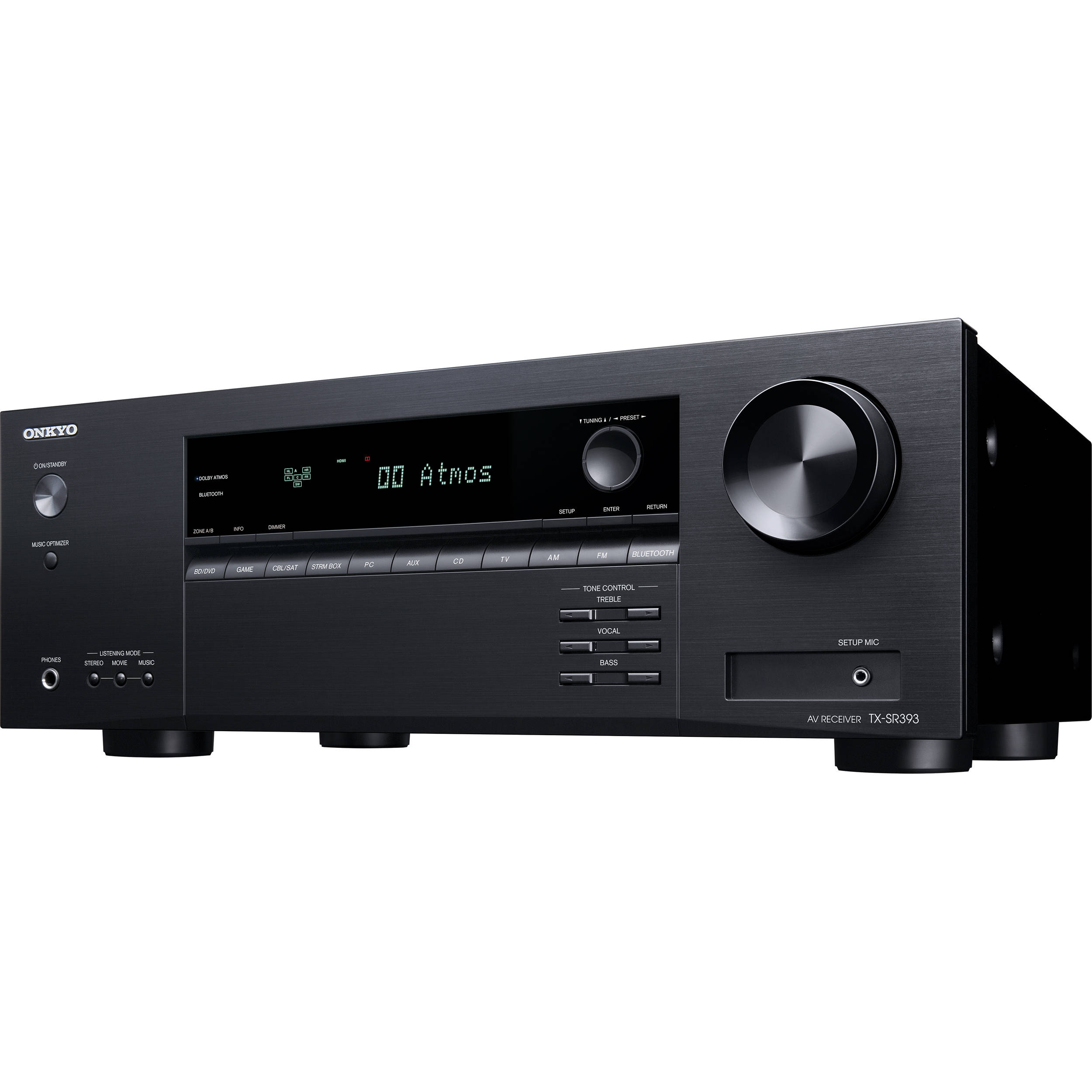

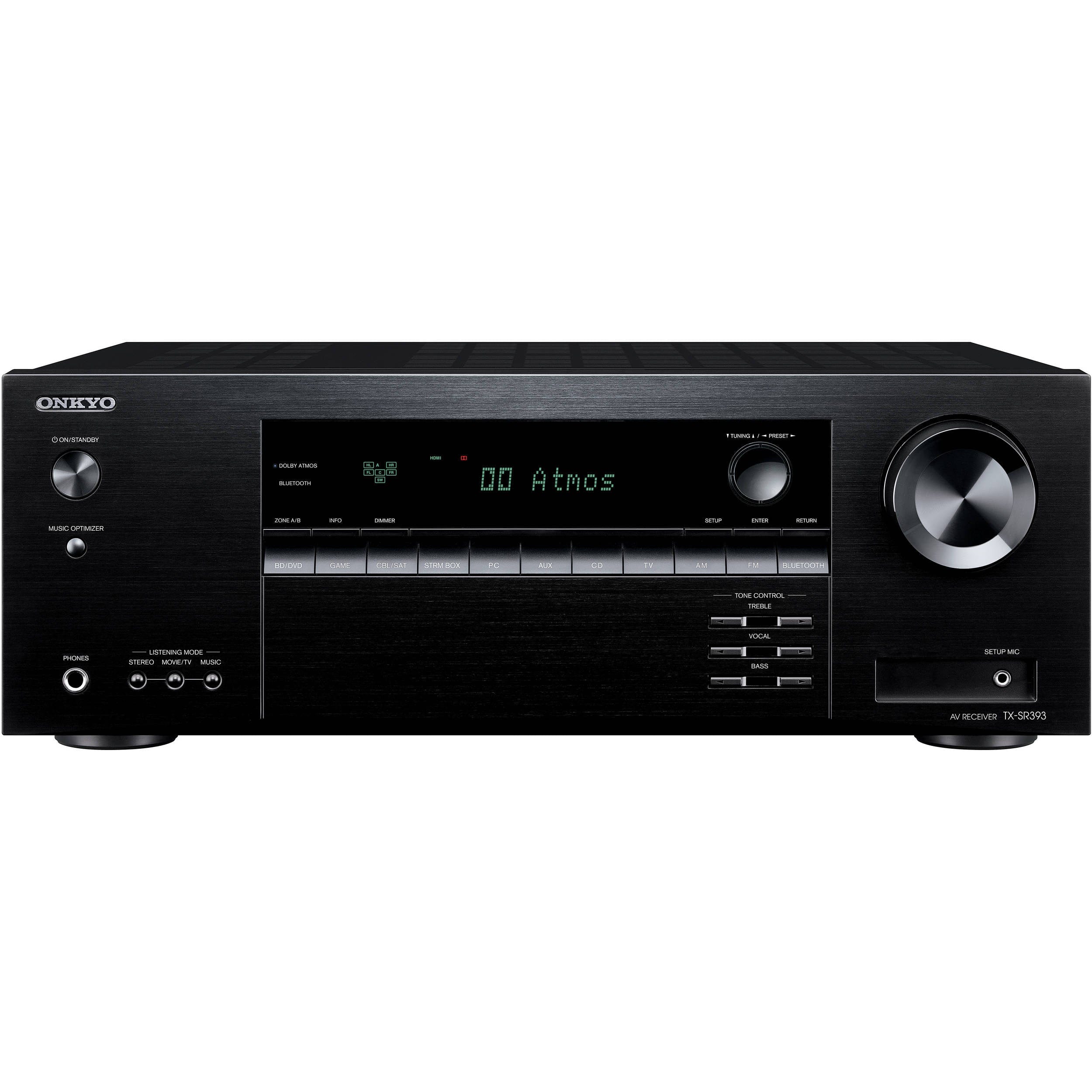

Onkyo TX-SR393 5.2 Channel A/V Receiver
Description
Achieve 4K Ultra HD pass-through and upscaling from 1080p with HDR support via HDMI with the Onkyo TX-SR393 5.2-Channel A/V Receiver. It outputs up to 80W of power per channel at 8 Ohms for room-filling sound. AccuEQ sound calibration tailors the sound to your room's specific acoustics. Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. The TX-SR393 is equipped with four HDMI inputs and one HDMI output. The HDMI output supports ARC for the reproduction of display-based audio, such as your TV's built-in streaming apps. Its rear-panel easy connection guide will help you connect your receiver quickly and easily.Features
- Up to 80W per Channel at 8 Ohms
- HDR UHD Pass-Through
- AccuEQ Sound Calibration
- 1080p to 4K UHD Upscaling
Dolby Atmos and DTS:X Sound
These two sound technologies mix audio in 3D space using object-based encoding as opposed to channel-based to help create the effect of sound moving all around you. Dolby Surround and DTS Neural:X find localization cues in legacy stereo or multichannel soundtracks and upmix them to simulate 3D audio.
HDR & 4K Support via HDMI
Each of the receiver's HDMI terminals support 4K/60 Hz, HDR10, HLG, Dolby Vision, BT.2020, and HDCP 2.2. The HDMI output supports Audio Return Channel (ARC) for the reproduction of display-based audio, such as integrated apps. You can confirm the A/V input/output status via an OSD window.
Discrete Amps
The receiver's discrete amps, high-output transformer, and large capacitors are designed to deliver high current to the speakers to help provide better speaker control for fast transient response, wide dynamic range, and clear, accurate sound.
Bluetooth Audio Streaming
Bluetooth wireless technology sends whatever is playing on your compatible mobile device, laptop, or computer to your home theater. Once the receiver has paired with and remembered your device, it can start playback automatically whenever it detects an incoming Bluetooth audio stream from that device.
AccuEQ Room Acoustic Calibration with AccuReflex
AccuEQ sets speaker parameters, such as size and distance, and sets their sound-pressure levels. It then selects the right subwoofer crossover setting and applies equalization to all your speakers. AccuReflex is designed to optimize object-based audio reproduction through Dolby Atmos-enabled speakers, resolving phase-shift caused by the path differences between directional and non-directional sounds. These features combine to help improve localization and provide a 3D soundstage with vertical movement and overhead dimensionality.
Advanced Music Optimizer
Lossy files, such as MP3s, are convenient, but data lost in the compression process results in comparatively low fidelity. Advanced Music Optimizer technology helps restore lost information for enhanced sound quality with these file types. This mode also optimizes Bluetooth streaming playback quality.
Virtual 3D Sound with DTS Virtual:X
DTS Virtual:X is designed to create an immersive 3D soundfield from any speaker layout, regardless of whether height, surround, or rear speakers are installed. It uses DSP-based algorithms to place you at the center of a multidimensional soundfield with height and surround effects, and works in large or small speakers. DTS Virtual:X works in the 3D domain with DTS:X soundtracks, other DTS formats, and non-encoded stereo.
Clear Dialogue with the Touch of a Button

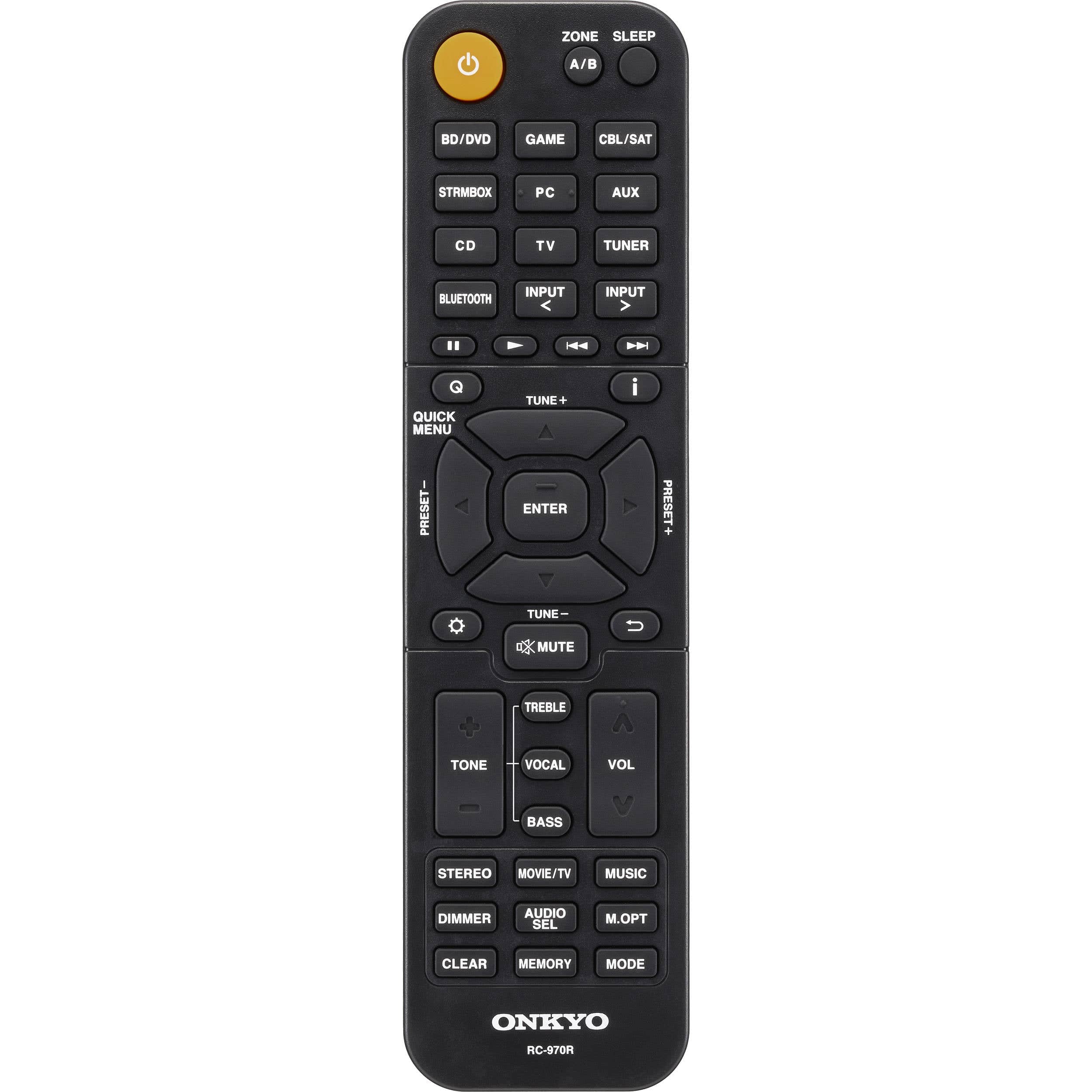

The TX-SR393 features DSP-controlled Vocal Enhancer that identifies vocal frequencies and allows you to raise or lower them to your taste using the keys on the remote or via the tone controls on the receiver's front panel.
Zone B Line-Out
The Zone B line-out lets you connect a component with an analog RCA line input to audio sources connected to the receiver, including digital audio via HDMI, optical, or digital coaxial. Share sound to a nearby space, or connect a supported transmitter for your wireless headphones to enjoy your media without disturbing those around you.
Connect and Power Your Media Streaming Device
A rear-panel USB power output supplies power to select HDMI media streaming devices, allowing you to upgrade your home theater with on-demand network entertainment without additional power cords.

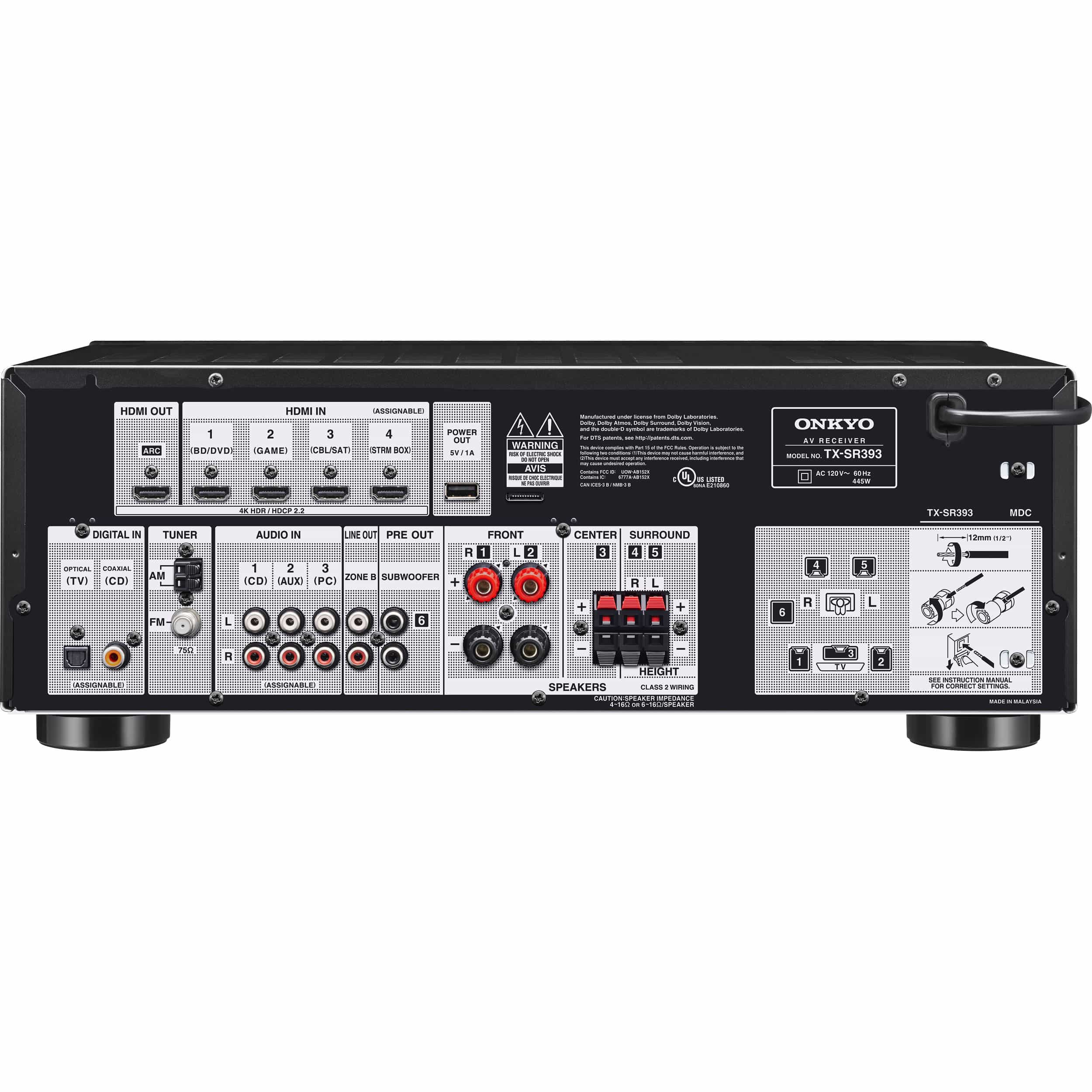

Rear-Panel Setup Guide Helps Simplify Connection
Connections to speakers and external devices are illustrated and labeled on the back panel. Images help you read the diagram upside-down if you're leaning over the top of the receiver.
Dolby Atmos Height Virtualizer, Available via a Future Firmware Update
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer helps provide a more immersive listening experience by creating a virtual surround and height effect from traditional speaker layouts. This feature is scheduled to be made available via a future firmware update.
HDMI Support
- 4K / 60 Hz
- HDCP 2.2
- HDR
- 3D, ARC, CEC
- 2020, Deep Color, x.v.Color, LipSync
- DVD-Audio, SACD, multichannel PCM
- 1080p to 4K upscaling
Additional Features
- C.P.S. (High Current Power Supply)
- Discrete output stage circuitry
- 32-bit DSP engine
- CinemaFILTER
- Hybrid standby function
- OSD out
Specifications
AmplifierChannels 5.2 Power Output per Channel 2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 1-Channel Driven: 155 W at 6 Ohms / 1 kHz / 10% THD Frequency Response 10 Hz to 100 kHz +1/-3 dB (Direct Mode) THD+N 0.06% (20 Hz to 20 kHz, Half Power) Speaker Impedance 4 to 16 Ohms Tone Control Bass (20 Hz): ±10.0 dB Treble (20 kHz): ±10.0 dB Audio ProcessingDTS Compatibility DTS-HD Master Audio, DTS:X Dolby Compatibility Dolby Atmos, Dolby TrueHD Auro 3D Support No Upmixing Technology DTS Neural:X, DTS Virtual:X DAC 384 kHz / 32-Bit VideoUpscaling 4K UHD ConnectivityRear A/V Inputs 4 x HDMI 1 x Digital Coaxial 1 x Optical TOSLINK 3 x Stereo RCA Rear A/V Outputs 1 x HDMI 2 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone B Front I/O 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input Other Rear I/O 1 x AM Antenna Terminal 1 x FM Antenna Terminal 1 x USB Type-A (Power) Output Speaker Connectors 2 x Binding Post Pairs 3 x Spring Clip Pairs Input Impedance Line: 47 Kilohms Input Sensitivity Line: 200 mV Signal to Noise Ratio Line: 109 dB Wireless ConnectivityBluetooth 4.2 Tuner SectionTuner Type AM, FM Number of Tuner Presets 40 Stations Radio Frequencies FM: 87.5 to 107.9 MHz AM: 530 to 1710 kHz PowerAC Input Power 120 VAC, 60 Hz Power Consumption Active: 445 W Standby: 0.1 W PhysicalDimensions (W x H x D) 17.1 x 6.3 x 12.9" / 435.0 x 160.0 x 328.0 mm Weight 18.1 lb / 8.2 kg Warranty Length Limited 2-Year Warranty Packaging InfoPackage Weight 20.27 lb Box Dimensions (LxWxH) 20.5 x 16 x 9"
