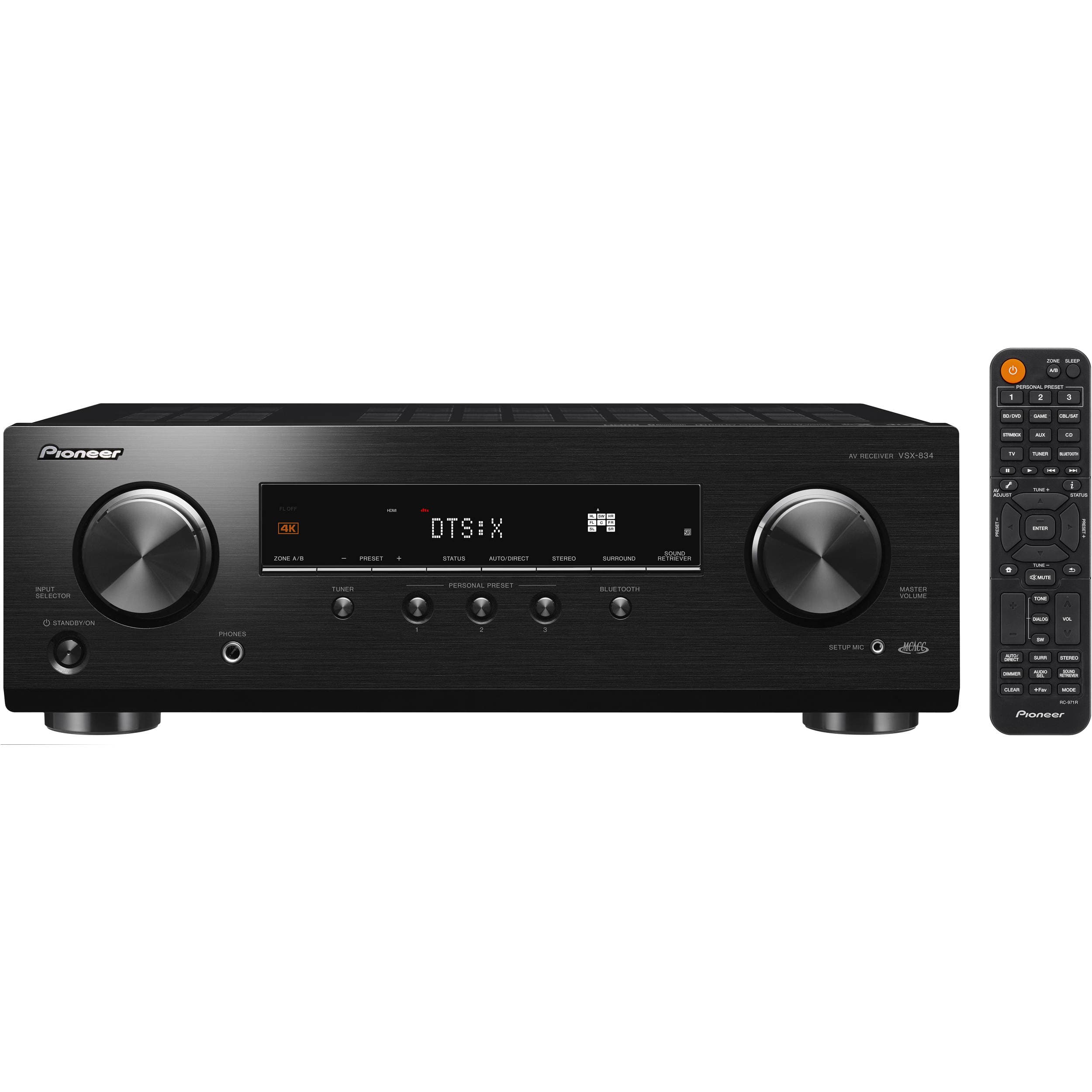

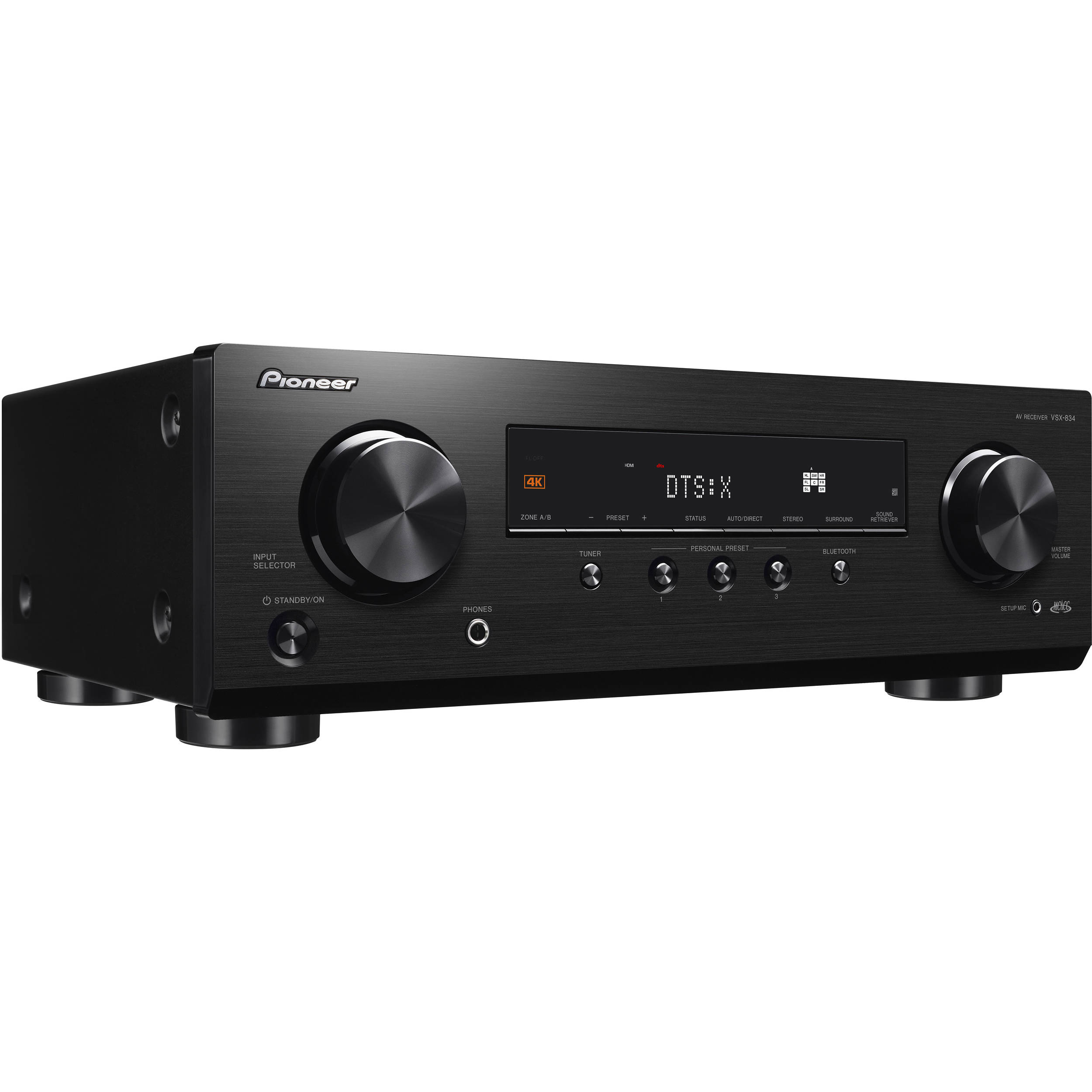

Pioneer VSX-834 7.2-Channel AV Receiver
Description
Enjoy 4K Ultra HD pass-through with HDR10, HLG, and Dolby Vision support via HDMI with the Pioneer VSX-834 7.2-Channel A/V Receiver. It outputs up to 80W of power per channel at 8 ohms for room-filling sound and supports the Dolby Atmos and DTS:X 3-dimensional audio formats. MCACC sound optimization allows you to tailor the sound to your room's specific acoustics. Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. The VSX-834 is equipped with four HDMI inputs and one HDMI output, which supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or YouTube apps.Features
- Up to 80W per Channel at 8 Ohms
- Dolby Atmos & DTS:X Support
- MCACC Sound Optimization
- 4K UHD, HDR10, HLG, Dolby Vision Support
Dolby Atmos and Dolby Surround Upmixing
Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The VSX-834 features the ability to connect a 5.2-channel surround sound speaker system and two additional overhead speakers, or two additional Dolby Atmos-certified up-firing speakers. Additionally, audio codecs such as PCM and DSD can be upmixed using Dolby Surround for 3D surround sound.
DTS:X and DTS Neural:X Upmixing
DTS:X is designed to leverage object-based audio to enable immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required for an immersive soundscape with lifelike audio. Audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for 3D surround sound.
Dolby Atmos Height Virtualization, Available via a Future Firmware Update
When playing any Dolby format, engaging this mode enables a more immersive listening experience by creating virtual surround and height effects from traditional speaker layouts without using surround or height speakers.
DTS Virtual:X
DTS Virtual:X is designed to provide a three-dimensional immersive sound similar to DTS:X, but without height or rear speakers. It supports 2- to 7.1.4-channel input sources for delivery via 2- to 7.1-channel speaker layouts. It works with all DTS codecs, including DTS:X.
Supports HDR10, HLG, Dolby Vision, and BT.2020
The VSX-834 supports pass-through for HDR10, HLG, and Dolby Vision signals. By connecting a compatible source device, you can enjoy these video standards on your compatible display. Additionally, all the onboard HDMI terminals support 4K (60p/4:4:4, 24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2 for enhanced compatibility.
MCACC Auto Room Tuning
MCACC (Multi-Channel Acoustic Calibration System) is designed to automatically compensate for differences in speaker size, level, and distance, and equalize response accordingly to help you achieve an enhanced acoustic environment.
Zone B Output
The VSX-834 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones. Alternatively, you can connect an amplifier located in a second room to play synchronized audio in both rooms.
Built-In Bluetooth Wireless Technology
With built-in Bluetooth wireless technology, you can stream songs from compatible devices. The VSX-834 supports the A2DP and AVRCP profiles and the SBC and AAC codecs. By pressing the Bluetooth button on the front panel, you can start the Bluetooth function, even from standby mode.
Personal Preset
Press the Personal Preset button on the front panel for three seconds and your current settings, such as volume level and listening mode, will be saved. Up to three presets can be registered and recalled via the front panel button or the remote control.
Dialogue Enhancement
This mid-range sound control feature allows you to make independent volume adjustments to boost the dialogue in your movies. These volume adjustments can be made with the up/down keys on the remote control.
On-Screen Information for Audio/Video Status
The on-screen display shows detailed input and output information for the playing content, so you can see whether your video is being output in Dolby Vision, or if the movie is processing Dolby Atmos or DTS:X audio.
Soundfield Calibration
- Phase control
- MCACC memory
- 9-band EQ
- Symmetric EQ
- Distance adjustment of 0.1'
- Auto subwoofer crossover
Listening Modes
- Auto Surround
- Direct & Pure Direct
- 10+1 Advanced Surround
- Front Stage Surround Advance
Audio Features
- Dialogue enhancement
- Advanced Sound Retriever
- Multi tone control
- Lip Sync sound delay
- Bi-amp capable
Video Processing
- 4K UHD, HDR10, HLG, BT.2020, and Wide Color Gamut pass-through
- 4K UHD video upscaling
- 3D-ready
- HDMI with Audio Return Channel (ARC)
- HDMI Standby Through with Input Switch / Last Memory
- 36-bit Deep Color via HDMI
- HDMI x.v.Color
- Video converter to HDMI
- Super Resolution
Installation Features
- GUI with system setup menu
- Auto power down
- FL dimmer
- Sleep timer
- Surround channels can alternatively be used as height channels
- Brushed front panel
Specifications
AmplifierChannels 7.2 Power Output per Channel 2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 1-Channel Driven: 165 W at 6 Ohms / 1 kHz / 10% THD Frequency Response 10 Hz to 100 kHz +1/-3 dB (Direct Mode) THD+N 0.08% (20 Hz to 20 kHz, Half Power) Speaker Impedance 4 to 16 Ohms Tone Control Bass (20 Hz): ±10.0 dB Treble (20 kHz): ±10.0 dB Audio ProcessingDTS Compatibility DTS-HD Master Audio, DTS:X Dolby Compatibility Dolby Atmos, Dolby Digital Plus, Dolby TrueHD Auro 3D Support No Upmixing Technology DTS Neural:X Supported File Formats AIFF, ALAC, FLAC, WAV via USB DAC 384 kHz / 32-Bit (AK4438) VideoPass-Through Support 4K ConnectivityRear A/V Inputs 4 x HDMI 1 x Digital Coaxial 1 x Optical TOSLINK 3 x Stereo RCA Rear A/V Outputs 1 x HDMI 1 x Stereo RCA Zone B 2 x RCA Subwoofer Pre-Out Front I/O 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input Other Rear I/O 1 x USB Type-A (Power) Output 1 x AM Antenna Terminal Input 1 x FM Antenna Terminal Input Speaker Connectors 2 x Binding Post Pairs 5 x Spring Clip Pairs HDCP Support Version 2.2 HDMI CEC Yes Input Impedance Line: 47 Kilohms Input Sensitivity Line: 200 mV Rated Output / Impedance Subwoofer Pre-Out: 1 V / 470 Ohms Zone B Line-Out: 1 V / 2.3 Kilohms Signal to Noise Ratio Line: 109 dB Wireless ConnectivityBluetooth 4.2 Supported Audio Codecs AAC, SBC Bluetooth Range 49.2' / 15 m Tuner SectionNumber of Tuner Presets 40 Stations Radio Frequencies AM: 530 to 1710 kHz FM: 87.5 to 107.9 MHz Sensitivity FM Mono at 50 dB: 1 µV / 11.2 dBf PowerAC Input Power 120 VAC, 60 Hz Power Consumption Active: 490 W No Sound: 43.2 W Standby: 0.1 W CEC Standby: 0.1 W HDMI Standby Through: 27.4 W PhysicalDimensions (W x H x D) 17.1 x 5.8 x 12.6" / 435.0 x 148.0 x 321.0 mm Weight 17.6 lb / 8 kg Packaging InfoPackage Weight 20.875 lb Box Dimensions (LxWxH) 21.1 x 15.4 x 8.7"
