Description

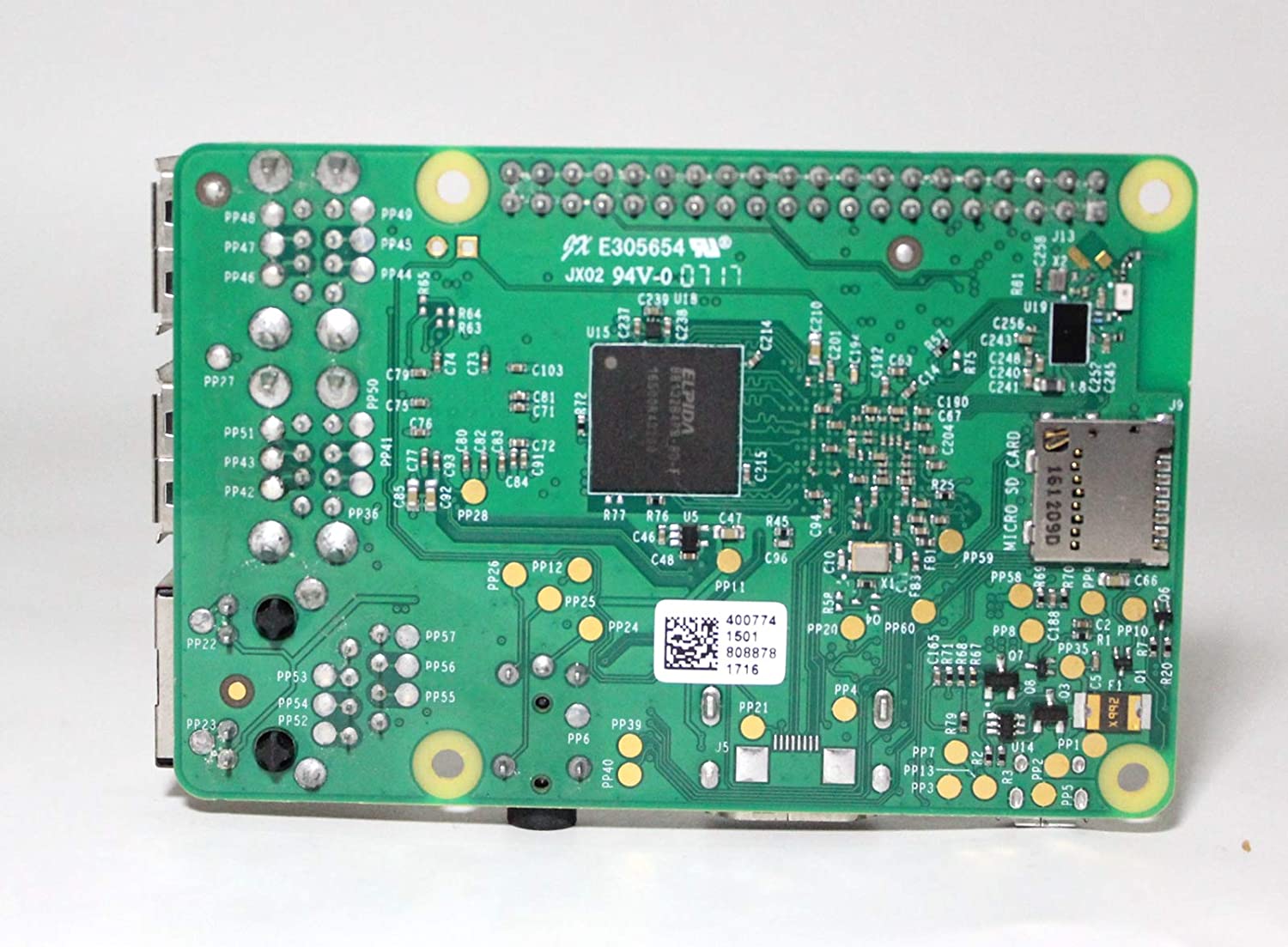

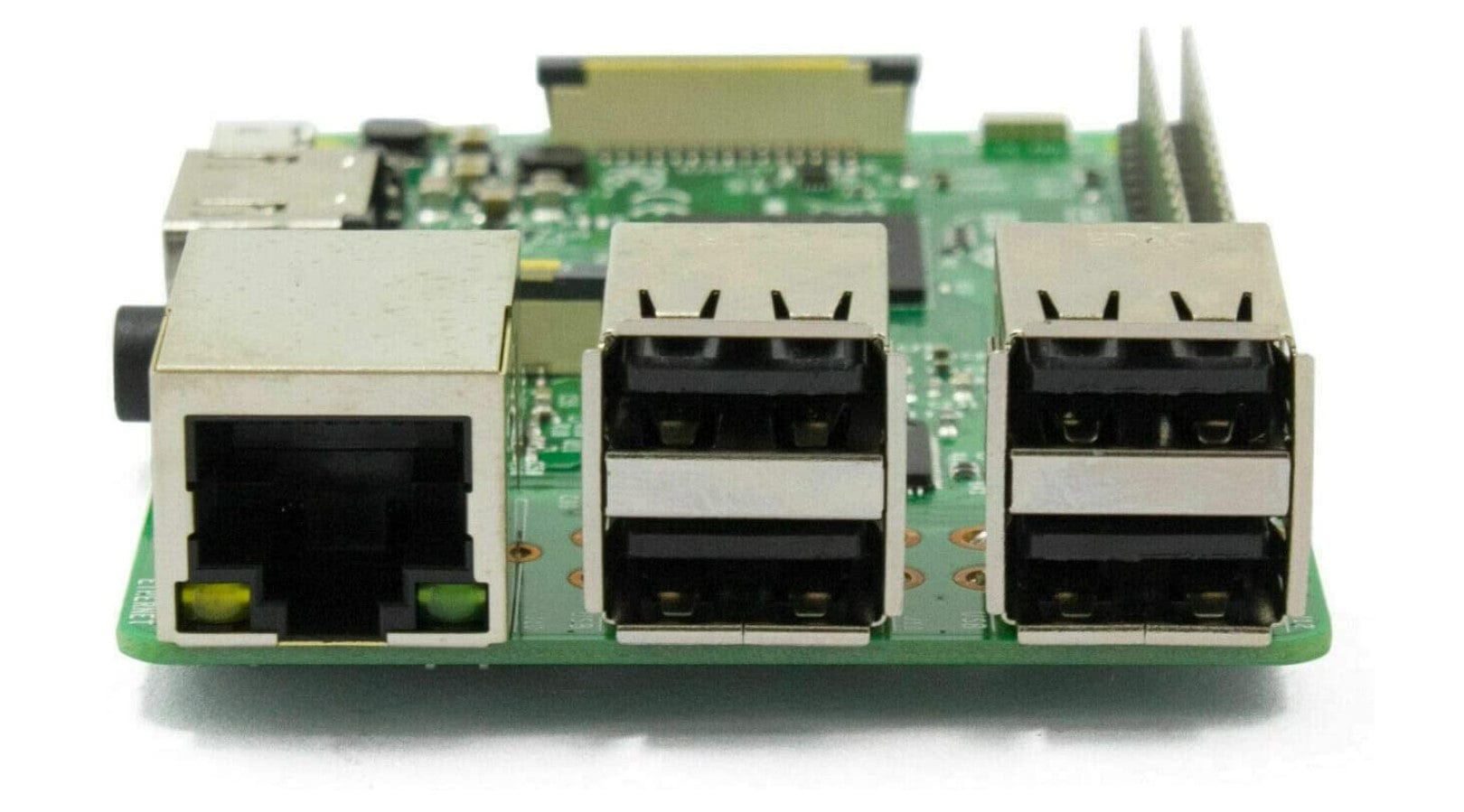

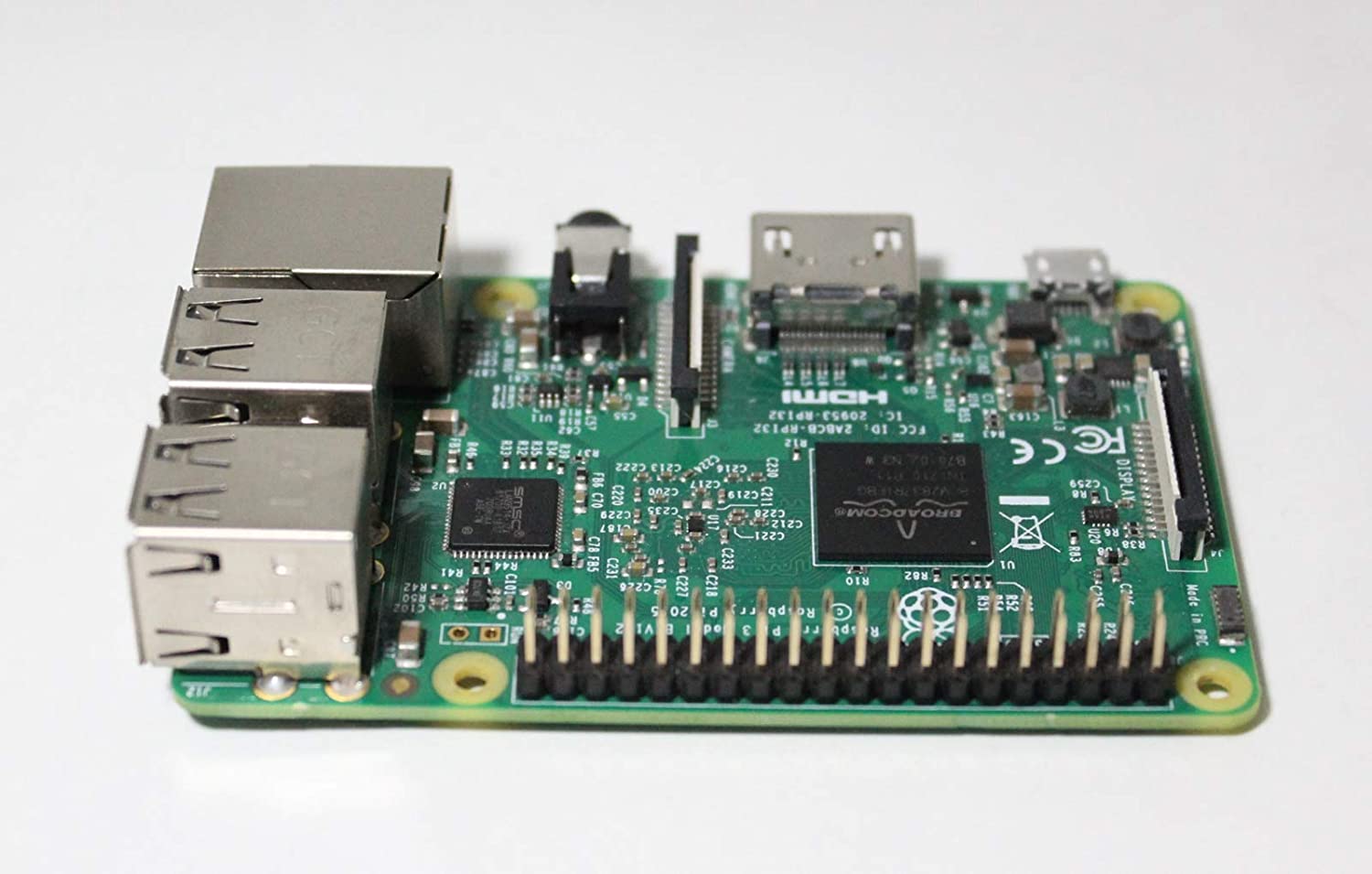

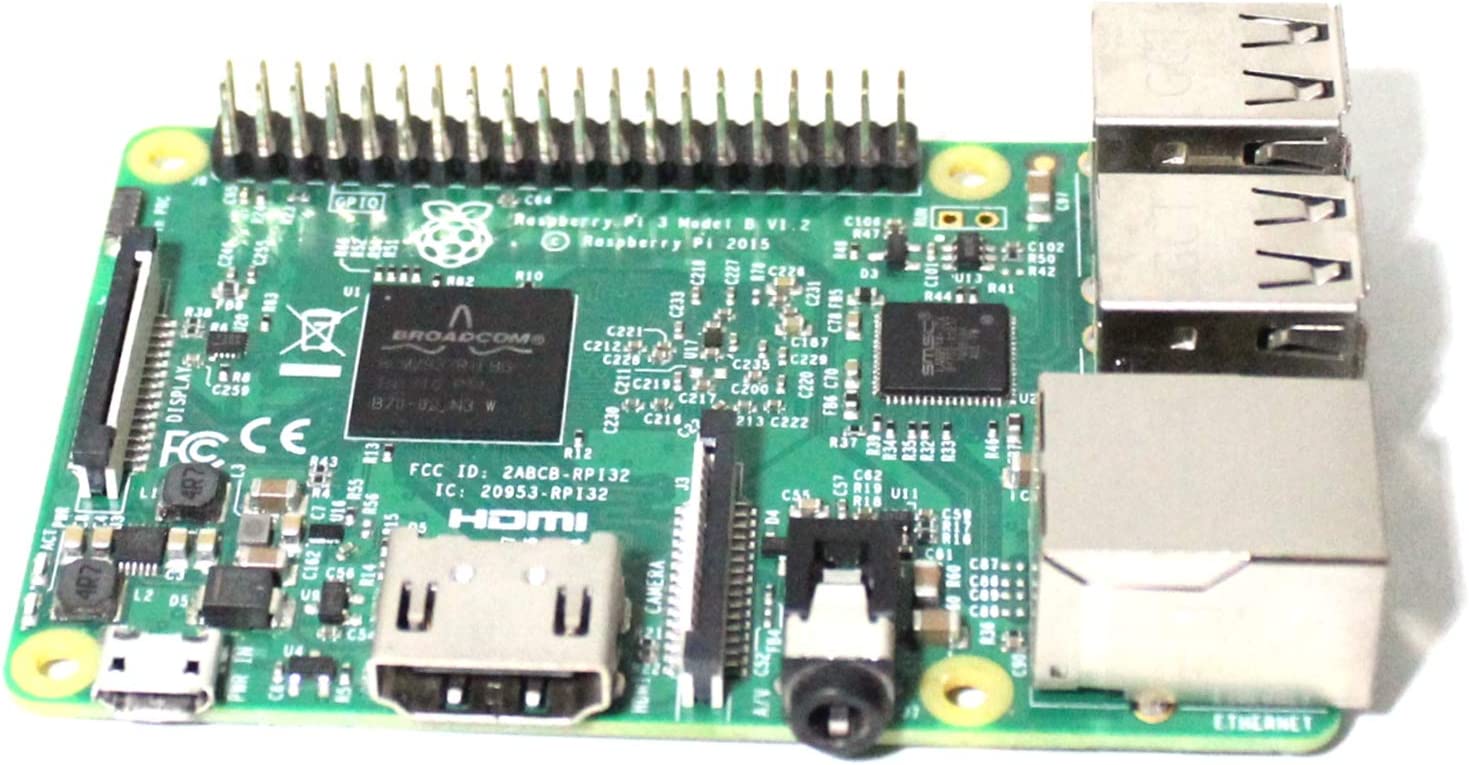

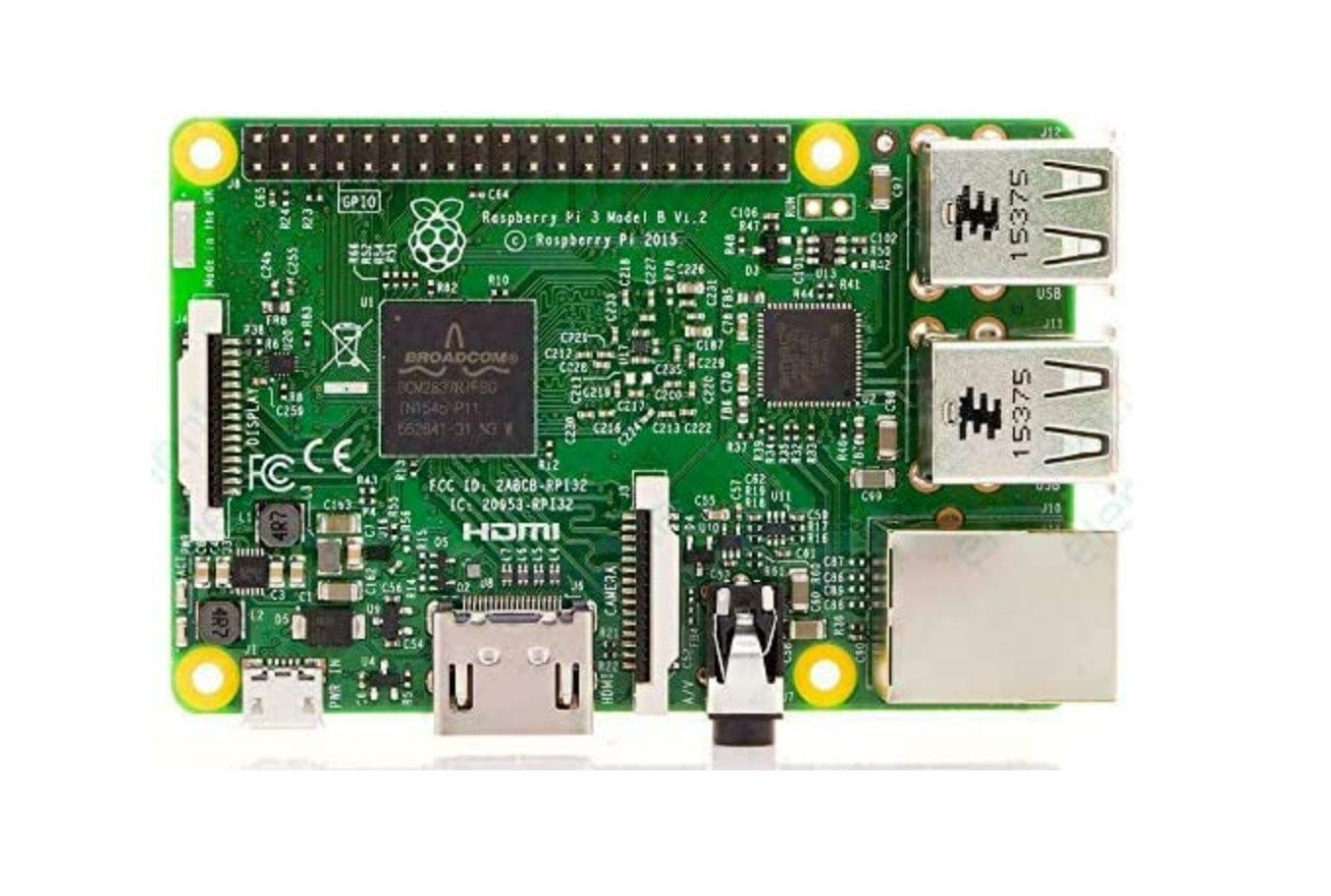

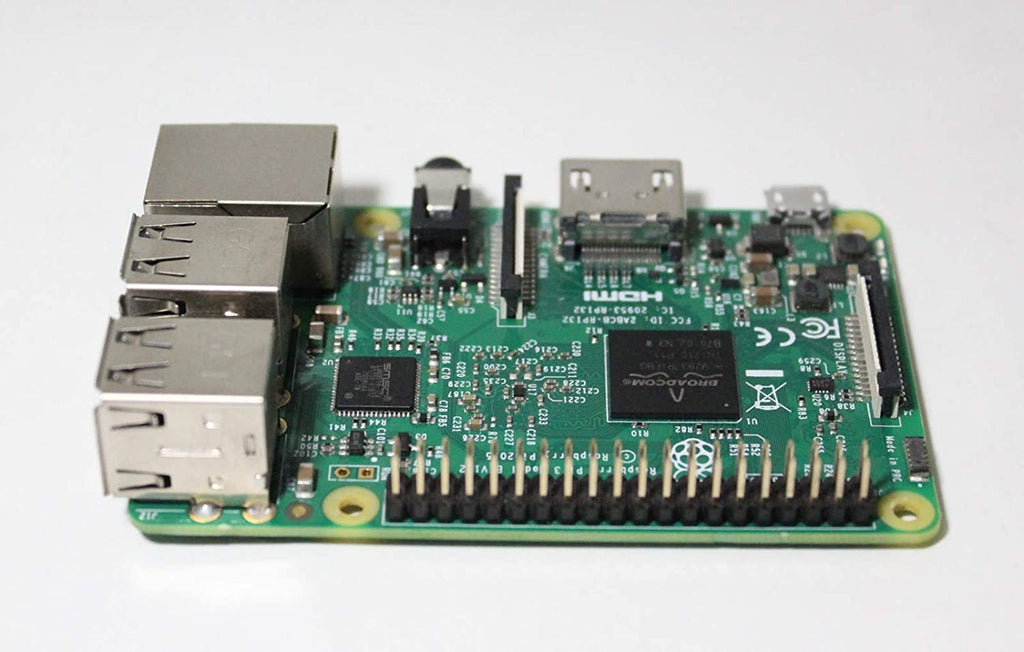

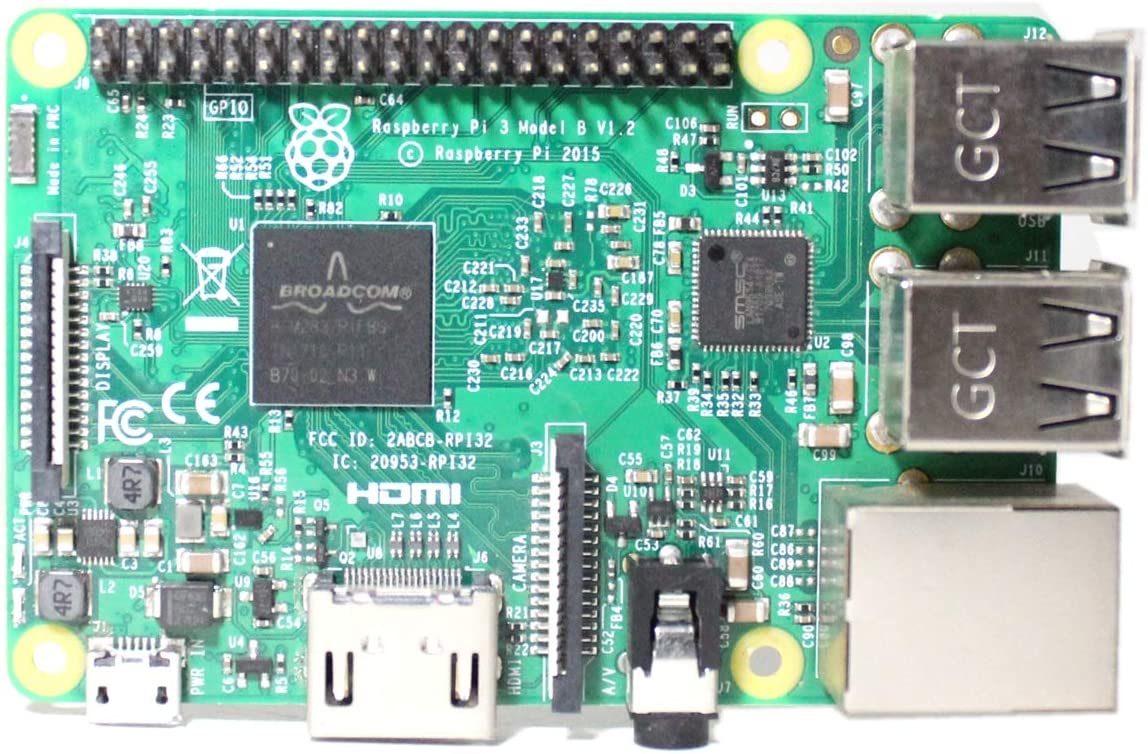

Say hello to the Raspberry Pi 3 Model B, a powerful single-board computer with wireless LAN and Bluetooth capabilities and flexible connectivity options. The Raspberry Pi 3 Model B comes equipped with powerful quad-core broadcom BCM2837 64-bit ARMv8 processor (1.2GHz) and 1GB RAM for impressive computing performance. It features on-board BCM43438 radio chip for excellent Wi-Fi and Bluetooth Low Energy capabilities, while providing a wide range of connectivity options for easy connection with compatible peripherals.
Features
- 1.2 GHz 64-bit quad-core ARMv8 CPU, 1GB RAM
- 802.11n Wireless LAN, 10/100Mbps Lan Speed
- Bluetooth 4.1, Bluetooth Low Energy
- 4 USB ports, 40 GPIO pins, Full HDMI port, Combined 3.5mm audio jack and composite video
- Camera interface (CSI), Display interface (DSI), Micro SD card slot (now push-pull rather than push-push), VideoCore IV 3D graphics core
- 40-pin extended GPIO
- Four USB 2.0 ports
- 4-pole stereo output and composite video port
- Full size HDMI port
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- Micro SD port for loading your operating system and storing data
With upgraded switched Micro USB power source up to 2.5 Amps, the Raspberry Pi 3 Model B can now power even more powerful devices over USB ports.
Specifications
| Model | |
| Brand | Raspberry Pi |
| Model | 83-17300 |
| Combo Type | Motherboard / CPU / Memory Combo |
| Bundle | |
| CPU | Broadcom BCM2837 64-bit ARMv8 QUAD-Core powered Single Board Computer running at 1.2 GHz |
| Memory | 1GB RAM |
| Onboard LAN | |
| Wireless LAN | BCM43438 Wi-Fi on board |
| Bluetooth | Bluetooth Low Energy (BLE) on board |
| Rear Panel Ports | |
| HDMI | Full size HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 4 pole Stereo output and Composite video port |
| Features | |
| Improved Performance | Next Generation QUAD Core Broadcom BCM2837 64-bit ARMv8 processor |
| Processor speed has increased from 900 MHz on the Raspberry Pi 2 to 1.2 GHz on the Raspberry pi 3 Model B | |
| Improved Connectivity | BCM43438 Wi-Fi on board |
| Bluetooth Low Energy (BLE) on board | |
| Improved Power Management | Upgraded switched power source up to 2.5 Amps (can now power even more powerful devices over USB ports) |
| Dimensions | |
| Product Dimensions | 5 x 2 x 3 inches |
| Item Weight | 0.4 pounds |
