Description

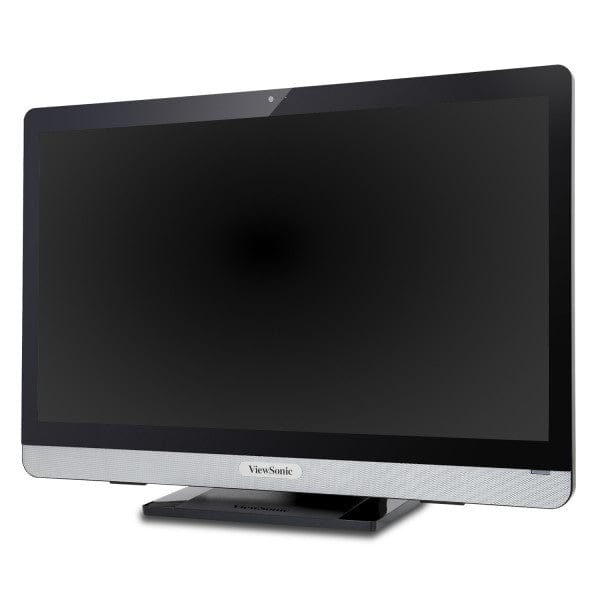

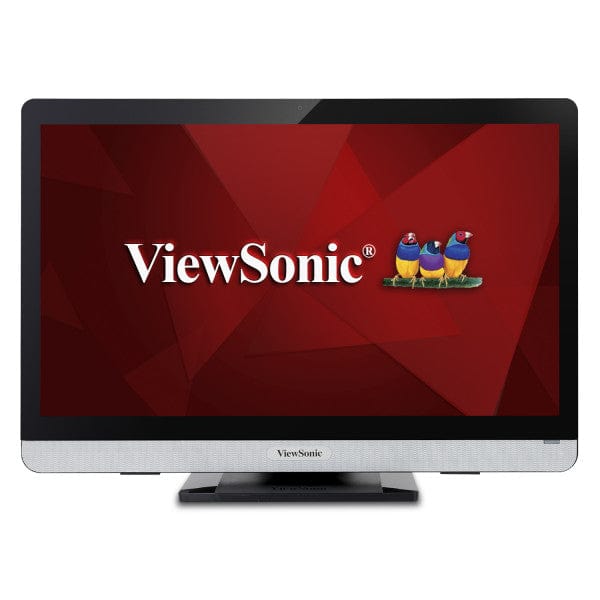

The ViewSonic VSD231 is a 23” multi-touch smart display with 1920x1080 Full HD resolution. It features a NVIDIA Tegra 4 1.6GHz CPU, a 10-point projected capacitive touch screen, and an Android OS with Google Chrome browser. With Google GMS certification, users can enjoy diverse Android multimedia applications such as social networking, cloud services, and online video. Versatile connectivity options include HDMI (MHL), four full size USB and one micro USB port, SD card reader, RJ45 LAN, headphone jack, and 2MP webcam with integrated mic for video conferencing. Wireless and Bluetooth network connections provide instant access to transfer data, documents, and multimedia files. In addition, the VSD231 can also operate as a traditional 23’’ Full HD touch display via HDMI connection to your PC/Laptop for office work, or for surfing the internet and gaming. A ViewSound Premium Audio system with integrated speakers completes the package for your multimedia enjoyment.
Features
- Citrix Ready 10-point projected capacitive touch
- Powerful NVIDIA® Tegra® 4 1.6GHz quad-core processor and Android™ 4.3 Jelly Bean OS
- Support for both wired and wireless screen mirroring

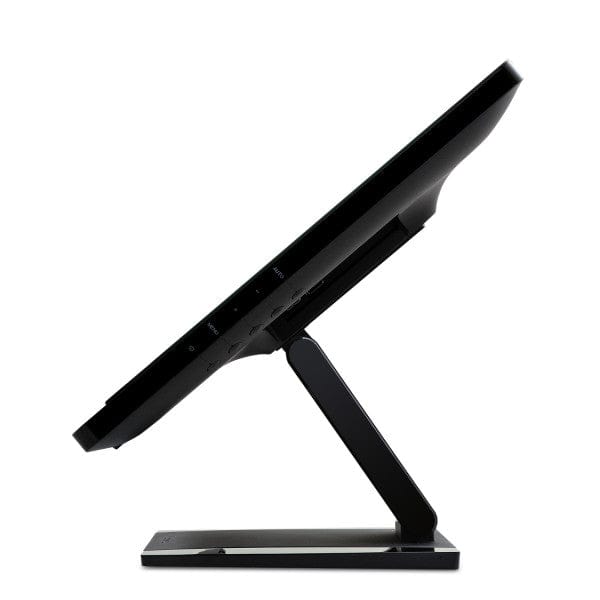

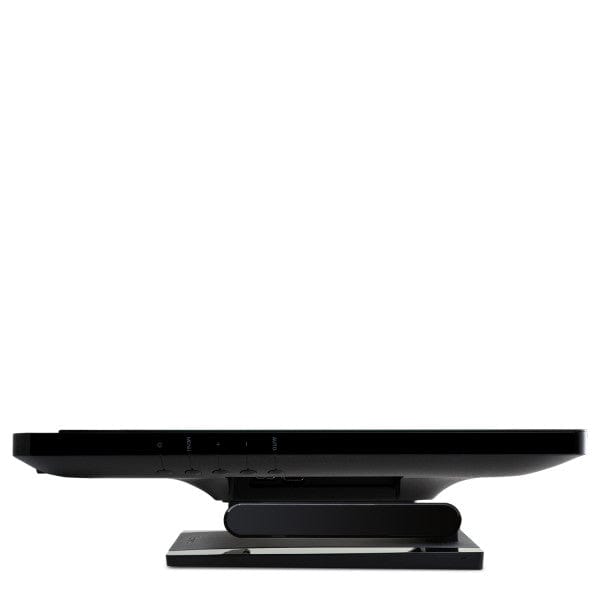

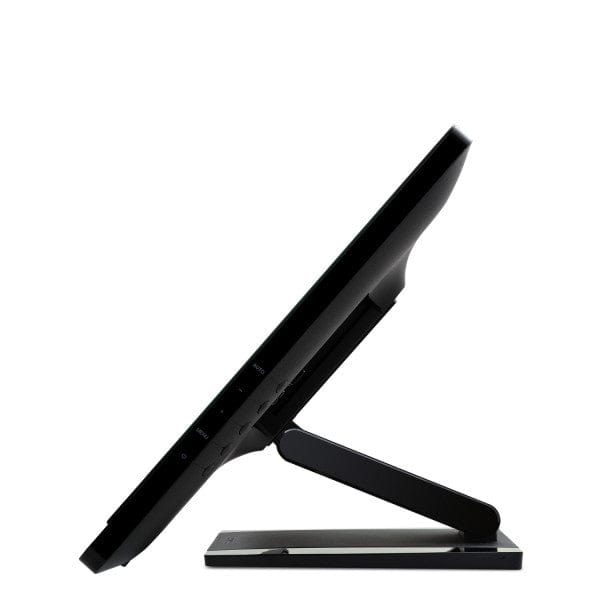

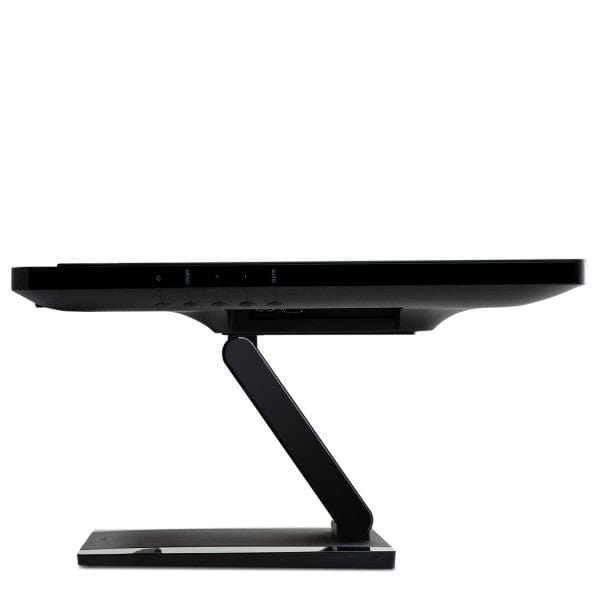

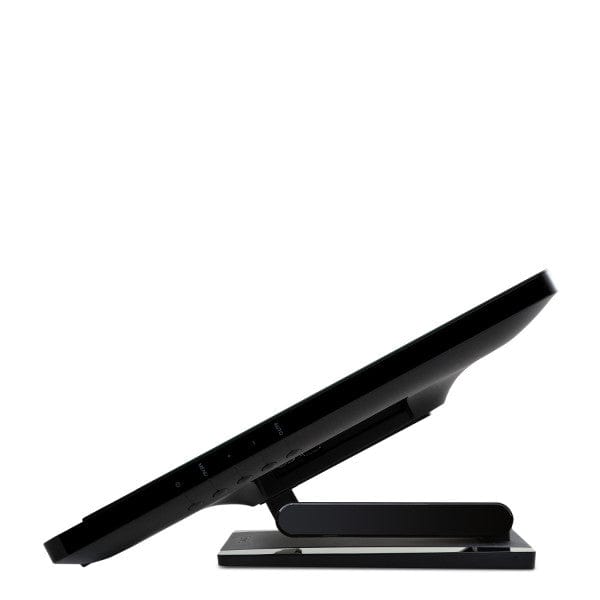

- Ergonomic stand allows screen to be tilted and adjusted, or rest flat on a desk
Lightning Fast Computing
Equipped with a powerful NVIDIA Tegra quad-core processor and Android Jelly Bean OS, this smart display provides smooth, lightning-fast computing no matter what applications are running.
10-Point Multi-Touch
With 10-point multi-touch technology and a durable, scratch-resistant surface, this smart display provides outstanding interactive capabilities in public environments. Users can also utilize the smart display as a Full HD touch display to connect to existing PCs, notebooks, or tablets.
Versatile Connectivity
4 USB ports deliver versatile connectivity to diversified storage devices, peripherals, and high-definition electronics for enhanced convenience and flexibility
Specifications
| System: | |
| CPU Processor Type: | NVIDIA Tegra T40S Quad-Core |
| CPU Processor Speed: | 1.6GHz |
| Display: | |
| Type: | IPS |
| Static Contrast Ratio: | 1,000:1 |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Resolution: | 1920 x 1080 |
| Response Time (Typical GTG): | 5ms |
| Light Source: | LED |
| Brightness: | 300 cd/m2 |
| Resolution Type: | 1080p |
| Display Size (in.): | 0:00 |
| Specs Power: | |
| Consumption (typical): | 48W |
| Ergonomics: | |

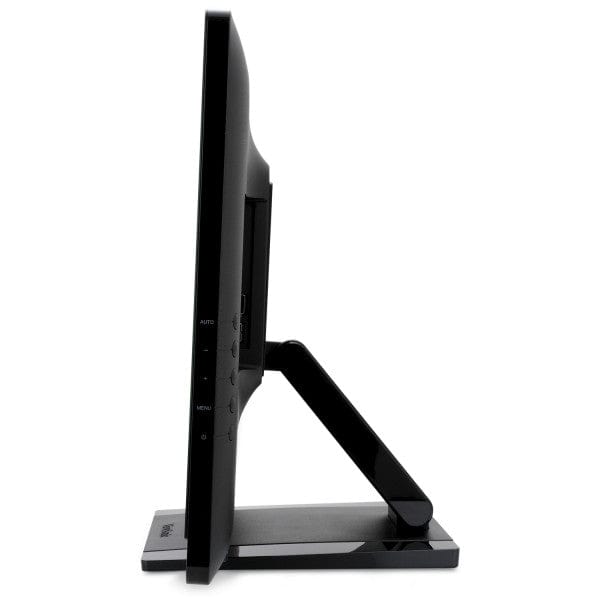

| Tilt (Forward/Back): | 0º–90º |
| Operating Conditions: | |
| Temperature: | 32–95º F (0 - 35º C) |
| Humidity (non-condensing): | 20-90% |
| Regulations: | |
| Regulations: | CE, CB, UL/CUL, FCC-B (including ICES003, FCC-C,IC RSS-210, China CCC, CEL Gost-R, FAC, WEEE,RoHS, REACH, SVHC, ErP, Argentina CNC |
| Touch: | |
| Touch Technology: | Capacitive |
| Touch Points: | 10-Point Touch |
| Connector: | 3.5mm Audio Out(1), Card Reader(SD Card), Micro USB(1), Ethernet LAN (RJ45)(1), USB 3.0 Type A(3), HDMI MHL(1), USB 2.0 Type A(1), USB 2.0 Type B(1) |
| Memory: | |
| RAM: | 2GB |
| Memory Type: | DDR3 |
| Storage: | |
| Storage Capacity: | 8GB |
| Networking: | |
| Wifi: | 802.11 b/g/n |
| Bluetooth: | Bluetooth 4.0 |
| Additional Hardware: | |
| Kensington Lock Slot: | 1 |
| Webcam: | 2MP |
| Microphone: | Built In, Echo cancelling |
| Audio: | |
| Internal Speakers: | 2W (x2) |
| Weight (metric): | |
| Net (kg): | 7.2 |
| Gross (kg): | 8.4 |
| Weight (imperial): | |
| Net (lbs): | 15.9 |
| Gross (lbs): | 19.4 |

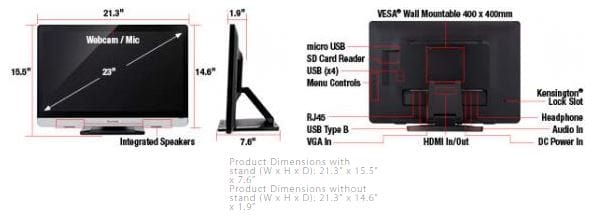

| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 620 x 455 x 170 |
| Physical (mm): | 547.1 x 392.6 x 192.4 |
| Physical Without Stand (mm): | 547.1 x 370.8 x 48.3 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 24.4 x 17.9 x 6.7 |
| Physical (in.): | 21.3 x 15.5 x 7.6 |
| Physical Without Stand (in.): | 21.3 x 14.6 x 1.9 |
| Mount: | |

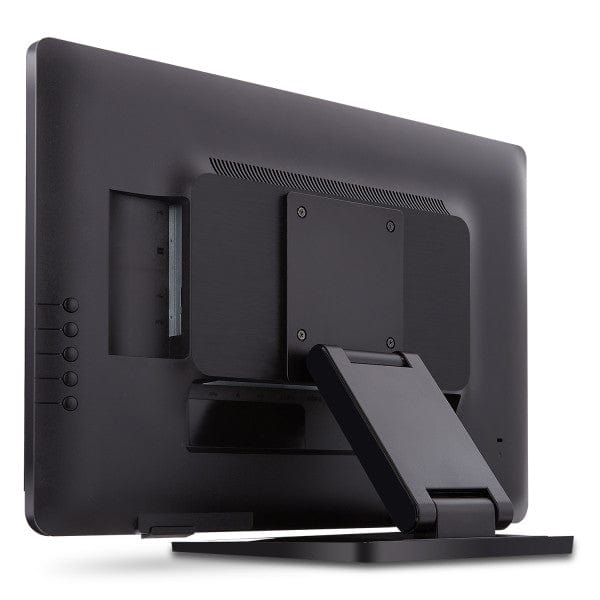

| VESA Compatible: | 100 x 100 mm |
| General: | |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
