Description

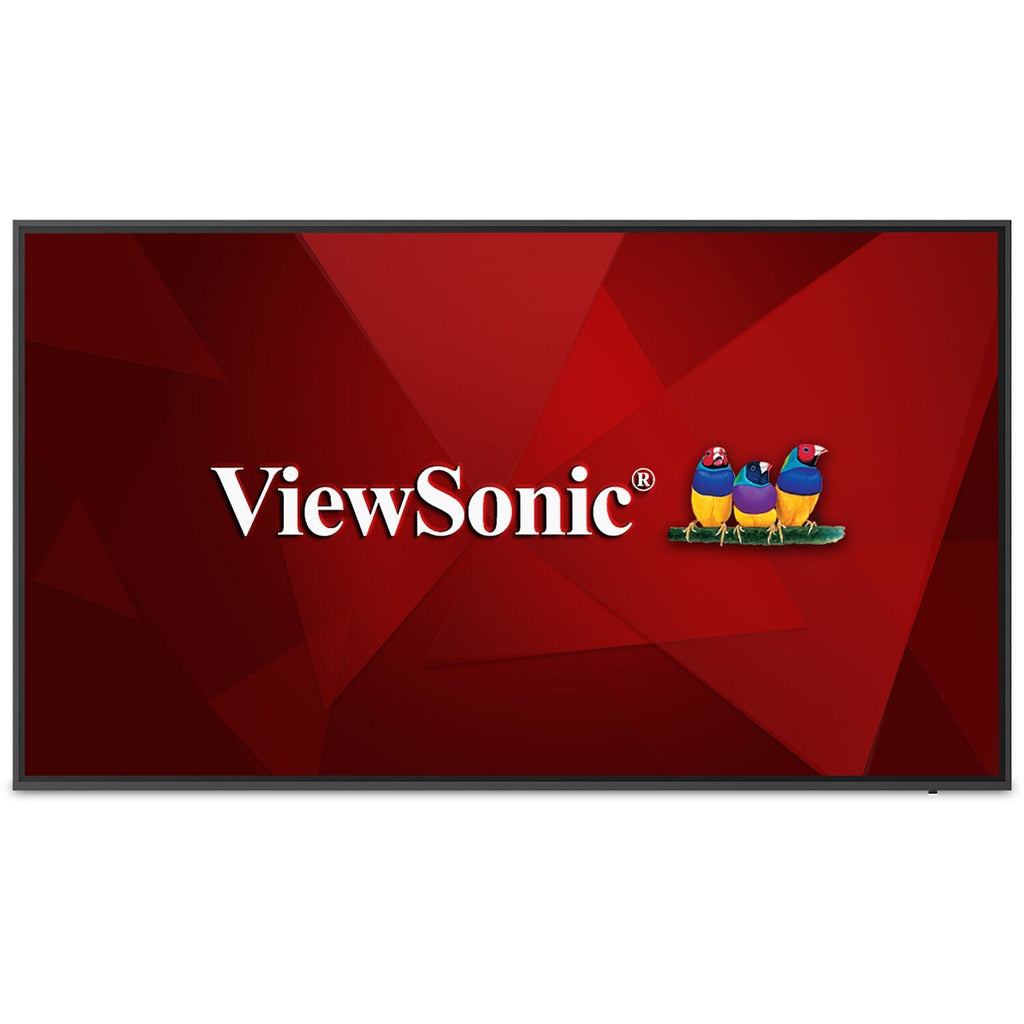

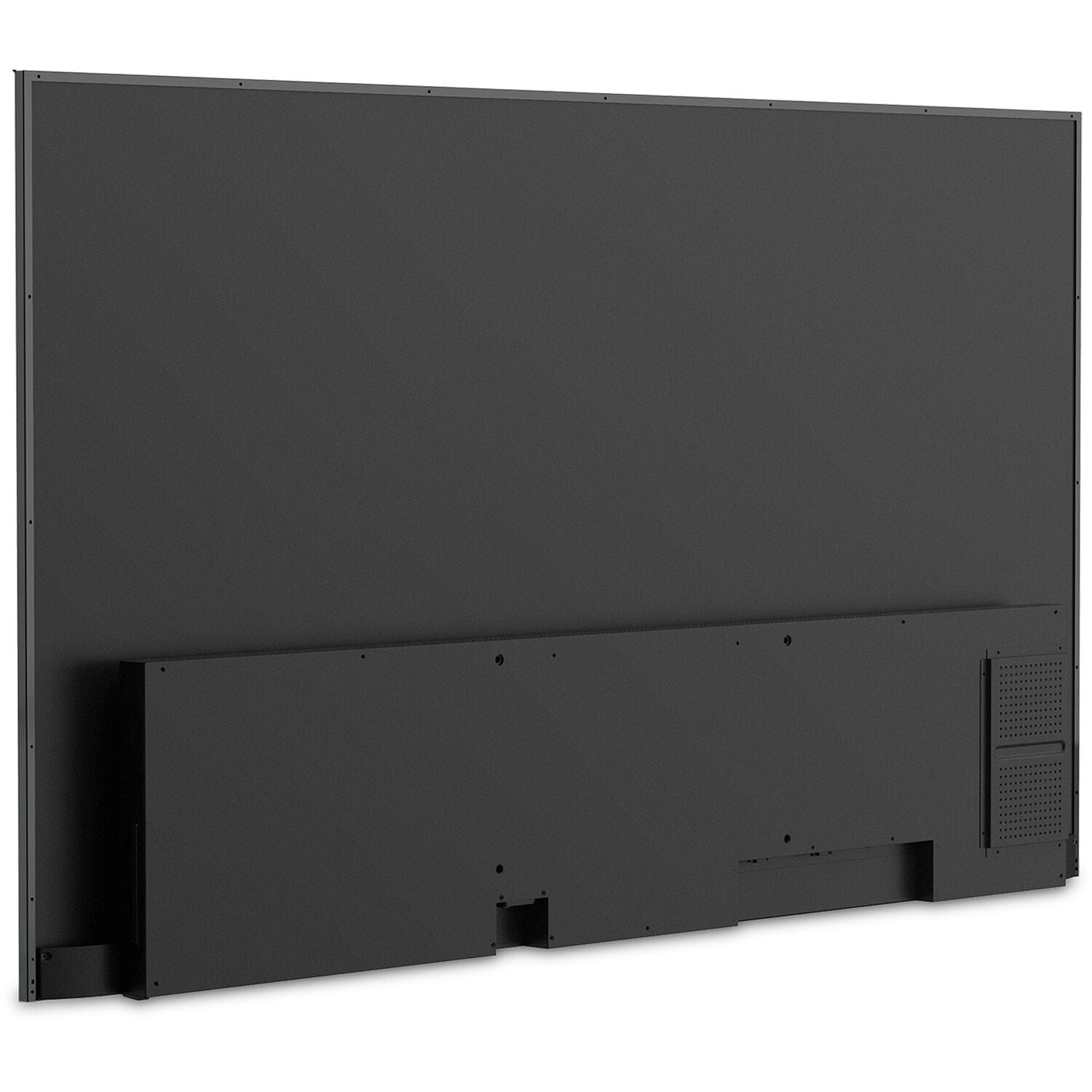

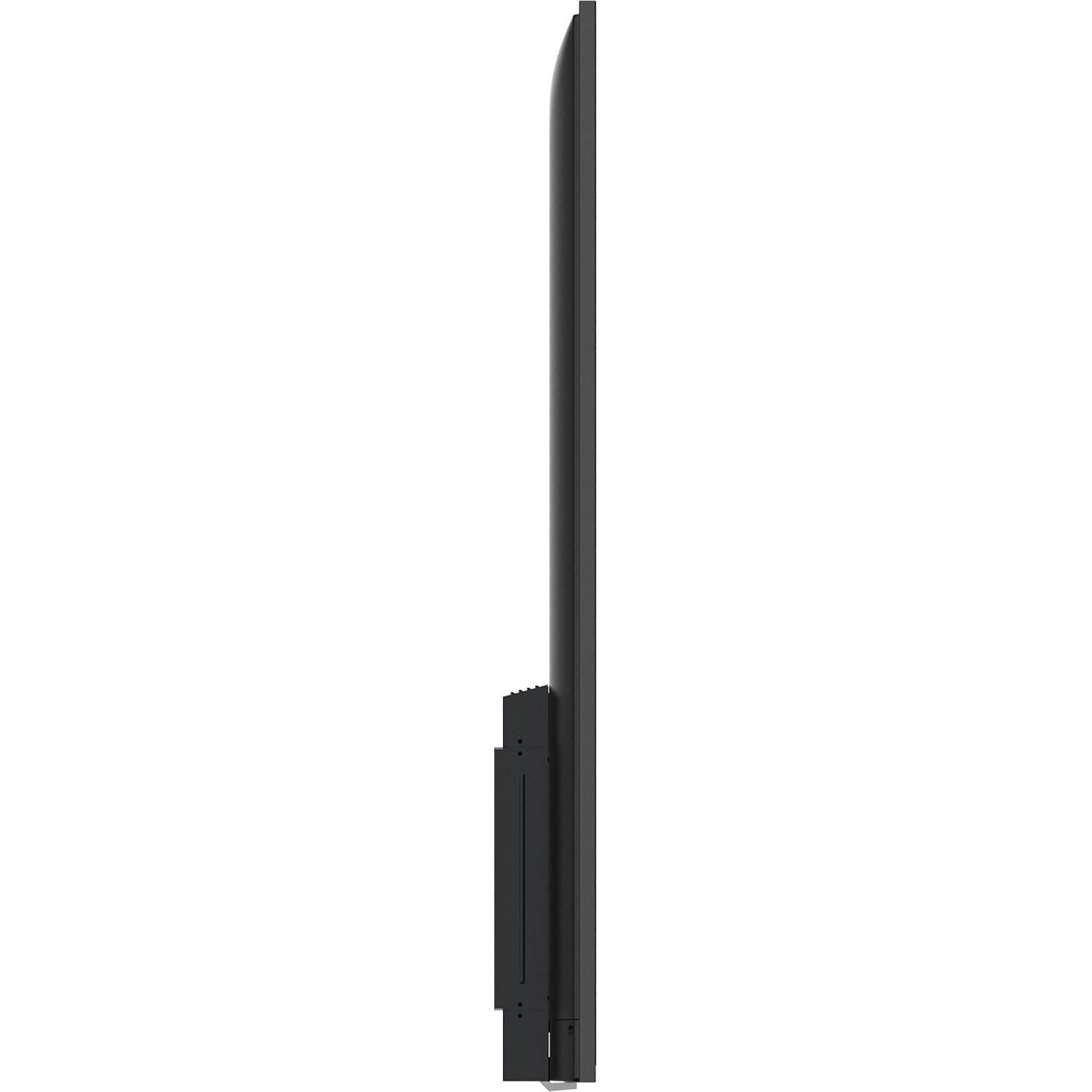

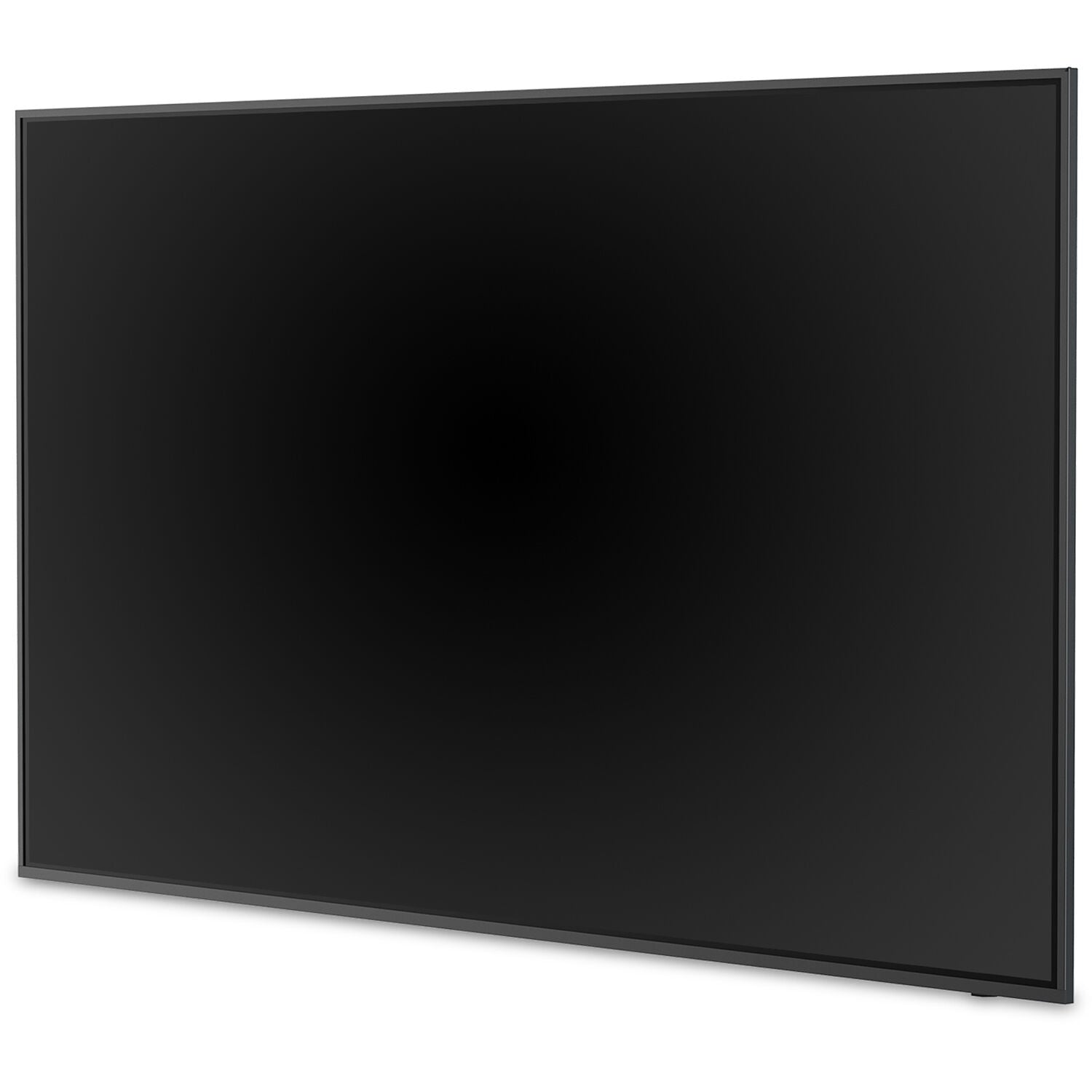

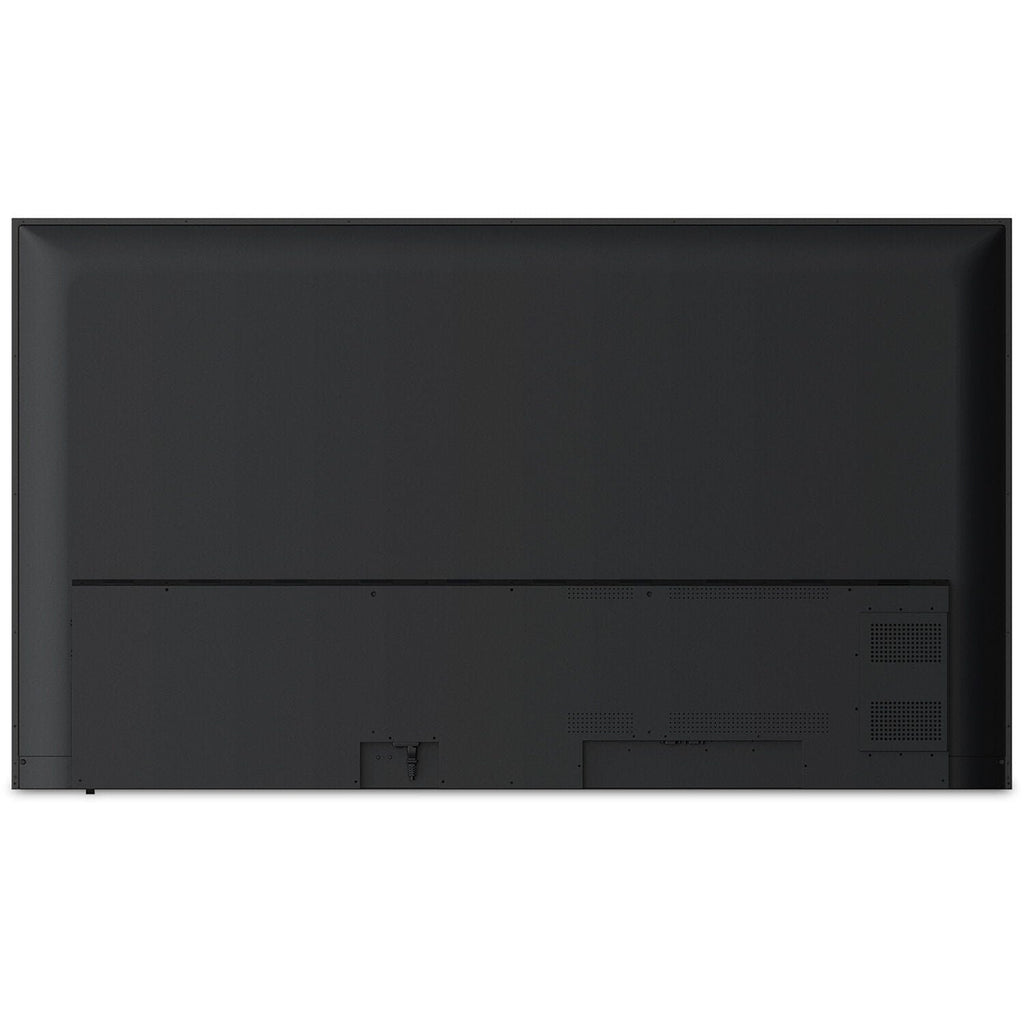

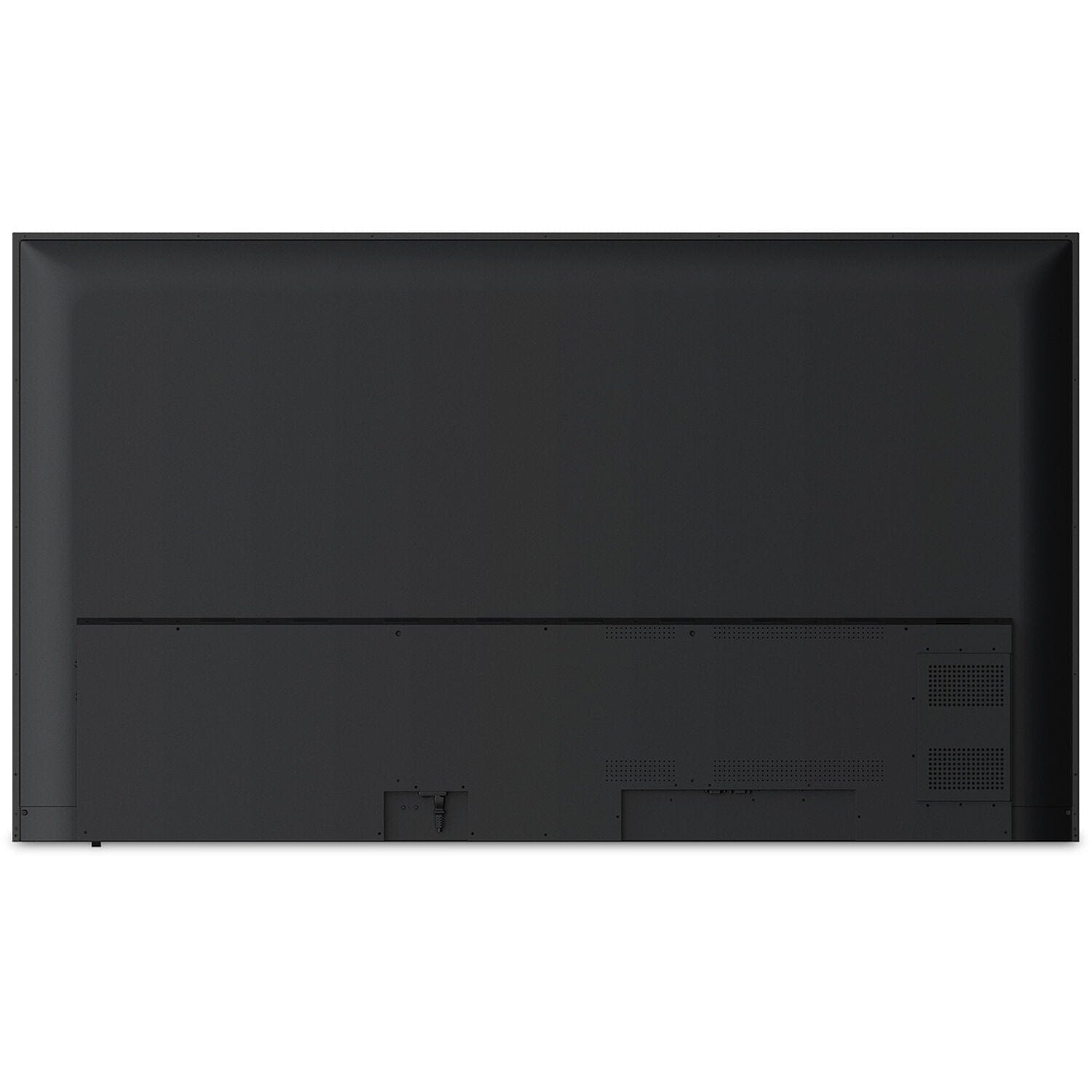

Conduct meetings or advertise your product or business digitally with the ViewSonic CDE6520-W 65" Class 4K UHD Digital Signage and Conference Room LED Display. It features 450 nits of brightness with a 1200:1 typical contrast ratio to help enhance visibility in bright environments. It has a DisplayPort, VGA, two HDMI, and three USB ports, plus Ethernet connectivity to provide a variety of interface options. An OPS computer and a Wi-Fi module can be installed to expand the display's functionality. For added convenience, the CDE6520-W includes a remote control and an HDMI cable.
Features
- 4K UHD (3840 x 2160) Native Resolution
- LED Display
- 8 ms Typical Response Time
- 450 nits Brightness
- 1200:1 Typical Contrast Ratio
4K UHD Resolution
With four-times the resolution of Full HD, this 4K UHD 3840 x 2160 display delivers a detailed viewing experience with immersive images that are vibrant, clear, and as large as life.
Powerful Embedded SoC Platform
The ViewSonic Embedded Signage Platform (VESP) features a Linux-based Kernel OS and provides an all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
ViewBoard Cast Sharing Software
ViewBoard Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content including documents, cloud files, multimedia, and more on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.
Remote Content Sharing from Anywhere
The myViewBoard Display app is cloud-based and client-free and allows you to share your screen from anywhere in the world from virtually any device, without having to worry about group policies or installing additional software.
All-in-One Solution
Perfect for conference rooms, huddle spaces, and other collaborative environments, this all-in-one display delivers performance businesses need to get up and running with their wireless presentations.
Streamlined Device Management
The myViewBoard Manager app is an easy-to-use, web-based client that allows you to securely set up, manage, and maintain all of your display devices from a centralized dashboard. Cloud-based access allows IT managers to remotely access, monitor, and manage devices from anywhere.
AV Control System Certified
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified, and Crestron compatible.
Reliable 16/7 Operation
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 16 hours a day, 7 days a week. Optimized for a wide range of commercial applications and environments, this display delivers peace of mind with its robust and durable design.
Integrated Content Management System
Take advantage of a cloud-based 30-day trial service subscription of ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. This service works with the optional ViewSonic Signage Manager CMS for local content push with a perpetual license.
Specifications
|
Display
|
|
| Display Size |
65"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Resolution |
3840 x 2160
|
| Maximum Brightness |
450 nits / cd/m2
|
| Lighting System |
Direct LED
|
| Contrast Ratio |
1200:1
|
| Response Time |
8 ms (GtG)
|
| Viewing Angle (H x V) |
178 x 178°
|
|
Video
|
|
| TV Tuner |
No
|
|
Connectivity
|
|

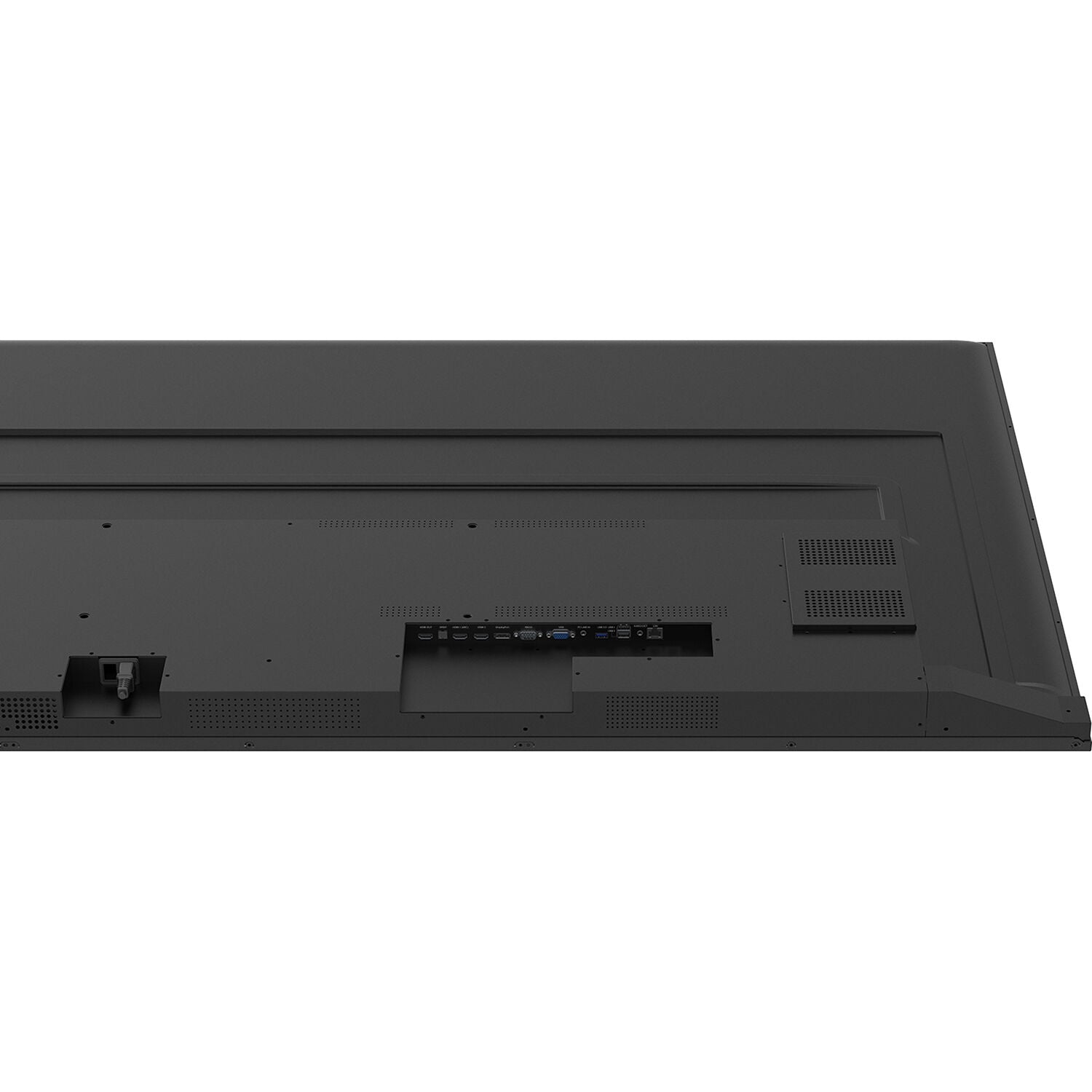

| Inputs |
2 x HDMI (2.0)
|
| 1 x DisplayPort | |
| 1 x DE-15/DB-15 (VGA) | |
| Outputs |
1 x HDMI (2.0)
|
| 1 x TOSLINK Optical (Digital Audio) | |
| 1 x 2RCA (Analog Audio) | |
| HDCP Support |
Yes, Version 2.2
|
| USB I/O |
1 x USB-A 3.0 / 3.1/3.2 Gen 1
|
| 2 x USB-A 2.0 | |
| Ethernet I/O |
1 x RJ45 (Unspecified Ethernet)
|
| Other I/O |
1 x DE-9/DB-9 Serial (RS-232C)
|

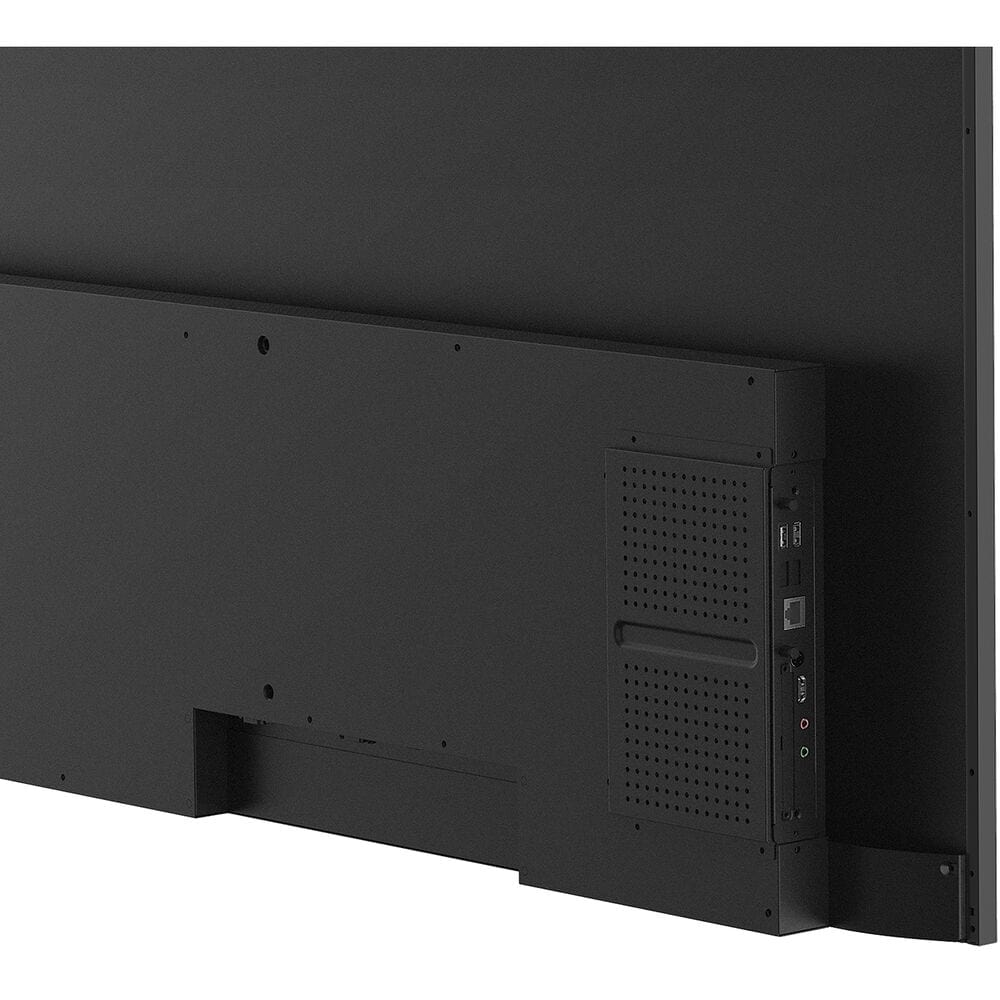

| Number of OPS/Expansion Slots |
1
|
|
Speaker
|
|
| Built-In Speakers |
Yes, 2 x 16 W
|
| Speaker Configuration |
2-Channel
|
|
Hardware
|
|
| Smart TV |
Linux
|
| CPU |
Up to 1.4 GHz Cortex A73 Dual-Core
|
| Up to 1.4 GHz Cortex A53 Dual-Core | |
| GPU |
ARM Mali G51 MP2
|
| Storage |
16 GB eMMC
|
| RAM |
3 GB DDR4
|
| OS Compatibility |
Android
|
| Chrome OS | |
| Windows | |
| iOS | |
| macOS | |
| *As of August, 2021: Check with manufacturer for the most up-to-date compatibility | |
| Media Card Reader |
None
|
|
Environmental
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 80%
|
|
Electrical
|
|
| Power Consumption |
Maximum: 300.0 W
|
| Typical: 220.0 W | |
| Standby: < 0.5 W | |
| Lighting Lifespan |
50000 Hours
|
| Weight | 42.5 lb |
| Dimensions (LxWxH) | 69 x 43.5 x 7.25" |
