Viewsonic 70" LED Full HD Digital Signage Flat Panel - Certified Refurbished

Viewsonic CDE6561T-S 70" LED Full HD Digital Signage Flat Panel - Certified Refurbished

Description

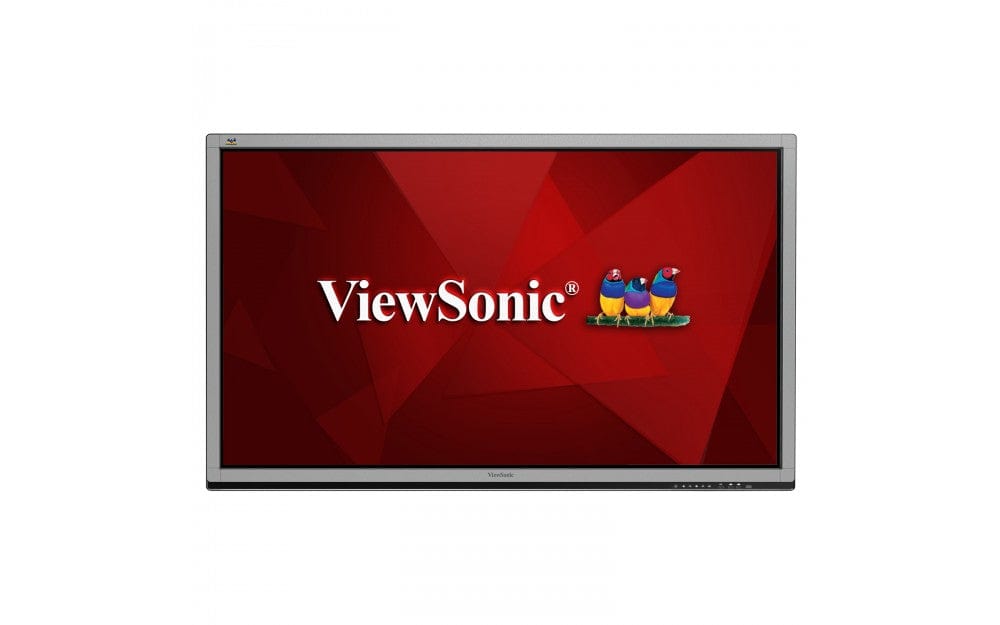

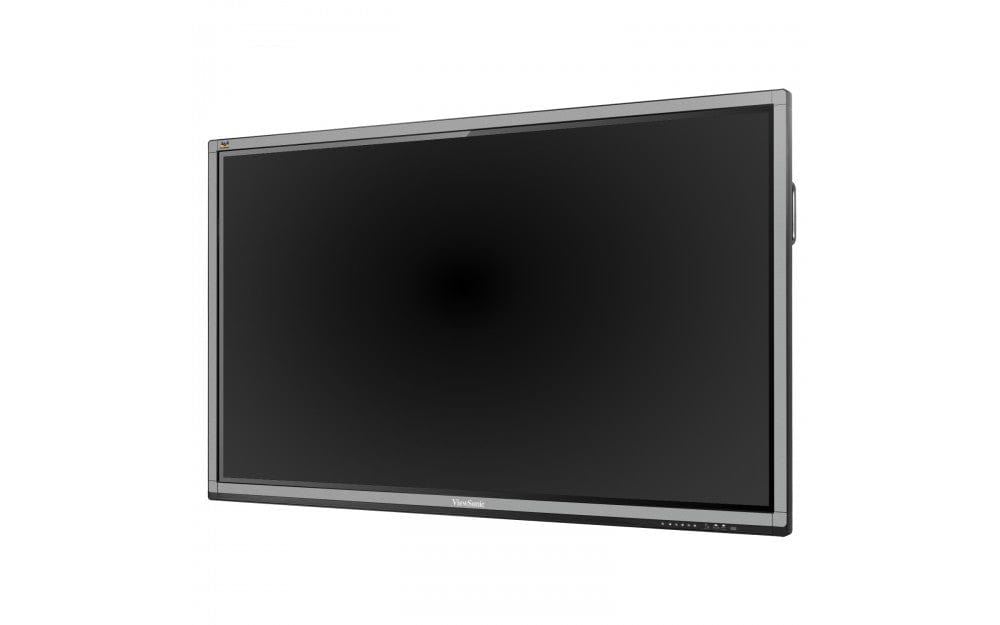

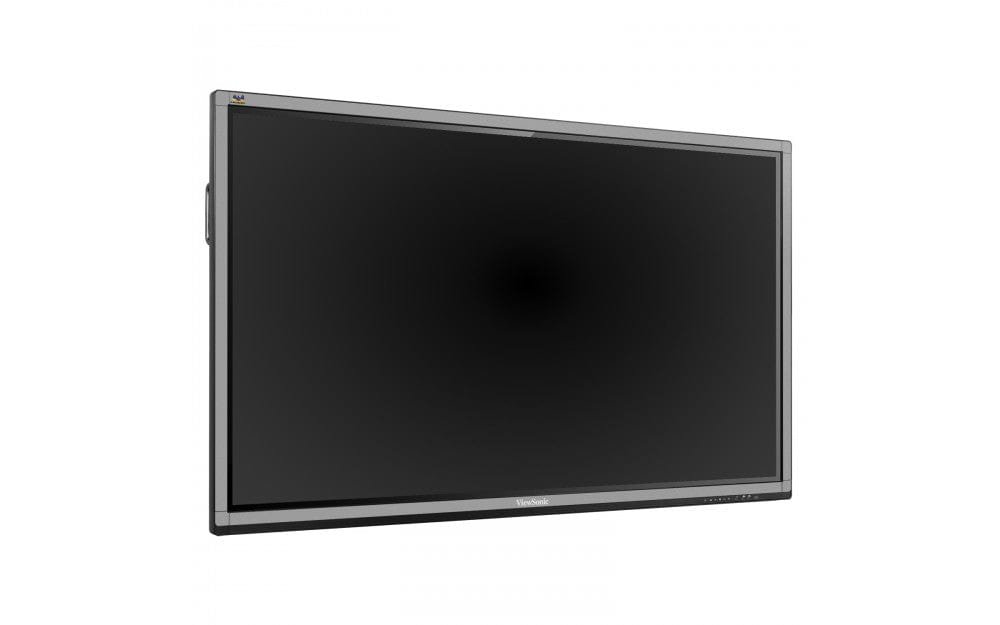

The ViewSonic CDE7060T 70’’ (69.5’’ viewable) Full HD interactive LED display solution is perfect for interactive business and educational classroom applications. This 10-point touch-enabled display, paired with PC less operation with pre-installed annotation software, allows multiple users to simultaneously write or draw on the display’s surface using fingers or styluses. 350-nit brightness and wide viewing angles provide better visual performance in well-lit rooms. With a built-in dual core processor and 8GB internal storage, as well as integrated versatile connectivity including HDMI, VGA, YPbPr, RS232, RJ45 and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC (NMP-710) capability, offering Windows® 8 OS and ViewBoard™ Lite annotation software for more computing-intensive interactive applications. The CDE7060T features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.

Features

• 70’’ (69.5’’ viewable) Full HD interactive LED display solution
• 10-point multi-touch interactive screen
• Built-in ARM dual-core CPU with 8GB Storage
• Pre-installed annotation software
• Optional slot-in PC

10-point Multi-Touch

With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.

Built-in ARM Dual-Core CPU with 8GB Storage

Equipped with a powerful dual-core processor and Linux OS, this display provides smooth, lightning-fast computing and responsive touch capabilities. 8GB of onboard memory provides ample storage for files and multimedia content.

Pre-Installed ViewBoard® Embedded Software

ViewSonic’s easy-to-use ViewBoard Embedded software lets you write, highlight, edit, and transform documents and images on-screen in real-time. For more robust annotation options and educational templates for English, Math, and Science, a ViewBoard for Education software disc is included in the box and can be installed via an optional ViewSonic slot-in PC, or via an external PC connection.

Optional Slot-in PC

The optional ViewSonic NMP-710* slot-in PC utilizes the Intel Core i5 processor, as well as the Windows 8 operating system, to provide additional computing power and touch functionality.

*Optional accessories i5 PC (NMP-710), Wall Mount (WMK-047) and Trolley (LB-STND-003) sold separately.

Control Multiple Devices

RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

Easy Multi-device Management

RS232 connectivity enables computers and laptops to be connected to this display, and also allows IT personnel to conveniently manage multiple displays, configure devices, and upgrade firmware from a centralized location.

Edge Border Design

A unique edge border design redefines the relationship between the bezel and panel, eliminating any dead angles in a Windows 8 touch environment.

Anti-scratch, Anti-glare Glass Faceplate

This display features 7H scratch-resistant surface hardness that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.

Optional Trolley Mount

Although this display can be wall mounted for a solid and safe user touch experience, we also offer a trolley mount (LB-STND-003)* that provides the flexibility of a mobile display.

*Optional accessories (LB-STND-003) sold separately.

Energy-Saving LED Backlight

Utilizing an energy-saving LED backlight, this display consumes less power than conventional CCFL backlight displays. This provides for a lower overall cost of ownership, and a higher ROI.

Specifications

General:
Replacement SKU	IFP6550
Display:
Display Size (in.):	00:00
Viewable Area (in.):	12:00
Light Source:	LED
Resolution:	1920 x 1080
Aspect Ratio:	16:09
Static Contrast Ratio:	1,400:1
Backlight Life (Hours):	1200000:1
Brightness:	350 cd/m2
Response Time (Typical GTG):	8ms
Viewing Angles:	178º horizontal, 178º vertical
Panel Surface:	Anti-glare 7H tempered glass
Embedded Player:
Android Version:	4.2.1
CPU:	ARM Cortex A9 Dual Core Processor
Memory:	1.5 GB
Storage:	8GB
Interface:	Setting, Annotation, Viewboard Lite, Interface
Audio:
Internal Speakers:	10W (x2)

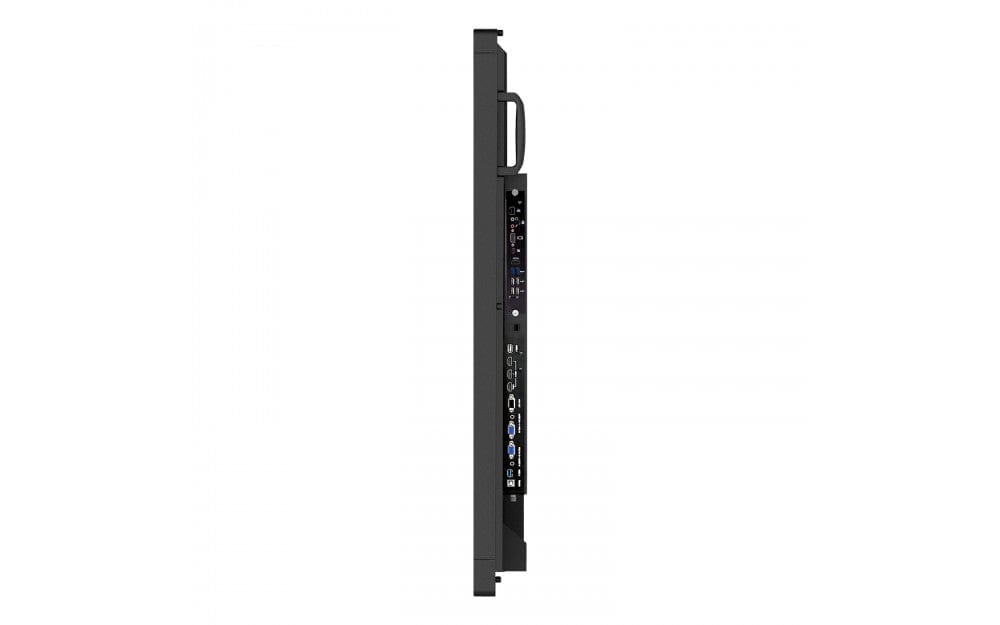

Connector:	HDMI(3), VGA(3), VGA Out(1), RCA Audio In(3), 3.5mm Audio Out(1), SPDIF Audio Out(1), USB 3.0(1), USB 2.0(3), Ethernet LAN (RJ45)(1)
Power:
Voltage:	100-240 VAC, 50-60Hz
Consumption (typical):	211W
Controls:
On Screen Display:	Input, Volume, Backlight, Audio, Screen, Display, Adjust
Operating Conditions:
Temperature:	32-104º F (0 - 40º C)
Humidity (non-condensing):	20-80%
Touch:
Touch Technology:	Infrared
Touch Points:	10-Point Touch
Weight (metric):
Net (kg):	45.5
Gross (kg):	57
Weight (imperial):
Net (lbs):	100.3
Gross (lbs):	125.7

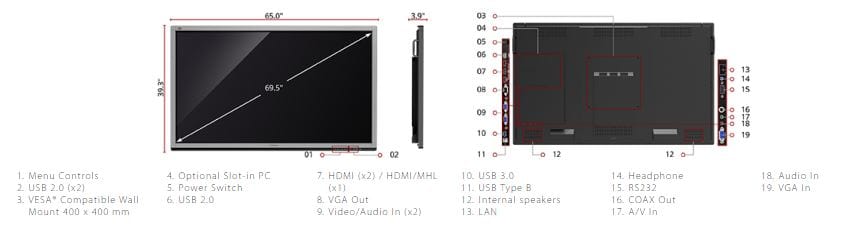

Dimensions (metric) (WxHxD):
Packaging (mm):	1697 x 1071 x 220
Physical (mm):	1523 x 924 x 98
Dimensions (imperial) (WxHxD):
Packaging (in.):	66.8 x 42.2 x 8.7
Physical (in.):	60.0 x 36.4 x 3.9
Mount:

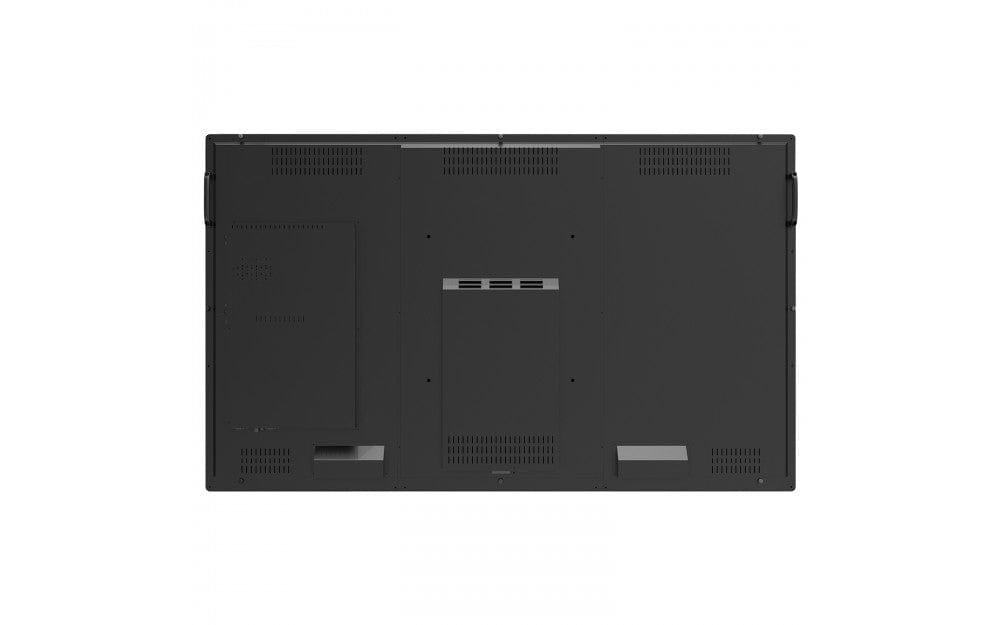

VESA Compatible:	600 x 400 mm
General:
Warranty:	Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes.
Recycle/Disposal:	Please dispose of in accordance with local, state or federal laws.
Package Contents:	CDE6561T display, power cable, VGA cable, audio cable, USB cable, RS232 adapter, remote control with batteries, stylus (x3), ViewSonic Wizard CD (User Guide and ViewBoard software)
Regulations:	FCC, cTUVus, CE, RCM
Notices:	*Requires NMP711-P10, NMP712-N or Windows PC. Programs, specifications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2016 ViewSonic Corporation. All rights reserved. [18443-01B-06/16]
UPC:	766907845013
Accessories:	LB-STND-003, LB-STND-005-3, NMP250-WL, NMP250-WU, NMP620-P10, NMP620-P10X, PD-IFP-001, PD-IFP-002, STND-047, SW-020, SW-050, SW-051, SW-110, SW-111, SW-115, SW-UP-117, VB-STND-001, VIEWSTICK2, VIEWSTICK2-S, WMK-047, WMK-054, myViewBoard for Windows
