Description

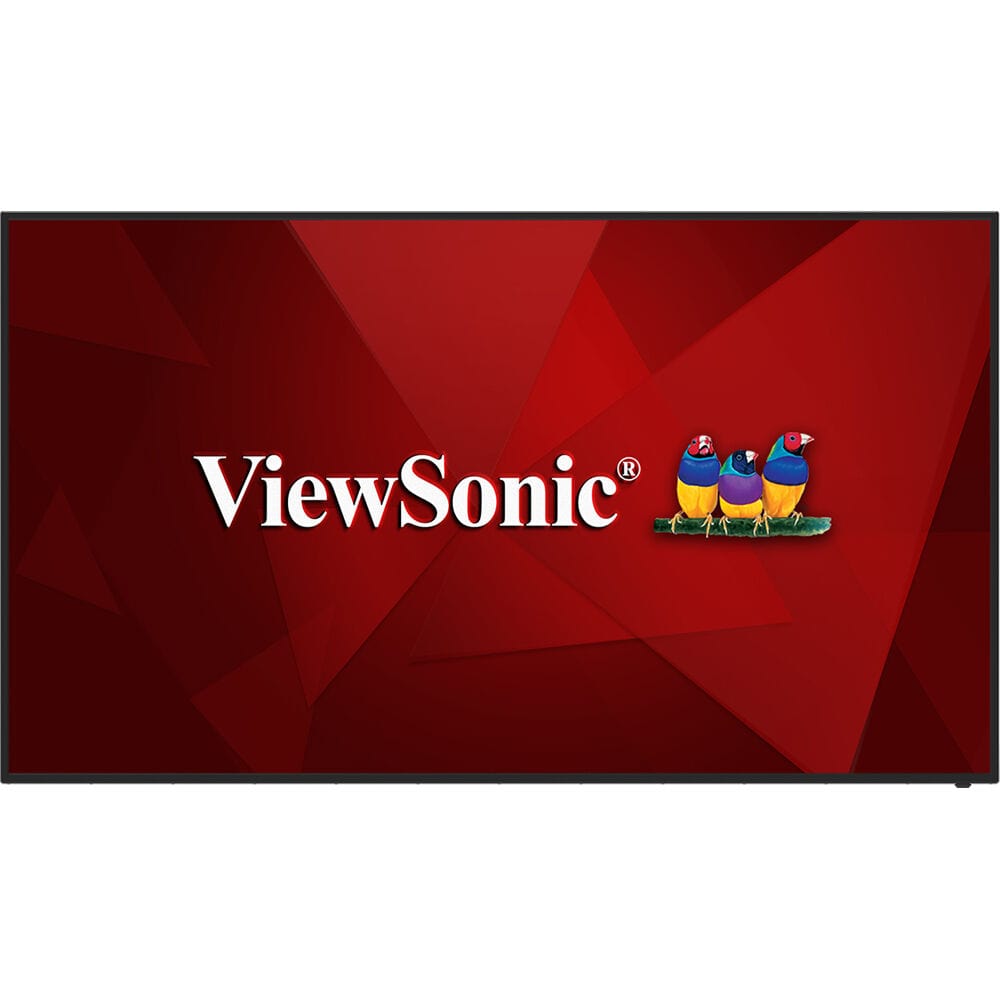

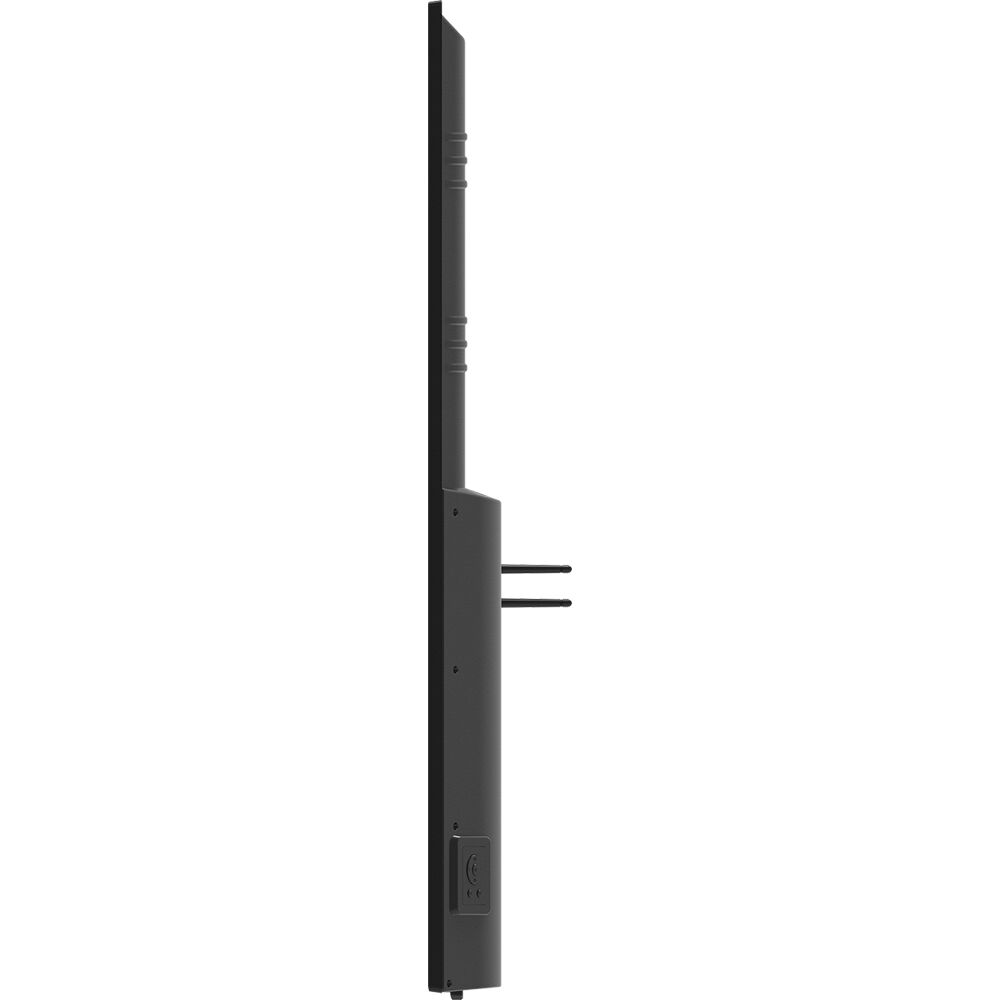

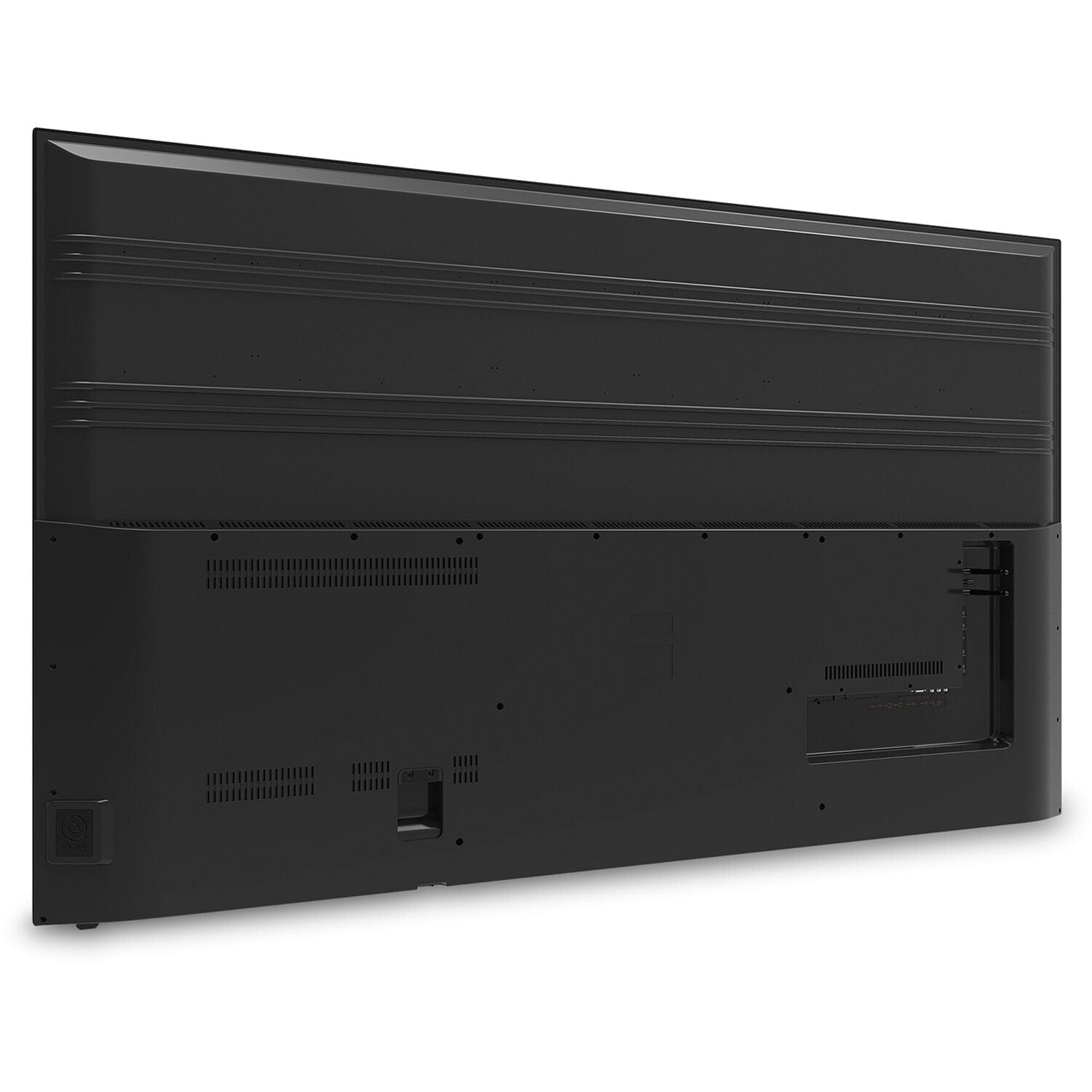

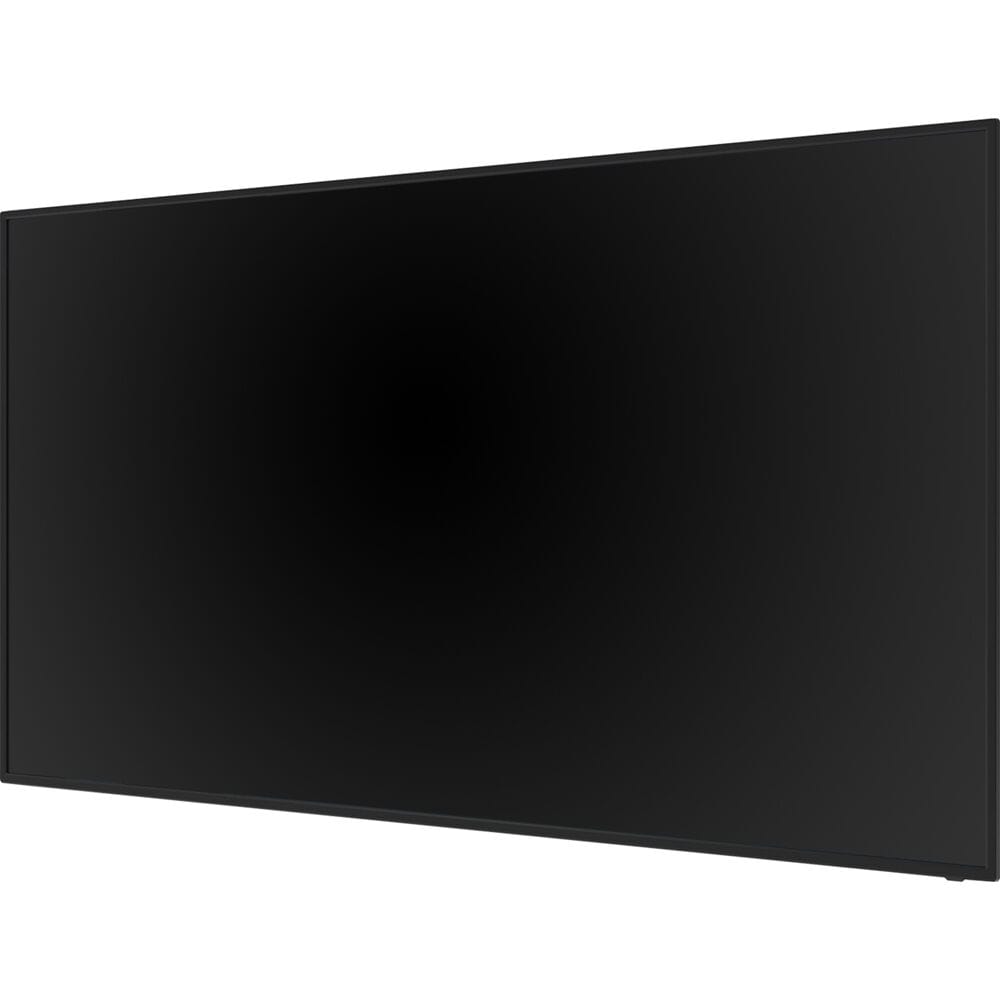

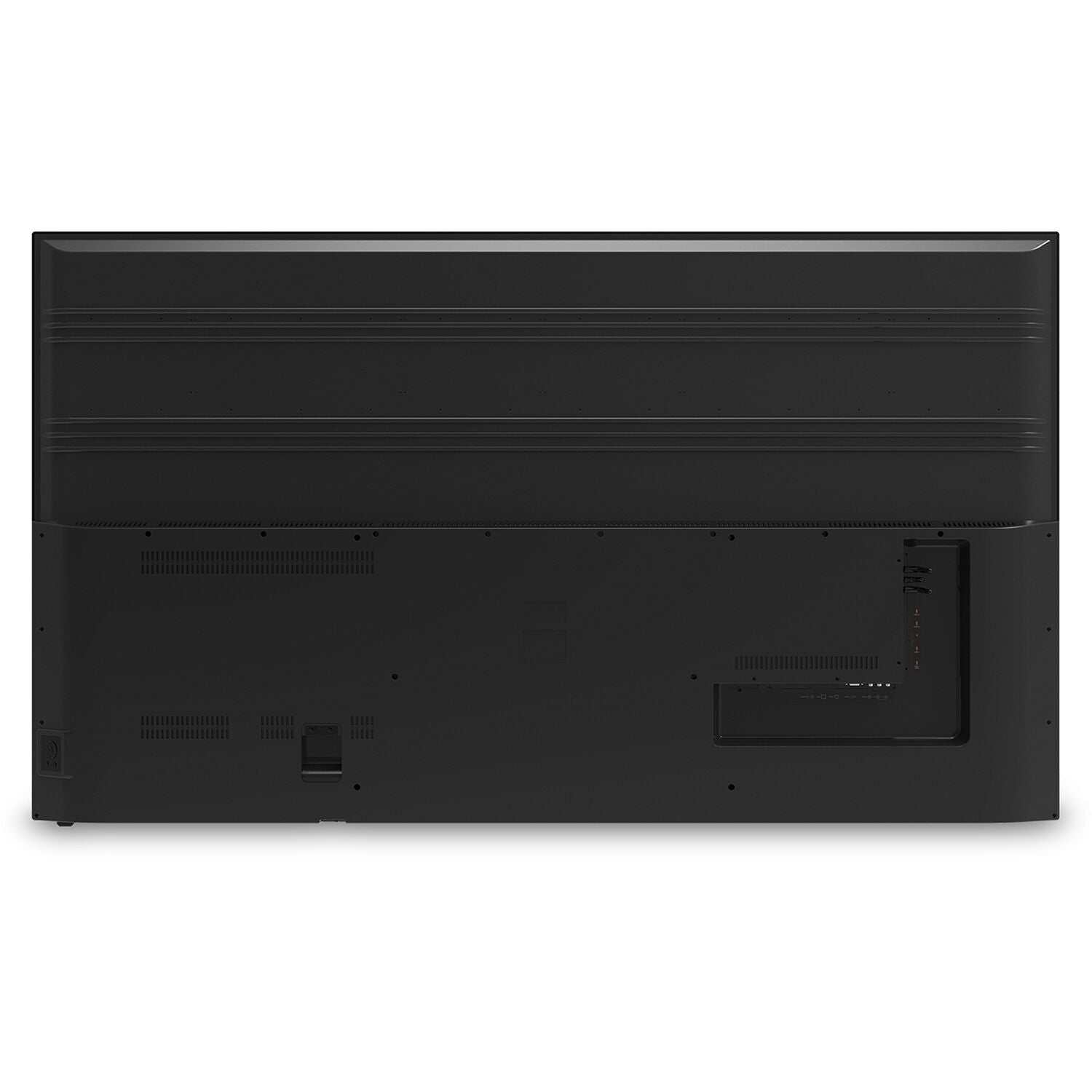

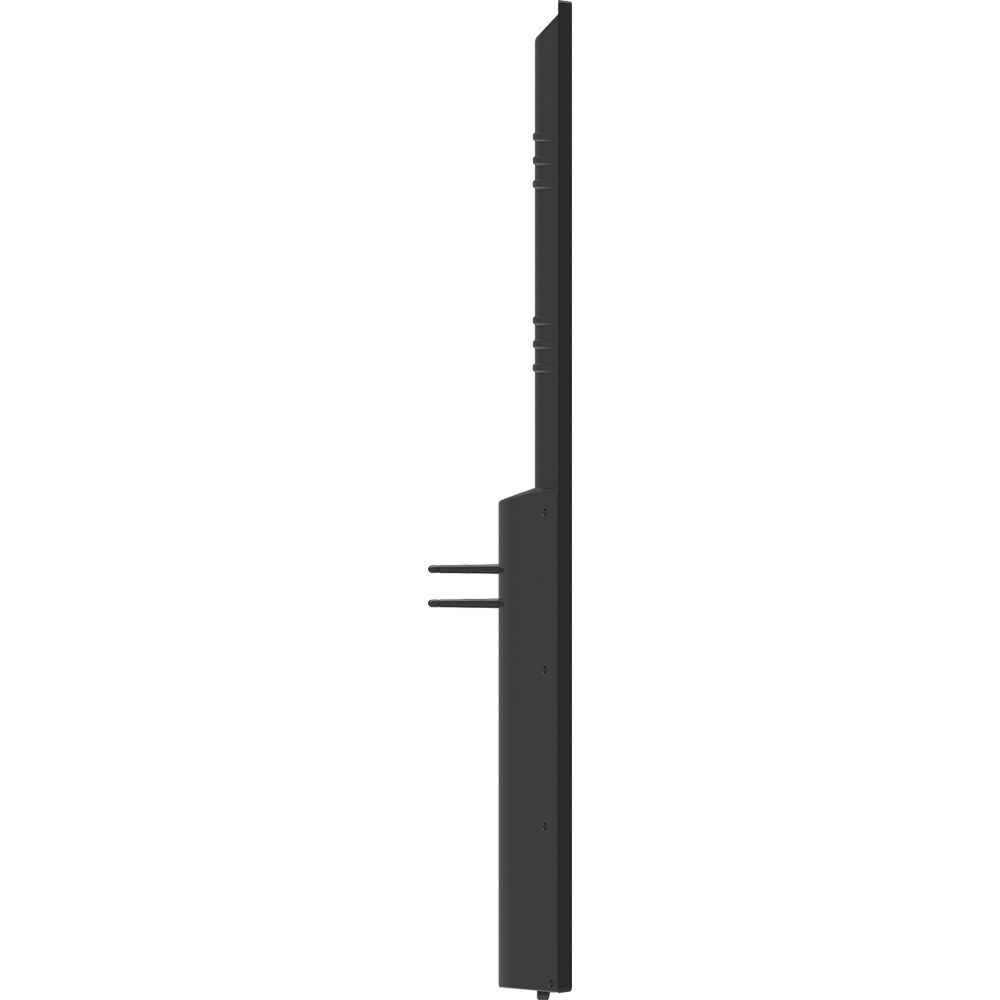

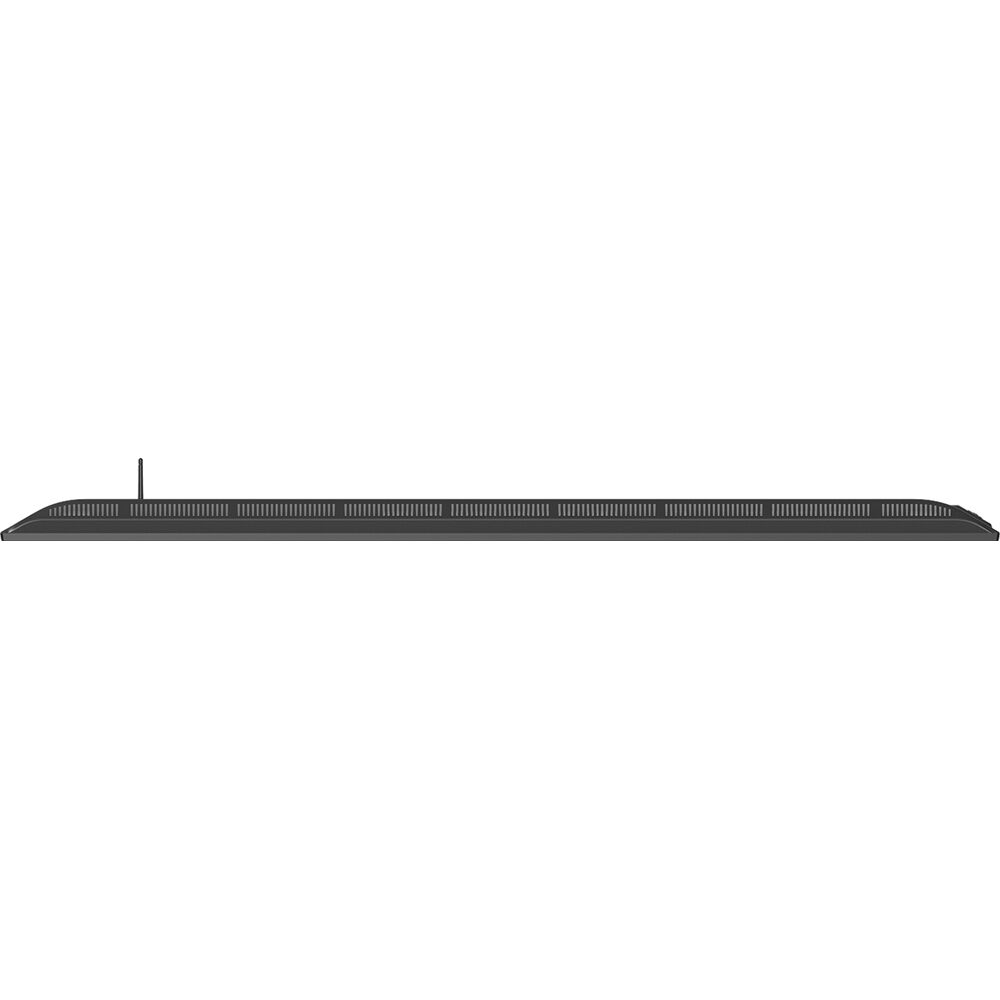

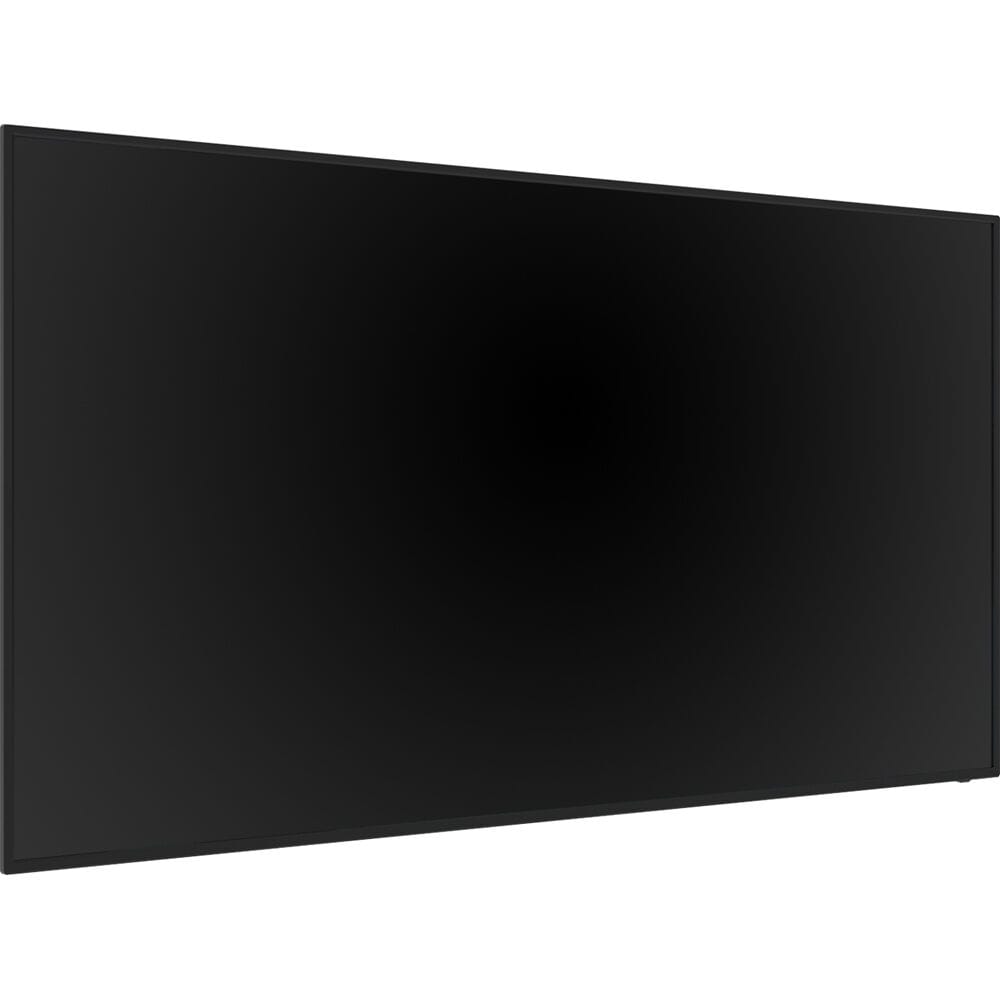

This ViewSonic 75" 4K Wireless Presentation Display is ideal for commercial spaces requiring a wall mounted 75" display that transforms meeting rooms into a dynamic communications hub. Featuring a 3840 x 2160 resolution, this display also boasts 330 nits of brightness, 178° viewing angles, dual 10W speakers, and wireless screen sharing. Built-in ViewBoard Cast screen sharing and myViewBoard Display software, along with the optional ViewSonic vCastSender app, enable both on-site and online users to participate in conferences and simultaneously share content. Equipped with a 1.5 GHz quad-core embedded SoC processor, 2GB RAM, and 16GB of internal storage, the monitor can play multimedia from internal storage or a USB flash drive 16 hours a day, seven days a week. Remote configuration and content management system support make the monitor suitable for a wide array of diverse signage applications.
Features
- 75" Panel Wireless Presentation Display
- 4K UHD (3840 x 2160) Native Resolution
- 8 ms (GtG) Response Time
- 330 nits Brightness
- 1200:1 Contrast Ratio
- 8 ms (GtG) Response Time
4K UHD Resolution
With four-times the resolution of Full HD, this 4K UHD 3840 x 2160 display delivers a detailed viewing experience with immersive images that are vibrant, clear, and as large as life.
Powerful Embedded SoC Platform
The ViewSonic Embedded Signage Platform (VESP) features a Linux-based Kernel OS and provides an all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.
ViewBoard Cast Sharing Software
ViewBoard Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content including documents, cloud files, multimedia, and more on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.
Remote Content Sharing from Anywhere
The myViewBoard Display app is cloud-based and client-free and allows you to share your screen from anywhere in the world from virtually any device, without having to worry about group policies or installing additional software.
All-in-One Solution
Perfect for conference rooms, huddle spaces, and other collaborative environments, this all-in-one display delivers performance businesses need to get up and running with their wireless presentations.
Streamlined Device Management
The myViewBoard Manager app is an easy-to-use, web-based client that allows you to securely set up, manage, and maintain all of your display devices from a centralized dashboard. Cloud-based access allows IT managers to remotely access, monitor, and manage devices from anywhere.
AV Control System Certified
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified, and Crestron compatible.
Reliable 16/7 Operation
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 16 hours a day, 7 days a week. Optimized for a wide range of commercial applications and environments, this display delivers peace of mind with its robust and durable design.
Integrated Content Management System
Take advantage of a cloud-based 30-day trial service subscription of ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. This service works with the optional ViewSonic Signage Manager CMS for local content push with a perpetual license.
Specifications
|
Display
|
|
| Screen Size (Diagonal) |
75"
|
| Resolution |
3840 x 2160
|
| Bit Depth / Color Support |
8-Bit+FRC (1.07 Billion Colors)
|
| Maximum Brightness |
330 nits / cd/m2
|
| Viewing Angle (H x V) |
178 x 178°
|
| Aspect Ratio |
16:9
|
| Contrast Ratio |
1200:1
|
| Dynamic Contrast Ratio |
5000:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Dot Pitch |
0.432 x 0.432 mm
|
| Pixels Per Inch (ppi) |
59 ppi
|
| Backlighting Technology |
Direct LED
|
|
Connectivity
|
|
| Primary Connectivity Location |
Display
|
| Inputs |
2x HDMI 2.0
|
| 1x RCA Stereo (L/R) Audio | |
| Outputs |
1x TOSLINK Optical – Audio
|
| 1x 1/8" / 3.5 mm – Audio | |
| USB I/O |
1x USB-A 2.0
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Control I/O |
RS-232C via DE-9/DB-9 Input
|
| Wi-Fi |
Wi-Fi Ready
|
| Bluetooth |
No
|
| Digital Media Slot |
No
|
|
General
|
|
| 3D |
No
|
| Lighting Lifespan |
30000 Hours
|
|
Surface
|
|
| Hardness Rating |
3H
|
| Haze Level |
1%
|
|
Audio
|
|
| Built-In Speakers |
Yes, 2x 10 W
|
|
Hardware
|
|
| Operating System |
Android 9.0
|
| Processor |
MediaTek MT9602
|
| CPU |
Up to 1.5 GHz Cortex A53 Quad-Core
|
| GPU |
ARM Mali-G52 MP2
|
| Storage |
16 GB eMMC
|
| RAM |
2 GB DDR4
|
| Mobile App Compatible |
No
|
|
Electrical
|
|
| Power Consumption |
Maximum: 300.0 W
|
| Typical: 240.0 W | |
| Standby: < 0.5 W | |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
|
Environmental
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
20 to 80% ()
|
| Certifications |
cULus, FCC, ENERGY STAR, RoHS
|
|
Physical
|
|
| Wall Mounting |
600 x 400 mm
|
| Lock Slot |
No
|
| Duty Cycle |
16 Hours / 7 Days
|
| Item Weight | 79.4 pounds |
| Product Dimensions | 2.8 x 66.3 x 38 inches |
