Description

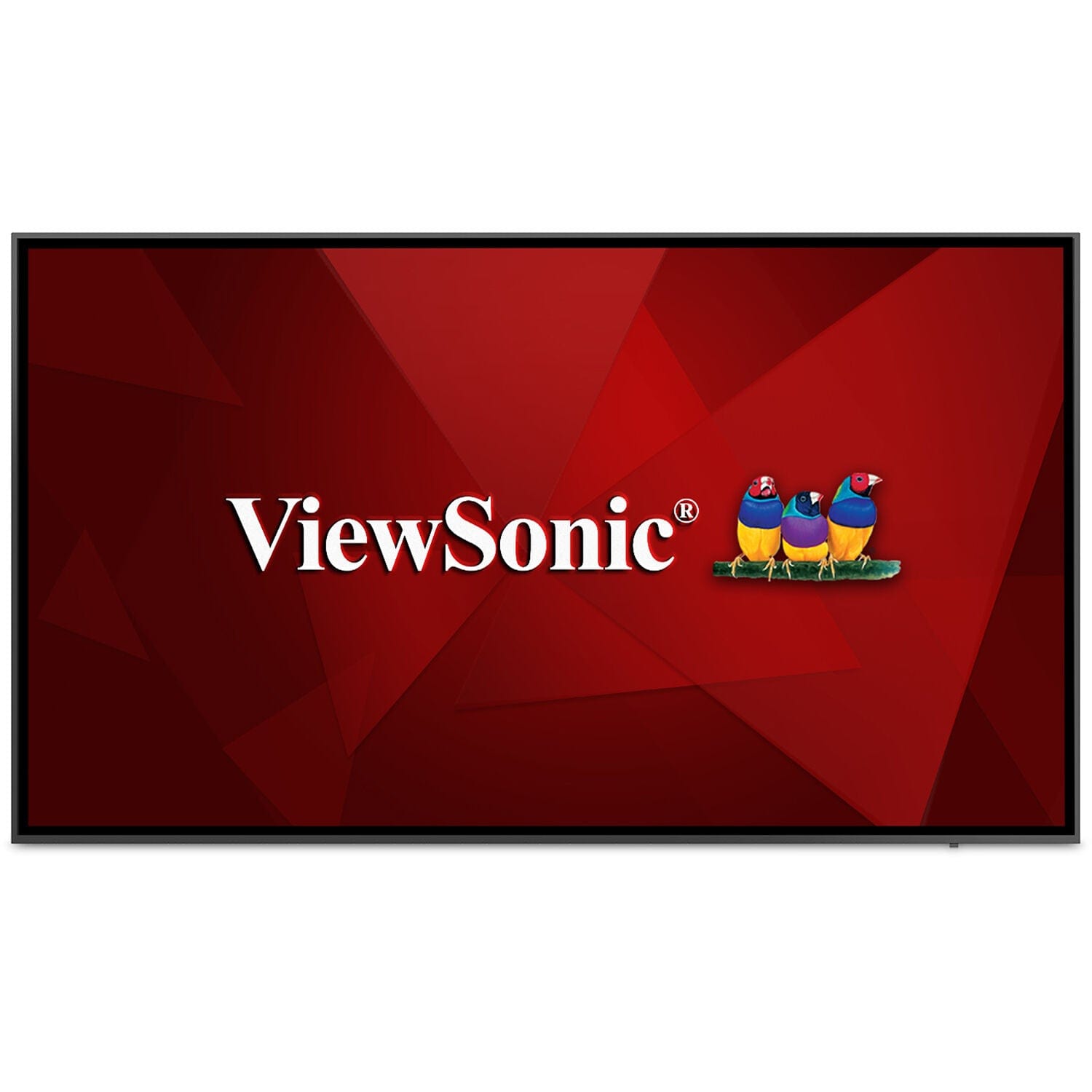

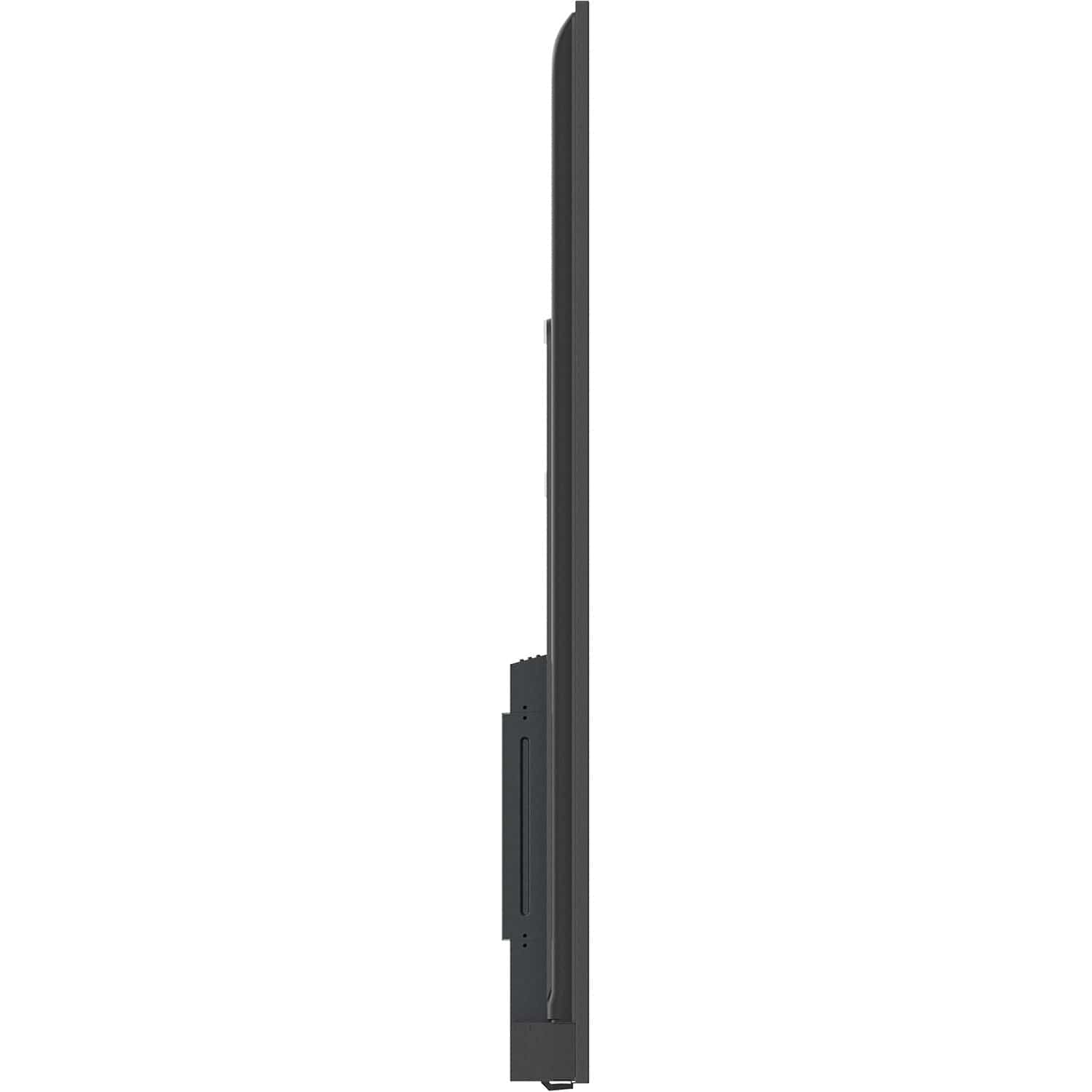

Conduct meetings or advertise your product or business digitally with the ViewSonic CDE7520-W 75" Class 4K UHD Digital Signage and Conference Room LED Display. It features 450 cd/m² of brightness with a 1200:1 typical contrast ratio to help enhance visibility in bright environments. It has a DisplayPort, VGA, two HDMI, and three USB ports, plus Ethernet connectivity to provide a variety of interface options. An OPS computer and a Wi-Fi module can be installed to expand the display's functionality. For added convenience, the CDE7520-W includes a remote control and an HDMI cable.
Features
- 75" Class 4K UHD Digital Signage and Conference Room LED Display
- 4K UHD (3840 x 2160) Native Resolution
- 450 cd/m² Brightness
- 1200:1 Typical Contrast Ratio
- 8 ms Typical Response Time
4K Ultra HD Resolution
With 4K UHD 3840 x 2160 resolution, this display delivers an immersive viewing experience with vibrant, clear images.
VESP All-In-One SoC Platform
The ViewSonic EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS designed to provide an all-in-one solution to simplify installation and maintenance. You won't need any external devices to communicate with the server or play digital media, so you can take advantage of simplified development, reinforced capability with multiple web platforms, and security.
ViewBoard Cast Content Sharing Software
ViewBoard Cast enables content to be streamed from mobile devices onto the display over wireless or cable networks. Multiple users can simultaneously annotate content on their devices in real time, and then stream and share that content onto the ViewSonic display.
Free Trial of an Integrated Content Management System
Enjoy a free cloud-based introductory service subscription from ViewSonic's content management software, powered by Revel Digital platform. You can virtually instantly transfer multimedia from any HTML5 browser-based device to the display from nearly anywhere.
Works with Various Control Systems
The CDE7520-W is certified compatible with Crestron, Extron, and AMX for simple integration into existing control systems.
Continuous Display Maintenance
Included vController software provides a simple and intuitive interface for local display management, while an optional 42Gears SureMDM app allows users to monitor and remotely diagnose irregularities from virtually any location.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, seven days a week. Ideal in virtually any commercial application or environment, this commercial display delivers peace of mind with its robust and durable design.
RS232 In/Out with IR Pass-Through
RS232 input and output connectivity provides easy and efficient management of multiple-display configurations from a single laptop or computer. In addition, this display supports IR pass-through functionality for local control of set-top boxes or other connected devices, directly with the display's remote control.
OPS Slot Compatibility
Equipped with Intel's Open Pluggable Specification (OPS), this display provides for cable-free integration and easy installation in any environment. In addition, this display can easily connect to an external media player to bring a multi-media experience to your customers.
Specifications
|
Display
|
|
| Screen Size (Diagonal) | 75" |
| Resolution | 3840 x 2160 |
| Panel Type | IPS-Type LCD |
| Brightness | 450 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms (GtG) |
| Backlighting Technology | Direct LED |
|
Connectivity
|
|
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 Audio, Video |
| 1 x DisplayPort Audio, Video | |
| 1 x VGA 15-Pin Video | |
| Output Ports | 1 x HDMI 2.0 – Audio, Video |
| 1 x TOSLINK Optical – Audio | |
| 1 x RCA Stereo (L/R) – Audio | |
| USB Ports | 1 x USB 3.0 / 3.1/3.2 Gen 1, USB-A |
| 2 x USB 2.0, USB-A | |
| Ethernet Ports | 1 |
| Control I/O | RS-232C via DE-9/DB-9 |
| Number of OPS/Expansion Slots | 1 |
|
General
|
|
| TV Tuner | No |
| HDCP Support | Yes, Version 2.2 |
| Lighting Lifespan | 50000 Hours |
|
Audio
|
|
| Built-In Speakers | Yes, 2 x 16 W |
| Speaker Configuration | 2-Channel |
|
Hardware
|
|
| Operating System | Linux |
| CPU | 1.4 GHz Cortex A73 Dual-Core |
| 1.4 GHz Cortex A53 Dual-Core | |
| GPU | ARM Mali G51 MP2 |
| Storage | 16 GB eMMC |
| RAM | 3 GB DDR4 |
| OS Compatibility | Android |
| Chrome OS | |
| Windows | |
| iOS | |
| macOS | |
| *As of August, 2021: Check with manufacturer for the most up-to-date compatibility | |
|
Electrical
|
|
| Power Consumption | Maximum: 300.0 W |
| Typical: 240.0 W | |
| Standby: < 0.5 W | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
|
Environmental
|
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | ENERGY STAR, FCC, RoHS |
| *as per Manufacturer | |
|
Physical
|
|
| Wall Mounting | 400 x 200 mm |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 65.8 x 37.6 x 2.8" / 1672.0 x 955.0 x 70.0 mm |
| Weight | 64.6 lb / 29.3 kg |
|
Packaging Info
|
|
| Package Weight | 93 lb |
| Box Dimensions (LxWxH) | 72 x 43 x 9" |
