Description
For interactive learning in the classroom, or brainstorming in the boardroom, the ViewSonic® CDE7561T is the ideal ViewBoard® interactive display solution to increase engagement and collaboration. With astonishing 20-point simultaneous touch capabilities and pre-installed annotation software, this 75” interactive flat panel display lets multiple users write or draw on the screen with their fingers and styluses. An embedded ARM dual-core processor and Linux OS provide lightning-fast computing and smooth touch capabilities, ensuring that students and co-workers alike enjoy a responsive screen with each tap, pinch, and swipe. What’s more, Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods. Optional ViewBoard® for Education software delivers more robust annotation options that make presentations in the classroom even more productive and interactive.
Features
- 75" LCD Display
- 20-point multi-touch interactive screen
- Built-in ARM Dual-core CPU with 8GB Storage
- ViewBoard Embedded Annotation Software
- 1920 x 1080 Resolution
Built-in ARM Dual-core CPU with 8GB Storage
Equipped with a powerful dual-core processor and Mobile OS, this display provides smooth, lightning-fast computing and responsive touch capabilities. 8GB of onboard memory provides ample storage for files and multimedia content.
20-point Multi-touch Interactive Screen
With a 20-point touch-enabled panel, this display encourages multiple users to simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
Pre-Installed ViewBoard® Embedded Software
ViewSonic’s easy-to-use ViewBoard Embedded software lets you write, highlight, edit, and transform documents and images on-screen in real-time. For more robust annotation options and educational templates for English, Math, and Science, a ViewBoard for Education software disc is included in the box and can be installed via an optional ViewSonic slot-in PC, or via an external PC connection.
Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Anti-scratch, Anti-glare Glass Faceplate
This display features 7H scratch-resistant surface hardness that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.
Optional Trolley Mount
Although this display can be wall mounted for a solid and safe user touch experience, we also offer a trolley mount (LB-STND-003)* that provides the flexibility of a mobile display.
*Optional accessories (LB-STND-003) sold separately.
Specifications
|
Display
|
|
| Screen Size (Diagonal) | 75" |
| Resolution | 1920 x 1080 |
| Brightness | 350 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 5000:1 |
| Response Time | 6 ms |
|

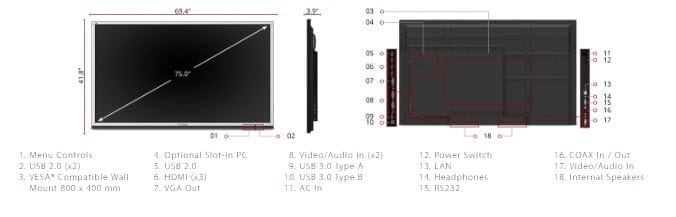

Connectivity
|
|
| Input Ports | 3 x HDMI Audio, Video |
| 2 x 1/8" / 3.5 mm Audio | |
| Output Ports | 1 x 15-Pin VGA – Video |
| 2 x 1/8" / 3.5 mm – Audio | |
| USB Ports | 2 x USB 2.0 |
| 1 x USB 3.0 / 3.1/3.2 Gen 1 | |
| Ethernet Ports | 1 |
|
Surface
|
|
| Touchscreen Technology | Capacitive |
| Multi-Touch Points | 20 |
| Hardness Rating | 7H |
|
Audio
|
|
| Built-In Speakers | Yes, 2 x 10 W |
|
Hardware
|
|
| Storage | 8 GB |
|
Physical
|
|

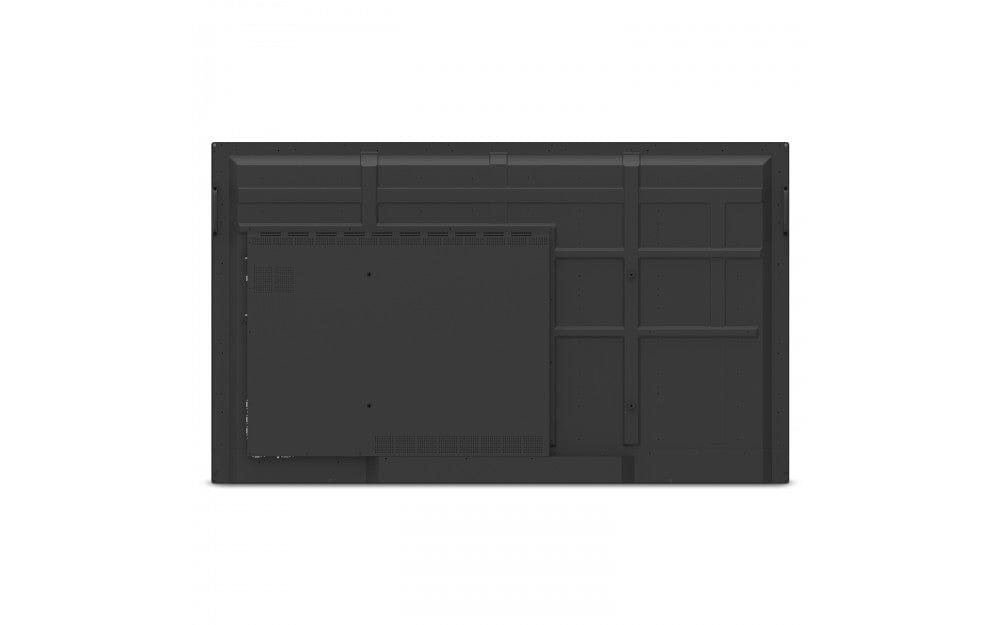

| Wall Mounting | 400 x 400 mm |
| Dimensions | 69.4 x 41.8 x 3.9" / 176.3 x 106.2 x 9.9 cm |
| Weight | 128 lb / 58 kg |
