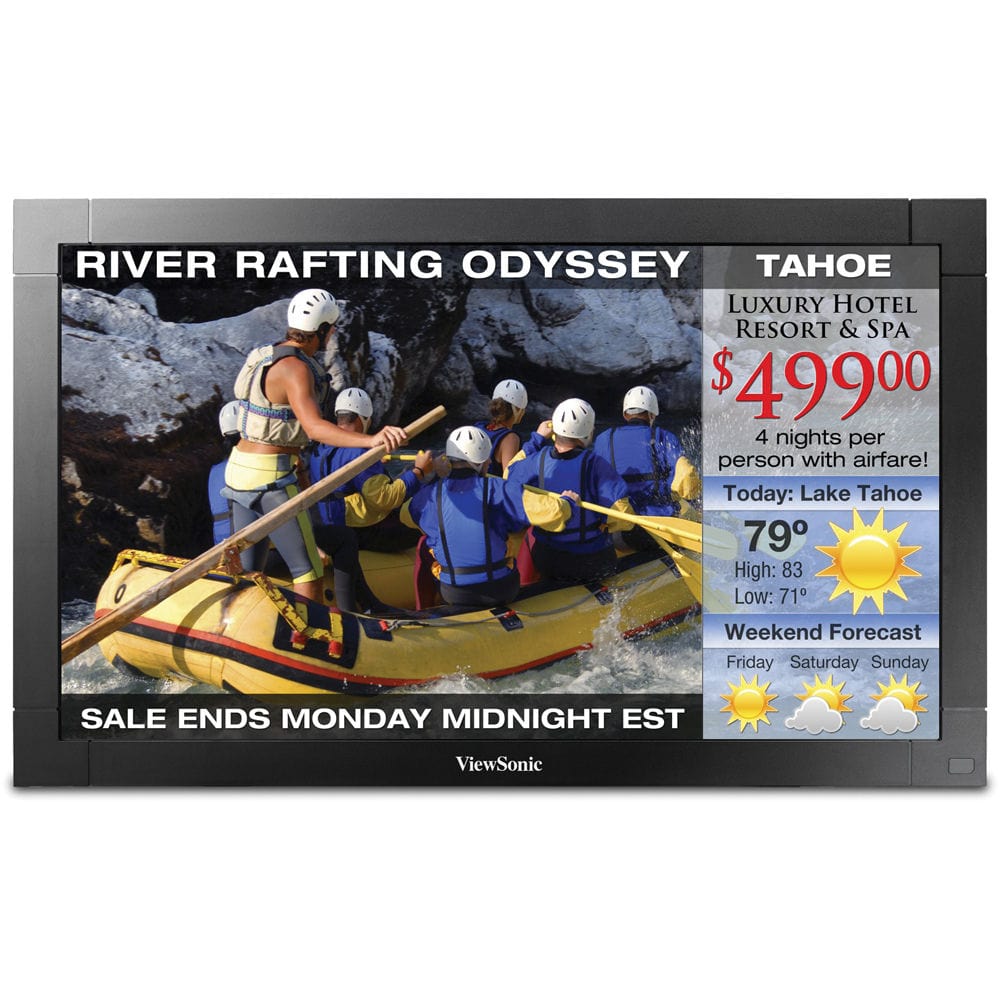

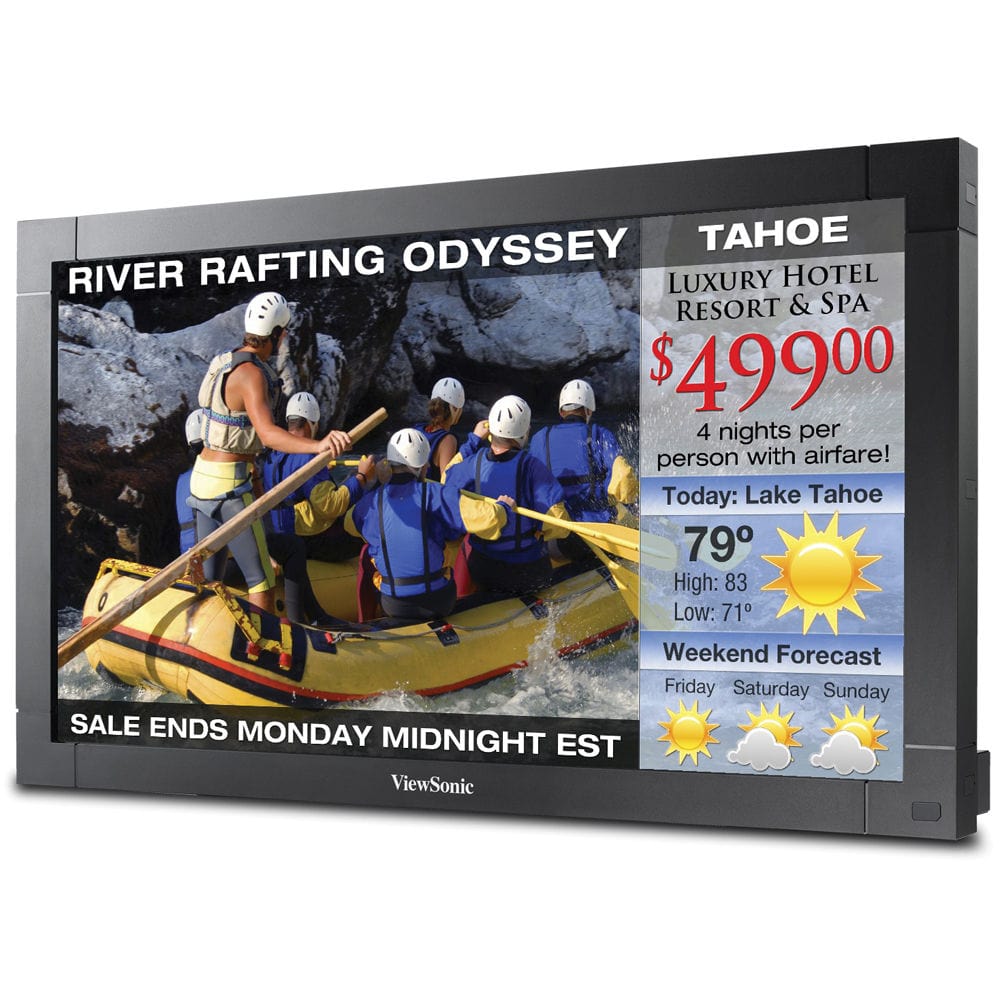

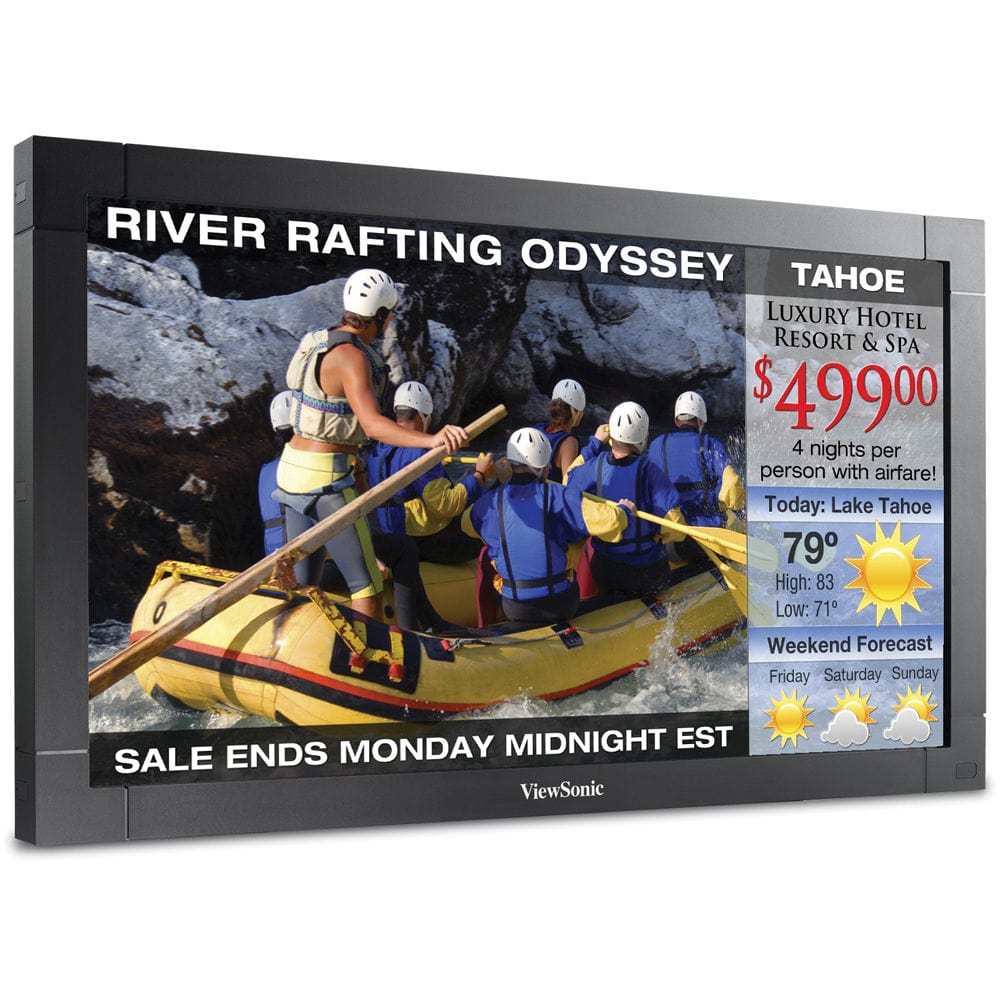

Description
The Viewsonic CDP3235 32" HD Commercial Display has a color TFT active matrix and offers a resolution of 1366 x 768, brightness of 450 cd/m2, and contrast ratio of 3000:1. With 6.5 ms response time and a viewing angle of 178 (H/V), the monitor provides high-quality pictures at almost any height. Capable of displaying videos, Internet pages, PowerPoint and Flash files, the monitor is ideal for use in educational, retail, public and commercial signage applications. A protective screen protects it from scratches. The CDP3235 is equipped with built-in 20 W speakers and can be installed on a stand or on a wall via a VESA wall mount. Equipped with VGA and DVI inputs/outputs, the monitor can be daisy-chained to multiple displays, and each display can be controlled individually via RS-232. The CDP3235 can be used in a 5 x 5 video wall display and has a light source of 50,000 hours.
Features
- 1366 x 768 Native Resolution
- 50,000 Hours Panel Life
- Protective Screen
- Built-In 20 W Audio
Used in video wall, up to 5 x 5 tile matrix solutions The CDP3235 32" HD Commercial Display is designed for 24/7 operation It can be used in both portrait and landscape orientation This display can be used in public display areas that need robust commercial displays. It is also ideal for transportation - arrival / departure display applications The Viewsonic CDP3235 is designed for use in public, retail, Quick Service Restaurant menus (QSR) and commercial signage installations
Specifications
| Size | 32" |
| Type | Color TFT active matrix, wide LCD |
| Light Source | Long life, 50,000 hours (typ) |
| Display Area | 27.5 (H) x 15.4" (V) (698.5 x 391.2 mm) |
| Pixel Pitch | 0.5 (H) x 0.5 (V) mm |
| Color | 16.7 million colors |
| Resolution | 1366 x 768 |
| Dot Pitch | 20.9" (530 mm) |
| Contrast Ratio | 3000:1 (typ) |
| Viewing Angles | 178º (H), 178º (V) |
| Response Time | 6.5 ms |
| Brightness | 450 nits |
| Aspect Ratio | 16:9 |
| Surface | Anti-glare, hard coating (3H) |

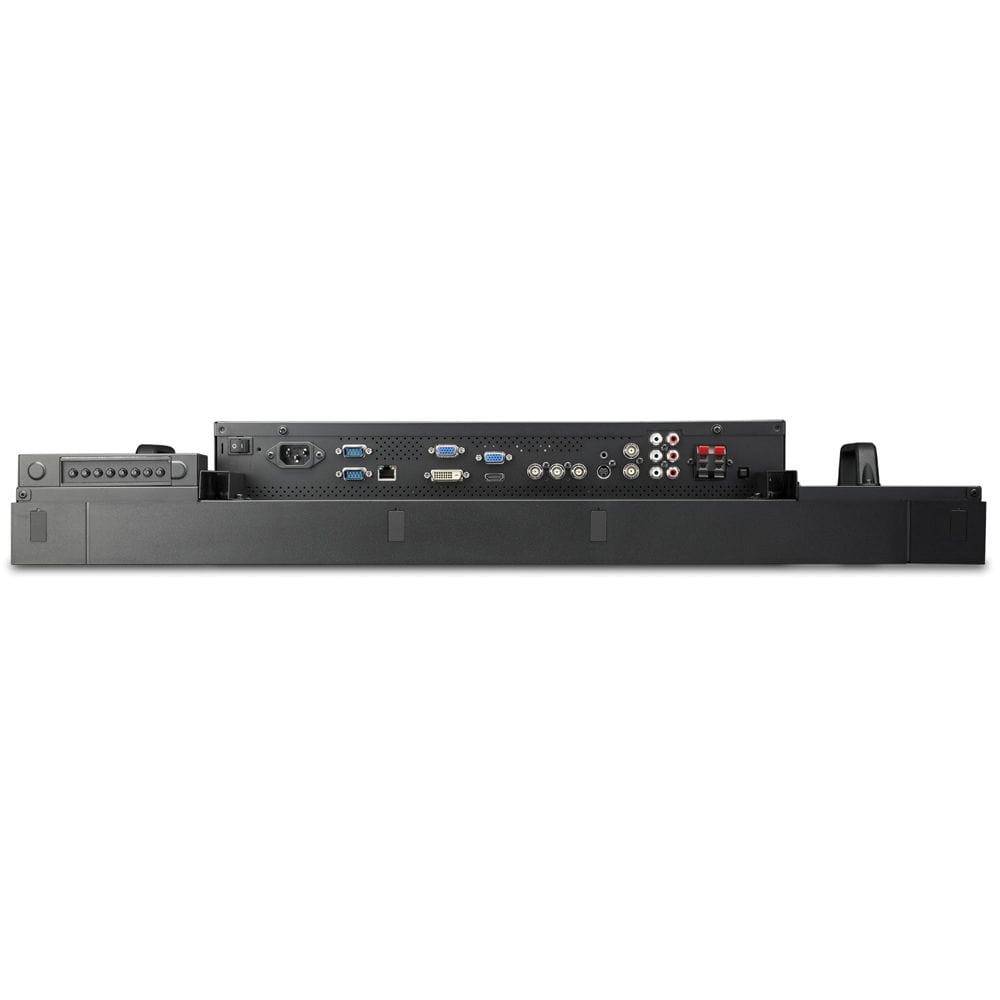

| Inputs/Outputs | Video input: HDMI x 1, DVI x 1, Component x 1, VGA x 1, S-video x 1, Composite x 1 |
| Video output: VGA x 1 | |
| Control input / Output: RS-232 x 1, RJ-45 x 1 | |
| Analog: 9-pin mini D-sub (VGA) x 1 | |
| Digital: HDMI x 1, DVI x 1 | |
| Power: 3-pin plug | |
| Audio | Internal 10 W x 2 |
| 1 way 1 speaker system | |
| 82 dB/W/M/160 Hz-13 KHz | |
| Power Requirements | AC 100-240 V (universal), 50/60 Hz |
| Power Consumption | Typical: 140 W (typ) |
| Standby: <1 W | |
| Environment | Operational humidity: 10-80% (non-condensing) |
| Storage humidity: 5-95% RH (non-condensing) | |
| Operational temperature (landscape): 32-104ºF (0-40ºC) | |
| Operational temperature (portrait): 32-95ºF (0-35ºC) | |
| Storage temperature: -4-140°F (-20-60°C) | |
| Operational altitude: 0-9842.5' (0-3000 m) | |
| Operational storage: 0-29 527.6' (0-9000 m) | |
| Regulations | CC, ICES003, UL, cUL, CE, CB, C-Tick, BSM |

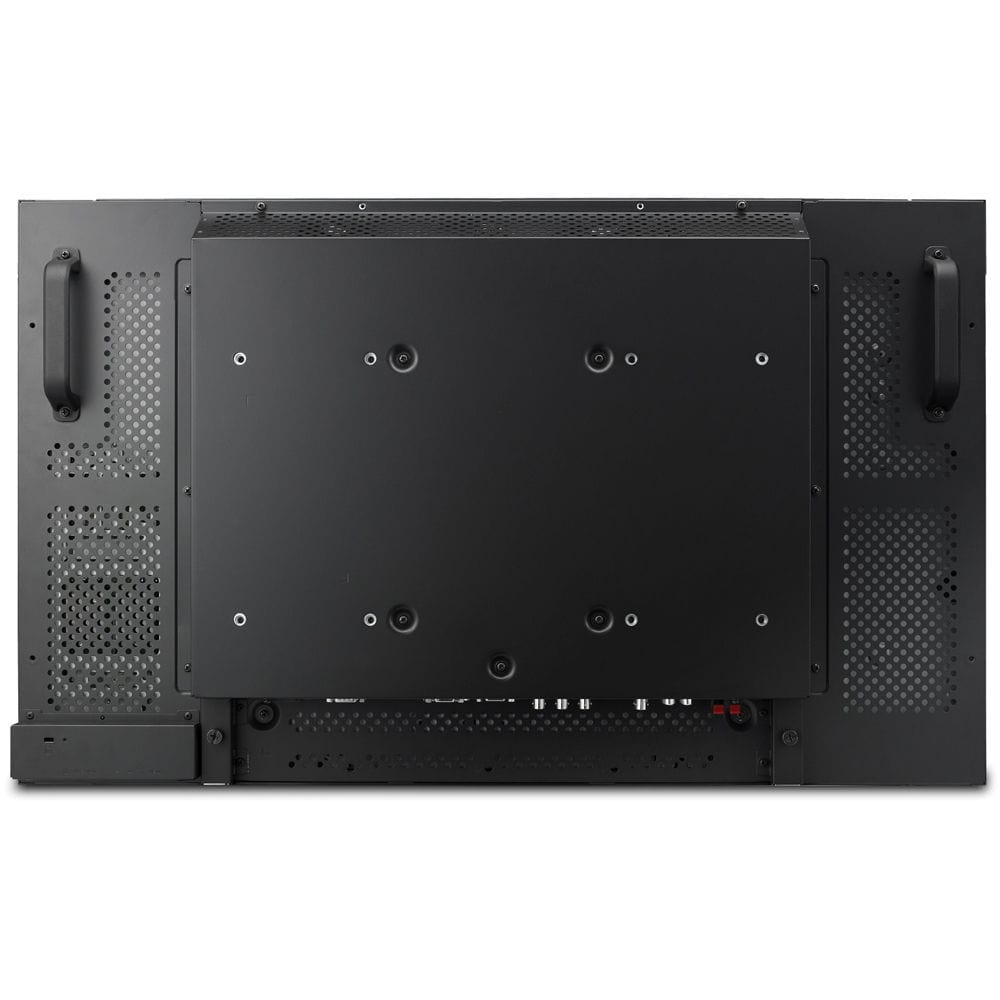

| Wall Mount | VESA 400 x 200 mm, 200 x 200 mm |
| Dimensions | Without stand: 30.4 x 23 x 4.6" (772.6 x 584 x 116.1 mm) |
| With stand: 30.4 x 24.5 x 9.4" (772.6 x 621 x 238.8 mm) | |
| Weight | Without stand: 32.2 lb. (14.6 kg) |
| With stand: 33.1 lb. (15 kg) |
