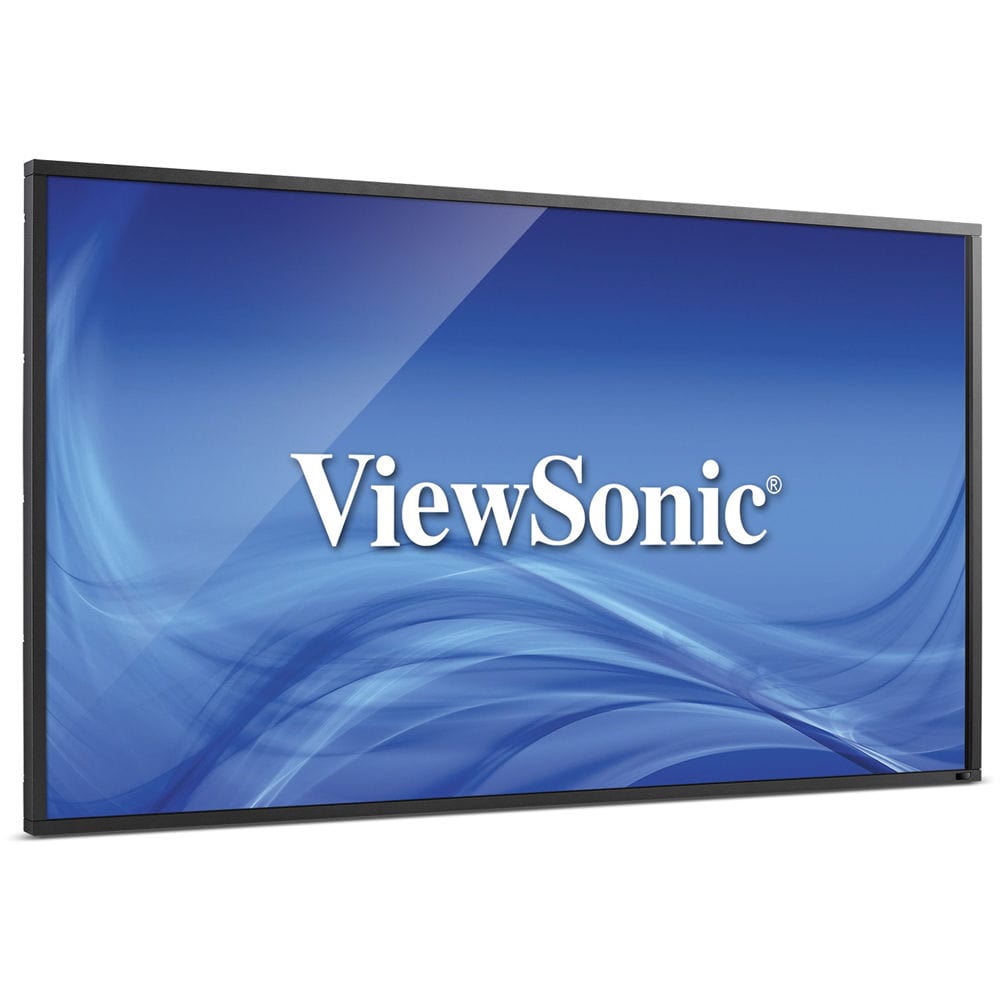

ViewSonic CDP5562-L 55" Full HD LED Commercial Display
Description
The CDP5562-L 55" Full HD Commercial LED Display from Viewsonic features a slim 0.6" (15.8mm) narrow bezel and outputs video in Full HD 1080p resolution with 700-nit high brightness. The SuperClear technology enables viewing the monitor from wide viewing angles. The built-in dual 10W stereo speakers deliver immersive sound with sharp, vivid images for excellent multimedia messaging performance. The CDP5562-L Display is suitable for sharing public information in indoor areas such as high-traffic transportation settings, as well as in education, hospitality, and commercial venues. The monitor can display multimedia content in either landscape or portrait orientations for flexible installation. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices.Outputs include an integrated DVI port, and RS232 output with IR pass-through to support up to 5x5 daisy-chained displays for easy-to-manage video walls.Features
- TN LCD Panel Type
- 1920 x 1080 Native Resolution
- 1300:1 Contrast Ratio
- 12 ms Response Time
- 2x 10 W Built-In Speakers
- 700 Nit High Brightness.
- HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs

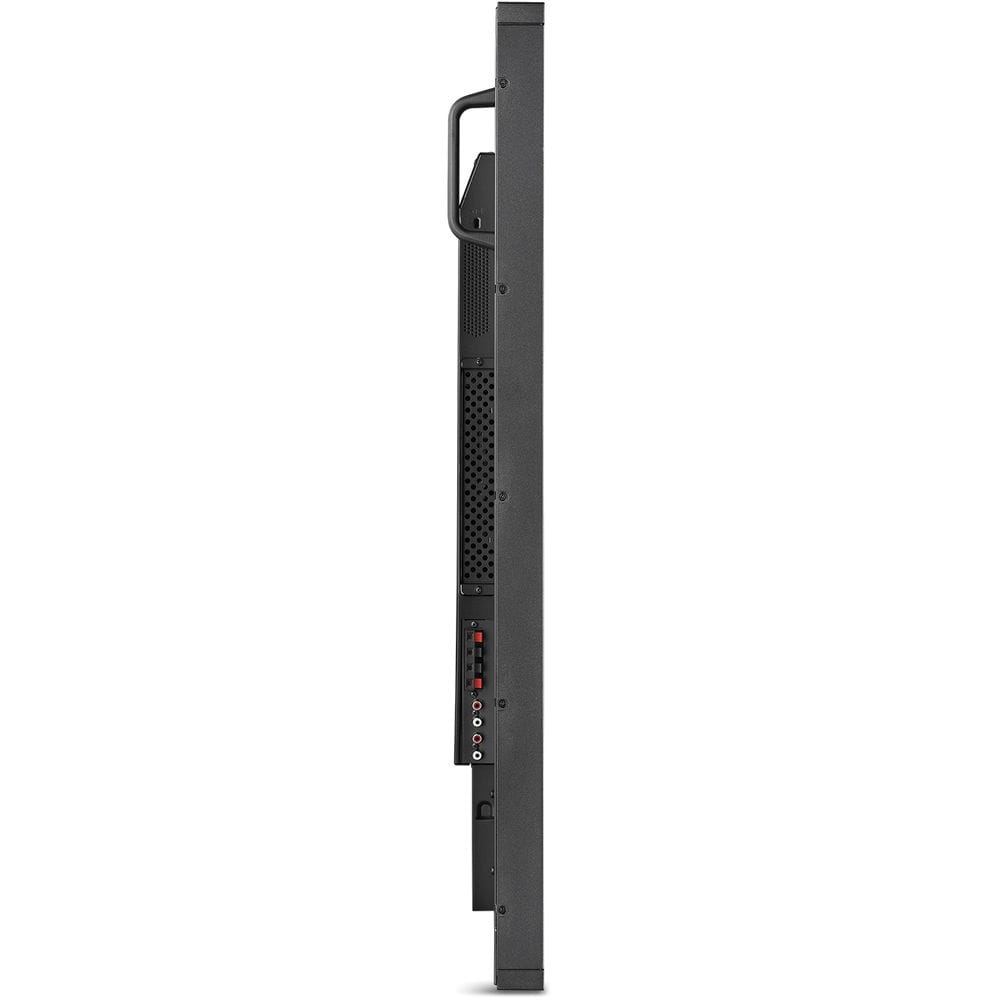

Narrow Bezel Optimized for Video Walls
The display features a 0.6" (15.8mm) narrow bezel design that maximizes impactful visual messaging for passersby.
700 Nits Brightness
With a 700-nit high brightness panel, the CDP5562-L delivers remarkable color performance even in bright environments.
24/7 Continuous Operation, 50,000 Hours Lifespan
Featuring a lifespan of up to 50,000 hours, the commercial display is designed for reliable, continuous 24/7 use.
Full HD 1080p Resolution
The CDP5562-L monitor displays content in Full HD 1920x1080 resolution with 700-nit high brightness to deliver superior pixel-by-pixel true-color performance. At this resolution and brightness, experience a more realistic viewing experience with crystal-clear, high-definition multimedia messaging.
Efficient, User-Friendly Content Scheduling & Settings
The CDP5562-L Display provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Display setup features include time and date scheduling, repeat and shuffle settings, as well as content source settings for various inputs. The CDP5562-L also features an internal clock with 7-day scheduler, as well as PIP/POP (picture in picture) functionality.
SuperClear Technology with IPS Panel for Wide Viewing Angles
SuperClear image enhance technology with IPS panel delivers 178° of vertical and horizontal viewing angles. Target audiences will experience accurate, vivid colors, and consistent brightness levels whether looking at the screen from above, below, the front, or the side with no distortion or decay.
5x5 Daisy-Chain Support
With integrated DVI output, the display supports up to a 5x5 daisy-chain setup for multi-display installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced. In addition, 1080p signal transmission is supported in daisy-chain configurations.
RS232 In/Out with IR Pass-through for Easy Management
RS232 input and output connectivity, along with IR pass-through functionality, provides for the easy and efficient management of multiple-display configurations from a single notebook or PC. By using the RS232 output, daisy-chained configurations can be managed via a primary CDP5562-L Display.

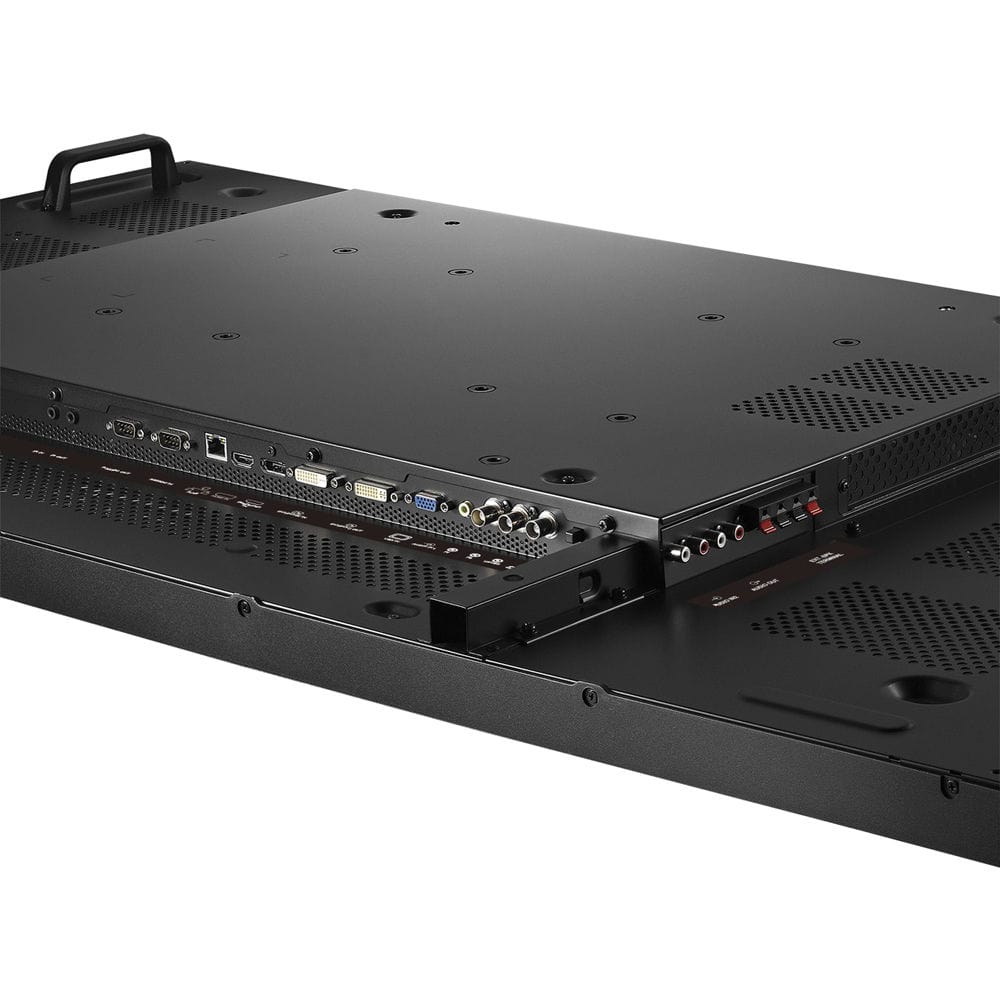

Versatile Inputs and One-Time Configuration Settings
With a versatile selection of inputs, including HDMI, DVI, DisplayPort, CVBS, YPbPr (YCbCr) and VGA, the CDP5562-L Display enables you to easily connect and use a variety of digital equipment. The one-time display installation and setup feature means your preferred source settings are never lost.

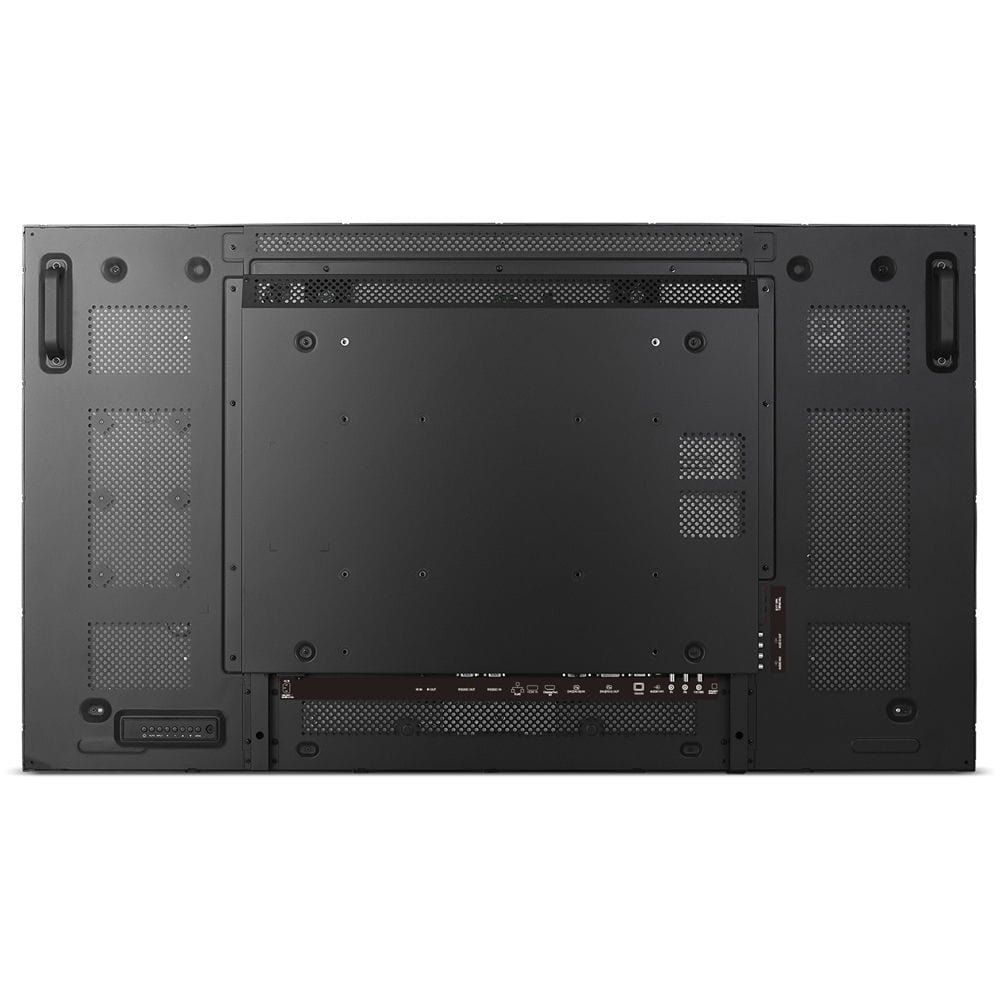

Portrait or Landscape Mountable
The CDP5562-L Display can be VESA-mounted (400 x 400mm) in either portrait or landscape orientation for display flexibility in a variety of settings.
Note: Mount is sold separately.
Dual Stereo Speakers for Crystal-Clear Sound
With a pair of integrated 10W speakers, the display combines eye-catching multimedia content with high-quality sound effects - creating a lasting audio-visual impression on your target audience or demographic.
LAN Control for Remote Network Management
The CDP5562-L has an integrated RJ-45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.

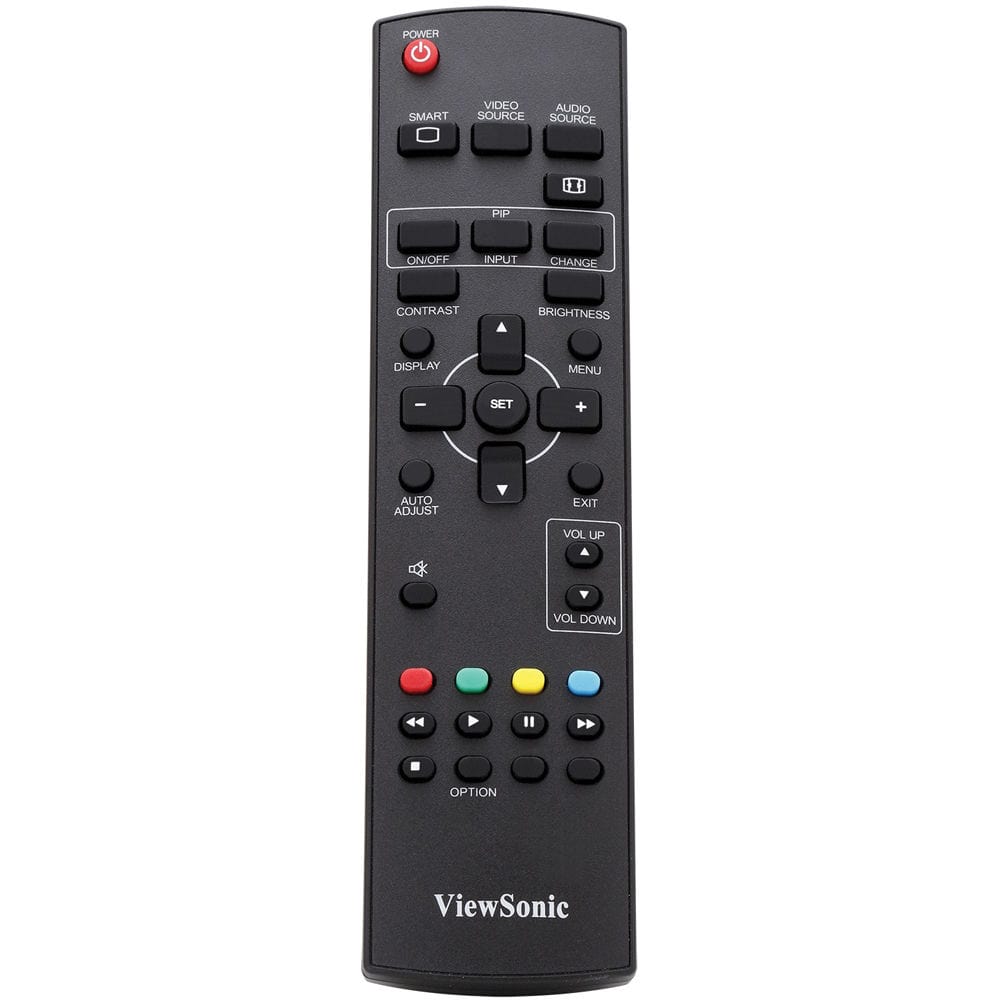

IR Pass-Through from One Controller to Multiple Displays
Using the IR pass-through function, you can now create an infrared control chain where one controller is able to adjust the settings on multi-display video walls. By using a single remote controller, you can save time when optimizing your CDP5562-L displays with your latest campaign messaging.
Specifications
|
Display
|
|
| Panel Type |
TN LCD
|
| Aspect Ratio |
16:9
|
| Native Resolution |
1920 x 1080
|
| Contrast Ratio |
1300:1
|
| Response Time |
12 ms
|
| Screen Area |
47.6 x 26.8" / 121 x 68 cm
|
|
Surface
|
|
| Hardness Rating |
3H
|
|
Connectivity
|
|
| Ethernet I/O |
1RJ45
|
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP)
|
| Built-In Speakers |
Yes, 2x 10 W
|
|
Environmental
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
20 to 80%
|
|
Electrical
|
|
| Power Consumption |
Typical: 245.0 W
|
|
General
|
|
| Lighting Lifespan |
50,000 Hours
|
| Bezel Thickness |
15.8 mm
|
| Dimensions |
49.1 x 28.3 x 2.8" / 124.7 x 71.8 x 7 cm (without Stand)
|
| Weight |
67.4 lb / 30.6 kg (without Stand)
|
|
Packaging Info
|
|
| Package Weight |
84.5 lb
|
| Box Dimensions (LxWxH) |
57.5 x 38.5 x 10.8"
|
