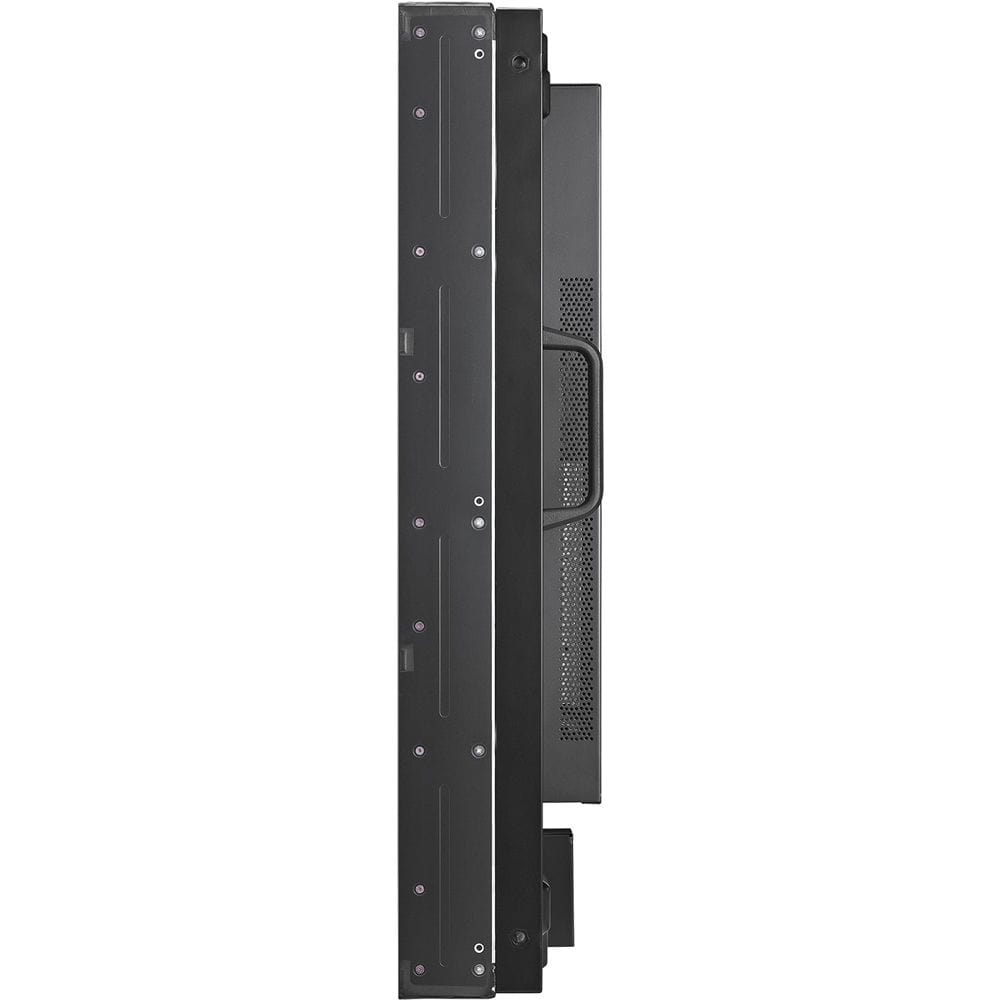

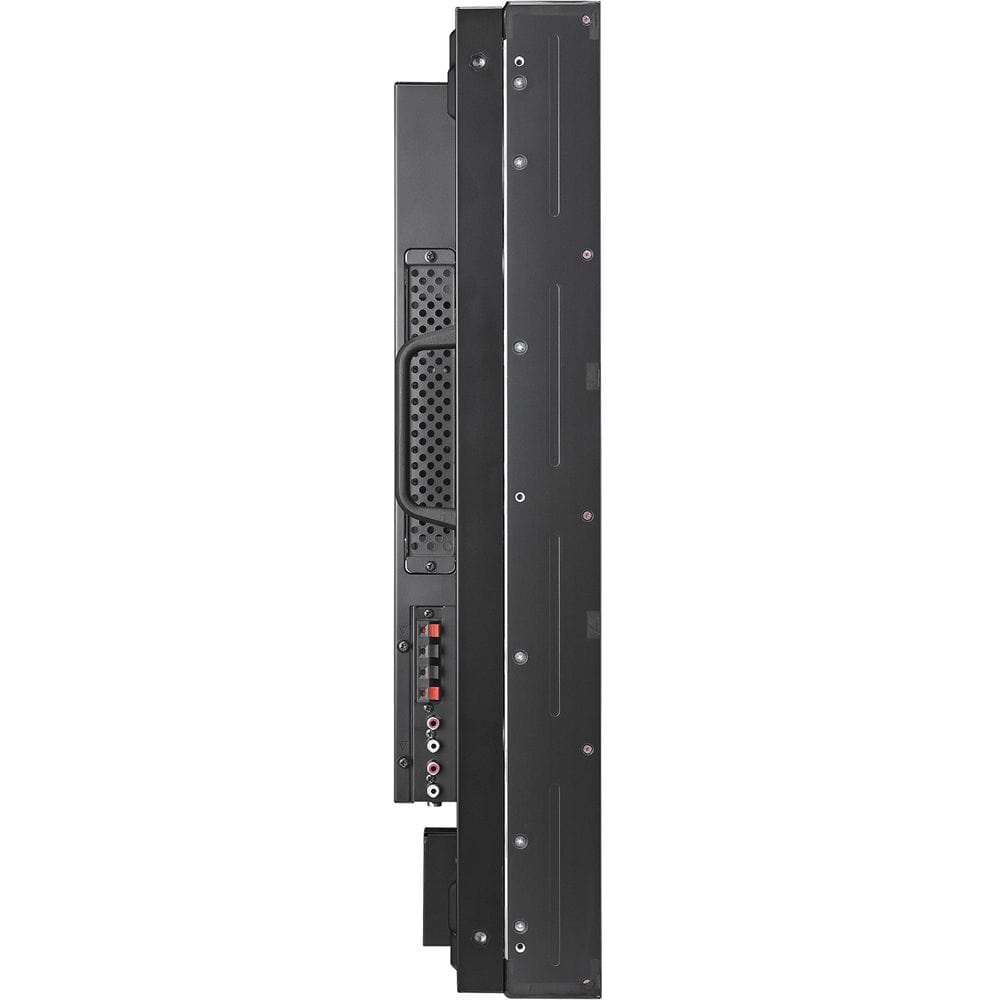

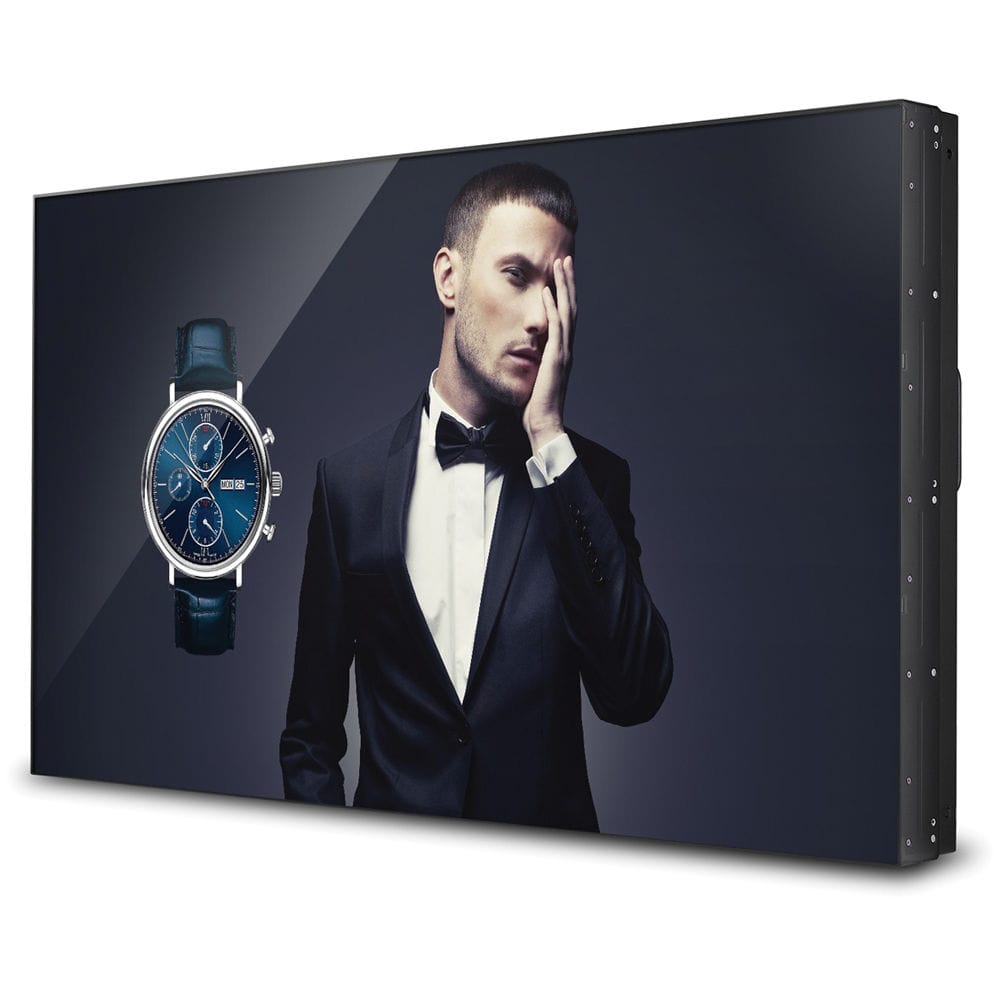

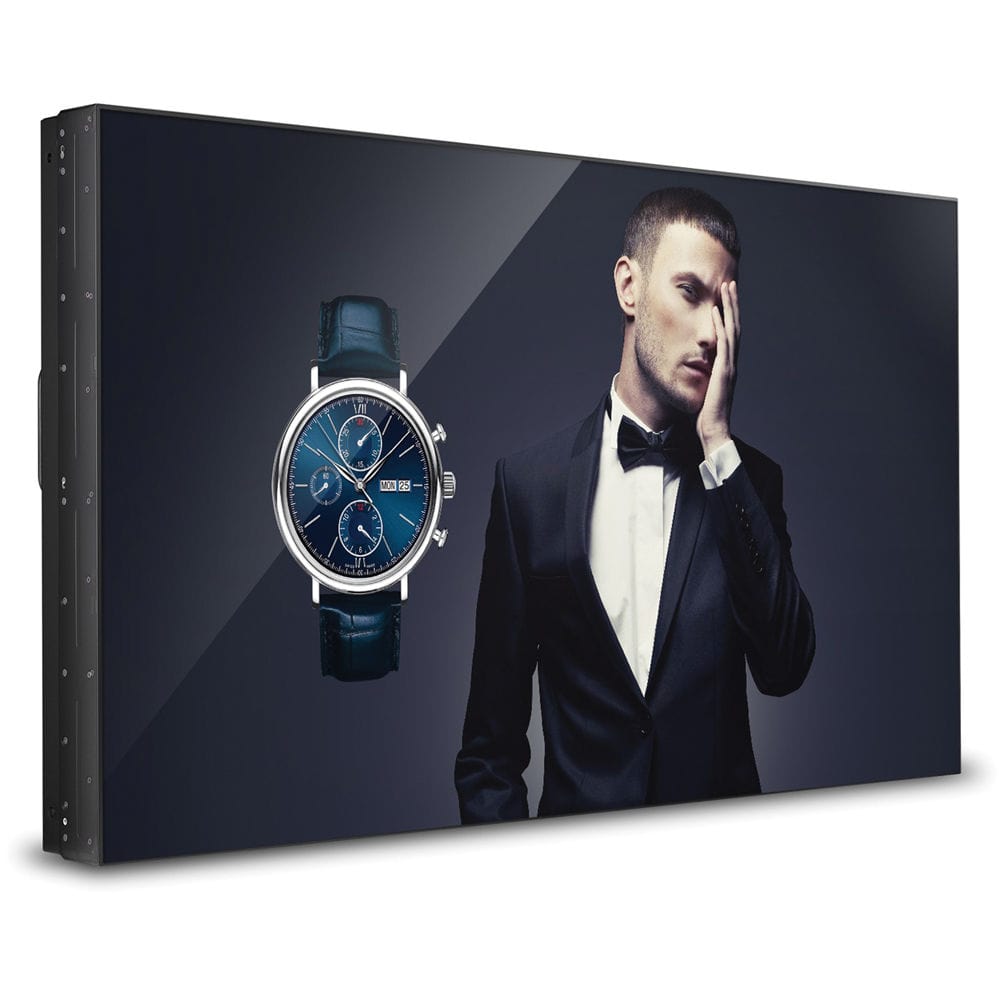

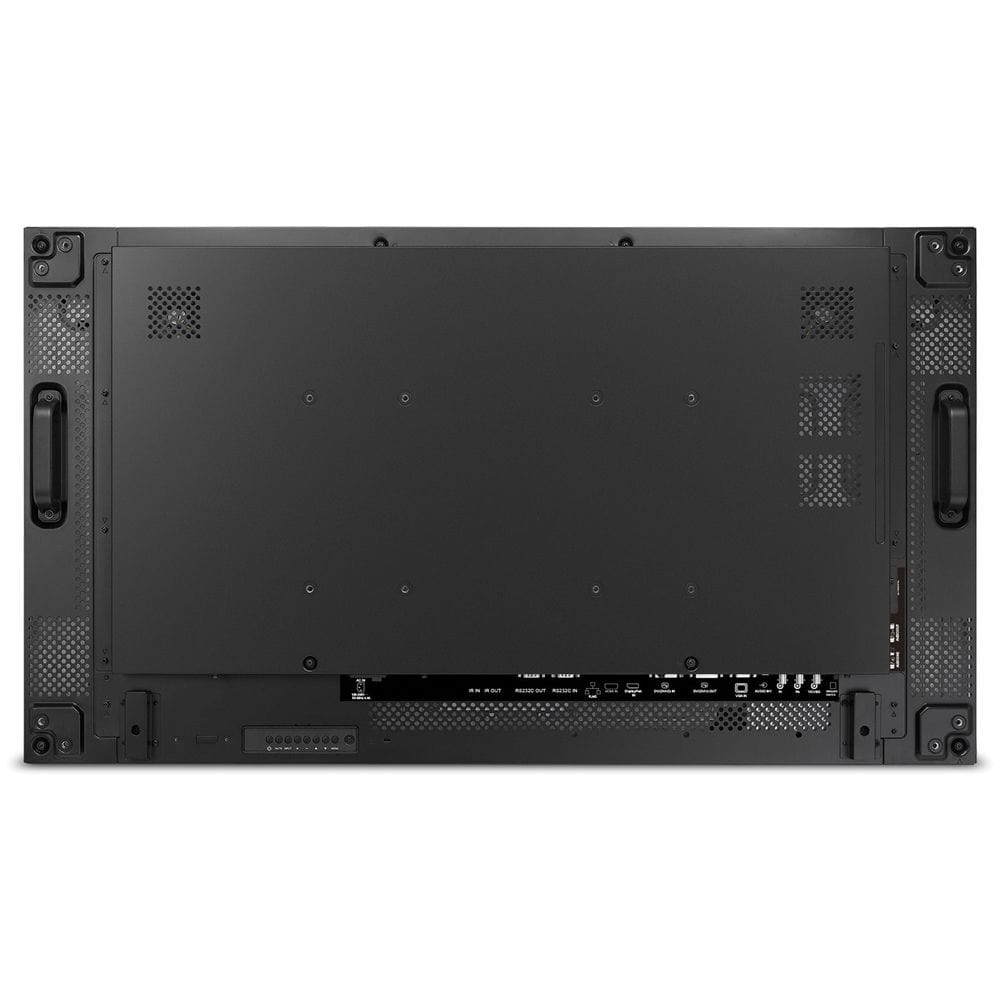

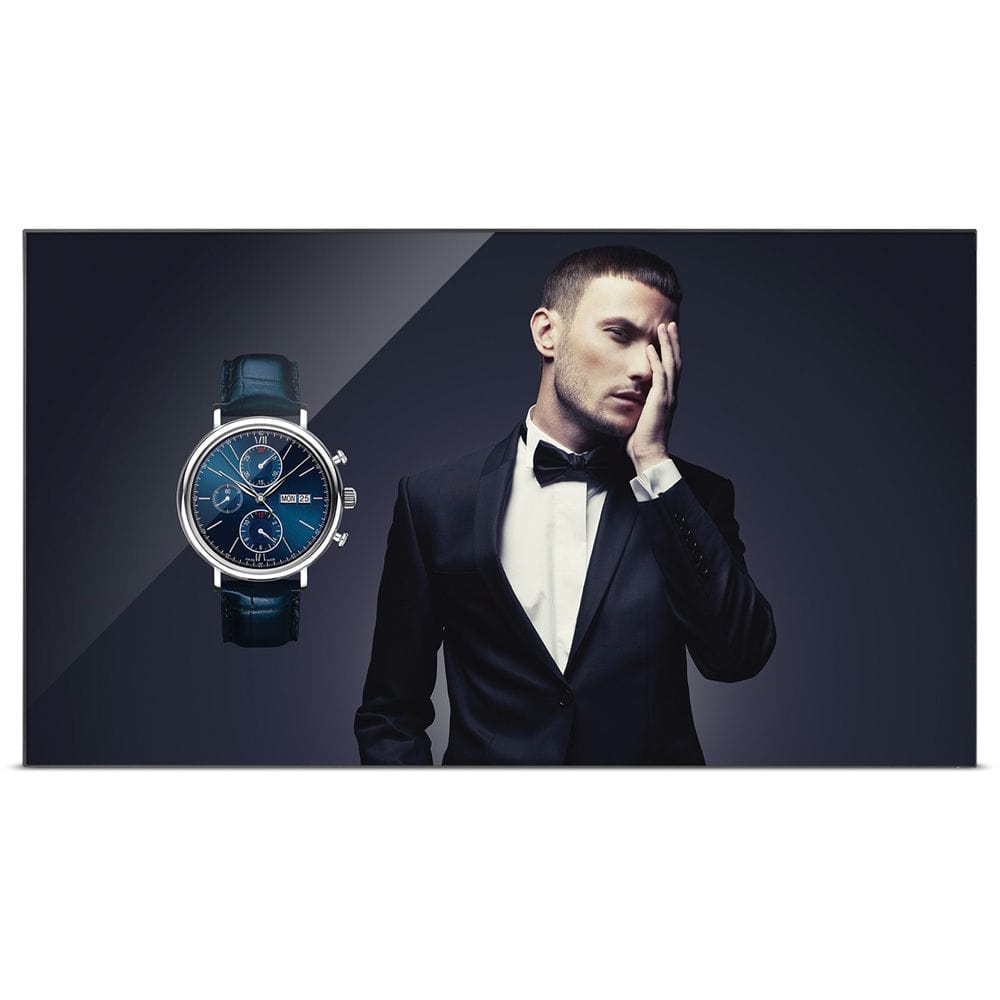

ViewSonic CDX4652-L-S 46" Full HD LED Commercial Display - Certified Refurbished
Description
The ViewSonic CDX4652-L 46" Full HD LED Commercial Display delivers video in Full HD 1080p resolution in 500 nits brightness and a high contrast ratio of 3,500:1. The SuperClear technology extends display viewing angles to 178 both horizontally and vertically. Thanks to dual 10W stereo speakers, the display delivers immersive sound with sharp, vivid images for excellent multimedia performance. The display features an ultra-narrow bezel less than 0.1" (3.0mm) wide. With an edge-to-edge width of only 0.2" (5.6mm) between combined displays, this display is well suited for digital signage and video wall applications that deliver high-impact messaging in commercial, hospitality, and transportation venues. Integrated DVI-out and RS232-out ports, along with a RS232 pass-through function, support the installation, management and scheduling of video wall installations for up to 5x5 daisy-chained displays. In addition, versatile connectivity options including HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs, offer convenient, one-time installation for a variety of high-definition devices.Features
- Ultra-Narrow Bezel Optimized for Video Walls
- Energy-Saving LED Backlight, ENERGY STAR 6.0 Certified
- Full HD 1080p Resolution
- Efficient, User-Friendly Content Scheduling & Settings
- SuperClear Technology with IPS Panel for Wide Viewing Angles
- 5x5 Daisy-Chain Support
- RS232 In/Out with IR Pass-through for Easy Management
Ultra-Narrow Bezel Optimized for Video Walls An ultra-narrow bezel of under 0.1" (3.0mm) maximizes the visual impactful of your company's messaging. With a 0.2" (5.6mm) edge-to-edge bezel between combined displays, the display can create stunning, near-seamless images when used in large video wall configurations. Energy-Saving LED Backlight, ENERGY STAR 6.0 Certified ENERGY STAR 6.0 certified, the display utilizes an energy-saving LED backlight and consumes 35% less power than conventional CCFL backlight displays. This provides for a lower overall cost of ownership, along with a higher ROI, making this display a long-term investment. Full HD 1080p Resolution The display outputs video in Full HD 1920x1080 resolution with 500 nits high brightness to deliver superior pixel-by-pixel true-color performance. At this resolution and brightness, experience a more realistic viewing experience with crystal-clear, high-definition multimedia messaging. Efficient, User-Friendly Content Scheduling & Settings The display provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Display setup features include time and date scheduling, repeat and shuffle settings, as well as content source settings for various inputs. The CDX4652-L also features an internal clock with 7-day scheduler, as well as PIP/POP (picture in picture) functionality. SuperClear Technology with IPS Panel for Wide Viewing Angles SuperClear image enhance technology with IPS panel delivers 178 of vertical and horizontal viewing angles. Target audiences will experience accurate, vivid colors, and consistent brightness levels whether looking at the screen from above, below, the front, or the side with no distortion or decay. 5x5 Daisy-Chain Support With integrated DVI output, the display supports up to a 5x5 daisy-chain setup for multi-display installations. As only one of the displays needs to be connected to an image/content source, installation and maintenance costs are reduced. In addition, 1080p signal transmission is supported in daisy-chain configurations. RS232 In/Out with IR Pass-through for Easy Management RS232 input and output connectivity, along with IR pass-through functionality, provides for the easy and efficient management of multiple-display configurations from a single notebook or PC. By using the RS232 output, daisy-chained configurations can be managed via a primary CDX4652-L Display. Versatile Inputs and One-Time Configuration Settings With a versatile selection of inputs, including HDMI, DVI, DisplayPort, CVBS, YPbPr (YCbCr) and VGA, the CDX4652-L Display enables you to easily connect and use a variety of digital equipment. The one-time display installation and setup feature means your preferred source settings are never lost. Portrait or Landscape Mountable The CDX4652-L Display can be VESA-mounted (400 x 200mm/200 x 200mm) in either portrait or landscape orientation for display flexibility in a variety of settings. Note: Mount is sold separately. Dual Stereo Speakers for Crystal-Clear Sound With a pair of integrated 10W speakers, the display combines eye-catching multimedia content with high-quality sound effects - creating a lasting audio-visual impression on your target audience or demographic. LAN Control for Remote Network Management The CDX4652-L has an integrated RJ-45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface. IR Pass-Through from One Controller to Multiple Displays Using the IR pass-through function, you can now create an infrared control chain where one controller is able to adjust the settings on multi-display video walls. By using a single remote controller, you can save time when optimizing your CDX4652-L displays with your latest campaign messaging.
Specifications
Display
|
|
Screen Size (Diagonal) | 46" |
Resolution | 1920 x 1080 |
Panel Type | TN LCD |
Brightness | 500 cd/m² |
Viewing Angle (H x V) | 178 x 178° |
Screen Area | 40.1 x 22.5" / 101.8 x 57.2 cm |
Aspect Ratio | 16:9 |
Contrast Ratio | 3500:1 |
Response Time | 8 ms |
Connectivity
|
|
Input Ports | 1 x RCA Stereo (L/R) Audio |
1 x 15-Pin VGA Video | |
1 x HDMI Audio, Video | |
1 x DVI-D Video | |
1 x DisplayPort Audio, Video | |
1 x BNC Component Video | |
Output Ports | 1 x 15-Pin VGA – Video |
1 x DVI-D – Video | |
Ethernet Ports | 1 |
Digital Media Slot | None |
General
|
|
Lighting Lifespan | 50,000 Hours |
Surface
|
|
Surface Treatment | Anti-Glare |
Hardness Rating | 3H |
Audio
|
|
Built-In Speakers | Yes, 2 x 10 W |
Convenience
|
|
Multi-Input Support (PIP/PBP) | Picture-in-Picture (PIP) |
Electrical
|
|
Power Consumption | Typical: 120.0 W |
Environmental
|
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 20 to 80% |
Certifications | CE, ENERGY STAR, FCC, UL, as per Manufacturer |
Physical
|
|
Wall Mounting | 200 x 200 mm |
Bezel Thickness | 2.8 mm |
Dimensions | 40.3 x 22.8 x 4.9" / 102.4 x 57.9 x 12.6 cm (without Stand) |
Weight | 50.7 lb / 23 kg (without Stand) |
