ViewSonic EP5012-L 50" Full HD Multi-Touch ePoster Digital Kiosk
Description

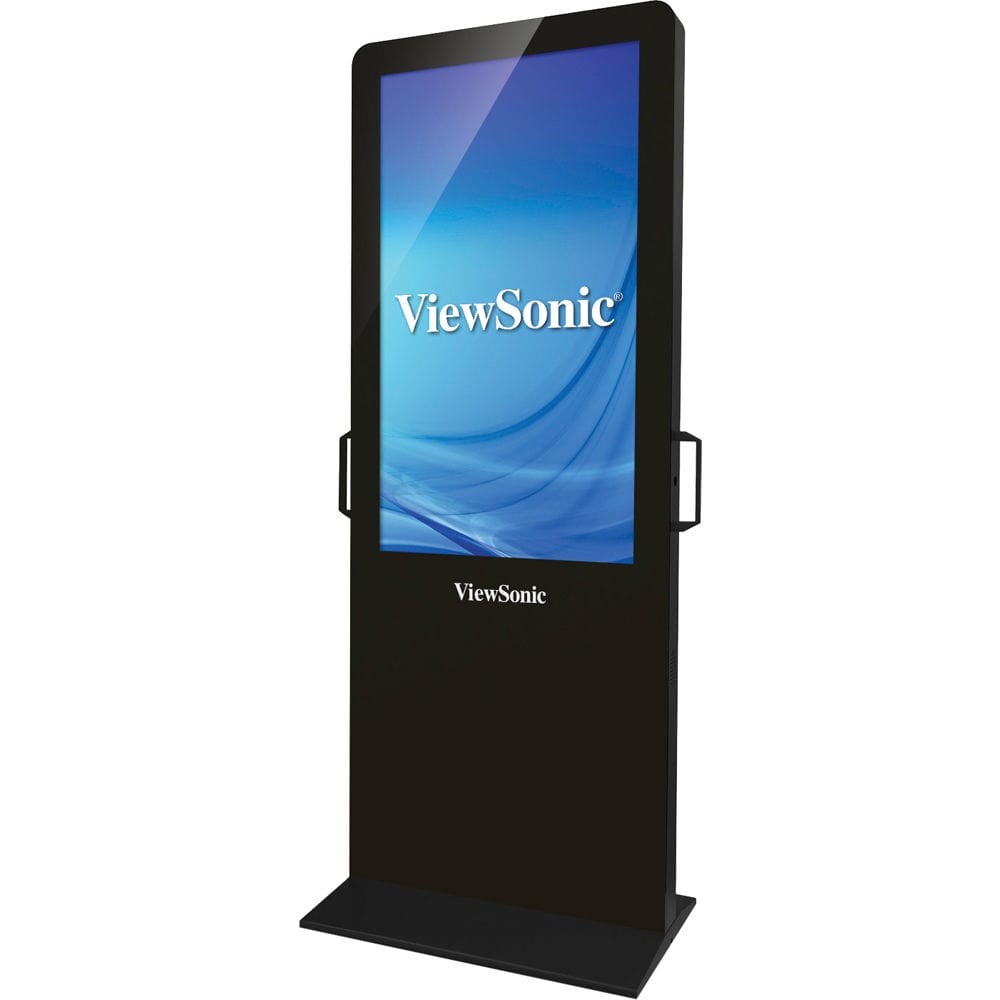

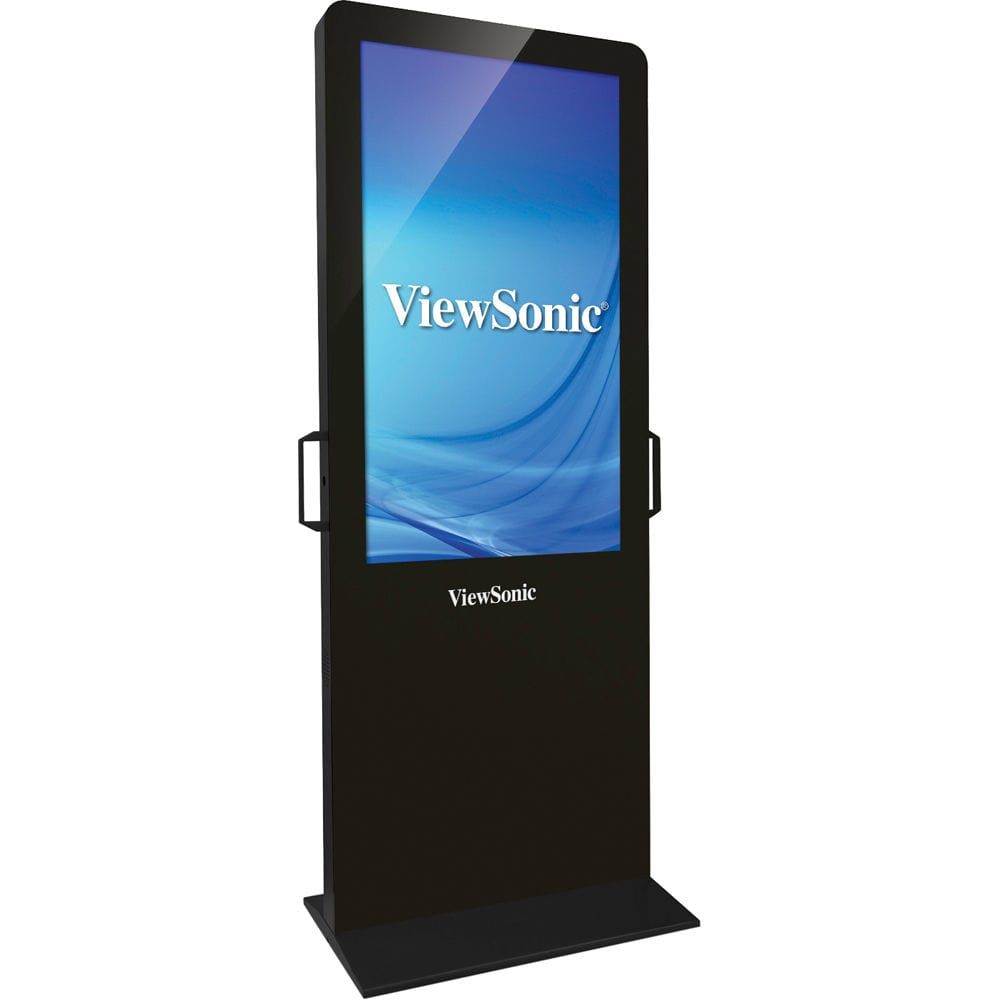

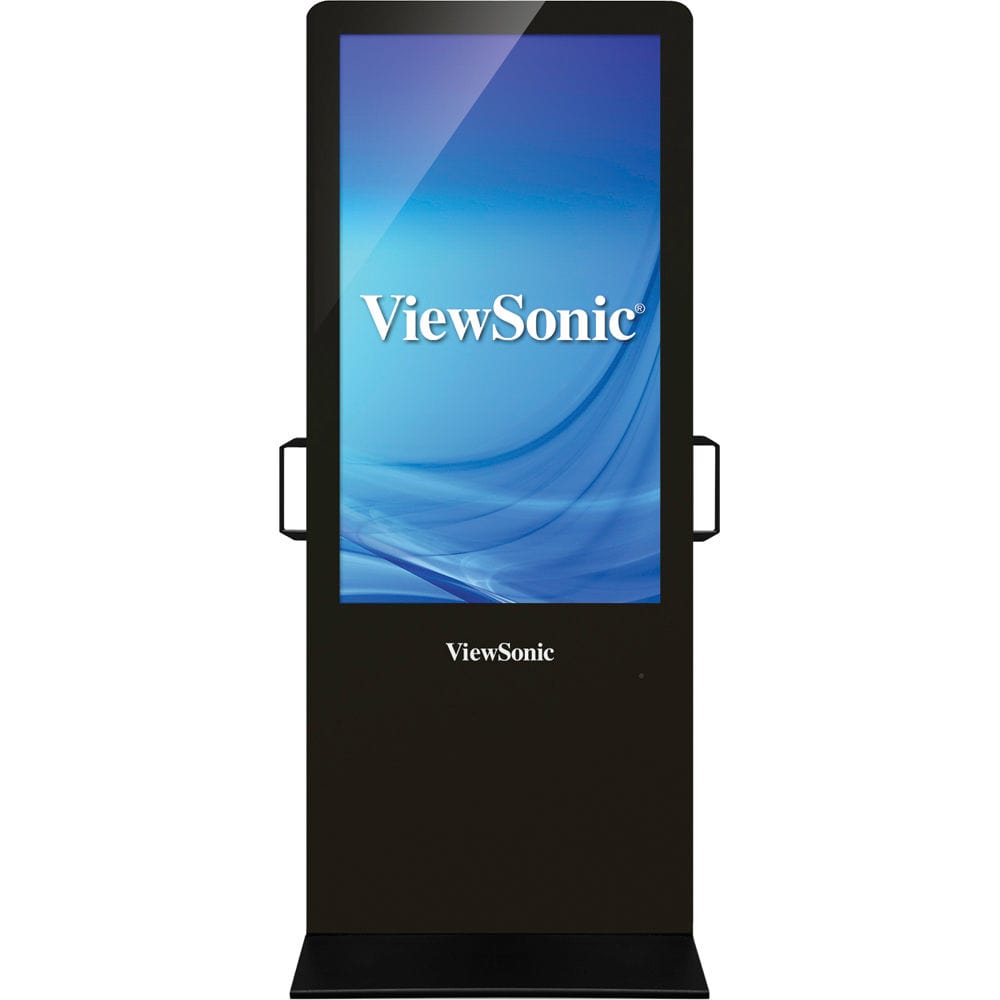

The EP5012-L 50" Full HD ePoster Digital Kiosk from ViewSonic is a free-standing digital signage solution. This kiosk is endowed with a hard-coated, scratch-resistant 50" LED display and features a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor's 350 cd/m² brightness rating and 5,000 contrast ratio showcases its ability to handle light and dark on-screen images. Additionally, this kiosk features anti-glare technology, which allows you to view the screen in a variety of lighting conditions. As a digital-signage-capable display, this kiosk is suitable for a wide range of commercial applications. It even features an internal media player complete with 8GB of storage and free content management software. For interfacing external devices, the EP5012-L is equipped with HDMI, VGA, and two USB inputs. Network connectivity is enabled by the kiosk's onboard Ethernet port. Dual 6W speakers are also built into the display for stereo audio playback.Features
- 1080p (1920 x 1080) Native Resolution
- 350 cd/m² Brightness Rating
- 5,000 Contrast Ratio
- 8GB Memory & Internal Media Player
- Hard-Coated Anti-Glare Display
- Embedded Linux Operating System
- 1 x HDMI / 1 x VGA / 2 x USB Inputs
- All-in-one, movable design with built-in removable handles
- Embedded Linux enables implementation of customized messaging applications
- 8GB internal memory and integrated media player for playback of photos and videos
- Bundled ePoster Manager Express software for easy content loading and scheduling
- Efficient, user-friendly content scheduling interface
- SuperClear technology for enhanced images with wide viewing angles

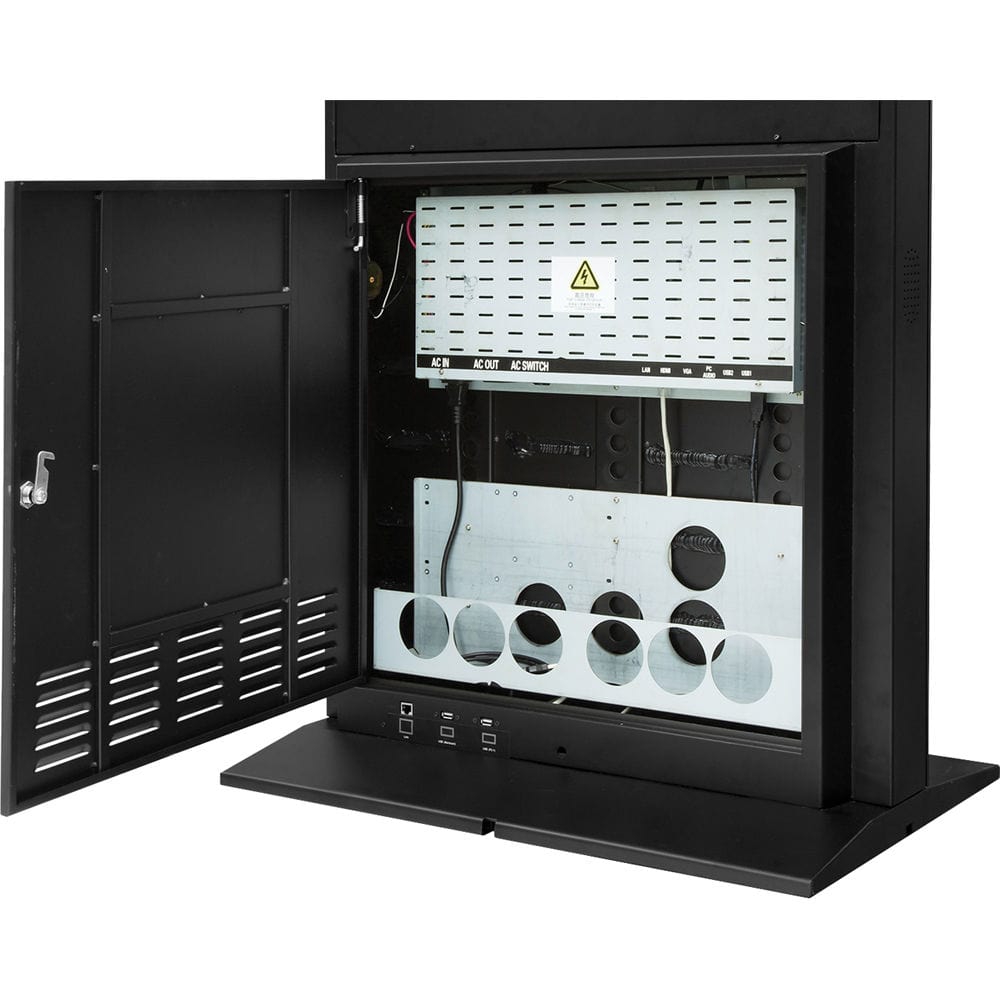

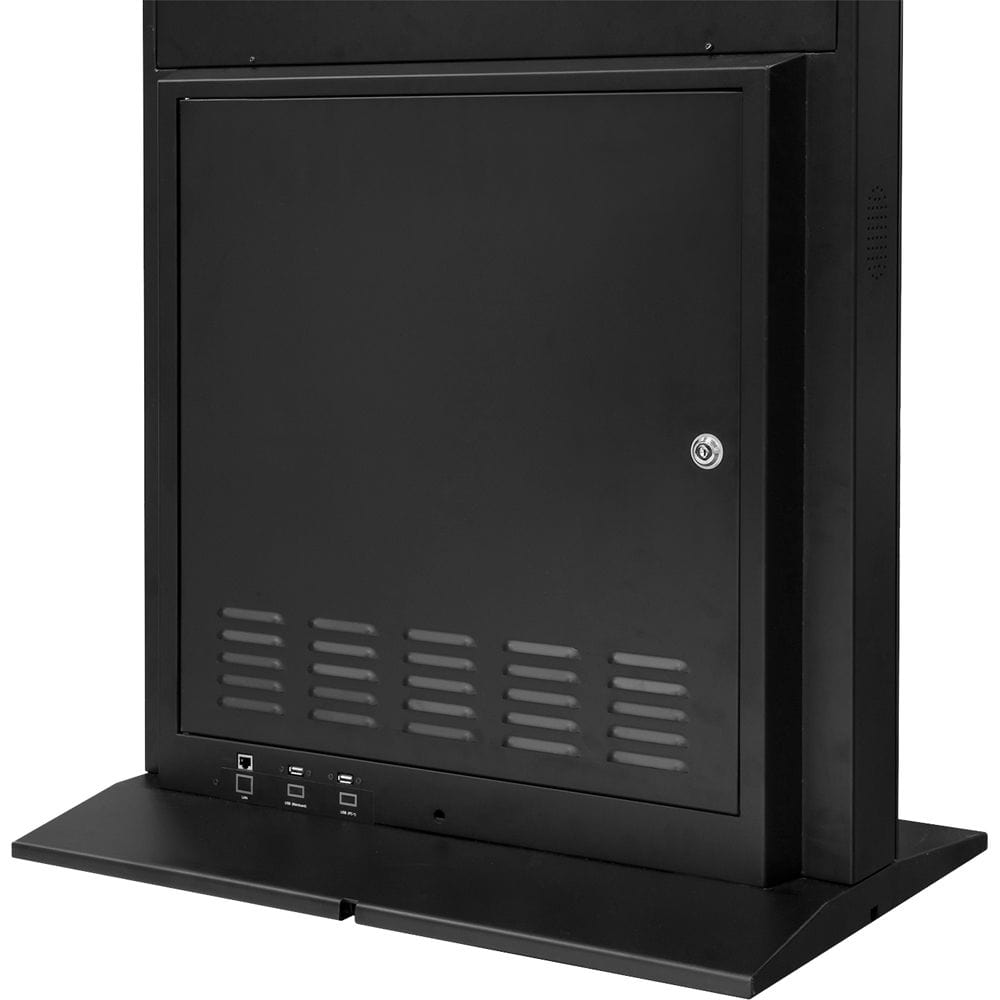

- Embedded storage space in the kiosk's pedestal stand
- Energy efficient LED displays has an estimated 50,000 hour life span and consumes less energy than conventional CCFL displays
- Suitable for retail advertising, wayfinding, hospitality, and educational applications
Specifications
Display
|
|
Type |
Color TFT active matrix LCD with WLED backlight
|
Diagonal Size |
50" (127 cm)
|
Display Area (H x V) |
24.2 x 43.1" (614.7 x 1,094.7 mm)
|
Resolution |
1920 x 1080, 600 mm dot pitch
|
Brightness |
Typical: 350 cd/m²
|
Contrast Ratio (Typical) |
5,000:1
|
Viewing Angle (H/V) |
176°/176°
|
Response Time |
6.5 ms
|
Backlight |
White-light LED
|
Backlight Life |
Typical: 50,000 hours
|
Light Source |
Minimum: 30,000 hours
|
Aspect Ratio |
16:9
|
Panel Surface |
Anti-glare, hard coating (3H), tempered glass
|
Touchscreen |
None
|
Media Player
|
|
Storage |
8 GB
|
File Support |
Video: MPEG 1/4, AVC, VC-1, RM
|
Photo: JPEG, GIF, BMP, PNG | |
Audio: WMA, MP3, M4A (AA CC) | |
Platform |
Linux
|
Connectivity
|
|
Inputs |
1 x HDMI
|
1 x VGA | |
1 x 1/8" (3.5 mm) | |
Other Ports |
2 x USB type-B
|
2 x USB hub (lower) | |
1 x RJ45 LAN | |
1 x RJ45 LAN pigtail (lower) | |
1 x Power-in | |
1 x Power-out | |
Audio
|
|
Speakers |
Internal: 2 x 6 W
|
General
|
|
Controls |
System Settings: Language, Screen Mode, Screen Resolution, Clock Display, USB, Scrolling Text, Sync Settings, Reset
|
System Control: Work Mode, Storage Priority | |
Network Setting: Server Settings, Get IP Type, Machine ID, MAC Address | |
Date and Time: Date, Time, Startup Sync Time Setting, Daylight Saving Time, Time Zone, Sync Time Now | |
On/Off Timer: Timer Mode, Control Mode | |
Special Settings: Volume, Source | |
File Management: Reformat | |
Power Requirements |
100 to 240 VAC, 50/60 Hz
|
Power Consumption |
On (Typical): 97.6 W
|
Operating Conditions |
Temperature: 32 - 122°F (0 - 50°C)
|
Humidity: 20-90% (non-condensing) | |
Accessory Mounting |
100 x 100, 75 x 75 mm
|
Regulations |
CE, FCC
|
Dimensions |
29.7 x 72.8 x 17.7" (755.0 x 1,850.0 x 450.0 mm)
|
Weight |
188.7 lb (85.6 kg)
|
Packaging Info
|
|
Package Weight |
213 lb
|
Box Dimensions (LxWxH) |
84 x 36 x 25"
|
