ViewSonic LCD Display Digital Signage Dual-Sided FHD ePoster kiosk - Certified Refurbished

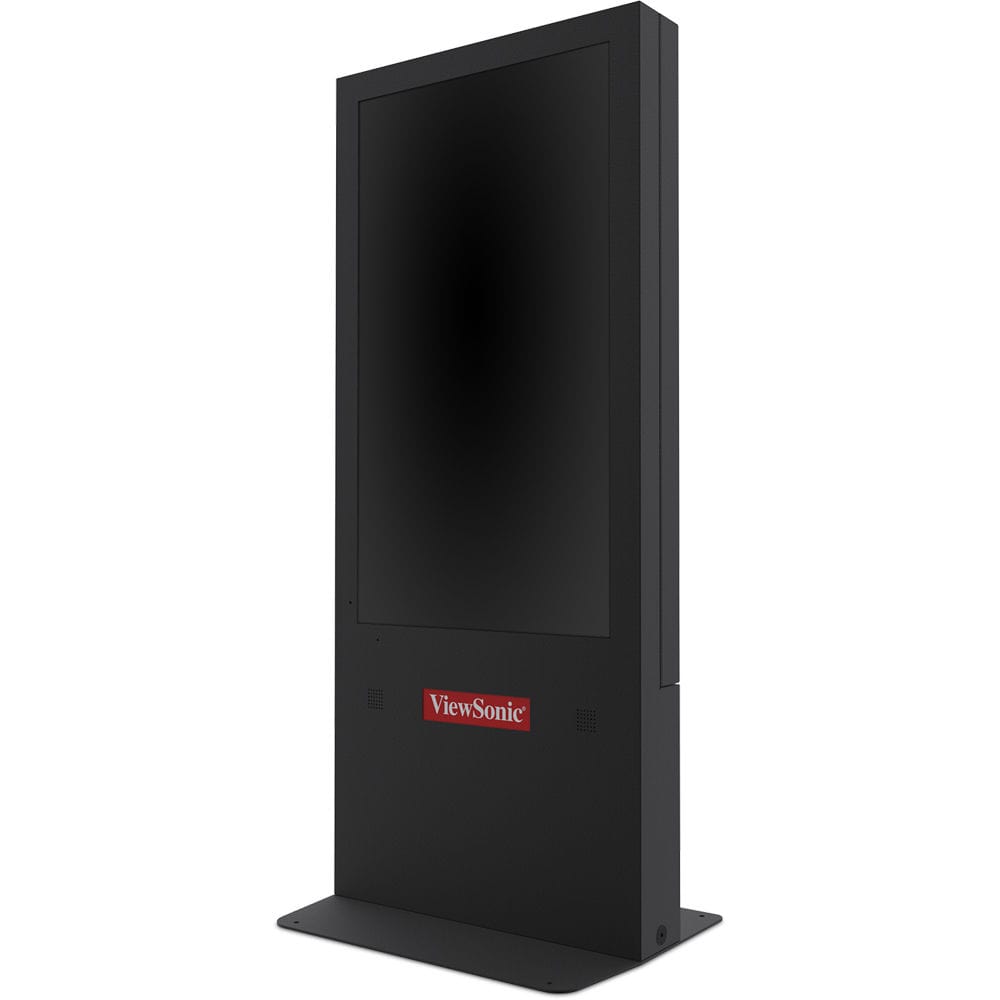

ViewSonic EP5500D-2-S LCD Display Digital Signage Dual-Sided FHD ePoster kiosk - Certified Refurbished

Description

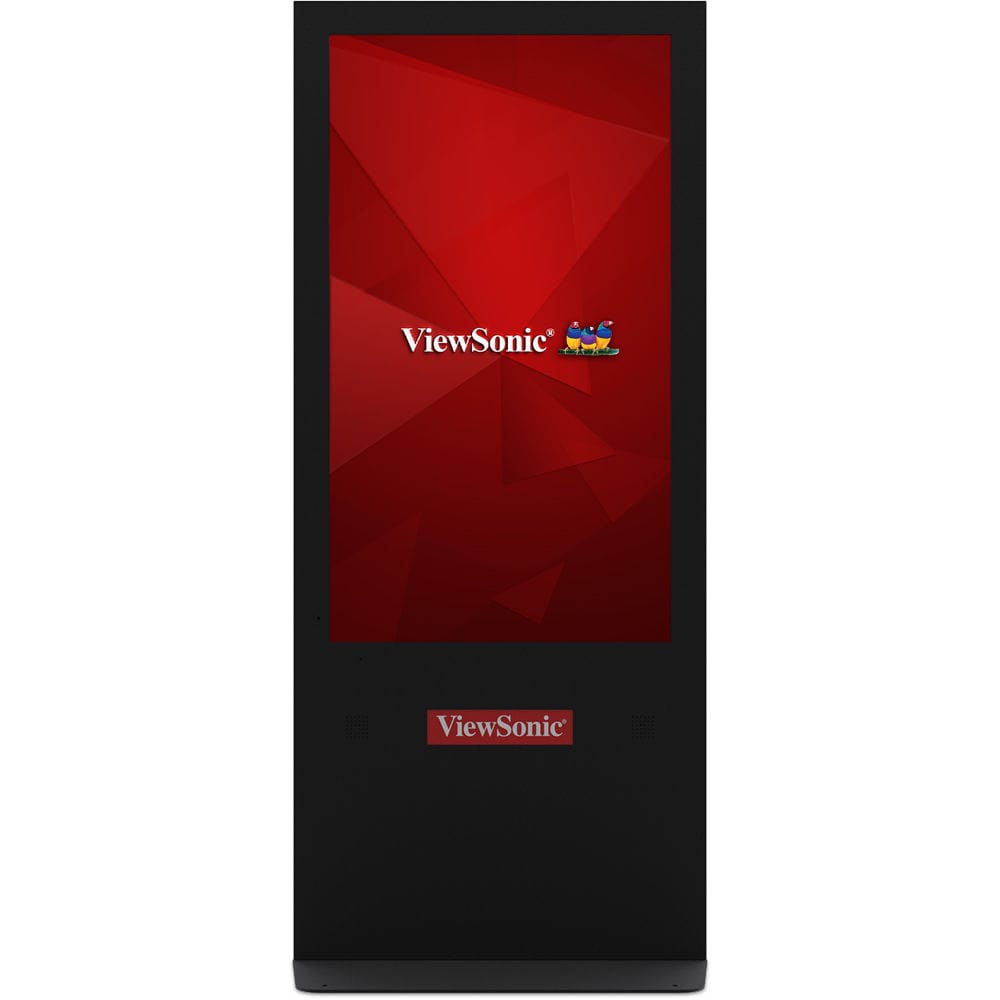

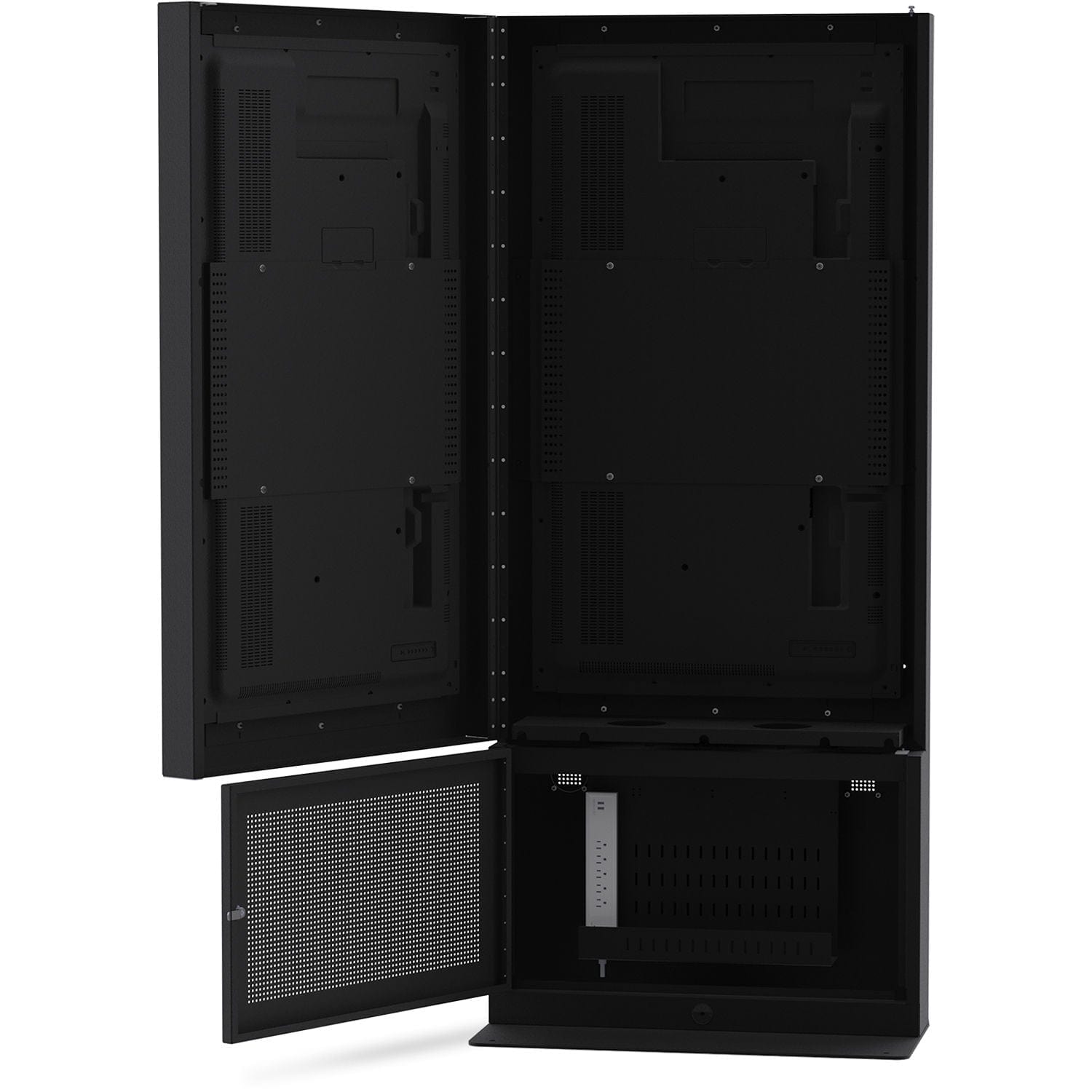

With dual 55” touchscreens, the ViewSonic® EP5500D-2 ePoster digital kiosk delivers a dynamic, double-sided interactive signage solution. Great for grabbing attention in busy, high-traffic areas, the EP5500D-2 all-in-one kiosk features a 10-point Full HD touchscreen (CDM5500T) on both sides. 178°/178° wide viewing angles, 450-nit brightness, 1,100:1 contrast ratio, and 10W stereo speakers all combine to deliver engaging content. Each screen is integrated with a powerful Quad-core media player and 16GB of internal memory, allowing each screen to be driven separately with its own content for increased multimedia messaging. You can also add your own media player using the convenient media player cradle located inside the kiosk’s lockable security door. Each screen is also protected by a scratch-proof tempered glass faceplate and acrylic overlay for added durability and reliable messaging 24 hours a day, 7 days a week.

Features

• Dual 55” 10-point Touchscreens
• 1920 x 1080 Full HD on both sides
• 450-nit brightness
• 1,100:1 contrast ratio
• 10W stereo speakers
• Quad-core media player and 16GB of internal memory
• 3.5mm Audio In(1), 3.5mm Audio Out(1), DVI-I(1), DVI-I Out(1), Display Port(1), Display Port Out(1), Ethernet LAN (RJ45)(1), HDMI 1.4(2), IR in(1), IR out(1), USB 2.0 Type A(1), Micro USB(1), Micro SD Card Slot(1)

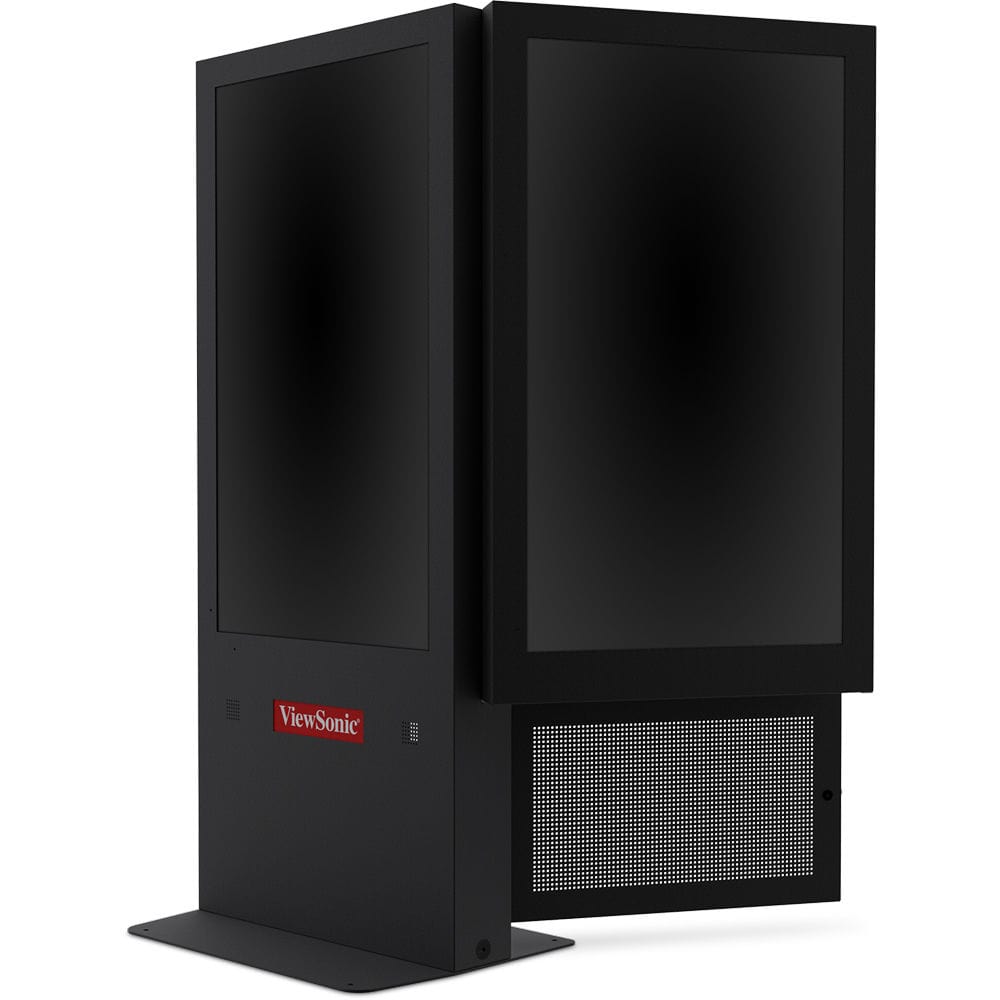

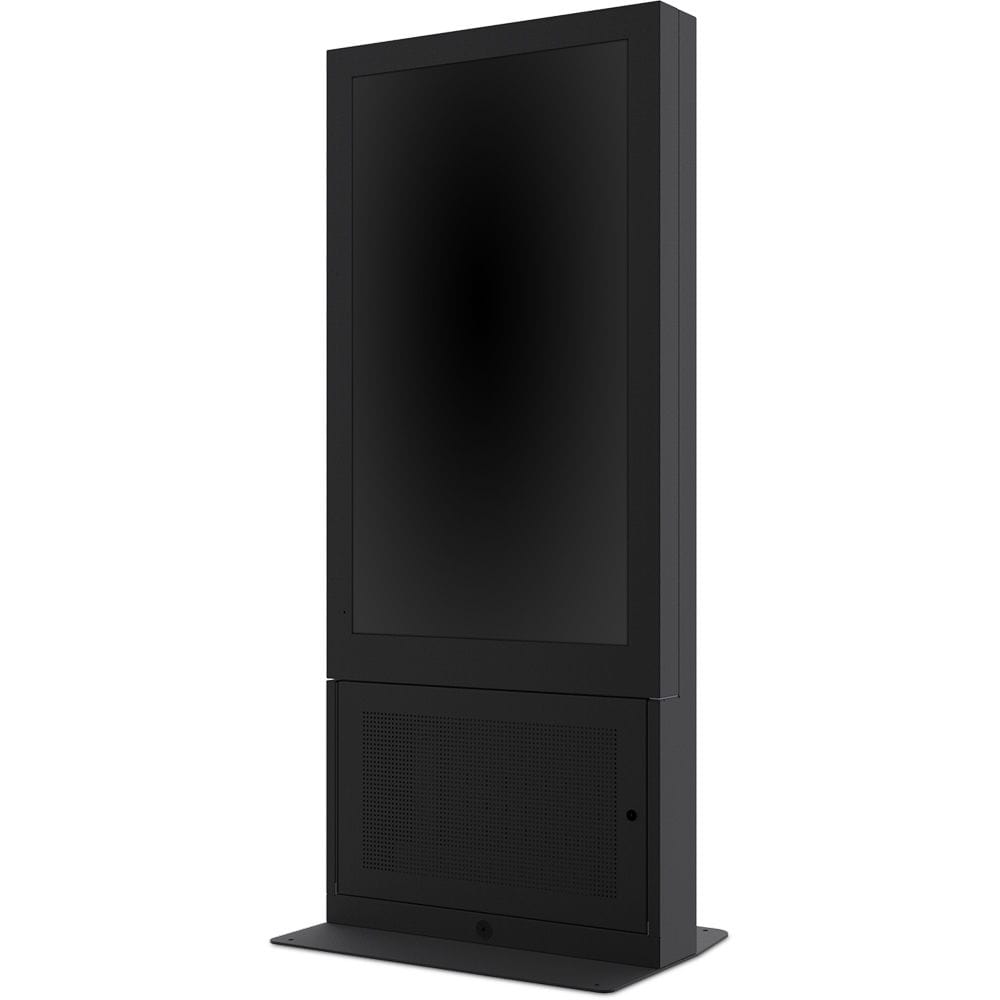

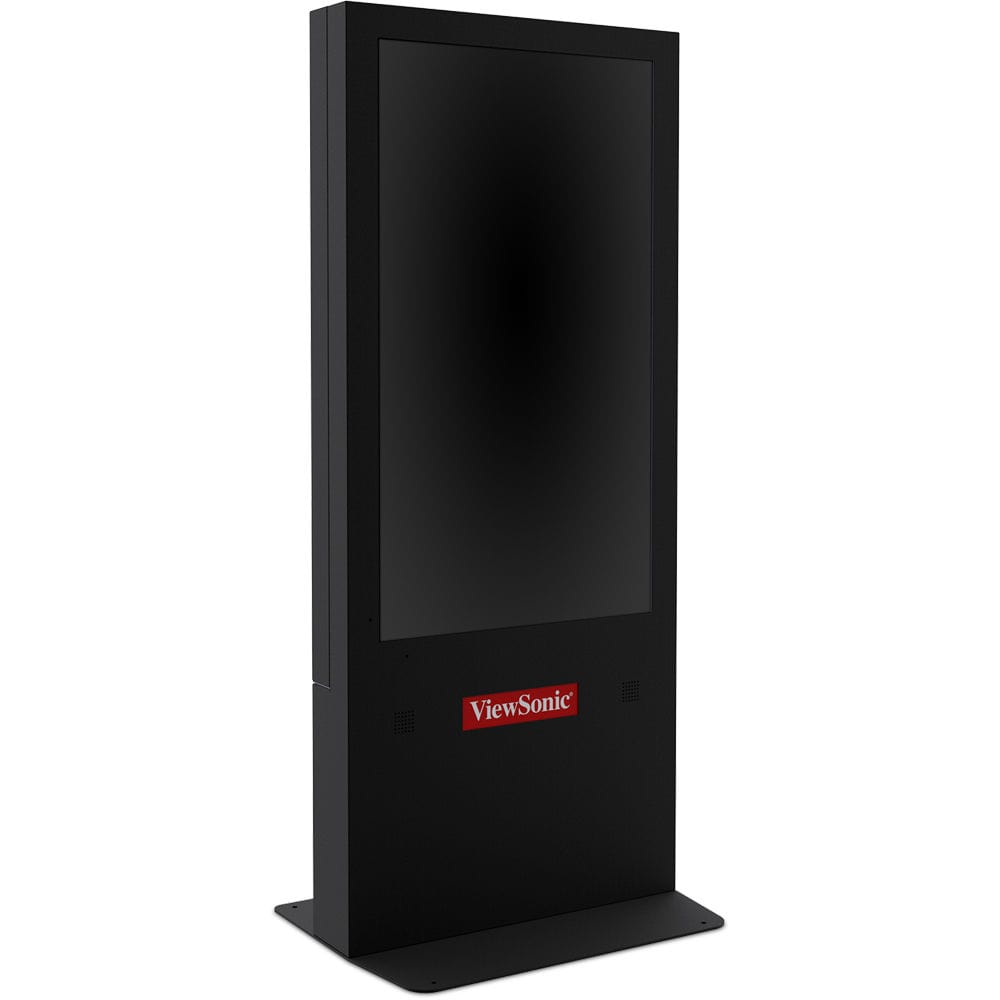

Free-standing Dual-sided Design

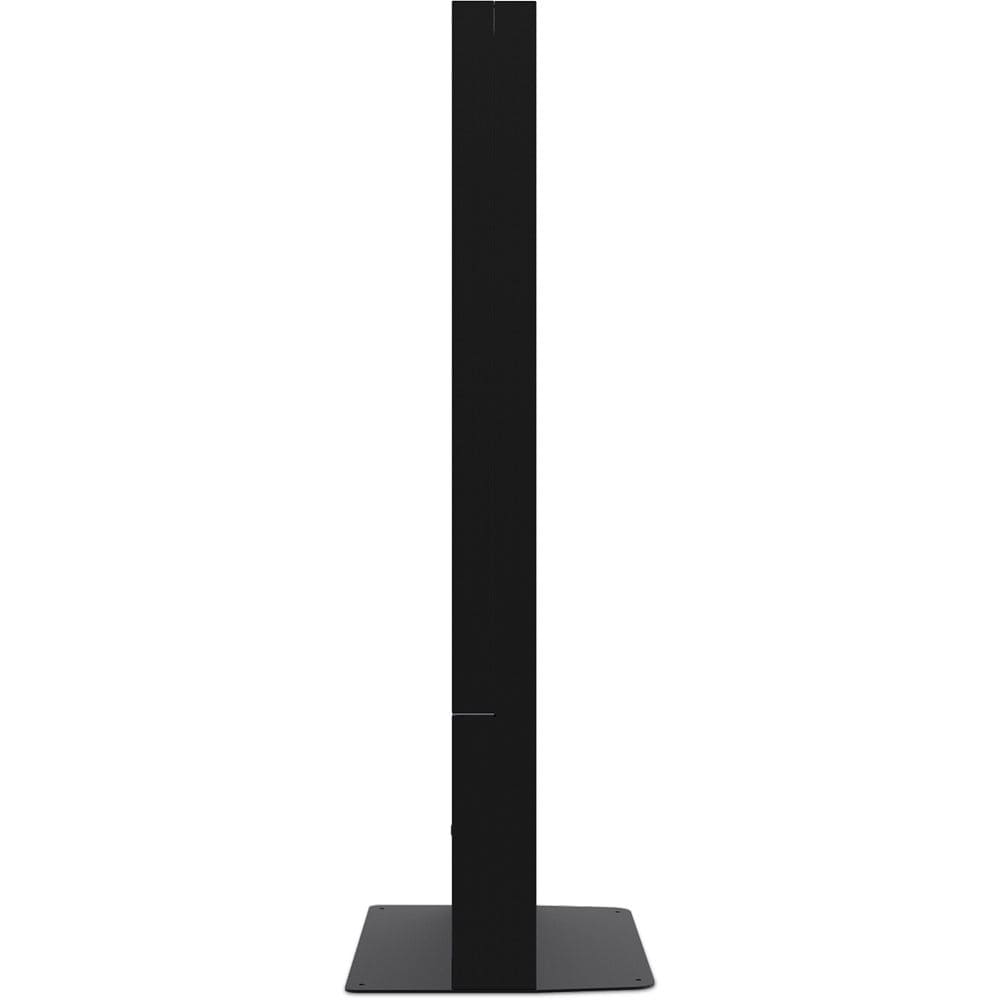

This durable ePoster digital kiosk features a sleek and slim dual-sided design, coupled with a free-standing form factor to deliver dynamic messaging in high-traffic areas.

Built-in Quad Core Media Player

A powerful quad-core media player enables photo and video playback, while 16GB of onboard memory provides ample storage for files and multimedia content.

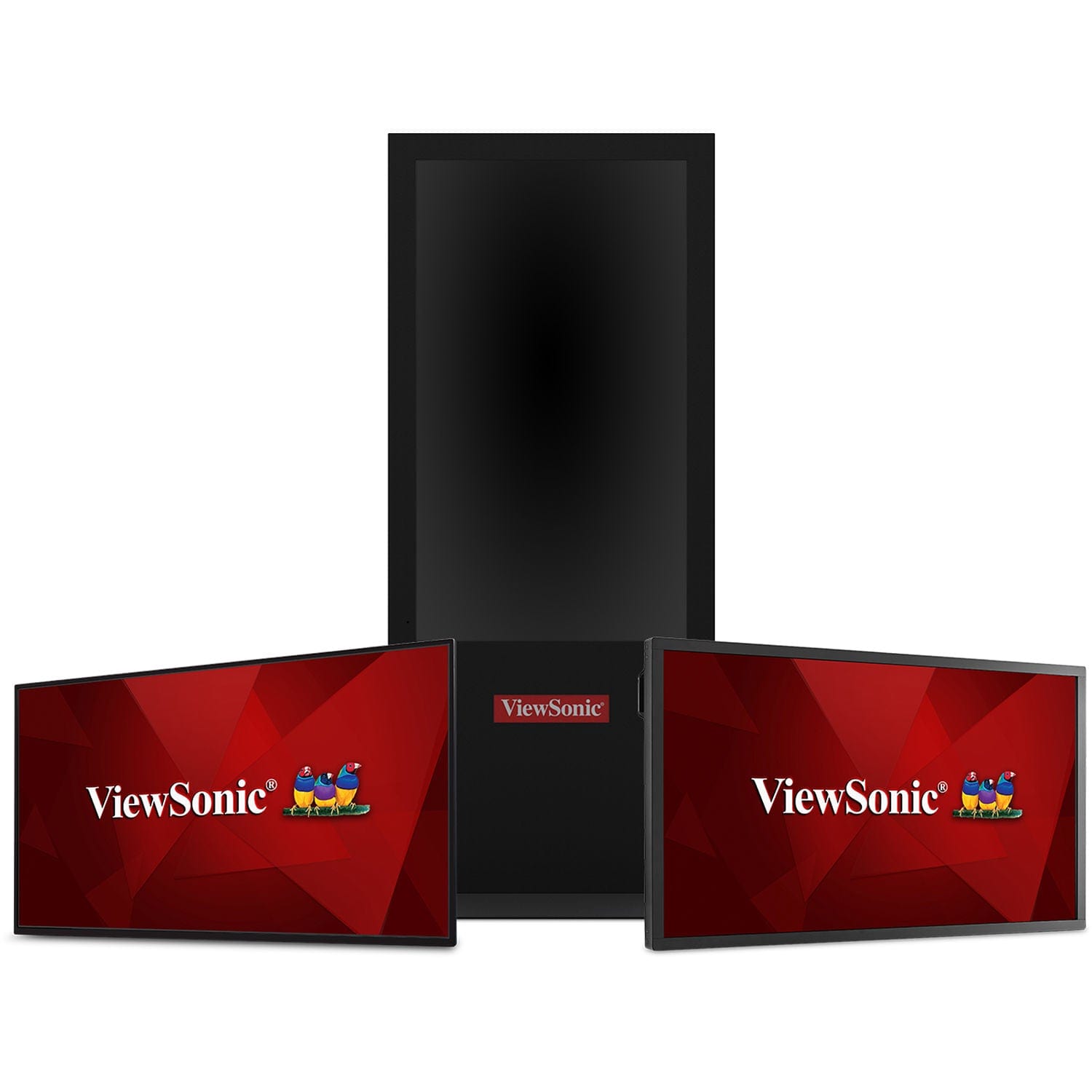

Pre-installed Standard and Touch Displays

This ePoster digital kiosk comes equipped with two ViewSonic 55" commercial displays: the CDM5500R Full HD standard screen, and the CDM5500T Full HD 10-point touchscreen.

Internal Scheduler

An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.

Embedded LAN, Optional WI-FI, Internet Browser

An integrated RJ45 connection, as well as optional Wi-Fi capabilities, provide easy network connection options for content streaming. An integrated internet browser provides simple content delivery via connection to the web.

vSignage Content Management System Software

Great for updating content on ViewSonic® ePosters across an enterprise, vSignage Content Management System software lets users remotely transfer multimedia content from any Windows PC or laptop. This software also enables content scheduling and broadcasting cues, allowing you to effectively reach your target audience.

Reliable 24/7 Continuous Operation

A commercial-grade design provides for a long lifespan and reliable, continuous 24/7 use. Heat monitoring protection and a screen saver feature are included for added reliability and durability. What’s more, a failover feature displays content from the internal memory even when external inputs are not working.

Integrated Speakers

Each display is designed with dual integrated speakers and combines incredible screen performance with stereo sound for an immersive multimedia experience.

Free Bundled vController™ Software

Included vController™ software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.

Specifications

Header / Brand	ViewSonic
Miscellaneous / Product Color	Black
Television / Brightness	450 cd/m²
Television / Combined with	Built-in media player and touchscreen (multi touch)
Television / Diagonal Size	55 in
Television / Display Format	1080p
Television / Image Aspect Ratio	16:9
Television / Image Contrast Ratio	1100:1
Television / PC Interface	DisplayPort
	DVI
Television / Resolution	1920 x 1080
Television / Type	LED-backlit LCD flat panel display
Television / Viewing Angle	178°
Audio System
Output Power / Total	20 Watt
Speaker System	2 speakers
Speakers	2 x main channel speaker - 10 Watt
Connections
Connector Type	Audio input
	Audio output
	DVI-I input
	DVI-I output
	DisplayPort input
	DisplayPort output
	LAN
	2 x HDMI
	Remote control input
	Remote control output
	RS-232 input
	RS-232 output
	2 x USB 2.0
	USB
Display
Additional Features	Infrared multitouch technology, designed for 24/7 operation
Backlight Life	50,000 hour(s)
Brightness	450 cd/m²
Coating	Anti-glare, 3H Hard
Display Format	1080p
Image Aspect Ratio	16:9
Image Contrast Ratio	1100:1
LCD Backlight Technology	Edge Emitting LED (ELED)
LCD Display Technology	IPS
Operation Hours / Days	24 / 7
Resolution	1920 x 1080
Response Time	12 ms
Touchpoints Qty	10
Viewing Angle	178°
Viewing Angle (Vertical)	178°
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
General
Combined With	Built-in media player and touchscreen (multi touch)
Commercial Use	Yes - interactive digital signage
Depth	60.66 cm
Diagonal Class	55"
Diagonal Size	54.6"
HDMI Ports Qty	2 ports
PC Interface	DVI, DisplayPort
Power Consumption Operational	150 Watt
Product Type	LED-backlit LCD flat panel display
Video Interface	HDMI
Media Player
Configuration	ARM Cortex-A9 Quad-Core 16 GB
Storage Drive Capacity	16 GB
Supported Memory Cards	microSD
USB Port	Yes
USB Ports Qty	2
Miscellaneous
Cables Included	Serial cable
	IR receiver cable
Compliant Standards	UL, cUL, CoC, Mexico Energy label
Network & Internet Multimedia
Connectivity	LAN
LAN Protocol	Ethernet
Power
Input Voltage	AC 120/230 V
Power Consumption Stand by	1 Watt
Power Device	Power supply
Remote Control
Type	Remote control
Stands & Mounts
Flat Panel Mount Interface	400 x 400 mm
Stand	Included
Stand Design	Floor standing
VESA Compatibility	Yes
Sustainability Information
ENERGY STAR Certified	Yes
ENERGY STAR Version	7.0
Video Wall
Number of Screens	2
Dimensions
Weight	265.2 lbs
Dimensions	76 x 32 x 24 inches
