ViewSonic 55" Class 4K UHD Smart IPS LED Kiosk - Certified Refurbished

ViewSonic EP5540-S 55" Class 4K UHD Smart IPS LED Kiosk - Certified Refurbished

Description

Display your digital message in high-traffic areas with the ViewSonic EP5540 55" Class 4K UHD Smart IPS LED Kiosk. It features a 4K UHD display in portrait orientation with dual 10W speakers. IPS technology helps provide a wide 178 viewing angle, allowing your messaging to be seen clearly from off axis. With a 400 cd/m2 brightness output, the EP5540 can overcome ambient light in most public spaces. The onboard Android 5.0.1 OS enables app access, so you can play your corporate content via the embedded media player. A scheduler function and included scheduling and content management software help simplify setup and remote control of the kiosk. A locking panel provides wired input access and can store an optional media player.

Features

• 55" Class 4K UHD Smart IPS LED Kiosk
• 4K UHD (3840 x 2160) Resolution
• 400 cd/m2 Brightness Rating
• 178 Viewing Angles
• HDMI, VGA, and USB Multimedia Inputs

4K UHD Resolution

With four times the resolution of Full HD, the EP5540 delivers clear, vibrant images with compatible content.

Freestanding Design

The all-in-one digital ePoster kiosk features a slim design coupled with a freestanding form factor to help deliver dynamic messaging in high-traffic areas.

Built-In Quad-Core Media Player

The onboard media player enables photo and video playback, while 16GB of embedded memory provides storage for your files and multimedia content.

Built-In Scheduler

A user-friendly scheduling interface is available via the OSD (on-screen display). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.

Versatile Connectivity

Dual HDMI ports and a VGA input let you connect a variety of devices and external media players to the display.

Free Bundled vController Software

Included vController software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays via RS232 or LAN.

Included Signage Manager CMS

Suitable for updating content on ViewSonic ePosters across an enterprise, this software lets you remotely transfer multimedia content form nearly any Windows computer and enables content scheduling and broadcasting cues, helping you effectively reach your target audience.

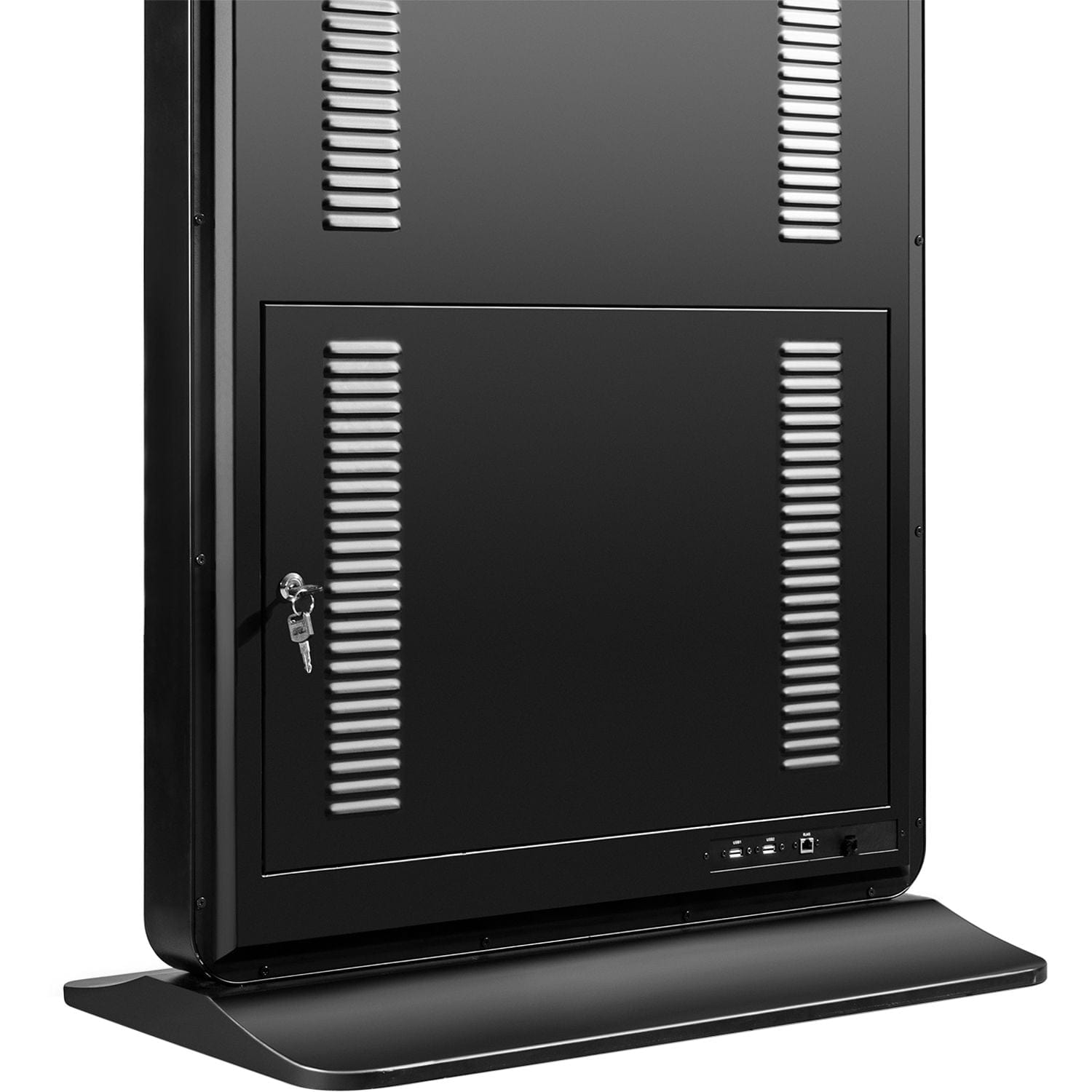

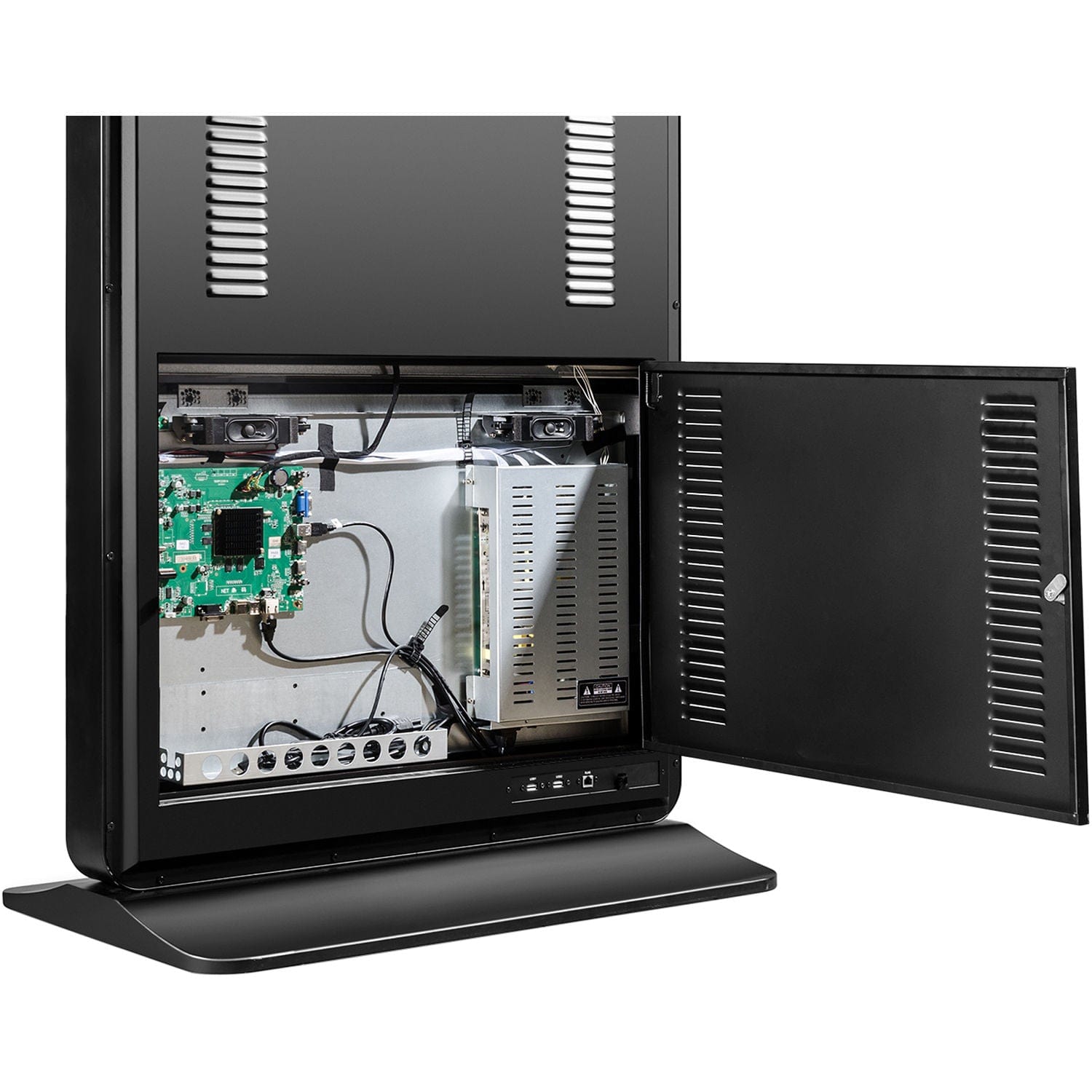

Media Player Cradle with Lockable Security Door

The media player cradle can accommodate a computer or an additional mounted media player, while a lockable door keeps things secure and out of sight. The stand also features an integrated power supply, so you won't have to find alternative outlets for add-on devices.

Dual Integrated Speakers

With two built-in speakers, the EP5540 adds audio to your visual messaging.

LAN Control

The EP5540 has an integrated Ethernet connection that allows you to remotely set up and manage display content from your computer. You can also remotely turn the display on or off or adjust the volume and other settings via an on-screen interface.

Anti-Scratch, Anti-Glare Glass Faceplate

The 7H scratch-resistant surface helps ensure a durable, consistent viewing experience, and an anti-glare film enhances visibility in bright environments.

Additional Features

Picture mode, contrast, brightness, hue, sharpness, saturation, anti-flicker, backlight, screen, color temperature, bluelight filter, Zoom Mode, OverScan, and Image NR settings adjustable via OSD

Sound mode, bass, treble, balance, surround, alone, MHL Auto Switch, menu timeout, data/time, off timer, on timer, sleep time, password, system ID, keypad lock, LowerPower Standby, and Restore to default available via remote control

Specifications

Display
Screen Size (Diagonal)	54.6"
Resolution	3840 x 2160
Supported Display Resolutions	Maximum: 3840 x 2160
Panel Type	IPS-Type LCD
Brightness	400 cd/m²
Viewing Angle (H x V)	178 x 178°
Aspect Ratio	16:9
Contrast Ratio	1200:1
Response Time	6 ms (GtG)
Backlighting Technology	Direct LED
Connectivity
Primary Connectivity Location	Display
Input Ports	2 x HDMI 2.0 Audio, Video
	1 x 15-Pin VGA Video
	1 x 1/8" / 3.5 mm Audio
Output Ports	1 x 1/8" / 3.5 mm – Audio
USB Ports	2 x USB 3.1 / USB 3.2 Gen 1 Type-A
	1 x USB 2.0 Type-A
Ethernet Ports	1
Control	RS-232C via DE-9/DB-9 Input
	IP via RJ45
General
Display Orientation	Portrait
Lighting Lifespan	30000 Hours
Surface
Surface Treatment	Anti-Glare
Hardness Rating	7H
Audio
Built-In Speakers	Yes, 2 x 10 W
Speaker Configuration	2-Channel
Hardware
Operating System	Android 5.0.1
Processor	Quad-Core
Storage	16 GB eMMC
RAM	2 GB
Convenience
Supported Video File Types	AVI, MKV, MOV, MP4, MPEG, MPEG4, MPG, RMVB, TS
Supported Audio File Types	AAC, MP3
Supported Photo File Types	BMP, JPEG, JPG, PNG
Supported Document File Types	DAT
Electrical
Power Consumption	Typical: 117.0 W
	Maximum: 150.0 W
	Standby: < 0.5 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	20 to 80%
Certifications	BSMI, FCC, cTUVus, as per Manufacturer
Physical
IR Sensor	Yes
Glass Thickness	0.2" / 5 mm
Duty Cycle	16 Hours / 7 Days

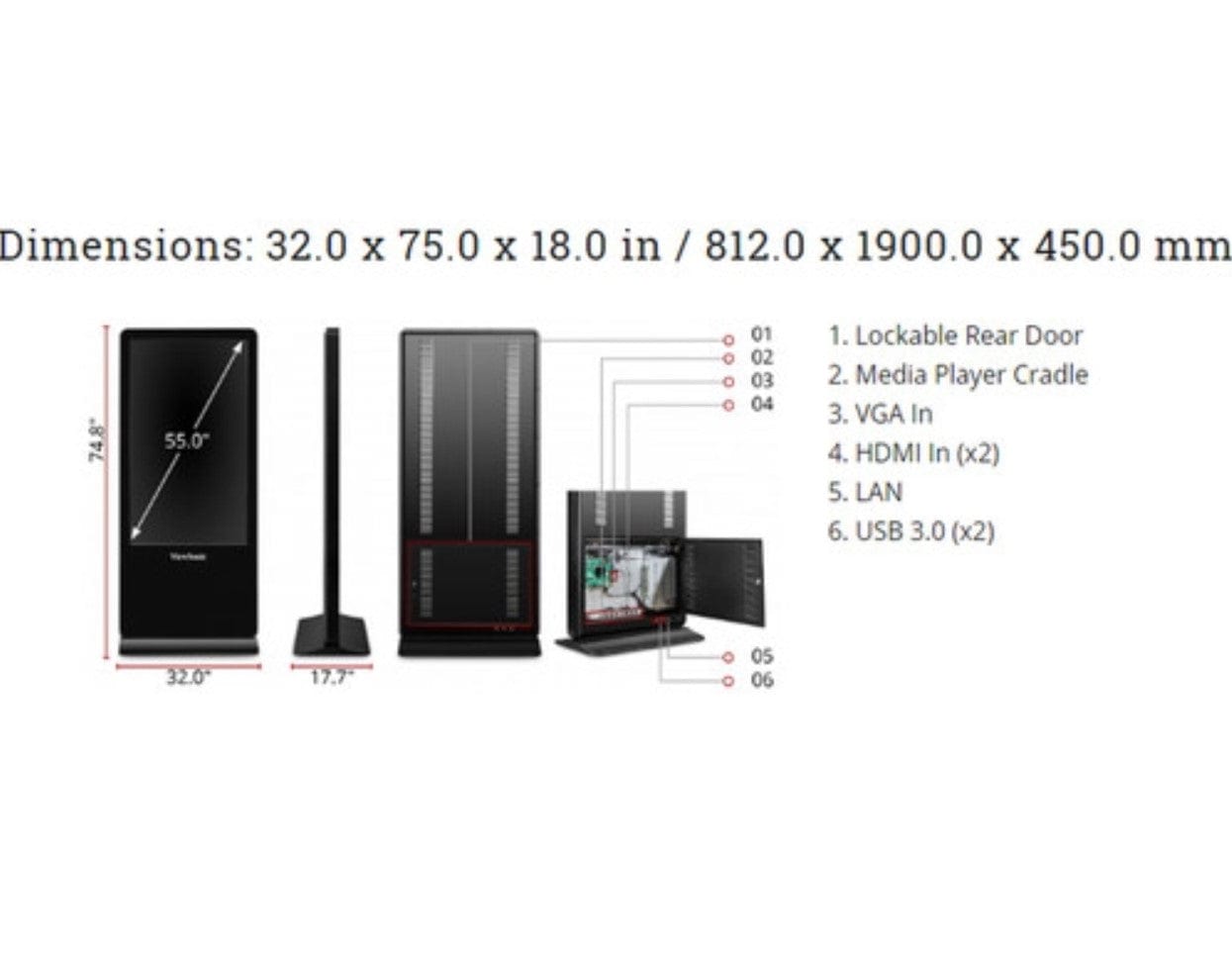

Dimensions	32.0 x 74.8 x 17.7" / 812.0 x 1900.0 x 450.0 mm
Weight	153.7 lb / 69.72 kg
Packaging Info
Package Weight	205.5 lb
Box Dimensions (LxWxH)	80 x 37 x 22.8"
