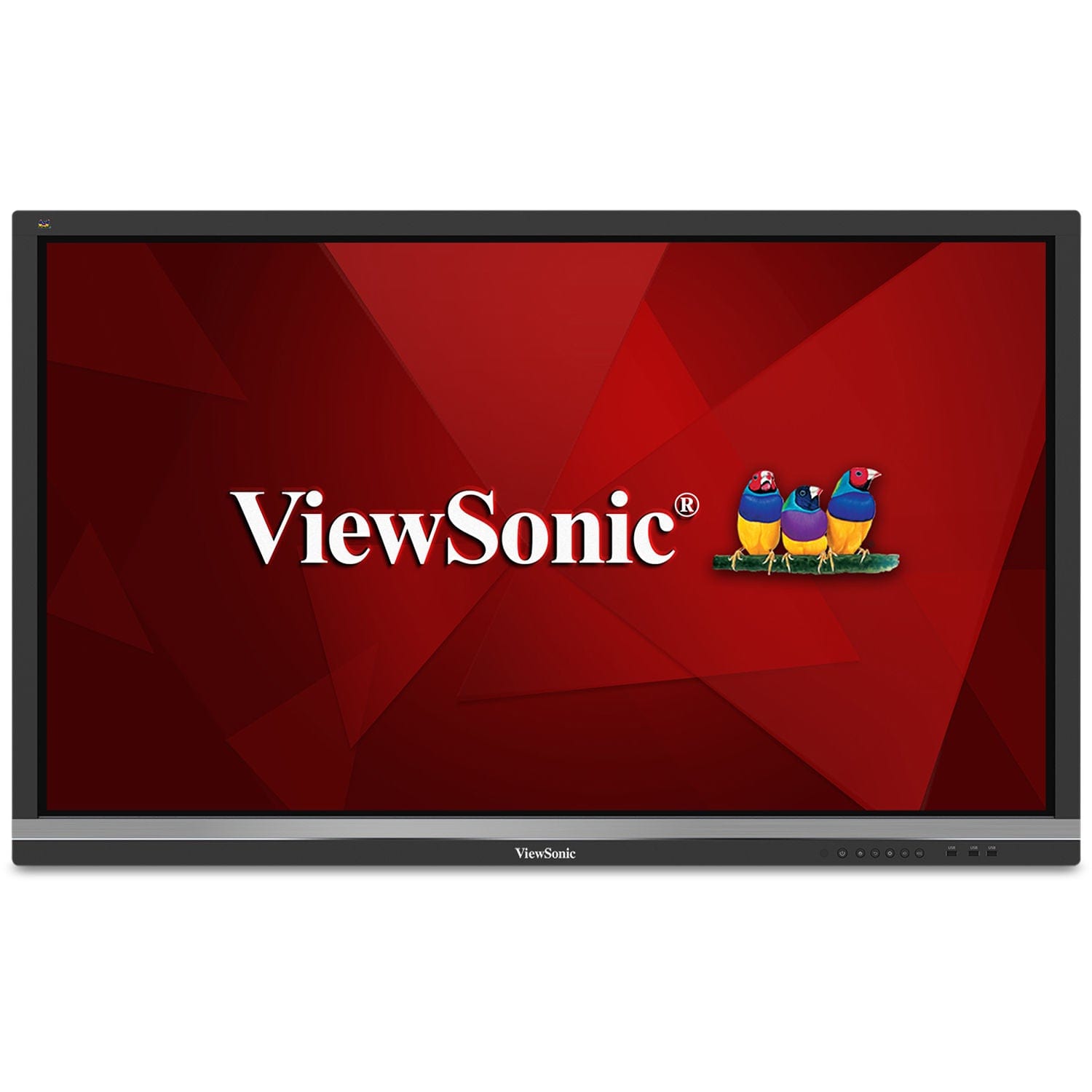

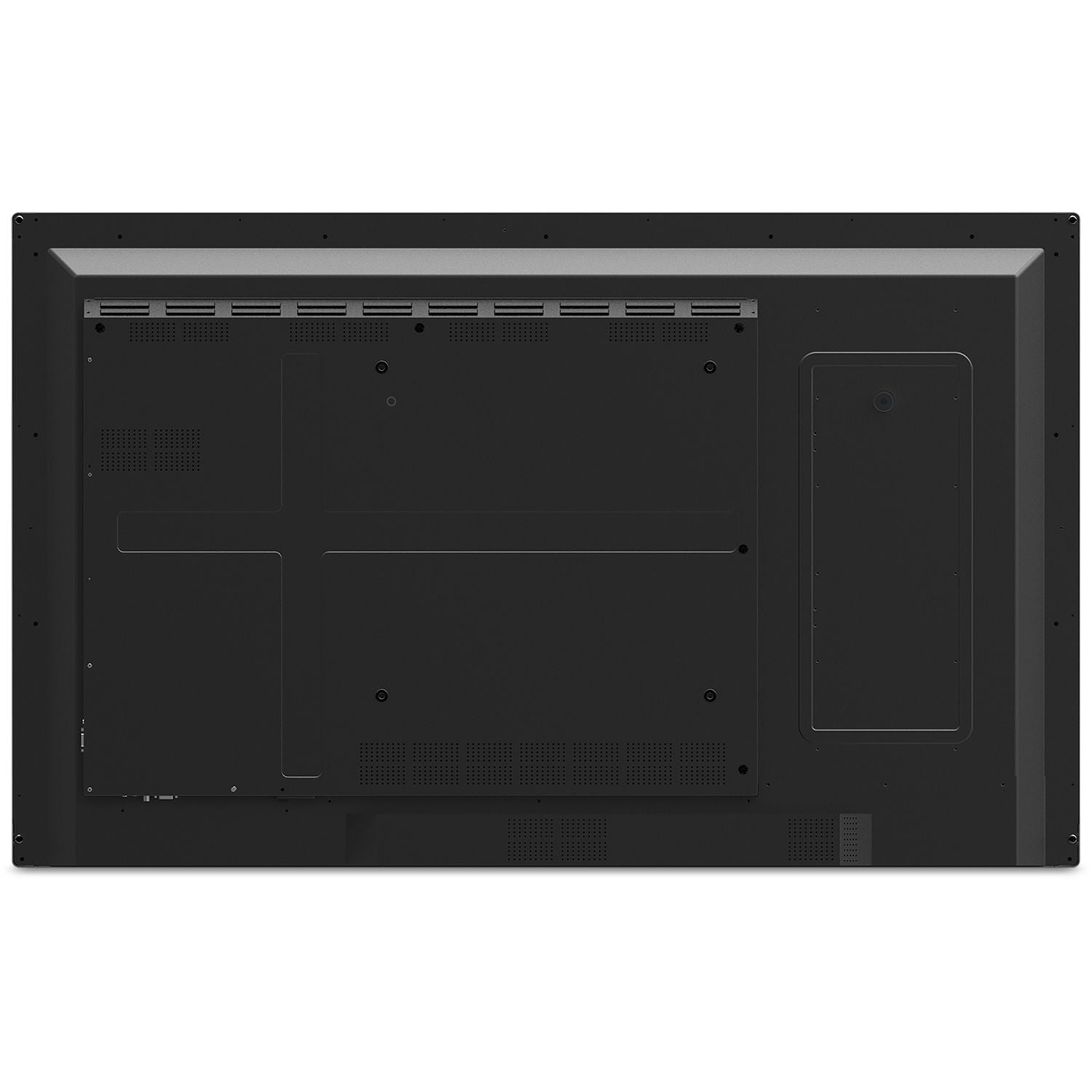

ViewSonic 55" 4K 20-Point Touch Interactive Display - Certified Refurbished

ViewSonic IFP5550-R 55" 4K 20-Point Touch Interactive Display - Certified Refurbished

Description

Empower your team to connect, collaborate, and create with the ViewBoard 55" UHD 4K Interactive Display from ViewSonic. This touchscreen features 20-point infrared touch technology and comes with integrated myViewBoard annotation software and ViewBoard Cast streaming software for easy content creation and sharing. Two stylus pens are included. The display's connectivity interface includes HDMI and VGA video inputs, and an HDMI video output. For more computing-intensive interactive applications, the display can be outfitted with an optional slot-in PC module.

Features

• 55" Touchscreen LCD Monitor
• 4K UHD 3840 x 2160 Resolution
• 20-Point IR Touch Technology
• Built-In Slot for Optional PC Module
• HDMI & VGA Interfaces, 2 x USB 3.1 Gen 1 Ports
• 1200:1 Contrast Ratio
• 350 nits Brightness

Ultra HD Resolution

55 Inch 4K Ultra HD (3840x2160p) interactive display

Advanced Touch

20-point multi-touch lets users write on the display with their fingers and stylus pens

Integrated Software

The myViewBoard suite includes Whiteboard, ViewBoard Cast, and more for better engagement

BETTER SOUND: Built-in 45W stereo soundbar delivers optimal sound

Flexible Connectivity

Include powerful quad-core processor and versatile connectivity options (HDMI,VGA, RJ45, and USB ports)

Remote Management

Schedule updates and monitor device status with the built-in myViewBoard® Manager software

Specifications



Display
Panel Size	55"
Type/Tech	TFT LCD Module with DLED Backlight.
Display Area (mm)	1209.6(H) x 680.4 (V) (54.64” diagonal)
Aspect Ratio	16:9
Native Resolution	UHD 3840x2160(Pixels)
Colours	1.07B colours (10bit)
Brightness	350 nits (typ.) 300 nits (min.)
Contrast Ratio	5000:1 (DCR)
Response Time	8ms
Viewing Angles	H = 178, V = 178 typ.
Backlight Life	30,000 Hours (Min)
Surface Treatment	Anti-Glare
Bezel	Slim
Orientation	Landscape
Platform
Processor	ARM Cortex A73 dual-core 1.2GHz
RAM	2GB DDR4
Storage	16GB
Touch
Type/ Tech	IR Recognition
Touch Resolution	32767 x 32767
Touch Point	20 points touch, 10 points writing

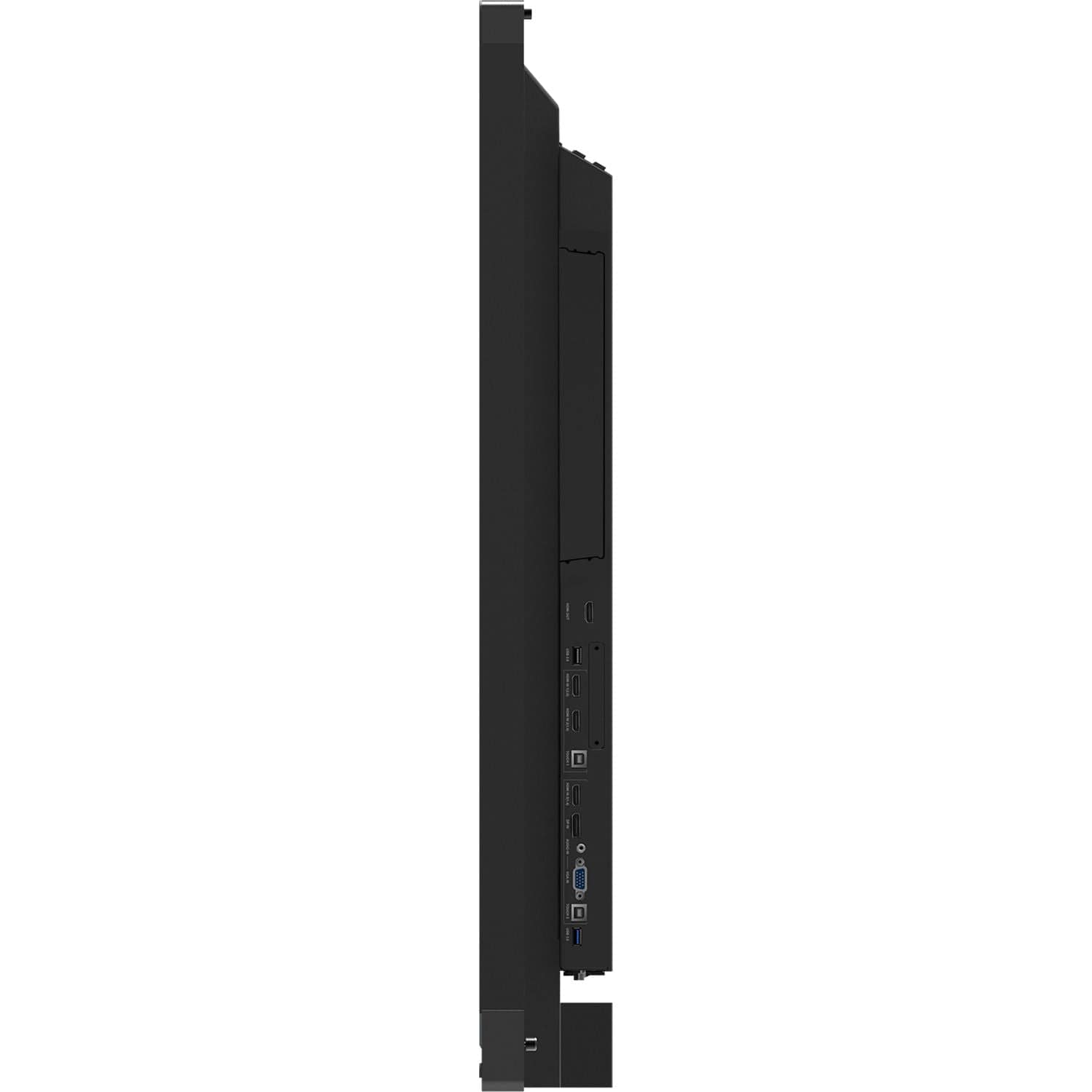

INPUT
HDMI	2.0 x3 (3840x2160 @60Hz)
RGB / VGA	x1
Audio	x1 (PC audio in)
CVBS	x1
RS232	x1
OPS	x1 PC Slot (proprietary)
OUTPUT
HDMI	x1
Audio	x1 (Earphone out)
SPDIF	1(optical)
RS232	x1
LAN
RJ45	x1
USB
Type A	USB 2.0 x4(including 2 USB port in front)
	USB 3.0 x2(including 1 USB port in front)
Type B	x2, for touch
SPEAKERS
SPEAKERS	10W x 2 + 15W x 1
Top Camera Plate	Yes
COMPATIBILITY
RGB PC/HDMI PC	Refer to timing table
CVBS	480i
HDMI	3840x2160
Embedded OS
Embedded OS	Android 7
USB SUPPORTED FILE FORMAT
Picture	BMP, JPEG, PNG
Video	Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
	Container: MPG, MP4, MOV, VOB, DAT, MKV
Audio	Codec: AAC, HEAAC, MPEG1, MPEG2
	Container: AAC, M4A, MP3
Bundle Software
Basic Annotation Software	myViewBoard / vBoard Lite
Pro Annotation Software	myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast	yes
ViewSonic Launcher	Embedded
Special Features
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore)	Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device	10M/100M for Android 10M/100M/1000M for slot-in PC
Power
Voltage	100-240VAC +/- 10% Wide Range
Consumption	81W (Typ.)
	< 0.5 W ("Off")
ERGONOMICS
Wall Mount (VESA® )	400 x 200
OPERATING CONDITIONS
Temperature (º C)	0°C to 40°C
Humidity	10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm)	49.9 x 30.4 x 3.3 in / 1268 x 773 x 85 mm
Packaging (inch / mm)	56.2 x 34.6 x 8.7 in / 1428 x 878 x 220 mm
WEIGHT
Net (lb / kg)	68.34 lb / 31 Kg
Gross (lb / kg)	85.98 lb / 39 Kg
REGULATIONS
REGULATIONS	FCC, cTUVus, CB, CE, BSMI, RCM, EAC
Energy Star version
Energy Star version	ES8.0
EEI rating
EEI rating	A+
