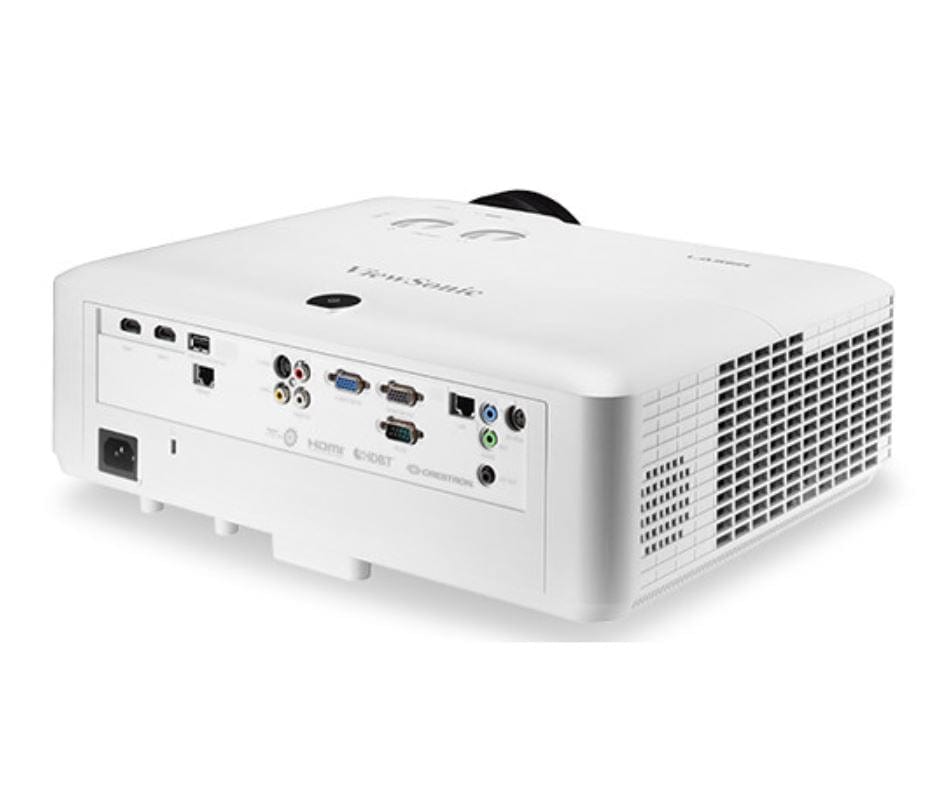

ViewSonic 5000-Lumen WUXGA Short-Throw Laser DLP Projector - Certified Refurbished

ViewSonic LS860WU-R 5000-Lumen WUXGA Short-Throw Laser DLP Projector - Certified Refurbished

Description

Enjoy large images in small rooms with the ViewSonic LS860WU 5000-Lumen WUXGA Short-Throw Laser DLP Projector. Its 5000 lumens of brightness can overcome ambient light in many situations, and its short 0.81 to 0.89:1 throw ratio make it a suitable option for well-lit, small presentation areas. The WUXGA 1920 x 1200 native resolution is suitable for displaying many file and document types. The LS860WU has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. The projector also has a VGA input for analog sources, plus an RCA composite video and S-Video input. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. An HDBaseT port lets you run a single RJ45 cable to provide uncompressed audio and HD video over long distances. A VGA output allows daisy-chaining of multiple projectors or displays. The LS860WU includes a VGA cable and an IR remote control as an added convenience.

Features

• Brightness of 5000 Lumens
• WUXGA (1920 x 1200) Native Resolution
• Short 0.81 to 0.89:1 Throw Ratio
• HDBaseT, S-Video, VGA, RCA, 2x HDMI In
• VGA Output for Loop-Through
• Analog Audio Input and Output
• Dual 10-Watt Speakers

5000 Lumens of Brightness

The LS860WU combines 5000 lumens of brightness with a 30,000,000:1 dynamic contrast ratio to produce clear images in nearly any environment, including large, well-lit boardrooms, conference halls, and auditoriums

Long-Lasting Laser Phosphor Light Source

The laser phosphor light source lasts up to 20,000 hours for virtually maintenance-free usage and a lower total cost of ownership.

One-Wire HDBaseT Connection

With the integrated HDBaseT input, the LS860WU can receive uncompressed HD video and audio over a long distance via a single RJ45 cable.

360° Orientation

The construction of the LS860WU allows it to be installed in nearly any position, at nearly any angle. You can mount it pointing straight down at the floor of a museum exhibit or art gallery installation, or upside-down at a 45° angle. It can even be installed sideways, allowing you to project images in portrait orientation.

Large Images in Small Spaces

The short-throw lens enables large images to be projected from short distances to accommodate usage in small rooms. Additionally, blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen are virtually eliminated because the light source is close to the projection surface.

Additional Mounting Flexibility

The 1.1x optical zoom allows for flexible mounting options and less installation hassle.

Horizontal and Vertical Keystone Correction

Keystone correction and corner adjustment help you eliminate crooked and distorted images for a properly proportioned picture.

Network Monitoring and Control

IT administrators can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts with the integrated Crestron e-Control system and RoomView Express management software. Because the LS860WU is Crestron and AMX certified, IT administrators can control and monitor it for any size campus or enterprise.

Low Input Latency

The LS860WU is designed to deliver smooth images without delay thanks to its 16 ms input latency.

Specifications



Image Display
Display System	DMD DLP
Native Chip Resolution	1920 x 1200 (WUXGA)
Supported Resolutions	Maximum: WUXGA - 1920 x 1200 @ 60 Hz
Max Brightness	5000 Lumens
Aspect Ratio	Native: 16:10
	Supported: 16:9
	Supported: 4:3
Dynamic Contrast Ratio	30,000,000:1
DLP Link 3D	Yes
Supported 3D Formats	Frame Sequential
	Side by Side
	Top Bottom
	Frame Packing
Color Depth	10-Bit (1.07 Billion Colors)
Scan	Horizontal: 15 to 102 kHz
	Vertical: 23 to 120 Hz
Latency	16 ms
Lens
Focus	Manual
Lens Shift	Vertical: ± 50%
	Horizontal: ± 23%
Optical Zoom	Manual: 1.1x
Throw Distance	3.4 - 12.6' / 1.036 - 3.84 m
Throw Ratio	0.81 to 0.89:1
Projection Size	60 - 200" / 152.40 - 508.00 cm
Features
Keystone Correction	Vertical: ± 40°
	Horizontal: ± 40°
Digital Zoom	2x
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	Yes (Stereo)
Speaker Power	20W
Projection Tilt Option	Yes
Closed Captioning	Yes

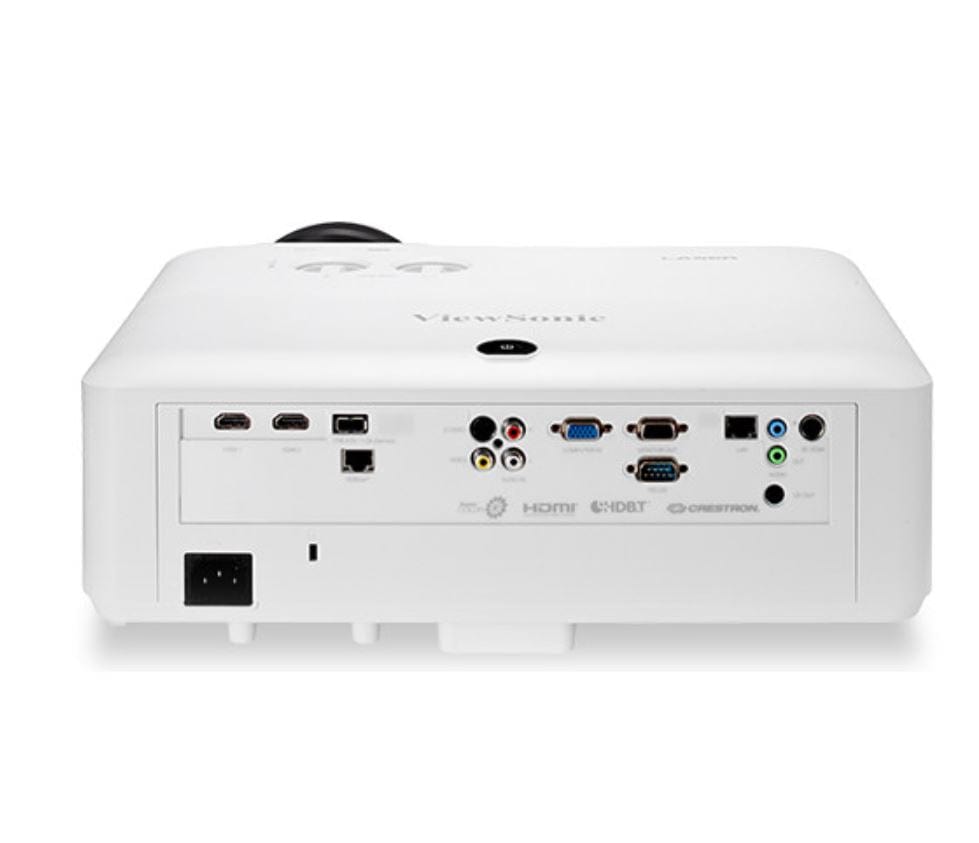

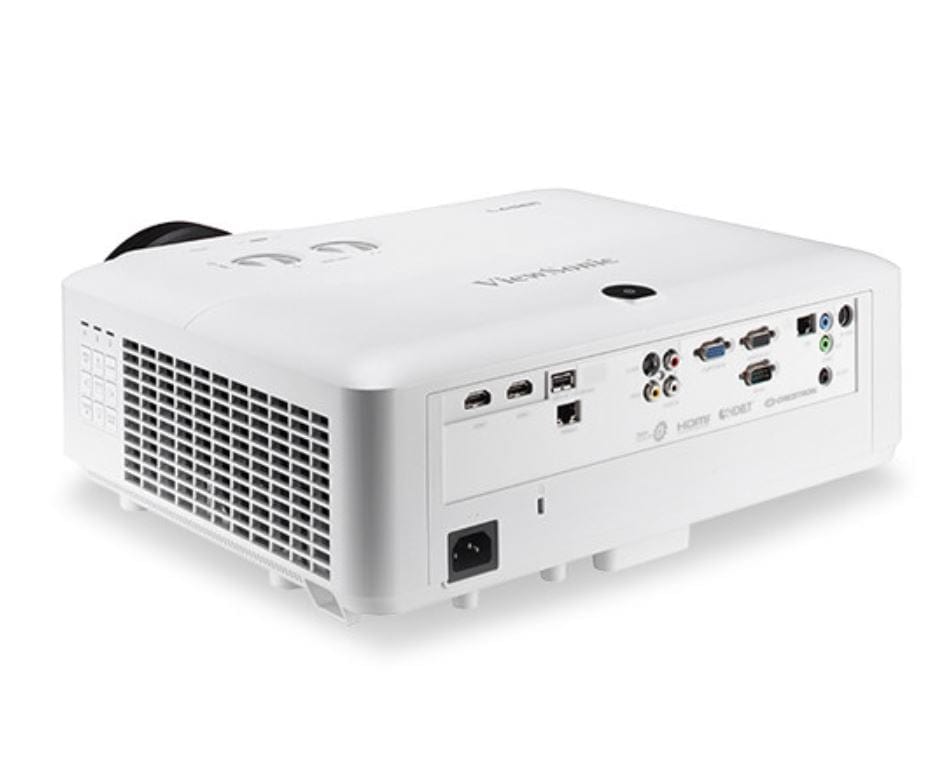

Input/Output Connectors
Inputs/Outputs	1 x HDBaseT (RJ45) Audio, Control, LAN, Power, Video
	2 x HDMI (HDMI Type-A) Audio, Video Input
	1 x VGA (DE-15/DB-15) Video Input
	1 x VGA (DE-15/DB-15) Video Output
	1 x S-Video (4-Pin DIN) Video Input
	1 x Composite (RCA) Video Input
	1 x 2RCA Audio Input
	1 x 1/8" / 3.5 mm Mini Audio Input
	1 x 1/8" / 3.5 mm Mini Audio Output
	1 x USB 2.0 (USB Type-A) Power, Service
	1 x Ethernet (RJ45) LAN
	1 x 12 V Trigger Control Output
	1 x RS-232 (DE-9/DB-9) Control
	1 x VESA 3D Sync (3-Pin DIN) Data Output
General
Light Source	Laser Phosphor
Lamp Power	67 W
	67 W
Expected Lamp Life	Full Brightness: 20,000 Hours
	Low Brightness: 20,000 Hours
Security	Cable Lock Slot
	Security Bar
Supported Languages	Arabic
	Czech
	Dutch
	English
	Finnish
	French
	German
	Greek
	Hindi
	Indonesian
	Italian
	Japanese
	Korean
	Polish
	Russian
	Simplified Chinese
	Spanish
	Swedish
	Thai
	Traditional Chinese
	Turkish
	Vietnamese
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 460 W
	Standby Mode (Lamp Off): < 0.5 W
Operating Altitude	9842' / 3000 m
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 90%
Storage Humidity	10 to 90%
Dimensions (W x H x D)	15.9 x 12.0 x 5.7" / 405.0 x 305.0 x 144.0 mm
Weight	14.55 lb / 6.6 kg
Packaging Info
Package Weight	19.03 lb
Box Dimensions (LxWxH)	20.2 x 19.1 x 10.9"
