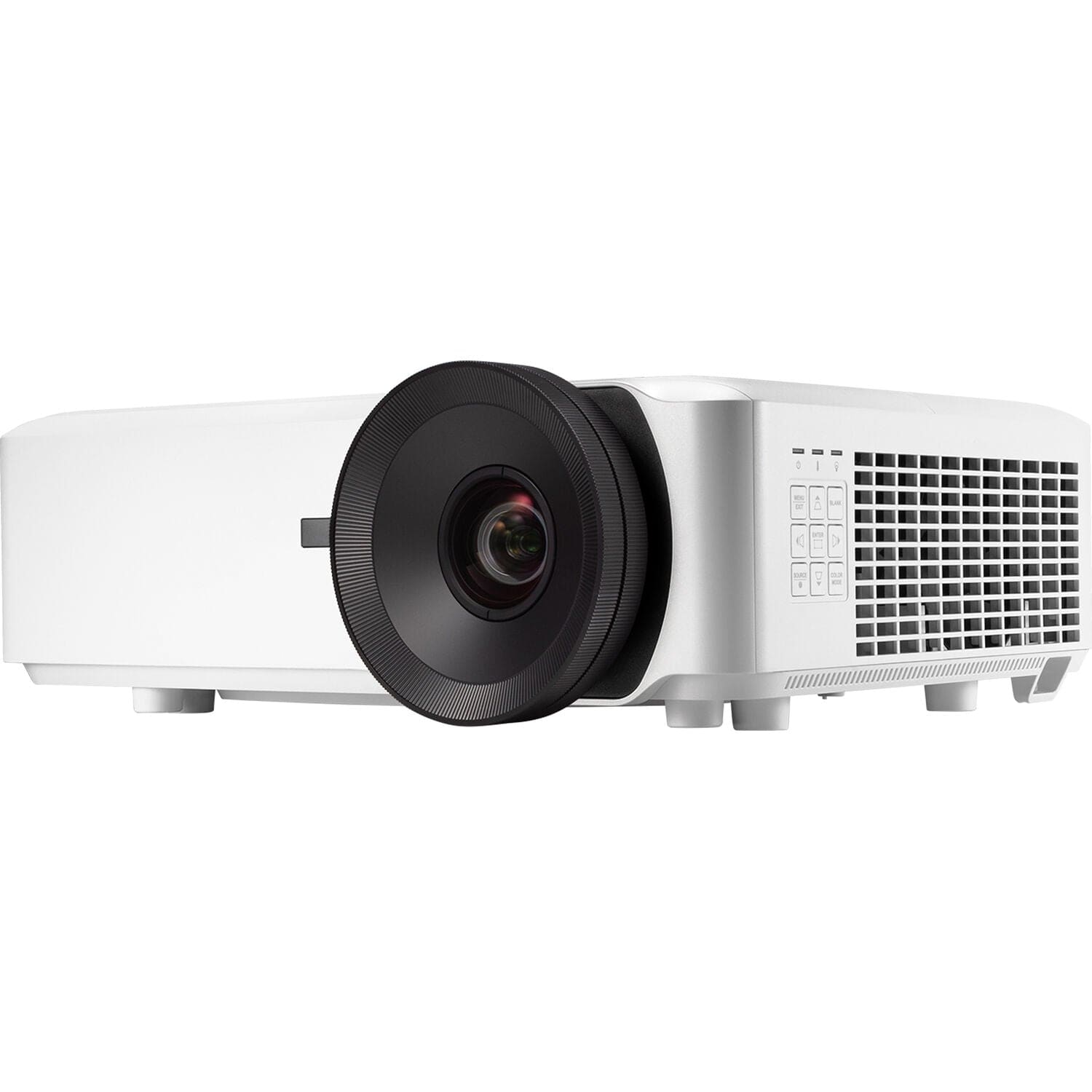

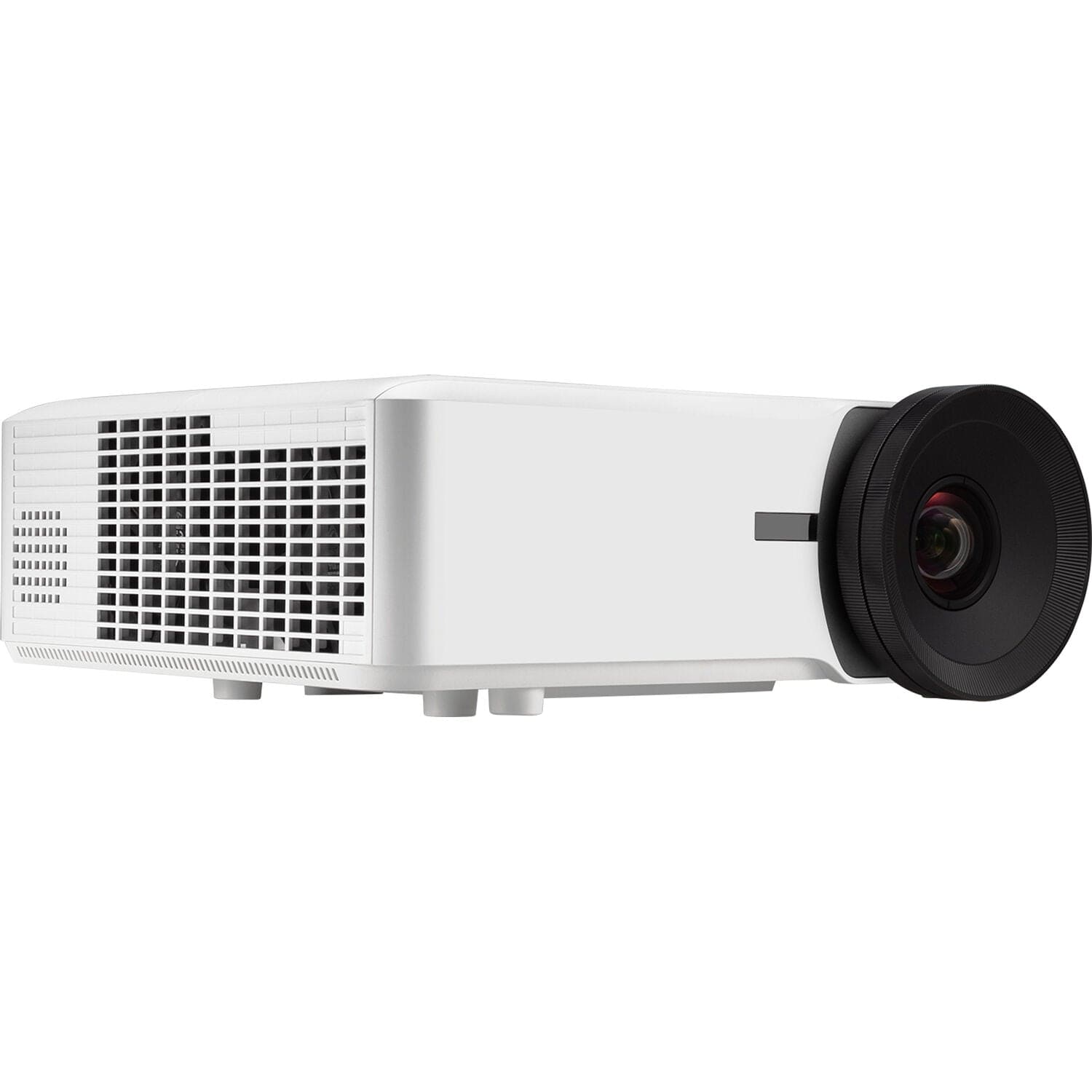

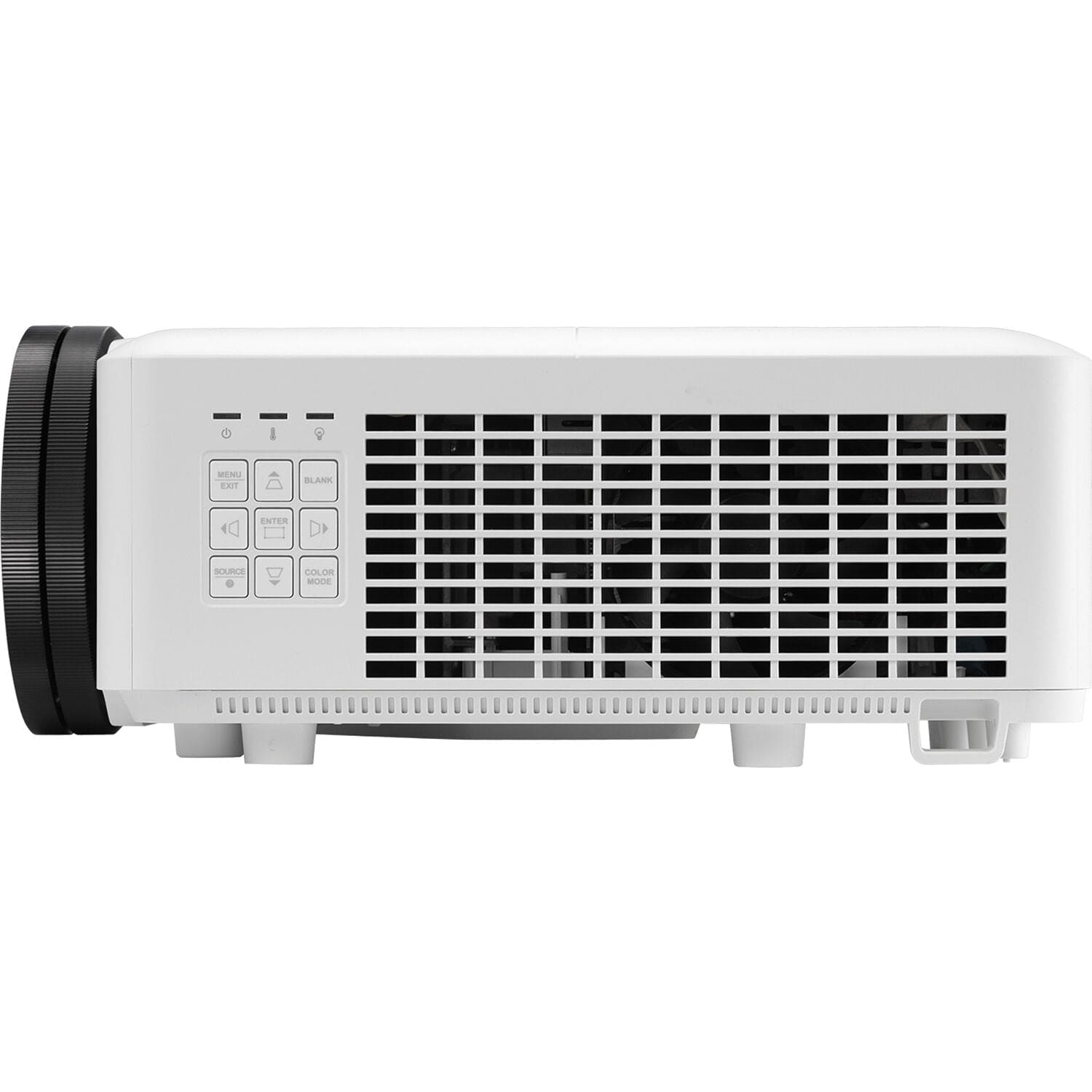

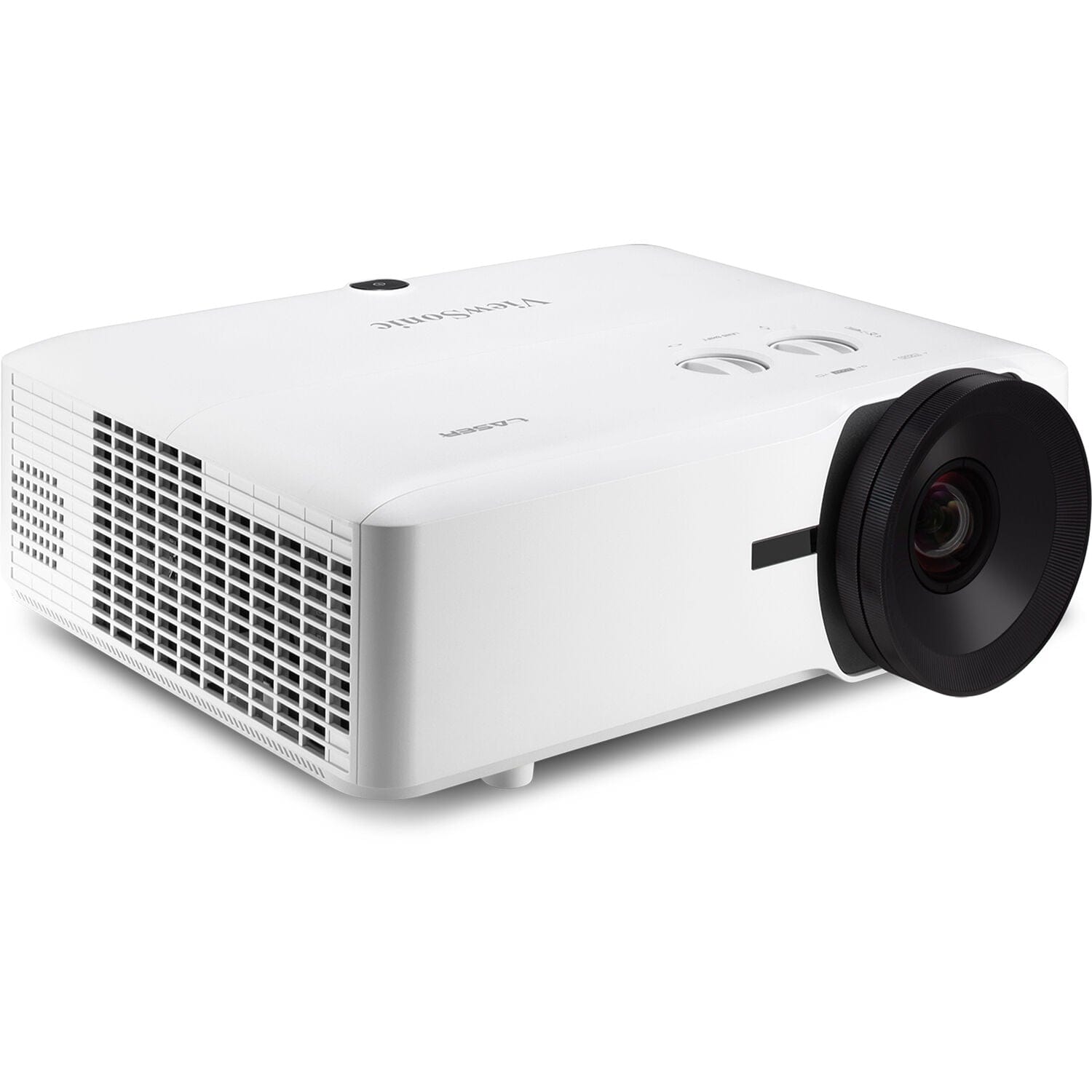

ViewSonic LS921WU-S 6000 Lumens WUXGA Short Throw Laser Projector - Certified Refurbished
Description
The LS921WU 6000-Lumen WUXGA Short Throw Laser Installation Projector from ViewSonic is designed to be a dependable solution for projecting in fully lit commercial spaces. Whether it's a corporate conference room, exhibition hall, or entertainment center, the LS921WU can handle the job. It offers 24/7 durability with a cooling design, sealed optical engine, and an ultra-bright 6000 lumens. With the ability to project displays up to 200", the LS921WU is an easier and more budget-friendly solution compared to a multi-panel video wall. Both the projector and image can be freely adjusted to fit creative applications, and supplying content is easy with dual HDMI inputs and a built-in HDBaseT receiver for long-range communications.Features
- Brightness of 6000 Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1.1x Optical Zoom & 0.81-0.89:1 Throw
- 24/7 Operation with a Cooling Design
- Projects Displays Up to 200"
- 360° Rotation & 90° Portrait
- 2 x HDMI 2.0 & 1 x HDBaseT Inputs
Flexible Installation
Odd wall shapes and wild, artistic requests are not uncommon with commercial installations, which is why the LS921WU is equipped with a variety of adjustments and installation capabilities.
- 360° Rotation: You can rotate the projector freely 360° at any angle vertically, accommodating ceiling and other creative projections
- 90° Portrait: In Portrait Mode, you can turn the LS921WU 90°, increasing the vertical space, which is ideal for maps, advertisements, and related content

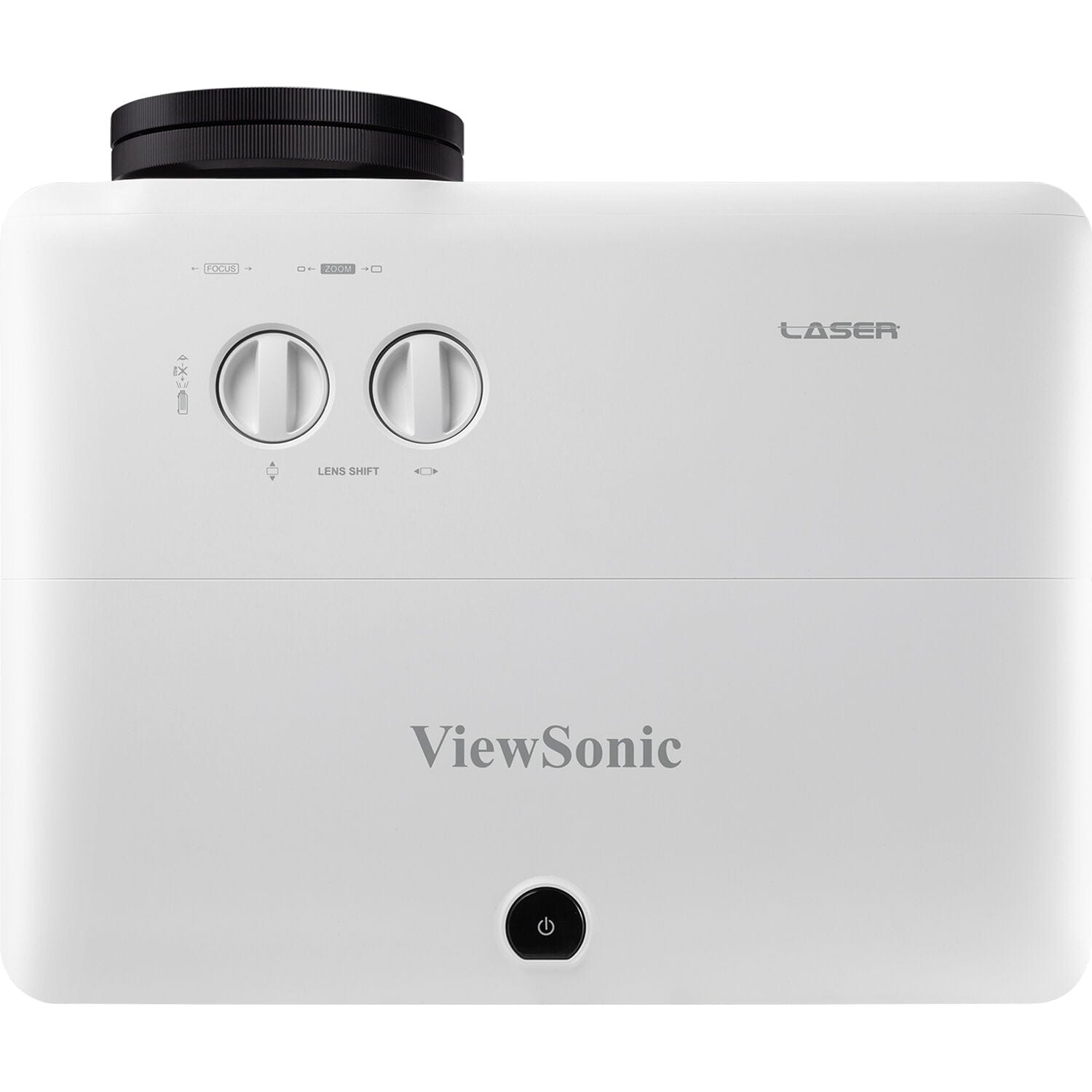

- Wide H/V Lens Shift: Once installed, tool-free lens shift control knobs give you +/- 23% vertical and 50% horizontal image adjustment
- H/V Keystone & 4-Corner: H/V keystone and 4-corner adjustment ensures you'll have a perfectly proportioned image, even at odd angles
- Zoom:1x optical zoom allows you to resize the image to fit the space with the projector in challenging installation environments
24/7 Operation
The LS921WU is an ideal solution for semi-permanent and permanent installations that need to run continuously. Its advanced cooling design and IP5X-rated sealed optical engine keeps everything cool and free of dust, ensuring a consistent image over long periods. This performance is enhanced in the long term by the use of a laser phosphor light source with up to a 20,000-hour lifespan.
Short & Long-Range Content
Dual HDMI inputs allow you to connect a nearby source, such as a Blu-ray player or computer to supply the LS921WU with the required content. For long-range distribution, the LS921WU is equipped with an HDBaseT receiver. This receiver can receive uncompressed high-resolution content over long distances, such as 1080p video from up to 328.1' away. It uses Cat 5e/Cat 6 cabling and is compatible with any certified HDBaseT transmitter.
Remote Management
You can manage the projector remotely to handle any emergency or routine changes. It's equipped with Crestron, AMX, PJLink, ATEN, Extron, and ViewSonic vController for network management.
Additional Features
- 45% lighter and 35% smaller than its predecessor
- Works with ViewSonic Projector Software Update for firmware updates via just a laptop and USB cable
- SuperColor technology offers a wide color range for true-to-life colors in bright or dark locations
- Supports 4K HDR/HLG content sources at 60 Hz
Specifications
Key Specs
|
|
Display System |
DC3 DMD LCD
|
Native Chip Resolution |
1920 x 1200 (WUXGA)
|
Maximum Brightness |
6000 Lumens (ANSI)
|
Throw Ratio |
0.81 to 0.89:1 (100" Screen Size @ 5.71' / 1.74 m)
|
Projection Size |
60 to 200" / 1.5 to 5.1 m
|
Supported HDR Input Formats |
HDR10, Hybrid Log Gamma
|

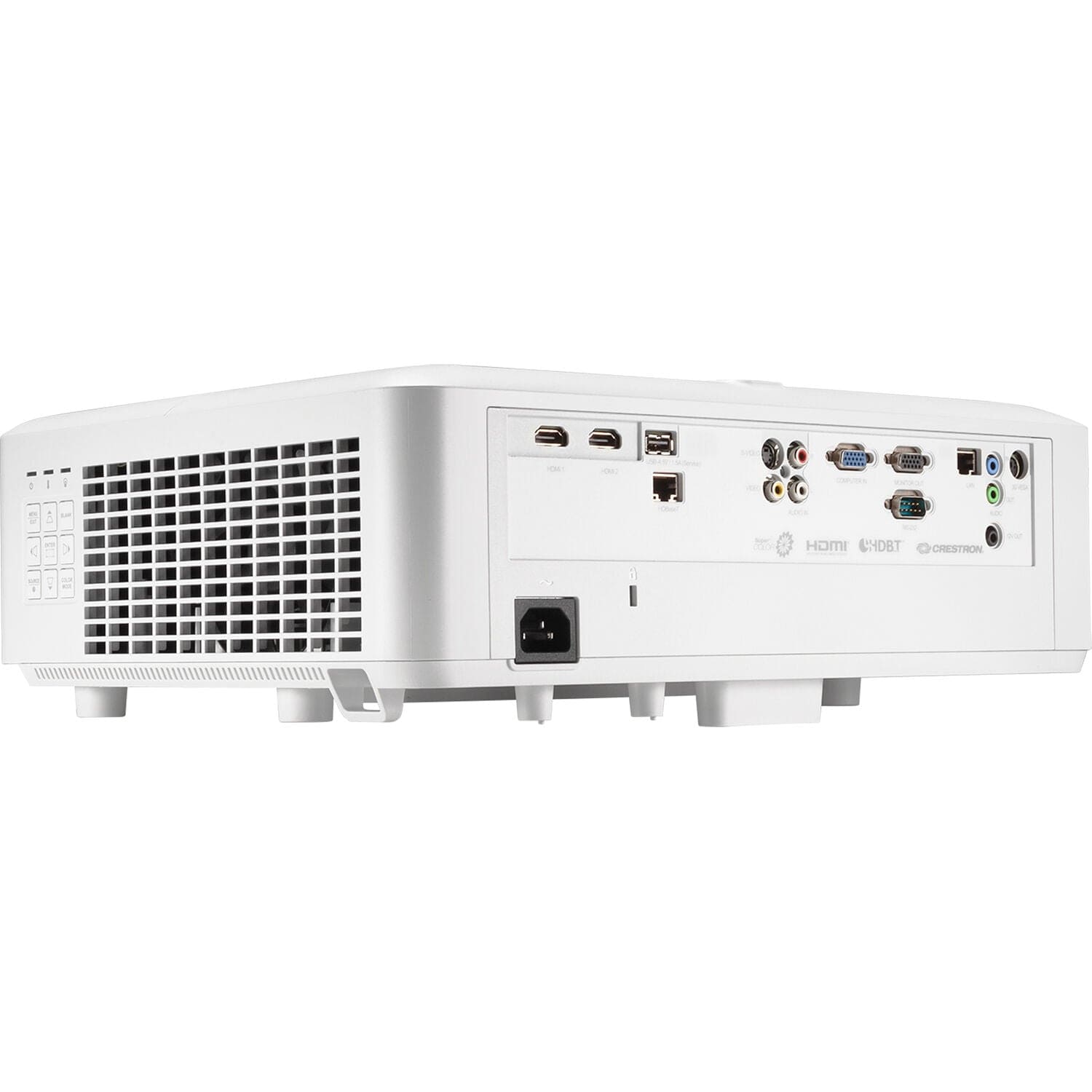

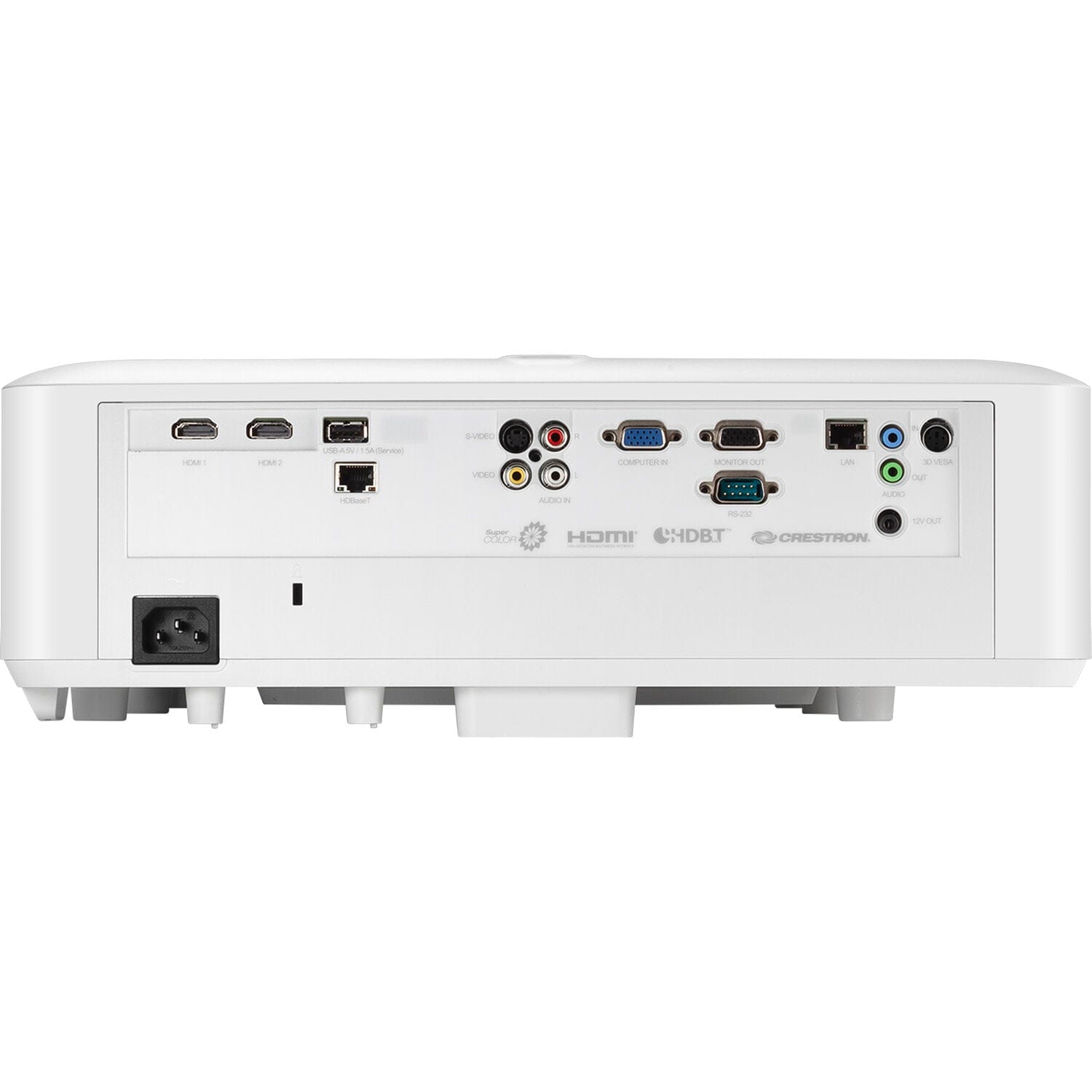

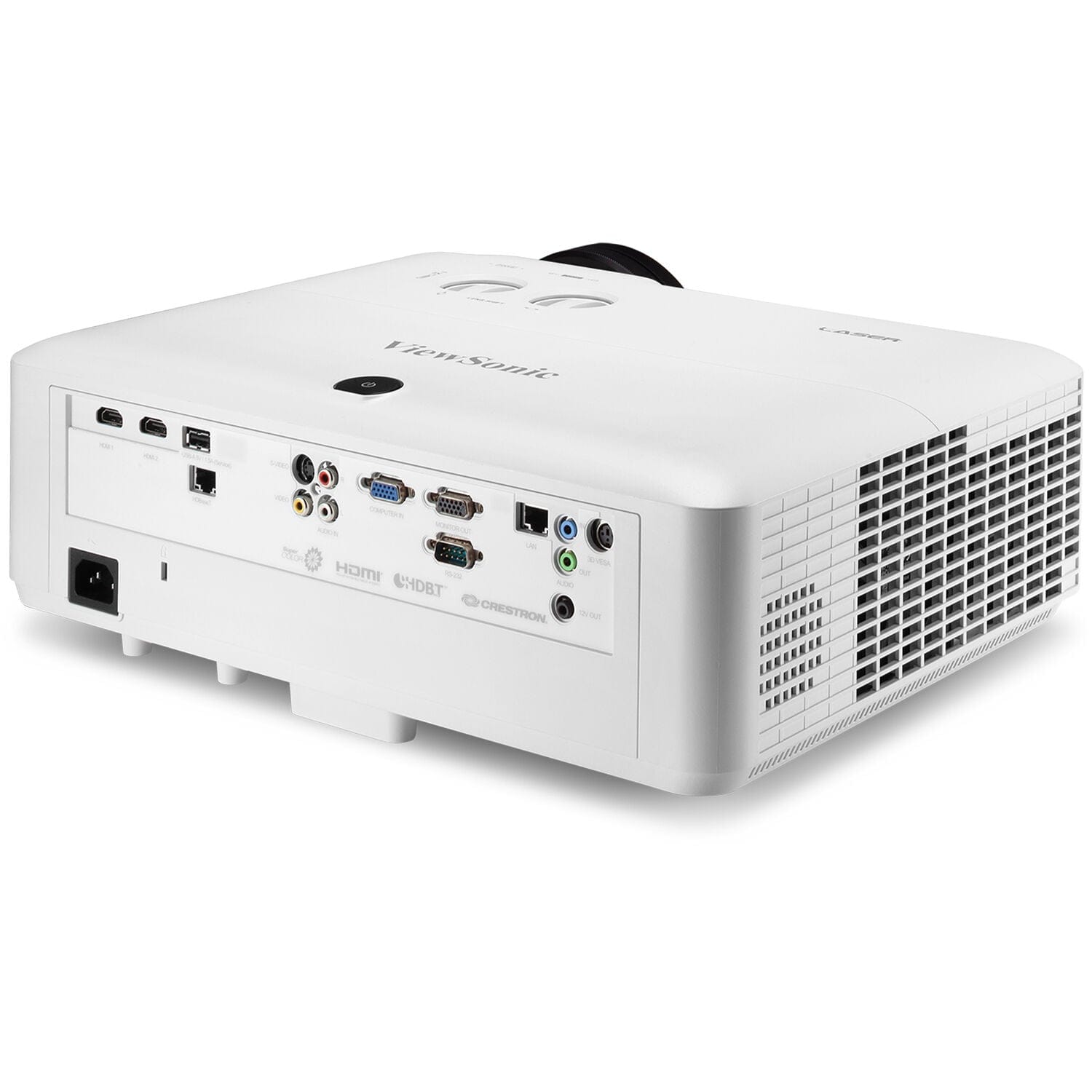

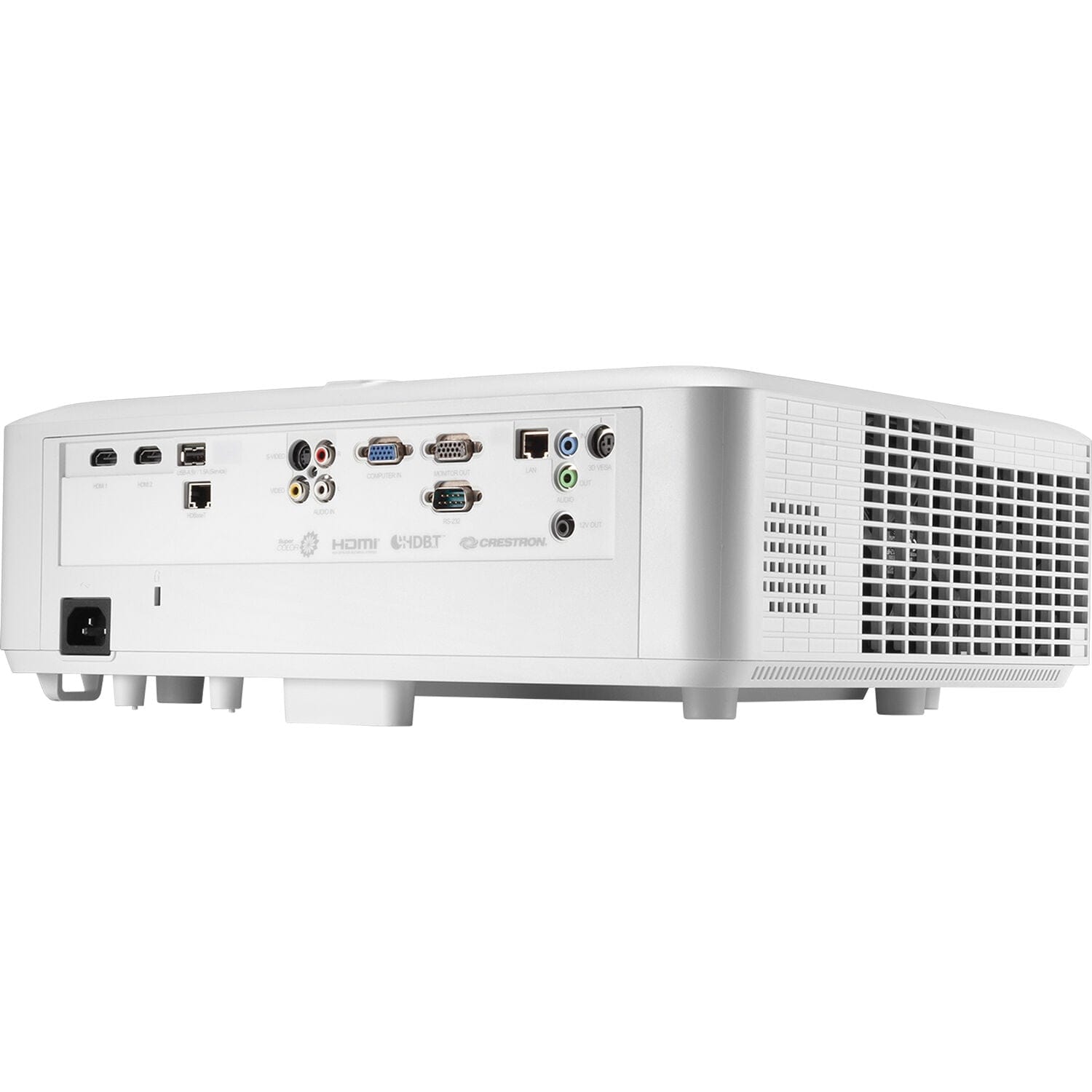

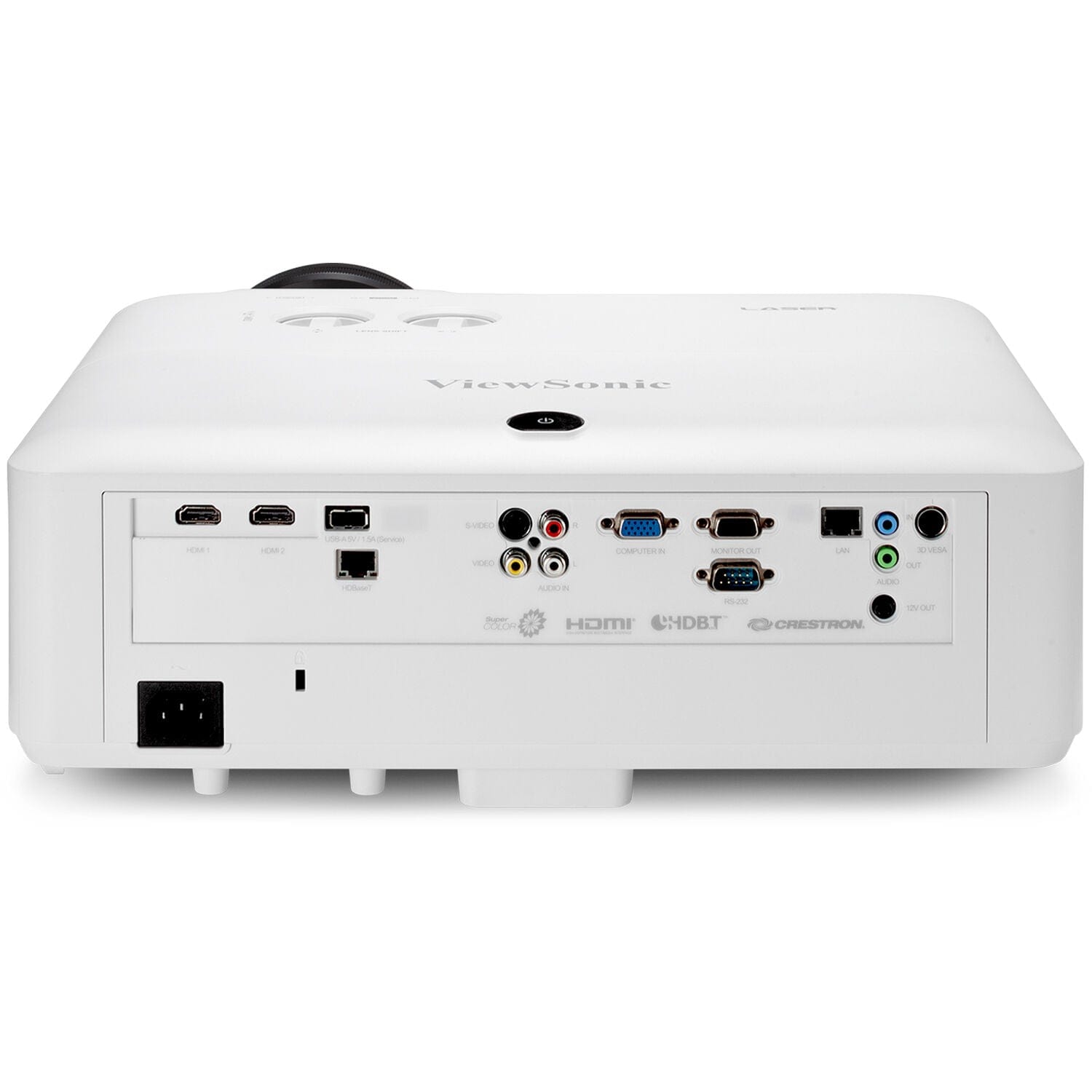

Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input
|
1x DE-15/DB-15 Video Input | |
1x DE-15/DB-15 (VGA) Video Output | |
1x RCA Video Input | |
1x 2RCA Audio Input | |
1x 4-Pin DIN (S-Video) Video Input | |
1x RJ45 (HDBaseT) Audio, Control, LAN, Power, Video Input | |
1x 1/8" / 3.5 mm Mini Audio Input | |
1x 1/8" / 3.5 mm Mini Audio Output | |
1x USB-A Power, Service Input/Output | |
1x 3-Pin DIN (VESA 3D Sync) Control Input | |
1x 12 V Trigger Power Output | |
1x DE-9/DB-9 (RS-232) Control Input | |
1x RJ45 (Ethernet) Control, LAN Input | |
Show More
|
|
Light Source |
Laser Phosphor
|
Image Display
|
|
Display System |
DC3 DMD LCD
|
Native Chip Resolution |
1920 x 1200 (WUXGA)
|
Supported Resolutions |
Minimum: VGA - 640 x 480
|
Maximum: 4K UHD - 3840 x 2160 | |
Maximum Brightness |
6000 Lumens (ANSI)
|
Offset |
0%
|
Aspect Ratio |
16:9
|
Dynamic Contrast Ratio |
3,000,000:1
|
Color Depth |
10-Bit (1.07 Billion Colors)
|
Scan |
Horizontal: 15 to 135 kHz
|
Vertical: 23 to 120 Hz | |
Latency |
16 ms
|
Lens
|
|
Includes Lens |
Yes
|
Aperture |
f/1.83 to 1.86
|
Focal Length |
8.6 to 9.4mm
|
Lens Shift |
Vertical: ± 50%
|
Horizontal: ± 23% | |
Optical Zoom |
1.1x
|
Throw Distance |
3.41 - 12.57' / 1.04 - 3.83 m
|
Throw Ratio |
0.81 to 0.89:1 (100" Screen Size @ 5.71' / 1.74 m)
|
Projection Size |
60 to 200" / 1.5 to 5.1 m
|
Features
|
|
Keystone Correction |
Vertical: ± 40°
|
Horizontal: ± 40° | |
Supported HDR Input Formats |
HDR10, Hybrid Log Gamma
|
Digital Zoom |
2.0x
|
Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer
|
Ceiling Mountable |
Yes
|
Built-In Speaker |
Yes (Stereo)
|
Speaker Power |
20 W
|
Input/Output Connectors
|
|
Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input
|
1x DE-15/DB-15 Video Input | |
1x DE-15/DB-15 (VGA) Video Output | |
1x RCA Video Input | |
1x 2RCA Audio Input | |
1x 4-Pin DIN (S-Video) Video Input | |
1x RJ45 (HDBaseT) Audio, Control, LAN, Power, Video Input | |
1x 1/8" / 3.5 mm Mini Audio Input | |
1x 1/8" / 3.5 mm Mini Audio Output | |
1x USB-A Power, Service Input/Output | |
1x 3-Pin DIN (VESA 3D Sync) Control Input | |
1x 12 V Trigger Power Output | |
1x DE-9/DB-9 (RS-232) Control Input | |
1x RJ45 (Ethernet) Control, LAN Input | |
HDCP Support |
Yes, Version 2.2
|
Media/Memory Card Slot |
No
|
Hardware
|
|
Mobile App Compatible |
No
|
Bluetooth |
No
|
General
|
|
Light Source |
Laser Phosphor
|
Lamp Power |
74 W
|
Expected Lamp Life |
Medium Brightness: 20,000 Hours
|
Low Brightness: 30,000 Hours | |
Fan Noise |
Medium Brightness: 36 dB
|
Low Brightness: 29 dB | |
Supported Languages |
Arabic
|
Czech | |
Dutch | |
English | |
Finnish | |
French | |
German | |
Greek | |
Hindi | |
Indonesian | |
Italian | |
Japanese | |
Korean | |
Polish | |
Portuguese | |
Russian | |
Simplified Chinese | |
Spanish | |
Swedish | |
Thai | |
Traditional Chinese | |
Turkish | |
Vietnamese | |
AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Power Consumption |
Medium Brightness: 450 W
|
Standby Mode (Lamp Off): 0.5 W | |
Operating Temperature |
32 to 104°F / 0 to 40°C
|
Dimensions (W x H x D) |
15.9 x 5.7 x 12.0" / 405.0 x 145.0 x 305.0 mm
|
Weight |
14.3 lb / 6.5 kg
|
Packaging Info
|
|
Package Weight |
19.21 lb
|
Box Dimensions (LxWxH) |
20.1 x 19.5 x 12.6"
|
