ViewSonic PG603X-S 3600-Lumen XGA DLP Projector - Certified Refurbished

Save 21%
ViewSonicSKU: PG603X-S

Sale price$474.99 Regular price$599.99
  • Shipping: FREE SHIPPING on orders $50+
  • Condition: Refurbished
    This product has been refurbished by the manufacturer or an authorized third party
  • Warranty: 90 Day Manufacturer Warranty


ViewSonic PG603X-S 3600-Lumen XGA DLP Projector - Certified Refurbished



Enjoy bright images in many environments with the ViewSonic PG603X 3600-Lumen XGA DLP Projector. Its 3600 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The XGA 1024 x 768 native resolution is suitable for displaying many file and document types, and it can accept video signals up to Full HD (1920 x 1080) from higher resolution sources. The projector features a 1.55 to 1.7:1 throw ratio, providing flexible installation options.

The PG603X has an HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. It also has a VGA input for analog sources, plus an RCA composite video input. Its HDMI input is 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PG603X includes a VGA cable and an IR remote control.


  • Brightness of 3600 Lumens
  • XGA (1024 x 768) Native Resolution
  • 55 to 1.7:1 Throw Ratio
  • Composite, HDMI, & VGA Inputs

SuperColor for Enhanced Color Accuracy

ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.

3600 Lumens of Brightness

The PG603X combines 3600 lumens of brightness with a 22,000:1 dynamic contrast ratio to produce clear images in nearly any environment.

Network Monitoring and Control

You can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. And since the PG603X is Crestron and AMX certified, you can control and monitor the projector for nearly any size campus or enterprise.

USB Reader and Display

Deliver your presentations using a plug-and-play USB connection without running a connection cable. Using the built-in USB reader, you can display photos, Microsoft Office files, and PDFs directly from a USB flash drive.

Energy-Efficient SuperEco Mode

SuperEco mode allows users to dim projector brightness by up to 70%, thereby reducing the lamp's power consumption and, ultimately, total cost of ownership.

Balanced Color and Brightness

A choice of five unique view modes provide an enhanced viewing experience in nearly any environment regardless of ambient light.

3D Blu-ray-Ready HDMI Input

Designed with an HDMI port, this projector is well suited for connecting to any HDMI-enabled device and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with the optional ViewSonic PGD-350 shutter glasses, or any other compatible 3D glasses.

Programmable Remote Control

A programmable MyButton hotkey can be configured to launch the most commonly used functions. Control up to eight projectors in the same venue or from a mobile device via the free vRemote app.

LAN and Optional Wi-Fi Display

With its networking capability, the PG603X can project images over a wired network, or, with the optional PJ-WPD-200 wireless adapter, wireless LAN. The LAN display offers a quad split screen to simultaneously project content from up to four computers, with the ability to broadcast from up to eight projectors.


Image Display
Display System 0.55" DMD DLP
Native Chip Resolution 1024 x 768 (XGA)
Supported Resolutions Minimum: 640 x 480
  Maximum: Full HD 1080p - 1920 x 1080
Max Brightness 3600 Lumens
Aspect Ratio Native: 4:3
Dynamic Contrast Ratio 22,000:1
DLP Link 3D Yes
Color Wheel 6-Segment
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15 to 102 kHz
  Vertical: 23 to 120 Hz
Focus Manual
Optical Zoom Manual: 1.1x
Throw Distance 3.3 - 36' / 1.006 - 10.973 m
Throw Ratio 1.55 to 1.7:1
Projection Size 30 - 300" / 76.20 - 762.00 cm
Keystone Correction Manual-Vertical: ± 30°
  Manual-Horizontal: ± 20°
Built-In Speaker Yes
Speaker Power 10W

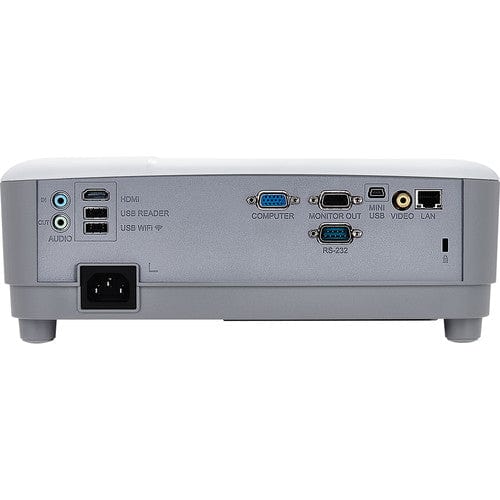

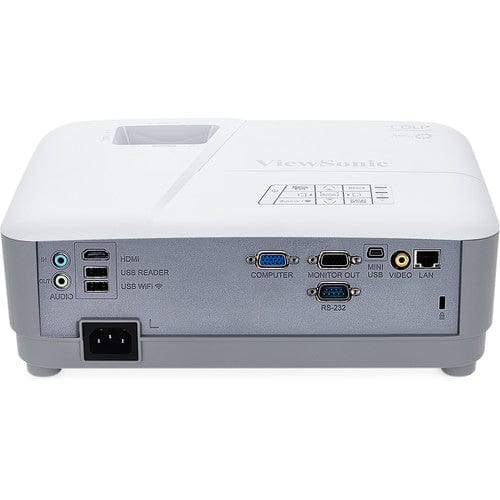

Input/Output Connectors
Inputs/Outputs 1 x HDMI Audio/Video (Input)
  1 x VGA (DE-15) Video (Input)
  1 x VGA (DE-15) Video (Output)
  1 x Composite (RCA) Video (Input)
  1 x 1/8" / 3.5 mm Mini Audio (Input)
  1 x 1/8" / 3.5 mm Mini Audio (Output)
  2 x USB Type-A Female (Input)
  1 x Ethernet (RJ45) LAN (Input)
  1 x RS-232C (Unspecified Connector) Control (Input)
  1 x Mini-USB Type-B Female (Input)
Wireless LAN / Wi-Fi No, Optional Adapter Available
Light Source Lamp
Lamp Power 190 W
Expected Lamp Life Full Brightness: 5000 Hours
  Low Brightness: 15,000 Hours
Security Cable Lock Slot
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 270 W
  Standby Mode (Lamp Off): <0.5 W
Max Operating Altitude 9842' / 3000 m
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 - 90%

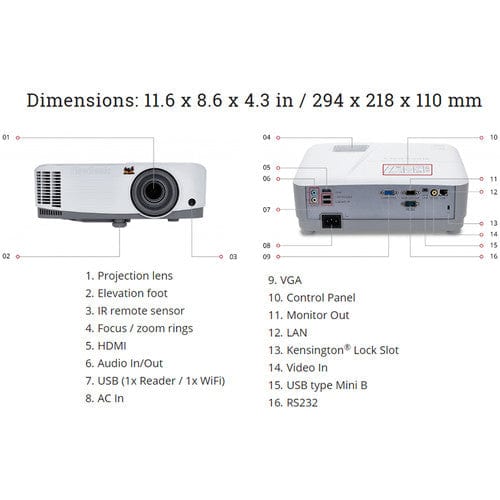

Dimensions (W x H x D) 11.6 x 4.3 x 8.6" / 29.5 x 10.9 x 21.8 cm
Weight 5.1 lb / 2.3 kg
Packaging Info
Package Weight 7.2 lb
Box Dimensions (LxWxH) 14.25 x 11.9 x 7.4"
