Description

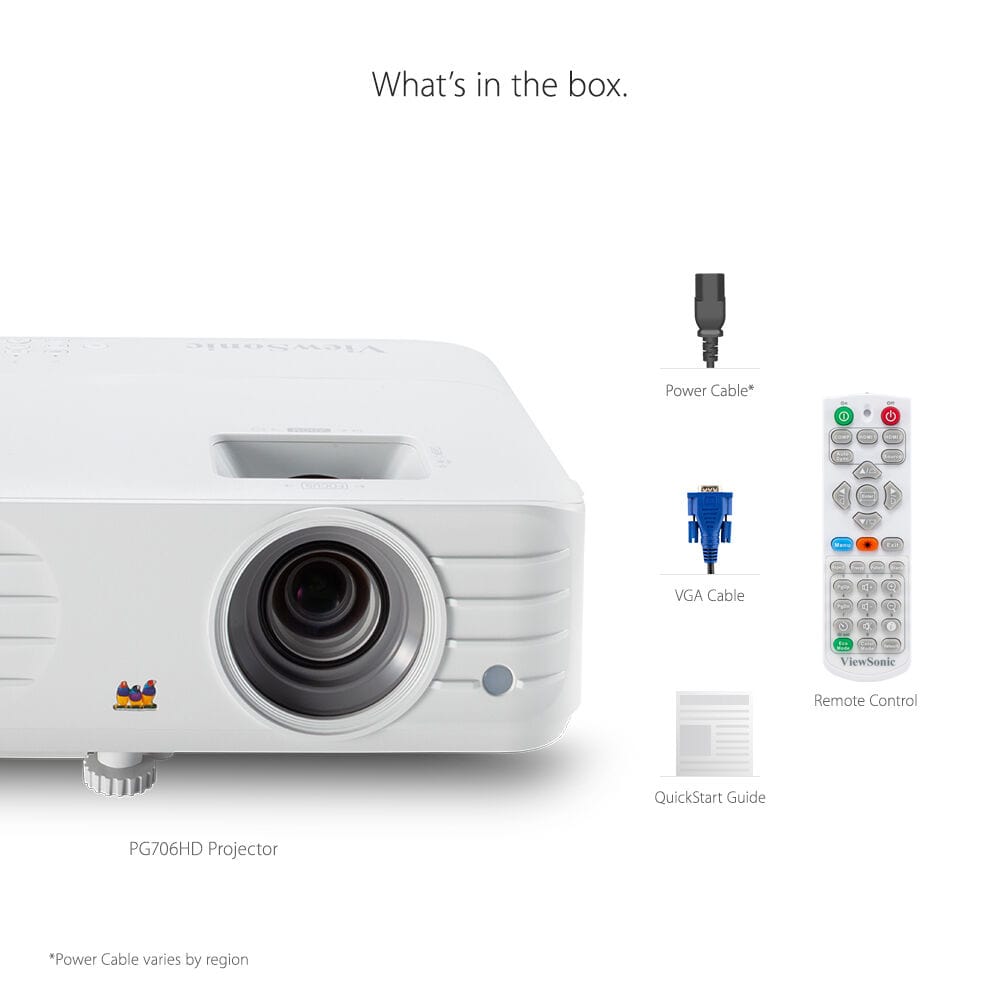

Enjoy bright images in various room conditions with the ViewSonic PG706HD 4000-Lumen Full HD DLP Projector. Its 4000 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The 1920 x 1080 Full HD native resolution is suitable for displaying many file and document types, as well as 1080p video signals. The projector features a 1.5 to 1.65:1 throw ratio, which allows you to place it near the back of the room in many installations without losing focus. The PG706HD has two HDMI inputs for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. The projector also has a VGA input for analog sources, plus an RCA composite video and S-Video input. Its HDMI inputs are 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PG706HD includes a VGA cable and an IR remote control.
Features
- Brightness of 4000 Lumens
- Full HD (1920 x 1080) Native Resolution
- 1.5 to 1.65:1 Throw Ratio
- VGA, S-Video, RCA, 2x HDMI Inputs
4000 Lumens of Brightness
The PG706HD outputs up to 4000 lumens of brightness to produce visible images in nearly any environment.
Energy-Efficient SuperEco Mode
SuperEco mode is designed to reduce power consumption and extend lamp life up to 20,000 hours.
SuperColor for Enhanced Color Accuracy
ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
Dual 3D Blu-ray-Ready HDMI Inputs
Designed with two HDMI ports, this projector is well suited for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with the optional ViewSonic PGD-350 shutter glasses, or any other compatible 3D glasses.
16 ms Input Latency
The 16 ms input latency is designed to provide fast frame-by-frame action for smooth images without delay.
Specifications
|
Image Display |
|
| Display System | DMD DLP |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 |
| Maximum Brightness | 4000 Lumens |
| Aspect Ratio | Native: 16:9 |
| DLP Link 3D | Yes |
| Color Wheel | 6-Segment |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 102 kHz |
| Vertical: 23 to 120 Hz | |
| Latency | 16 ms |
|
Lens |
|
| Focus | Manual |
| Optical Zoom | Manual: 1.1x |
| Throw Distance | 3.3 - 36' / 1.006 - 10.973 m |
| Throw Ratio | 1.5 to 1.65:1 |
| Projection Size | 30 - 300" / 76.20 - 762.00 cm |
|
Features |
|
| Keystone Correction | Manual-Vertical: ± 40° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10W |
|

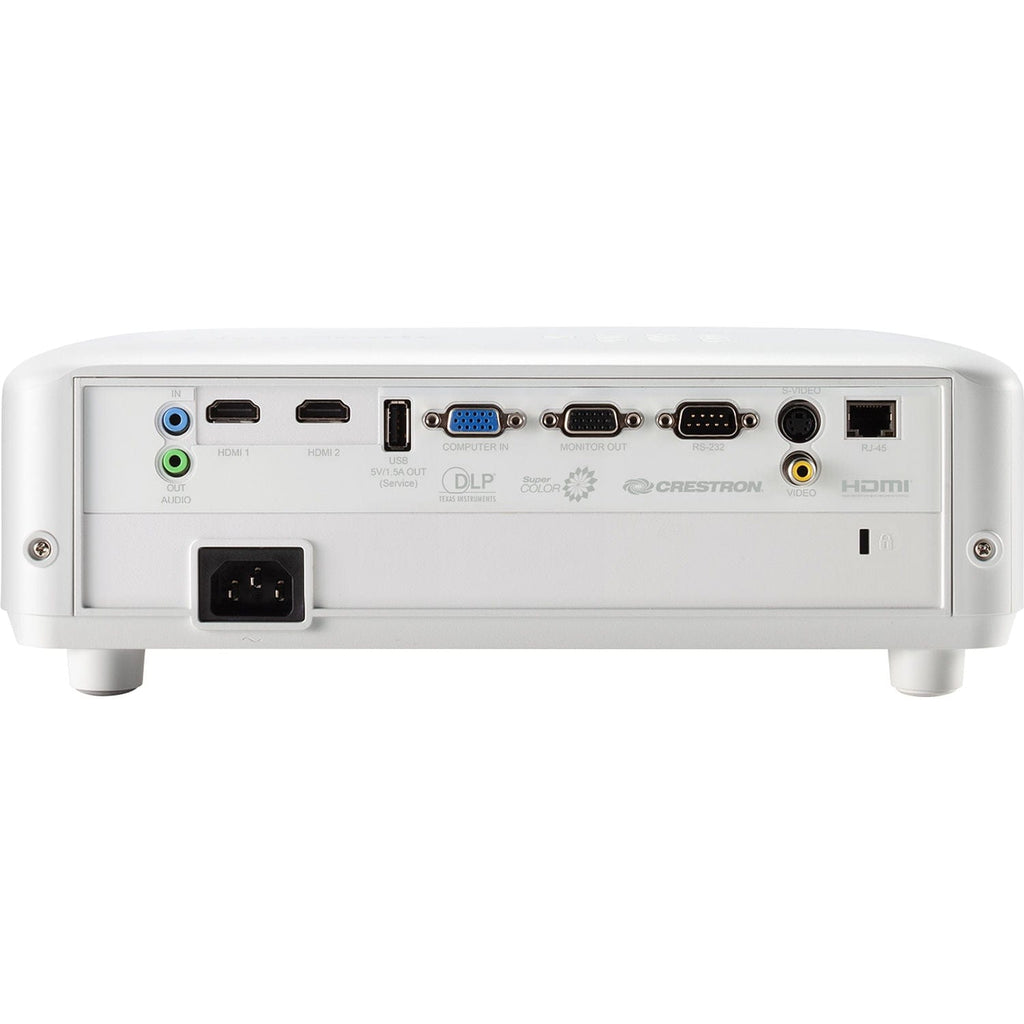

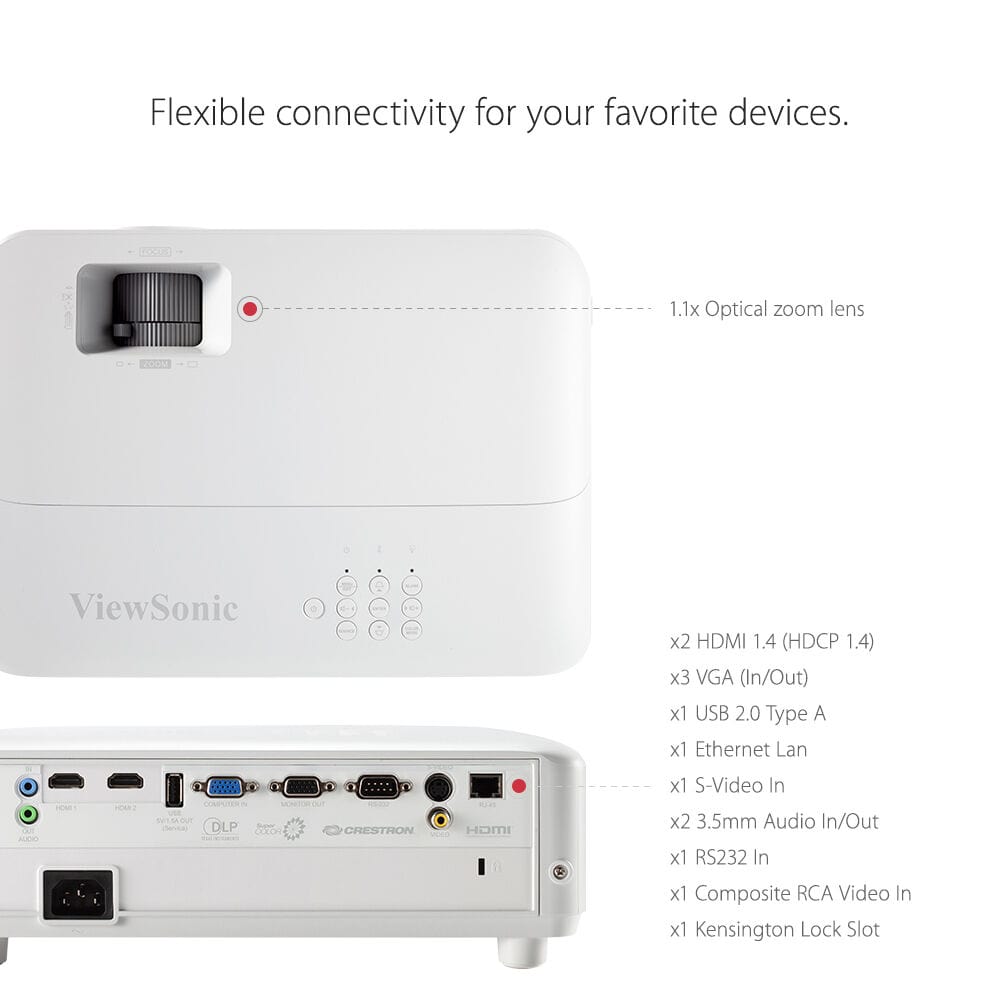

Input/Output Connectors |
|
| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input |
| 1 x VGA (DE-15/DB-15) Video Input | |
| 1 x VGA (DE-15/DB-15) Video Output | |
| 1 x S-Video (4-Pin DIN) Video Input | |
| 1 x Composite (RCA) Video Input | |
| 1 x 1/8" / 3.5 mm Mini Audio Input | |
| 1 x 1/8" / 3.5 mm Mini Audio Output | |
| 1 x USB 2.0 (USB Type-A) Control, Power, Service | |
| 1 x Ethernet (RJ45) LAN | |
| 1 x RS-232 (DE-9/DB-9) Control | |
|
General |
|
| Light Source | Lamp (1 x P-VIP) |
| Lamp Power | 245 W |
| Expected Lamp Life | Full Brightness: 4000 Hours |
| Low Brightness: 20,000 Hours | |
| Security | Cable Lock Slot |
| Supported Languages | Arabic |
| Czech | |
| Dutch | |
| English | |
| Finnish | |
| French | |
| German | |
| Hindi | |
| Indonesian | |
| Italian | |
| Japanese | |
| Korean | |
| Polish | |
| Portuguese | |
| Russian | |
| Simplified Chinese | |
| Spanish | |
| Swedish | |
| Thai | |
| Traditional Chinese | |
| Turkish | |
| Vietnamese | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 355 W |
| Low Brightness: 310 W | |
| Standby Mode (Lamp Off): < 0.5 W | |
| Operating Altitude | 9842' / 3000 m |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| Storage Humidity | 0 to 90% |
| Dimensions (W x H x D) | 12.3 x 4.3 x 8.7" / 312.0 x 108.0 x 222.0 mm |
| Weight | 6.17 lb / 2.8 kg |
|
Packaging Info |
|
| Package Weight | 8.4 lb |
| Box Dimensions (LxWxH) | 16.3 x 11.8 x 6.7" |
