Description
The ViewSonic PJD6245 XGA DLP 3D Ready Multi-Region Projector features 3000 ANSI lumens brightness and a 15,000:1 dynamic contrast ratio, which yields a clear and vivid image for presentations - even in a room with ambient light. The projector supports DynamicEco technology, which automatically adjusts the lamp brightness for every lighting situation. This lowers power consumption costs, while also extending lamp life up to 10,000 hours. It's equipped with a 3D Ready HDMI input and BrilliantColor technology as well, which constructs digital colors for more lifelike images. The PJD6245 is also equipped with Crestron e-Control and RoomView Express, making it great for classroom and corporate LAN environments. In addition, it's AMX Device Discovery certified for easy remote control and monitoring by IT administrators. It's equipped with a variety of inputs and outputs for flexible connectivity options as well. Other features include vertical keystone correction, a 2W speaker and compatibility with PJ-Link and SNMP.
Features
- XGA 1024 x 768 Native Resolution
- 3000 ANSI Lumens Brightness
- 15,000:1 Dynamic Contrast Ratio
- Lamp Life up to 10,000 Hours

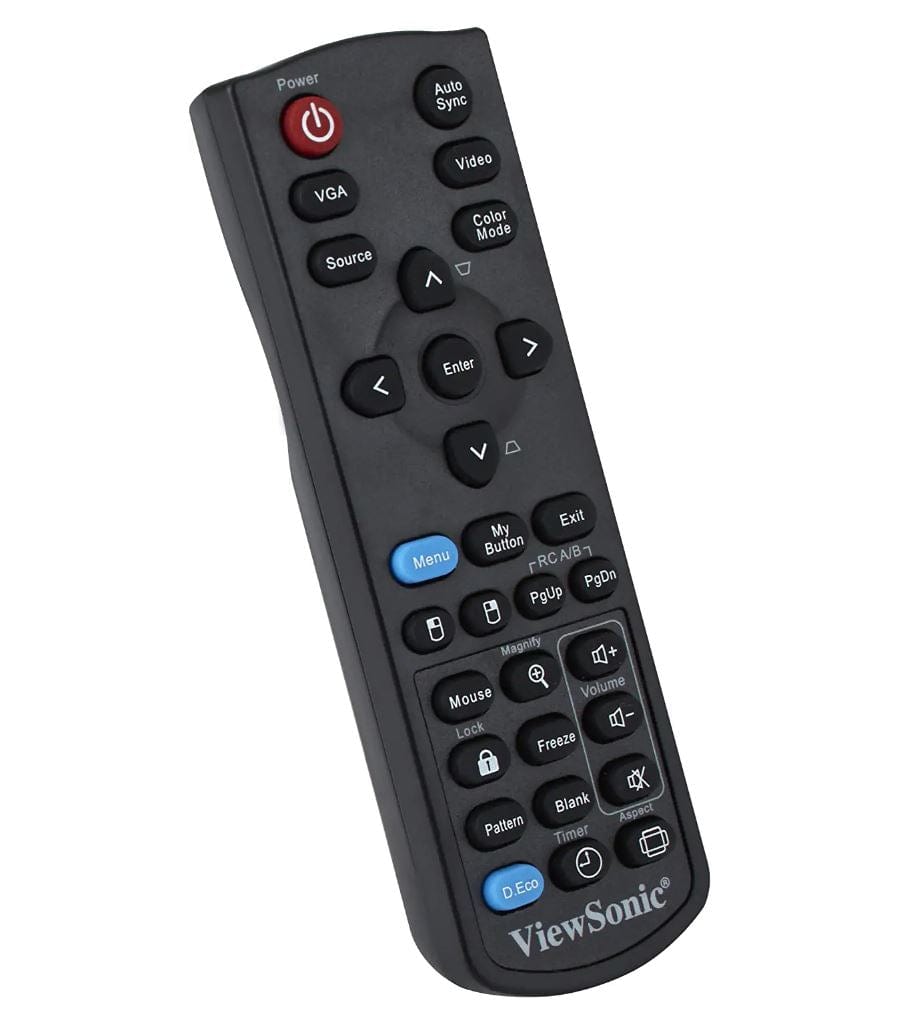

XGA 1024 x 768 resolution and DLP technology 3000 ANSI lumens brightness and 15,000:1 dynamic contrast ratio 3D Blu-ray ready with HDMI Network control and monitoring with Crestron e-Control and RoomView Express AMX, PJ-Link and SNMP compatible HDMI, dual VGA, composite and S-video inputs VGA output, RS-232 jack and LAN RJ-45 connectivity Audio input, audio output and integrated 2W speaker Vertical keystone correction DynamicEco technology will automatically reduce lamp brightness by up to 70% 1.1x manual Zoom and focus Supports 1080p, 1080i and 720p HDTV formats Slim design is only 3.3" high and weighs only 4.6 lb Apple Mac compatible Includes remote control with batteries
Specifications
| Brightness | 3,000 ANSI Lumens |
| Resolution | 1024x768 |
| Aspect Ratio | 4:3 (XGA) |
| Contrast | 15,000:1 (full on/off) |
| Display Type | 0.55" DLP x 1 |
| Color Wheel | 6 segments |
| Color Processing | 8-bit |
| Video Modes | 720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i |
| Data Modes | MAX 1600x1200 |
| 3D Modes | PC 3D Ready |
| Lamp Type | 190W Metal Halide bulb |
| Lamp Life | 4,500 hours / 8,000 hours (Eco) |
| Lamp Model | RLC-078 Buy Replacement Lamp |
| Included Lens | 1.1x manual zoom , manual focus |
| Optional Lenses | No |
| Lens Shift | No |
| Throw Distance | 3.2' - 37.0' Calculate Throw Distance |
| Image Size | 23.53" - 298.39" |
| Throw Ratio | 1.86:1 - 2.04:1 (D:W) |
| Projector Placement | For a 100" diagonal screen, place the projector lens between 12'-5" and 13'-7" from the screen. |
| Digital Keystone | Vertical only |
| Projector Size | 3.30" x 10.50" x 8.70" (HxWxD) |
| Weight | 4.6 lbs |
| Audible Noise | 32 dB / 29 dB (Eco) |
| Internal Speakers | 2.0 Watts Mono |
| Power | 240 Watts 100V - 240V |

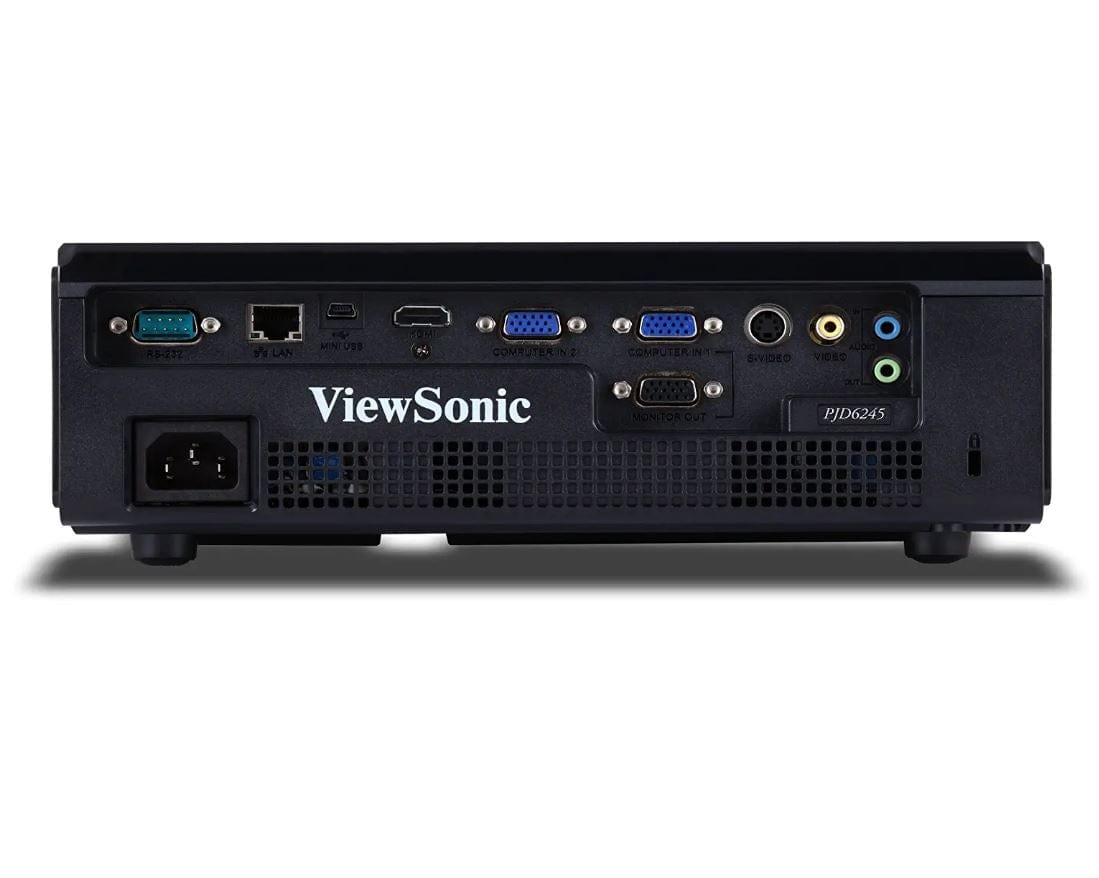

| Connection Panel | Composite: RCA |
| HDMI | |
| Network: RJ-45 | |
| RS232: DB-9pin | |
| S-Video | |
| USB | |
| VGA In: Dsub-15pin x 2 | |
| Features | PC 3D Ready |
| Crestron RoomView | |
| Additional Features | The ViewSonic PJD6245 is equipped with Crestron e-Control™ and RoomView Express, making it ideal for classroom and corporate LAN environments. |
