Description

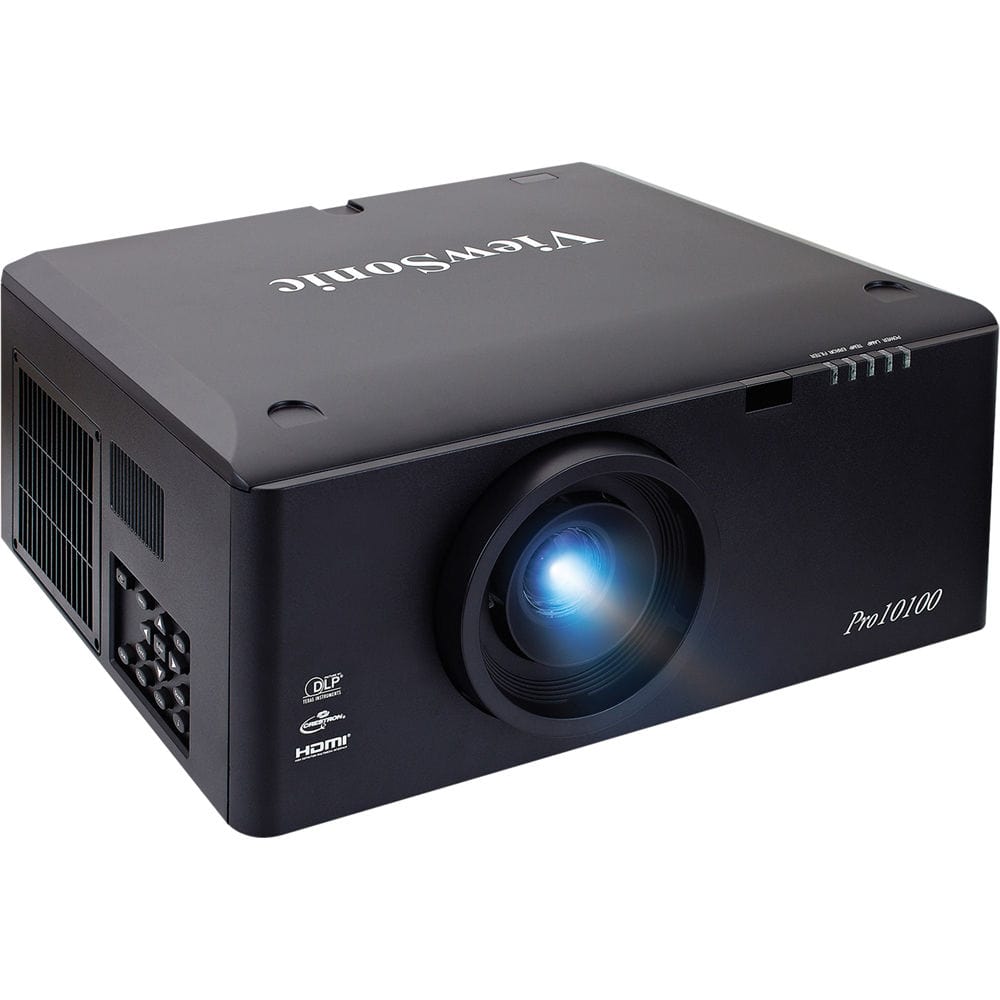

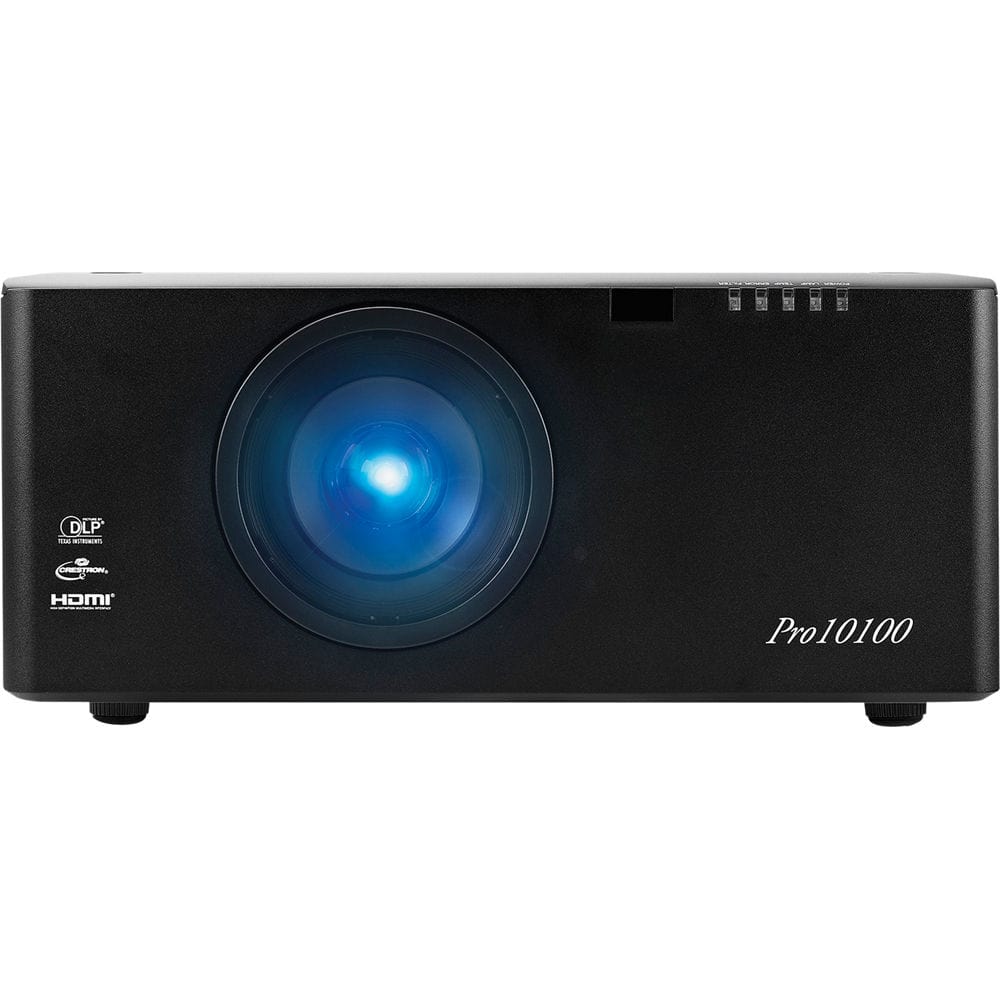

The ViewSonic Pro10100 is a high-brightness installation DLP projector. It boasts 6,000 lumens of brightness, XGA (1024x768) native resolution, and is designed for theaters, museums, auditoriums, lecture halls, houses of worship, and other large commercial venues. The Pro10100 comes standard with powered zoom and focus, motorized vertical and horizontal lens shift, network management, and DICOM SIM mode. With dual-layer dust-free filter and advanced heat-dissipation technology, the Pro10100 is designed to support 24/7 continuous use and 360-degree installation. Optional features include interchangeable lenses that provide increased installation flexibility, multiple-image edge-blending capability, and image-correction technology for 4-corner, curve, pincushion, barrel, and rotation projection surfaces. In addition, with its wide range of digital and analog inputs, the Pro10100 is the ideal solution for commercial installations and large venues.
Features
- Powered Lens Shift
- Motorized Zoom & Focus
- Optional Edge Blending
- Optional Warping / Geometric Adjustment
Bright Images in Large Commercial Spaces
Packed with 6,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large commercial spaces with high ambient light including auditoriums, convention centers, lecture halls, houses of worship and more.
Interchangeable Lens Design
An interchangeable lens design provides greater flexibility for various large venue and commercial installations. With optional short throw, standard throw, and long throw lenses (sold separately), this projector offers various throw ratios and distances to meet the installation needs for different environments.
PoweredZoom & Focus

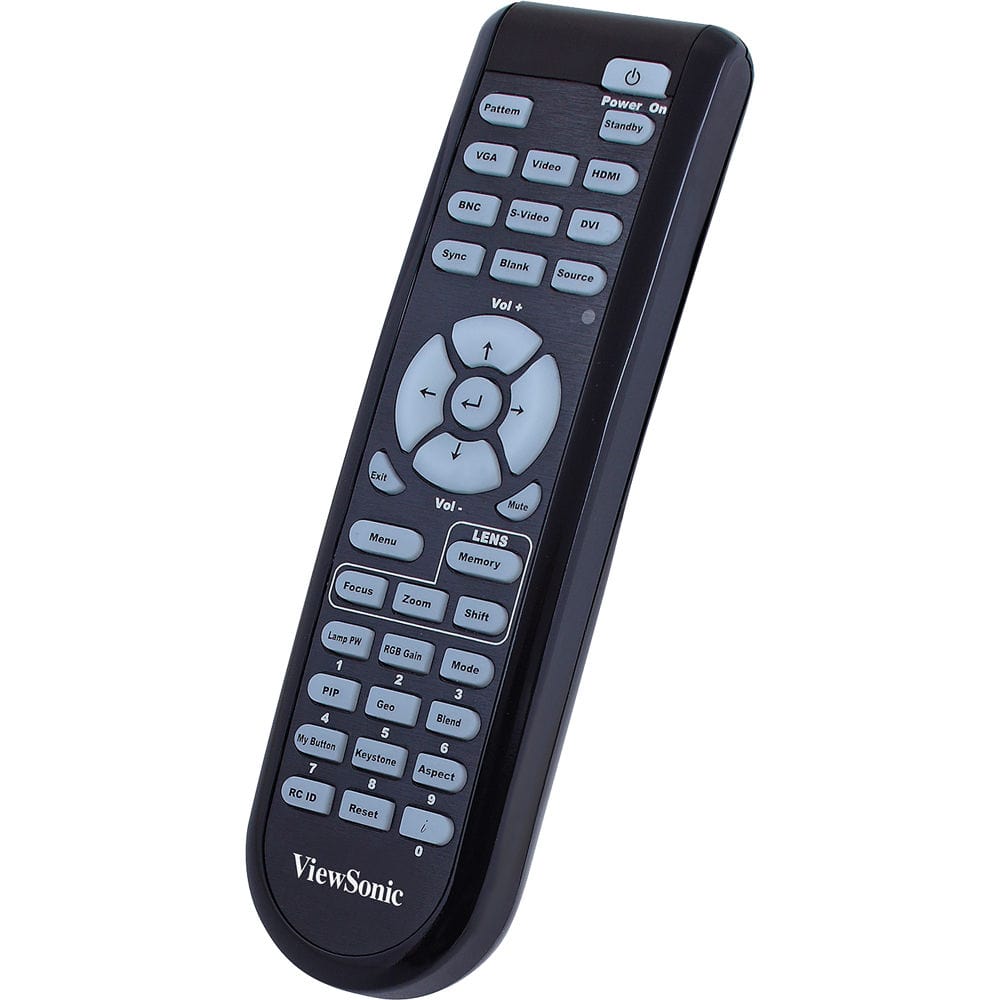

This projector comes standard with powered zoom and focus, which enables the installer to easily adjust lens zoom and focus settings from a remote control. This feature provides installation flexibility, ease of use, and fast deployment.
Motorized Vertical & Horizontal Lens Shift
A motorized lens shift feature offers vertical and horizontal adjustments of the projection lens. This feature provides flexible projector placement for challenging installations.
Seamless Edge Blending
Designed for ProAV applications and challenging installations, an optional edge-blending feature allows multiple projectors to seamlessly project multiple images to form a single cohesive image with uniform brightness and color – no matter how large the projection screen surface.
Specifications
| Display: | |
| Type: | DLP Lamp |
| Resolution Type: | XGA |
| Resolution: | 1024 x 768 |
| Brightness (Lumens): | 6,000 ANSI |
| Throw Distance: | 50 – 300 in. (1.27 – 7.6m) |
| Throw Ratio: | 1.26-1.28 |
| Keystone: | Vertical digital keystone correction (± 20º) |
| Lens: | Lens sold separately |
| Light Source (watt): | 370 |
| Light Source Life, Normal (hours): | 1,500 |
| Light Source Life, Dynamic Eco-Mode (hours): | 00:00 |
| Color Depth: | 30 bits, 1.07B Color (10+10+10) |
| Dynamic Contrast Ratio: | 4,400:1 |
| Aspect Ratio: | 4:3 (native) |
| Video Signal: | |
| Frequency Horizontal: | 15 – 100 KHz |
| Frequency Vertical: | 24 – 87 Hz |
| Compatibility: | |
| PC Resolution (max): | 1680 x 1050 |
| Mac® Resolution (max): | 1680 x 1050 |

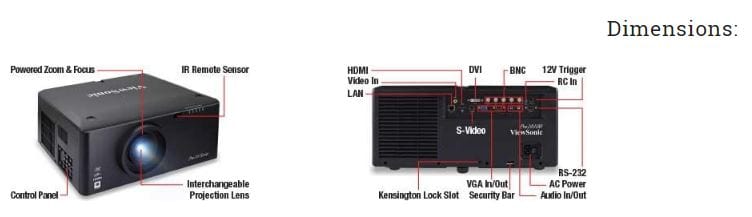

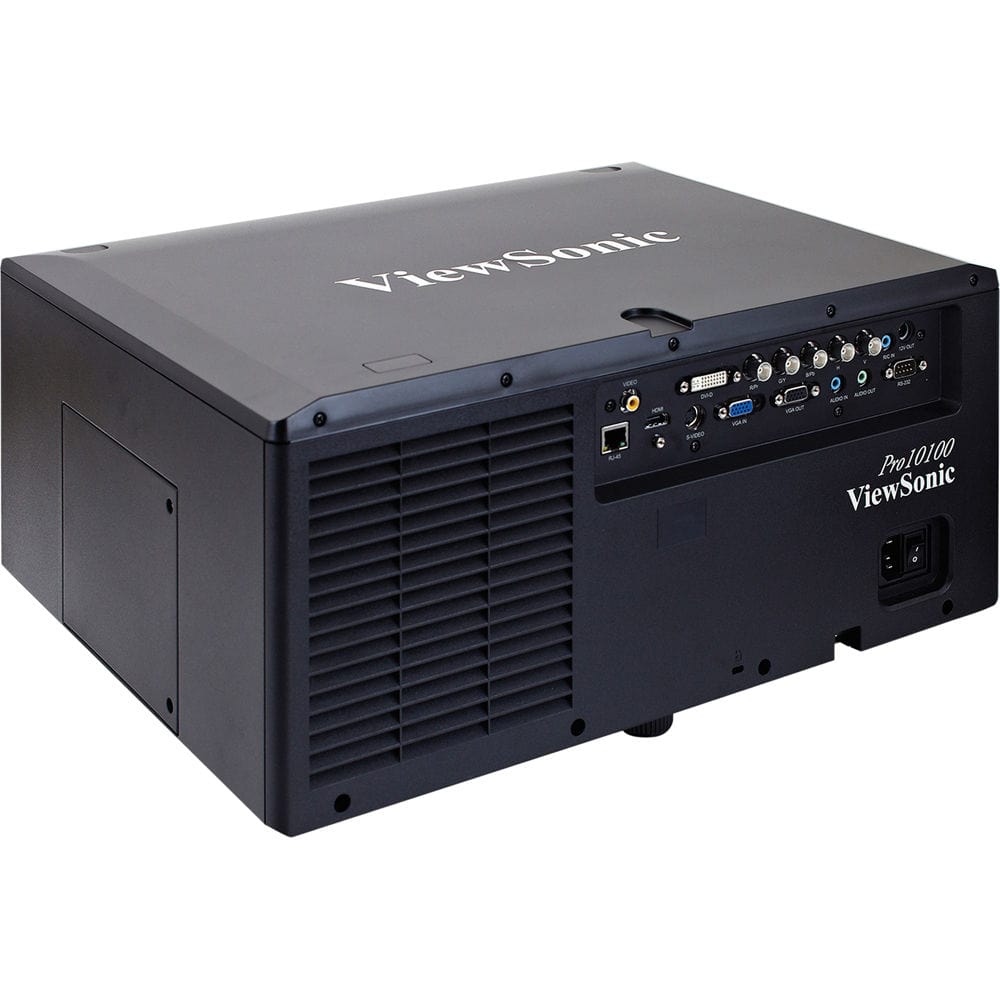

| Connector: | Ethernet LAN (RJ45)(1), 3.5mm 12V Trigger(1), 3.5mm Audio Out(1), 3.5mm Audio In(1), Control (RS-232)(1), HDMI(1), VGA In(1), VGA Out(1), Composite RCA Video In(1), S-Video In(1), RGB Input(15-pin mini D-sub) |
| Audio: | |
| Internal Speakers: | 10W (x1) |
| Power: | |
| Voltage: | 100~240VAC (Auto Switching), 50-60Hz (universal) |
| Consumption (max): | 480W |
| Stand-by: | <.05W |
| Controls: | |

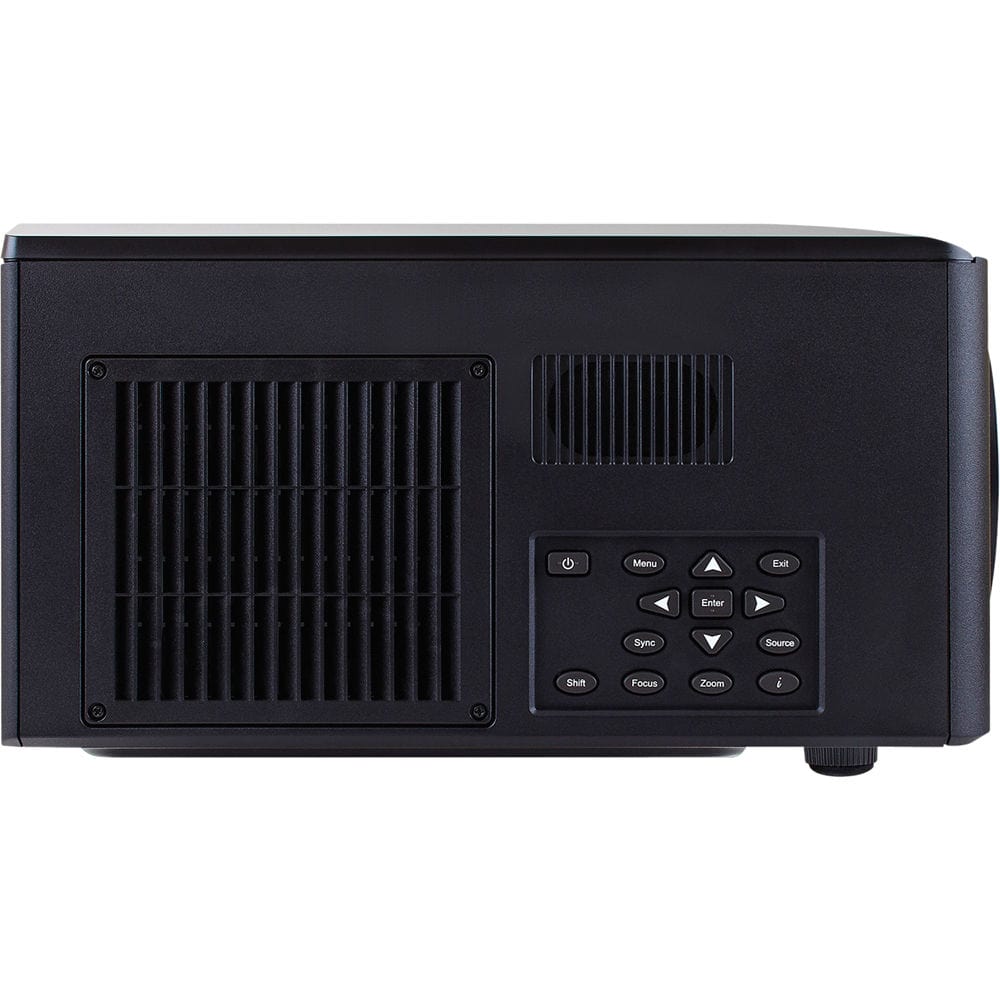

| Physical Controls: | Power, arrow keys, menu, exit, sync, enter, source, shift, focus, zoom, info |
| On Screen Display: | Picture, Screen, Setting, Options(See user guide for full OSD functionality) |
| Operating Conditions: | |
| Temperature: | 41-104º F (5 - 40º C) |
| Humidity (non-condensing): | 0-85% |
| Noise Level: | |
| Normal: | 38dB |
| Eco-Mode: | 33dB |
| Weight (imperial): | |
| Net Without Stand (lbs): | 30.6 |
| Gross (lbs): | 38.1 |
| Weight (metric): | |
| Net Without Stand (kg): | 13.9 |
| Gross (kg): | 17.3 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 23.2 x 16.1 x 19.7 |
| Physical Without Stand (in.): | 17.8 x 8.3 x 15.4 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 590 x 408 x 500 |
| Physical Without Stand (mm): | 453 x 212 x 390 |
| General: | |
| Regulations: | CB, UL/cUL, FCC (including ICES-004), CE, TUV-GS, C-Tick, CCC, WEEE, RoHS, ErP, REACH, SVHC |
| Package Contents: | LEN-009 LEN-010 LEN-011 LEN-012 RLC-087 PJ-EB001 WPG-SeriesPro10100 projector (without lens), power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard CD (with User Guide) |
| Warranty: | 90 days limited warranty on parts and labor. |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| UPC: | 766907689617 |
| Accessories: | LEN-008, LEN-009, LEN-010, LEN-011, LEN-012, PGD-350, PRJ-EE-09-03, PRJ-EEEW-09-01, PRJ-EEEW-09-02, PRJ-EW-09-01, PRJ-EW-09-02, WPG-370 |
