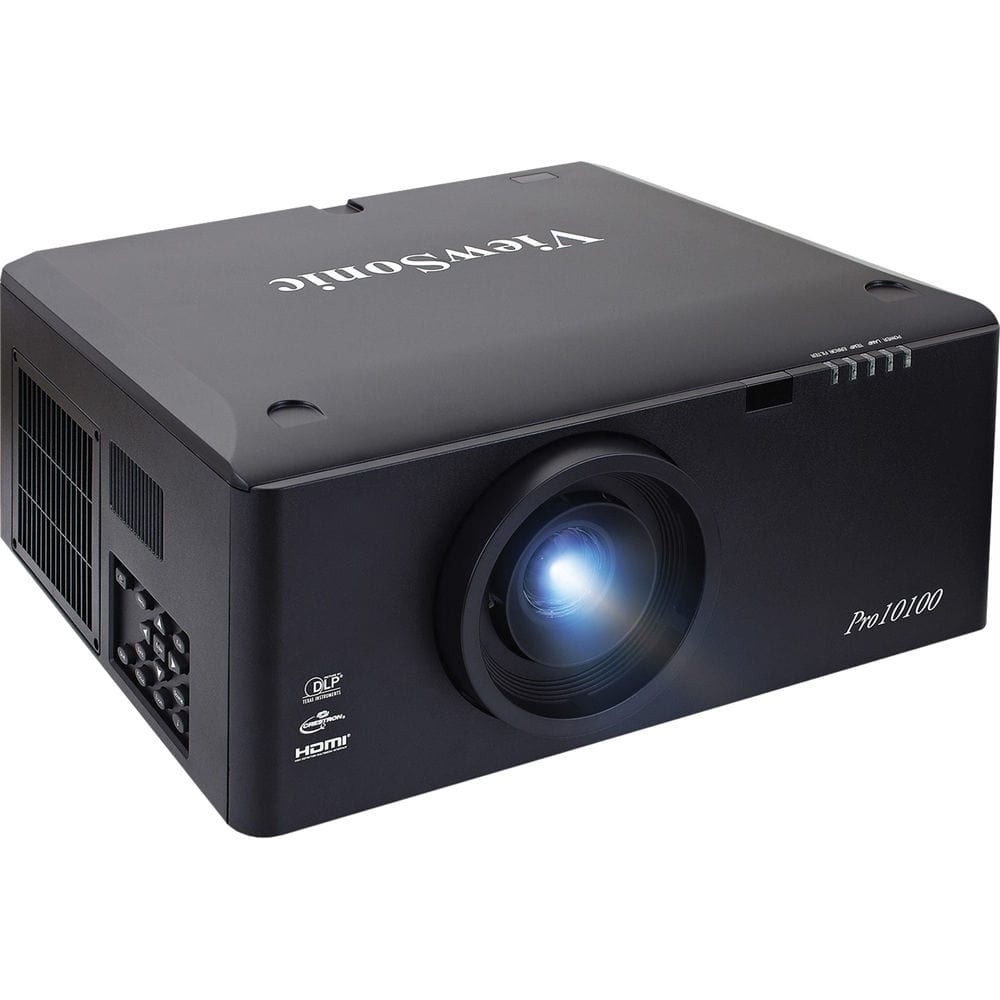

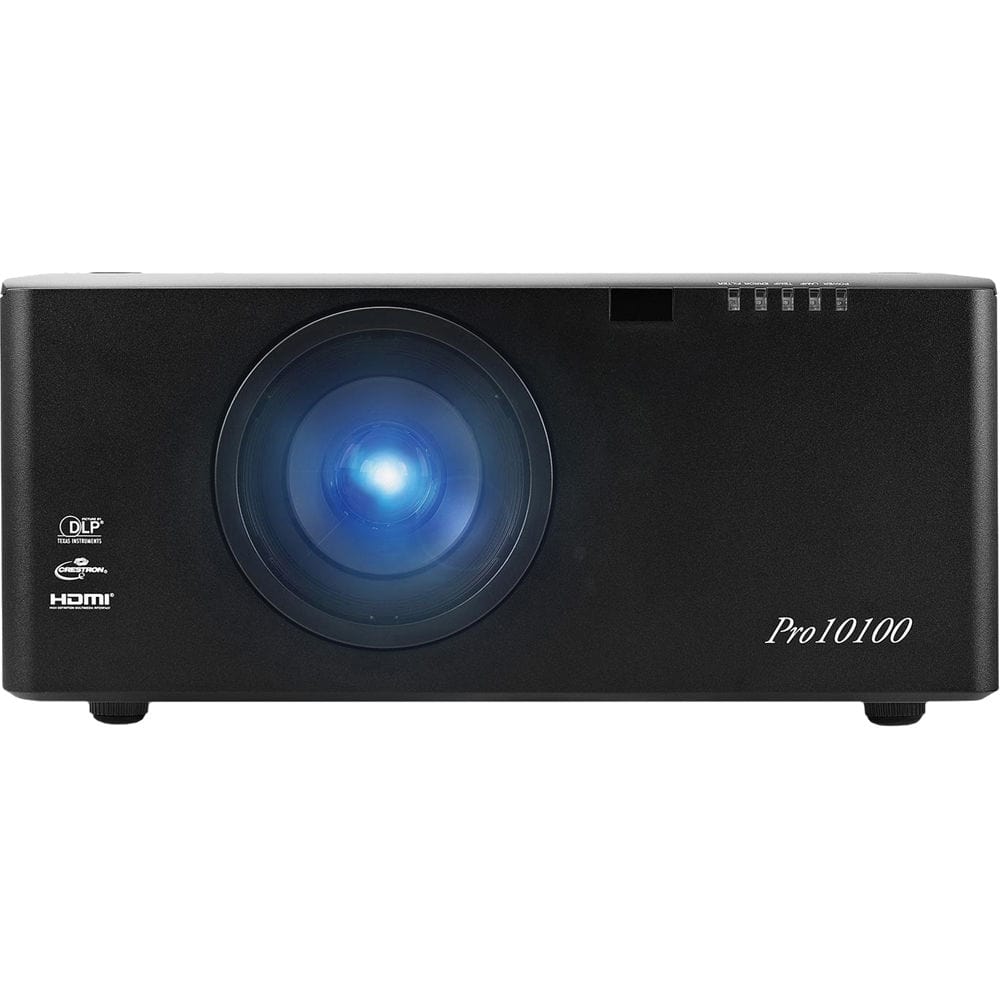

ViewSonic PRO10100-SD-S ProAV XGA DLP Installation Projector - Certified Refurbished
Description
Designed for large commercial venues, the ViewSonic Pro10100-SD ProAV XGA DLP Installation Projector includes a standard throw lens for use in a variety of settings. It also works with an optional short or long throw lens. The projector supports up to 6000 ANSI lumens of brightness and a 4400:1 dynamic contrast ratio that promotes clear and vivid images - even in well lit environments. It uses a DLP chip display system with BrilliantColor technology, which provides multi-color processing for vivid, accurate color reproduction. Plus, the Pro10100-SD's lamp lasts for up to 2000 hours in Eco-Mode. The Pro10100-SD also offers several connectivity options including HDMI, DVI-D, 5-BNC component, VGA, Ethernet and more. It can project up to a 300" diagonal screen size and it provides both vertical and horizontal motorized lens shift for installation flexibility. It features a powered zoom and focus as well. The Pro10100-SD's other features include a dual-layer filter with advanced heat-dissipation technology and network management/control capabilities. It's also designed for flexible 360° installation.Features
- XGA 1024 x 768 Native Resolution
- Brightness of 6000 ANSI Lumens
- 4400:1 Dynamic Contrast Ratio
- Lamp Life up to 2000 Hours in Eco-Mode
- Includes LEN-009 Standard Throw Lens
- DLP BrilliantColor Technology
- LAN Connectivity & 360° Installation
6000 ANSI Lumens of Brightness
The Pro10100-SD high-brightness professional installation projector is designed for large venues including auditoriums, convention centers, lecture halls, houses of worship and more. It works for various commercial applications as well. The Pro10100-SD outputs 6000 ANSI lumens of brightness for clear, sharp images - even in rooms with ambient light.
Advanced DLP Technology
Advanced DLP (Digital Light Processing) technology allows you to experience clear, sharp and lifelike images with the same DLP technology used in Hollywood. For fast action, the response time is 1000-SD times faster than similar LCD-based projectors. And with no air filters to clean or change, you'll enjoy a low TCO (Total Cost of Ownership).
BrilliantColor Technology
The Pro10100-SD uses BrilliantColor multi-color processing technology to produce rich, vibrant colors and images with precise detail. The projector also uses up to six separate colors and its sophisticated multi-segment color wheel enhances yellow color performance for accurate color reproduction.
Motorized Vertical & Horizontal Lens Shift
Equipped with a motorized lens shift feature, the Pro10100-SD projector offers vertical and horizontal adjustments of the projection lens. This feature provides flexible projector placement for challenging installations.
Powered Zoom & Focus Offer Convenient Setup

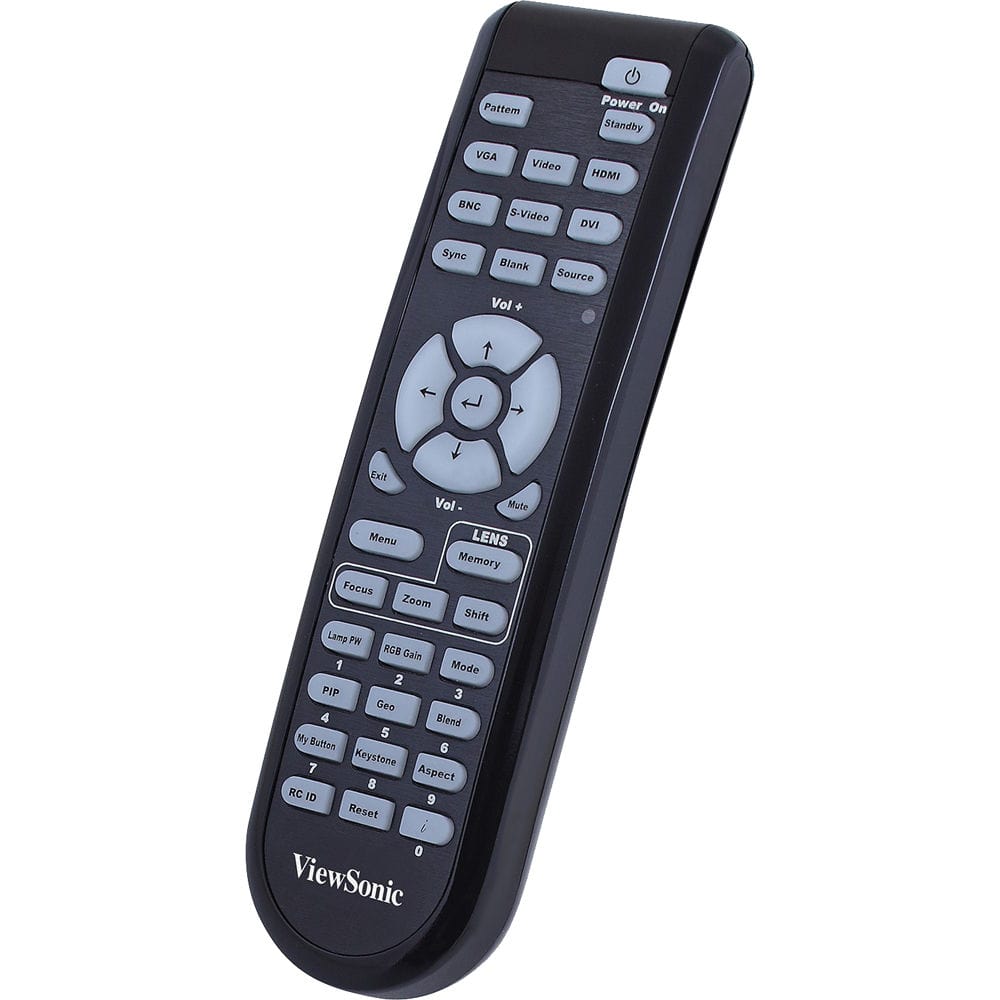

The Pro10100-SD comes standard with powered zoom and focus, which enables the installer to easily adjust lens zoom and focus settings from a remote control. This feature provides installation flexibility, ease of use and fast deployment.
Interchangeable Lens Design for Greater Versatility
The Pro10100-SD projector model includes a standard throw lens, but it also works with ViewSonic's interchangeable lens system. Besides the standard throw lens (included), there's a short throw lens and a long throw lens (both sold separately). This interchangeable lens design provides greater flexibility for various large venue and commercial installations. You'll also be able to achieve a variety of throw ratios and distances to meet installation needs for different environments.
Optional Edge Blending Technology
Multiple-image edge-blending functionality with advanced picture adjustment is available for the Pro10100-SD as an optional feature that's sold separately. Designed for ProAV applications and challenging installations, this feature allows multiple Pro10100-SD projectors to seamlessly project multiple images to form a single cohesive image with uniform brightness and color - no matter how large the projection screen surface.
Five-Mode Warping & Geometric Adjustment Technology
The Pro10100-SD is also equipped with a five-mode warping and geometric adjustment feature. This feature corrects distorted images caused by four-corner, curve, pincushion, barrel, and rotation projection surfaces. Plus, vertical auto keystone correction automatically corrects and adjusts distorted images into a square shape.
Versatile Connectivity Options

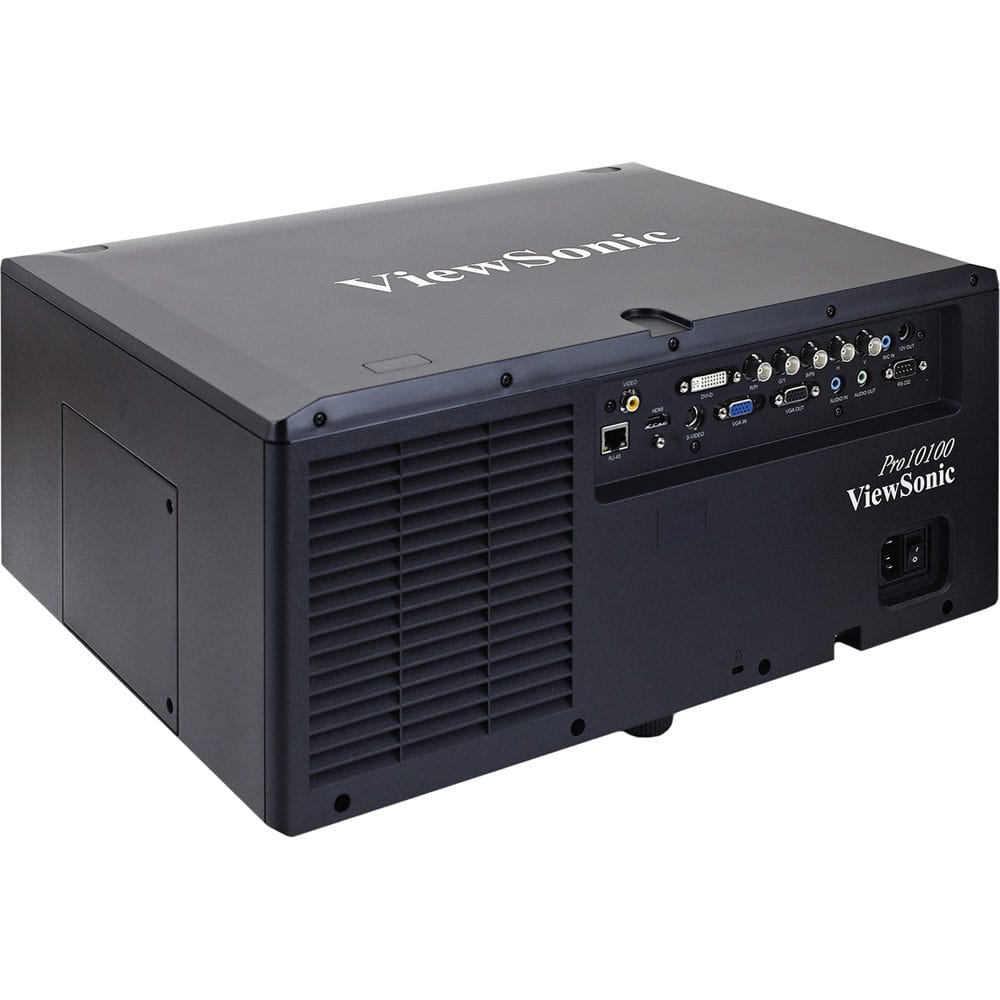

The Pro10100-SD includes a wide range of high-definition content inputs including HDMI, DVI-D, 5-BNC component, VGA, composite video and S-video. In addition, an RJ-45 Ethernet connection provides network capability for monitoring and managing with the included Crestron RoomView Express software. This wide range of connectivity boosts the Pro10100-SD's functionality by letting it work in tandem with a number of other peripheral devices.
Efficient Network Management
IT admin can monitor, schedule and manage this projector remotely. They can also receive projector status alerts thanks to the integrated Crestron e-Control system and RoomView Express management software. Users can control the Pro10100-SD from a computer via wired Ethernet network connection, which allows control of the projector from anywhere on the network.
Designed for 360° Installation
With a 360° installation design, the Pro10100-SD can be installed both vertically and horizontally. Combined with powered lens shift and optional edge blending features, the Pro10100-SD reduces installation limitations and provides improved projection flexibility for use in a wide range of installation applications and environments.
Precise DICOM SIM Technology
With support for the DICOM (Digital Imaging and Communications in Medicine) standard, the Pro10100-SD is able to accurately display multiple high-resolution DICOM-format medical images, including X-rays, sonograms and nuclear magnetic resonance (NMR) images. This technology is widely used in hospitals, medical centers, academic conferences and other venues where precise DICOM images are required.
Other Features
- DMD 0.7" XGA (2 x LVDS Type A DMD) Dark Chip 3 projection technology
- XGA 1024 x 768 native resolution
- Dual-layer, dust-free filter with advanced heat-dissipation technology
- 30-bit color depth with support for 1.07 billion colors (10+10+10)
- Supports from VGA to WSXGA+ (1680 x 1050) resolution when used with a PC
- Supports from VGA to MAC21 (1152 x 870) resolution when used with a Mac
- Built-in 10W mono speaker and 3.5mm mini-jack audio output

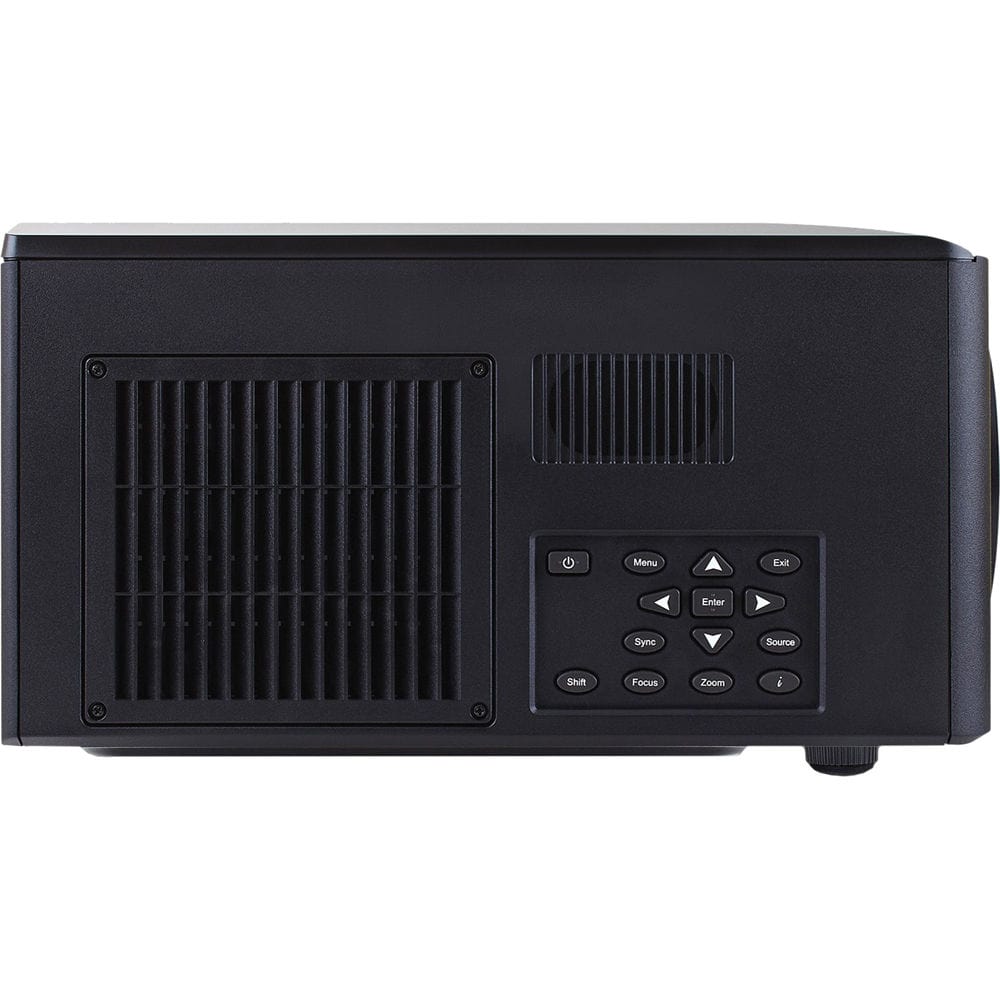

- Basic controls include: power, arrow keys, menu, exit, sync, enter, source, shift, focus, zoom and info
- OSD controls include: picture, screen, setting, options and more
- Recommended for use in altitudes up to 6000' but projector will remain operational up to 10,000'
- Supported regulations include: CB, UL/cUL, FCC (including ICES-004), CE, TUV-GS. C-Tick, CCC, WEEE, RoHS, ErP, REACH and SVHC
Specifications
Key Specs
|
|
Display System |
1-Chip 0.7" DC3 DMD DLP
|
Native Chip Resolution |
1024 x 768 (XGA)
|
Maximum Brightness |
6000 Lumens
|
Throw Ratio |
1.26 to 1.58:1
|
Inputs/Outputs |
1x HDMI Audio, Video Input
|
1x DVI-D Video Input | |
1x DE-15/DB-15 (VGA) Video Input | |
1x 5BNC Video Input | |
1x 4-Pin DIN (S-Video) Video Input | |
1x RCA (Composite) Video Input | |
1x 1/8" / 3.5 mm Mini Audio Input | |
1x 1/8" / 3.5 mm Mini Audio Output | |
1x DE-15/DB-15 (VGA) Video Output | |
1x 12 V Trigger Control Output | |
1x 1/8" / 3.5 mm Mini Remote Input | |
1x RJ45 (Ethernet) LAN | |
1x DE-9/DB-9 (RS-232) Control | |
Show More
|
|
Image Display
|
|
Display System |
1-Chip 0.7" DC3 DMD DLP
|
Native Chip Resolution |
1024 x 768 (XGA)
|
Maximum Brightness |
6000 Lumens
|
Aspect Ratio |
Native: 4:3
|
Dynamic Contrast Ratio |
4400:1
|
Color Depth |
10-Bit (1.07 Billion Colors)
|
Scan |
Horizontal: 15 to 100 kHz
|
Vertical: 24 to 87 Hz | |
Lens
|
|
Focus |
Auto
|
Lens Shift |
Vertical: ± 50%
|
Horizontal: ± 15% | |
Optical Zoom |
Powered: 1.25x
|
Throw Distance |
4.2 - 31.6' / 1.28 - 9.632 m
|
Throw Ratio |
1.26 to 1.58:1
|
Projection Size |
50 to 300" / 127.00 to 762.00 cm
|
Features
|
|
Keystone Correction |
Vertical: ± 20°
|
Ceiling Mountable |
Yes
|
Rear Screen Projection |
Yes
|
Built-In Speaker |
Yes (Mono)
|
Speaker Power |
10W
|
Inputs/Outputs |
1x HDMI Audio, Video Input
|
1x DVI-D Video Input | |
1x DE-15/DB-15 (VGA) Video Input | |
1x 5BNC Video Input | |
1x 4-Pin DIN (S-Video) Video Input | |
1x RCA (Composite) Video Input | |
1x 1/8" / 3.5 mm Mini Audio Input | |
1x 1/8" / 3.5 mm Mini Audio Output | |
1x DE-15/DB-15 (VGA) Video Output | |
1x 12 V Trigger Control Output | |
1x 1/8" / 3.5 mm Mini Remote Input | |
1x RJ45 (Ethernet) LAN | |
1x DE-9/DB-9 (RS-232) Control | |
General
|
|
Lamp Power |
370 W
|
Expected Lamp Life |
Medium Brightness: 1500 Hours
|
Low Brightness: 2000 Hours | |
Fan Noise |
Medium Brightness: 38 dB
|
Low Brightness: 33 dB | |
Security |
Cable Lock Slot
|
Padlock | |
Password Protection | |
Security Bar | |
AC Input Power |
120 to 240 VAC, 50 / 60 Hz
|
Power Consumption |
Medium Brightness: 480 W
|
Standby Mode (Lamp Off): < 0.5 W | |
Dimensions (W x H x D) |
17.8 x 8.3 x 15.4" / 452.1 x 210.8 x 391.2 mm
|
Weight |
38.1 lb / 17.3 kg
|
Packaging Info
|
|
Package Weight |
39 lb
|
Box Dimensions (LxWxH) |
23 x 19.8 x 15.5"
|
