ViewSonic PRO8530HDL 5200 Lumens 1080p HDMI Lens Shift Home and Office Projector

ViewSonic PRO8530HDL 5200 Lumens 1080p HDMI Lens Shift Projector

Description

Enjoy bright images in nearly any environment with the ViewSonic Pro8530HDL 5200-Lumen Full HD DLP Projector. Its 5200 lumens of brightness can overcome ambient light in many situations, while its 5000:1 contrast ratio will help dark areas of the image remain dark while bright areas appear bright. The Full HD 1920 x 1080 resolution is suitable for displaying HD images and most file and document types. The projector features a 1.07 to 1.71:1 throw ratio which provides a wide range of placement options. The Pro8530HDL has three HDMI inputs for connecting high definition sources such as Blu-ray players and HD cable/satellite boxes, plus a hidden MHL-compatible HDMI input for discreet connection to a wireless dongle, though it supports any HDMI device. The projector has an analog audio input and two onboard 10-Watt speakers to ensure that audio accompanies your video, plus an analog audio output to route audio to a second projector, display, or speaker system. The projector is controllable via Ethernet, RS-232, or with the included IR remote.

Features

• Brightness of 5200 Lumens
• Full HD (1920 x 1080) Native Resolution
• Throw Ratio of 1.07 to 1.71:1
• Dual 10-Watt Speakers
• VGA Output for Loop-Through
• VGA, RCA, Composite, S-Video, 4x HDMI-In
• Ethernet and RS-232 Controllable

5200-Lumen Brightness

Packed with 5200 lumens and a 5000:1 contrast ratio, this projector is designed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.

Vertical Lens Shift with Centered Lens

A vertical lens shift feature offers up and down adjustments of the projection lens for flexible placement in challenging installations. What's more, a centered-lens design makes this projector suitable for replacing existing centered-lens installations, making it unnecessary to move or reinstall existing ceiling mounts or projection screens.

PortAll Enclosed HDMI/MHL Dongle Compartment

ViewSonic's PortAll feature utilizes a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from a wireless dongle, or connect to other devices via an HDMI cable.

Four HDMI Inputs

Four HDMI inputs allow you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for a true high definition experience.

SuperColor: Enhanced Color Accuracy

ViewSonic's SuperColor technology is designed to offer a wider color range than conventional DLP projectors. With a six-segment color wheel design and dynamic lamp control capabilities, SuperColor technology is designed to project images with reliable and true-to-life color performance in both bright and dark environments without sacrificing image quality.

SonicExpert Technology

The Pro8530HDL is designed with ViewSonic's SonicExpert technology that incorporates an enlarged speaker chamber and an amplifier to deliver a full 20 Hz to 20 kHz sound range. Dual integrated speakers captivate your audience with immersive sound.

4-in-1 Power Button with IR Pass-Through

A centrally located, easy-to-use power button not only turns the projector on and off, but also functions as an IR receiver and control for remote devices. In addition, intuitive LED lights on the power button indicate whether any dongles are powered on within the PortAll compartment.

Mounting Flexibility

A wider optical zoom provides more mounting flexibility; more flexible mounting options translate to less installation hassle.

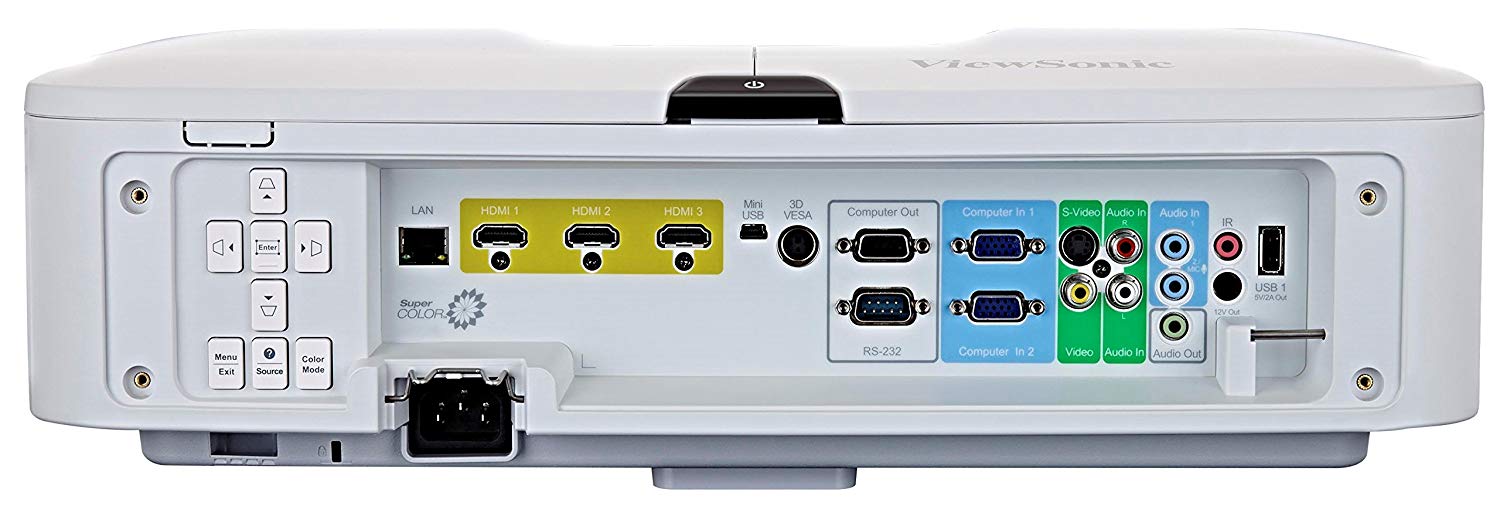

Specifications

Key Specs
Display System	1-Chip 0.65" DMD DLP
Native Chip Resolution	1920 x 1080 (Full HD)
Maximum Brightness	5200 Lumens
Throw Ratio	1.07 to 1.71:1
Inputs/Outputs	3x HDMI Audio, Video Input
	1x HDMI  with MHL Support Audio, Video Input
	1x DE-15/DB-15 (VGA) Video Input
	1x RCA (Composite) Video Input
	1x 4-Pin DIN (S-Video) Video Input
	2x 1/8" / 3.5 mm Mini Audio Input
	1x 1/8" / 3.5 mm Mini Audio Output
	1x DE-15/DB-15 (VGA) Video Output
	1x USB-B 2.0 Power Output
	1x Micro-USB Power Output
	1x Mini-USB Control Input
	1x DE-9/DB-9 (RS-232) Control Input
	1x 1/8" / 3.5 mm Mini Control Output
	1x 12 V Trigger Control Output
	1x 3-Pin DIN (VESA 3D Sync) Control Output
	1x RJ45 (Ethernet) LAN Input
	Show More
Native Chip Resolution	1920 x 1080 (Full HD)
Maximum Brightness	5200 Lumens
Aspect Ratio	Native: 16:9
Contrast Ratio	5000:1
Color Depth	10-Bit (1.07 Billion Colors)
Lens
Focus	Manual
Optical Zoom	Manual: 1.6x
Throw Distance	2.3 - 37.3' / 0.701 - 11.369 m
Throw Ratio	1.07 to 1.71:1
Projection Size	30 to 300" / 76.20 to 762.00 cm
Keystone Correction	Vertical: ± 30°
	Horizontal: ± 30°
Ceiling Mountable	Yes
Built-In Speaker	Yes (Stereo)
Inputs/Outputs	3x HDMI Audio, Video Input
	1x HDMI  with MHL Support Audio, Video Input
	1x DE-15/DB-15 (VGA) Video Input
	1x RCA (Composite) Video Input
	1x 4-Pin DIN (S-Video) Video Input
	2x 1/8" / 3.5 mm Mini Audio Input
	1x 1/8" / 3.5 mm Mini Audio Output
	1x DE-15/DB-15 (VGA) Video Output
	1x USB-B 2.0 Power Output
	1x Micro-USB Power Output
	1x Mini-USB Control Input
	1x DE-9/DB-9 (RS-232) Control Input
	1x 1/8" / 3.5 mm Mini Control Output
	1x 12 V Trigger Control Output
	1x 3-Pin DIN (VESA 3D Sync) Control Output
	1x RJ45 (Ethernet) LAN Input
Wireless LAN / Wi-Fi	No
General
Lamp Power	370 W
Expected Lamp Life	Medium Brightness: 2000 Hours
	Low Brightness: 2500 Hours
Fan Noise	Low Brightness: 33 dB
Security	Cable Lock Slot
	Keypad Lock
AC Input Power	120 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 570 W
	Standby Mode (Lamp Off): < 0.5 W
Dimensions (W x H x D)	19.5 x 5.5 x 12.4" / 496.5 x 139.8 x 316.2 mm
Weight	13.89 lb / 6.30 kg
Packaging Info
Package Weight	25.5 lb
Box Dimensions (LxWxH)	23.3 x 22 x 11.5"
