ViewSonic SD-T225_BK_US0-S SD-T225 22" Integrated Desktop Computer LCD Thin Client Monitor - Certified Refurbished

ViewSonic SD-T225_BK_US0-S SD-T225 22" Integrated Desktop Computer LCD Thin Client Monitor - Certified Refurbished

Description

Optimized for major remote networking protocols including Microsoft RDP with RemoteFX, Citrix HDX, and PCoIP for VMware View, the SD-T225 22" All-in-One Desktop Computer from ViewSonic affords users a versatile virtualization solution. Designed for business, education, healthcare, and government use, this thin client display provides a cleaner desktop with reduced cabling and clutter. The system is powered by a 1.0 GHz TI DM8148 Cortex A8 processor, 1GB of 1066 MHz DDR3 RAM, and 4GB of eMMC storage. The 22" (21.5" viewable) TFT LCD Anti-Glare Display display has a Full HD 1920 x 1080 resolution, LED backlighting, a 250 cd/m2 brightness, a 1,000:1 typical contrast ratio, a 20,000,000:1 dynamic contrast ratio, 170°/160° viewing angles, a 5ms response time, a backlight life of up to 30,000 hours, dual 2W speakers, and a 16:9 aspect ratio. Also featured is tilting of -5 to 25°, a 340° swivel, a 90° pivot, and a height adjustment of 3.9". Network connectivity is achieved using a Gigabit Ethernet port and peripherals may be connected to this All-in-One using the four USB 2.0 ports. There is also a 15-pin mini VGA video input and a DVI-D video output. This system is powered using 90-240 VAC at 50-60 Hz. The SD-T225 operates using ARM Linux OS and is compatible with systems running Windows and Mac OS.

Features

• 22" TFT LCD Anti-Glare Display
• Full HD 1920 x 1080 Screen Resolution
• 1.0 GHz TI DM8148 Cortex A8
• 1GB of 1066 MHz DDR3 RAM

  Key Features

  • All-in-One integrated thin client display with PC-like functionality
  • TI 1 GHz ARM Cortex-A8 CPU and ARM Linux OS
  • Dual display productivity
  • Ergonomic design for comfort and productivity
  • Simplified and secure management

  Designed For

  • Business: enterprise class computing
  • Education: standardized testing, libraries, labs
  • Healthcare: nurses' stations, HIPAA compliance
  • Government: security and performance

  Specifications

  Processor
  CPU Processor	1.0 GHz TI DM8148, Cortex A8
  Graphics
  Chipset	None
  Resolution	1920 x 1080p (for single display)
  Memory
  System	1 GB of 1066 MHz DDR3 RAM
  Storage	4 GB of eMMC
  Software
  OS	Linux
  Management	ViewSonic Device Manager Pro
  Protocols	Citrix Receiver HDX 12.5.1, VMware PCoIP, RDP 7.1 with RemoteFX
  Communication
  Ethernet	10/100/1000 Mbps
  Display
  Type	Color Active Matrix TFT LCD
  Display Area	18.8" / 47.8 cm horizontal x 10.6" / 26.9 cm vertical; 21.5" / 54.6 cm diagonal
  Resolution	1920 x 1080
  Brightness	250 cd/m2 (typ.)
  Contrast Ratio	1,000:1 (typ)
  Dynamic Contrast Ratio	20,000,000:1
  Viewing Angles	170° horizontal, 160° vertical
  Response Time	5 ms
  Backlight	LED
  Backlight Life	30,000 hours (min)
  Panel Surface	Anti-glare, hard coating (3H)
  Video Input
  Analog	RGB Analog (0.7 / 1.0 Vp-p, 75 ohms)
  Frequency	Fh: 24~82 kHz
  	Fv: 50~75 Hz
  Sync	Separate Sync
  Audio
  Speakers	2 x 2 W
  Compatibility
  PC	VGA up to 1920 x 1080 non-interlaced
  Mac	Up to 1920 x 1080

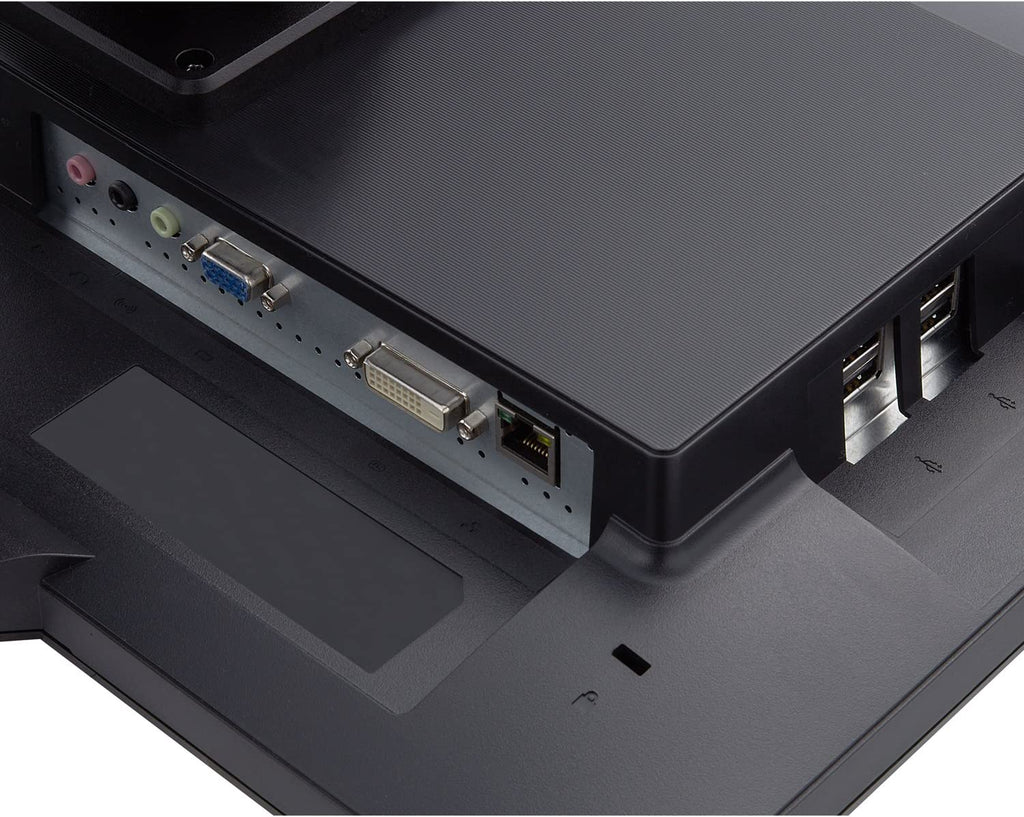

  Connectors
  USB	4 x USB 2.0
  Video In	15-pin mini D-sub (VGA)
  Video Out	DVI-D
  LAN	RJ45
  Microphone In	3.5 mm mini jack (red)
  Headphone Out	3.5 mm mini jack (green)
  Line In	3.5 mm mini jack (black)
  Power	AC In
  Controls
  Basic	Client, 2, Down, Up, 1, Power
  OSD	Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  	(See user guide for complete OSD functionality)
  Power
  Voltage	90-240 VAC (universal), 50-60 Hz
  Consumption	26 W (typ)
  Optimize	20 W (typ)
  Conserve	18 W (typ)
  Ergonomics
  Tilt	Forward -5° / Back 25°
  Swivel	340°
  Pivot	90°
  Height Adjustment	3.9" / 100 mm
  Operating Conditions
  Temperature	32 to 95°F / 0 to 35°C
  Humidity	15-90% (non-condensing)
  Wall Mount Bracket
  VESA	100 x 100 mm
  General
  Regulations	CB, FCC, cTUVus, CE, WEEE, RoHS Compliant, REACH Compliant
  Recycle / Disposal	Please dispose of in accordance with local, state, or federal laws
  Dimensions & Weight
  Dimensions	With stand: 20.17 x 14.46 x 8.01" / 512.4 x 367.4 x 204.3 mm
  	Without stand: 20.17 x 11.96 x 2.1" / 512.4 x 303.8 x 53.1 mm
  Weight	With stand: 10.8 lb / 4.9 kg
  	Without stand: 7.2 lb / 3.3 kg
  Packaging Info
  Package Weight	14.4 lb
  Box Dimensions (LxWxH)	22.4 x 15.3 x 6.7"
