Description

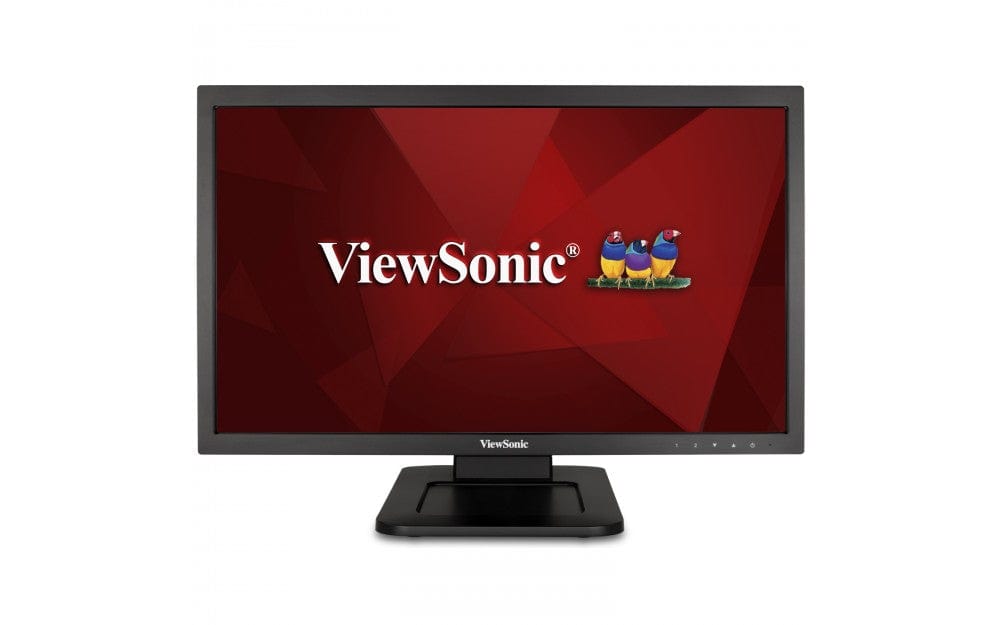

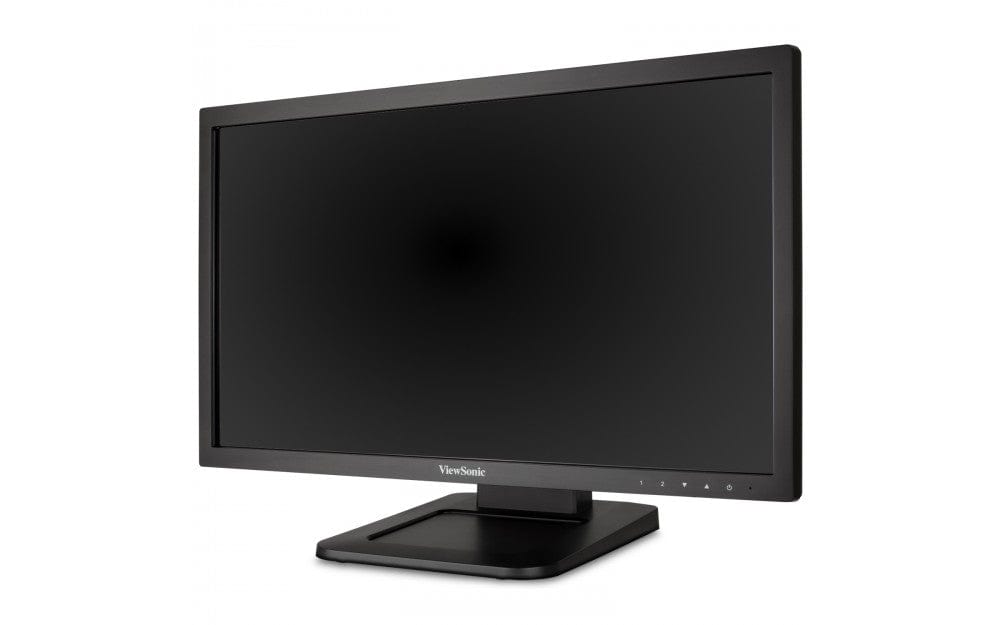

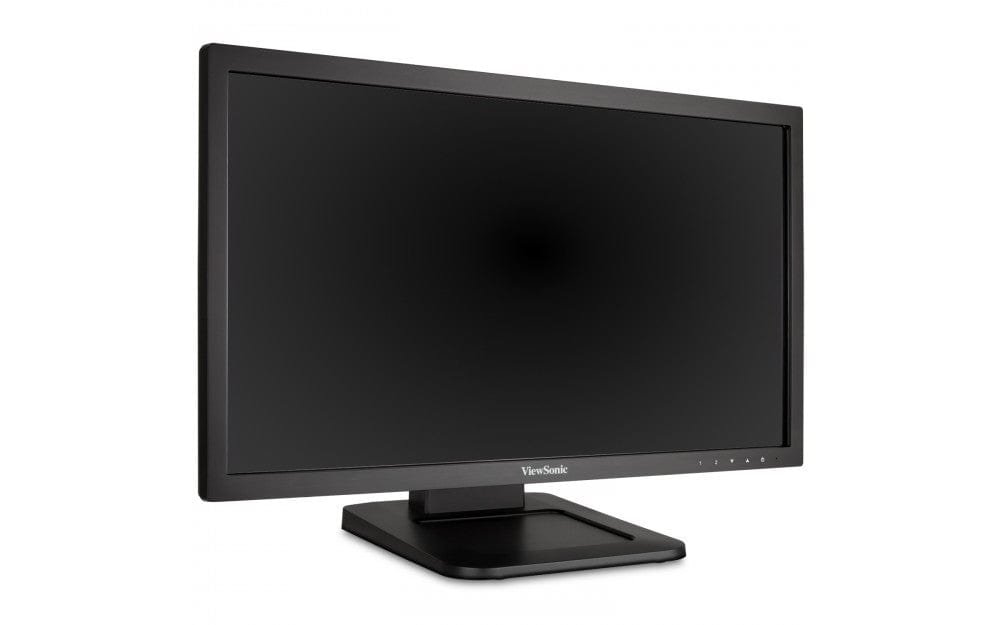

The 22" (21.5" viewable) ViewSonic TD2220 is a multi-touch Full HD LED backlit monitor with 1920x1080 resolution, integrated speakers, DVI & VGA inputs and VESA mountable design. It has 20,000,000:1 MEGA Dynamic Contrast Ratio for sharp crisp images, and Eco-mode come standard in the new 22" (21.5" viewable) offering. Perfect for both commercial and consumer applications, the TD2220 supports the USB HID Touch driver and is fully compatible with Windows 7. The TD2220 is a one-stop solution for your multi-touch monitor needs. You will also get the most out of your investment with ViewSonic's strongest pixel performance guarantee, 3-year limited warranty, as well as ENERGY STAR and EPEAT Silver certifications. Touch the Difference with the ViewSonic TD2220 interactive multi-touch display.
Features
- 22" (21.5" viewable) Full HD 1080p Optical Touch Monitor
- Ideal interactive solution for education and home use
- Full HD LED with Dual Point Optical Touch
- Windows 7 compatible with a scratch resistant surface
Full HD 1080p Resolution
- 1080p Full HD
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.

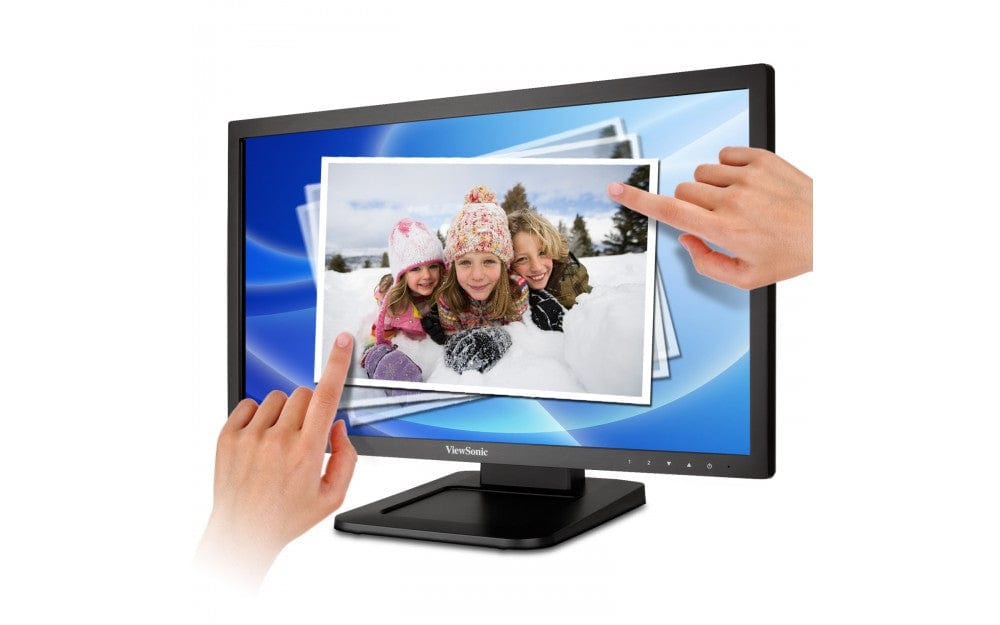

Dual-Point Optical Touch
- 2-Point Touch
Touch screens with dual-point optical touch can recognize two points of simultaneous contact, allowing two-finger gestures such as zoom in/out, rotations, and two-finger taps. Optical touch does not require a conductive object for touch recognition, so it is extremely useful in gloved environments such as hospitals and dental offices, or for use with interactive styluses.
Dual Integrated Speakers
- 2 Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

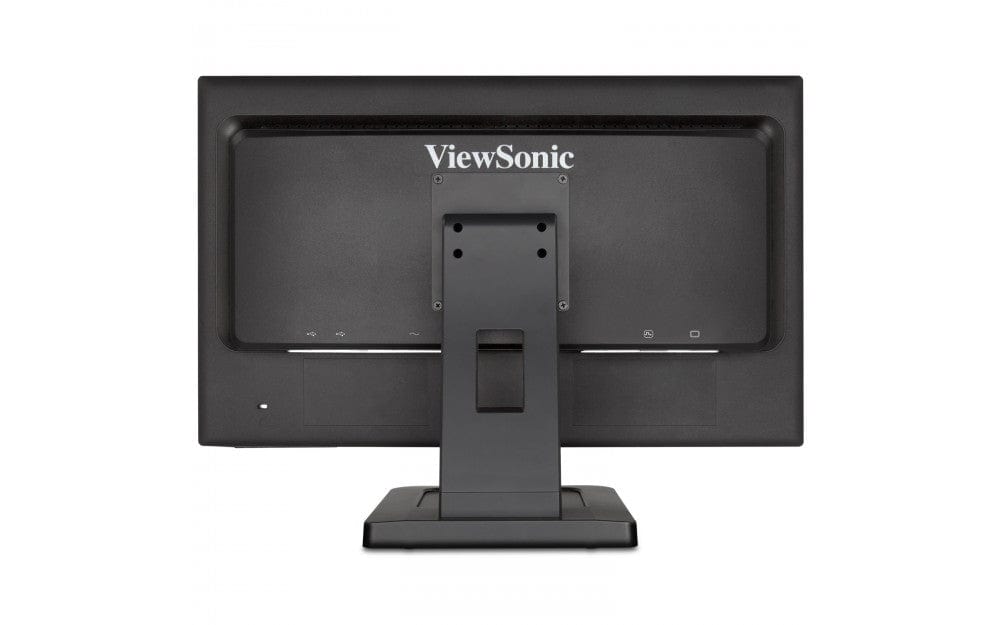

VESA-Compatible Mount Design
Mount the monitor as you see fit using its convenient 100 x 100mm VESA-compatible mount design.
EPEAT Silver Certification
With EPEAT Silver Certification, this monitor delivers a reduced environmental impact over the complete product lifecycle, making it a great eco-friendly, long-term investment.
ENERGY STAR Certification
This is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
Specifications
|
Display
|
|
| Size | 21.5" |
| Panel Type | TN LCD |
| Touchscreen | Yes |
| Resolution | 1920 x 1080 |
| Finish | Matte |
| Hardness Rating | 8H |
| Maximum Brightness | 200 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | 20,000,000:1 |
| Adaptive-Sync Technology | None |
| Response Time | 5 ms (GtG) |
| Viewing Angle | Horizontal: 170° |
| Vertical: 160° | |
| Backlight Lifespan | 40,000 Hours |
|

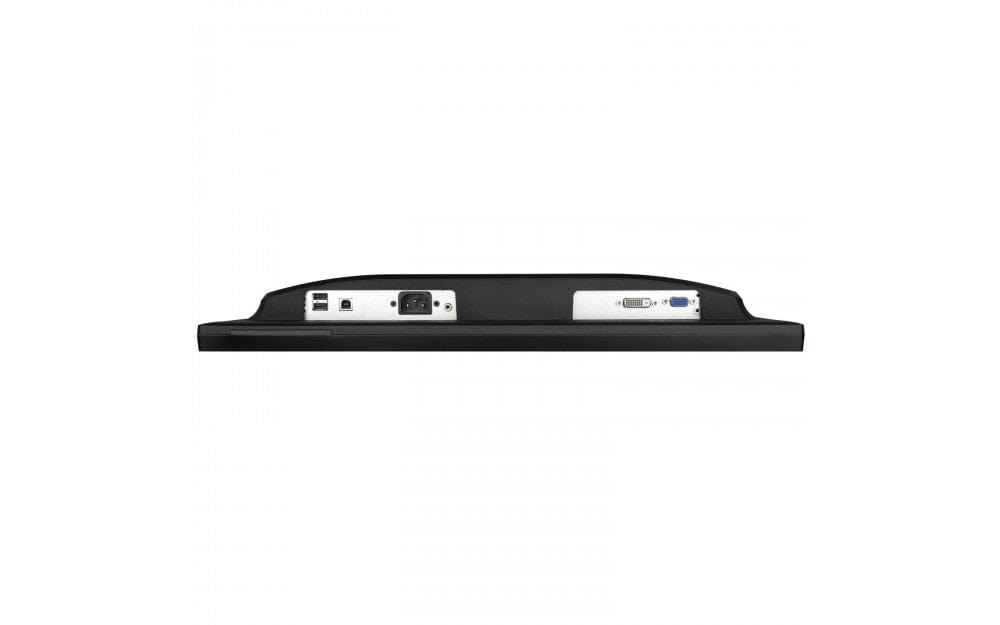

Inputs / Outputs
|
|
| Inputs/Outputs | 1 x USB Type-B Input |
| 2 x USB Type-A Output | |
| 1 x DVI-D | |
| 1 x VGA | |
| HDCP Support | Yes |
| Built-In Speakers | Yes, 2 x 2 W |
|
Power
|
|
| Power Consumption | 43 W (Maximum) |
| 18 W (Eco) | |
| 26 W (Typical) | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
|
Environmental
|
|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 90% |
| Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT Silver, as per Manufacturer |
|
Physical
|
|
| Height Adjustment | None |
| Rotation Adjustment | None |
| Swivel Adjustment | None |

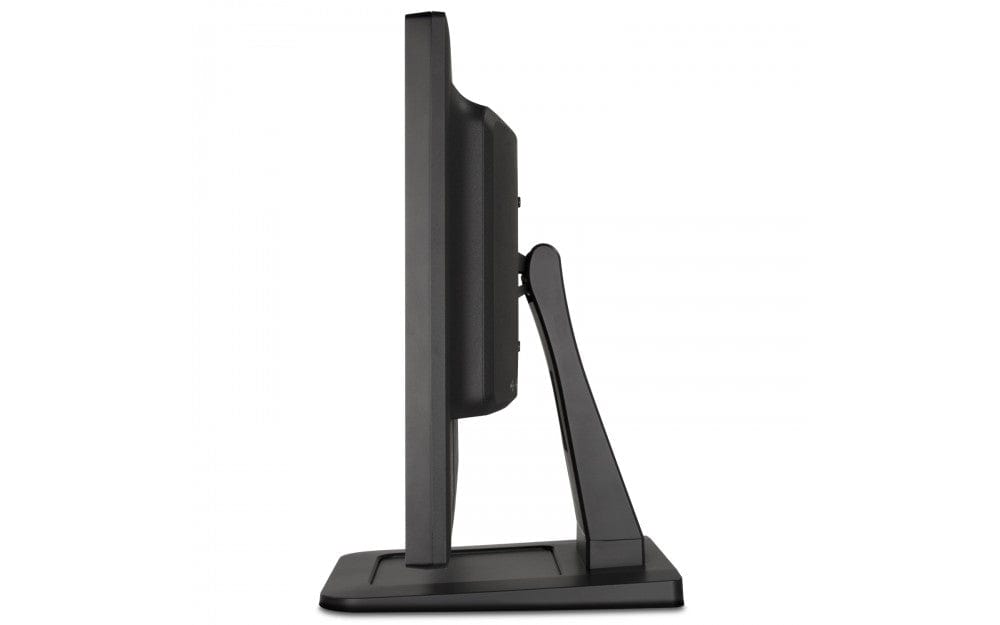

| Tilt Adjustment | -5 to 20° |
| Mounting-Hole Pattern | 100 x 100 mm |

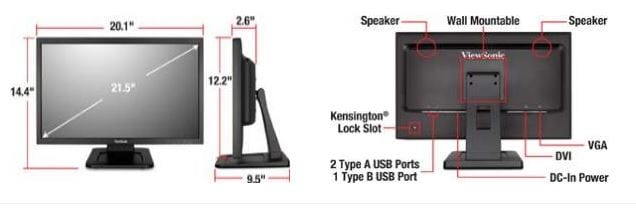

| Dimensions (W x H x D) | 20.1 x 12.2 x 2.6" / 51.2 x 31.1 x 6.6 mm (without Stand) |
| 20.1 x 14.4 x 9.5" / 51.0 x 36.6 x 24.0 mm (with Stand) | |
| Weight | 10.8 lb / 4.9 kg (with Stand) |
| 8.7 lb / 4 kg (without Stand) | |
|
Packaging Info
|
|
| Package Weight | 15.45 lb |
| Box Dimensions (LxWxH) | 22.3 x 16.9 x 8.9" |
