ViewSonic 22" 16:9 10-Point IR Multi-Touch TN Display - Certified Refurbished

ViewSonic TD2223-R 22" 16:9 10-Point IR Multi-Touch TN Display - Certified Refurbished

Description

Enhance your public kiosk, point-of-service, and other commercial or retail experience with the TD2223 22" 16:9 10-Point IR Multi-Touch TN Display from ViewSonic. This durable 1920 x 1080 Full HD resolution display features infrared 10-point multi-touch technology, which allows customers to interact naturally with content by pinching, zooming, and swiping with their fingers or using digital pens. Multiple users can write and draw on the display's surface simultaneously. With its 7H hardness rating, the TD2223's durable anti-glare glass faceplate is built to withstand extended use in high-traffic and educational environments. The vTouch Software works with Windows 7 or later in addition to macOS systems.

Features

• 22" Twisted Nematic (TN) Panel
• 1920 x 1080 Resolution
• 1000:1 Static Contrast Ratio
• 22° to 38° tilt
• 170° horizontal / 160° vertical viewing angles
• 2W stereo speaker system
• HDMI + DVI-D + VGA Inputs

Clear Screen

The 22" Twisted Nematic (TN) panel supports up to 16.7 million colors with a 1000:1 static contrast ratio, 250 cd/m² brightness, and 5 ms response time for clear, crisp images.

Versatile Connectivity

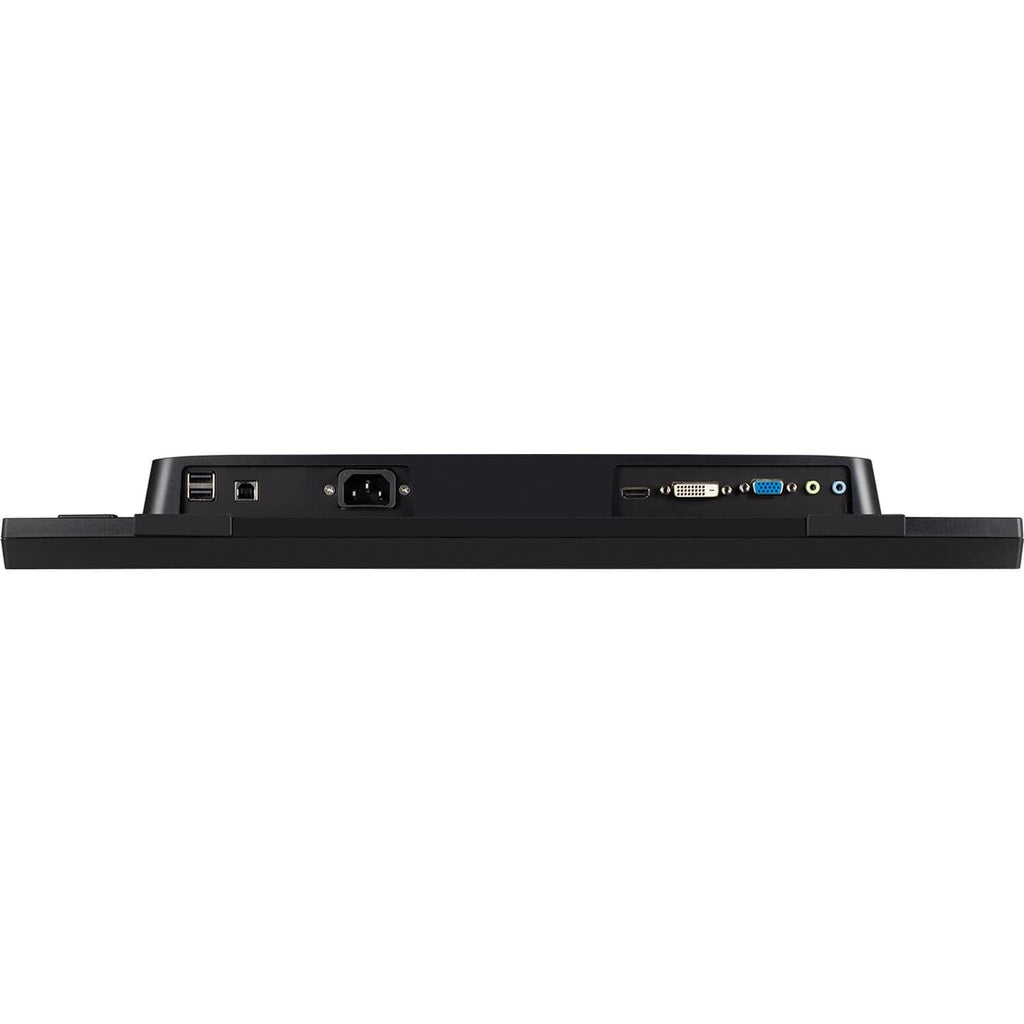

Connect your compatible Windows or Mac device to the ViewSonic TD2223 using the HDMI 1.4, DVI-D or VGA inputs. There are also separate 3.5mm audio in and out ports.

USB Hub

Peripherals such as keyboards and mice may be connected to your system through the monitor via its 2-port USB Type-A hub.

Specifications

Display
Size	22"
Panel Type	TN LCD
Touchscreen	Yes
Resolution	1920 x 1080
Aspect Ratio	16:9
Pixels Per Inch (ppi)	102 ppi
Finish	Glossy with Anti-Reflective Coating
Hardness Rating	7H
Maximum Brightness	250 cd/m2
Contrast Ratio	1000:1
Variable Refresh Technology	None
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
HDR Compatibility	None
Response Time	5 ms
Viewing Angle (H x V)	170 x 160°
Backlight Lifespan	30,000 Hours
Inputs / Outputs
Inputs/Outputs	1 x VGA Input
	1 x DVI-D Input
	1 x USB Type-B Input
	2 x USB Type-A Input/Output
	1 x 3.5 mm Output
	1 x 3.5 mm Input
Built-In Speakers	Yes, 2 x 2 W
Memory Card Slots	None
Multi-Input Support (PIP/PBP)	None
Power
Power Consumption	15 W (Typical)
	19 W (Maximum)
	13 W (Eco)
	11 W (Eco)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal
USB Power Delivery	Yes
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	20 to 90%
Physical
Height Adjustment	None
Rotation Adjustment	None
Swivel Adjustment	None
Tilt Adjustment	-22 to 38°
Max Arm Extension Length	None
Mounting-Hole Pattern	100 x 100 mm
Lock Slot	Yes, Kensington
Dimensions (W x H x D)	20.5 x 13.1 x 4.0" / 521.0 x 334.0 x 101.0 mm (with Stand)
	20.5 x 12.5 x 2.4" / 521.0 x 318.0 x 61.0 mm (without Stand)
Weight	9.9 lb / 4.5 kg (with Stand)
	8.6 lb / 3.9 kg (without Stand)
Packaging Info
Package Weight	12.755 lb
Box Dimensions (LxWxH)	22.6 x 15.7 x 6.4"
