Description

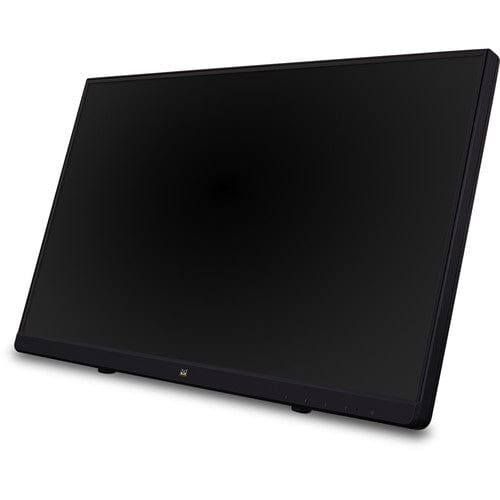

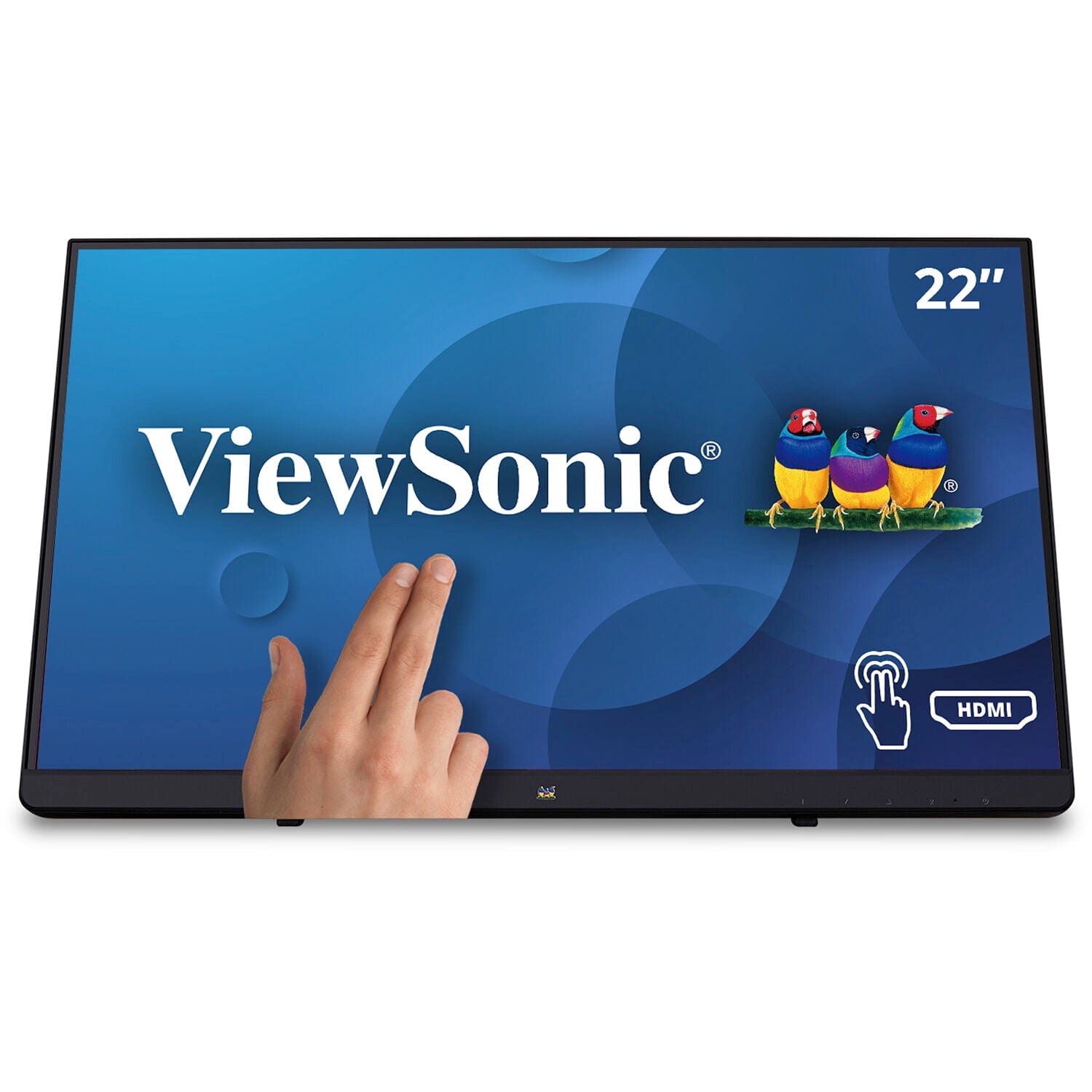

The TD2230 22" 16:9 Multi-Touch IPS Monitor from ViewSonic features a 23" IPS (In-Plane Switching) touchscreen display with a 1920 x 1080 Full HD resolution for crisp and clear pictures. With ten-point multi-touch support, you'll be able to utilize gestures and commands in Windows 8, 8.1, and 10 to further increase productivity and accessibility. Constructed with an IPS panel, this display provides you with vivid colors and wide viewing angles. With support for 16.7 million colors, in combination with a 250 cd/m ² brightness rating and a 1000:1 static contrast ratio, it offers darker blacks and brighter bright colors for a more immersive and pleasant viewing experience. Connect this display to your system via HDMI, DisplayPort, or VGA and then tilt it to your viewing preference. Otherwise, you can remove the stand and install an optional wall or arm mount using the 100 x 100mm VESA mounting pattern. Additionally, this touchscreen monitor works with Windows and Mac computers.
Features
- 10-point projected capacitive touch
- SuperClear IPS panel technology
- Frameless design
- Versatile connectivity
- Durable, scratch-resistant screen
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate, smooth and ultra-responsive touch experience.
SuperClear IPS-type Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS-type panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

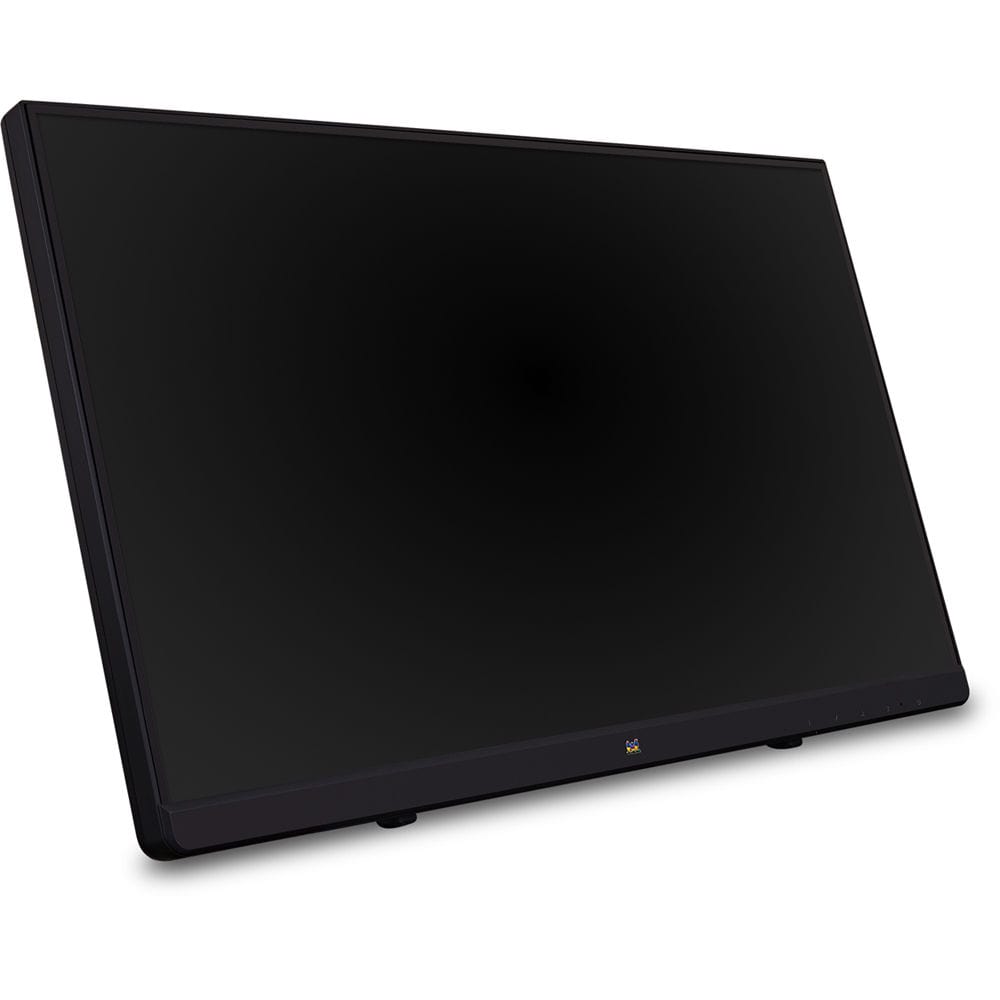

Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features an edge-to-edge design and frameless bezel. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.
Versatile Connectivity

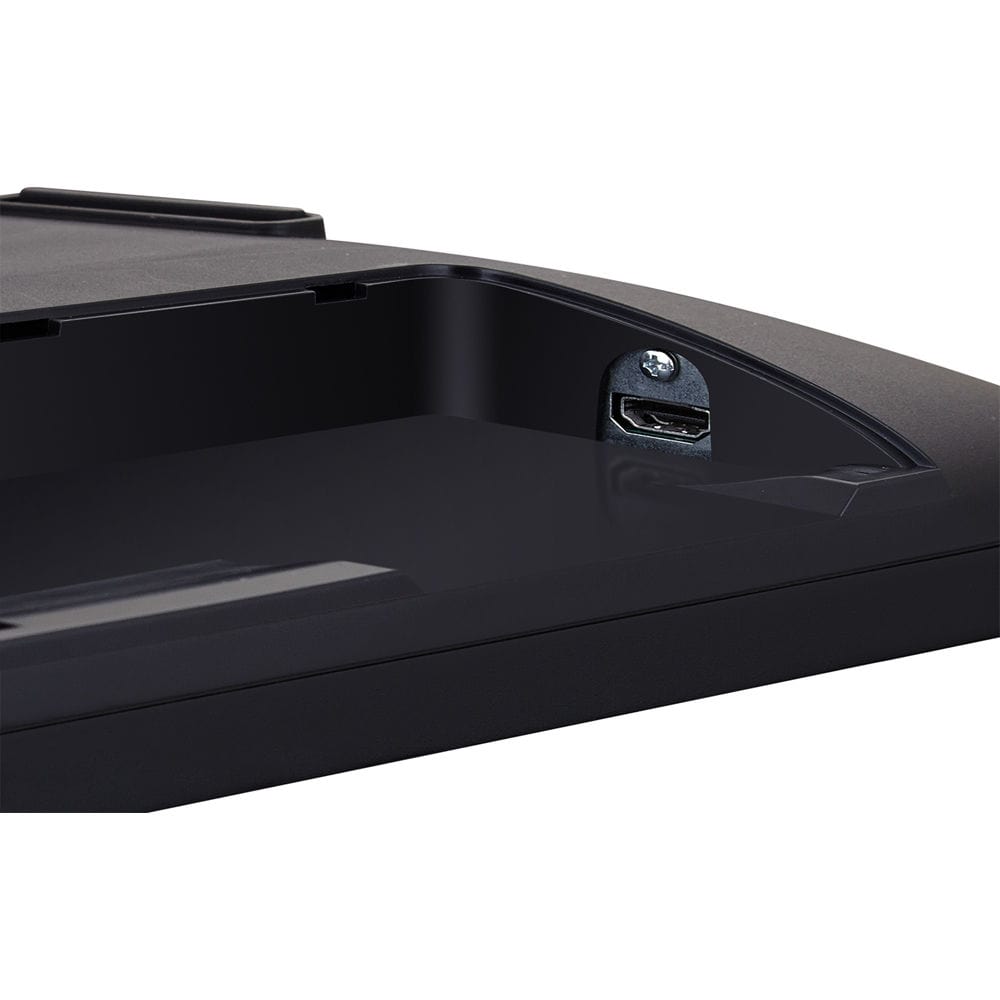

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.
Specifications
| Display: | |
| Display Size (in.): | 22 |
| Viewable Area (in.): | 21.5 |
| Panel Type: | IPS |
| Resolution: | 1920 x 1080 |
| Static Contrast Ratio: | 1,000:1 |
| Dynamic Contrast Ratio: | 50,000,000:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m2 |
| Colors: | 16.7M |
| Response Time (Typical GTG): | 14ms |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Backlight Life (Hours): | 30,000 |
| Panel Surface: | Anti-glare, Hard coating 7H |
| Compatibility: | |
| PC Resolution (max): | Up to 1920x1080 non-interlaced |
| Mac® Resolution (max): | Up to 1920x1080 |

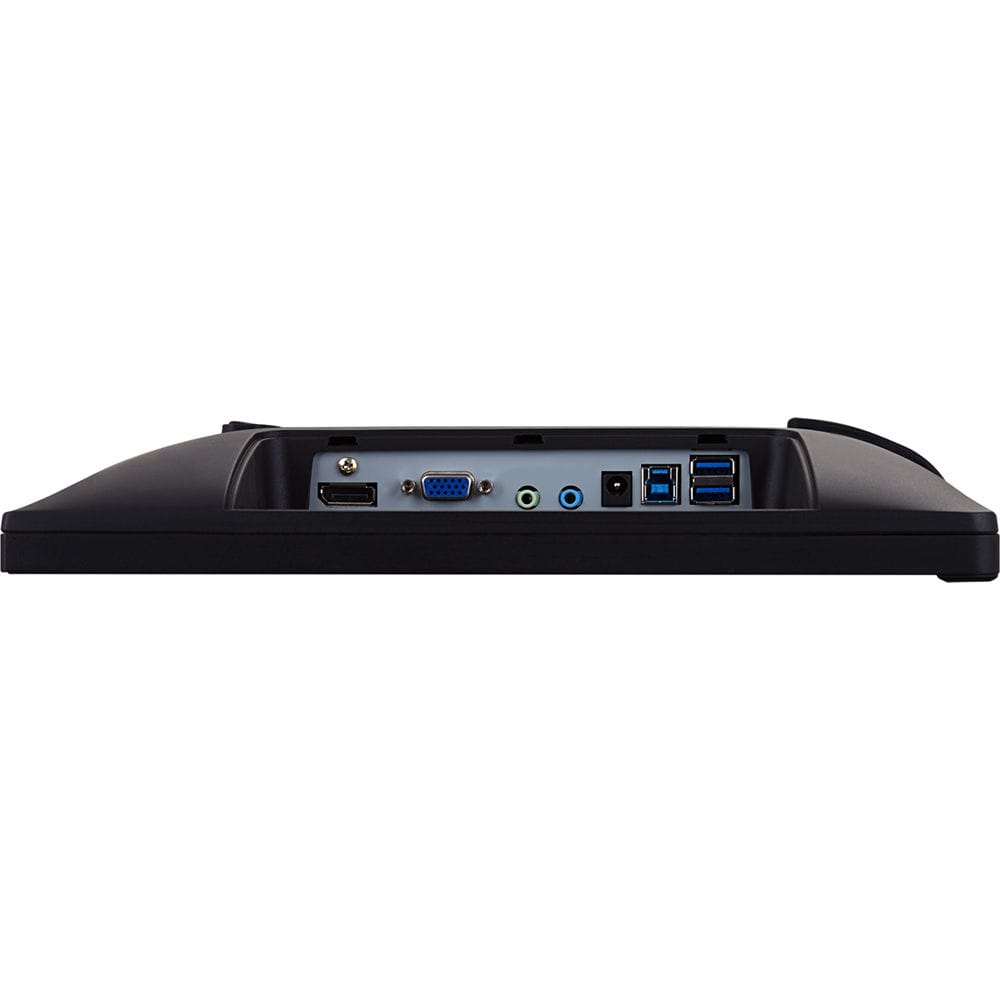

| Connector: | USB 3.0 Type A(2), USB 3.0 Type B(1), 3.5mm Audio In(1), 3.5mm Audio Out(1), HDMI(1), VGA(1), Display Port(1), Power in(DC 19V/2.37A) |
| Touch: | |
| Touch Technology: | Capacitive |
| Touch Points: | 10-Point Touch |
| Audio: | |
| Internal Speakers: | 3W (x2) |
| Power: | |
| Eco Mode (Conserve): | 16W |
| Eco Mode (optimized): | 18W |
| Consumption (typical): | 25W |
| Consumption (max): | 28W |
| Voltage: | AC 100-240V (universal), 50-60Hz |
| Controls: | |
| Physical Controls: | 1, 2, Down, Up, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) |
| Operating Conditions: | |
| Temperature: | 32-104º F (0 - 40º C) |
| Humidity (non-condensing): | 20-90% |
| Mount: | |

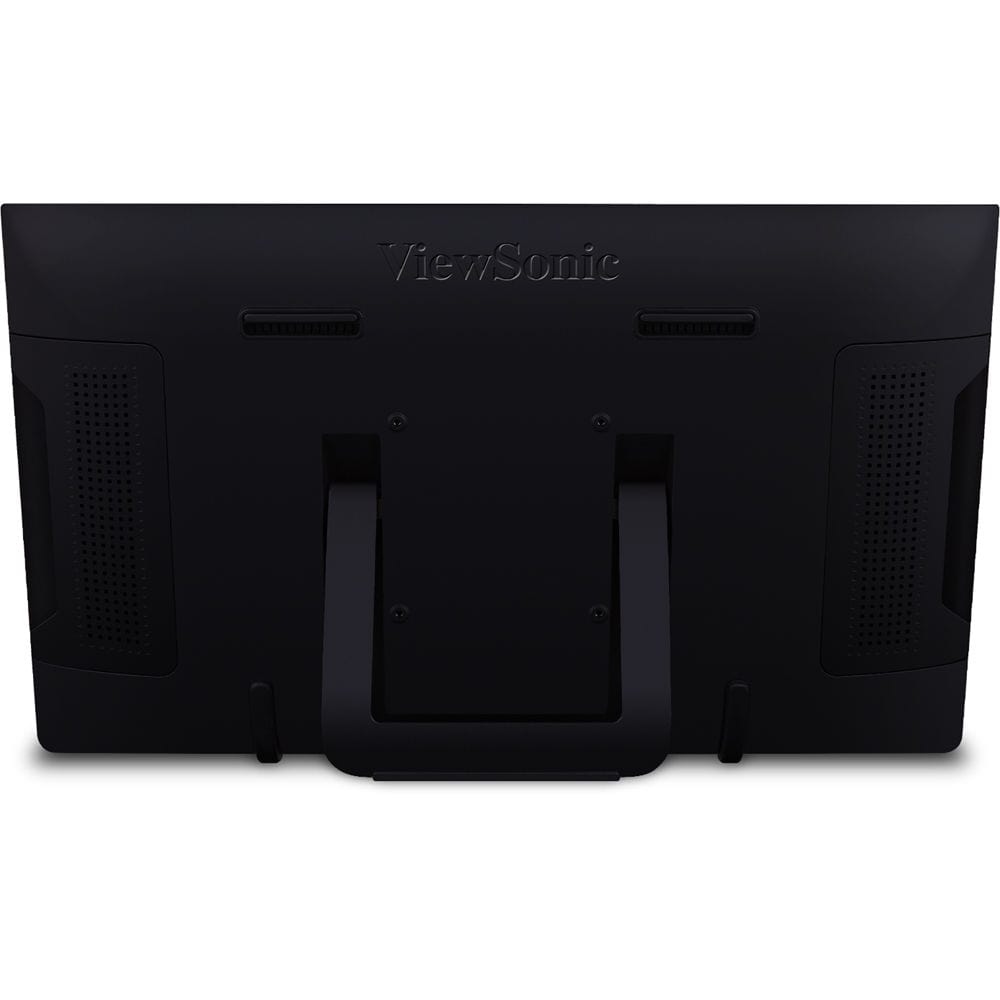

| VESA Compatible: | 100 x 100 mm |
| Video Signal: | |
| Frequency Horizontal: | 24~82kHz |
| Frequency Vertical: | 50~76Hz |
| Video Input: | |
| Analog Sync: | Separate Sync, Composite Sync, Sync on Green, TMDS, PCI-E |
| Ergonomics: | |

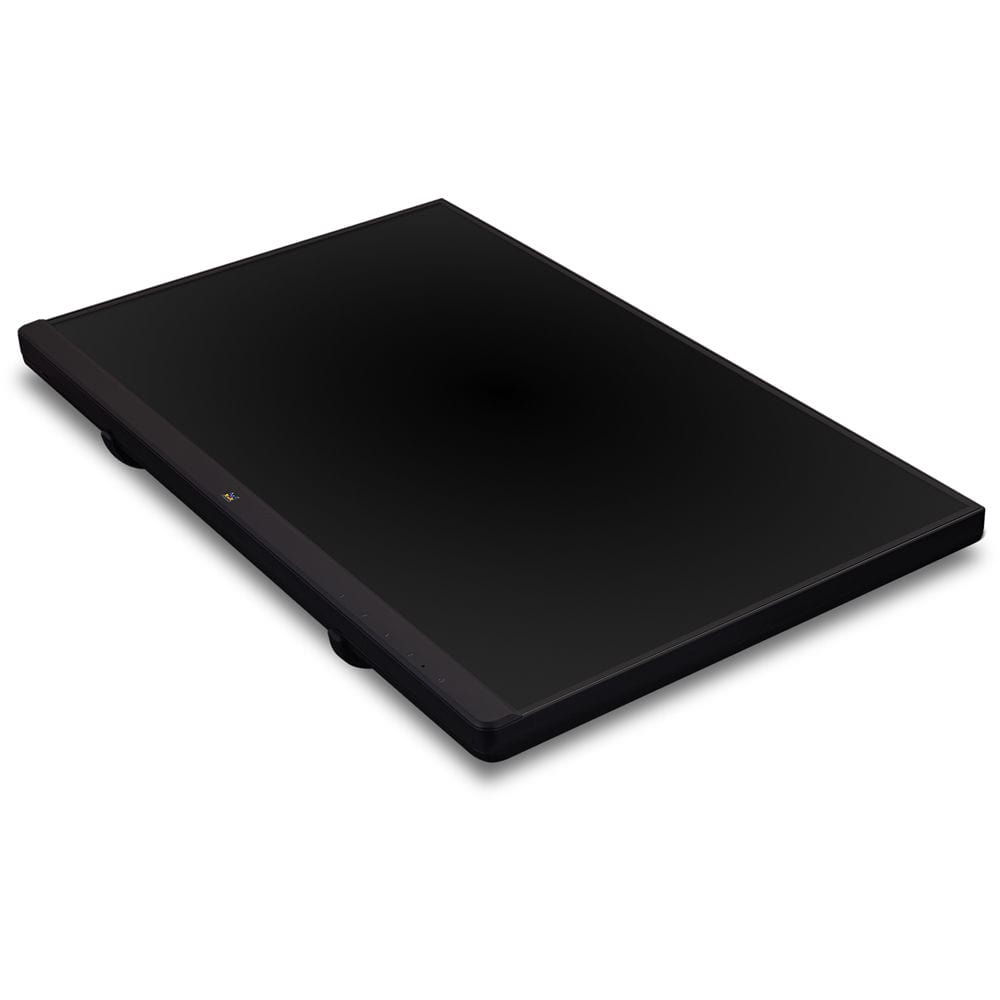

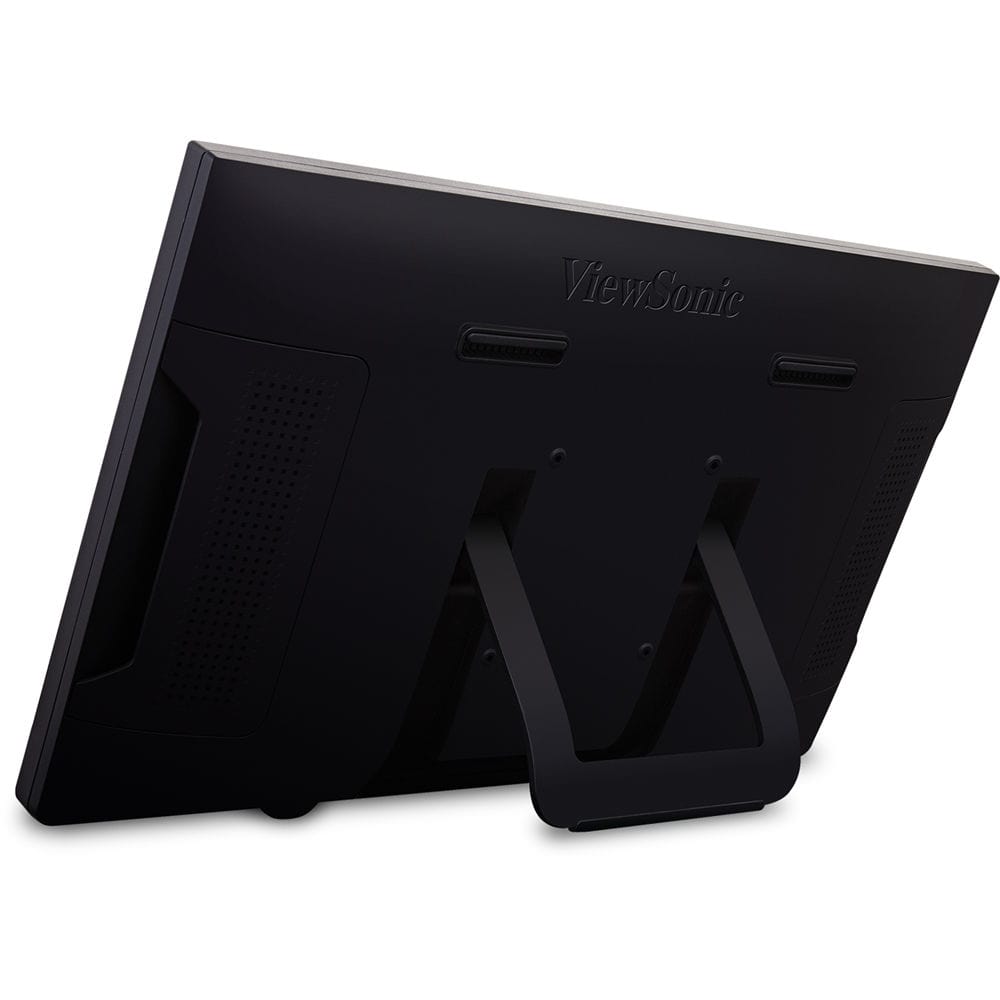

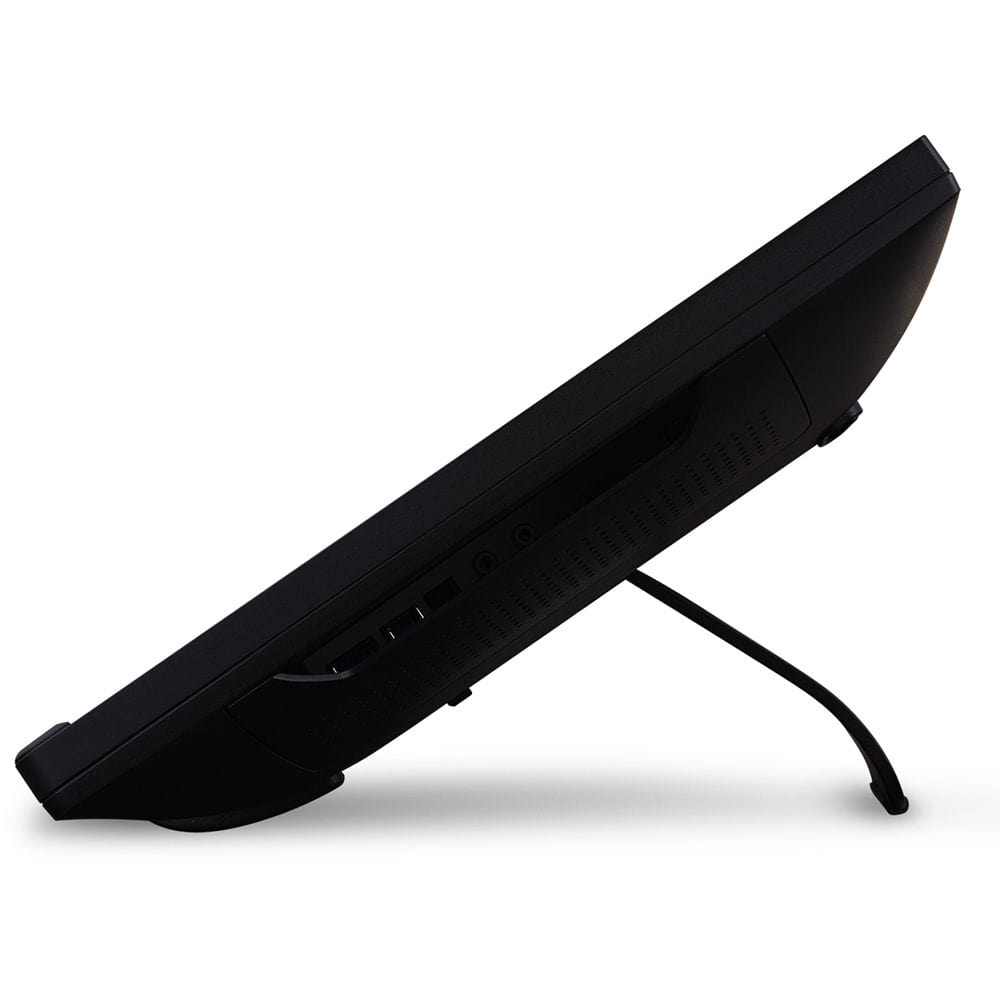

| Tilt (Forward/Back): | 20º~70º, lay flat |
| Weight (imperial): | |
| Net (lbs): | 7.9 |
| Net Without Stand (lbs): | 7.9 |
| Gross (lbs): | 10.4 |
| Weight (metric): | |
| Net (kg): | 3.6 |
| Net Without Stand (kg): | 3.6 |
| Gross (kg): | 4.7 |
| Dimensions (imperial) (WxHxD): | |
| Packaging (in.): | 21.7 x 14.6 x 4.5 |
| Physical (in.): | 19.3 x 11.8 x 5.1 |
| Physical Without Stand (in.): | 19.3 x 11.8 x 1.9 |
| Dimensions (metric) (WxHxD): | |
| Packaging (mm): | 550 x 371 x 114 |
| Physical (mm): | 490.3 x 298.8 x 129.7 |
| Physical Without Stand (mm): | 490.3 x 298.8 x 47.3 |
| General: | |
| Regulations: | cULus, FCC-B w/ICES003, Enery Star 7.0, DOE EPEAT Silver, UL-MX-CoC, Mexico Energy |
| Package Contents: | TD2230 monitor, Power cable, Power adapter, HDMI cable, USB 3.0 cable, Audio cable, Quick Start Guide, ViewSonic Wizard CD |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes. |
| UPC: | 766907842418 |
| Accessories: | CB-00008948, CB-00010555, CB-00010684, CB-00010958, LCD-CABLE-001, LCD-WMK-001, TD-EE-22-03, TD-EEEW-22-01, TD-EEEW-22-02, TD-EW-22-01, TD-EW-22-02, TD-EW-22-03, VSPF2150, cb-00011486 |
