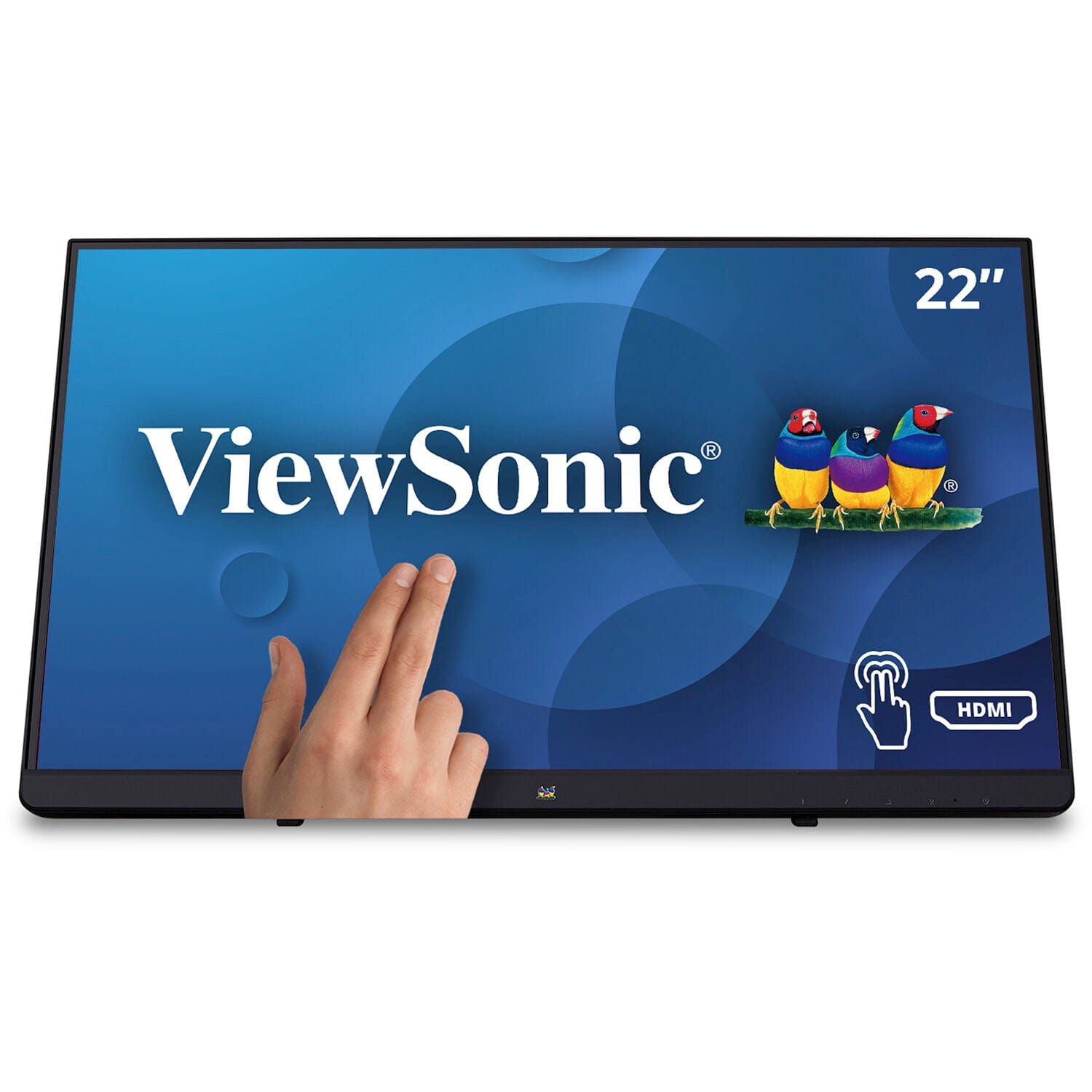

ViewSonic TD2230-S 22" Full HD Multi-Touch Display Monitor - Certified Refurbished
Description

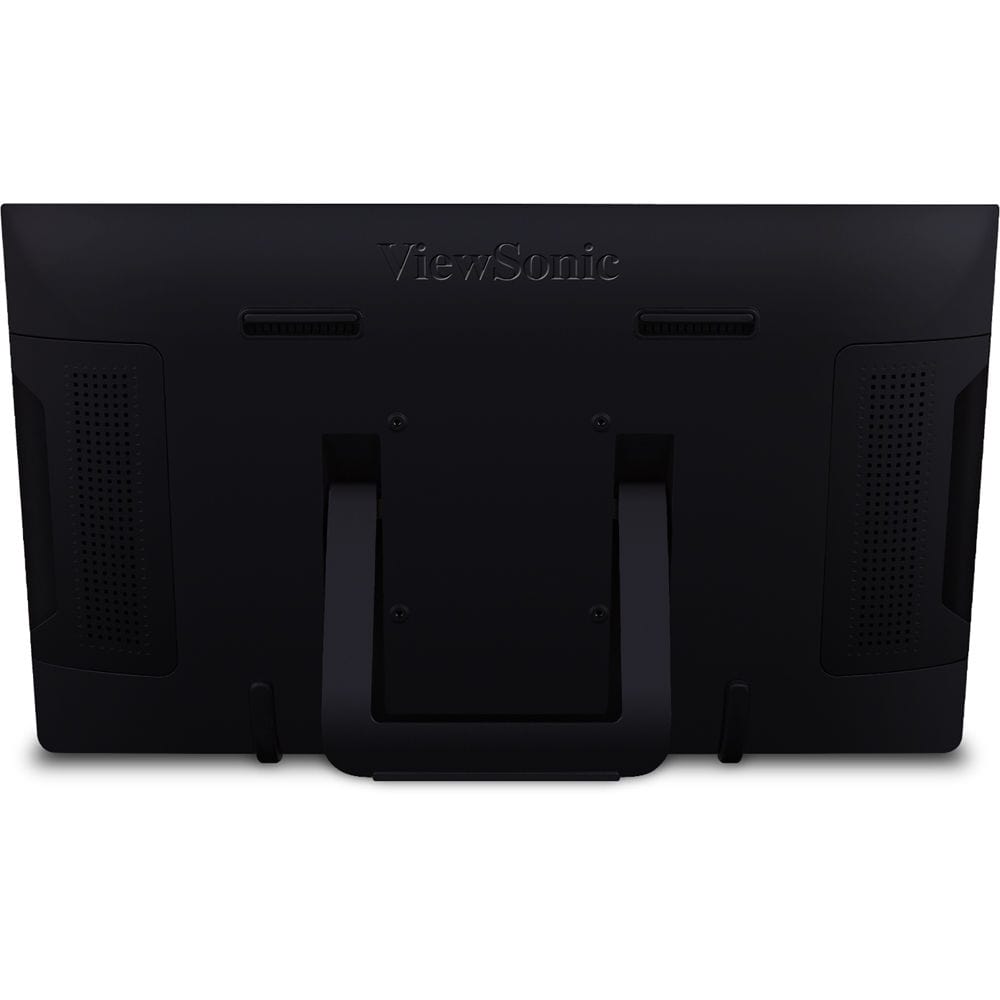

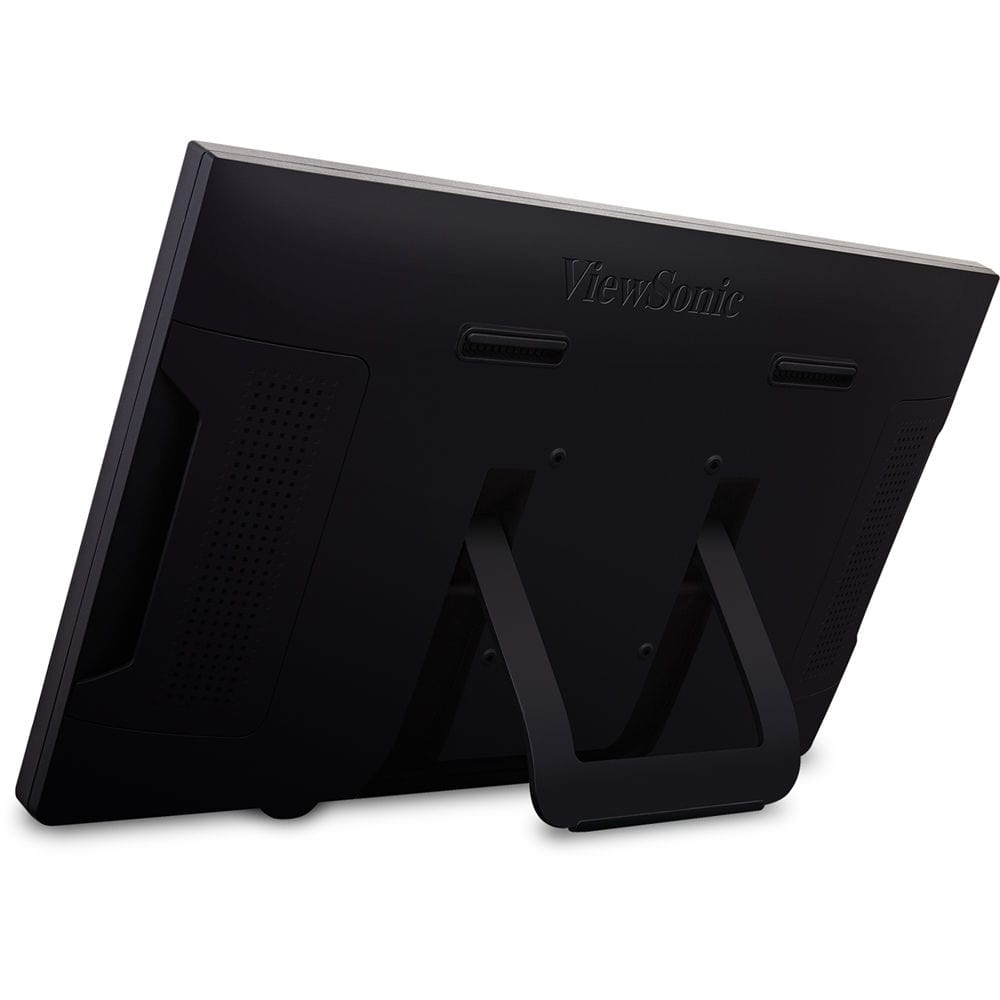

The ViewSonic TD2230 is a 22 inch (21.5 inch viewable) Full HD multi-touch display. With a SuperClear IPS-type panel and 10-point projected capacitive touch technology, this display delivers stunning front-of-screen performance with a responsive and accurate touch experience. Featuring a 7H hardness touch screen, edge-to-edge frameless design, and up to 10 simultaneous touch points, this durable display allows users to tap, swipe, pinch, and zoom with ease – perfect for retail, education, or enterprise. An advanced ergonomic bookstand design provides a full range of motion for the desktop, and a VESA-compatible mount allows for flexible mounting options on a monitor stand or wall. Future-proof connectivity options include HDMI, DisplayPort, and USB 3.0, while VGA is also available for legacy systems. Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions. ViewSonic’s exclusive ViewMode feature provides intuitive presets for optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to minimize eye strain from extended viewing periods. Industry-leading warranty protection and legendary ViewSonic product quality makes this high performance multi-touch display a great long-term investment for all touch applications.Features
- 10-point projected capacitive touch
- SuperClear® IPS panel technology
- Frameless design
- Versatile connectivity
- Durable, scratch-resistant screen
10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate, smooth and ultra-responsive touch experience.
SuperClear IPS-type Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS-type panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

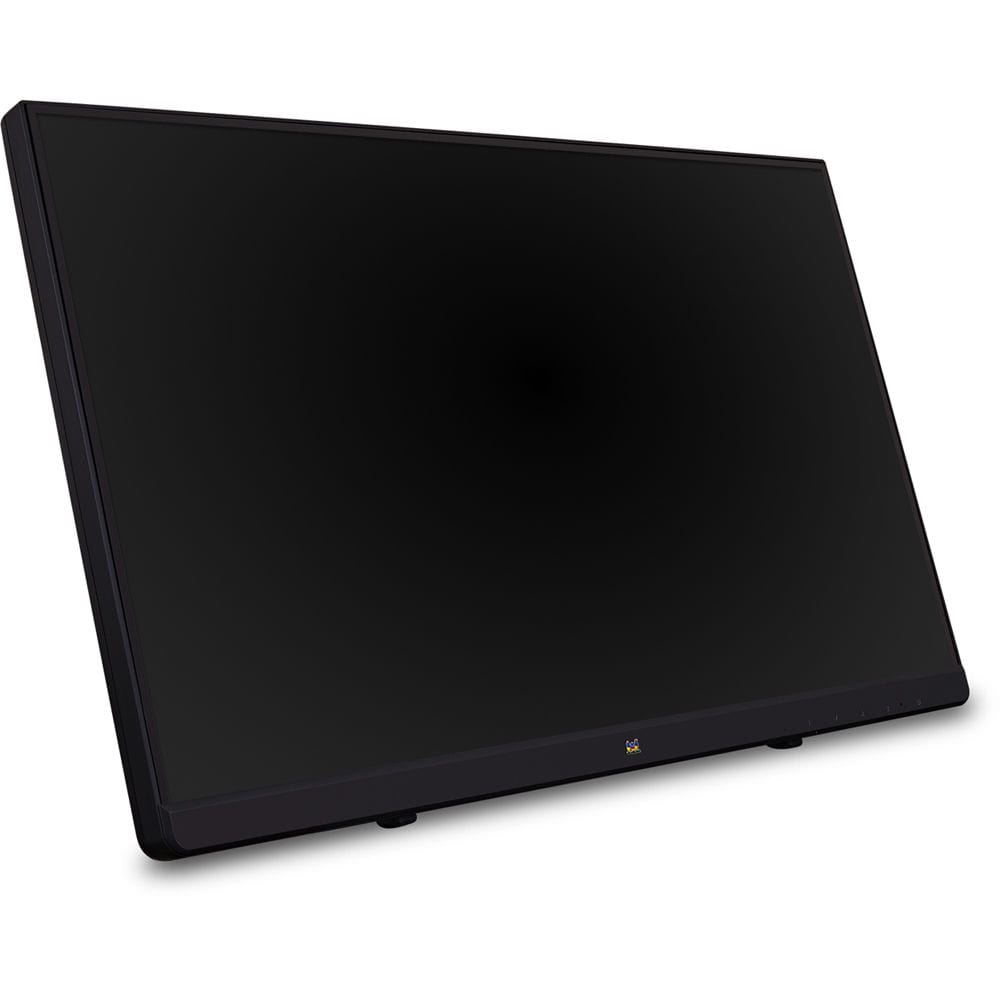

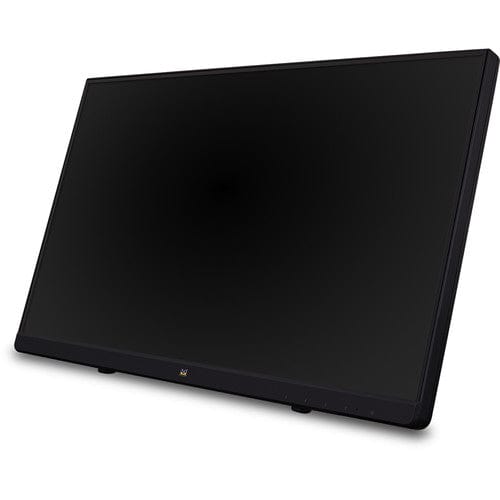

Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features an edge-to-edge design and frameless bezel. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.
Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.
Specifications
Display: | |
Display Size (in.): | 22 |
Viewable Area (in.): | 21.5 |
Panel Type: | IPS |
Resolution: | 1920 x 1080 |
Static Contrast Ratio: | 1,000:1 |
Dynamic Contrast Ratio: | 50,000,000:1 |
Light Source: | LED |
Brightness: | 250 cd/m2 |
Colors: | 16.7M |
Response Time (Typical GTG): | 14ms |
Viewing Angles: | 178º horizontal, 178º vertical |
Backlight Life (Hours): | 30,000 |
Panel Surface: | Anti-glare, Hard coating 7H |
Compatibility: | |
PC Resolution (max): | Up to 1920x1080 non-interlaced |
Mac® Resolution (max): | Up to 1920x1080 |

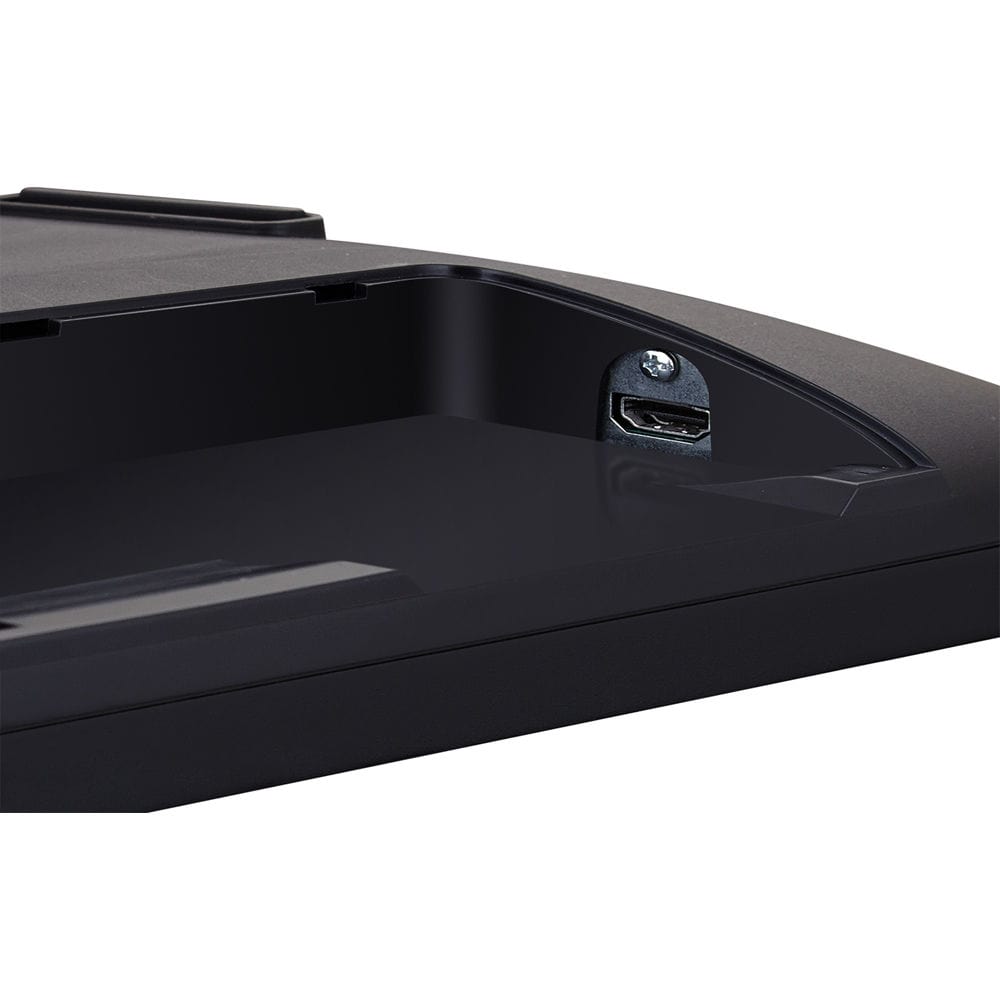

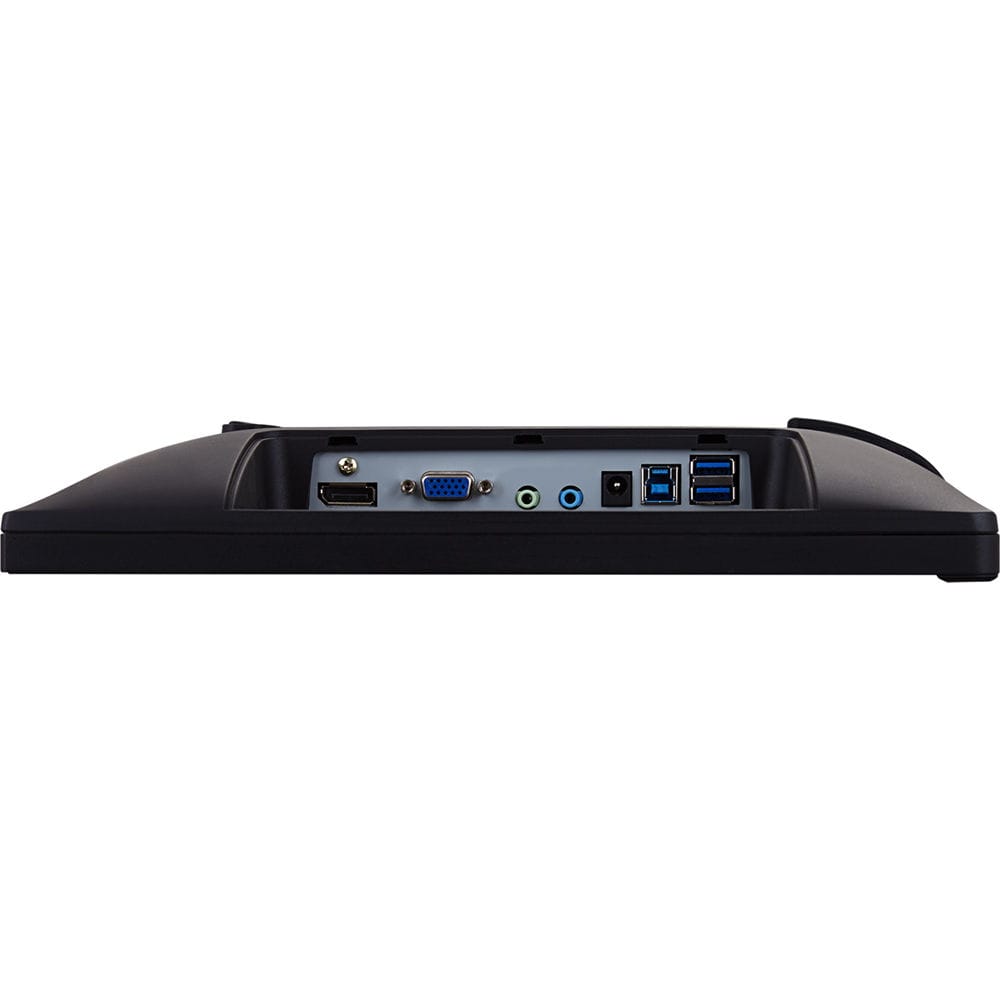

Connector: | USB 3.0 Type A(2), USB 3.0 Type B(1), 3.5mm Audio In(1), 3.5mm Audio Out(1), HDMI(1), VGA(1), Display Port(1), Power in(DC 19V/2.37A) |
Touch: | |
Touch Technology: | Capacitive |
Touch Points: | 10-Point Touch |
Audio: | |
Internal Speakers: | 3W (x2) |
Power: | |
Eco Mode (Conserve): | 16W |
Eco Mode (optimized): | 18W |
Consumption (typical): | 25W |
Consumption (max): | 28W |
Voltage: | AC 100-240V (universal), 50-60Hz |
Controls: | |
Physical Controls: | 1, 2, Down, Up, Power |
On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality) |
Operating Conditions: | |
Temperature: | 32-104º F (0 - 40º C) |
Humidity (non-condensing): | 20-90% |
Mount: | |
VESA Compatible: | 100 x 100 mm |
Video Signal: | |
Frequency Horizontal: | 24~82kHz |
Frequency Vertical: | 50~76Hz |
Video Input: | |
Analog Sync: | Separate Sync, Composite Sync, Sync on Green, TMDS, PCI-E |
Ergonomics: | |

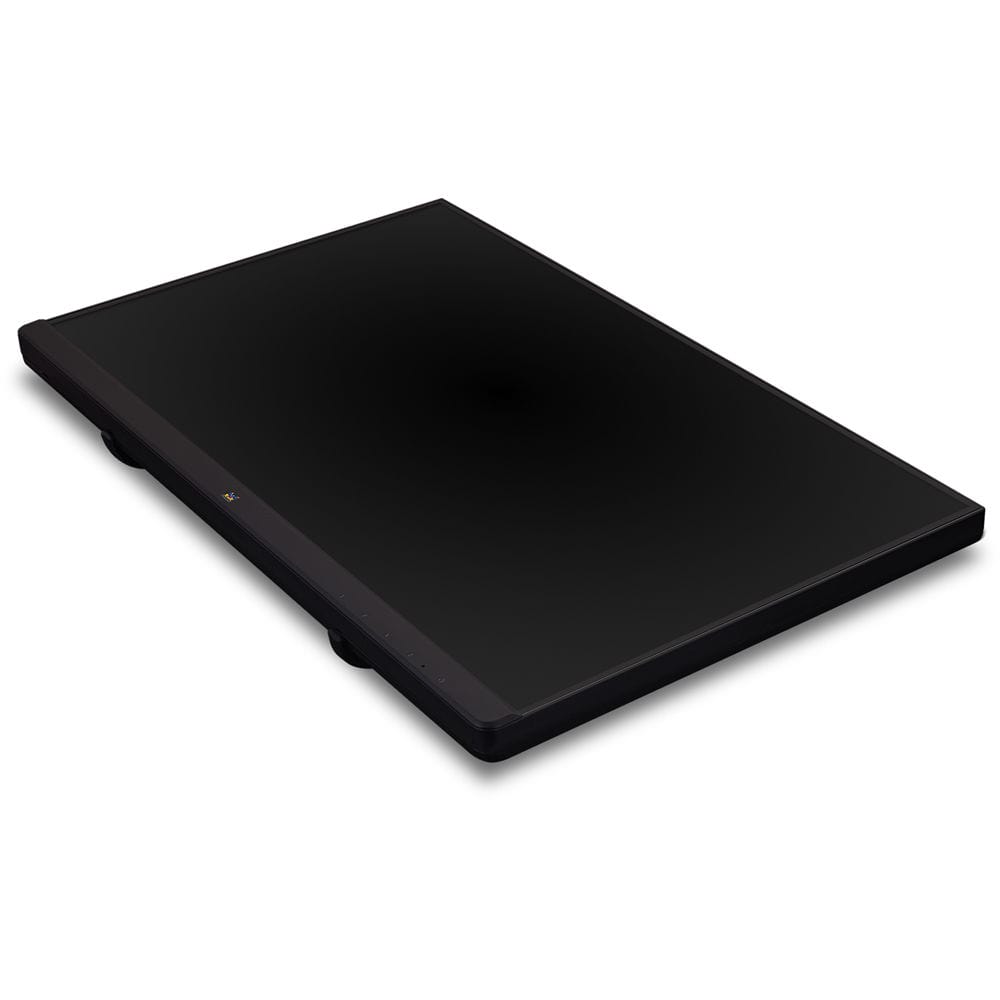

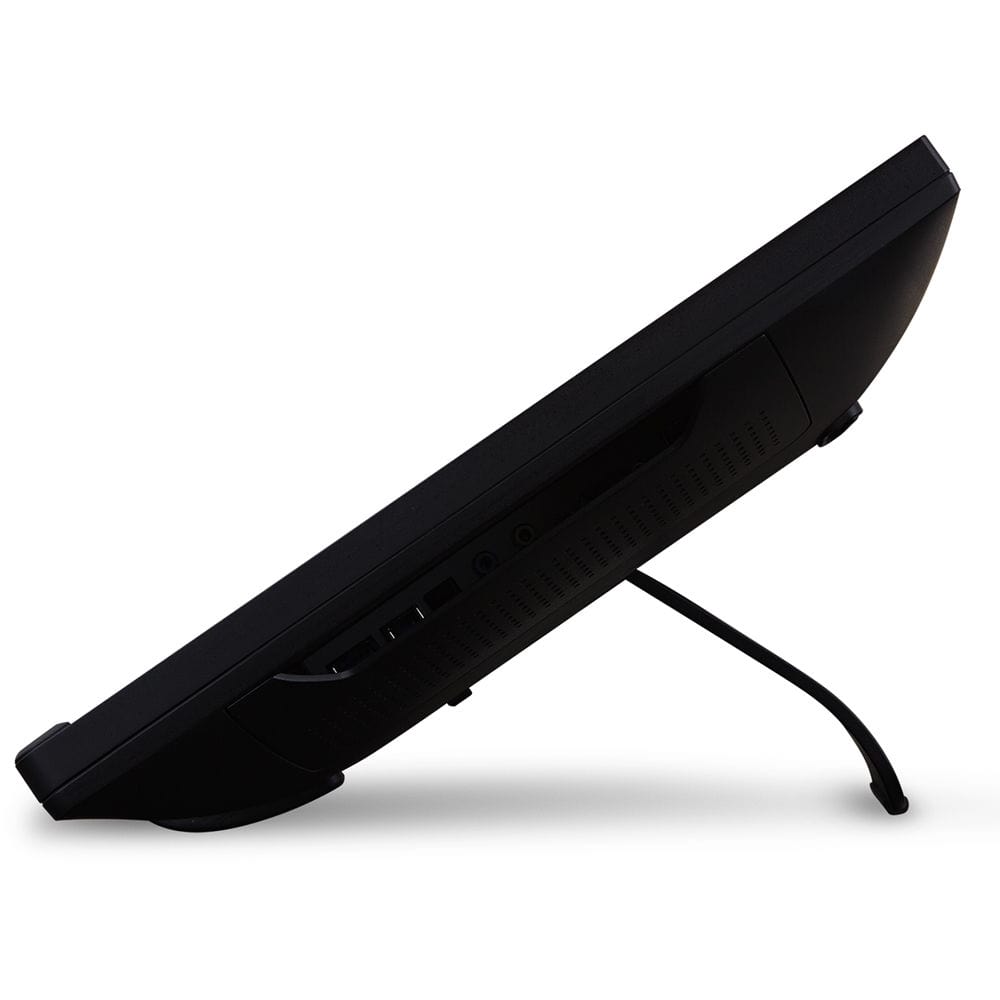

Tilt (Forward/Back): | 20º~70º, lay flat |
Weight (imperial): | |
Net (lbs): | 7.9 |
Net Without Stand (lbs): | 7.9 |
Gross (lbs): | 10.4 |
Weight (metric): | |
Net (kg): | 3.6 |
Net Without Stand (kg): | 3.6 |
Gross (kg): | 4.7 |
Dimensions (imperial) (WxHxD): | |
Packaging (in.): | 21.7 x 14.6 x 4.5 |
Physical (in.): | 19.3 x 11.8 x 5.1 |
Physical Without Stand (in.): | 19.3 x 11.8 x 1.9 |
Dimensions (metric) (WxHxD): | |
Packaging (mm): | 550 x 371 x 114 |
Physical (mm): | 490.3 x 298.8 x 129.7 |
Physical Without Stand (mm): | 490.3 x 298.8 x 47.3 |
General: | |
Regulations: | cULus, FCC-B w/ICES003, Enery Star 7.0, DOE EPEAT Silver, UL-MX-CoC, Mexico Energy |
Package Contents: | TD2230 monitor, Power cable, Power adapter, HDMI cable, USB 3.0 cable, Audio cable, Quick Start Guide, ViewSonic Wizard CD |
Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
Warranty: | Certified Factory Recertified, 90 Day Warranty - Product has minor scratches and/or blemishes. |
UPC: | 766907842418 |
Accessories: | CB-00008948, CB-00010555, CB-00010684, CB-00010958, LCD-CABLE-001, LCD-WMK-001, TD-EE-22-03, TD-EEEW-22-01, TD-EEEW-22-02, TD-EW-22-01, TD-EW-22-02, TD-EW-22-03, VSPF2150, cb-00011486 |
