ViewSonic 23" Widescreen Multi-Touch IPS Monitor Certified Refurbished

ViewSonic TD2340-R 23" Widescreen Multi-Touch IPS Monitor Certified Refurbished

Description

The TD2340 23" Widescreen Multi-Touch IPS Monitor from ViewSonic is a 10-point multi-touch capacitive monitor complete with a 1920 x 1080 resolution and IPS technology. The integrated in-plane switching technology helps to ensure consistent and accurate color from all viewing angles producing clear images with a stable response time. Along with enhanced viewing capabilities found on the TD2340, you also benefit from versatile tilt and swivel capabilities. Reposition this monitor to go from landscape to portrait mode as well as front facing to a table top position for enhanced comfort and ease of use. This capacitive touch screen features a 7H scratch resistant surface for increased durability and touch accuracy.

Features

• 23" Wide Color TFT Active Matrix LED
• Standard: 1,000:1 (typical) Contrast Ratio
• 250 cd/m2 (typical) Brightness
• Anti-glare, hard-coating (7H)
• 1920 x 1080

Capacitive Multi-Touch


Multi-touch refers to the ability of a touch surface to recognize two or more contact points simultaneously. It provides you with a smoother and more accurate touch experience over other touch technologies. Multi-touch allows for direct interaction with electronic devices by using gestures with two or more fingers to zoom in/out, rotation and navigate.


In-Plane-Switching Panel


IPS (In-Plane-Switching) technology is an advanced panel technology providing enhanced performance in LCD displays. The specifications and details of IPS technology are considered best for high accuracy in color, contrast and wide viewing angles. IPS panels offer excellent picture reproduction for photography, graphics design, movie production, CAD/CAM engineering, medical and security applications. With IPS panels, you can avoid color shifts or changes in the contrast ratio when you move the image across the screen or change your viewing angle.


Enhanced Ergonomic Design


The ED2340 is equipped with an enhanced dual hinge design for improved comfort and productivity. You can raise the monitor, rotate it, or lay it flat.


Multi-Touch Monitor Solution


The TD2340's multi-touch interface and Full HD resolution satisfies the needs of both commercial and consumer users. It gives commercial users the ability to create a direct and interactive user experience for their customers. Full HD resolution and high Dynamic Contrast Ratio delivers ultra high image quality and color accuracy. Scratch resistant 7H surface hardness ensures the TD2340 can withstand heavy usage in high traffic environments. For consumers, the TD2340 delivers seamless compatibility with Windows 8 and its touch functionality.


Eco-Mode

ViewSonic's proprietary Eco-mode lets you select one of the "Optimize" or "Conserve" options and save up to 40% on energy costs.


VESA Mountable


The TD2340 features a 100 x 100 mm VESA mountable design that allows you to mount it on a monitor stand or on a wall. You can detach the base easily by removing four screws and then mounting the display on its new stand or wall mount.

Specifications

Display
Type	23" Wide Color TFT Active Matrix LED
Display Area	20.0" horizontal x 11.3" vertical; 23.0" diagonal
Optimum Resolution	1920 x 1080
Contrast Ratio	Dynamic: 20,000,000:1
	Standard: 1,000:1 (typical)
Viewing Angles	Horizontal: 178°
	Vertical: 178°
Response Time	7ms
Light Source	White-light LED
Brightness	250 cd/m² (typical)
Panel Surface	Anti-glare, hard-coating (7H)
Video Input
Analog/Digital	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
	HDMI (TMDS, 100 ohms)
	DisplayPort (PCI-E)
Frequency	Fh: 24~83kHz, Fv: 50~76Hz
Sync	Separate Sync
Compatibility
PC	PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)
Mac	Power Mac (up to 1920 x 1080)

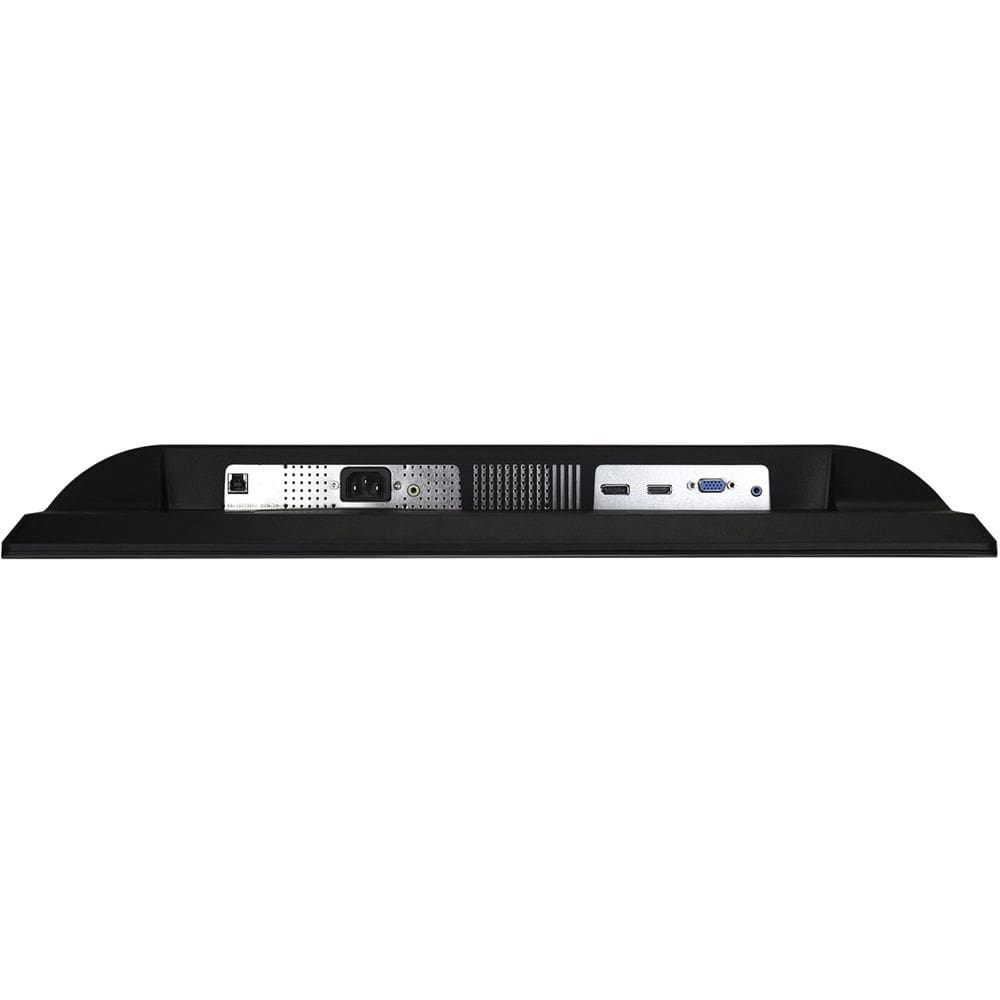

Connectors
Analog/Digital	15-pin mini D-sub (VGA)
	HDMI (v1.4), DisplayPort
USB	2 x USB Ports
Power	Internal power board, 3-pin plug (CEE22)
Audio
Speakers	Audio In (3.5mm mini-jack)
	Earphone Out (3.5mm mini-jack)
Other Specifications
Power Requirements	Voltage: AC 100-240V (universal), 50 / 60Hz
	Consumption: w/o audio 22W (typ.) / w/ audio 45W (typ.)
	Eco Mode: 23W (typ.)
	Power Save Mode: 18.5W (typ.)
Controls	Basic: 1, 2, Down, Up, Power
	OSD: Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, HDMI, DisplayPort), Audio Adjust (Volume, Mute), Color Adjust (sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B]), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Eco-mode), Setup Menu (Language Select, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Power Indicator), Memory Recall
Environmental Requirements	Operating Temperature: 32-104ºF (0-40º C)
	Humidity: 20-90% (non-condensing)
Tilt	50º~-5º
VESA Compatibility	100 x 100 mm
Regulations	CE, CB, BSMI, PSB, SASO, C-tick, SASO, KC, UL/cUL, FCC-B (including ICES003), Mexico Energy, GOST-R, UkrSEPRO + DoC, TCO 5.2, Erp, CCC, CEL Level1, ENERGY STAR, EPEAT Gold, WEEE, RoHS, REACH SVHC list & DoC, Windows 7 / Windows 8
Certifications	ENERGY STAR standards
	EPEAT Gold
Dimensions	With Stand: 22.7 x 17.9 x 12.8" / 576.6 x 453.8 x 324.5 mm
	Without Stand: 22.7 x 17.9 x 2.6" / 576.6 x 453.8 x 66.5 mm
Weight	With Stand: 20.4 lb / 9.2 kg
	Without Stand: 14.5 lb / 6.6 kg

Packaging Info

Package Weight26.2 lbBox Dimensions (LxWxH)26.4 x 20.3 x 9.5"
